PATROL GU 4.2L TDI (1999-2014) SMARTSTART UNDER BONNET DUAL BATTERY COMPLETE PACKAGE

PATROL GU 4.2L TDI (1999-2014) SMARTSTART UNDER BONNET DUAL BATTERY COMPLETE PACKAGE

DBUB-PATROLGU4.2LTDISSPK

$812.50
$812.50
Sale Sold out
Tax included. Shipping calculated at checkout.
 This Package Includes:
1 x DELKOR M27 MARINE & LEASURE BATTERY
1 x PROJECTA HDBT152 BATTERY TRAY
1 x REDARC SMART START SBI12
3 Meters 25SQ SINGLE CORE RED CABLE
2 Meters 25SQ SINGLE CORE BLACK CABLE
6 Meters 8MM TWINCORE CABLE
1 x MIDI FUSE HOLDERS
1 x 100A MIDI FUSE
2 x 10-6mm CABLE LUGS
4 x 25-8mm CABLE LUGS
4 x 25-10mm CABLE LUGS
1 x DUAL BATTERY ZIP TIE AND HEATSHRINK PACK



Suits: Patrol GU TD42 4.2 Litre & 3 Litre TDI
Models: Auto/Manual
Years: 1999-2014
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70

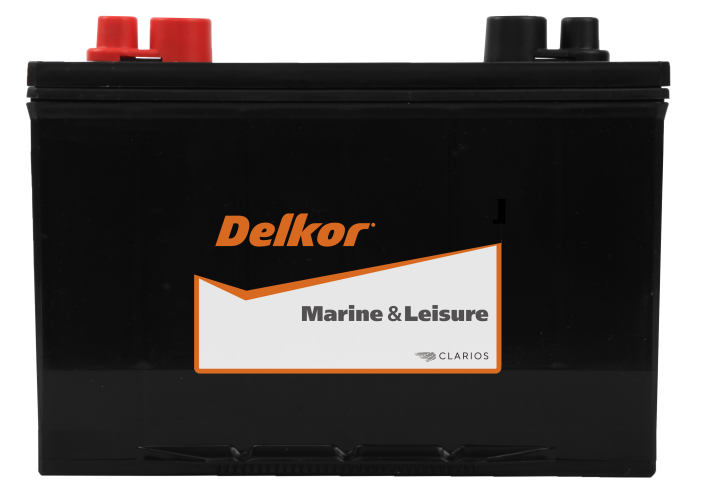

DELKOR M27 MARINE & LEISURE

Perfect for recreational vehicles and dual battery systems. Perfect for the well-deserved leisure time you've been waiting for.

Key Benefits

  • Convenient maintenance-free battery, no topping up of fluid required
  • Reliable electrical performance with wrought grid plates
  • Added strength and vibration resistance with anchor bonding
  • Increased durability with high-strength polypropylene case
  • Enhanced safety with heat-sealed covers and built-in spark arrestor
  • Ideal for dual-power applications

MODEL   M27
CCA 680
AH(20HR)  97
LENGTH  305
WIDTH  172
HEIGHT  225
VOLTAGE 12v
GROUP SIZE GP27


REDARC SMART START SBI12

The REDARC Smart Start® SBI2 is a microprocessor-controlled battery isolator used in dual battery systems as a solenoid priority system. It will protect the start battery from excessive discharge, whilst allowing the auxiliary battery to supply non-essential loads. The SBI2 provides 12 volt DC incorporating 100A of continuous ratings.

POWER SAVING TECHNOLOGY

The battery isolator is primarily used in 4WD and commercial vehicles and incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.
The Smart Start SBI12 battery isolator is a safe way to charge a dual battery system


FEATURES

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected
MAX. INRUSH CURRENT 400A
MAX. CONTINOUS CURRENT 100A
TURN ON VOLTAGE 13.2V
TURN OFF VOLTAGE 12.7V
TURN ON DELAY 5 seconds
TURN OFF DELAY 10 seconds
STANDBY CURRENT <5mA
WEIGHT 200 g
HEIGHT 70mm
WIDTH 75mm
DEPTH | LENGTH 80mm
WARRANTY 2 Years
SYSTEM VOLTAGE 12V
OUTPUT VOLTAGE 12V DC
INPUT FUSE RATING 100A
OUTPUT FUSE RATING 100A

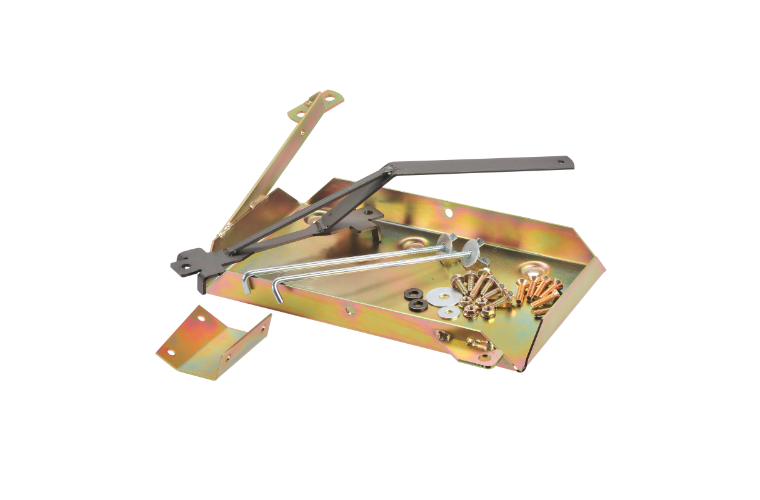

PROJECTA HEAVY-DUTY DUAL BATTERY TRAY (HDBT152)

Projecta latest heavy-duty battery trays provide the ideal solution when mounting an auxiliary battery into a vehicle engine bay. The range has been engineered to fit specific vehicle types meaning the battery trays can be installed without the inconvenience of having to modify the battery tray or parts of the vehicle.
