VICTRON ENERGY

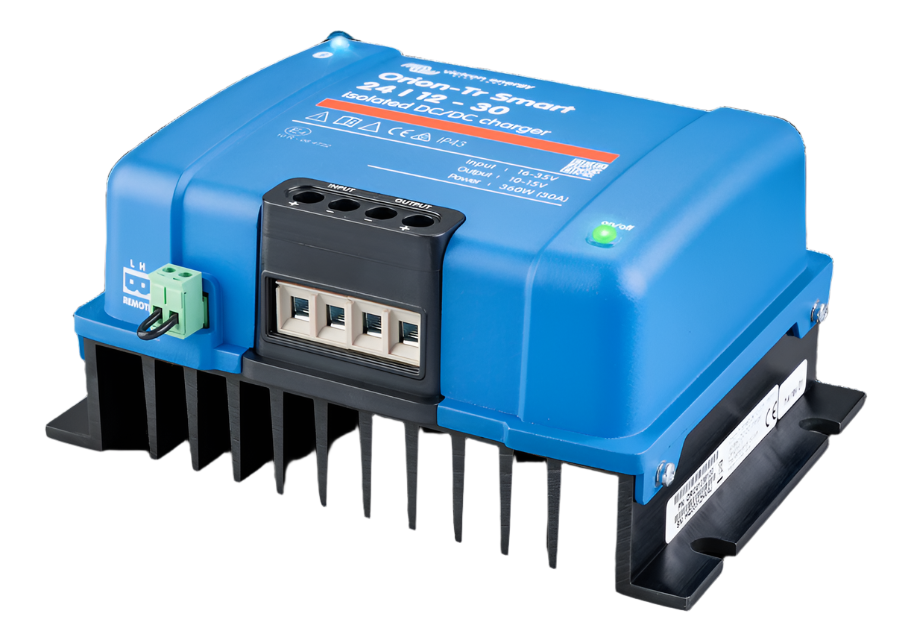

ORION-TR SMART 24V TO 12V-30A (360W) ISOLATED DC-DC CHARGER

ORION-TR SMART 24V TO 12V-30A (360W) ISOLATED DC-DC CHARGER

SKU:ORI241236120

Regular price $377.50
Regular price Sale price $377.50
Sale Sold out
Tax included. Shipping calculated at checkout.

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or as a power supply (it is also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Bluetooth Smart enabled

• Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

• For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

The built-in engine shutdown detection will stop the converter when the engine is not running.
This prevents unwanted discharge of the starter battery (see manual for details).

Remote on/off

A remote on/off switch or relay contact can be connected to a two-pole connector.
Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

High temperature protected

The output current will reduce at high ambient temperature.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input fuse (not replaceable)

Input voltage range 20-35 V
Under voltage shut down 14 V
Under voltage restart 15 V
Nominal output voltage 12.2 V
Output voltage adjust range 10-15 V
Cont. output current at nominal output
voltage and 40 °C
30 A
Short circuit output current 60 A
Cont. output power at 25 °C 430 W
Cont. output power at 40 °C 360 W
Efficiency 88 %
Can be used as power supply Yes, output voltage can be set with Bluetooth
Operating temperature range -20 to +55 °C (derate 3 % per °C above 40 °C)
DC connection Screw terminals
Maximum cable cross-section 16 mm² (6 AWG, 6 B&S)
Weight 1.8 kg
Dimensions hxwxd 130 x 186 x 80 mm
Protection category IP43 (electronic components), IP22 (connection area)
