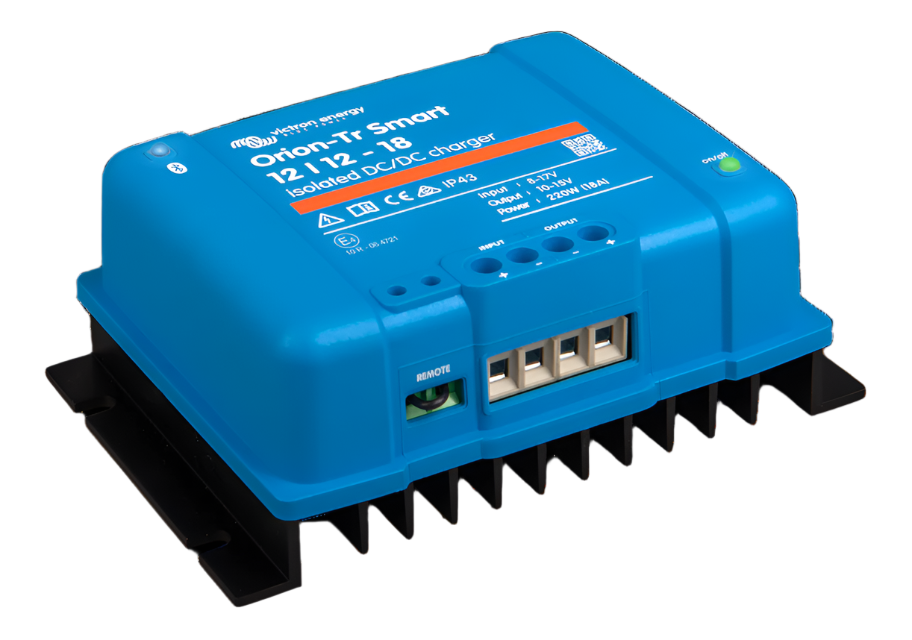

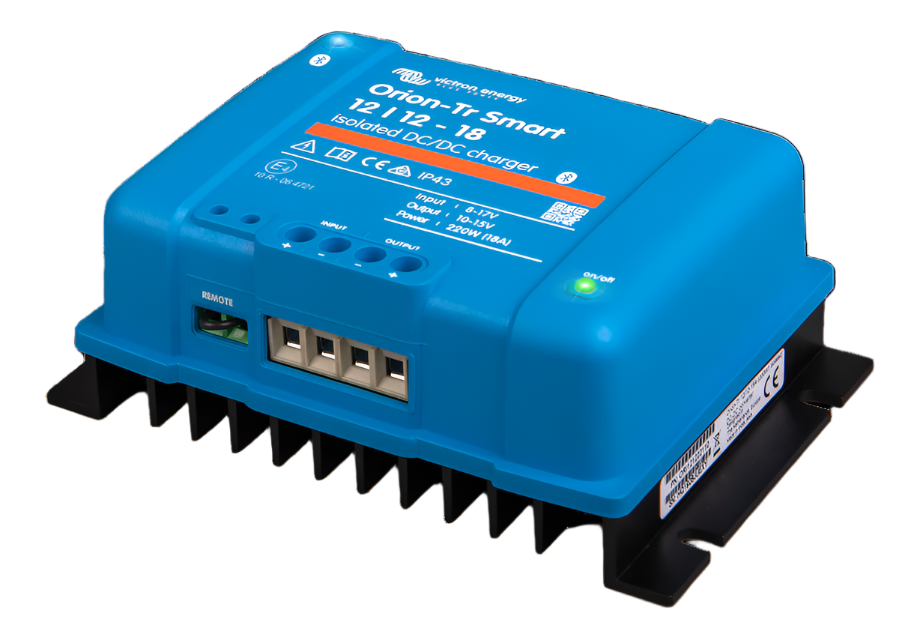

ORION-TR SMART 12V TO 12V-18A (220W) ISOLATED DC-DC CHARGER
ORION-TR SMART 12V TO 12V-18A (220W) ISOLATED DC-DC CHARGER
SKU:ORI121222120
The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or as a power supply (it is also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.
Bluetooth Smart enabled
• Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
Fully programmable
• Battery charge algorithm (configurable) or fixed output.
• Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
• For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.
Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)
The built-in engine shutdown detection will stop the converter when the engine is not running.
This prevents unwanted discharge of the starter battery (see manual for details).
Remote on/off
A remote on/off switch or relay contact can be connected to a two-pole connector.
Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
Input voltage range | 10-17 V |
Under voltage shut down | 7 V |
Under voltage restart | 7.5 V |
Nominal output voltage | 12.2 V |
Output voltage adjust range | 10-15 V |
Cont. output current at nominal output voltage and 40 °C |
18 A |
Short circuit output current | 40 A |
Cont. output power at 25 °C | 280 W |
Cont. output power at 40 °C | 220 W |
Efficiency | 87 % |
Can be used as power supply | Yes, output voltage can be set with Bluetooth |
Operating temperature range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
DC connection | Screw terminals |
Maximum cable cross-section | 16 mm² (6 AWG, 6 B&S) |
Weight | 1,3 kg |
Dimensions hxwxd | 130 x 186 x 70 mm |
Protection category | IP43 (electronic components), IP22 (connection area) |
