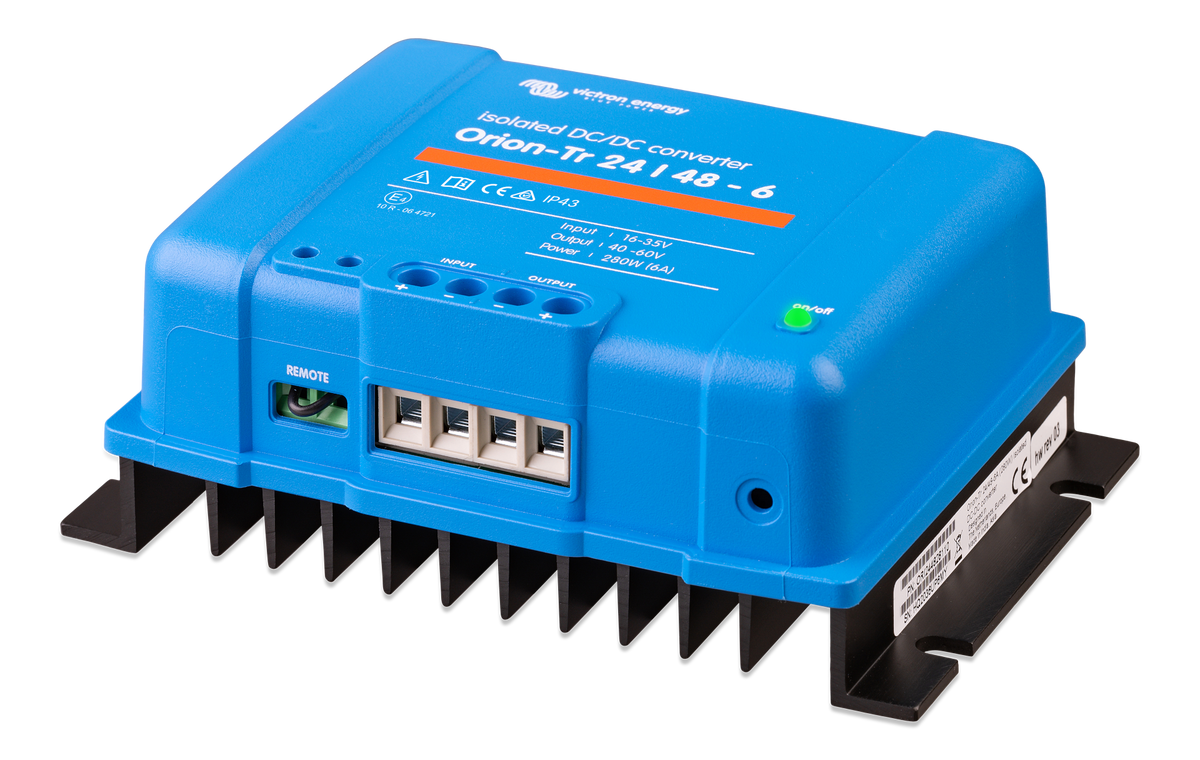

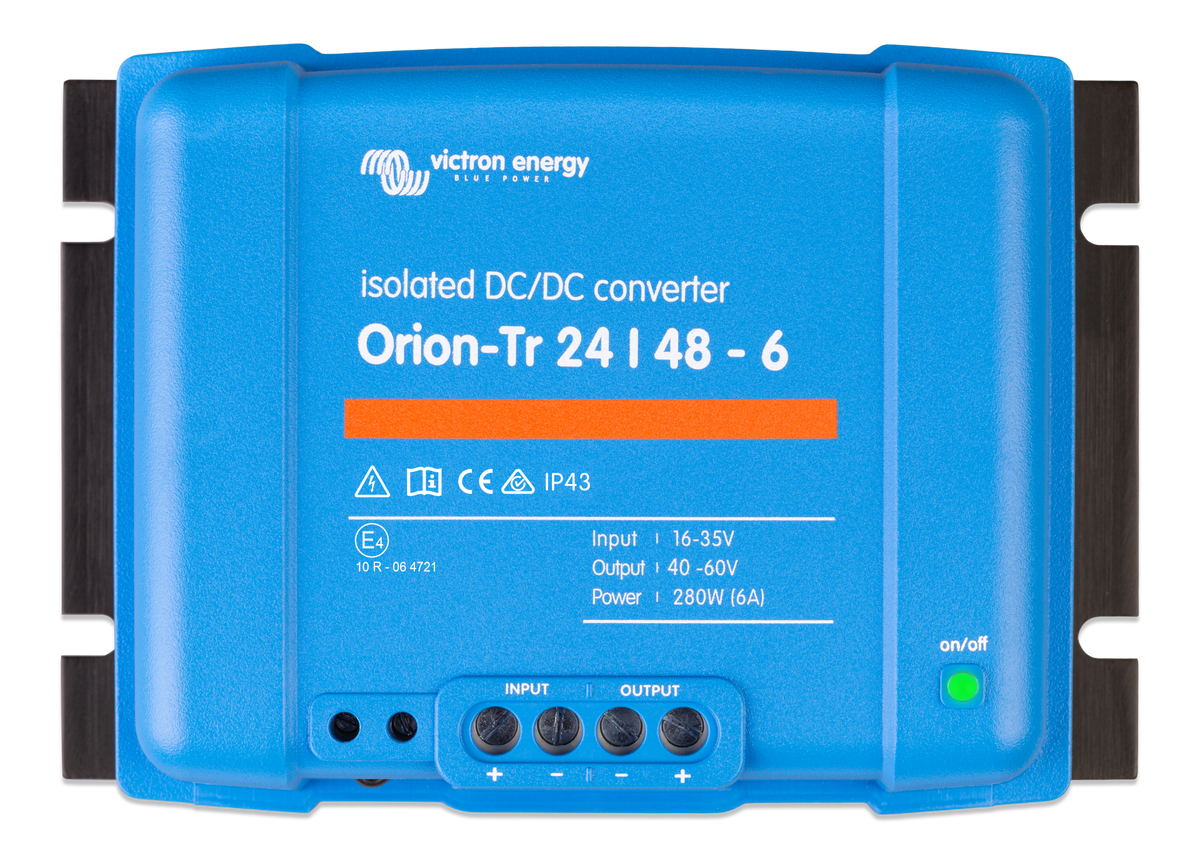

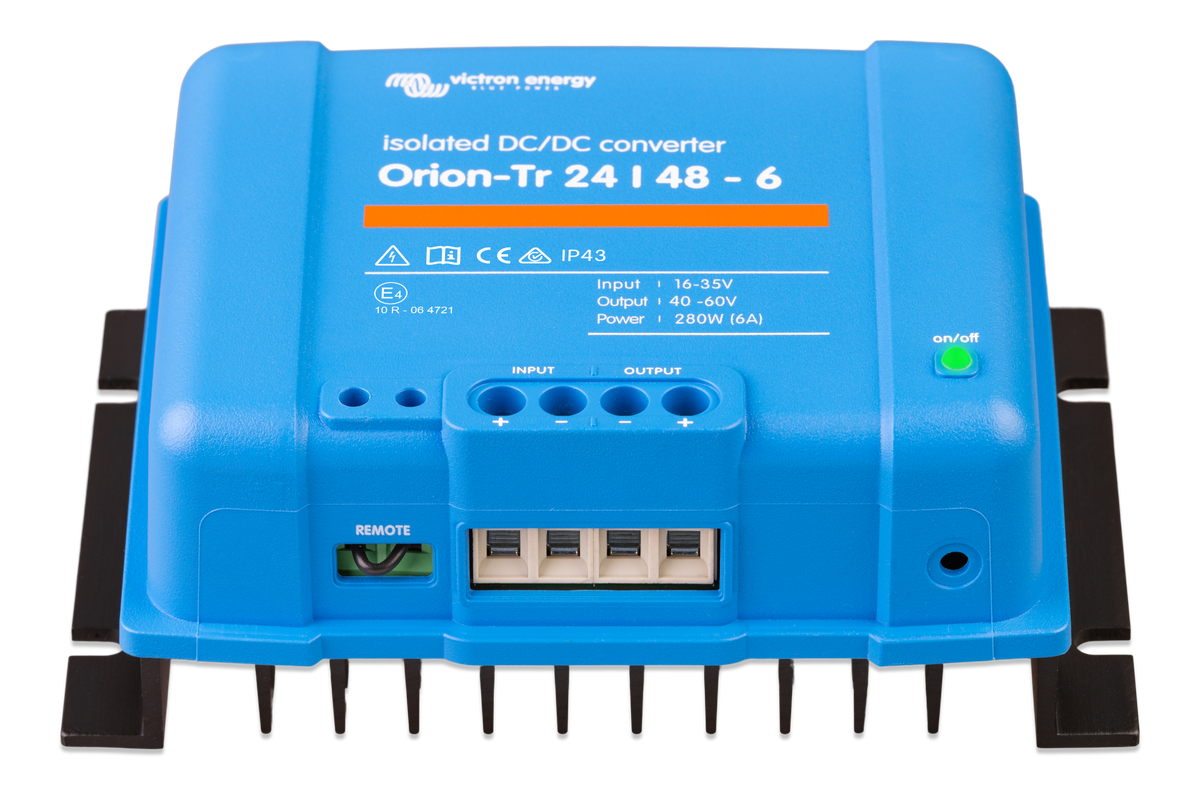

Orion-Tr 24V to 48V-6A 280W Isolated DC-DC Converter

⚡ ORION-TR 24V TO 48V-6A (280W) ISOLATED DC-DC CONVERTER

24V to 48V Isolated DC-DC Converter – Adjustable 40–60V Output, 6A Continuous Current, Remote On/Off, Short-Circuit Protection & IP43

⚡ The Orion-Tr 24V to 48V-6A Isolated DC-DC Converter is designed to step up a compatible nominal 24V DC supply to a regulated 48V-class output while maintaining galvanic isolation between the input, output and case.

Accepting an input voltage from 16V to 35V DC, the converter provides a nominal 48.2V output that can be adjusted between 40V and 60V. It delivers 6A continuous output current at nominal output voltage and 40°C, with a maximum output of 8A for up to 10 seconds.

The converter provides 200V DC galvanic isolation between input, output and case, making it suitable for compatible electrical systems where isolation between the 24V source and higher-voltage output circuit is required.

Built-in short-circuit protection, high-temperature protection, remote on/off control, adjustable output voltage and parallel capability provide flexibility for compatible vehicle, marine, industrial, communications and auxiliary electrical applications.

⚠️ IMPORTANT: Although the output voltage is adjustable, the supplied product information specifically states that this model is not intended for battery charging. Consider an appropriate Orion-Tr Smart or dedicated charger where battery charging is required.

---

⚡ KEY FEATURES

🔌 24V to 48V DC Step-Up Conversion
Designed to provide a regulated 48V-class DC supply from a compatible nominal 24V electrical system.

🛡️ 200V DC Galvanic Isolation
Provides electrical isolation between the input, output and case according to the supplied specification.

🎛️ Adjustable 40–60V Output
Allows the output voltage to be adjusted for compatible equipment requiring a supply within the 40V to 60V range.

⚡ 6A Continuous Output at 40°C
Provides 6A continuous output current at nominal output voltage and 40°C.

🚀 8A Maximum Output for 10 Seconds
Provides additional short-duration current capability for compatible transient loads.

🔋 320W Continuous Output at 25°C
The supplied technical specification lists 320W continuous output power at 25°C.

🌡️ 280W Continuous Output at 40°C
The supplied output-power rating reduces to 280W at 40°C.

🎛️ Remote On/Off Terminal
Allows the converter to be controlled with a low-power switch or compatible engine run/stop signal without switching the full input current.

🛡️ Short-Circuit Proof
The supplied product information states that Orion-Tr models are short-circuit proof.

🔥 High-Temperature Protection
Output current automatically reduces as ambient temperature increases.

🔗 Parallel Capability
Compatible units can be connected in parallel to increase total available output current.

🛡️ IP43 Protection
Provides IP43 ingress protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Straightforward screw terminals allow installation without proprietary connector systems.

🔌 Up to 16mm² / AWG6 Cable
Supports a maximum cable cross-section of 16mm² / AWG6.

⚡ Integrated Input Fuse
This 24V-input model includes an internal input fuse. The supplied information states that the fuse is not replaceable.

📉 Very Low Disabled Consumption
Current consumption is listed at less than 200µA when the converter is disabled through its remote port.

---

🔌 STEP UP 24V DC TO 48V-CLASS POWER

The Orion-Tr is designed for electrical systems where a nominal 24V DC source must operate equipment requiring a higher 48V-class DC supply.

Input voltage range: 16V–35V DC

Nominal output voltage: 48.2V DC

Adjustable output range: 40V–60V DC

This allows compatible higher-voltage equipment to operate from an appropriate 24V source while maintaining galvanic isolation between the input and output circuits.

⚠️ IMPORTANT: Confirm the exact voltage requirement of connected equipment before setting the converter output. Incorrect output voltage can damage connected electrical equipment.

---

🎛️ ADJUSTABLE 40–60V OUTPUT

Nominal output voltage: 48.2V DC

Output-voltage adjustment range: 40V–60V DC

Output-voltage tolerance: ±0.2V

The adjustable output allows the converter to be configured for compatible electrical equipment requiring a specific DC supply within this range.

⚠️ IMPORTANT: Measure and verify the converter output voltage before connecting sensitive equipment.

---

🛡️ GALVANICALLY ISOLATED INPUT & OUTPUT

Supplied galvanic isolation:

200V DC between input, output and case

This electrically separates the 24V input-side circuit from the higher-voltage output-side circuit rather than sharing a direct common electrical path.

Galvanic isolation can be useful in compatible marine, vehicle, communications and industrial systems where electrical separation or independent circuit referencing is required.

⚠️ IMPORTANT: Confirm that the supplied 200V DC isolation specification is appropriate for your complete electrical-system design.

---

⚡ 6A CONTINUOUS OUTPUT AT 40°C

Continuous output current at nominal output voltage and 40°C:

6A

Maximum output current at nominal output voltage:

8A for 10 seconds

Short-circuit output current:

25A

The 6A continuous-current specification should be used when determining sustained output loads at the stated 40°C condition.

⚠️ IMPORTANT: The 8A figure applies for a maximum of 10 seconds and must not be treated as a continuous-current rating.

⚠️ IMPORTANT: The 25A short-circuit current is a protection-related specification and is not an allowable appliance-load rating.

---

🔋 OUTPUT POWER & TEMPERATURE

Continuous output power at 25°C:

320W

Continuous output power at 40°C:

280W

The supplied specification also states that the converter should be derated by 3% per °C above 40°C.

This means available output power continues to reduce as ambient temperature rises above 40°C.

⚠️ PRODUCT RATING NOTE: The product designation includes “280W”, while the supplied technical specification lists 320W continuous output at 25°C and 280W continuous output at 40°C. Both figures have been retained exactly as supplied.

---

🌡️ 3% PER °C DERATING ABOVE 40°C

The supplied operating information specifies:

Operating range: -20°C to +55°C

Derating above 40°C: 3% per °C

This thermal derating is important when the converter is installed in a warm vehicle compartment, electrical enclosure, machinery space or other location where ambient temperature may regularly exceed 40°C.

⚠️ IMPORTANT: Do not design an installation around the 25°C output-power figure if the converter will normally operate at significantly higher ambient temperatures.

---

🔥 HIGH-TEMPERATURE PROTECTION

The Orion-Tr incorporates high-temperature protection.

At elevated ambient temperatures, output current automatically reduces to help protect the converter.

This means available output can be lower than the nominal specification in hot operating environments.

⚠️ IMPORTANT: Provide appropriate space for heat dissipation and avoid mounting the converter adjacent to exhaust components, engines, heaters or other major heat sources.

---

🎛️ REMOTE ON/OFF TERMINAL

The Orion-Tr includes a remote on/off terminal.

This allows the converter to be switched without installing a high-current switch directly into the main input wiring.

The remote on/off may be controlled using a suitable low-power switch or, where appropriate, a compatible engine run/stop signal.

Current consumption when disabled via the remote port:

<200µA

This very low disabled-current consumption can be useful in battery-powered installations where the converter may remain switched off for extended periods.

⚠️ IMPORTANT: Follow the applicable manufacturer wiring instructions when connecting the remote on/off terminal or integrating it with an engine run/stop circuit.

---

⚡ UNDER-VOLTAGE SHUTDOWN & RESTART

Under-voltage shutdown:

14V

Under-voltage restart:

15V

The converter is designed to stop operating when input voltage falls below the supplied shutdown threshold and restart once sufficient input voltage returns.

---

🛡️ SHORT-CIRCUIT PROOF

The supplied product information states that Orion-Tr models are short-circuit proof.

This provides built-in protection against output short-circuit conditions within the converter's designed operating limits.

⚠️ IMPORTANT: Internal short-circuit protection does not replace correctly sized external fuses or circuit breakers required to protect the installation wiring and connected equipment.

---

🔗 PARALLEL UNITS FOR MORE OUTPUT CURRENT

The supplied product information states that compatible Orion-Tr converters may be connected in parallel to increase total available output current.

An unlimited number of compatible units can be connected in parallel according to the supplied information.

This provides flexibility for applications requiring more total current than a single 6A converter can provide.

⚠️ IMPORTANT: Parallel installations should follow the manufacturer's requirements, including correct output-voltage matching, cable sizing, circuit protection and load distribution.

---

📈 89% EFFICIENCY

Supplied efficiency:

89%

Because this is a step-up converter, input current on the 24V side can be substantially higher than the 6A output-current figure would suggest.

Normal conversion losses also mean input power will be higher than useful output power.

⚠️ IMPORTANT: Do not size the 24V input wiring or circuit protection based only on the 6A output-current rating. Calculate actual input current from output power, input voltage and converter efficiency.

---

🔋 NO-LOAD & DISABLED CURRENT CONSUMPTION

No-load input current:

<120mA

Current consumption when disabled via remote port:

<200µA

The no-load figure represents the current used while the converter remains active without a significant output load.

Using the remote port to disable the unit reduces its current consumption significantly.

---

🔊 LOW OUTPUT NOISE

Supplied output noise:

2mV RMS

The low supplied output-noise figure can be useful for compatible communications, control and electronic equipment requiring a stable regulated DC supply.

---

⛔ NOT INTENDED FOR BATTERY CHARGING

Although the Orion-Tr provides an adjustable output voltage, the supplied information specifically states that this model is not intended for battery charging.

For battery-charging applications, the supplied information recommends considering an Orion-Tr Smart.

⚠️ IMPORTANT: Do not use the adjustable output as a substitute for a dedicated battery charger. Battery charging requires appropriate control for the battery voltage, chemistry and charging requirements.

---

🛡️ IP43 PROTECTION

The Orion-Tr provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore required to achieve the stated IP43 rating.

⚠️ IMPORTANT: IP43 does not mean waterproof or suitable for immersion. Install the converter in an appropriately protected location.

---

🔩 SCREW-TERMINAL CONNECTIONS

The converter uses screw terminals for its DC electrical connections.

The supplied product information states that no special tools are required for installation.

Maximum cable cross-section:

16mm² / AWG6

⚠️ IMPORTANT: 16mm² / AWG6 is the maximum cable size accepted by the terminals. Actual cable size must be selected according to circuit current, cable length, voltage drop and fuse or circuit-breaker requirements.

---

⚡ INTERNAL INPUT FUSE

The supplied product information states that 12V and 24V input models include an internal input fuse.

As this is a 24V-input model, the internal input fuse applies.

The supplied information states that the input fuse is not replaceable.

⚠️ IMPORTANT: The internal fuse does not automatically eliminate the need for appropriately positioned external circuit protection in the input wiring.

---

🌡️ OPERATING CONDITIONS

Operating temperature range: -20°C to +55°C

Thermal derating: 3% per °C above 40°C

Maximum humidity: 95% non-condensing

⚠️ IMPORTANT: Avoid condensation and install the converter within the supplied temperature and humidity limits.

---

🚚 24V VEHICLE TO 48V EQUIPMENT APPLICATIONS

The Orion-Tr may suit compatible vehicle electrical systems where a nominal 24V supply must operate equipment requiring a regulated 48V-class supply.

Potential compatible applications can include:

• 📡 48V-class communications equipment
• 🎛️ Higher-voltage control equipment
• 💡 Compatible higher-voltage lighting
• 🔌 Selected 48V-class accessories
• 🏗️ Industrial equipment
• 📱 Compatible electronic equipment

⚠️ IMPORTANT: Confirm both voltage and current requirements of connected equipment before installation.

---

🚤 MARINE ELECTRICAL SYSTEMS

The galvanically isolated design may suit compatible marine electrical systems where electrical separation is required between the 24V source circuit and higher-voltage output circuit.

Suitability depends on the complete system design, environmental conditions, required isolation level and connected electrical load.

---

📡 COMMUNICATIONS & ELECTRONICS

The combination of galvanic isolation, adjustable regulated output and a supplied 2mV RMS output-noise figure can make the Orion-Tr useful for compatible communications and electronic equipment.

Always confirm the equipment's required input-voltage range, current demand and permitted electrical noise before installation.

---

🏗️ INDUSTRIAL & CONTROL APPLICATIONS

The Orion-Tr can suit compatible machinery, industrial equipment and control systems where a nominal 24V supply must provide an isolated 48V-class output.

The adjustable 40–60V output provides flexibility for compatible equipment with specific higher-voltage DC requirements.

---

📏 DIMENSIONS & WEIGHT

Height: 130mm

Width: 186mm

Depth: 70mm

Weight: Approximately 1.3kg

Allow additional clearance around the converter for wiring access, mounting and heat dissipation.

---

🔧 SUITABLE APPLICATIONS

• 🚚 Compatible nominal 24V vehicle systems
• 🚤 Marine electrical systems
• 📡 Communications equipment
• 🎛️ Control systems
• 🏗️ Industrial equipment
• 🔌 Electrically isolated DC circuits
• 💡 Compatible 48V-class lighting systems
• 📱 Compatible electronic equipment
• ⚡ Higher-voltage 24V to 48V conversion applications

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 24V to 48V-6A (280W) Isolated DC-DC Converter

Converter type: Isolated step-up DC-DC converter

Input voltage range: 16V–35V DC

Under-voltage shutdown: 14V

Under-voltage restart: 15V

Nominal output voltage: 48.2V DC

Adjustable output-voltage range: 40V–60V DC

Output-voltage tolerance: ±0.2V

Output noise: 2mV RMS

Continuous output current at nominal voltage and 40°C: 6A

Maximum output current at nominal voltage: 8A for 10 seconds

Short-circuit output current: 25A

Continuous output power at 25°C: 320W

Continuous output power at 40°C: 280W

Thermal derating above 40°C: 3% per °C

Efficiency: 89%

No-load input current: <120mA

Current consumption when disabled via remote port: <200µA

Remote on/off terminal: Yes

Galvanic isolation: 200V DC between input, output and case

Short-circuit protection: Yes

High-temperature protection: Yes – output current reduces at elevated ambient temperature

Parallel connection: Yes

Maximum number of parallel units: Unlimited according to supplied product information

Battery charging: Not intended for battery charging

Recommended battery-charging alternative: Orion-Tr Smart according to supplied product information

Input fuse: Integrated and non-replaceable

Operating temperature range: -20°C to +55°C

Humidity: Maximum 95% non-condensing

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 16mm² / AWG6

Weight: Approximately 1.3kg

Dimensions: 130mm × 186mm × 70mm

⚠️ SPECIFICATION NOTE: The product designation includes “280W”, while the supplied specifications list 320W continuous output at 25°C and 280W continuous output at 40°C.

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 24V to 48V-6A Isolated DC-DC Converter, confirm that it matches the electrical and environmental requirements of your system.

• 16–35V DC input supply
• Required output within the adjustable 40–60V range
• Correct output voltage set before connecting equipment
• Continuous load within the supplied 6A rating at 40°C
• Short-duration load within the 8A / 10-second maximum
• Output-power requirement appropriate for operating temperature
• 3% per °C derating considered above 40°C
• 200V DC galvanic isolation suitable for the application
• No requirement to use the converter as a battery charger
• Correct input and output polarity
• Correct input-side cable sizing
• Maximum 16mm² / AWG6 terminal cable size
• Appropriate external fuse or circuit-breaker protection
• Correct remote on/off wiring where used
• Suitable protected mounting location
• Screw terminals facing downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Humidity below 95% and non-condensing
• Adequate mounting and heat-dissipation clearance

⚠️ IMPORTANT: This is a step-up converter. Input current on the 24V side can be substantially higher than the 6A output-current figure. Size input wiring and protection for the actual input-current requirement.

⚠️ IMPORTANT: This converter provides 200V DC galvanic isolation between input, output and case.

⚠️ IMPORTANT: This model is specifically stated as not intended for battery charging. Consider an appropriate Orion-Tr Smart or dedicated battery charger where charging is required.

⚠️ IMPORTANT: Output capability reduces at elevated ambient temperatures. The supplied specification requires 3% per °C derating above 40°C.

⚠️ IMPORTANT: The internal input fuse is not replaceable. Appropriate external circuit protection should still be provided where required by the installation.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 24V to 48V-6A converter do?

It steps up a compatible nominal 24V DC supply to an adjustable, galvanically isolated 48V-class output.

Is this converter galvanically isolated?

Yes. The supplied specification states 200V DC isolation between the input, output and case.

What is the input voltage range?

The supplied input-voltage range is 16V to 35V DC.

What is the nominal output voltage?

The nominal output voltage is 48.2V DC.

Can the output voltage be adjusted?

Yes. The supplied output adjustment range is 40V to 60V DC.

What is the output-voltage tolerance?

The supplied output-voltage tolerance is ±0.2V.

What is the continuous output current?

The supplied specification lists 6A continuous output current at nominal output voltage and 40°C.

What is the maximum output current?

The supplied maximum output is 8A for up to 10 seconds.

Can I continuously draw 8A?

No. The 8A figure applies for a maximum of 10 seconds. Sustained operation should be based on the supplied 6A continuous-current rating and applicable temperature derating.

What is the short-circuit output current?

The supplied short-circuit output-current figure is 25A. This is a protection-related specification and not a normal equipment-load rating.

Is the converter short-circuit proof?

Yes. The supplied product information states that Orion-Tr models are short-circuit proof.

Is this a 280W or 320W converter?

The product title identifies the unit as 280W. The supplied technical specifications list 320W continuous output at 25°C and 280W continuous output at 40°C. Both specifications have been retained as supplied.

How much continuous output power is available at 25°C?

The supplied technical specification lists 320W continuous output power at 25°C.

How much continuous output power is available at 40°C?

The supplied technical specification lists 280W continuous output power at 40°C.

What happens above 40°C?

The supplied specification requires the converter to be derated by 3% per °C above 40°C.

Does it have high-temperature protection?

Yes. The supplied information states that output current reduces at elevated ambient temperature.

What is the converter efficiency?

The supplied efficiency rating is 89%.

Will the 24V input current be higher than the 6A output current?

Yes. Because the converter steps voltage up from approximately 24V to approximately 48V and has conversion losses, input current can be substantially higher than the 6A output-current figure.

Can I size the input cable using the 6A output rating?

No. Input wiring must be sized according to actual 24V-side current, cable length, voltage drop and circuit-protection requirements.

What is the under-voltage shutdown point?

The supplied under-voltage shutdown threshold is 14V.

What is the under-voltage restart point?

The supplied under-voltage restart voltage is 15V.

Does it have remote on/off?

Yes. The supplied product information specifies a remote on/off terminal.

What is the benefit of remote on/off?

It allows the converter to be controlled using a low-power switch or suitable control signal rather than installing a high-current switch directly in the main input wiring.

Can the remote terminal be controlled by an engine run/stop signal?

The supplied information states that the remote on/off may be operated by, for example, an engine run/stop switch. Follow the applicable wiring instructions for the installation.

How much current does it use when remotely disabled?

The supplied specification lists less than 200µA when disabled through the remote port.

What is the no-load input current?

The supplied no-load input-current specification is less than 120mA.

Can this converter charge a 48V battery?

No. The supplied product information specifically states that this model is not intended for battery charging, despite its adjustable output voltage.

What should I use for battery charging?

The supplied product information recommends considering an Orion-Tr Smart for battery-charging applications.

Why would I choose an isolated converter?

An isolated converter electrically separates the input and output circuits. This can be useful where the system design requires galvanic separation or independent electrical references.

Can multiple converters be connected in parallel?

Yes. The supplied product information states that compatible Orion-Tr converters can be paralleled to increase available output current.

How many converters can be connected in parallel?

The supplied information states that an unlimited number of compatible units may be connected in parallel.

Does it have an internal input fuse?

Yes. The supplied information states that 24V input Orion-Tr models include an internal input fuse.

Can the internal fuse be replaced?

No. The supplied product information states that the input fuse is not replaceable.

Does the internal fuse mean external fusing is unnecessary?

Not necessarily. Appropriate external circuit protection should still be selected according to the supply wiring, cable capacity and system design.

What type of electrical connections does it use?

The converter uses screw terminals.

Do I need special tools for the screw terminals?

The supplied product information states that no special tools are required for installation.

What is the maximum cable size?

The supplied maximum cable cross-section is 16mm² / AWG6.

Should I automatically use 16mm² cable?

No. The 16mm² specification is the maximum size accepted by the terminals. Actual cable size should be calculated from circuit current, cable length, voltage drop and protection requirements.

What is the IP rating?

The supplied ingress-protection rating is IP43 when the converter is installed with the screw terminals facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 protection applies when the screw terminals are oriented downwards.

Is the converter waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the output-noise specification?

The supplied output-noise specification is 2mV RMS.

What is the operating-temperature range?

The supplied operating-temperature range is -20°C to +55°C, with 3% per °C output derating above 40°C.

What is the humidity rating?

The supplied maximum humidity is 95% non-condensing.

How large is the converter?

The supplied dimensions are 130mm high × 186mm wide × 70mm deep.

How much does it weigh?

The supplied weight is approximately 1.3kg.

Can it run 48V equipment from a 24V vehicle?

Potentially. This converter is designed to step a compatible nominal 24V supply up to a 48V-class output. Confirm the equipment voltage, current requirement and total power demand before connection.

Can it power multiple 48V accessories?

Potentially. Add the current requirements of all connected loads and ensure the total remains within the applicable continuous-current and temperature-adjusted power limits.

Can it power sensitive electronic equipment?

Potentially. The converter provides galvanic isolation, adjustable regulated output and a supplied 2mV RMS output-noise figure. Confirm the exact voltage, current and noise requirements of the connected equipment first.

What should I check before ordering?

Confirm the 16–35V input range, required 40–60V output setting, 6A continuous-current requirement at 40°C, 8A short-duration maximum, thermal derating above 40°C, galvanic-isolation requirement, 24V-side input-current demand, cable sizing, circuit protection, remote on/off requirements and mounting environment before purchase.

---

⚡ HIGH-POWER ISOLATED 24V TO 48V CONVERSION FOR DEMANDING DC SYSTEMS

Choose the Orion-Tr 24V to 48V-6A (280W) Isolated DC-DC Converter when you need to operate compatible 48V-class equipment from a nominal 24V electrical system while maintaining galvanic separation between the input and output circuits.

With a 16–35V input range, adjustable 40–60V output, 6A continuous output at 40°C, 8A short-duration maximum, 320W supplied output at 25°C, 280W at 40°C, 200V DC galvanic isolation, remote on/off control, short-circuit protection and unlimited parallel capability according to the supplied information, the Orion-Tr provides a versatile solution for compatible vehicle, marine, communications and industrial electrical systems.

Confirm the required output voltage, connected load, 24V-side input-current demand, operating temperature, galvanic-isolation requirement, cable size, circuit protection and mounting environment before installation. For battery charging, select an appropriate dedicated charging product rather than this converter.
