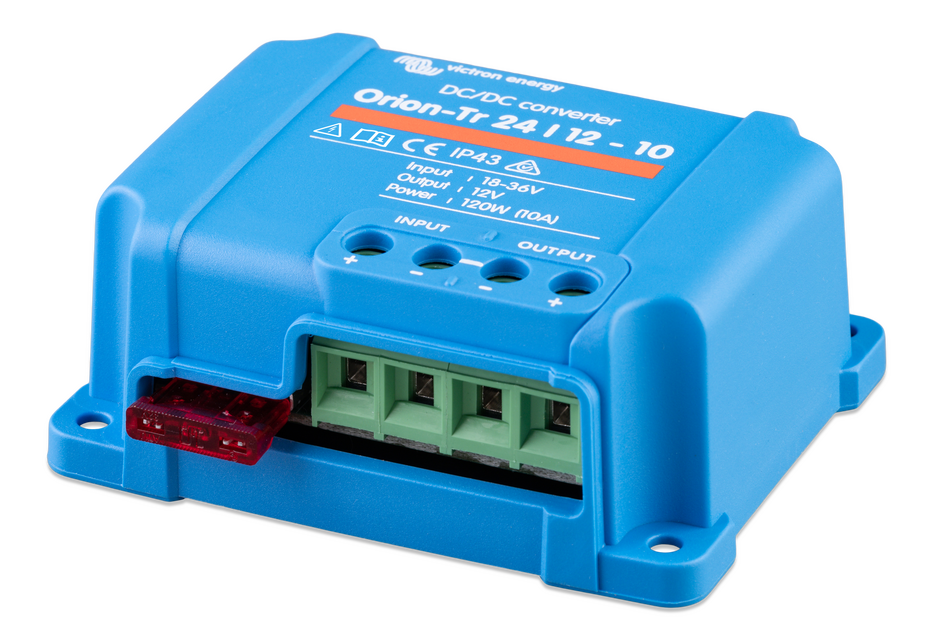

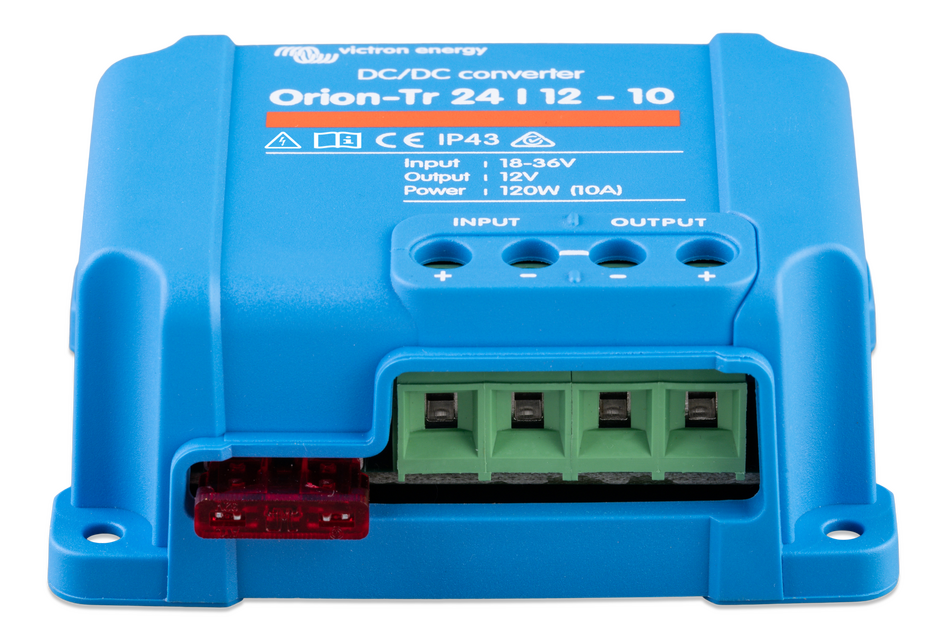

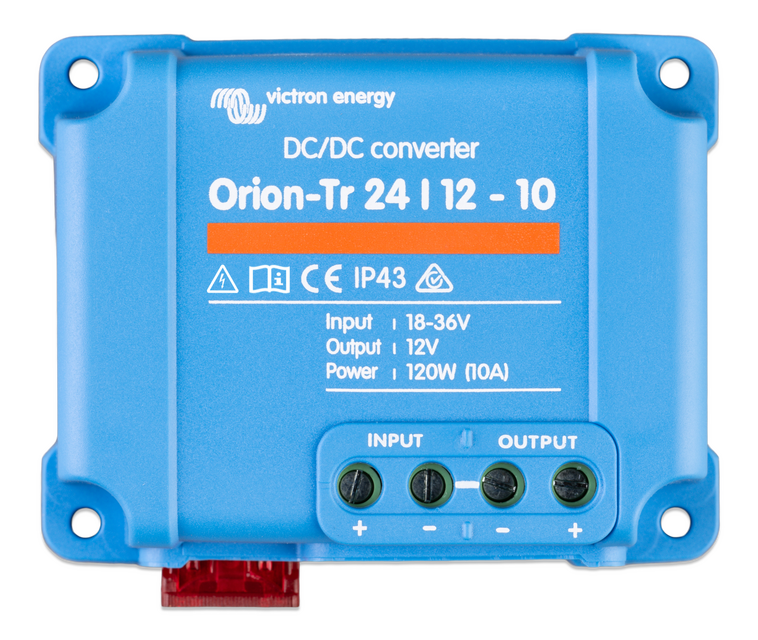

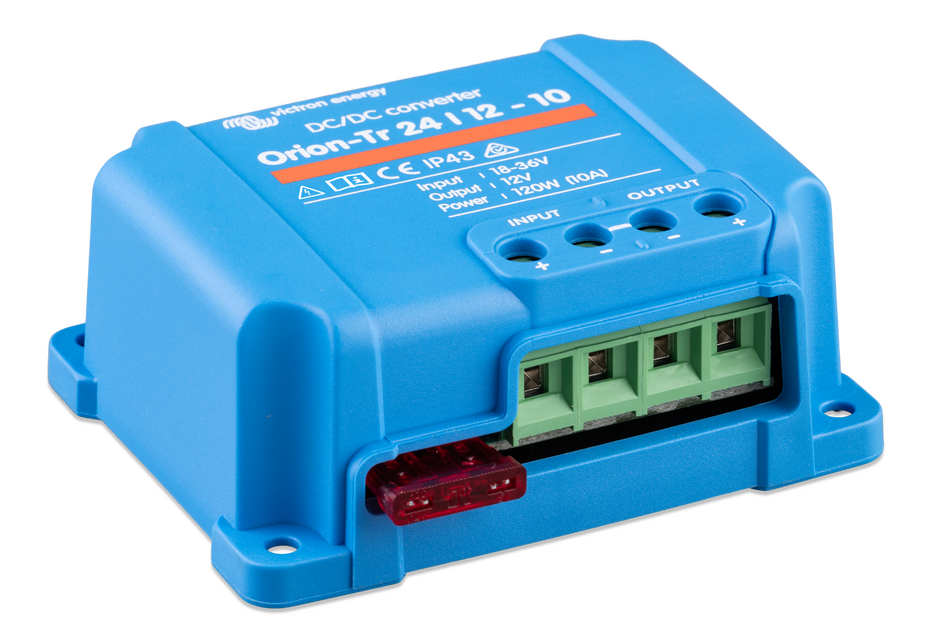

Orion-Tr 24V to 12V-10A 120W DC-DC Converter

⚡ ORION-TR 24V TO 12V-10A (120W) DC-DC CONVERTER

24V to 12.5V Non-Isolated DC-DC Converter – 12A Continuous Output, 25A Maximum Output, 97% Efficiency & IP43 Protection

⚡ The Orion-Tr 24V to 12V-10A (120W) DC-DC Converter provides an efficient and compact way to operate compatible 12V equipment from a nominal 24V DC electrical system.

Accepting an input voltage from 18V to 35V DC, the converter provides a regulated 12.5V output with a supplied continuous output-current rating of 12A and maximum output current of 25A.

Using synchronous rectification technology, the converter achieves a supplied efficiency of 97%, helping reduce wasted electrical energy and heat in compatible vehicle, marine, industrial and auxiliary-power installations.

The Orion-Tr uses straightforward screw-terminal connections, supports cable up to 6mm² / AWG10 and provides IP43 protection when installed with the screw terminals facing downwards.

⚠️ PRODUCT RATING NOTE: The product name identifies this model as “24V to 12V-10A (120W)”, while the supplied technical specifications list 12A continuous output and 25A maximum output. These supplied figures have been retained as provided rather than silently altered.

---

⚡ KEY FEATURES

🔌 24V to 12.5V DC Conversion
Designed to operate compatible lower-voltage equipment from a nominal 24V DC electrical system.

⚡ 12A Continuous Output
The supplied technical specification lists a continuous output-current rating of 12A.

🚀 25A Maximum Output
Maximum output current is listed at 25A for applicable short-duration operating conditions.

🔋 120W-Class Converter
The product is identified as a 120W Orion-Tr DC-DC converter.

📈 97% Efficiency
High-efficiency synchronous rectification helps minimise conversion losses.

🔄 18–35V Input Range
Accepts a broad DC input-voltage range suited to compatible nominal 24V systems.

🛡️ IP43 Protection
Provides IP43 protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Allows straightforward installation without proprietary plugs or specialised connection tools.

🔌 Up to 6mm² / AWG10 Cable
The supplied terminal specification allows cable cross-section up to 6mm² / AWG10.

📏 Compact 73 × 94 × 37mm Design
Small enclosure dimensions allow installation into compact electrical systems and equipment spaces.

🪶 Lightweight 0.2kg Construction
Weighs approximately 200g.

🌡️ -20°C to +55°C Operating Range
Designed to operate across a broad temperature range when correctly installed.

---

🔌 CONVERT 24V DC TO 12.5V DC

The Orion-Tr converter is intended for installations where a nominal 24V supply is available but selected equipment requires approximately 12V DC.

Input voltage range:

18V–35V DC

Output voltage:

12.5V DC

This can make it suitable for compatible trucks, commercial vehicles, marine systems, machinery and other 24V electrical installations requiring a dedicated lower-voltage supply.

⚠️ IMPORTANT: Confirm that the connected equipment is designed to operate correctly from a 12.5V DC supply before installation.

---

⚡ 12A CONTINUOUS OUTPUT

The supplied technical specification lists:

Continuous output current: 12A

Maximum output current: 25A

The continuous 12A figure should be used when determining normal sustained load capability.

⚠️ IMPORTANT: The 25A figure is listed as maximum output current and should not automatically be treated as a continuous operating rating.

---

⚠️ 10A MODEL NAME VS 12A CONTINUOUS SPECIFICATION

The supplied product title identifies the unit as:

Orion-Tr 24V to 12V-10A (120W)

However, the supplied technical specification lists:

Continuous output current: 12A

Maximum output current: 25A

Both pieces of information have been preserved in this listing.

⚠️ IMPORTANT: If the exact continuous-current specification is critical to your application, confirm the current manufacturer datasheet for the exact model before system design or installation.

---

📈 HIGH-EFFICIENCY SYNCHRONOUS RECTIFICATION

The Orion-Tr uses synchronous rectification to provide efficient DC voltage conversion.

Supplied efficiency:

97%

The supplied product information also states that full-load efficiency exceeds 95%.

High efficiency helps minimise wasted power and reduces unnecessary heat generation when the converter is operating under load.

---

🛡️ IP43 PROTECTION

The converter provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore required to achieve the stated ingress-protection rating.

⚠️ IMPORTANT: IP43 does not mean waterproof or suitable for immersion. Install the converter in an appropriate protected location.

---

🔩 SCREW-TERMINAL CONNECTIONS

The Orion-Tr uses screw terminals for its DC electrical connections.

The supplied product information states that no special tools are required for connection to the screw terminals.

Maximum cable cross-section:

6mm² / AWG10

⚠️ IMPORTANT: Cable size must still be selected according to expected current, cable length, voltage drop, installation conditions and circuit-protection requirements.

---

🔌 NON-ISOLATED DESIGN

Galvanic isolation:

No

The input and output sides of this converter are therefore not galvanically isolated from each other.

⚠️ IMPORTANT: If your electrical system requires galvanic isolation between the 24V input supply and the 12V output circuit, this non-isolated model is not suitable.

---

🔋 LOW OFF-LOAD CURRENT

Supplied off-load current:

<45mA

This represents the converter’s current consumption when powered but not supplying a significant connected load.

For battery-powered systems that may remain unused for extended periods, standby consumption should be considered as part of the overall power-system design.

---

🌡️ OPERATING TEMPERATURE RANGE

Operating temperature:

-20°C to +55°C

The converter is designed to operate across this temperature range when correctly installed and operated within its electrical limits.

⚠️ IMPORTANT: Avoid mounting the converter close to exhaust systems, engines, heaters or other sources of excessive heat.

---

🚚 24V VEHICLE APPLICATIONS

The Orion-Tr can provide a practical solution in compatible trucks, buses, commercial vehicles and other nominal 24V vehicle systems where selected accessories require approximately 12V DC.

Potential compatible loads can include:

• 💡 12V lighting
• 📡 Communications equipment
• 📱 Electronics and charging equipment
• 🎛️ Control equipment
• 🔌 Selected 12V accessories

⚠️ IMPORTANT: Add together the current consumption of all connected accessories and ensure the sustained load remains within the supplied continuous-current specification.

---

🚤 MARINE & MOBILE ELECTRICAL SYSTEMS

The converter may also suit compatible marine and mobile electrical installations where a nominal 24V supply needs to power selected 12V equipment.

The installation must still comply with the converter’s voltage range, current limits, mounting orientation and IP43 environmental requirements.

---

🏗️ INDUSTRIAL & CONTROL APPLICATIONS

The broad 18–35V input range and compact construction can make the Orion-Tr suitable for compatible machinery, control equipment and industrial DC systems requiring a regulated 12.5V output from a nominal 24V source.

Confirm current demand, required isolation, environmental conditions and operating voltage before installation.

---

🔋 NOT A DEDICATED BATTERY CHARGER

The supplied information identifies this product as a DC-DC converter with a 12.5V output.

It is not described as a multi-stage 12V battery charger.

⚠️ IMPORTANT: Do not use this converter as a substitute for a dedicated battery charger unless the battery manufacturer and complete system design specifically allow operation from a fixed 12.5V supply.

---

📏 COMPACT DIMENSIONS

Height: 73mm

Width: 94mm

Depth: 37mm

Weight: Approximately 0.2kg

The compact enclosure makes the unit practical for installation into suitably protected electrical panels, cabinets and equipment spaces.

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 24V to 12V-10A (120W) DC-DC Converter

Converter type: DC-DC voltage converter

Nominal application: 24V to 12V conversion

Input voltage range: 18V–35V DC

Output voltage: 12.5V DC

Continuous output current: 12A according to supplied technical specification

Maximum output current: 25A

Efficiency: 97%

Full-load efficiency: Greater than 95% according to supplied product information

Rectification type: Synchronous rectification

Galvanic isolation: No

Off-load current: <45mA

Operating temperature range: -20°C to +55°C

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 6mm² / AWG10

Weight: Approximately 0.2kg

Dimensions: 73mm × 94mm × 37mm

⚠️ TECHNICAL DATA NOTE: The product designation includes “10A (120W)”, while the supplied specification lists 12A continuous output. Confirm the current manufacturer datasheet if exact current capability is critical to the installation.

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 24V to 12V-10A converter, confirm that it matches the electrical and environmental requirements of your system.

• 18–35V DC input supply
• 12.5V DC output suitable for the connected equipment
• Continuous load compatible with the supplied 12A specification
• Maximum output-current requirement within the supplied 25A specification
• No requirement for galvanic isolation
• Correct cable sizing
• Maximum 6mm² / AWG10 terminal cable size
• Correct input and output polarity
• Appropriate fuse or circuit-breaker protection
• Suitable mounting location
• Screw terminals oriented downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Sufficient installation clearance

⚠️ IMPORTANT: This converter is non-isolated. Do not use it where galvanic isolation between input and output circuits is required.

⚠️ IMPORTANT: Confirm correct polarity before connection. Incorrect wiring can damage the converter or connected equipment.

⚠️ IMPORTANT: Use appropriately rated circuit protection based on the wiring, supply and intended load.

⚠️ IMPORTANT: Because the supplied model designation and continuous-current specification differ, confirm the exact model rating before designing an installation that depends on more than 10A continuous output.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 24V to 12V-10A converter do?

It converts a compatible 18–35V DC input supply to a regulated 12.5V DC output for suitable lower-voltage equipment.

Is it designed for 24V systems?

Yes. The supplied 18–35V input range is designed to suit compatible nominal 24V DC systems.

What is the output voltage?

The supplied output voltage is 12.5V DC.

Is this a 10A or 12A converter?

The product title identifies the model as “24V to 12V-10A (120W)”, while the supplied technical specification lists 12A continuous output. Both figures have been retained. Confirm the current manufacturer datasheet where exact continuous-current capability is critical.

What is the supplied continuous output current?

The supplied technical table lists 12A continuous output current.

What is the maximum output current?

The supplied maximum output-current rating is 25A.

Can I continuously draw 25A?

No. The supplied 25A figure is identified as maximum output current. The supplied continuous-current figure is 12A.

What power is the converter rated for?

The product is identified as a 120W DC-DC converter.

How efficient is it?

The supplied technical specification lists 97% efficiency.

What is synchronous rectification?

It is the conversion method used to achieve high electrical efficiency. The supplied information states that full-load efficiency exceeds 95%.

What is the input voltage range?

The supplied input voltage range is 18V to 35V DC.

Can it run from a 12V battery?

No. A nominal 12V battery is below the supplied minimum input voltage of 18V.

Can it be used on a 24V truck?

Potentially. Its 18–35V input range can suit compatible nominal 24V vehicle systems, provided the connected 12V equipment remains within the converter's output limits.

Can it be used on a 24V bus?

Potentially, subject to the same voltage, current, wiring and installation requirements.

Can it power 12V lights?

Yes, provided the lights are compatible with a 12.5V supply and the total current remains within the converter's operating limits.

Can it run multiple 12V accessories?

Potentially. Add the current consumption of all connected accessories and ensure their combined sustained load remains within the applicable continuous-current rating.

Can it run a 12V fridge?

Potentially, provided the fridge's normal running and compressor startup-current requirements remain within the converter specifications. Check the fridge manufacturer's electrical requirements before installation.

Can it run a 10A accessory?

Potentially. A 10A continuous load is below the supplied 12A continuous specification, but cable sizing, operating temperature and the exact converter model rating should still be confirmed.

Can it charge a 12V battery?

The supplied information describes the product as a DC-DC converter with a fixed 12.5V output rather than a multi-stage battery charger. It should not automatically be used as a dedicated battery charger.

Can it charge a lithium battery?

The supplied information does not describe the Orion-Tr as a lithium battery charger. Use a suitable dedicated lithium charging system where controlled battery charging is required.

Is the converter galvanically isolated?

No. The supplied specification states that galvanic isolation is not provided.

What does non-isolated mean?

It means the input and output circuits are not electrically separated by galvanic isolation. Choose an appropriate isolated model where electrical isolation is required.

What type of connections does it use?

The converter uses screw terminals.

Do I need specialised connector tools?

The supplied product information states that no special tools are required for installation of the screw-terminal connections.

What is the maximum cable size?

The supplied maximum cable cross-section is 6mm² / AWG10.

Does cable size still matter if 6mm² fits?

Yes. Cable must be sized according to current, length, voltage drop, installation temperature and circuit-protection requirements.

What is the IP rating?

The supplied ingress-protection rating is IP43 when the screw terminals are installed facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 rating specifically depends on the screw terminals being oriented downwards.

Is it waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the off-load current?

The supplied off-load current is less than 45mA.

Will it use power when nothing is connected?

Yes. The supplied off-load consumption is less than 45mA while the converter remains powered.

What is the operating temperature range?

The supplied operating range is -20°C to +55°C.

How large is the converter?

The supplied dimensions are 73mm high × 94mm wide × 37mm deep.

How much does it weigh?

The supplied weight is approximately 0.2kg.

Does it require external fusing?

The supplied information does not state that external wiring protection is included. Appropriate fuse or circuit-breaker protection should be selected according to cable size, supply and system design.

What should I check before ordering?

Confirm the 18–35V input range, 12.5V output compatibility, required continuous current, maximum load, need for galvanic isolation, cable size, circuit protection, available mounting space and required IP43 mounting orientation before purchase.

---

⚡ HIGH-EFFICIENCY 24V TO 12V POWER CONVERSION FOR HIGHER-CURRENT ACCESSORIES

Choose the Orion-Tr 24V to 12V-10A (120W) DC-DC Converter when you need an efficient and compact way to operate compatible 12V equipment from a nominal 24V electrical system.

With an 18–35V input range, regulated 12.5V output, supplied 12A continuous-current specification, 25A maximum output, 97% efficiency, 6mm² screw-terminal capability and compact 73 × 94 × 37mm enclosure, the Orion-Tr provides a practical voltage-conversion solution for compatible vehicle, marine, industrial and auxiliary applications.

Confirm the exact continuous-current requirement, input voltage, required isolation, connected load, cable size, circuit protection and mounting environment before installation to ensure the Orion-Tr 24V to 12V-10A is correct for your system.
