VICTRON ENERGY

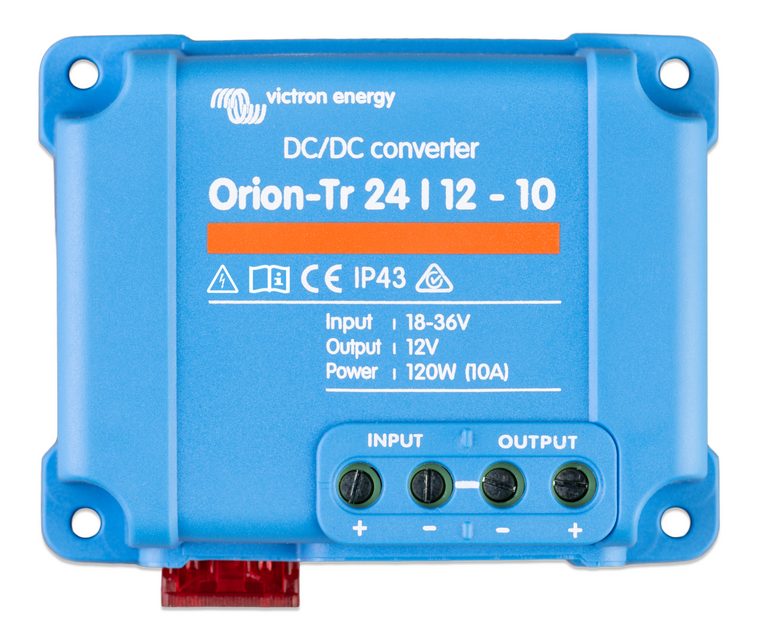

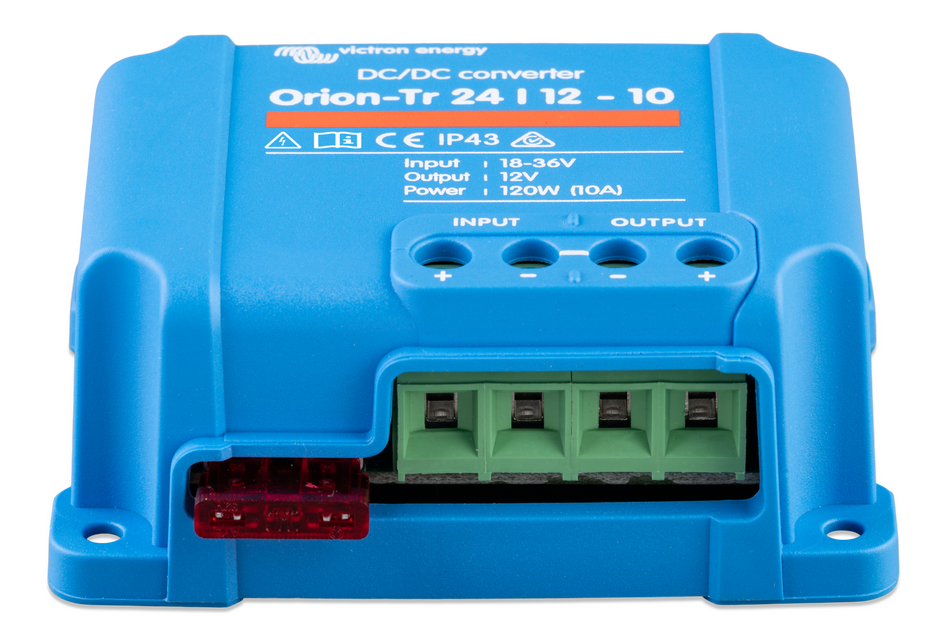

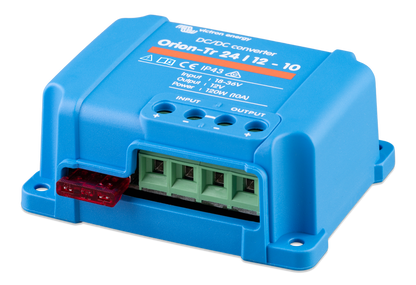

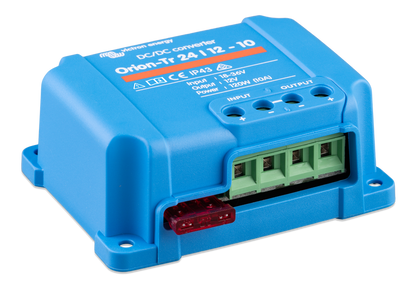

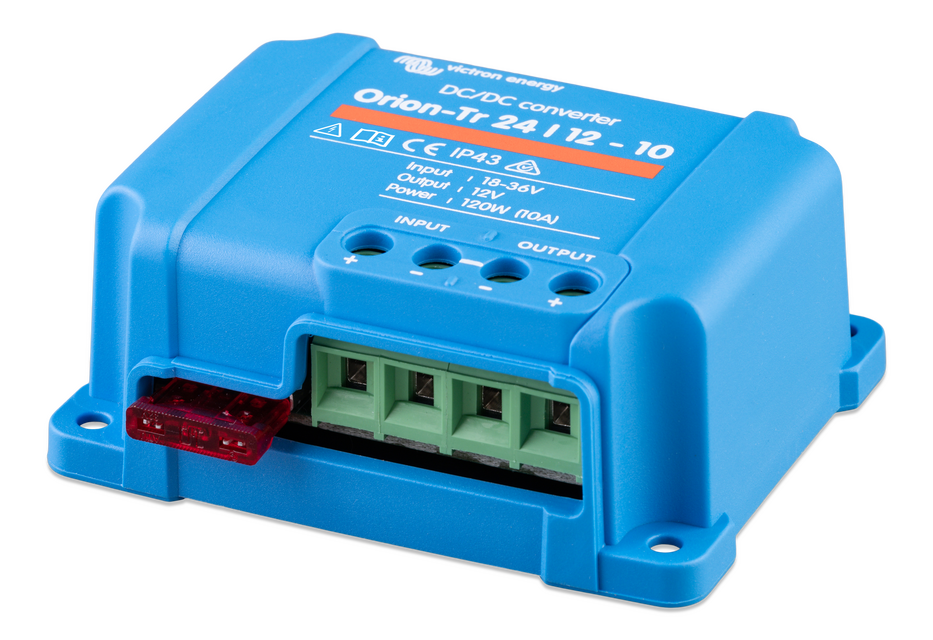

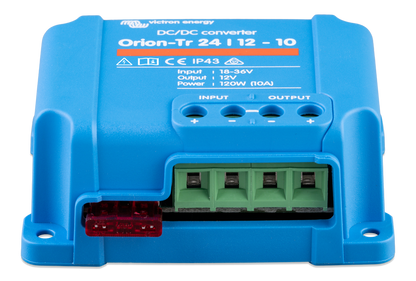

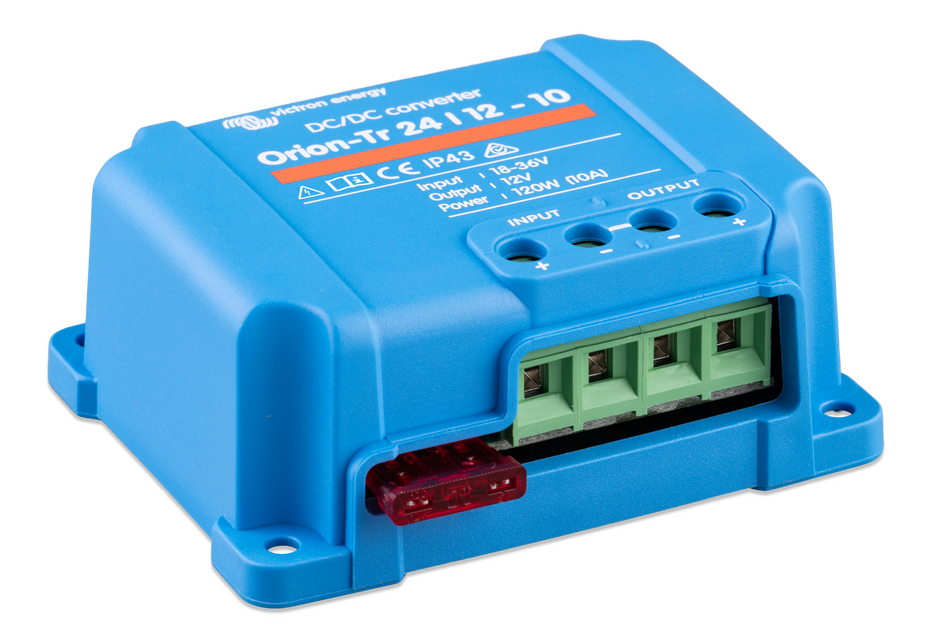

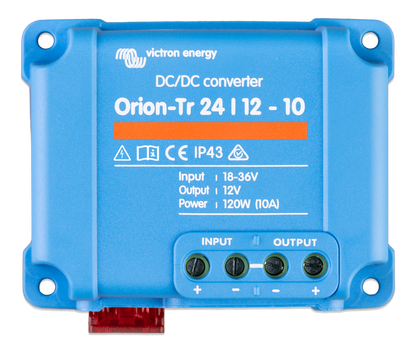

ORION-TR 24V TO 12V-10A (120W) DC-DC CONVERTER

Name: ORION-TR 24V TO 12V-10A (120W) DC-DC CONVERTER
Brand: VICTRON ENERGY
SKU: ORI241210200
Price: 56.00 AUD
Availability: InStock

ORION-TR 24V TO 12V-10A (120W) DC-DC CONVERTER

SKU:ORI241210200

$56.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

High efficiency

Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input voltage range	18-35V
Output voltage	12.5V
Efficiency	97%
Continuous output current	12A
Max. Output current	25A
Galvanic isolation	NO
Off load current	< 45mA
Operating temperature range	-20 to +55°C
DC connection	Screw terminals
Maximum cable cross-section	6 mm² AWG10
Weight	0,2 kg
Dimensions HxWxD	73x94x37 mm
