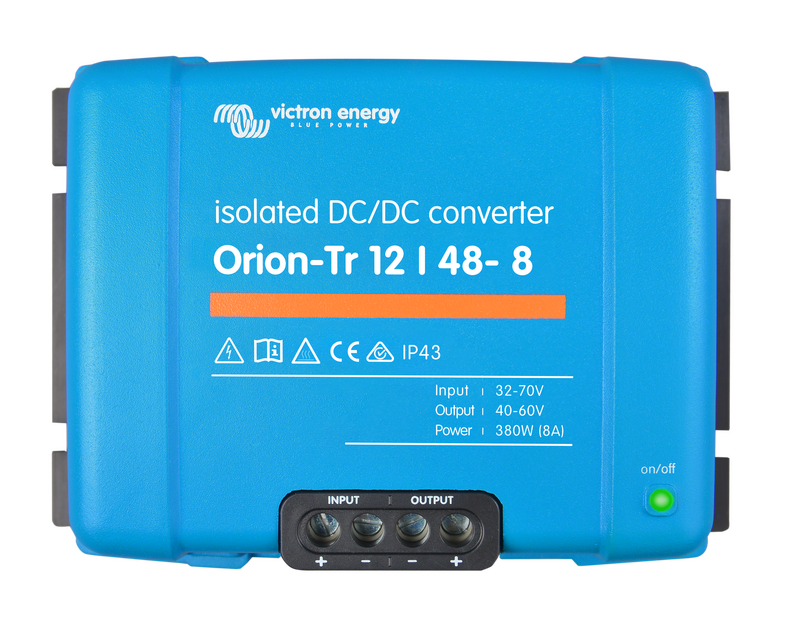

Orion-Tr 12V to 48V-8A 380W Isolated DC-DC Converter

⚡ ORION-TR 12V TO 48V-8A (380W) ISOLATED DC-DC CONVERTER

12V to 48V Isolated DC-DC Converter – Adjustable 40–60V Output, 8A Continuous Current, 15A Maximum Output, Short-Circuit Protection & IP43

⚡ The Orion-Tr 12V to 48V-8A Isolated DC-DC Converter is a high-power step-up converter designed to provide a regulated 48V-class output from a compatible nominal 12V DC electrical system while maintaining galvanic isolation between the input, output and case.

Accepting an input voltage from 10V to 17V DC, the converter provides a nominal 48.2V output that can be adjusted between 40V and 60V. The supplied specifications list 8A continuous output current at nominal output voltage and 40°C, with a maximum output of 15A for up to 10 seconds.

With 200V DC galvanic isolation, short-circuit protection, high-temperature protection and the ability to parallel compatible units, the Orion-Tr is suited to demanding vehicle, marine, communications, industrial and specialised auxiliary-power applications requiring a higher-voltage isolated DC supply.

The supplied product information states that an unlimited number of compatible units may be connected in parallel where greater total output current is required.

⚠️ IMPORTANT: Although the output voltage is adjustable, this Orion-Tr is specifically stated as not intended for battery charging. The supplied information recommends considering an Orion-Tr Smart where battery charging is required.

---

⚡ KEY FEATURES

🔌 12V to 48V DC Step-Up Conversion
Designed to provide a regulated 48V-class output from a compatible nominal 12V DC electrical source.

🛡️ 200V DC Galvanic Isolation
Provides electrical isolation between the input, output and case according to the supplied specification.

🎛️ Adjustable 40–60V Output
Allows the output voltage to be adjusted for compatible equipment requiring a specific higher-voltage DC supply.

⚡ 8A Continuous Output at 40°C
Provides 8A continuous output current at nominal output voltage and 40°C.

🚀 15A Maximum Output for 10 Seconds
Provides substantial short-duration current capability for compatible transient loads.

🔋 430W Continuous Output at 25°C
The supplied technical specification lists 430W continuous output power at 25°C.

🌡️ 380W Continuous Output at 40°C
Continuous output power is listed at 380W when ambient temperature reaches 40°C.

🛡️ Short-Circuit Proof
The supplied product information states that Orion-Tr models are short-circuit proof.

🔥 High-Temperature Protection
Output current automatically reduces at elevated ambient temperatures to help protect the converter.

🔗 Unlimited Parallel Capability
Compatible units can be connected in parallel to increase total available output current, with no supplied limit on the number of parallel units.

🛡️ IP43 Protection
Provides IP43 ingress protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Straightforward screw terminals allow installation without specialised proprietary connectors.

🔌 Up to 16mm² / AWG6 Cable
Supports a maximum cable cross-section of 16mm² / AWG6.

⚡ Integrated Input Fuse
This 12V-input model includes an internal input fuse. The supplied product information states that the fuse is not replaceable.

📉 Low Disabled Current Consumption
Current consumption is listed at less than 200µA when disabled through its remote port.

---

🔌 STEP UP 12V DC TO 48V-CLASS POWER

The Orion-Tr is designed for systems where a nominal 12V DC source must operate compatible equipment requiring a substantially higher 48V-class DC supply.

Input voltage range:

10V–17V DC

Nominal output voltage:

48.2V DC

Adjustable output range:

40V–60V DC

This allows suitable higher-voltage equipment to operate from an appropriate 12V source while maintaining galvanic isolation between the two electrical circuits.

⚠️ IMPORTANT: Confirm the required supply voltage of connected equipment before setting the converter output. Incorrect output voltage can damage connected electrical equipment.

---

🎛️ ADJUSTABLE 40–60V OUTPUT

Nominal output voltage:

48.2V DC

Output-voltage adjustment range:

40V–60V DC

Output-voltage tolerance:

±0.2V

The adjustable output provides flexibility for compatible equipment requiring a particular regulated supply voltage within the 40V to 60V range.

⚠️ IMPORTANT: Measure and verify the output voltage with suitable test equipment before connecting sensitive equipment.

---

🛡️ GALVANICALLY ISOLATED INPUT & OUTPUT

Supplied galvanic isolation:

200V DC between input, output and case

This electrically separates the converter's input-side circuit from its output-side circuit rather than using a direct common electrical path.

Galvanic isolation can be particularly useful in compatible vehicle, marine, communications and industrial systems where electrical separation or independently referenced circuits are required.

⚠️ IMPORTANT: Confirm that the supplied 200V DC galvanic-isolation specification is appropriate for the requirements of your complete electrical system.

---

⚡ 8A CONTINUOUS OUTPUT AT 40°C

Continuous output current at nominal output voltage and 40°C:

8A

Maximum output current at nominal output voltage:

15A for 10 seconds

Short-circuit output current:

25A

The supplied 8A continuous-current specification should be used when calculating normal sustained output loads under the stated conditions.

⚠️ IMPORTANT: The 15A maximum output applies for up to 10 seconds and must not be treated as a continuous-current rating.

⚠️ IMPORTANT: The 25A short-circuit output-current figure is a protection-related specification and is not an allowable normal appliance load.

---

🔋 OUTPUT POWER & TEMPERATURE

Continuous output power at 25°C:

430W

Continuous output power at 40°C:

380W

The reduction in continuous output capability as ambient temperature increases is important when designing installations in warm vehicles, machinery spaces, electrical cabinets and other enclosed environments.

⚠️ PRODUCT RATING NOTE: The product designation identifies this model as “380W”, while the supplied technical specifications list 430W continuous output at 25°C and 380W continuous output at 40°C. Both figures have been retained exactly as supplied.

⚠️ IMPORTANT: If exact output capability at a particular ambient temperature is critical, confirm the current manufacturer datasheet for the exact model before final system design.

---

🔥 HIGH-TEMPERATURE PROTECTION

The Orion-Tr incorporates high-temperature protection.

When ambient temperature becomes high, the converter automatically reduces output current to help protect itself.

Available output capability can therefore be lower in hot operating environments.

⚠️ IMPORTANT: Provide sufficient clearance for heat dissipation and avoid mounting the converter near exhaust components, engines, heaters or other significant heat sources.

---

🛡️ SHORT-CIRCUIT PROOF

The supplied product information states that Orion-Tr models are short-circuit proof.

This provides built-in protection against output short-circuit conditions within the converter's designed operating parameters.

⚠️ IMPORTANT: Internal short-circuit protection does not replace correctly selected external circuit protection for the input wiring, output wiring or connected equipment.

---

🔗 PARALLEL MULTIPLE UNITS FOR MORE OUTPUT CURRENT

The supplied product information states that compatible Orion-Tr converters can be connected in parallel to increase total available output current.

An unlimited number of compatible units may be connected in parallel according to the supplied information.

This provides flexibility for systems where the 8A continuous-output capability of one converter is not sufficient.

⚠️ IMPORTANT: Parallel installation should follow the manufacturer's requirements, including correct output-voltage matching, cable sizing, circuit protection and load distribution.

---

📈 89% EFFICIENCY

Supplied efficiency:

89%

This Orion-Tr is a substantial step-up converter, raising a nominal 12V supply to approximately 48V.

Because voltage is increased significantly, input current on the 12V side can be considerably higher than the current delivered on the 48V output side.

Normal conversion losses also mean the input source must provide more electrical power than is ultimately delivered to the connected load.

⚠️ IMPORTANT: Do not size the 12V input cable, fuse or source capacity based on the 8A output-current figure. Input current must be determined from actual load power, input voltage, efficiency, cable length and allowable voltage drop.

---

⚡ HIGH-POWER 12V INPUT REQUIREMENTS

Producing hundreds of watts at approximately 48V from a nominal 12V source places substantial demand on the input electrical system.

The 12V source, cabling, terminals and protection system must all be capable of supporting the converter's required input current without excessive voltage drop.

This is particularly important at high output load and when the input voltage is toward the lower end of the supplied operating range.

⚠️ IMPORTANT: A converter of this power level should be treated as a high-current 12V load when designing the input wiring.

---

⚡ UNDER-VOLTAGE SHUTDOWN & RESTART

Input voltage range:

10V–17V DC

Under-voltage shutdown:

7V

Under-voltage restart:

7.5V

The supplied specifications list under-voltage shutdown and restart thresholds below the stated normal input-voltage range.

⚠️ SPECIFICATION NOTE: The supplied normal input range is 10–17V, while the supplied under-voltage shutdown and restart values are 7V and 7.5V respectively. These values have been retained exactly as supplied. If operation near the lower voltage limits is critical, confirm the current manufacturer documentation for this exact model.

---

🔋 NO-LOAD & DISABLED CURRENT CONSUMPTION

No-load input current:

<220mA

Current consumption when disabled via remote port:

<200µA

The no-load figure represents current consumed while the converter remains active without supplying a significant output load.

When disabled through its remote port, current consumption falls substantially.

---

🎛️ REMOTE PORT DISABLE FUNCTION

The supplied technical specifications state that current consumption falls below 200µA when the converter is disabled through its remote port.

This provides a low-consumption method of disabling the converter while leaving the main power wiring connected.

⚠️ IMPORTANT: Detailed remote-port connection and control instructions were not included in the supplied information. Refer to the applicable manufacturer instructions before wiring or controlling the remote port.

---

🔊 LOW OUTPUT NOISE

Supplied output noise:

2mV RMS

The low supplied output-noise specification can be useful for compatible communications, control and electronic equipment requiring a stable regulated DC supply.

---

⛔ NOT INTENDED FOR BATTERY CHARGING

Although the Orion-Tr provides an adjustable 40V to 60V output, the supplied product information specifically states that this model is not intended for battery charging.

For battery-charging applications, the supplied information recommends considering an Orion-Tr Smart.

⚠️ IMPORTANT: Do not use the adjustable output as a substitute for a dedicated 48V battery charger. Battery charging requires appropriate voltage control, charging behaviour and compatibility with the particular battery chemistry and BMS.

---

🛡️ IP43 PROTECTION

The Orion-Tr provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore required to achieve the supplied IP43 rating.

⚠️ IMPORTANT: IP43 does not mean waterproof or suitable for immersion. Install the converter in an appropriately protected location.

---

🔩 SCREW-TERMINAL CONNECTIONS

The converter uses screw terminals for its DC electrical connections.

The supplied product information states that no special tools are required for installation.

Maximum cable cross-section:

16mm² / AWG6

⚠️ IMPORTANT: 16mm² / AWG6 is the maximum cable size accepted by the terminals. Actual cable size must be selected according to current, cable length, voltage drop and circuit-protection requirements.

---

⚡ INTERNAL INPUT FUSE

The supplied product information states that 12V and 24V input Orion-Tr models include an internal input fuse.

As this is a 12V-input model, the internal input fuse applies.

The supplied information states that this fuse is not replaceable.

⚠️ IMPORTANT: The internal input fuse does not automatically eliminate the need for appropriately positioned external circuit protection in the supply wiring.

---

🌡️ OPERATING CONDITIONS

Operating temperature range:

-20°C to +55°C

Maximum humidity:

95% non-condensing

Output current reduces at elevated ambient temperature as part of the converter's high-temperature protection behaviour.

⚠️ IMPORTANT: Avoid condensation and install the converter within the supplied temperature and humidity limits.

---

🚙 12V VEHICLE TO 48V EQUIPMENT APPLICATIONS

The Orion-Tr may suit compatible vehicle electrical systems where a nominal 12V source needs to operate specialised equipment requiring a regulated 48V-class supply.

Potential compatible applications can include:

• 📡 48V-class communications equipment
• 🎛️ Higher-voltage control systems
• 💡 Compatible 48V-class lighting
• 🔌 Selected higher-voltage accessories
• 📱 Compatible electronic equipment
• 🏗️ Specialised industrial equipment

⚠️ IMPORTANT: Confirm the operating voltage, current and total power requirement of all connected equipment before installation.

---

🚤 MARINE ELECTRICAL SYSTEMS

The galvanically isolated design may suit compatible marine electrical systems where electrical separation is required between the nominal 12V supply and higher-voltage output circuit.

Suitability depends on the complete system design, required isolation level, connected equipment and environmental conditions.

---

📡 COMMUNICATIONS & ELECTRONIC EQUIPMENT

The combination of galvanic isolation, adjustable regulated output and a supplied output-noise specification of 2mV RMS can make the Orion-Tr suitable for compatible communications and electronic equipment.

Always confirm the equipment's required voltage, current demand and permitted electrical noise before installation.

---

🏗️ INDUSTRIAL & CONTROL APPLICATIONS

The Orion-Tr can suit compatible machinery, industrial equipment and control systems where a nominal 12V supply needs to provide an isolated 48V-class output.

The adjustable 40–60V output provides additional flexibility for compatible equipment with specific higher-voltage DC requirements.

---

📏 DIMENSIONS & WEIGHT

Height: 130mm

Width: 186mm

Depth: 70mm

Weight: Approximately 1.6kg

Allow additional clearance around the converter for mounting, screw-terminal access, cable routing and heat dissipation.

---

🔧 SUITABLE APPLICATIONS

• 🚙 Compatible nominal 12V vehicle systems
• 🚤 Marine electrical systems
• 📡 Communications equipment
• 🎛️ Higher-voltage control systems
• 🏗️ Industrial equipment
• 🔌 Electrically isolated DC circuits
• 💡 Compatible 48V-class lighting
• 📱 Compatible electronic equipment
• ⚡ High-power isolated 12V-to-48V conversion applications

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 12V to 48V-8A (380W) Isolated DC-DC Converter

Converter type: Isolated step-up DC-DC converter

Input voltage range: 10V–17V DC

Under-voltage shutdown: 7V

Under-voltage restart: 7.5V

Nominal output voltage: 48.2V DC

Adjustable output-voltage range: 40V–60V DC

Output-voltage tolerance: ±0.2V

Output noise: 2mV RMS

Continuous output current at nominal voltage and 40°C: 8A

Maximum output current at nominal voltage: 15A for 10 seconds

Short-circuit output current: 25A

Continuous output power at 25°C: 430W

Continuous output power at 40°C: 380W

Efficiency: 89%

No-load input current: <220mA

Current consumption when disabled via remote port: <200µA

Galvanic isolation: 200V DC between input, output and case

Short-circuit protection: Yes

High-temperature protection: Yes – output current reduces at elevated ambient temperature

Parallel connection: Yes

Maximum number of parallel units: Unlimited according to supplied product information

Battery charging: Not intended for battery charging

Recommended battery-charging alternative: Orion-Tr Smart according to supplied product information

Input fuse: Integrated and non-replaceable

Operating temperature range: -20°C to +55°C

Humidity: Maximum 95% non-condensing

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 16mm² / AWG6

Weight: Approximately 1.6kg

Dimensions: 130mm × 186mm × 70mm

⚠️ SPECIFICATION NOTE: The product designation includes “380W”, while the supplied technical specifications list 430W continuous output at 25°C and 380W continuous output at 40°C.

⚠️ SPECIFICATION NOTE: The supplied normal input range is 10–17V, while the supplied under-voltage shutdown and restart values are 7V and 7.5V respectively. These figures have been retained exactly as supplied.

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 12V to 48V-8A Isolated DC-DC Converter, confirm that it matches the electrical and environmental requirements of your system.

• 10–17V DC input supply
• Required output within the adjustable 40–60V range
• Correct output voltage set before connecting equipment
• Continuous load within the supplied 8A rating at 40°C
• Short-duration load within the 15A / 10-second maximum
• Output-power requirement appropriate for ambient temperature
• 200V DC galvanic isolation suitable for the application
• No requirement to use the converter as a battery charger
• Correct input and output polarity
• Adequate 12V source capacity
• Correct high-current input cable sizing
• Maximum 16mm² / AWG6 terminal cable size
• Appropriate external fuse or circuit-breaker protection
• Correct remote-port wiring where used
• Suitable protected mounting location
• Screw terminals facing downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Humidity below 95% and non-condensing
• Adequate mounting and heat-dissipation clearance

⚠️ IMPORTANT: This is a high-power step-up converter. The 12V-side input current can be several times greater than the 8A output-current figure. Size the source, cable and circuit protection for the actual input demand.

⚠️ IMPORTANT: This converter provides 200V DC galvanic isolation between the input, output and case.

⚠️ IMPORTANT: This model is specifically stated as not intended for battery charging. Consider an appropriate Orion-Tr Smart or dedicated battery charger where charging is required.

⚠️ IMPORTANT: Output capability reduces at elevated ambient temperatures. The supplied specifications list 430W continuous output at 25°C and 380W at 40°C.

⚠️ IMPORTANT: The internal input fuse is not replaceable. Appropriate external wiring protection should still be provided where required by the installation.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 12V to 48V-8A converter do?

It steps up a compatible nominal 12V DC supply to a regulated, adjustable and galvanically isolated 48V-class output.

Is this converter galvanically isolated?

Yes. The supplied specification states 200V DC galvanic isolation between the input, output and case.

What is the input-voltage range?

The supplied input-voltage range is 10V to 17V DC.

What is the nominal output voltage?

The supplied nominal output voltage is 48.2V DC.

Can the output voltage be adjusted?

Yes. The supplied output-voltage adjustment range is 40V to 60V DC.

What is the output-voltage tolerance?

The supplied output-voltage tolerance is ±0.2V.

What is the continuous output current?

The supplied specification lists 8A continuous output current at nominal output voltage and 40°C.

What is the maximum output current?

The supplied maximum output is 15A for up to 10 seconds.

Can I continuously draw 15A?

No. The 15A figure applies for a maximum of 10 seconds. Sustained operation should be based on the supplied 8A continuous-current rating and applicable output-power limits.

What is the short-circuit output current?

The supplied short-circuit output-current figure is 25A. This is a protection-related specification and not an allowable normal equipment load.

Is the converter short-circuit proof?

Yes. The supplied product information states that Orion-Tr models are short-circuit proof.

Is this a 380W or 430W converter?

The product title identifies this model as 380W. The supplied technical specifications list 430W continuous output at 25°C and 380W continuous output at 40°C.

How much continuous output power is available at 25°C?

The supplied specification lists 430W continuous output power at 25°C.

How much continuous output power is available at 40°C?

The supplied specification lists 380W continuous output power at 40°C.

Why does available output reduce at higher temperatures?

The converter includes high-temperature protection and reduces output current when ambient temperature becomes high.

What is the efficiency?

The supplied efficiency rating is 89%.

Will the 12V input current be higher than the 8A output current?

Yes. Because the converter raises the voltage from approximately 12V to approximately 48V and has normal conversion losses, input current can be substantially higher than the 8A output-current figure.

Can I size the input cable based on the 8A output rating?

No. The 12V-side input wiring must be sized according to actual input current, cable length, voltage drop and circuit-protection requirements.

Does the 12V source need to be capable of high current?

Yes. This is a high-power step-up converter, so the 12V source must be capable of supplying substantial current when the converter is operating at high output power.

What is the under-voltage shutdown point?

The supplied under-voltage shutdown threshold is 7V.

What is the under-voltage restart point?

The supplied under-voltage restart point is 7.5V.

Why are the under-voltage figures below the stated 10V minimum input range?

The supplied technical information lists a normal input range of 10–17V while separately listing 7V shutdown and 7.5V restart thresholds. These figures have been retained exactly as supplied. Confirm the current manufacturer documentation if operation close to the lower voltage limits is important.

Can this converter charge a 48V battery?

No. The supplied product information specifically states that this model is not intended for battery charging, despite the adjustable 40–60V output.

Can it charge a lithium battery?

No battery-charging application should be assumed. The supplied product information specifically states that this converter is not intended for battery charging.

What should I use for battery charging?

The supplied product information recommends considering an Orion-Tr Smart for battery-charging applications.

Why would I choose an isolated converter?

An isolated converter electrically separates the input and output circuits. This may be useful where the electrical-system design requires galvanic separation or independently referenced circuits.

Can multiple converters be connected in parallel?

Yes. The supplied information states that compatible Orion-Tr converters can be connected in parallel to increase output current.

How many converters can be connected in parallel?

The supplied product information states that an unlimited number of compatible units may be connected in parallel.

Does it have high-temperature protection?

Yes. The supplied information states that output current reduces at high ambient temperature.

Does it have an internal input fuse?

Yes. The supplied information states that 12V input Orion-Tr models include an internal input fuse.

Can the internal fuse be replaced?

No. The supplied product information states that the internal input fuse is not replaceable.

Does the internal fuse mean external protection is unnecessary?

Not necessarily. Appropriate external fuse or circuit-breaker protection should still be selected according to the supply wiring, cable capacity and complete installation requirements.

Does it have a remote port?

The supplied technical specifications state that current consumption falls below 200µA when the converter is disabled through its remote port.

How much current does it consume when disabled?

The supplied specification lists less than 200µA when disabled through the remote port.

What is the no-load input current?

The supplied no-load input-current specification is less than 220mA.

What type of electrical connections does it use?

The Orion-Tr uses screw terminals.

Do I need special tools for installation?

The supplied product information states that no special tools are required for installation of the screw terminals.

What is the maximum cable size?

The supplied maximum cable cross-section is 16mm² / AWG6.

Should I automatically use 16mm² cable?

No. The 16mm² specification is the maximum size accepted by the terminals. Actual cable size should be calculated according to input current, cable length, allowable voltage drop and circuit-protection requirements.

What is the IP rating?

The supplied ingress-protection rating is IP43 when the converter is installed with the screw terminals facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 rating applies when the screw terminals are oriented downwards.

Is the converter waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the output-noise specification?

The supplied output-noise figure is 2mV RMS.

What is the operating-temperature range?

The supplied operating-temperature range is -20°C to +55°C.

What is the humidity rating?

The supplied maximum humidity is 95% non-condensing.

How large is the converter?

The supplied dimensions are 130mm high × 186mm wide × 70mm deep.

How much does it weigh?

The supplied weight is approximately 1.6kg.

Can it run 48V equipment from a 12V vehicle?

Potentially. This converter is designed to step a compatible nominal 12V supply up to a 48V-class output. Confirm the equipment's voltage, current and total power requirements before connection.

Can it power multiple 48V accessories?

Potentially. Add together the current requirements of all connected equipment and ensure the total remains within the applicable continuous-current and temperature-dependent power limits.

Can it run an 8A 48V load continuously?

Potentially. An 8A load is at the supplied continuous-current rating at nominal output voltage and 40°C, so correct source capacity, cable sizing, protection and thermal conditions are particularly important.

Can it run a 10A 48V load continuously?

The supplied continuous-current rating is 8A at nominal output voltage and 40°C. A 10A sustained load therefore exceeds that stated continuous-current specification.

Can it power sensitive electronic equipment?

Potentially. The converter provides galvanic isolation, adjustable regulated output and a supplied output-noise specification of 2mV RMS. Confirm the exact voltage, current and noise requirements of the equipment before connection.

Can it be used in a marine system?

Potentially. Its isolated design may be useful where galvanic separation is required, provided the complete installation meets the converter's electrical and environmental requirements.

What should I check before ordering?

Confirm the 10–17V input range, required 40–60V output setting, 8A continuous-current requirement at 40°C, 15A short-duration maximum, operating-temperature requirements, galvanic-isolation requirement, 12V-side source capacity, cable sizing, circuit protection, remote-port requirements and mounting environment before purchase.

---

⚡ HIGH-POWER ISOLATED 12V TO 48V CONVERSION FOR SPECIALISED DC SYSTEMS

Choose the Orion-Tr 12V to 48V-8A (380W) Isolated DC-DC Converter when you need to generate substantial 48V-class power from a nominal 12V electrical system while maintaining galvanic separation between the input and output circuits.

With a 10–17V input range, adjustable 40–60V output, 8A continuous output at 40°C, 15A short-duration maximum, 430W supplied continuous output at 25°C, 380W at 40°C, 200V DC galvanic isolation, short-circuit protection and unlimited parallel capability according to the supplied information, the Orion-Tr provides a versatile solution for compatible vehicle, marine, communications and industrial electrical systems.

Confirm the required output voltage, connected load, 12V-side source capacity, input-current demand, operating temperature, galvanic-isolation requirement, cable size, circuit protection and mounting environment before installation. For battery charging, select an appropriate dedicated charging product rather than this converter.
