📻 ORICOM UHF390R4WP 4X4 GETAWAY PACK – UHF390R + ANU240 6.5dBi ANTENNA

5 Watt UHF CB Package with 10-Minute Instant Replay & Heavy-Duty 6.5dBi Touring Antenna

📡 The Oricom UHF390R4WP 4X4 Getaway Pack combines the UHF390R 5 Watt UHF CB Radio with the ANU240 6.5dBi UHF CB Antenna for a complete communication package suited to 4WD touring, highway travel and remote adventures.

The UHF390R features a heavy-duty controller speaker microphone, compact hideaway transceiver and Instant Replay with up to 10 minutes of recording, allowing missed incoming transmissions to be played back when required.

The included ANU240 adds a 977mm fibreglass whip, 6.5dBi gain, heavy-duty parallel spring base and 4.5m low-loss coaxial cable for a robust touring installation.

⚡ KEY FEATURES

⏪ 10-Minute Instant Replay
Replay recently received transmissions if you miss an important message.

📻 Full 5 Watt UHF CB Output
Maximum 5 Watt transmit power across the Australian 80-channel UHF CB system.

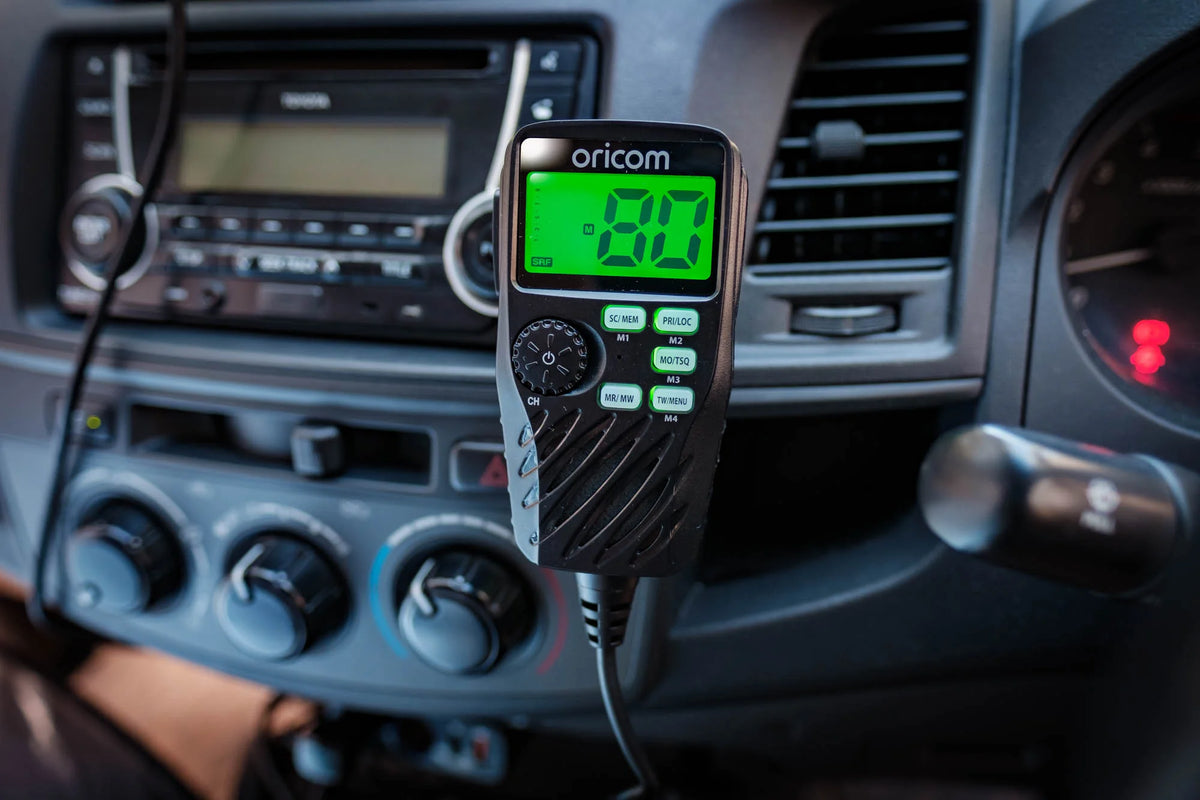

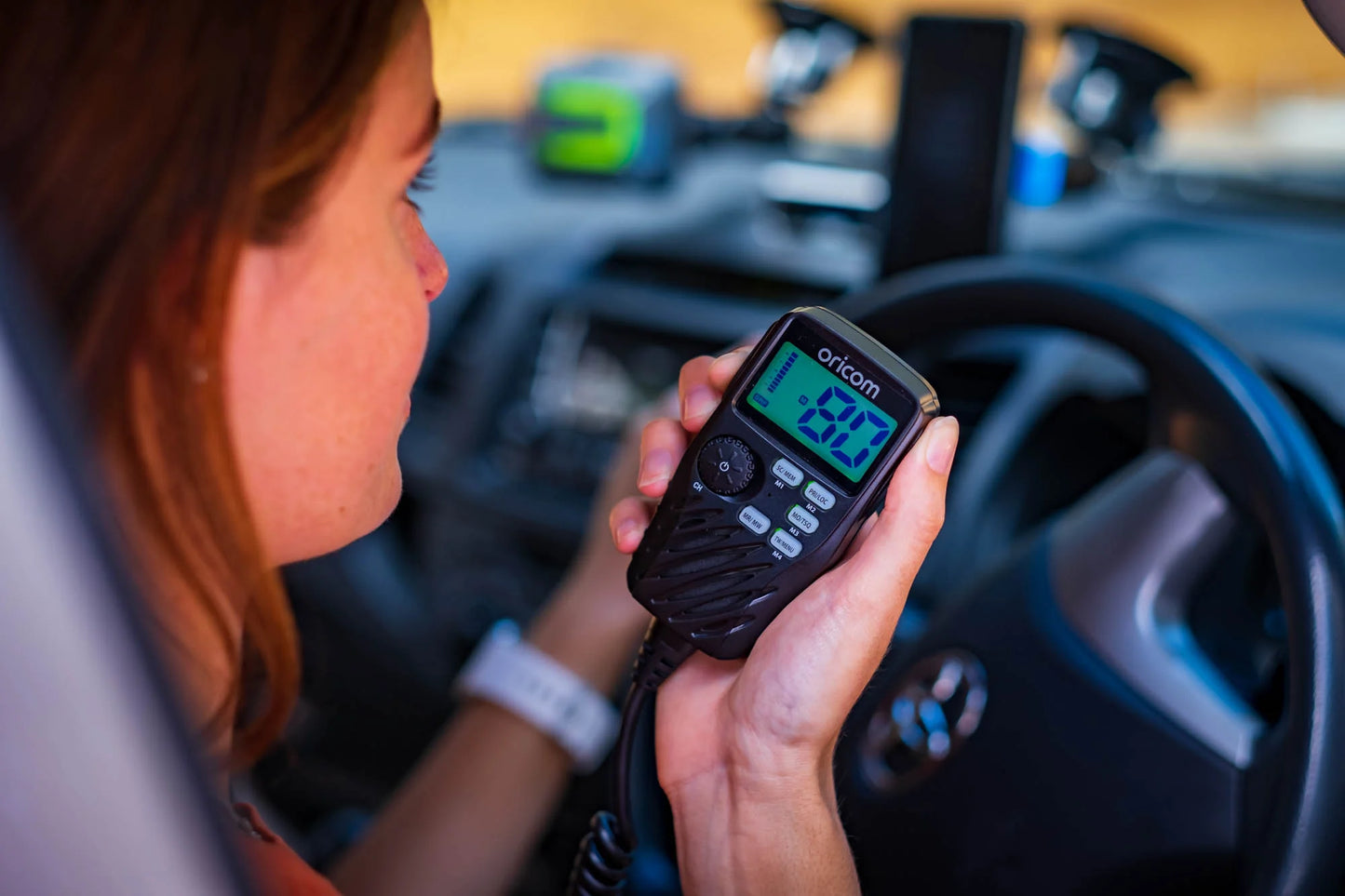

🎙️ Controller Speaker Microphone
Heavy-duty microphone keeps the radio controls and received audio within easy reach.

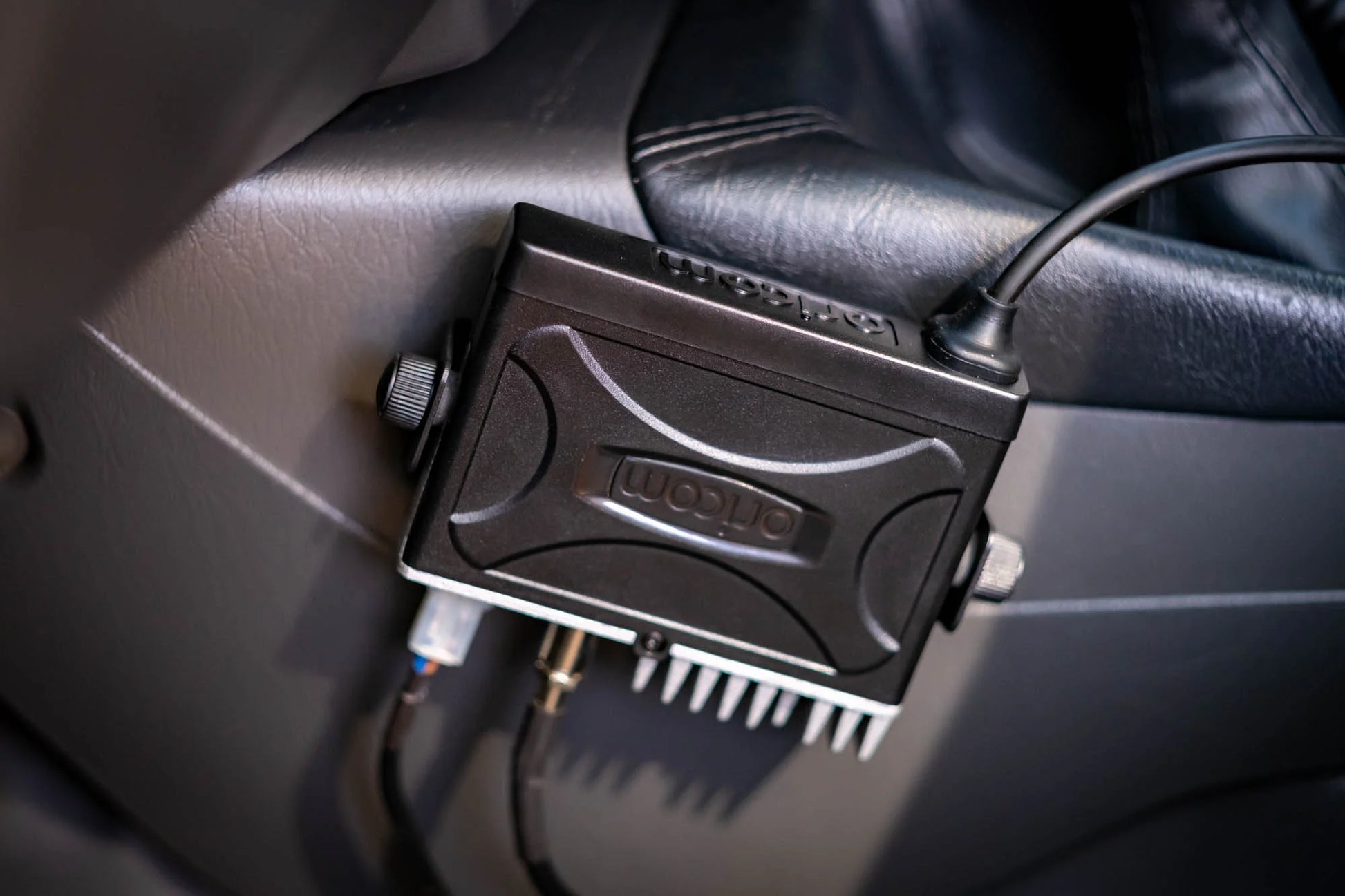

📏 Compact Hideaway Transceiver
Only 27 × 102 × 85mm for discreet installation in modern vehicles.

📡 ANU240 6.5dBi Antenna Included
977mm fibreglass antenna with heavy-duty parallel spring base.

🌈 Tri-Colour LCD Display
Selectable Amber, Red or Green backlighting.

🔊 Automatic Level Control
Helps maintain consistent transmitted audio levels.

🔍 Open & Priority Scan
Includes Priority Channel functionality for monitoring important communications.

🔐 38 CTCSS & 104 DCS Codes
Provides selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔊 External Speaker Jack
3.5mm connection for a compatible optional external speaker.

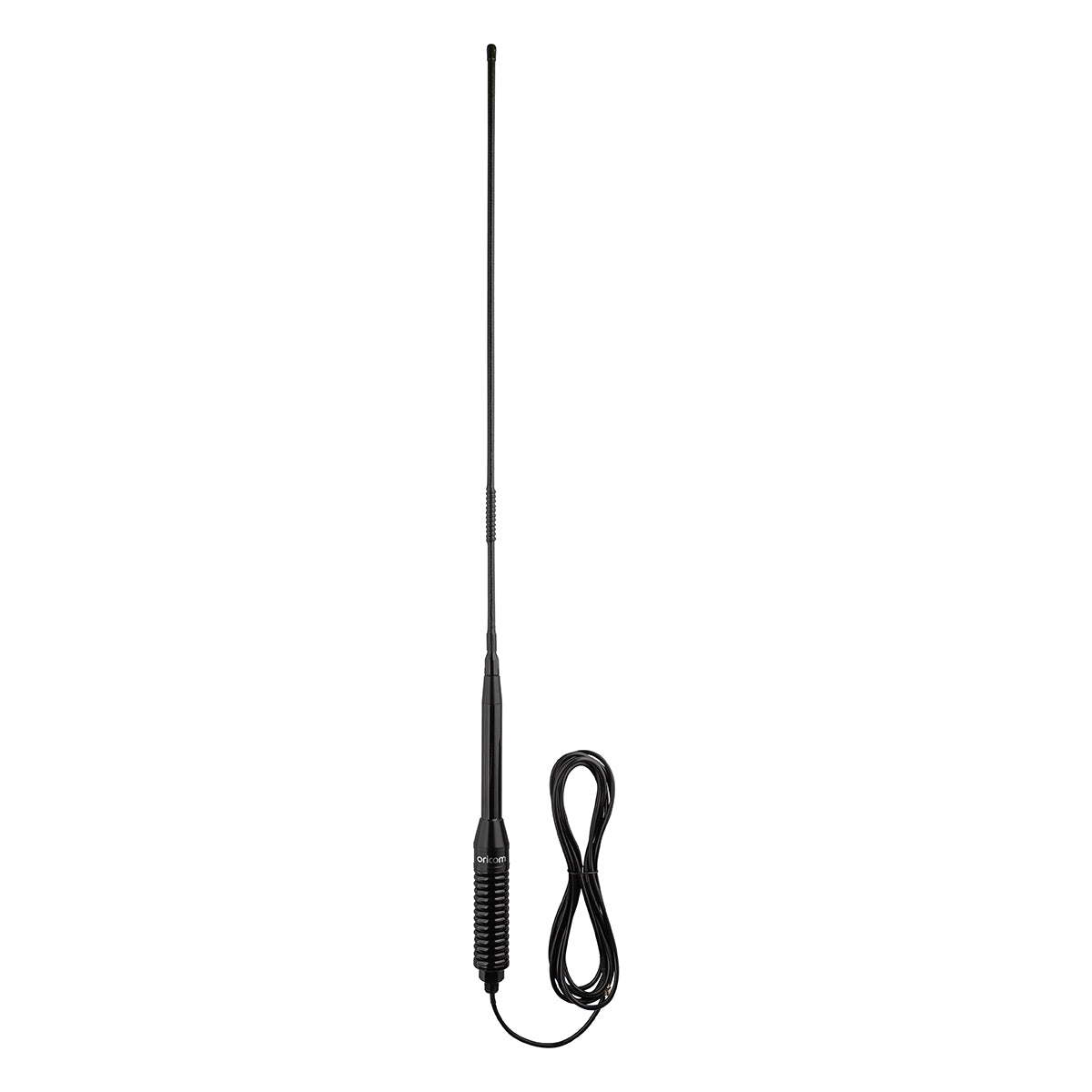

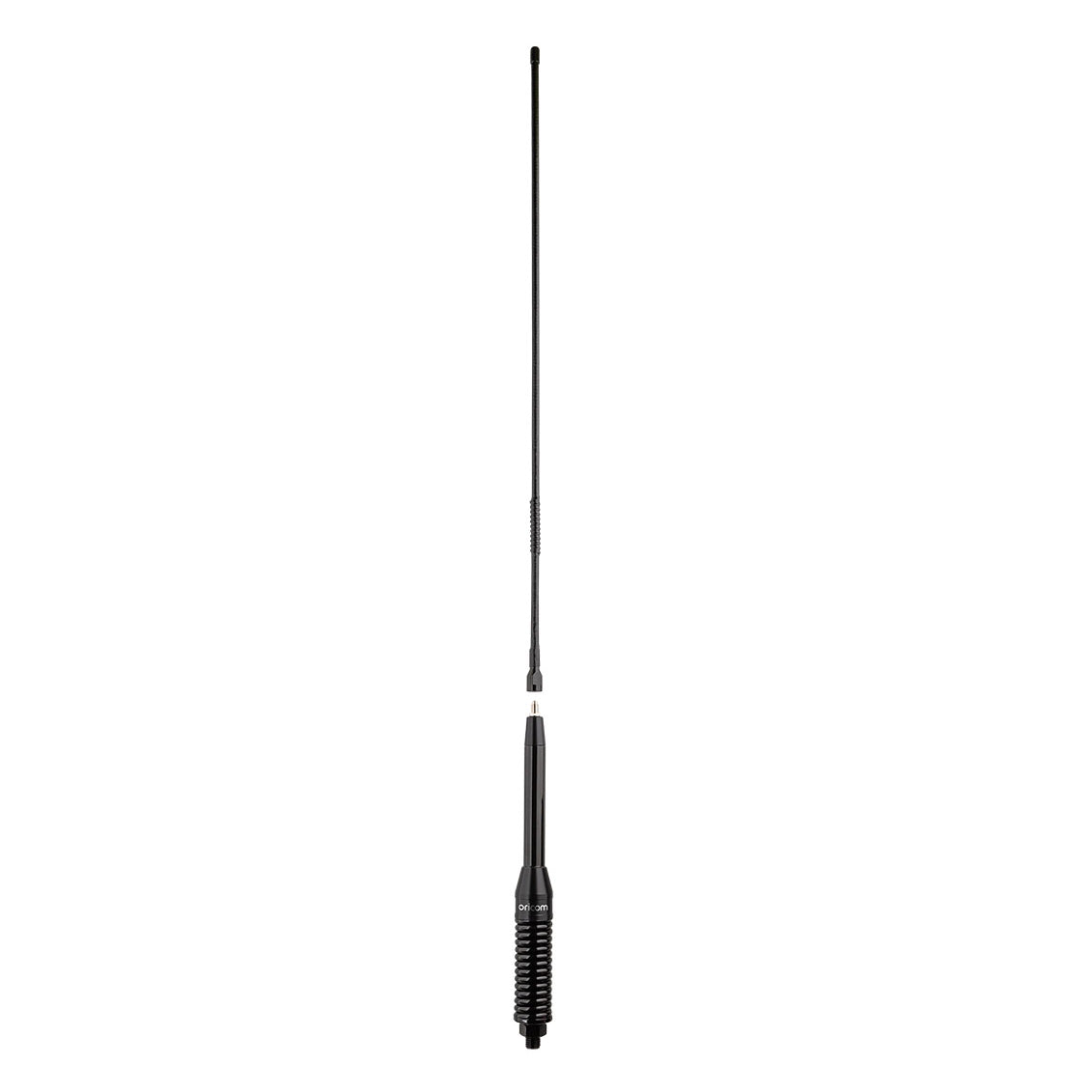

📡 ANU240 6.5dBi TOURING ANTENNA

The ANU240 uses a 6.5dBi fibreglass whip with a heavy-duty parallel spring base, making it particularly suited to touring vehicles operating across flatter open country and highway environments.

• 📡 Gain: 6.5dBi
• 📏 Overall Length: 977mm including spring base

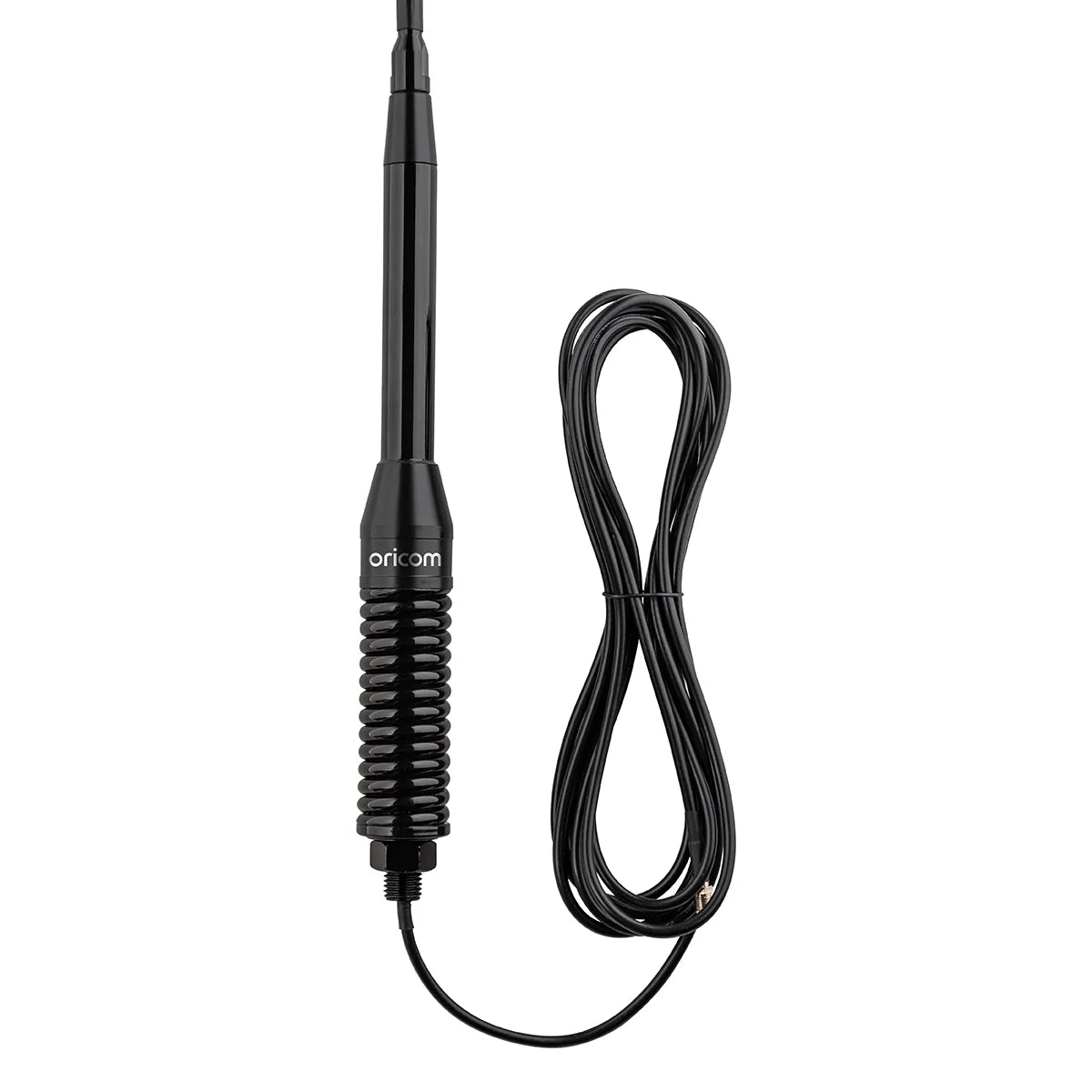

• 🔩 Heavy-Duty Parallel Spring Base

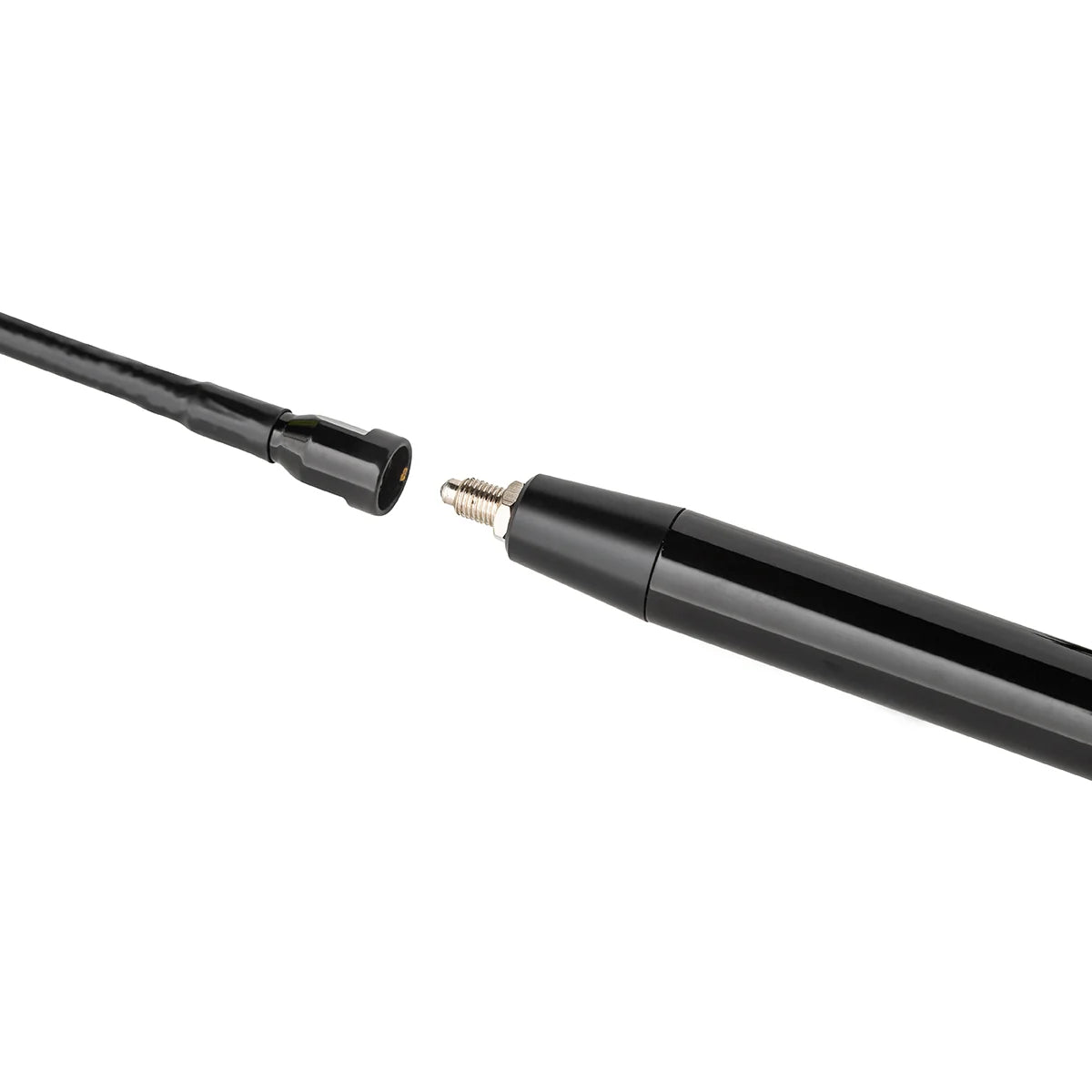

• 📡 Fibreglass Whip
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

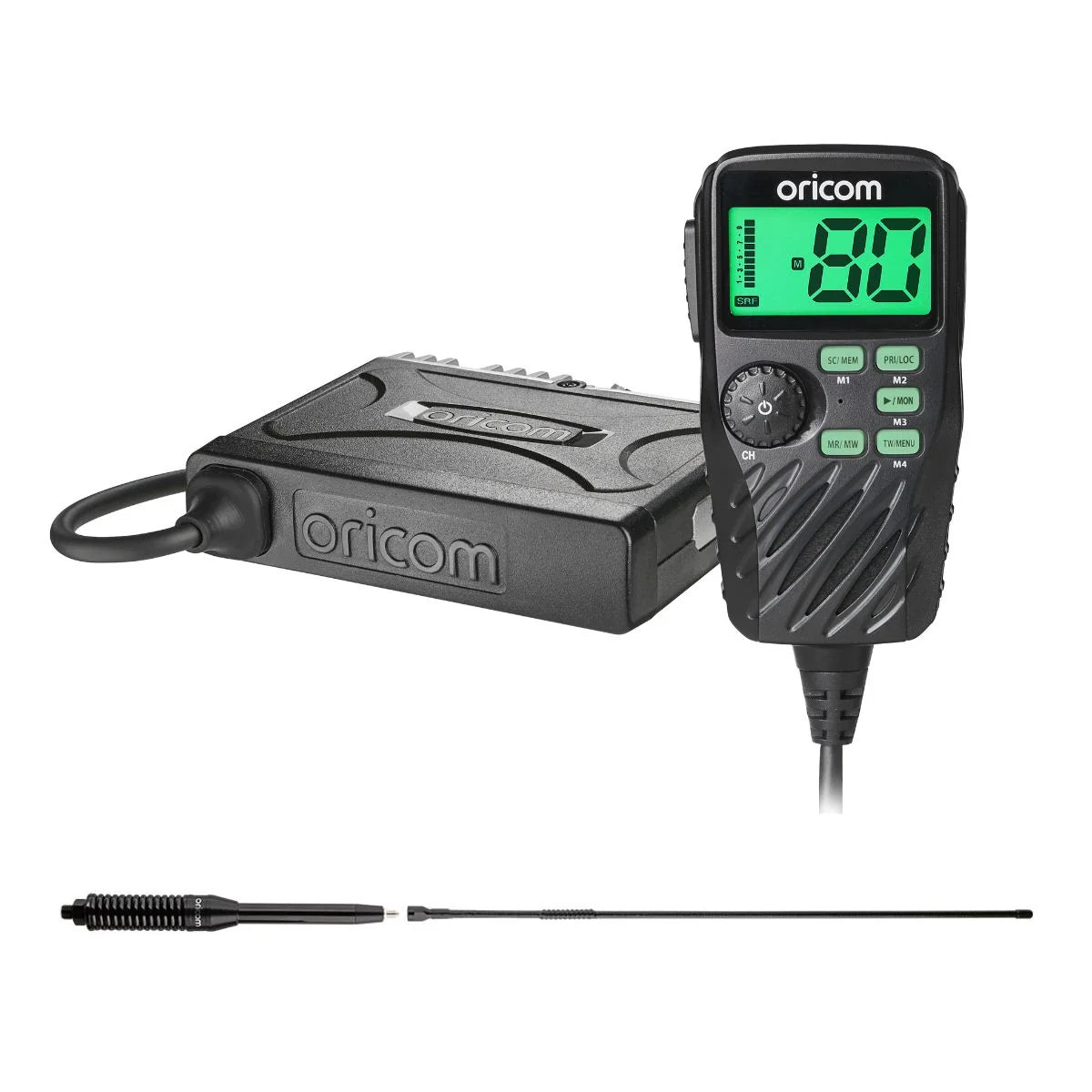

📦 PACKAGE CONTENTS

• 📻 Oricom UHF390R 5 Watt UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 🔌 2 × Microphone Extension Cables
• 📡 Oricom ANU240 6.5dBi UHF CB Antenna
• 🔩 Heavy-Duty Parallel Spring Base
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Pack Model: UHF390R4WP

Radio Model: UHF390R

RF Output Power: 5 Watts Maximum

Instant Replay: Up to 10 Minutes Recording

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority

Scanning Speed: 130ms Per Channel

Priority Channel: Yes

CTCSS / DCS: 38 / 104

Display: Tri-Colour LCD – Amber / Red / Green

Automatic Level Control: Yes

External Speaker Connection: 3.5mm Jack

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Transmit Current: Approximately 1.7A with 50-Ohm Antenna Termination

Receiver Type: Direct Conversion via Single DSP Chip

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

Transceiver Dimensions (H × W × D): 27 × 102 × 85mm

Transceiver Weight: 420g

Antenna Model: ANU240

Antenna Gain: 6.5dBi

Antenna Length: 977mm Including Spring Base

Coaxial Cable Length: 4.5m

Compliance: AS/NZS 4365:2011

Designed For: Australian Conditions

Radio Made In: Korea

🔧 BEFORE YOU BUY

• Designed for a compatible nominal 12V system within the stated 10–15V DC range
• Do not connect directly to a nominal 24V vehicle electrical system
• Confirm the 27 × 102 × 85mm transceiver fits your intended mounting position
• Allow sufficient clearance for the 977mm antenna and spring movement
• Plan the 4.5m antenna cable and microphone extension routes before installation

❓ QUICK FAQ

What does Instant Replay do?

It allows recently received transmissions to be replayed if you miss or don't clearly hear them the first time.

What terrain suits the ANU240 6.5dBi antenna?

Its higher-gain radiation pattern is generally best suited to flatter open country, highways and long-distance touring environments.

Can I hide the main radio transceiver?

Yes. The compact 27 × 102 × 85mm transceiver can be installed in a suitable protected location while the controller microphone remains accessible.

Can this radio run directly from 24V?

No. The UHF390R is specified for 10–15V DC operation, so a suitable 24V-to-12V conversion solution is required in a nominal 24V vehicle.

What should I check before ordering?

Check your radio mounting space, vehicle supply voltage, antenna clearance and whether a 6.5dBi antenna suits the terrain you normally travel through.

🏕️ A COMPLETE UHF PACKAGE FOR 4X4 TOURING

The Oricom UHF390R4WP combines full 5 Watt UHF performance, 10-minute Instant Replay and a compact controller-microphone installation with the heavy-duty ANU240 6.5dBi touring antenna.

For highway travel, open-country touring and remote 4WD adventures, it's a practical package designed to keep your communications clear and your installation tidy.
