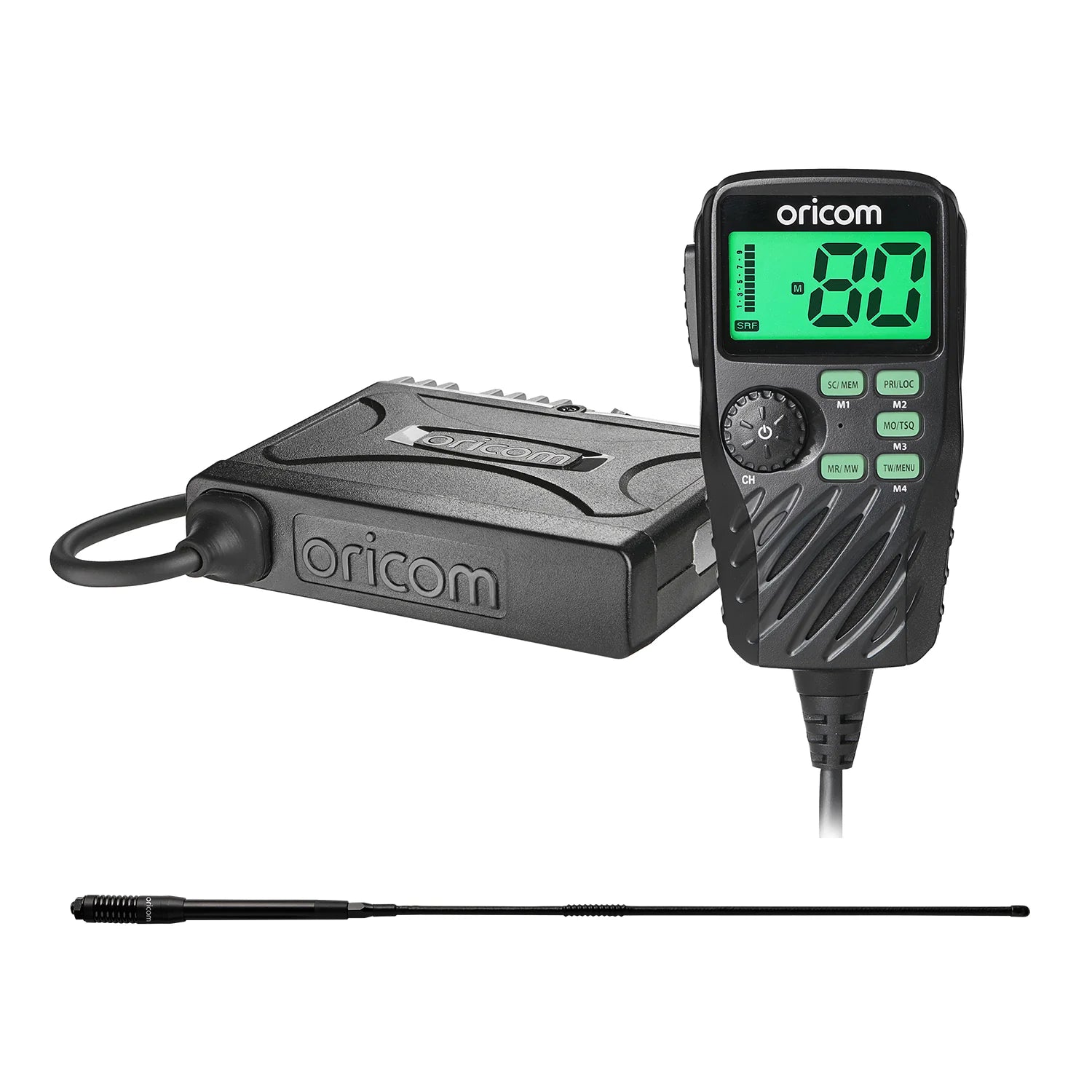

📻 ORICOM UHF390PK VALUE PACK – UHF390 5W UHF CB RADIO + ANU215 6.5dBi ANTENNA

Compact Controller-Mic UHF Package with 6.5dBi Touring Antenna

📡 The Oricom UHF390PK combines the UHF390 5 Watt UHF CB Radio with the ANU215 6.5dBi UHF antenna, creating a compact communication package ideal for modern vehicles, 4WDs and touring setups.

All primary radio controls are built into the controller speaker microphone, eliminating the need for a bulky conventional head unit. Speakers in both the microphone and transceiver provide strong, clear received audio, while the compact transceiver can be mounted discreetly out of the way.

⚡ KEY FEATURES

📻 Full 5 Watt UHF CB Output
80-channel UHF CB radio with maximum 5 Watt transmit power.

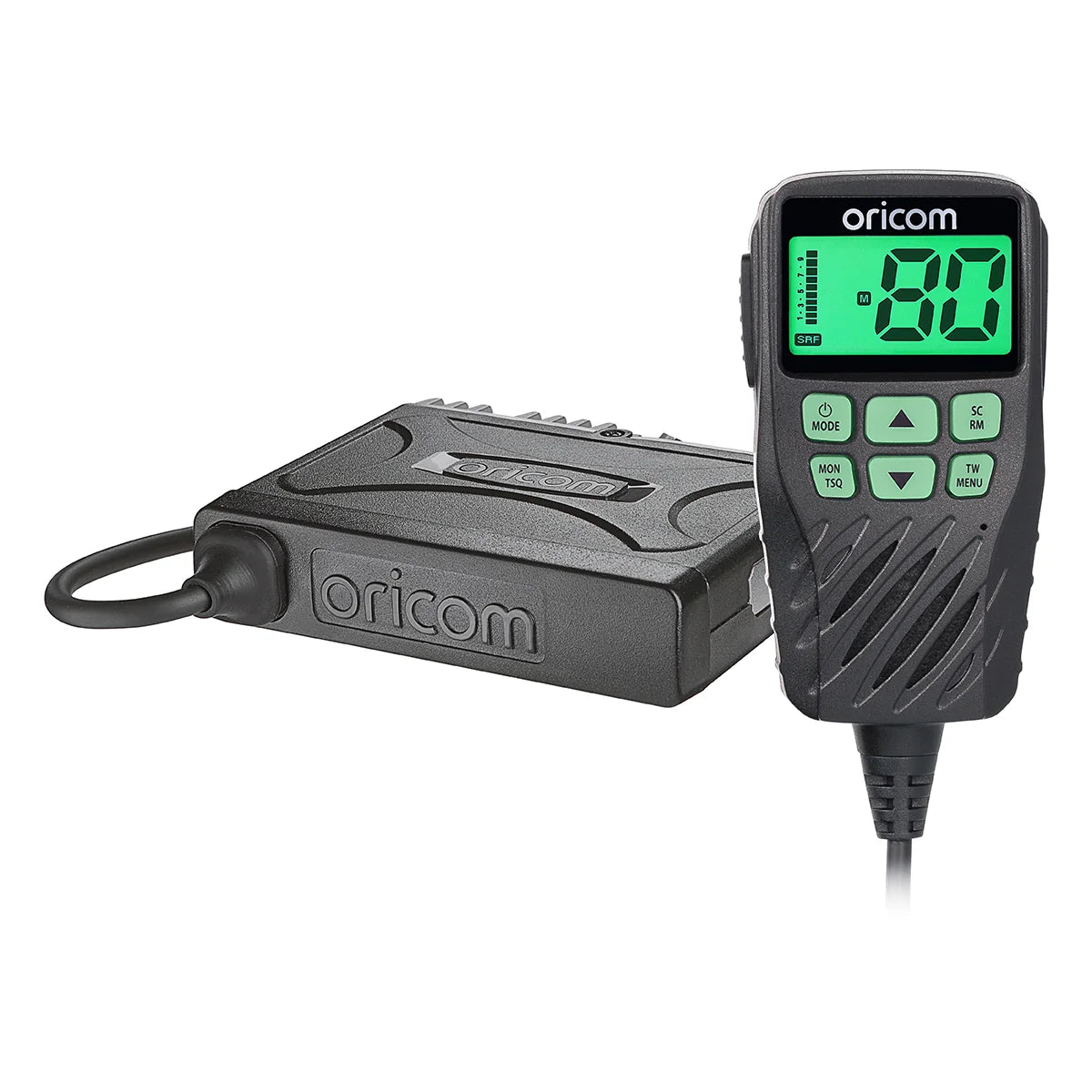

🎙️ Controller Speaker Microphone
Radio controls, display and speaker conveniently located in the microphone.

📏 Micro-Size Transceiver
Compact 27 × 102 × 85mm design for space-limited installations.

🔊 Dual-Speaker Audio
Speakers in both the controller microphone and transceiver provide strong audio output.

📡 ANU215 6.5dBi Antenna Included
830mm elevated-feed fibreglass antenna with spring base and 4.5m low-loss coax.

🌈 Tri-Colour LCD Display
Selectable Amber, Red or Green backlighting.

🔍 Open & Priority Scan
Includes dedicated Priority Channel functionality.

🔐 38 CTCSS & 104 DCS Codes
Selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔊 Automatic Level Control
Helps maintain consistent transmitted audio levels.

🔌 External Speaker Connection
3.5mm jack for a compatible optional external speaker.

📡 ANU215 6.5dBi TOURING ANTENNA

The included ANU215 features a 6.5dBi elevated-feed design with a spring base and fibreglass whip, making it particularly suited to highway travel and flatter open-country touring.

• 📡 Gain: 6.5dBi
• 📏 Length: 830mm including spring base
• 📡 Fibreglass Whip with Black Heat Shrink
• 🔩 Spring Base
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📦 PACKAGE CONTENTS

• 📻 Oricom UHF390 5 Watt UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 📡 Oricom ANU215 6.5dBi UHF Antenna
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Pack Model: UHF390PK

Radio Model: UHF390

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority

Scanning Speed: 130ms Per Channel

CTCSS / DCS: 38 / 104

Automatic Level Control: Yes

External Speaker Connection: 3.5mm Jack

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Voltage Regulator

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Transmit Current: Approximately 1.5A with 50-Ohm Antenna Termination

Receiver Type: Direct Conversion via Single DSP Chip

Receiver Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

Transceiver Dimensions (H × W × D): 27 × 102 × 85mm

Compliance: AS/NZS 4365:2011

Designed For: Australian Conditions

Made In: Korea

⚠️ CTCSS and DCS codes provide selective-squelch functionality and do not make UHF CB communications private or encrypted.

🔧 BEFORE YOU BUY

• Designed for compatible nominal 12V systems within the stated 10–15V DC range
• Do not connect directly to a nominal 24V electrical system
• Confirm the 27 × 102 × 85mm transceiver fits your mounting location
• Allow sufficient clearance for the 830mm antenna and spring movement
• Plan the 4.5m coaxial cable route before installation

❓ QUICK FAQ

Can the UHF390 transceiver be hidden?

Yes. Its compact design allows the transceiver to be installed in a suitable protected location while the controller microphone remains accessible.

What terrain suits the ANU215 6.5dBi antenna?

It is generally best suited to highways, flatter open country and touring conditions where a higher-gain radiation pattern is beneficial.

Can it run directly from 24V?

No. The radio is specified for 10–15V DC operation, so a suitable voltage-conversion solution is required for a nominal 24V vehicle.

📻 COMPACT UHF PERFORMANCE FOR MODERN VEHICLES

The Oricom UHF390PK combines a compact controller-microphone radio installation with a heavy-duty 6.5dBi touring antenna – a practical solution for drivers wanting full 5 Watt UHF performance without a bulky dashboard-mounted head unit.
