UHF390GP 5W UHF CB Pack | ANU230 6.5dBi Antenna

📻 ORICOM UHF390GP VALUE PACK – UHF390P 5W UHF CB RADIO + ANU230 6.5dBi ANTENNA

Compact Controller-Mic UHF Package for Modern Vehicles & Touring Setups

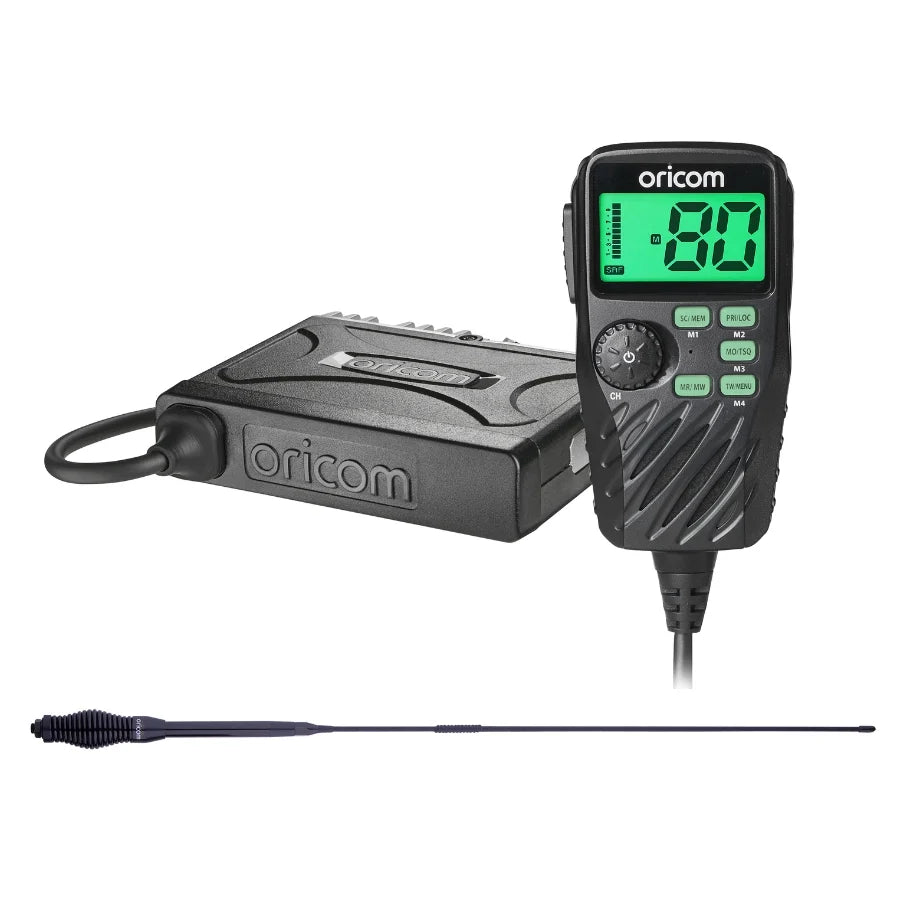

📡 The Oricom UHF390GP combines the compact UHF390P 5 Watt UHF CB Radio with the ANU230 6.5dBi ground-independent antenna, creating a clean, space-saving communication package for 4WDs, touring vehicles and modern interiors.

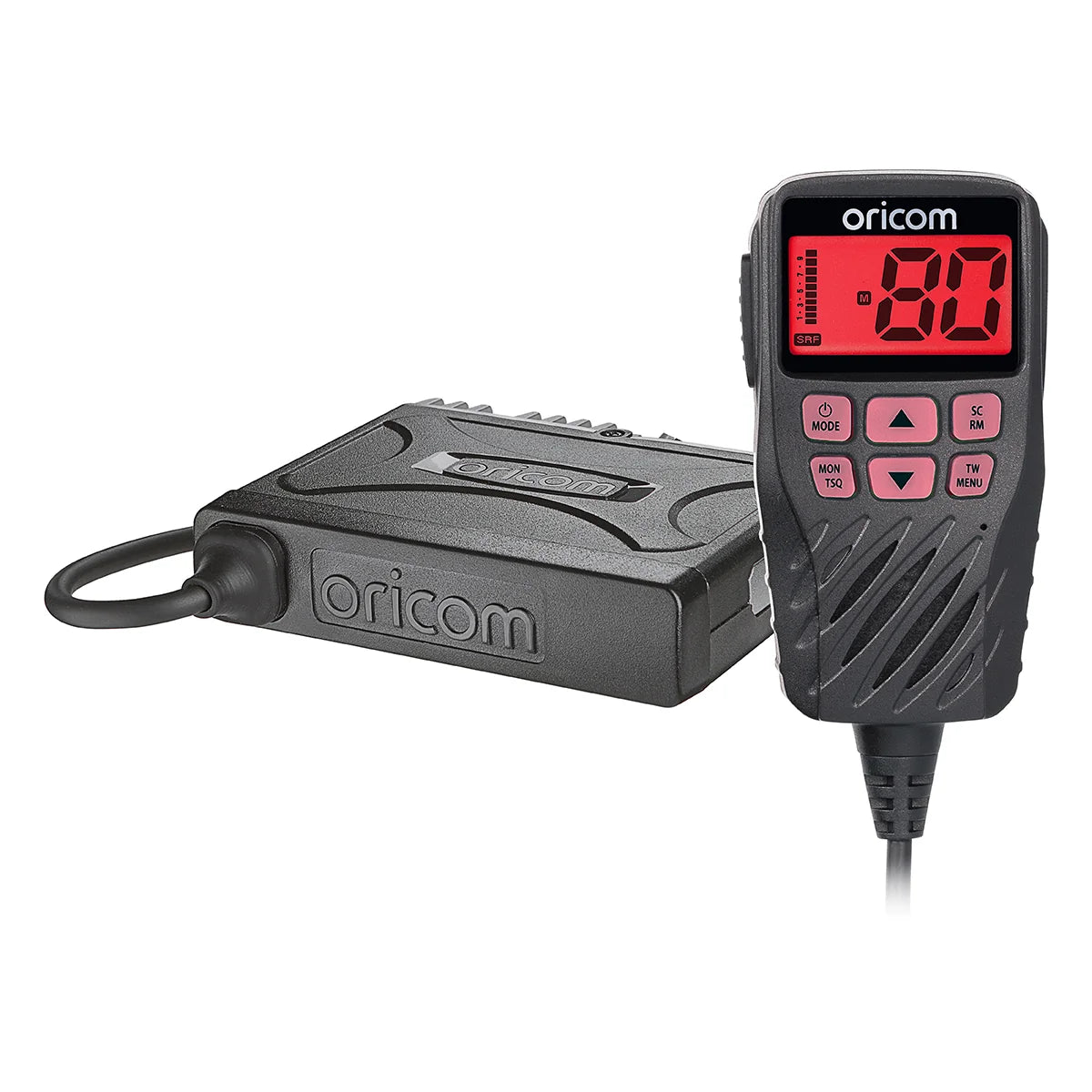

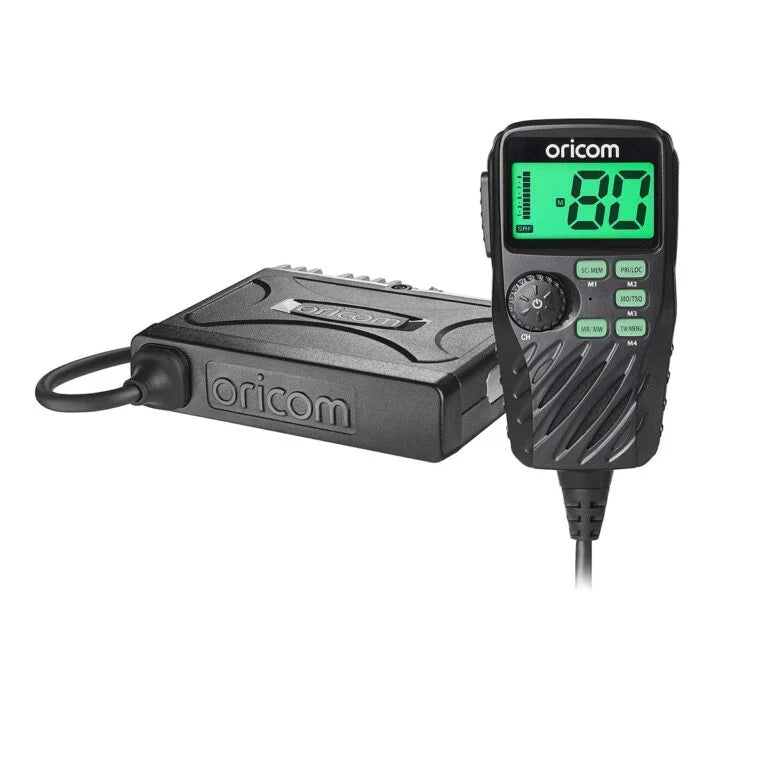

All primary radio controls are built into the controller speaker microphone, allowing the compact transceiver to be mounted out of the way. Speakers in both the microphone and transceiver provide strong, clear received audio.

The included ANU230 is a 962mm, 6.5dBi antenna with elevated feed, heavy-duty parallel spring base and 4.5m low-loss coaxial cable, making it particularly suited to highways and flatter open-country touring.

⚡ KEY FEATURES

📻 Full 5 Watt UHF CB Output
80-channel UHF CB radio with maximum 5 Watt transmit power.

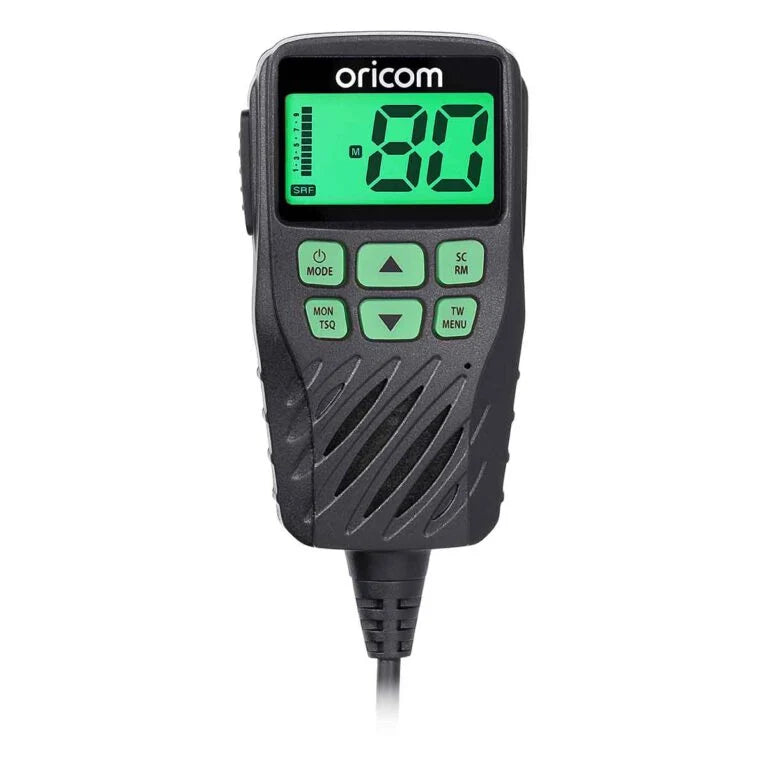

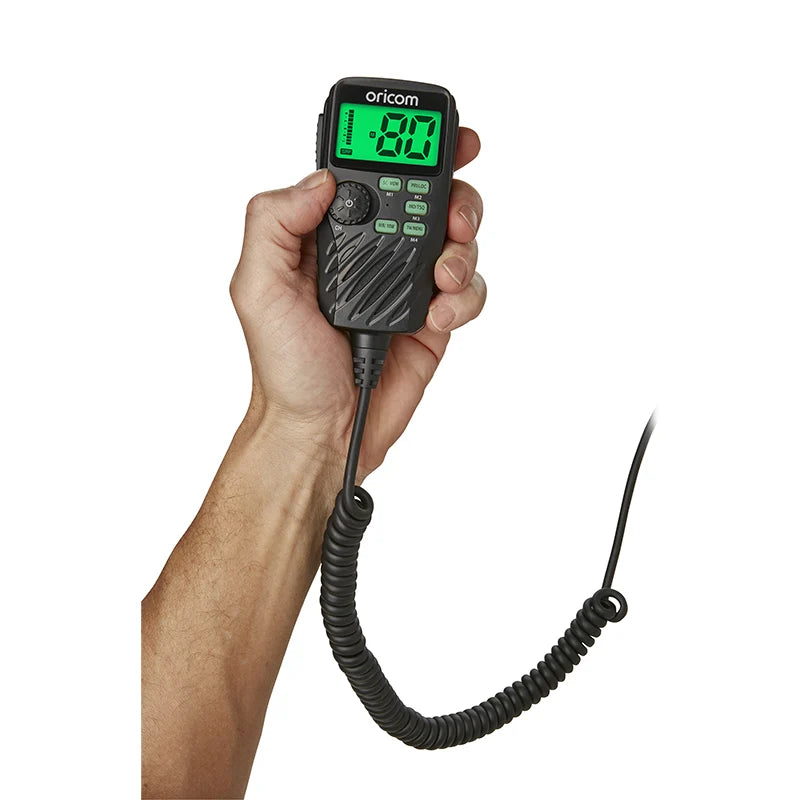

🎙️ Controller Speaker Microphone
Primary radio controls, display and speaker conveniently located in the microphone.

📏 Micro-Size Transceiver
Only 27 × 102 × 85mm for discreet installation in space-limited vehicles.

🔊 Dual-Speaker Audio
Audio from both the controller microphone and transceiver for improved volume and clarity.

📡 ANU230 6.5dBi Antenna Included
Ground-independent elevated-feed antenna designed for highway and open-country touring.

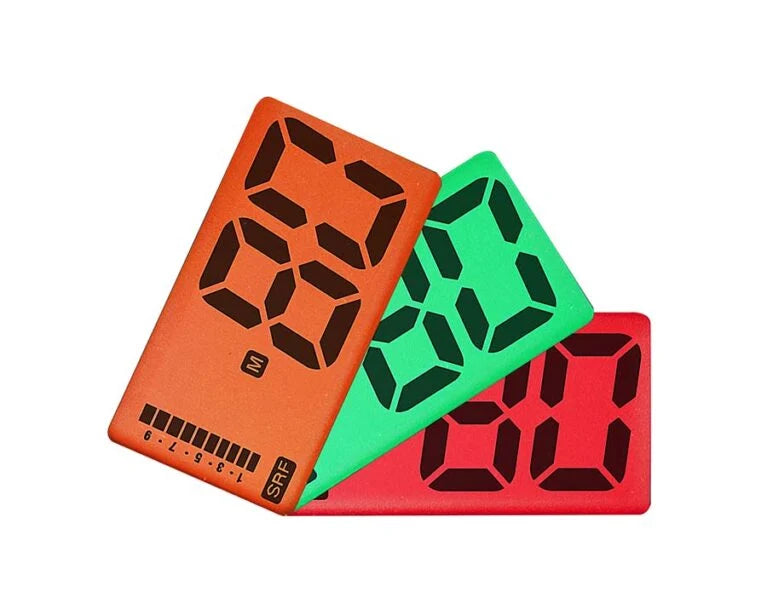

🌈 Tri-Colour LCD Display
Selectable Amber, Red or Green backlighting.

🔍 Open & Priority Scan
Includes dedicated priority-channel functionality.

🔐 38 CTCSS & 104 DCS Codes
Selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔊 Automatic Level Control
Helps maintain consistent transmitted audio levels.

🔌 External Speaker Connection
3.5mm jack for a compatible optional external speaker.

📡 ANU230 6.5dBi TOURING ANTENNA

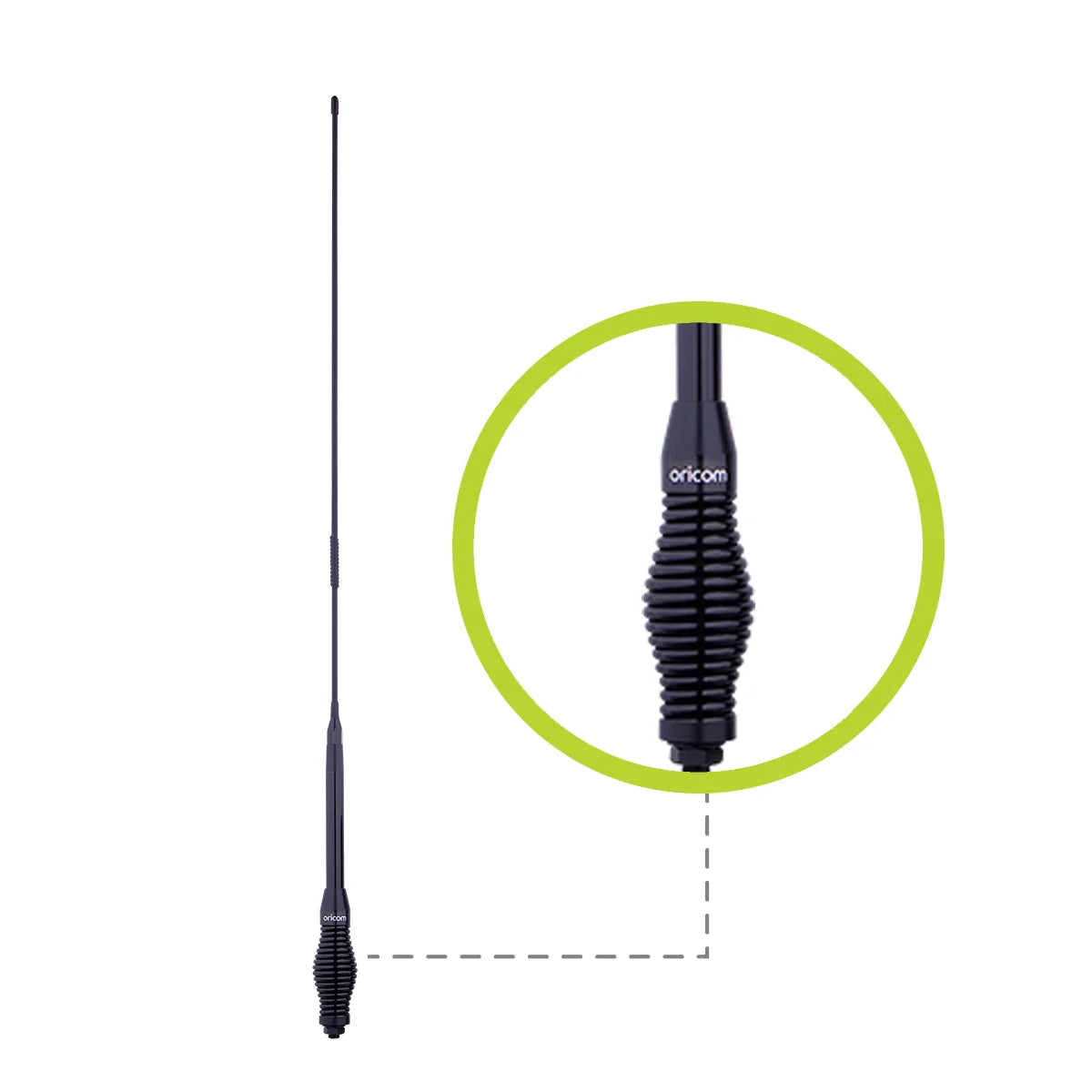

The ANU230 is a ground-independent antenna with elevated feed, a fibreglass whip and heavy-duty parallel spring base.

• 📡 Gain: 6.5dBi
• 📏 Length: 962mm including spring base
• 🔩 Heavy-Duty Parallel Spring Base
• 📡 Fibreglass Whip
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor
• 🔩 Grub Screw & Hex Key Included

📦 PACKAGE CONTENTS

• 📻 Oricom UHF390P 5 Watt UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 🔌 2 × Microphone Extension Cables
• 📡 Oricom ANU230 6.5dBi UHF CB Antenna
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor
• 🔩 Grub Screw & Hex Key

📋 TECHNICAL SPECIFICATIONS

Pack Model: UHF390GP

Radio Model: UHF390P

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority

Scanning Speed: 130ms Per Channel

Priority Channel: Yes

CTCSS / DCS: 38 / 104

Display: Tri-Colour LCD – Amber / Red / Green

Automatic Level Control: Yes

External Speaker Connection: 3.5mm Jack

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Voltage Regulator

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Transmit Current: Approximately 1.5A with 50-Ohm Antenna Termination

Receiver Type: Direct Conversion via Single DSP Chip

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

Transceiver Dimensions (H × W × D): 27 × 102 × 85mm

Antenna Model: ANU230

Antenna Gain: 6.5dBi

Antenna Length: 962mm Including Spring Base

Coaxial Cable Length: 4.5m

Compliance: AS/NZS 4365:2011

Designed For: Australian Conditions

Radio Made In: Korea

🔧 BEFORE YOU BUY

• Designed for compatible nominal 12V systems within the stated 10–15V DC range
• Do not connect directly to a nominal 24V electrical system
• Confirm the 27 × 102 × 85mm transceiver fits your intended mounting location
• Allow sufficient clearance for the 962mm antenna and spring movement
• Plan the 4.5m antenna cable and microphone-extension routes before installation

❓ QUICK FAQ

What terrain suits the ANU230 6.5dBi antenna?

It is generally best suited to highways, flatter open country and touring environments where a higher-gain radiation pattern is beneficial.

Can the main transceiver be hidden?

Yes. The compact transceiver can be installed in a suitable protected location while the controller microphone remains accessible.

Can it run directly from 24V?

No. The specified operating range is 10–15V DC, so a suitable 24V-to-12V conversion solution is required.

What should I check before ordering?

Check your vehicle supply voltage, transceiver mounting space, antenna clearance and whether a 6.5dBi antenna suits your typical terrain.

📻 COMPACT IN THE CABIN. SERIOUS PERFORMANCE ON THE ROAD.

The Oricom UHF390GP combines a compact controller-mic UHF installation with a heavy-duty 6.5dBi touring antenna, making it a practical package for modern vehicles, highway travel and open-country touring.
