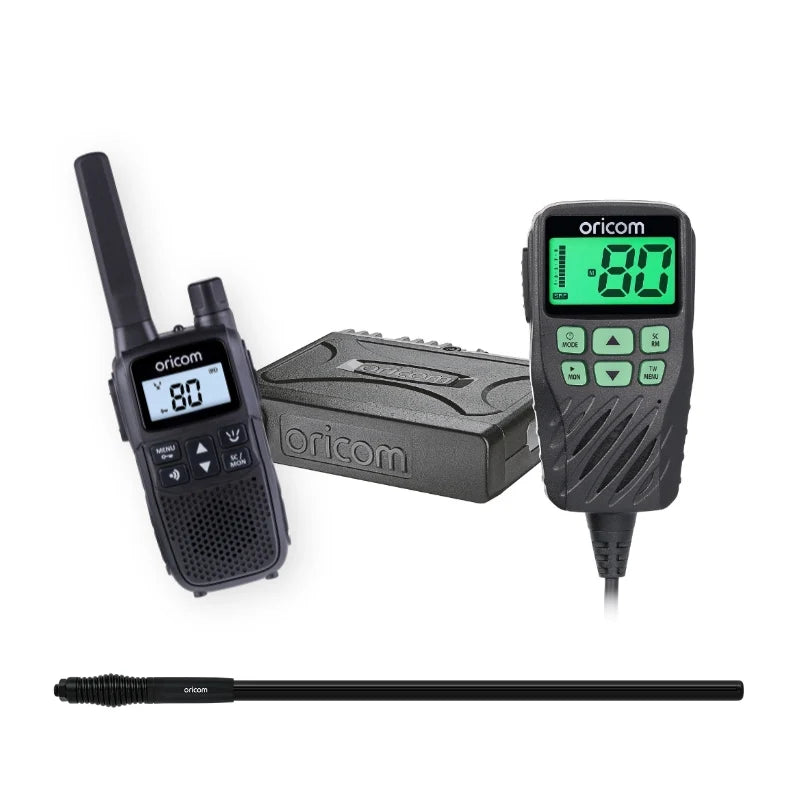

📻 ORICOM UHF360RVP316H UHF CB RADIO BUNDLE PACK
UHF360R 5W Radio + UHF2200 Handheld + ANU316 4.5dBi Antenna
📡 The Oricom UHF360RVP316H is a versatile communication bundle for 4WD touring, camping and travel, combining the UHF360R 5 Watt UHF CB Radio, UHF2200 handheld UHF and ANU316 4.5dBi antenna.
The UHF360R provides controller-microphone operation, up to 10 minutes of Instant Replay recording and adjustable received-audio equalisation, while the portable UHF2200 keeps you connected when you leave the vehicle.

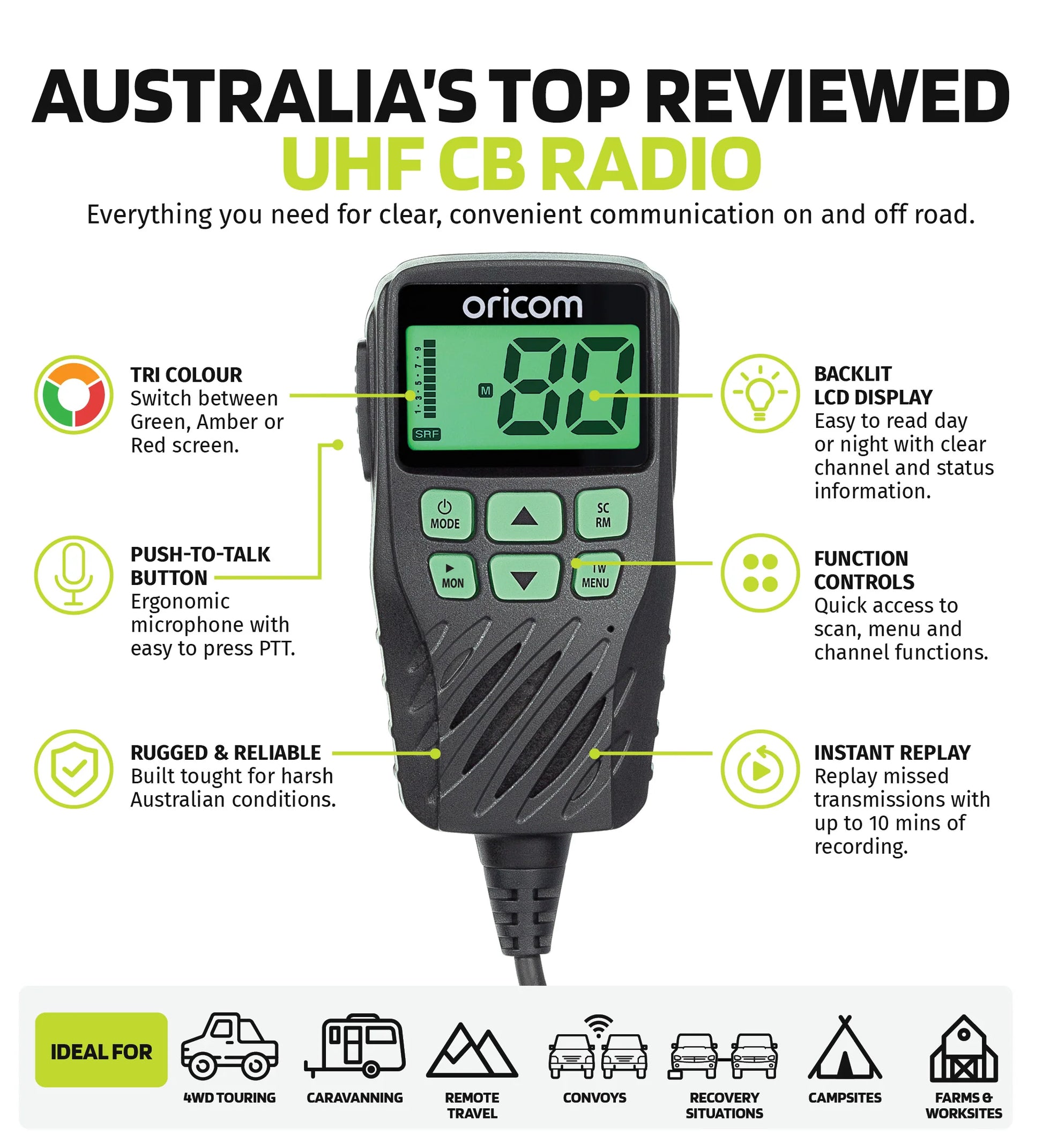

⚡ KEY FEATURES
⏪ Up to 10 Minutes Instant Replay
Record incoming transmissions and replay them later, with individual recordings up to 60 seconds each.

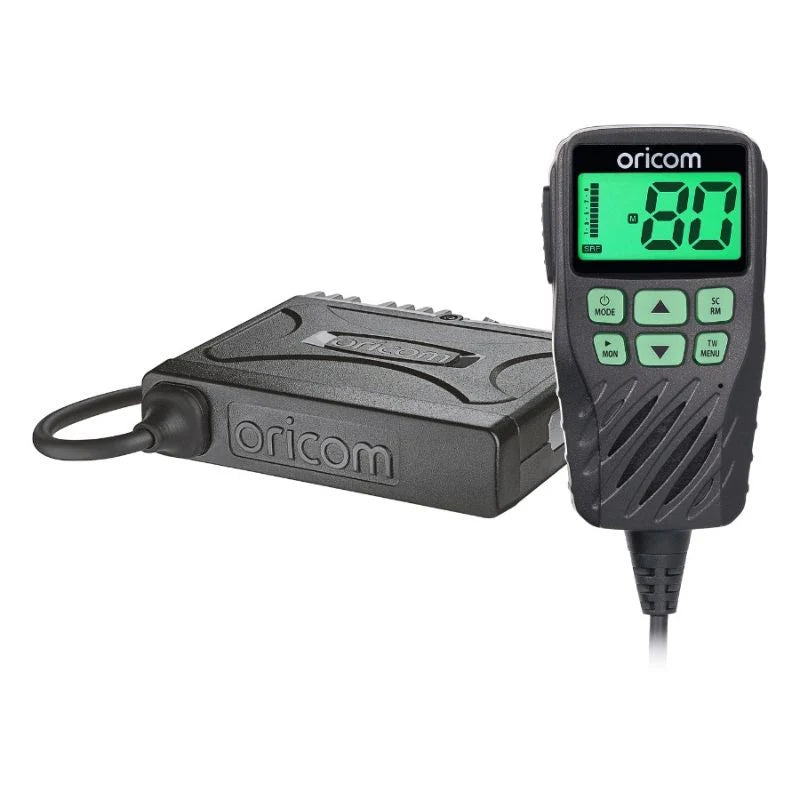

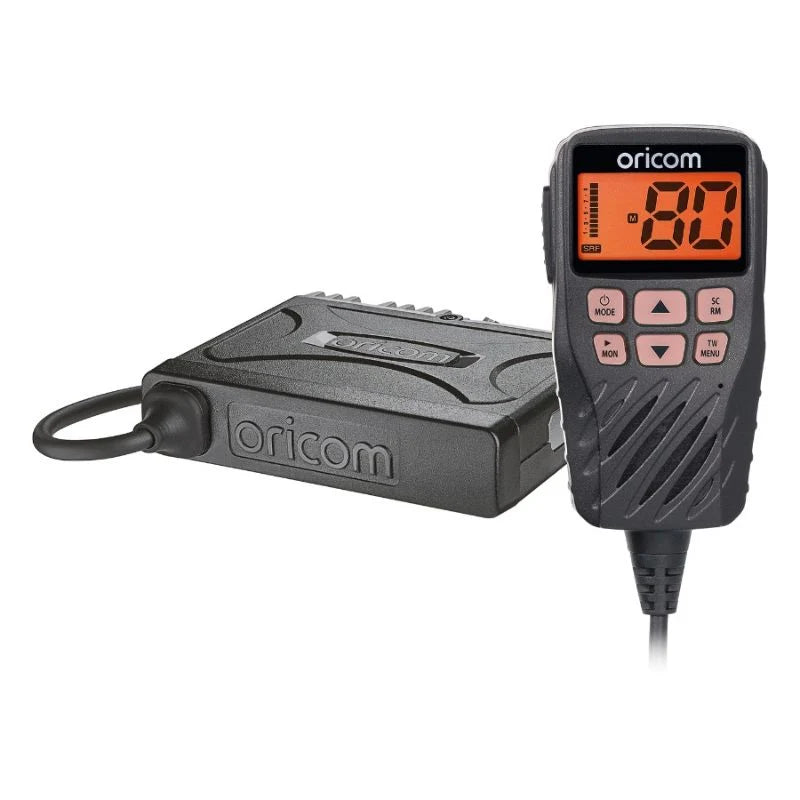

📻 Full 5 Watt UHF360R

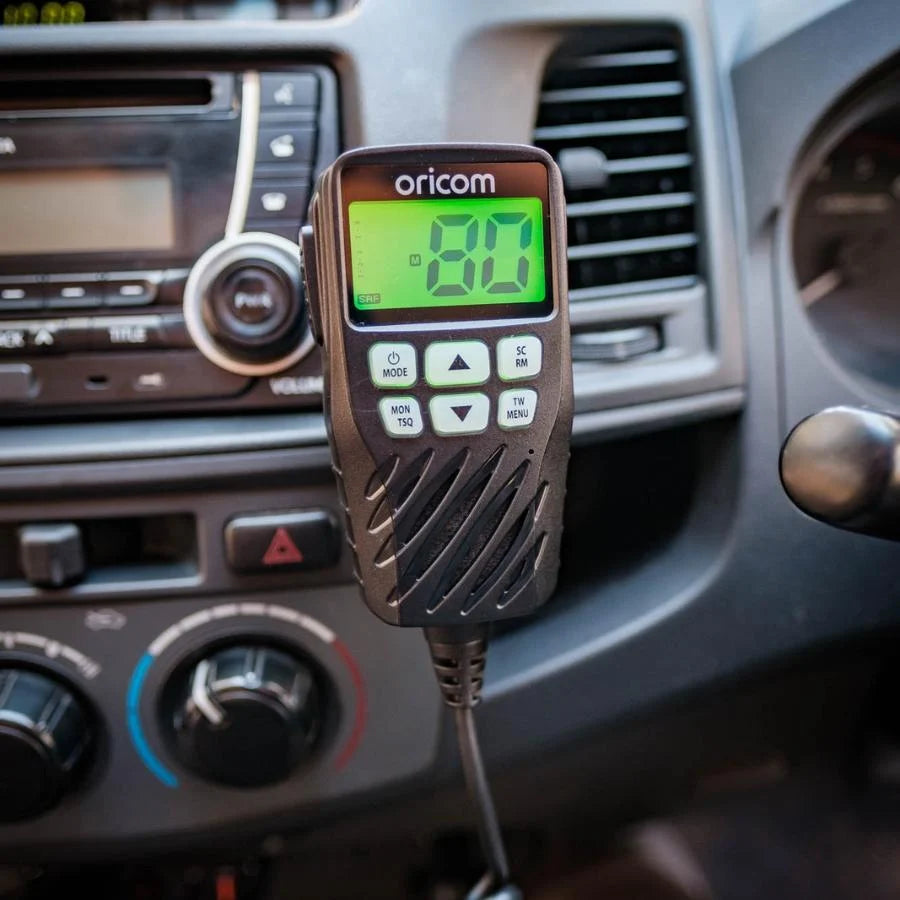

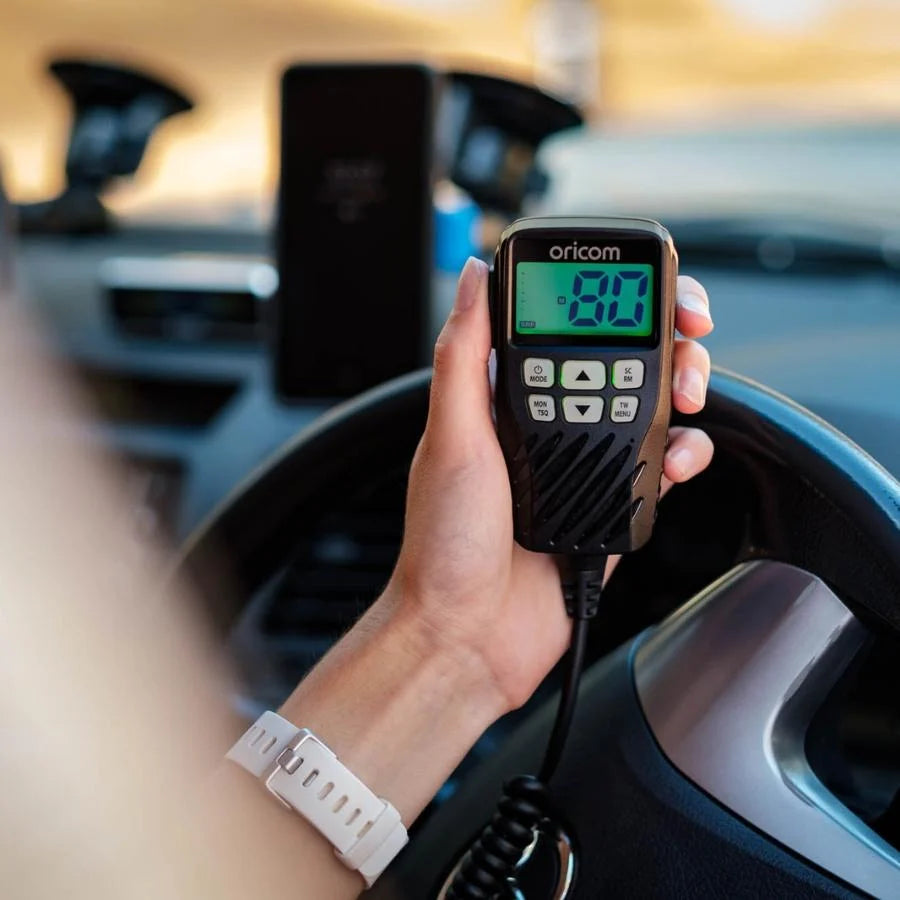

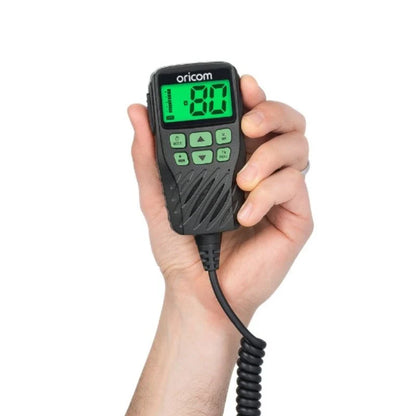

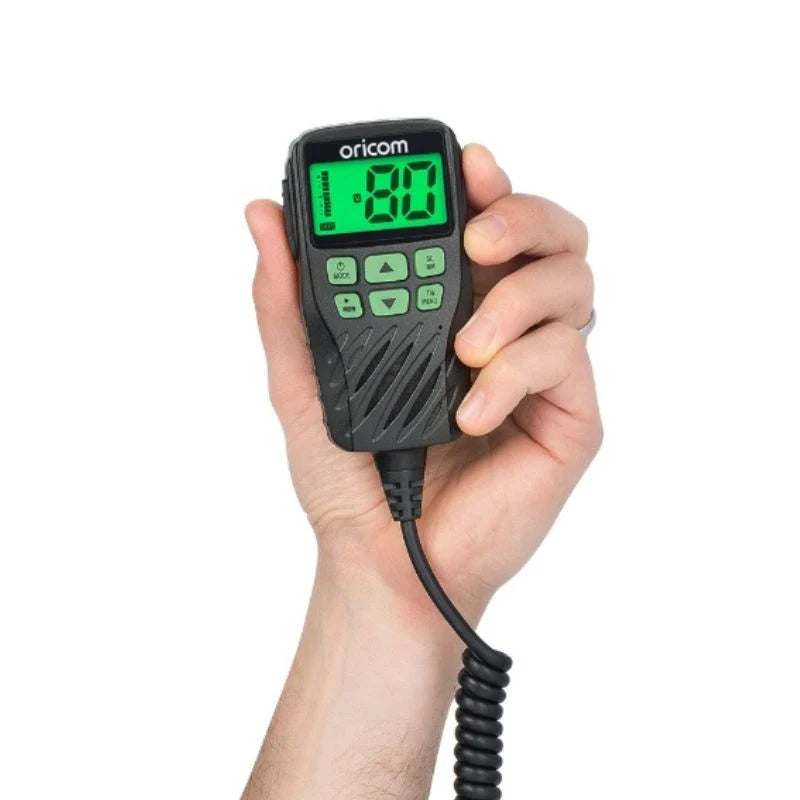

80-channel fixed-mount UHF CB radio with heavy-duty controller speaker microphone.
🎚️ Voice Enhancer Equaliser
10 received-audio settings ranging from Bass to Treble to help improve speech clarity.

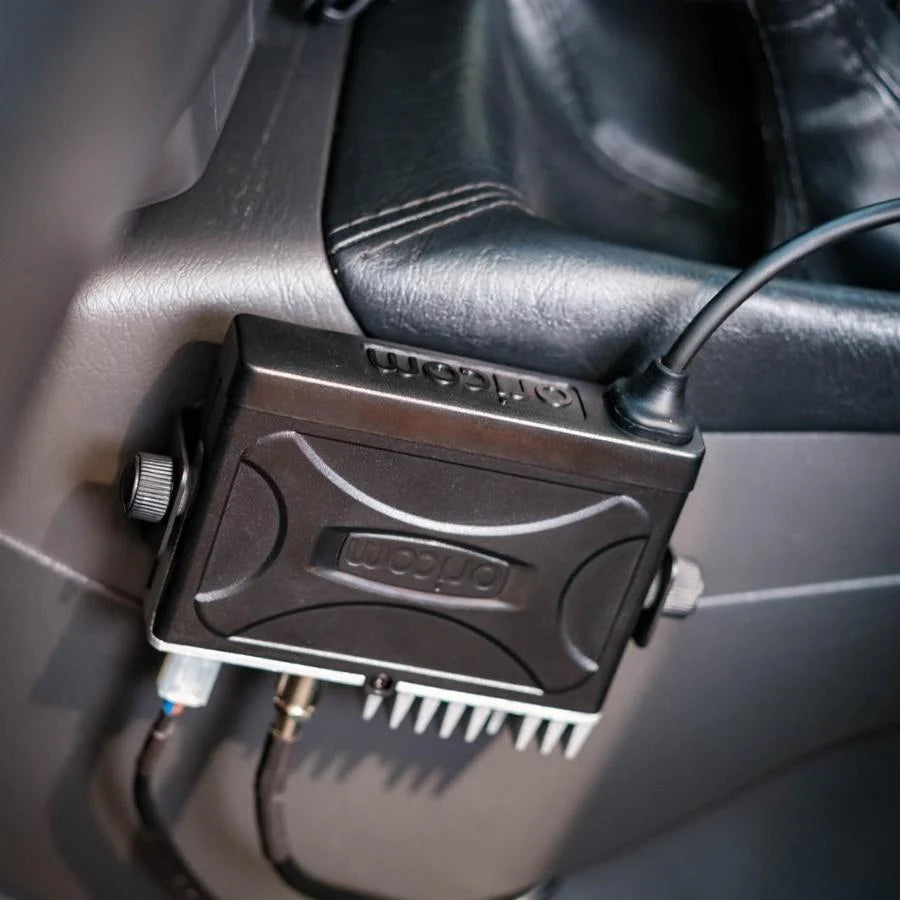

📏 Rugged Micro-Size Transceiver
Compact 27 × 102 × 85mm unit suitable for discreet installation.
🌈 3-Colour Backlit Display
Choose Amber, Green or Red backlighting.
📡 ANU316 4.5dBi Antenna Included
620mm touring antenna with 4.5m low-loss coax, FME connector and PL259 adaptor.
📱 UHF2200 Handheld Included
Portable 2 Watt UHF with 80 channels, LED torch, Dual Watch and VOX capability.
📶 Duplex Repeater Capability
Supported by both the fixed-mount UHF360R and UHF2200 handheld.
🛡️ 5 Year UHF360R Warranty
The fixed-mount radio is backed by a five-year warranty.

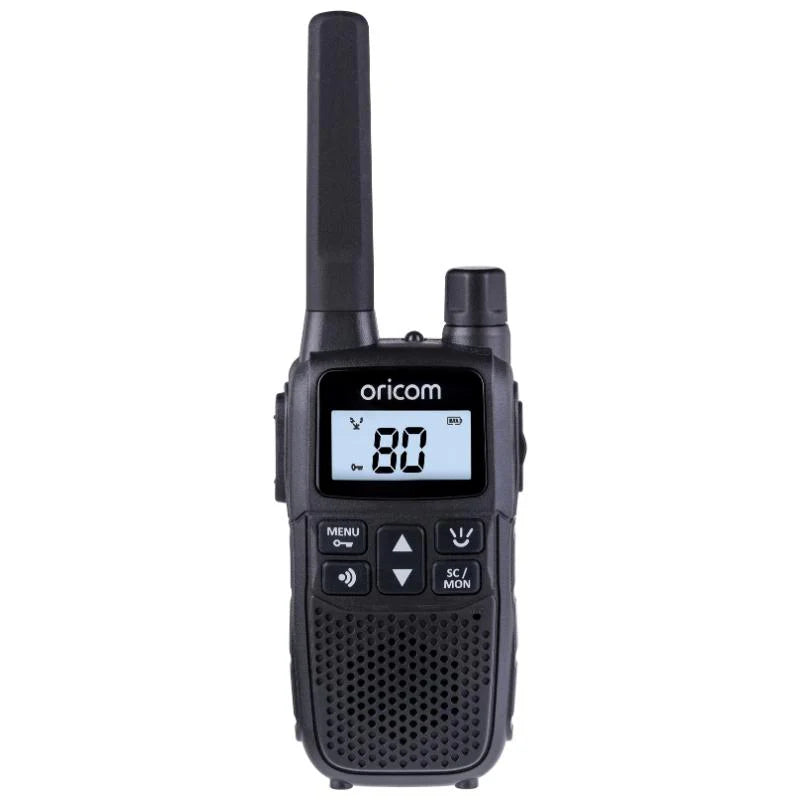

📱 PORTABLE UHF2200 HANDHELD
The included UHF2200 gives you portable communication for vehicle spotting, campsite use, recoveries and other situations where you need to move away from the vehicle.
- 📻 2 Watt Transmit Power
- 📡 80 UHF CB Channels
- 👀 Dual Watch
- 🎙️ VOX Hands-Free Capability
- 🔦 Built-In LED Torch
- 🔐 38 CTCSS & 83 DCS Codes
- 📶 Duplex
- 🛡️ 3 Year Warranty

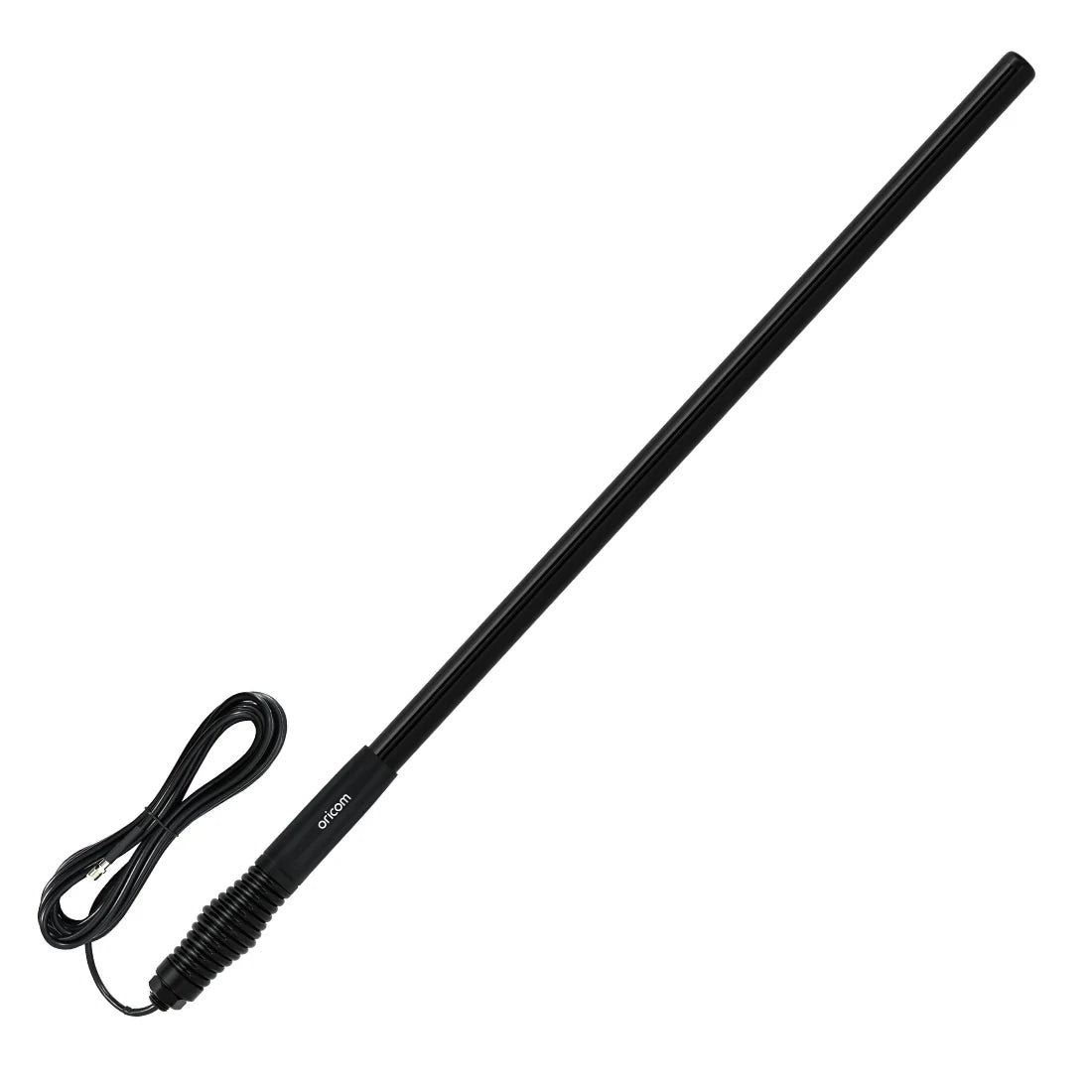

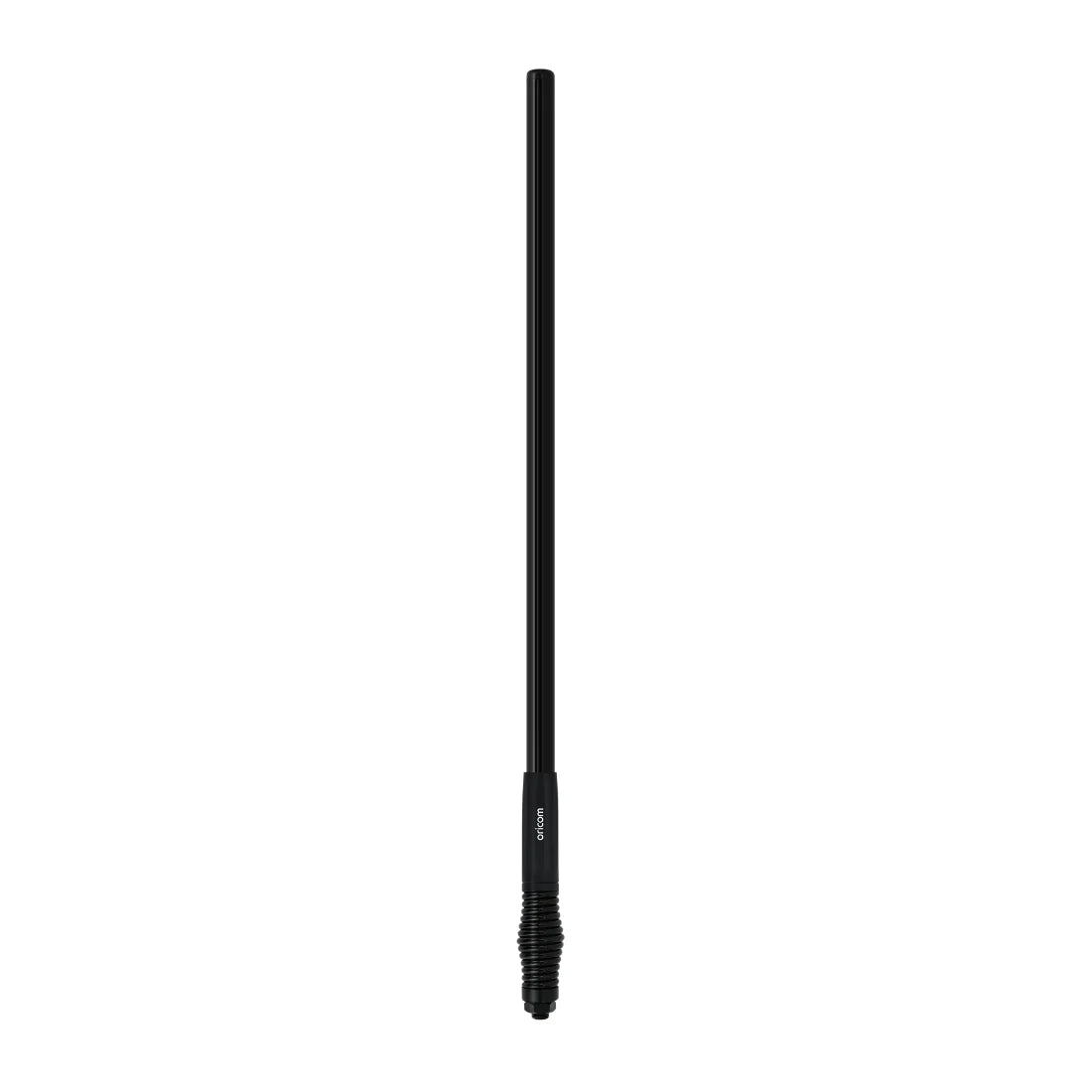

📡 ANU316 4.5dBi TOURING ANTENNA
The ANU316 provides a versatile 4.5dBi antenna configuration suited to a mix of highway, open-road and general touring conditions.
- 📡 Gain: 4.5dBi
- 📏 Length: 620mm
- 🔌 4.5m Low-Loss Coaxial Cable
- 🔌 Pre-Terminated FME Connector
- 🔧 PL259 Adaptor
- 🛡️ 3 Year Warranty
⚠️ Antenna gain does not guarantee communication distance. Actual performance depends on terrain, antenna position, installation quality, obstacles and repeater availability.
📦 PACKAGE CONTENTS
- 📻 Oricom UHF360R 5 Watt UHF CB Radio
- 🎙️ Heavy-Duty Controller Speaker Microphone
- 🔌 2 × Microphone Extension Cables
- 📱 Oricom UHF2200 Handheld UHF CB Radio
- 📡 Oricom ANU316 4.5dBi UHF CB Antenna
- 🔌 4.5m Low-Loss Coaxial Cable
- 🔌 Pre-Terminated FME Connector
- 🔧 PL259 Adaptor
📋 UHF360R TECHNICAL SPECIFICATIONS
RF Output Power: 5 Watts Maximum
UHF CB Channels: 80 – 75 Voice Channels
Frequency Range TX/RX: 476.425–477.4125MHz
Channel Spacing: 12.5kHz
Operating Modes: Simplex / Repeater
Repeater TX Offset: +750kHz
Scanning: Open / Priority
Scanning Speed: 130ms Per Channel
CTCSS / DCS: 38 / 104
Instant Replay: Up to 10 Minutes Total, Individual Files up to 60 Seconds
Audio Equaliser: 10 Voice Enhancer Settings – Bass to Treble
Display: Amber / Green / Red Backlight
External Speaker Connection: 3.5mm Jack
Antenna Impedance: 50 Ohms
Nominal Operating Voltage: 13.8V DC
Operating Voltage Range: 10–15V DC
Over-Voltage Protection: Voltage Regulator System
Over-Current Protection: 2A Fuse
Reverse-Polarity Protection: Shunt Diode
Frequency Stability: ±2.5ppm
Transmit Current: Approximately 1.5A with 50-Ohm Antenna Termination
Receiver Type: Direct Conversion via Single DSP Chip
Receiver Sensitivity: Less Than -122dBm at 12dB SINAD
Maximum Audio Output: 3 Watts
Transceiver Dimensions (H × W × D): 27 × 102 × 85mm
Weight: 420g
Designed For: Australian Conditions
Made In: Korea
Radio Warranty: 5 Years
🔧 BEFORE YOU BUY
- UHF360R operates within the stated 10–15V DC range
- Do not connect the UHF360R directly to a nominal 24V electrical system
- Confirm the 27 × 102 × 85mm transceiver fits your intended mounting location
- Allow sufficient clearance for the 620mm ANU316 antenna
- Plan the antenna coax and microphone extension-cable routes before installation
❓ QUICK FAQ
Why include both a fixed UHF and handheld?
The UHF360R provides your primary in-vehicle communications, while the UHF2200 lets you stay in contact when spotting vehicles, walking around camp or working away from the vehicle.
What does Instant Replay do?
It records incoming transmissions so they can be replayed if you miss an important message, with up to 10 minutes of total recording available.
Can the UHF360R run directly from 24V?
No. Its specified operating range is 10–15V DC, so a suitable 24V-to-12V conversion solution is required.
What terrain suits the ANU316?
Its 4.5dBi configuration provides a versatile middle-ground option for highway, open-road and general touring use.
🏕️ FIXED, PORTABLE & READY FOR TOURING
The Oricom UHF360RVP316H combines a feature-packed 5 Watt fixed-mount UHF, portable 2 Watt handheld and versatile 4.5dBi touring antenna in one practical package for 4WD travel, camping and touring.
