UHF360R 5W UHF CB Radio | Instant Replay & Speaker Microphone

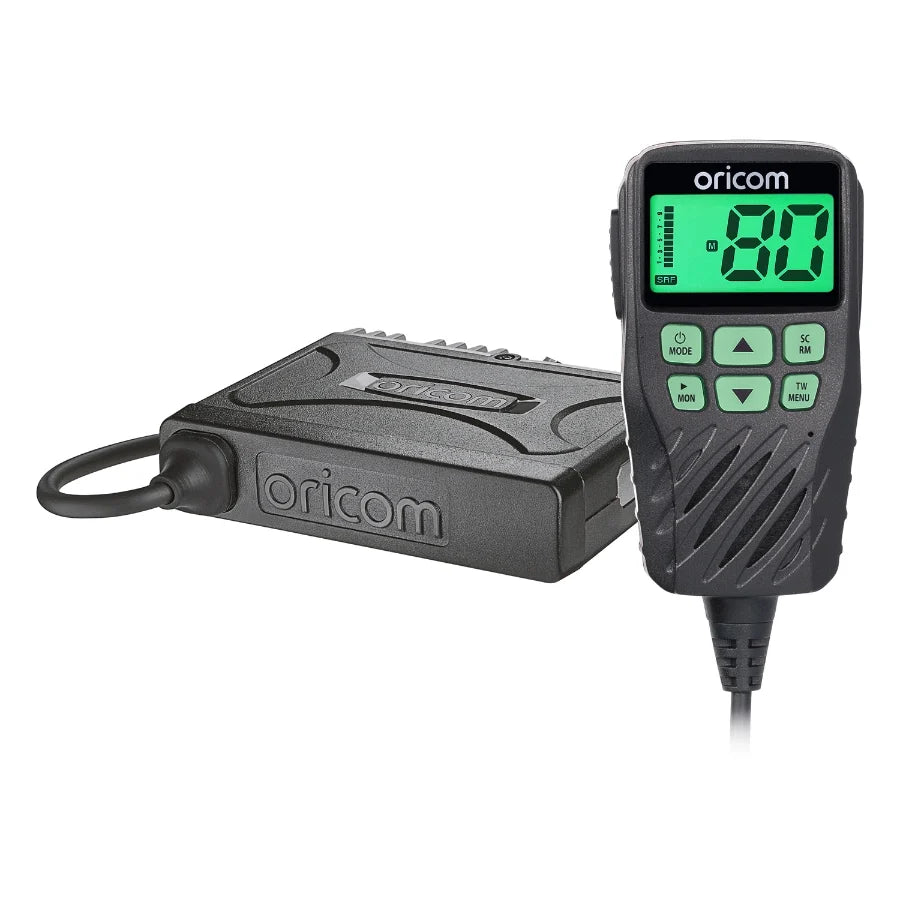

📻 ORICOM UHF360R 5 WATT UHF CB RADIO WITH CONTROLLER SPEAKER MICROPHONE & INSTANT REPLAY

Compact Hideaway UHF with 10-Minute Instant Replay, Dual-Speaker Audio & Voice Enhancer Equaliser

📡 The Oricom UHF360R takes the compact controller-microphone design of the UHF360 and adds one of its most useful features yet – Instant Replay with up to 10 minutes of recording.

If you miss an important transmission while driving, navigating a track or talking with your convoy, the UHF360R allows incoming communications to be replayed at the press of a button. It can store up to 10 minutes of received audio, with individual recordings of up to 60 seconds.

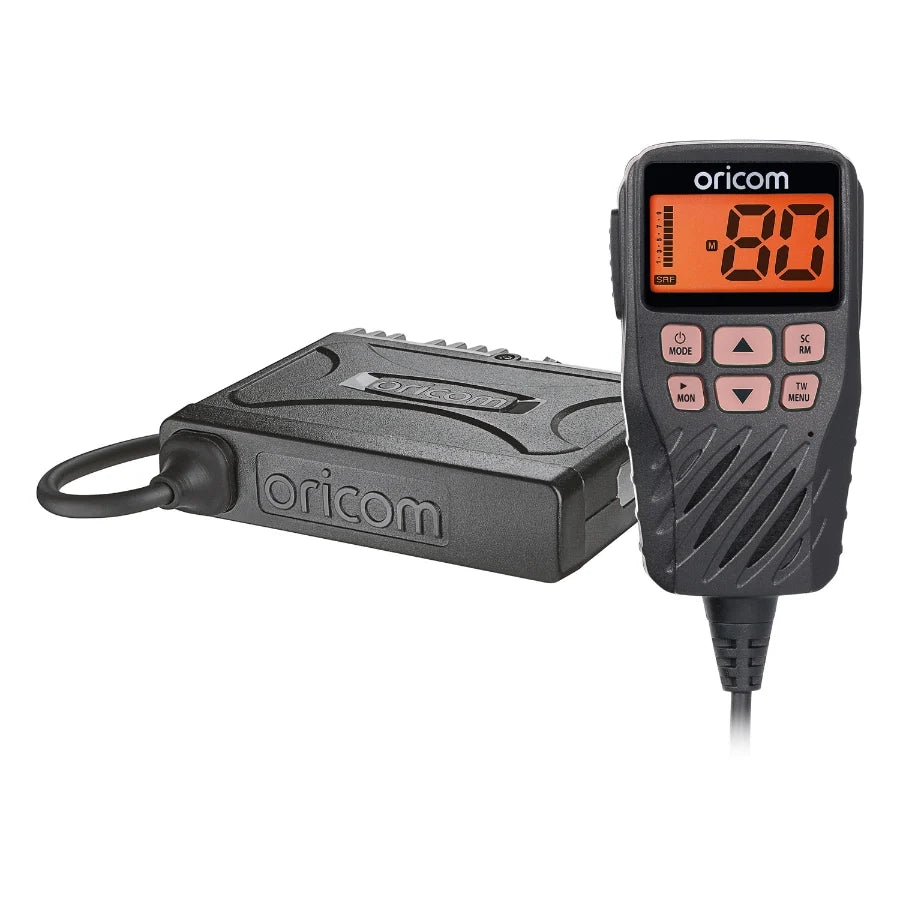

The radio eliminates the need for a conventional dashboard-mounted control head by placing the main controls, display and an additional speaker into the heavy-duty controller microphone. The compact 27 × 102 × 85mm transceiver can then be mounted discreetly under a dashboard, behind a console or in another suitable protected location.

With full 5 Watt output, 80 Australian UHF CB channels, dual-speaker audio, a three-colour display, 10-setting Voice Enhancer Equaliser, duplex repeater capability and a five-year radio warranty, the UHF360R is an excellent choice for modern 4WDs, touring vehicles and work vehicles where space and clear communication matter.

---

⚡ KEY FEATURES

⏪ Up to 10 Minutes Instant Replay
Record incoming transmissions and replay missed messages, with individual audio files of up to 60 seconds.

📻 Full 5 Watt UHF CB Power
Delivers up to 5 Watts maximum RF transmit output across the Australian 80-channel UHF CB system.

🎙️ Heavy-Duty Controller Speaker Microphone
Places the radio controls, LCD display and speaker directly in the microphone for a clean, space-saving installation.

🔊 Dual-Speaker Audio
Audio is delivered through speakers in both the controller microphone and transceiver for improved volume and clarity.

🎚️ Voice Enhancer Equaliser
Ten selectable audio settings from Bass through to Treble allow received speech to be tailored for clearer, more natural-sounding communications.

🌈 3 Colour Backlit Display
Choose Amber, Green or Red backlighting to suit visibility requirements or your vehicle interior.

📏 Rugged Micro-Size Transceiver
Compact 27 × 102 × 85mm radio body is designed for discreet installation where dashboard space is limited.

🔍 Open & Priority Scan
Provides flexible monitoring of UHF CB channel activity with a dedicated priority-channel function.

🔐 38 CTCSS & 104 DCS Codes
Provides extensive signalling options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeaters using the standard +750kHz transmit offset.

🔊 External Speaker Connection
3.5mm jack allows connection of a compatible optional external speaker.

🔌 2 Microphone Extension Cables Included
Provides flexible controller-microphone installation, including one cable intended for use with a pass-through connector.

🛡️ 5 Year Radio Warranty
Backed by a five-year warranty for added confidence.

---

⏪ NEVER MISS AN IMPORTANT TRANSMISSION

The UHF360R's Instant Replay function can record incoming UHF transmissions and play them back later.

Recording capacity includes:

• ⏱️ Up to 10 minutes total recorded audio
• 🎙️ Individual recordings up to 60 seconds each
• 🔁 Quick playback of missed incoming transmissions

This is particularly useful when:

• 🚙 Travelling in a 4WD convoy
• 🧭 Receiving directions on an unfamiliar track
• 🚛 Listening to road or traffic information
• 🏗️ Operating in a noisy work environment
• 🔊 Cabin noise makes a transmission difficult to hear the first time

---

🎚️ VOICE ENHANCER EQUALISER

The built-in audio equaliser allows received speech to be adjusted across 10 different settings ranging from Bass through to Treble.

This gives you the ability to tailor incoming audio to your hearing preference, vehicle acoustics or operating environment, helping make voices clearer and easier to understand.

---

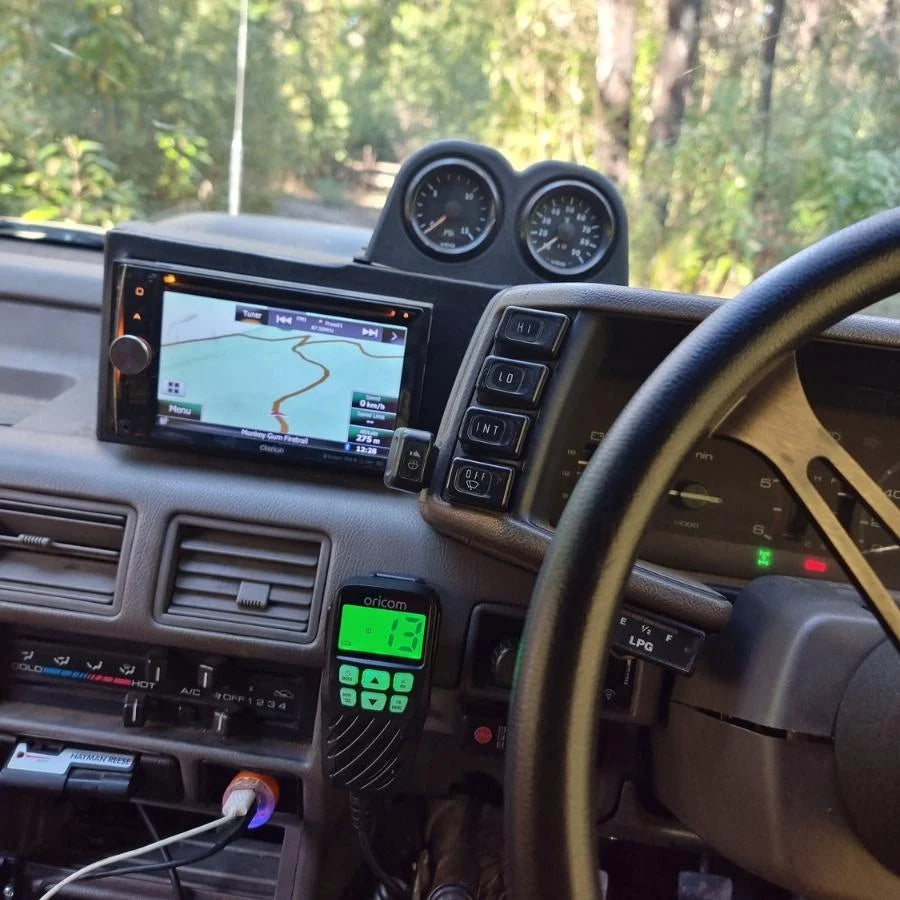

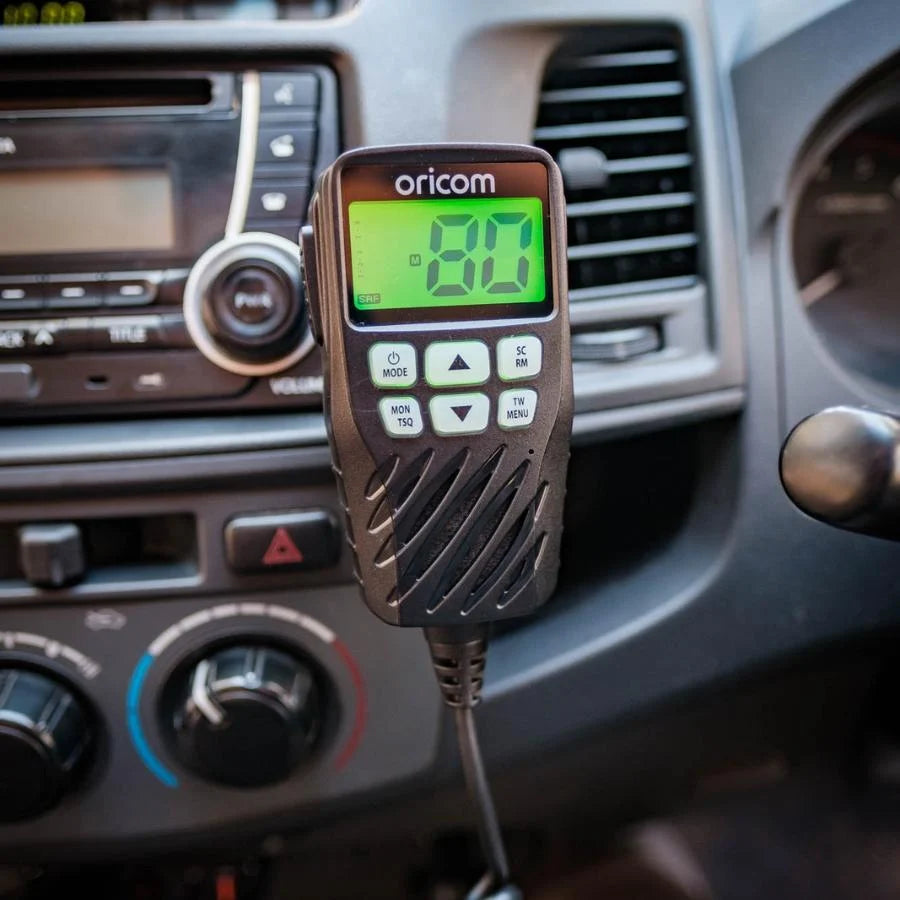

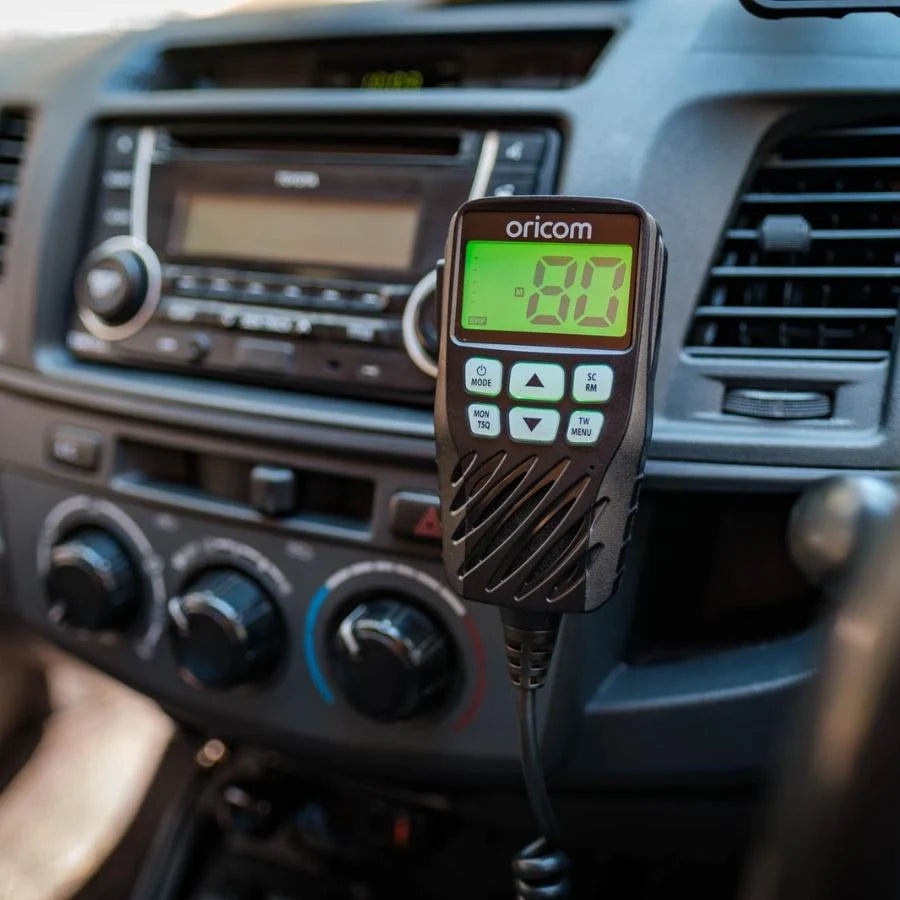

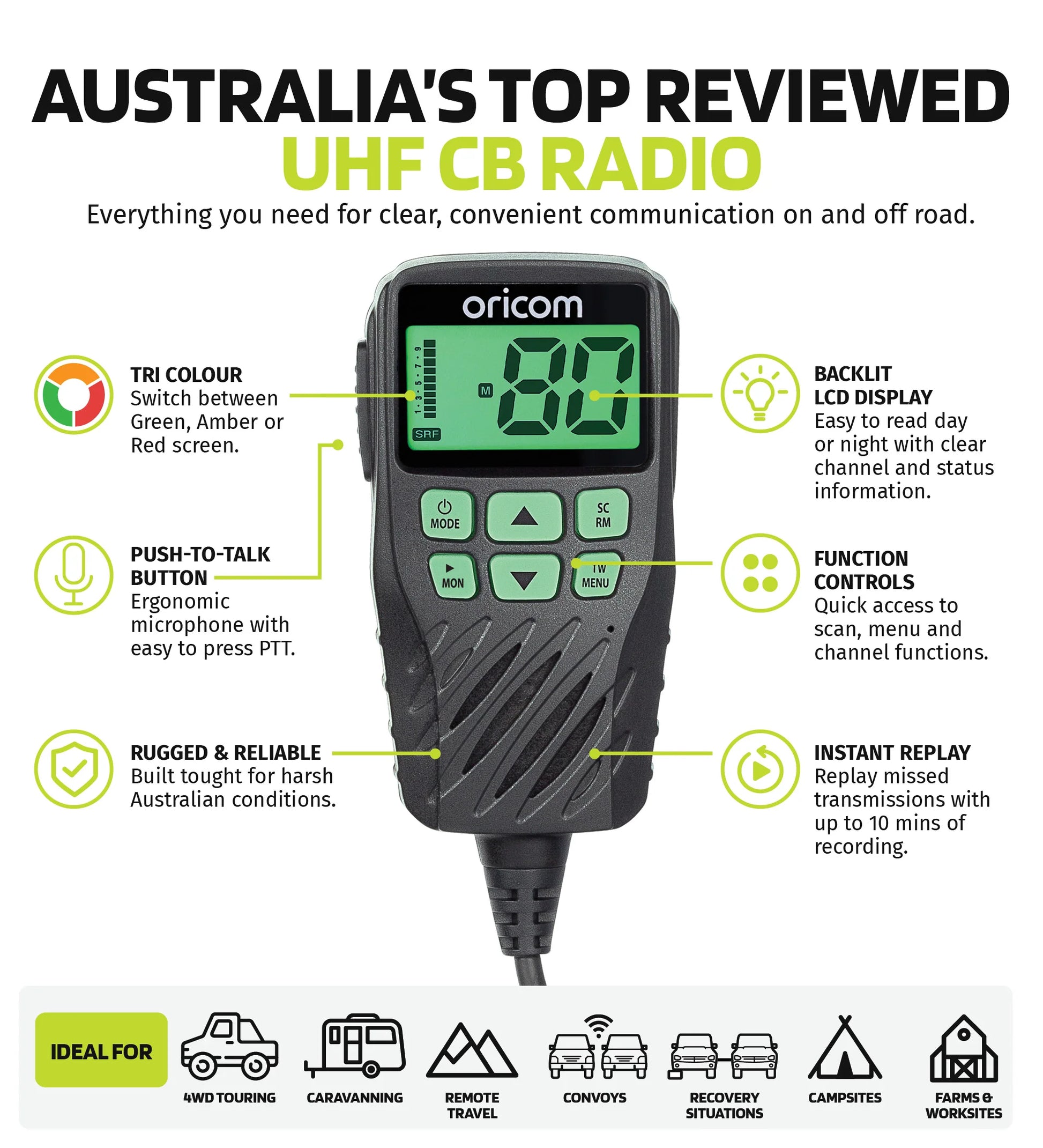

🎙️ CONTROLLER MICROPHONE – KEEP THE TRANSCEIVER OUT OF SIGHT

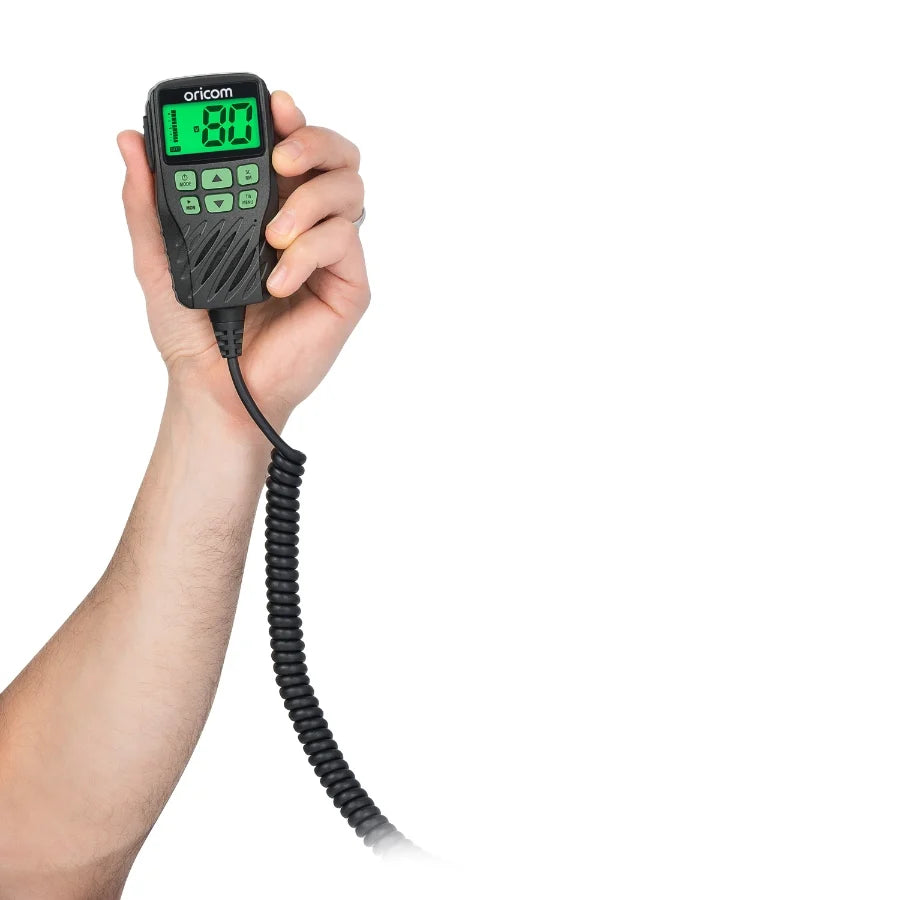

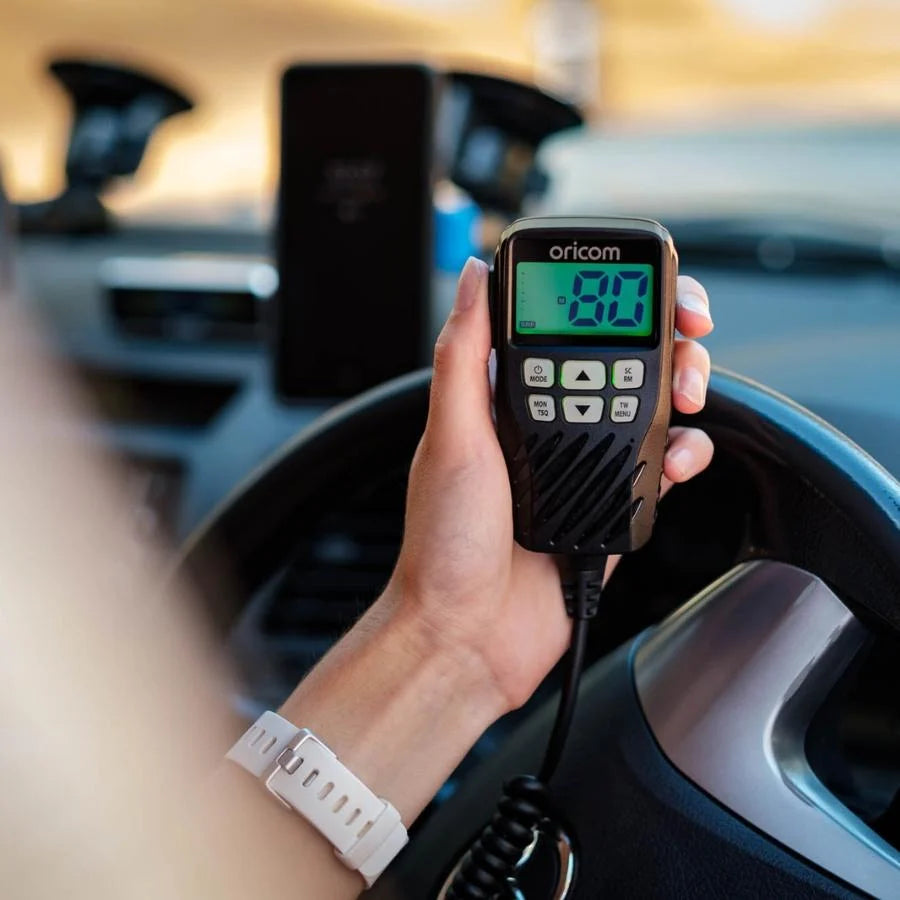

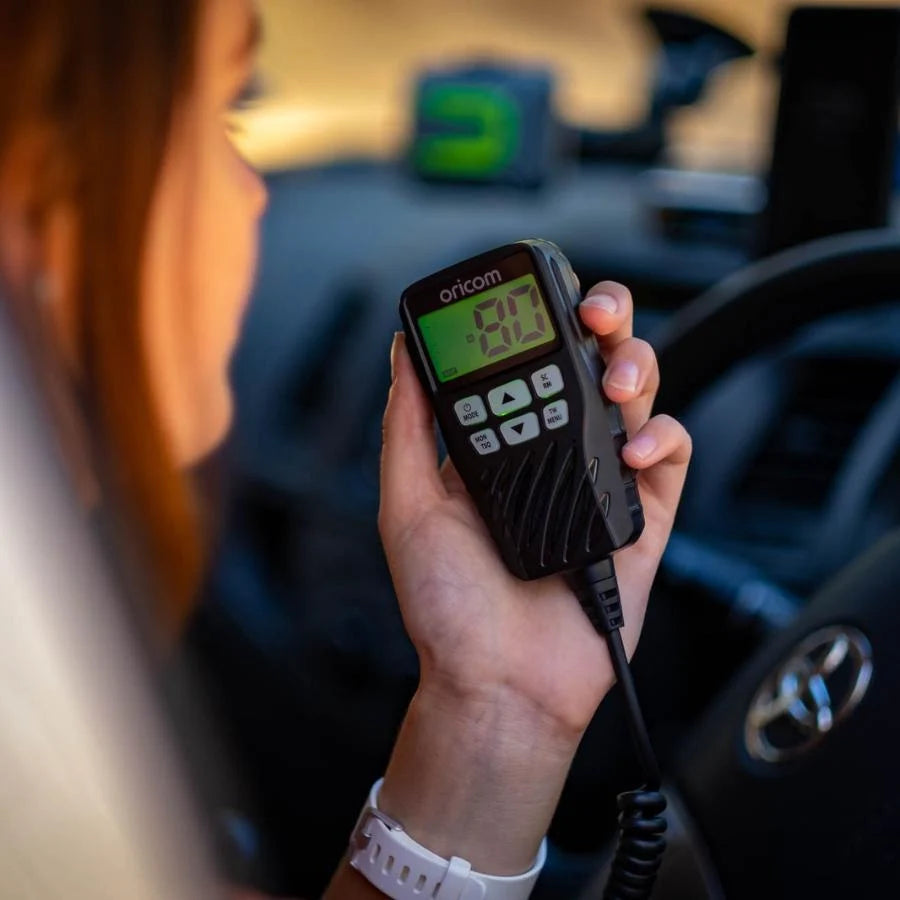

The heavy-duty controller speaker microphone removes the need for a separate dashboard control head.

The microphone incorporates:

• 🖥️ Large easy-to-read LCD display
• 🔊 Built-in speaker
• 🎛️ Radio controls
• 🎙️ Push-to-talk operation

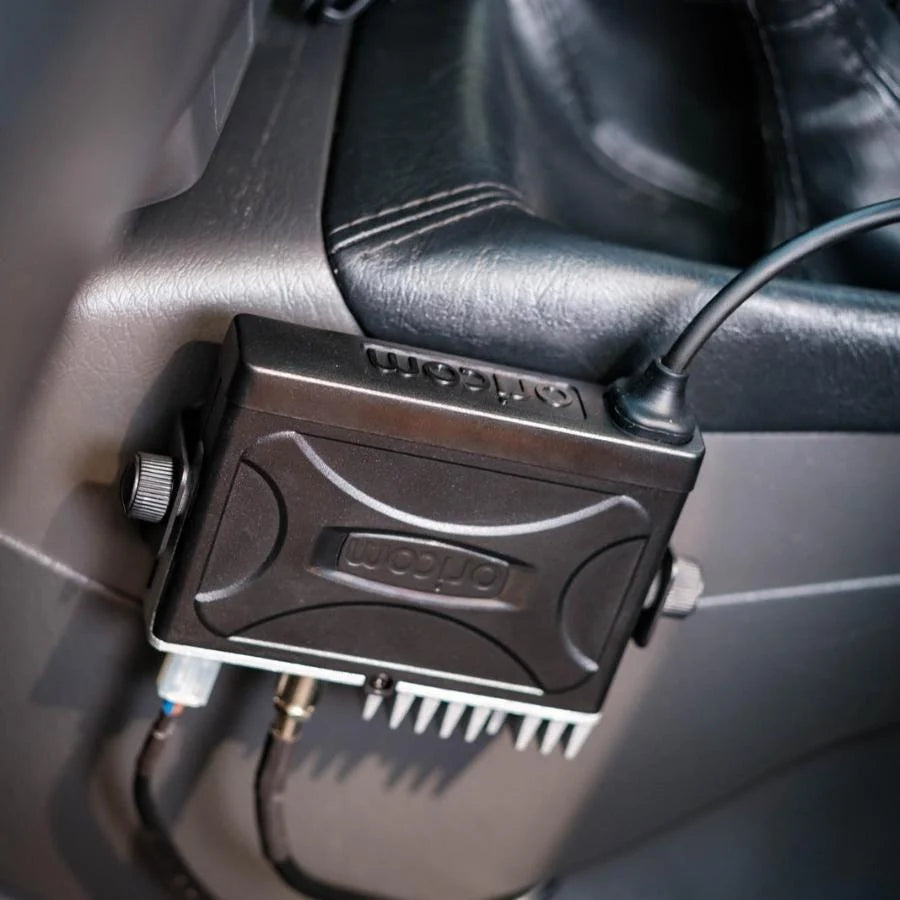

The main transceiver measures only 27mm high × 102mm wide × 85mm deep, allowing it to be installed discreetly in a suitable protected location.

---

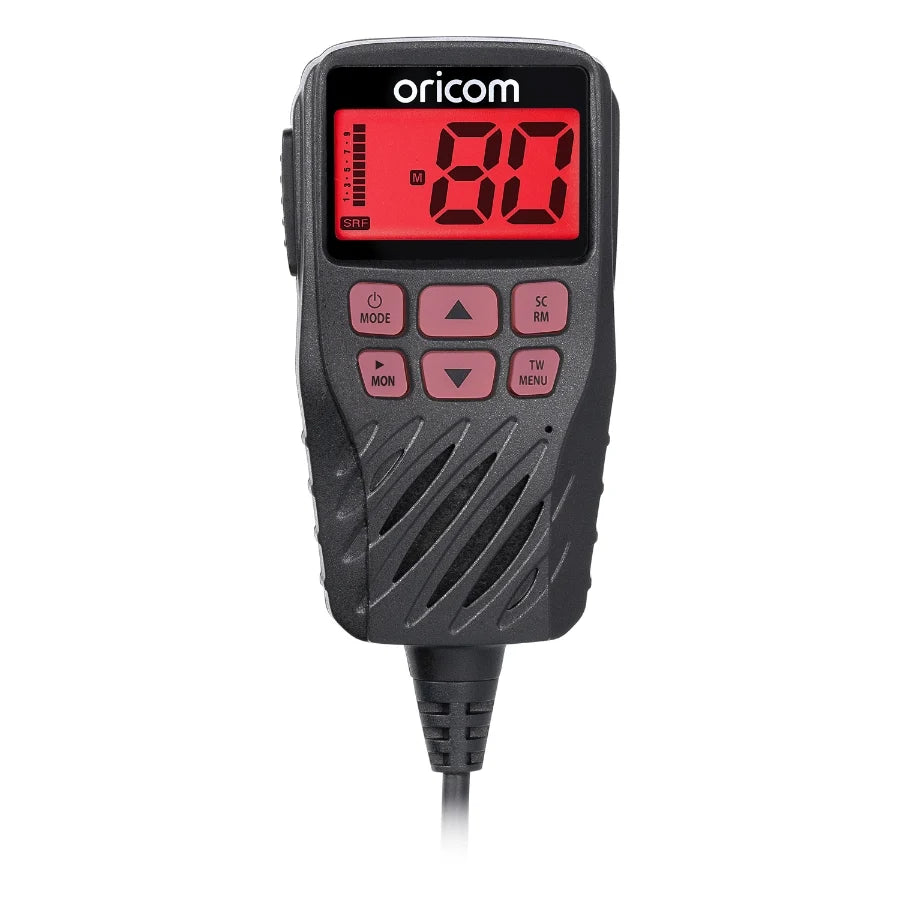

🌈 THREE-COLOUR DISPLAY

The UHF360R LCD backlight can be selected between:

• 🟠 Amber
• 🟢 Green
• 🔴 Red

This allows the display appearance to be matched more closely to the vehicle interior or adjusted according to visibility preference.

---

📶 DUPLEX, SCANNING & TONE FUNCTIONS

The UHF360R includes open and priority scanning, a dedicated priority channel and duplex capability for compatible UHF CB repeater operation.

It also provides 38 CTCSS and 104 DCS codes for compatible group communications.

⚠️ CTCSS and DCS do not create private or encrypted channels. Other users can still monitor or transmit on the underlying UHF CB channel.

⚠️ Duplex does not automatically increase direct radio-to-radio range. A compatible repeater must be available and within coverage.

---

⚡ 12V VEHICLE OPERATION

The UHF360R operates from a nominal 13.8V DC supply with a specified operating range of 10–15V DC, making it suitable for compatible nominal 12V vehicle systems.

Electrical protection includes a voltage-regulator system, 2A fuse and reverse-polarity protection.

---

📦 PACKAGE INFORMATION

• 📻 Oricom UHF360R UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 🔌 2 × Microphone Extension Cables

---

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Model: UHF360R

RF Output Power: 5 Watts Maximum

Instant Replay: Up to 10 Minutes Total Recording

Maximum Individual Recording: Up to 60 Seconds

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority

Scanning Speed: 130ms Per Channel

Priority Channel: Yes

CTCSS Codes: 38

DCS Codes: 104

Audio Equaliser: 10 Voice Enhancer Settings

Display: 3 Colour LCD – Amber / Green / Red

External Speaker Connection: 3.5mm Jack

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Transmit Current Consumption: Approximately 1.5A with 50-Ohm Antenna Termination

Over-Voltage Protection: Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-70dBc

Receiver Circuit: Direct Conversion via Single DSP Chip

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

Transceiver Dimensions (H × W × D): 27 × 102 × 85mm

Weight: 420g

Designed For: Australian Conditions

Made In: Korea

Warranty: 5 Years – Radio

---

🔧 INSTALLATION CONSIDERATIONS

• Use with a compatible nominal 12V electrical system within the stated 10–15V range
• Retain the specified 2A fuse protection
• Select a suitable protected location for the compact transceiver
• Plan microphone extension-cable routing before permanent installation
• Confirm whether a pass-through connector is required for your preferred installation
• Use a suitable 50-ohm UHF CB antenna system
• Do not connect directly to a nominal 24V vehicle supply

---

❓ FREQUENTLY ASKED QUESTIONS

What does Instant Replay do?

It records incoming transmissions so they can be replayed if you miss or don't clearly hear an important message.

How much audio can the UHF360R record?

It can store up to approximately 10 minutes of incoming audio, with individual recordings of up to 60 seconds each.

Is Instant Replay useful for 4WD convoys?

Yes. It can be particularly useful if you miss a direction, track warning or other transmission while concentrating on driving.

What does the Voice Enhancer Equaliser do?

It provides 10 audio settings from Bass through to Treble, allowing received speech to be adjusted for clearer and more natural-sounding communication.

Can I hide the main transceiver?

Yes. The transceiver measures only 27 × 102 × 85mm and can be installed in a suitable concealed location while the controller microphone provides the main radio interface.

Does the microphone have a speaker?

Yes. The controller microphone includes a speaker, and the transceiver also has a speaker for dual-speaker audio.

Can I change the display colour?

Yes. The LCD backlight can be set to Amber, Green or Red.

Is it a full 5 Watt UHF?

Yes. Maximum RF transmit power is specified at 5 Watts.

Can I use UHF repeaters?

Yes. Duplex repeater functionality is included using the standard +750kHz transmit offset.

Can I connect an external speaker?

Yes. A 3.5mm jack is provided for a compatible optional external speaker.

Does it work directly from 24V?

No. The UHF360R is specified for 10–15V DC operation and requires a suitable voltage-conversion solution in a nominal 24V vehicle.

Does it include microphone extension cables?

Yes. Two microphone extension cables are included. One is intended for use with a pass-through connector, which is not supplied.

How does the UHF360R compare with the UHF390R?

Both use a compact controller speaker microphone design and provide up to 10 minutes of Instant Replay. The UHF360R additionally highlights its 10-setting Voice Enhancer Equaliser and three-colour Amber, Green or Red display, making it particularly attractive where received-audio tuning is important.

What should I check before buying?

Confirm your vehicle provides a compatible 10–15V DC supply, choose a suitable location for the 27 × 102 × 85mm transceiver, plan the microphone cable route and select an appropriate 50-ohm UHF CB antenna for your vehicle and terrain.

---

📻 MISS THE MESSAGE? JUST PLAY IT BACK.

The Oricom UHF360R combines a clean controller-microphone installation with one of the most practical features available in a modern UHF CB radio – up to 10 minutes of Instant Replay.

Add full 5 Watt output, dual-speaker audio, a 10-setting Voice Enhancer Equaliser, 80 UHF CB channels, duplex capability and a compact hideaway transceiver, and the UHF360R is a strong communication solution for 4WD touring, convoy travel and modern vehicles where space is at a premium.
