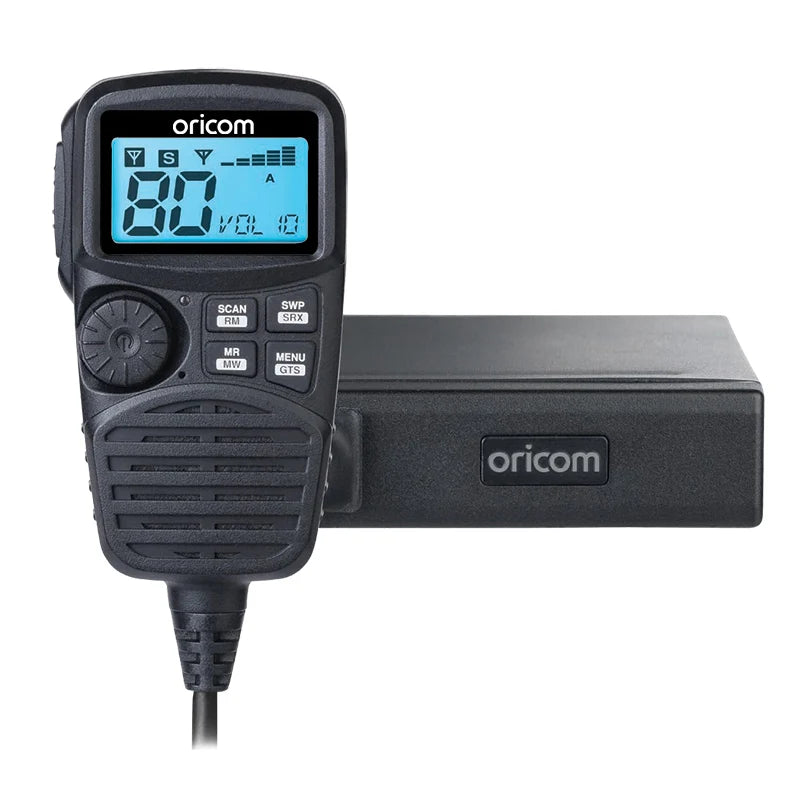

📻 ORICOM UHF350DR DUAL RECEIVE UHF CB RADIO

Dual Receive UHF CB with Controller Speaker Microphone, 96-Colour Display & Compact Hideaway Transceiver

📡 The Oricom UHF350DR brings Dual Receive technology to a compact controller-microphone UHF CB system, allowing you to receive and listen to two different channels at the same time.

Stay connected with your convoy on one channel while simultaneously monitoring another important channel for highway traffic, road conditions or local communications. For example, you can remain on Channel 64 with your group while also listening to Channel 40.

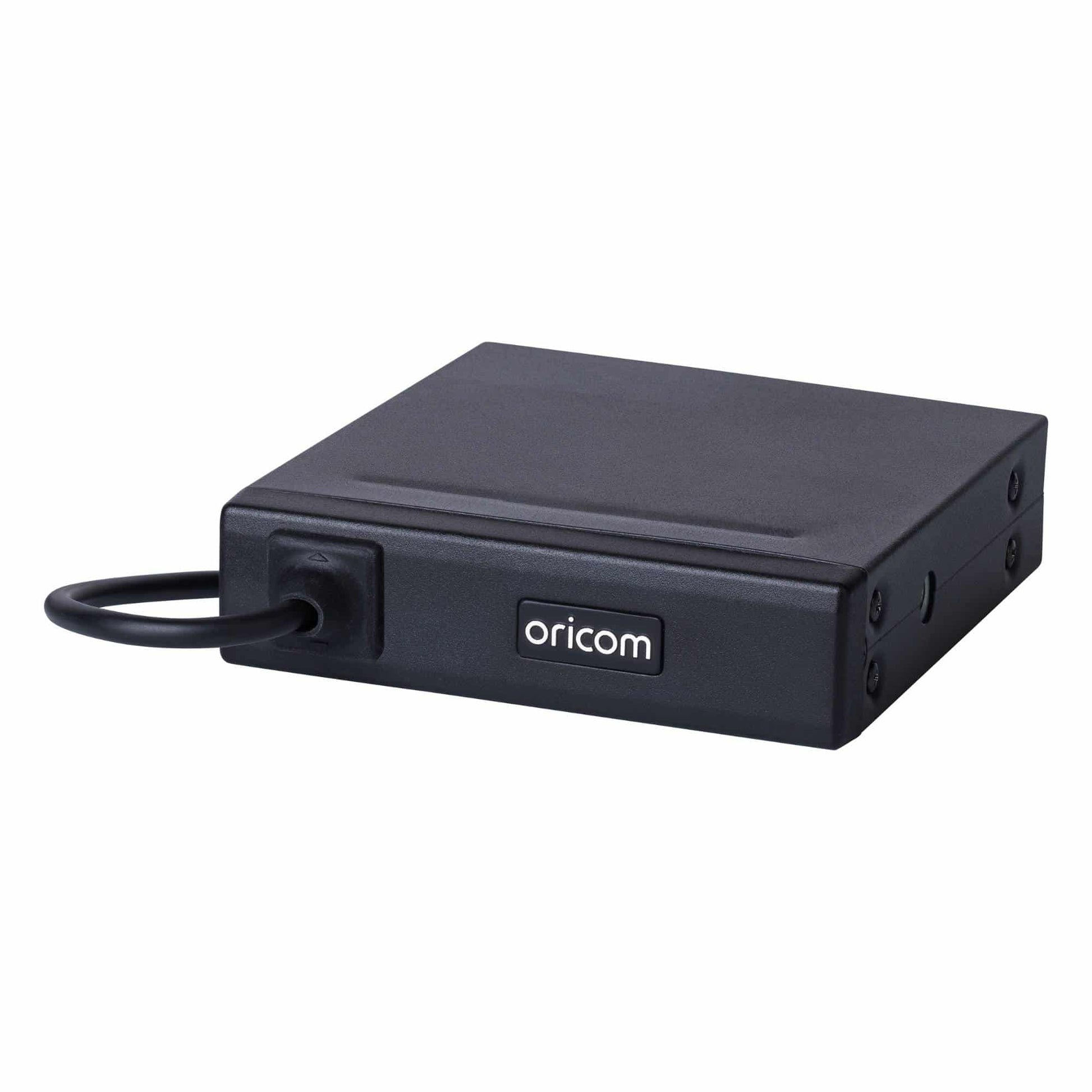

The UHF350DR also removes the need for a conventional dashboard-mounted control head. The radio's controls, large 96-colour display and speaker are incorporated into the heavy-duty controller microphone, allowing the compact transceiver to be installed in a suitable concealed location.

With three programmable memory groups, fast 80-channel scanning, duplex repeater capability, 38 CTCSS and 104 DCS codes, selectable auto power-off and a five-year warranty, the UHF350DR is a practical solution for 4WD touring, convoy travel and commercial vehicle communications.

---

⚡ KEY FEATURES

👂 Dual Receive – Hear 2 Channels at Once
Receive and listen to two different UHF channels simultaneously without needing two separate radios.

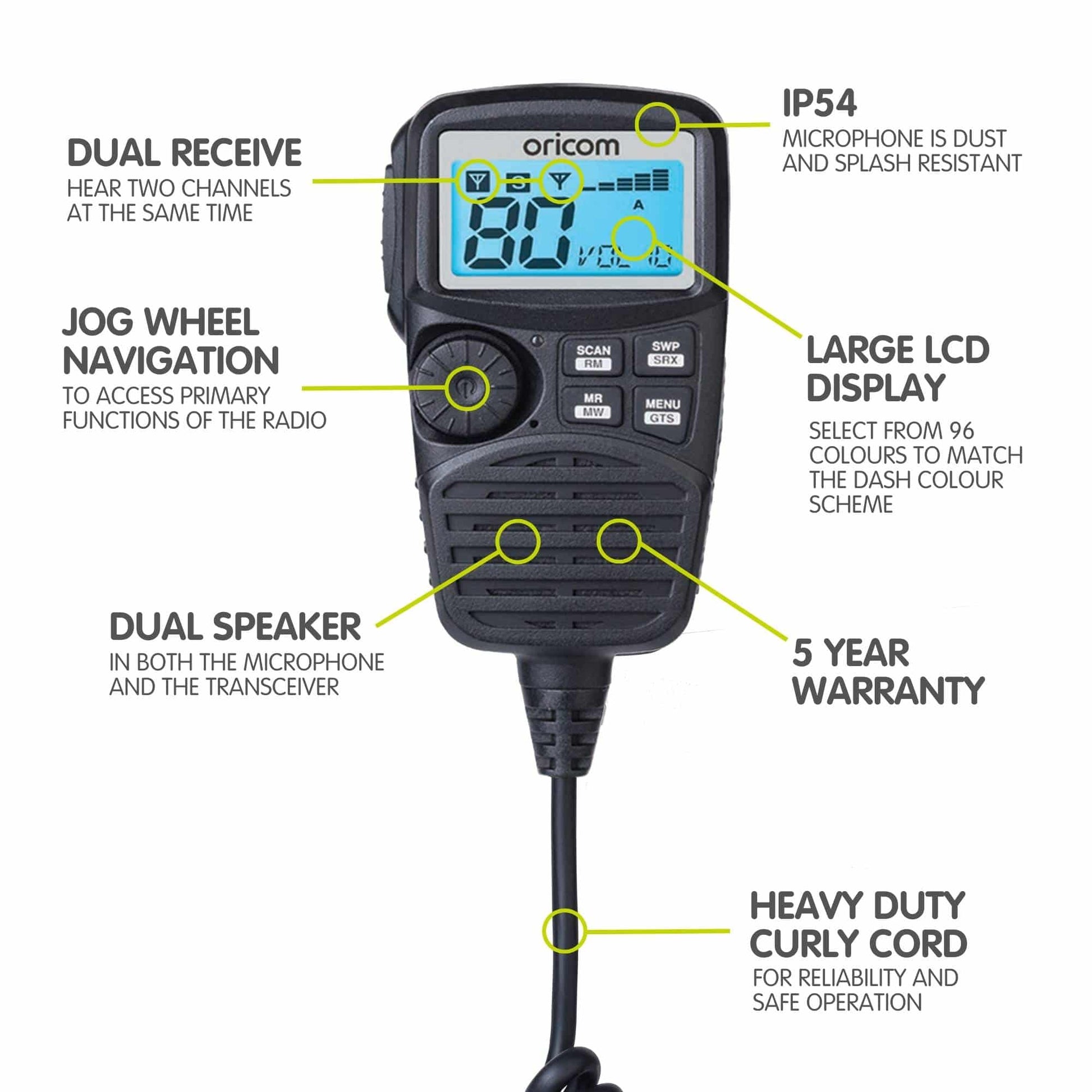

🎙️ Heavy-Duty Controller Speaker Microphone
The radio controls, display and speaker are incorporated into the microphone, allowing the main transceiver to be mounted out of the way.

💦 IP54 Microphone Protection
The controller microphone is rated IP54 for resistance to dust and splashing water.

🌈 Large 96-Colour Backlit Display
Provides a highly visible, customisable display directly on the controller microphone.

🔆 Adjustable Backlight
Five preset brightness levels plus automatic adjustment help maintain good visibility during day and night driving.

📁 3 Memory Groups
Three groups with up to 16 channels per group allow commonly used channels to be organised efficiently.

⚡ Fast 80-Channel Scanning
Scans all 80 UHF CB channels in approximately five seconds.

🎛️ Rotary Controls
Convenient rotary volume/channel and squelch control for straightforward operation.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation where extended coverage is available.

🔐 38 CTCSS & 104 DCS Codes
Provides extensive signalling options for compatible group communications.

⏱️ Selectable Auto Power-Off
Choose Off, 1 hour, 2 hours or 4 hours for automatic shutdown.

🔊 External Speaker Connection
3.5mm jack supports connection of an optional compatible external speaker.

🛡️ 5 Year Warranty
Backed by a five-year warranty for added confidence.

---

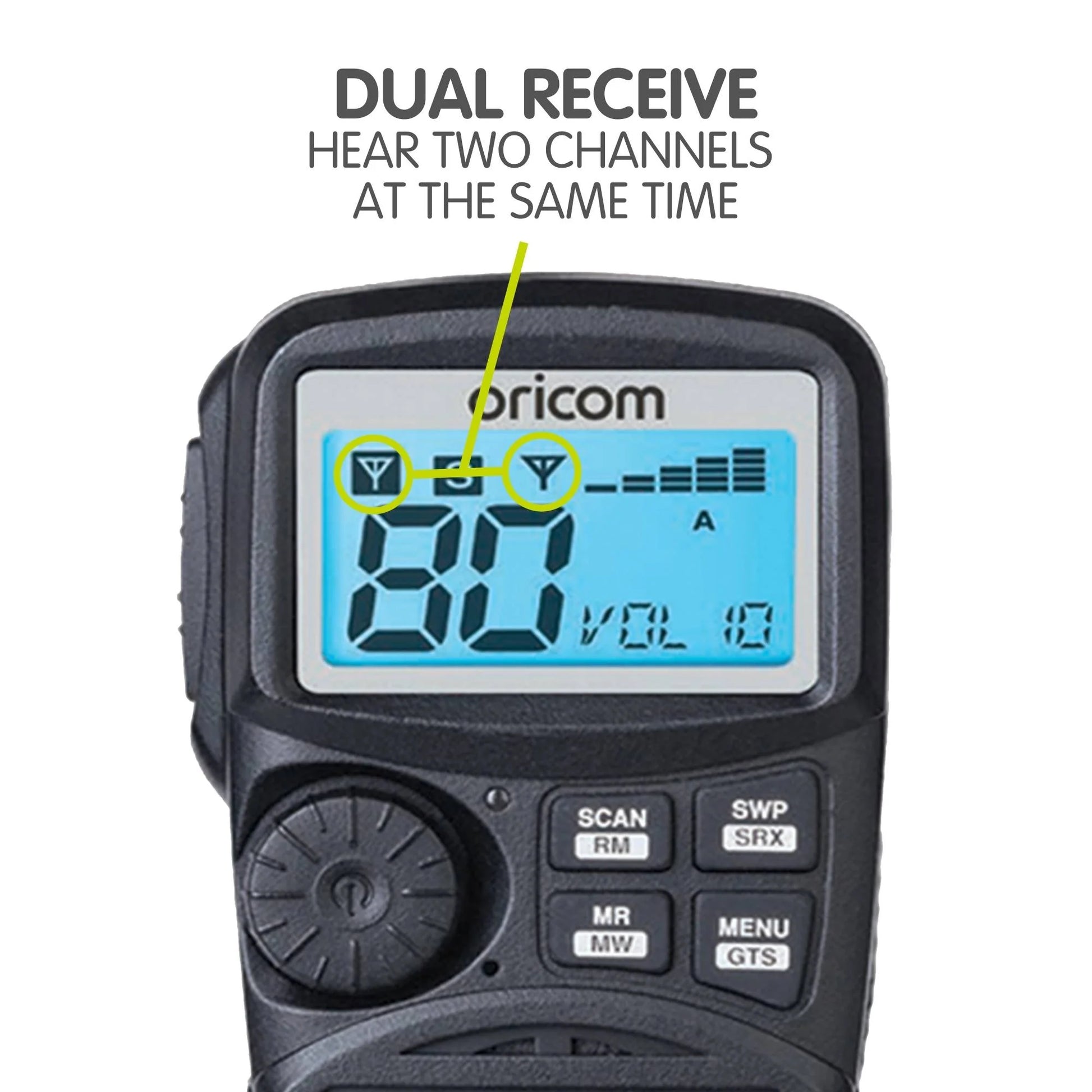

👂 DUAL RECEIVE – LIKE HAVING TWO RADIOS IN ONE

The standout feature of the UHF350DR is Oricom's Dual Receive technology.

Instead of listening to only one selected channel, you can receive two different UHF channels at the same time.

For example:

• 🚙 Stay connected with your convoy on Channel 64
• 🚛 Monitor highway communications on Channel 40 simultaneously

This means you can remain part of your group's conversation while still hearing potentially important information on another channel.

Dual Receive is particularly useful for 4WD touring, highway travel and commercial applications where monitoring two communication streams can provide a real practical advantage.

---

🎙️ CONTROLLER SPEAKER MICROPHONE – NO SEPARATE CONTROL HEAD

The UHF350DR places the radio's primary controls into the heavy-duty controller speaker microphone.

This allows the compact transceiver to be installed in a suitable concealed location while keeping the radio interface within convenient reach.

The microphone provides access to key functions including:

• 🔊 Volume
• 📡 Channel selection
• 🔇 Squelch
• 🖥️ Radio display
• 🔊 Received audio

This setup is particularly useful in modern vehicles where dashboard and console space is limited.

---

💦 IP54-RATED CONTROLLER MICROPHONE

The controller microphone carries an IP54 ingress-protection rating, providing resistance against dust ingress and splashing water.

This can be particularly useful in 4WD and work-vehicle environments where dust and occasional moisture are common.

---

🌈 96-COLOUR BACKLIT DISPLAY

The controller microphone features a large 96-colour backlit display, providing extensive visual customisation and easy access to important radio information.

Backlight brightness includes:

• 🔆 5 preset brightness levels
• 🌗 Automatic brightness adjustment

This makes it easier to keep the display visible during bright daytime driving without creating excessive glare at night.

---

📁 3 PROGRAMMABLE MEMORY GROUPS

The UHF350DR provides three memory groups with up to 16 channels available in each group.

This allows commonly used channels to be organised for different purposes such as:

• 🚙 Convoy communications
• 🚛 Highway channels
• 🏕️ Touring or campsite channels

The memory groups are listed as PC programmable.

---

⚡ FAST 80-CHANNEL SCANNING

The UHF350DR can scan all 80 UHF CB channels in approximately five seconds, providing quick monitoring of general channel activity.

---

📶 DUPLEX & TONE FUNCTIONS

The UHF350DR supports duplex operation for accessing compatible UHF CB repeaters.

It also provides:

38 CTCSS Codes

104 DCS Codes

CTCSS and DCS can help compatible groups filter unwanted received audio when several users are operating on the same channel.

⚠️ CTCSS and DCS do not create private or encrypted communications. Other UHF CB users can still monitor or transmit on the underlying channel.

⚠️ Duplex does not automatically increase direct radio-to-radio range. A compatible repeater must be available and within coverage.

---

📋 TECHNICAL & FEATURE SPECIFICATIONS

Brand: Oricom

Model: UHF350DR

Product Type: Dual Receive UHF CB Radio

Dual Receive: Yes

Controller Type: Heavy-Duty Controller Speaker Microphone

Microphone Ingress Protection: IP54

Memory Groups: 3

Channels Per Memory Group: 16

PC Programmable Memory Groups: Yes

Display: Large 96-Colour Multi-Colour Backlit Display

Backlight Brightness: 5 Preset Levels + Auto

UHF CB Channels: 80

Scanning: 80 Channels in Approximately 5 Seconds

Volume / Channel Control: Rotary

Squelch Control: Rotary

Duplex: Yes

CTCSS Codes: 38

DCS Codes: 104

Auto Power-Off: Off / 1 Hour / 2 Hours / 4 Hours

External Speaker Connection: 3.5mm Jack

Transceiver Dimensions: 29 × 110 × 115mm

Warranty: 5 Years

---

🔧 INSTALLATION CONSIDERATIONS

• Confirm the manufacturer's exact operating-voltage requirements before wiring
• Select a secure and protected location for the 29 × 110 × 115mm transceiver
• Position the controller microphone where it can be safely reached by the driver
• Remember that the stated IP54 rating applies to the microphone only
• Confirm antenna requirements before completing the installation
• Confirm whether PC programming hardware is required if configuring the memory groups from a computer
• Route power, microphone and antenna cabling away from excessive heat, sharp edges and moving components

---

❓ FREQUENTLY ASKED QUESTIONS

What is Dual Receive?

Dual Receive allows the UHF350DR to receive and listen to two different UHF channels simultaneously.

Can I listen to Channel 40 while staying on my convoy channel?

Yes. You could stay connected with your group on Channel 64 while simultaneously monitoring highway communications on Channel 40.

Is Dual Receive the same as scanning?

No. Scanning moves through channels looking for activity. Dual Receive allows two selected channels to be received simultaneously.

Do I need two UHF radios?

No. The Dual Receive functionality is built into the UHF350DR.

Does the microphone control the radio?

Yes. The UHF350DR removes the need for a separate control head by placing the primary radio controls and display in the controller speaker microphone.

Can I hide the main transceiver?

Yes, provided it is installed securely in a suitable protected location with appropriate access for wiring and servicing.

How large is the transceiver?

The transceiver measures approximately 29 × 110 × 115mm.

Is the UHF350DR waterproof?

No. The controller microphone is IP54 rated for dust and splash resistance. IP54 does not mean waterproof or submersible.

Is the main transceiver IP54 rated?

The supplied information specifically states “IP54 dust and splash resistant – microphone only”, so the same rating should not be assumed for the transceiver.

How many memory groups does it have?

Three memory groups are provided, with up to 16 channels per group.

Can the memory groups be programmed from a computer?

Yes. They are listed as PC programmable. Programming hardware or software is not stated as included.

How quickly does it scan?

The UHF350DR is specified to scan all 80 UHF CB channels in approximately five seconds.

Can I use UHF repeaters?

Yes. Duplex functionality is included for compatible UHF CB repeater operation.

Are CTCSS and DCS private channels?

No. They can filter received audio but do not encrypt communications or prevent other users from monitoring the underlying channel.

Can I connect an external speaker?

Yes. A 3.5mm jack is provided for an optional compatible external speaker.

Does it have automatic power-off?

Yes. Auto power-off can be set to Off, 1 hour, 2 hours or 4 hours.

How does the UHF350DR compare with the UHF182XP?

They use different technologies. The UHF350DR's Dual Receive feature allows two different channels to be monitored simultaneously. The UHF182XP instead uses a Dual Antenna System with two antenna inputs to optimise received-signal antenna selection.

How does it compare with the DTX4200XP?

Both use a controller-microphone layout and provide Dual Receive. The DTX4200XP is the more premium platform with features such as dual-speaker audio and a heavy-duty die-cast transceiver chassis, while the UHF350DR provides the core Dual Receive and controller-microphone functionality in a compact 29 × 110 × 115mm transceiver.

What should I check before buying?

Confirm the radio's exact electrical and antenna requirements, check that the 29 × 110 × 115mm transceiver fits your planned installation location and determine whether you require any additional PC programming or external-speaker accessories.

---

📻 HEAR TWO CHANNELS AT ONCE WITHOUT CLUTTERING YOUR DASH

The Oricom UHF350DR combines Dual Receive technology with a heavy-duty controller speaker microphone, allowing you to monitor two important UHF channels while keeping the main transceiver neatly out of the way.

With 80-channel fast scanning, three memory groups, a 96-colour display, duplex capability, 38 CTCSS and 104 DCS codes and a five-year warranty, it is a practical communication solution for 4WD touring, highway travel and convoy use.
