📻 ORICOM UHF310PNP PLUG & PLAY 5 WATT UHF CB RADIO PACK – 80 CHANNEL

Ultra-Compact Portable UHF CB Package with 5W Output, Flip LCD & Plug N Play Kit

📡 The Oricom UHF310PNP is a compact Plug & Play UHF CB package designed for customers who want a flexible communications setup that can be installed without the bulk of a conventional full-size radio.

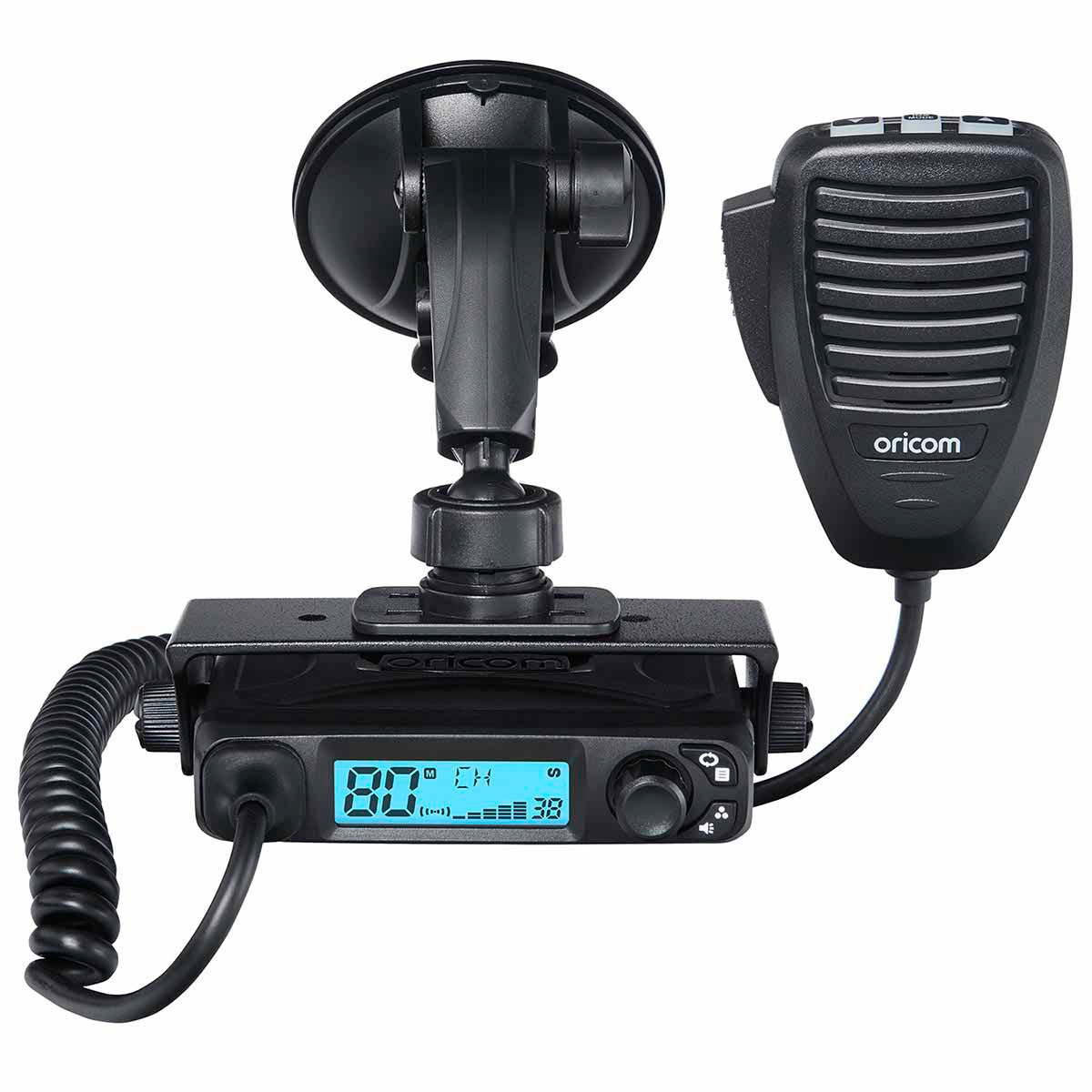

At the heart of the package is the Oricom UHF310 Micro UHF CB Radio, delivering up to 5 Watts transmit power across the Australian 80-channel UHF CB system while measuring just 23.8mm high × 100mm wide × 94mm deep.

The UHF310 features a flip LCD function for greater mounting flexibility, seven-colour backlit display, Automatic Level Control, duplex repeater capability, open and priority scanning, 38 CTCSS and 104 DCS codes and a heavy-duty microphone with channel control.

The package also includes the Oricom PNPKIT Plug N Play Kit, radio and microphone mounting brackets, mounting hardware and user guide, making it an excellent choice for customers wanting a convenient UHF solution for touring, temporary vehicle installations or communications on the go.

Backed by a 5-year manufacturer's warranty, the UHF310PNP combines compact dimensions, full-power UHF performance and convenient packaged installation components.

---

⚡ KEY FEATURES

📻 Full 5 Watt UHF CB Power
Delivers up to 5 Watts maximum RF output for full-power Australian UHF CB communications.

📡 80 UHF CB Channels
Supports the Australian 80-channel UHF CB system, including 75 voice channels.

🔌 Plug & Play Package
Includes the Oricom PNPKIT along with the UHF310 radio and mounting hardware for a convenient packaged installation solution.

📏 Ultra-Compact Micro Size
The UHF310 transceiver measures only 23.8 × 100 × 94mm, making it ideal where dashboard and console space is limited.

🔄 Flip LCD Function
Allows the display orientation to be reversed to suit different radio mounting positions.

🌈 7 Colour Backlit Display
Choose from seven display colours to better suit your vehicle's interior lighting.

🎙️ Heavy-Duty Microphone
Supplied MIC310 microphone provides convenient channel control directly from the microphone.

🎙️ Automatic Level Control
ALC helps maintain consistent transmitted audio levels during normal operation.

📶 Duplex Repeater Capability
Supports repeater operation using the standard +750kHz transmit offset where compatible UHF CB repeaters are available.

🔍 Open & Priority Scan
Provides channel-scanning functionality for monitoring UHF activity.

⭐ Priority Channel
Allows quick monitoring and access to a nominated priority channel.

🔐 38 CTCSS & 104 DCS Codes
Provides a wide range of signalling codes for compatible group communications.

🔊 External Speaker Connection
A 3.5mm external speaker jack allows a compatible optional speaker to be connected.

🛡️ Electrical Protection
Includes over-voltage, over-current and reverse-polarity protection.

📜 5 Year Manufacturer's Warranty
Backed by a five-year manufacturer's warranty for additional peace of mind.

---

🔌 PLUG & PLAY UHF PACKAGE

The UHF310PNP packages the compact UHF310 radio with the Oricom PNPKIT and the essential radio mounting components listed for this kit.

This makes it particularly appealing for:

• 🚙 4WD touring
• 🛻 Utes
• 🚐 Touring vehicles
• 🏕️ Camping trips
• 🚗 Temporary or portable vehicle setups
• 🚜 Agricultural vehicles
• 🏗️ Compatible plant and machinery installations

---

📏 MICRO SIZE – BIG PERFORMANCE IN A SMALL SPACE

The UHF310 is designed for vehicles where mounting space is at a premium.

Transceiver Dimensions:

Height: 23.8mm

Width: 100mm

Depth: 94mm

This compact size allows the radio to be installed into locations where many conventional UHF CB radios may simply be too large.

---

📻 FULL 5 WATT RF OUTPUT

Maximum RF Output Power: 5 Watts

The UHF310 provides full-power UHF CB transmission capability despite its compact dimensions.

When connected to an appropriately installed 50-ohm UHF CB antenna system, it provides a capable communication platform for convoy travel, touring, work and general vehicle communications.

⚠️ Actual communication range depends heavily on antenna selection, antenna location, terrain, buildings, surrounding vehicles and whether simplex or repeater communication is being used.

---

🔄 FLIP LCD FOR FLEXIBLE MOUNTING

The flip LCD function provides greater freedom when deciding where to position the UHF310.

If the radio needs to be installed in an alternative orientation because of limited available space, the display can be flipped so the information remains correctly oriented for the user.

---

🌈 7 COLOUR BACKLIT DISPLAY

The UHF310 features a seven-colour backlit display, allowing you to customise the radio's appearance to better suit your vehicle interior or personal preference.

This is particularly useful in modern vehicles where customers often want added accessories to blend with the factory dashboard illumination.

---

🎙️ HEAVY-DUTY MIC310 MICROPHONE

The pack includes the Oricom MIC310 heavy-duty microphone.

The microphone incorporates channel control, allowing one of the radio's most frequently used functions to be adjusted without reaching for the transceiver body.

---

🎙️ AUTOMATIC LEVEL CONTROL – ALC

Automatic Level Control helps provide more consistent transmitted audio levels.

This can help compensate for variations in speaking volume and microphone distance during everyday use.

---

📶 DUPLEX REPEATER OPERATION

The UHF310 supports both simplex communication and repeater operation.

Repeater TX Offset: +750kHz

Where a compatible UHF CB repeater is available, duplex mode can substantially increase practical communication coverage compared with direct vehicle-to-vehicle operation.

⚠️ Duplex does not automatically increase communication range. A suitable repeater must be available and within range.

---

🔍 OPEN & PRIORITY SCANNING

The UHF310 includes both open and priority scanning functionality.

This allows the radio to monitor UHF channel activity rather than remaining permanently fixed to one channel.

Scanning Speed: Approximately 130ms Per Channel

---

🔐 38 CTCSS & 104 DCS CODES

The UHF310 provides:

38 CTCSS Codes

104 DCS Codes

These signalling options can help compatible groups reduce unwanted received audio from other users sharing the same UHF CB channel.

⚠️ CTCSS and DCS do not create private or encrypted channels. Other UHF CB users can still monitor and transmit on the underlying channel.

---

🔊 3 WATT AUDIO OUTPUT

Maximum Receiver Audio Output: 3 Watts

The UHF310 also includes a 3.5mm external speaker connection for customers who want to add a compatible speaker.

An external speaker may be particularly useful where the radio is mounted out of the way or the vehicle has high cabin noise.

---

⚡ 12V VEHICLE OPERATION

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

The UHF310 is designed for compatible nominal 12V vehicle electrical systems.

---

🛡️ BUILT-IN ELECTRICAL PROTECTION

The UHF310 includes:

• ⚡ Over-voltage protection via voltage regulator
• 🛡️ Over-current protection via 2A fuse
• 🔄 Reverse-polarity protection via shunt diode

These built-in protections do not replace correct vehicle wiring and installation practices.

---

📡 ANTENNA REQUIREMENTS

Antenna Impedance: 50 Ohms

The antenna is one of the most important factors affecting real-world UHF performance.

Different antenna configurations may suit:

• 🏜️ Open-country touring
• ⛰️ Hilly terrain
• 🚛 Highway travel
• 🏙️ Urban use

---

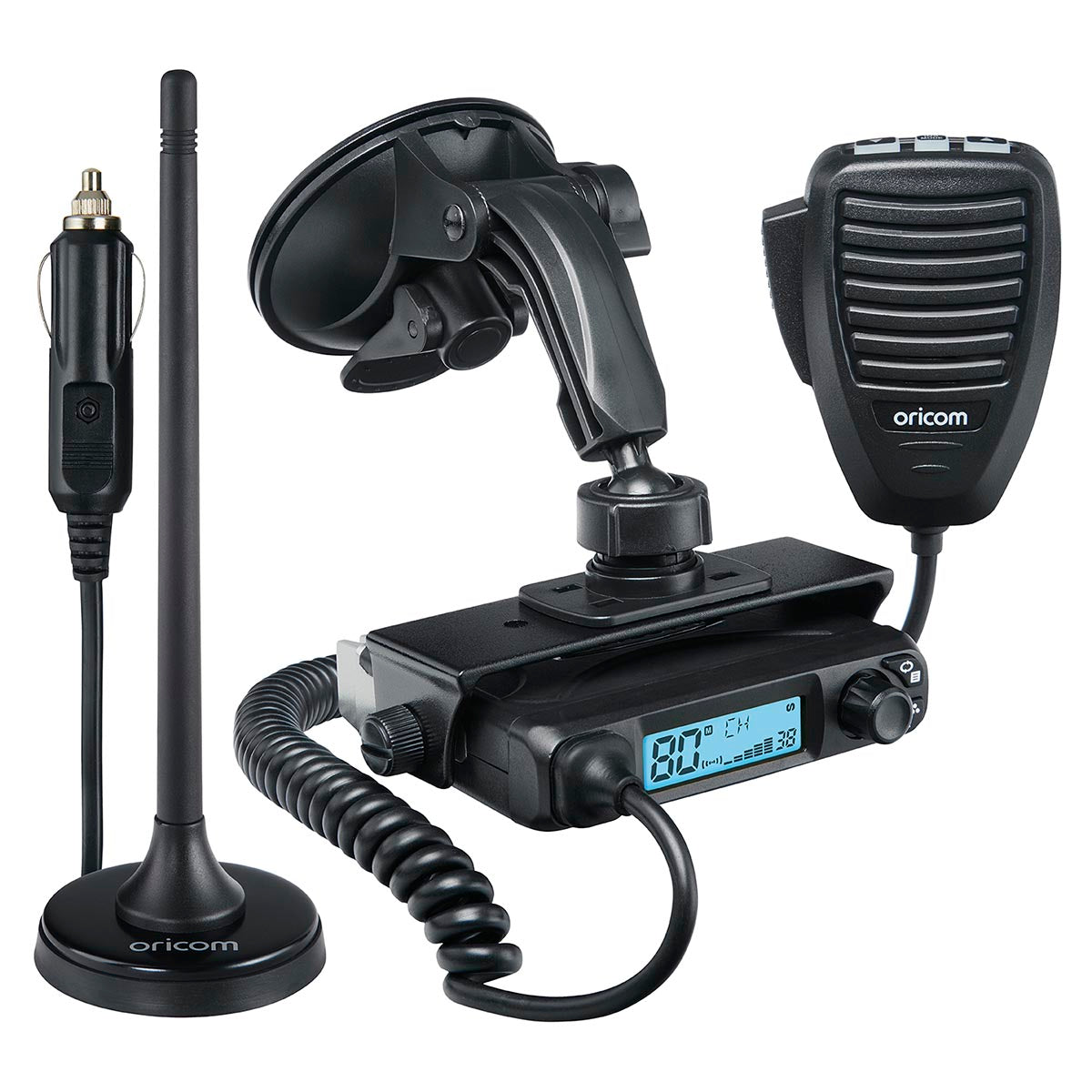

📦 PACKAGE CONTENTS

• 📻 1 × Oricom UHF310 Micro UHF CB Radio
• 🎙️ 1 × MIC310 Heavy-Duty Microphone
• 🎙️ 1 × 2U0045 Microphone Mounting Bracket

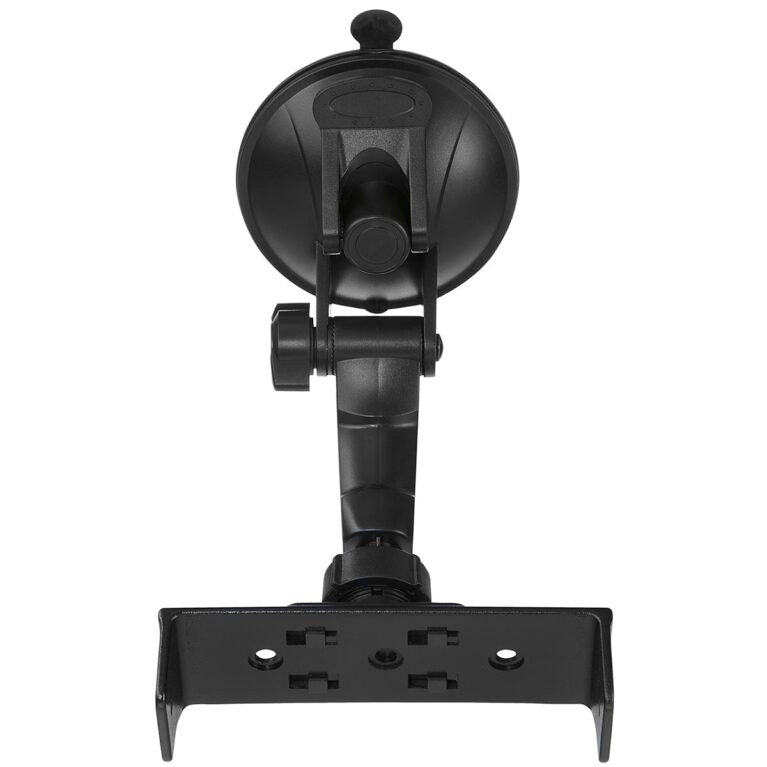

• 🛠️ 1 × 2U0055 Transceiver Mounting Bracket
• 🔌 1 × PNPKIT Plug N Play Kit
• 🔩 Pack of Supplied Mounting Screws
• 📖 User Guide

---

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Model: UHF310PNP

Radio Model: UHF310

Product Type: Plug & Play UHF CB Radio Pack

RF Output Power: 5 Watts Maximum

Frequency Range TX/RX: 476.425–477.4125MHz

Number of UHF CB Channels: 80

Voice Channels: 75

Channel Spacing: 12.5kHz

Operating Modes: Simplex & Repeater

Repeater TX Offset: +750kHz

Scanning Modes: Open & Priority

Scanning Speed: 130ms Per Channel

Priority Channel: Yes

CTCSS Codes: 38

DCS Codes: 104

Automatic Level Control: Yes

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Transmit Current Consumption: Approximately 1.5A with 50-Ohm Antenna Termination

Over-Voltage Protection: Voltage Regulator

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-70dBm

TX Audio Pre-Emphasis: +6dB/Octave from 300Hz to 3kHz

Receiver Circuit Type: Direct Conversion via Single DSP Chip

Intermediate Frequency: 137kHz

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output Power: 3 Watts

RX Audio De-Emphasis: -6dB/Octave from 300Hz to 3kHz

Display: 7 Colour Backlit LCD

Flip LCD Function: Yes

Microphone: MIC310 Heavy-Duty Microphone with Channel Control

External Speaker Connection: 3.5mm Jack

Transceiver Dimensions (H × W × D): 23.8 × 100 × 94mm

Compliance: AS/NZS 4365:2011

Manufacturer's Warranty: 5 Years

---

🔧 INSTALLATION CONSIDERATIONS

• Use with a compatible nominal 12V vehicle electrical system
• Ensure supply voltage remains within the stated 10–15V DC operating range
• Do not connect the radio directly to a 24V electrical system
• Retain the specified 2A fuse protection
• Choose a secure mounting location for the compact transceiver
• Use the flip LCD function where installation orientation requires it
• Use a compatible 50-ohm UHF antenna system
• Confirm the exact PNPKIT contents before determining what additional installation parts may be required
• Route power and antenna cabling away from sharp edges, excessive heat and moving components

---

❓ FREQUENTLY ASKED QUESTIONS

What is included in the UHF310PNP Pack?

The listed package includes the UHF310 micro radio, MIC310 heavy-duty microphone, microphone mounting bracket, transceiver mounting bracket, PNPKIT Plug N Play Kit, mounting screws and user guide.

What exactly is included inside the PNPKIT?

The supplied product information does not itemise the individual PNPKIT components, so those contents should be confirmed before relying on any specific plug, cable or accessory being included.

Does the pack include an antenna?

An antenna is not separately identified in the package-content list provided. Confirm the exact PNPKIT contents before assuming a UHF antenna is supplied.

Is this a full-power UHF CB radio?

Yes. The UHF310 provides up to 5 Watts maximum RF output.

Does it have all 80 Australian UHF CB channels?

Yes. It supports 80 Australian UHF CB channels, including 75 voice channels.

How compact is the UHF310?

The transceiver measures just 23.8mm high × 100mm wide × 94mm deep, making it well suited to vehicles where dashboard and console space is limited.

What does Plug & Play mean with this pack?

The package includes Oricom's PNPKIT Plug N Play Kit along with the radio and mounting components. The precise individual PNPKIT components are not detailed in the information provided, so no further installation capability has been assumed.

Is this suitable as a portable or temporary UHF setup?

It is promoted as a portable communication kit and its compact radio format and Plug N Play package make it particularly attractive where installation flexibility is important.

Can I permanently install it as well?

Yes. Transceiver and microphone mounting brackets are included, allowing the UHF310 to be securely mounted in a suitable vehicle location.

What does the flip LCD do?

The flip LCD allows the display orientation to be reversed, providing greater flexibility when mounting the radio in different positions.

Can I change the display colour?

Yes. The UHF310 offers seven backlight colours.

Can I change channels from the microphone?

Yes. The included MIC310 heavy-duty microphone incorporates channel control.

What does Automatic Level Control do?

ALC helps maintain more consistent transmitted audio levels when microphone distance or speaking volume changes.

Can I use UHF repeaters?

Yes. The UHF310 supports duplex repeater operation using a +750kHz transmit offset.

Will duplex automatically increase my range?

No. Duplex provides a range benefit only when a compatible UHF CB repeater is available and within communication range.

How far will the UHF310 transmit?

There is no reliable fixed distance. Real-world range depends heavily on antenna choice, antenna mounting position, terrain, surrounding obstacles and repeater availability.

What antenna does the radio require?

The radio is specified for a 50-ohm antenna system. The best antenna type and gain depend on the vehicle, mounting location and terrain you normally travel through.

What are CTCSS and DCS used for?

They allow compatible radios to mute unwanted received audio unless the selected tone or code is detected.

Are CTCSS and DCS private channels?

No. They do not encrypt communications. Other radios can still monitor and transmit on the underlying UHF CB channel.

Does the UHF310 scan channels?

Yes. It includes open and priority scanning together with a priority-channel function.

Can I connect an external speaker?

Yes. The radio has a 3.5mm external speaker jack for connection of a compatible optional speaker.

Can I install the UHF310PNP into a 24V truck?

Not directly. The radio is specified for 10–15V DC operation. A suitable 24V-to-12V conversion solution would be required in a nominal 24V vehicle.

How much current does it draw while transmitting?

The specified transmit current consumption is approximately 1.5A with a 50-ohm antenna termination.

What size fuse does it use?

The technical specification lists a 2A fuse for over-current protection.

Does it have reverse-polarity protection?

Yes. Reverse-polarity protection is provided by a shunt diode according to the supplied specification.

Does it have over-voltage protection?

Yes. Voltage-regulator protection is specified.

How long is the warranty?

The UHF310PNP is listed with a five-year manufacturer's warranty.

How does the UHF310PNP compare with the standard UHF310?

The core radio is the same compact UHF310 platform. The advantage of the UHF310PNP is the packaged inclusion of the PNPKIT Plug N Play Kit together with the listed radio and microphone mounting hardware, making it a more convenient option where installation flexibility is important.

How does this compare with the DTX4300?

Both are compact 5 Watt fixed-mount UHF radios. The UHF310PNP focuses on straightforward operation and Plug N Play packaging, while the DTX4300 adds premium features such as a 96-colour display, three memory groups, smart fast scanning, IP54 protection, die-cast construction and selectable auto power-off.

What should I check before buying?

Confirm your vehicle has a compatible 10–15V DC electrical supply, make sure the 23.8 × 100 × 94mm transceiver fits your preferred mounting location, confirm the exact contents of the PNPKIT and determine whether a suitable 50-ohm UHF CB antenna needs to be purchased separately.

---

📻 FULL 5 WATT UHF COMMUNICATION IN A COMPACT PLUG & PLAY PACKAGE

The Oricom UHF310PNP combines the proven UHF310 micro radio with Oricom's Plug N Play kit and mounting components to create a flexible UHF package for touring and communications on the go.

With full 5 Watt transmit power, 80 UHF CB channels, a flip LCD, seven-colour display, duplex repeater capability, scanning, 38 CTCSS and 104 DCS codes and a heavy-duty microphone, the UHF310 offers plenty of functionality without taking over your dashboard.

For customers wanting a compact, straightforward UHF CB setup with Plug N Play convenience and a 5-year manufacturer's warranty, the UHF310PNP is a practical and versatile package.
