📻 ORICOM UHF182XPTA DUAL ANTENNA UHF CB RADIO + BONUS 3dBi & 6.5dBi ANTENNAS

Smart Dual Antenna UHF Package for Changing Terrain

📡 The Oricom UHF182XPTA combines the UHF182XP 5 Watt Dual Antenna UHF CB Radio with two bonus antennas – the ANU050 3dBi and ANU236 6.5dBi – giving you a versatile communication setup for everything from hilly tracks to flat open country.

Oricom's integrated Dual Antenna System (DAS) uses two antenna inputs and automatically selects the strongest received signal. This allows you to install antennas with different gain characteristics and take advantage of the antenna providing the better reception for the conditions.

⚡ KEY FEATURES

📡 Smart Dual Antenna System
Two antenna inputs with automatic strongest-signal selection for reception.

🎁 TWO Bonus Antennas Included
ANU050 3dBi compact flexible antenna plus ANU236 6.5dBi touring antenna.

📻 Full 5 Watt UHF CB Output
80-channel Australian UHF CB radio with maximum 5 Watt transmit power.

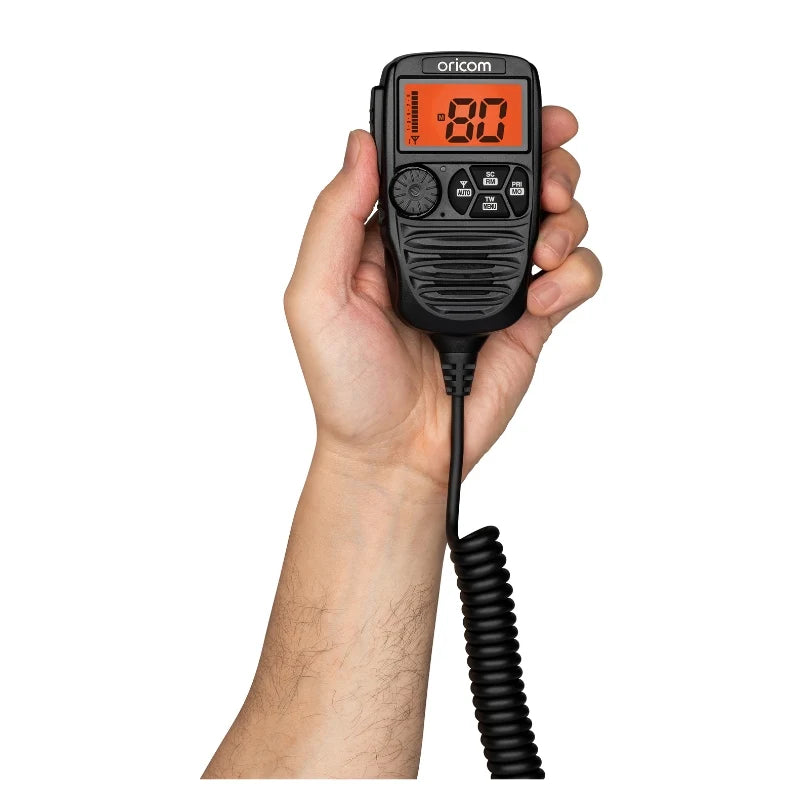

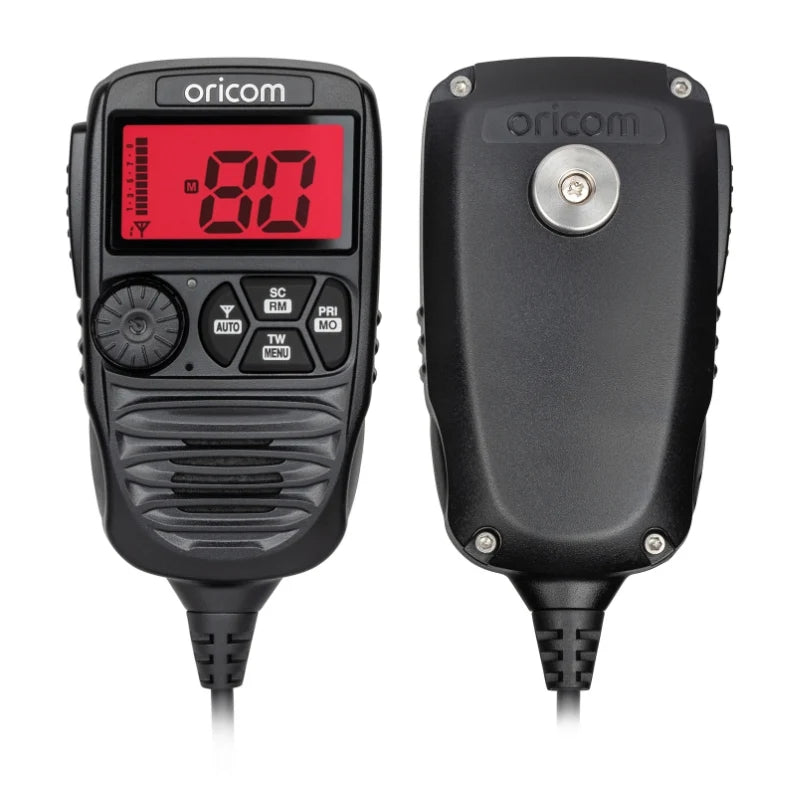

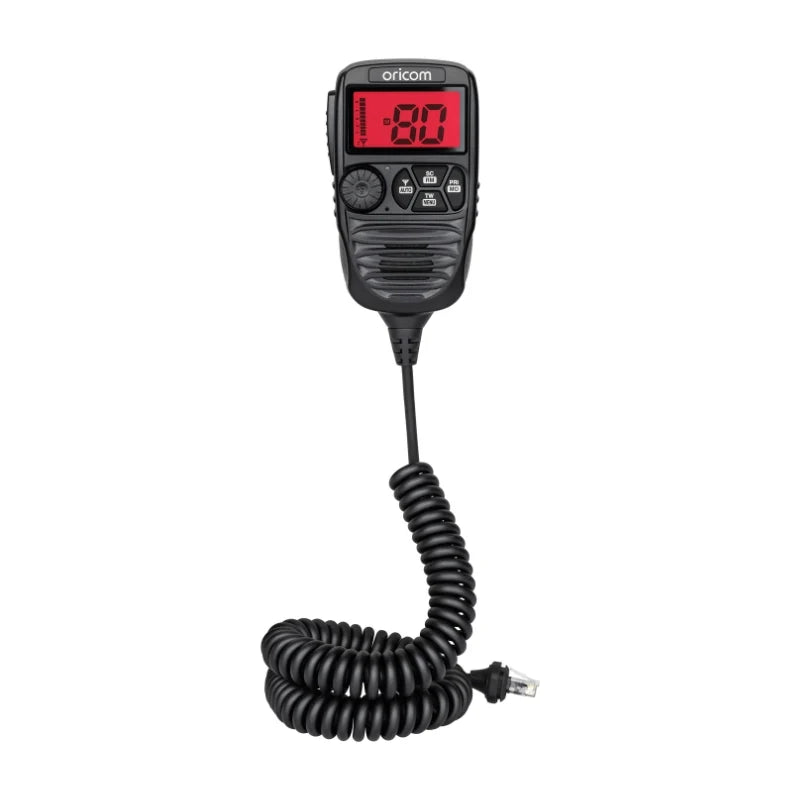

🎙️ Heavy-Duty Controller Speaker Microphone
Radio controls and received audio conveniently located on the controller microphone.

🔍 Multiple Scan Modes
Open, priority and memory scanning with five memory channels.

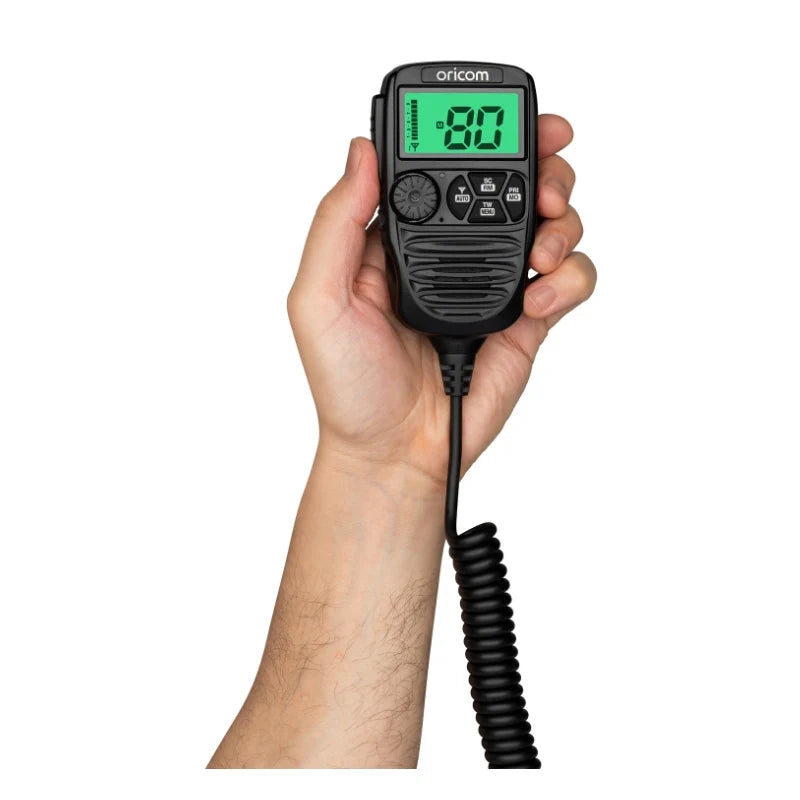

🌈 3-Colour Backlit Display
Three backlight colours with two brightness levels.

👀 Tri-Watch
Monitor multiple important channels more conveniently.

⚡ Over & Under Voltage Alert
Provides an alert when supply voltage moves outside the expected operating condition.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔊 External Speaker Connection
3.5mm jack for a compatible optional external speaker.

🛡️ 5 Year Radio Warranty
The UHF182XP is backed by a five-year radio warranty.

📡 DUAL ANTENNA SYSTEM – BUILT FOR CHANGING TERRAIN

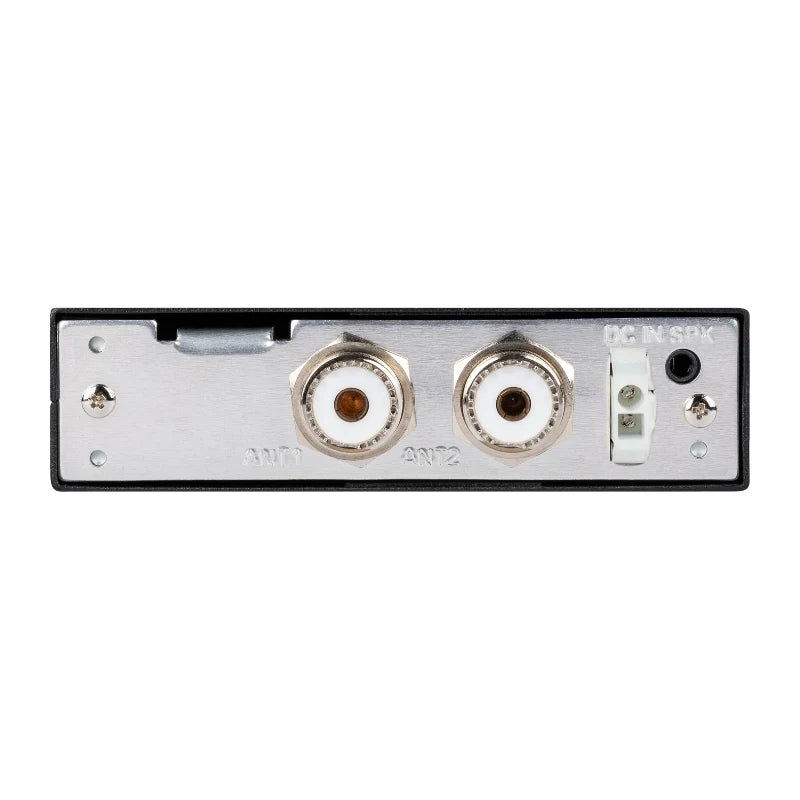

The UHF182XP features two antenna inputs, allowing two compatible 50-ohm antennas to be connected at the same time.

Its integrated DAS technology automatically selects the antenna receiving the stronger signal, helping the radio adapt as terrain and reception conditions change.

• ⛰️ ANU050 3dBi: Compact 350mm flexible antenna suited to hilly, undulating and mixed terrain
• 🛣️ ANU236 6.5dBi: 960mm antenna better suited to flatter open country and highway touring

⚠️ Antenna gain does not guarantee communication distance. Actual performance depends on terrain, mounting position, installation quality, obstacles and repeater availability.

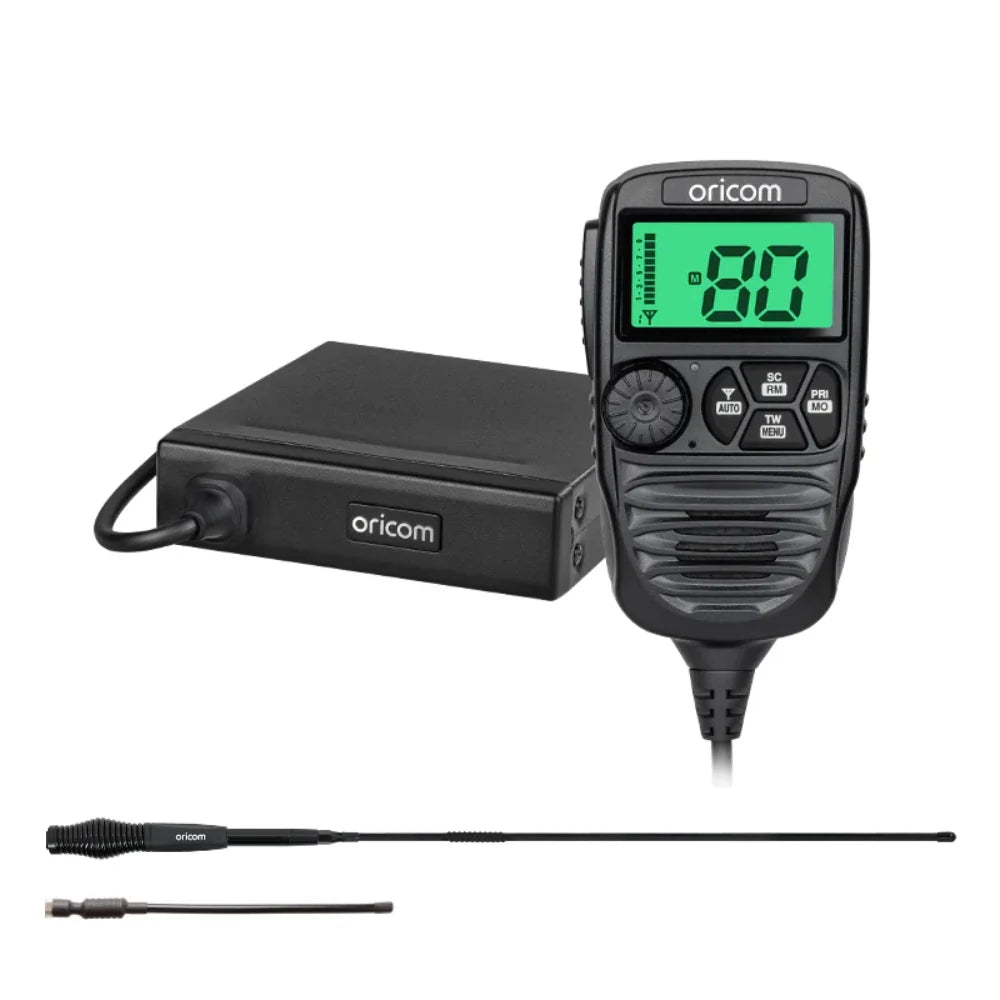

📦 PACKAGE CONTENTS

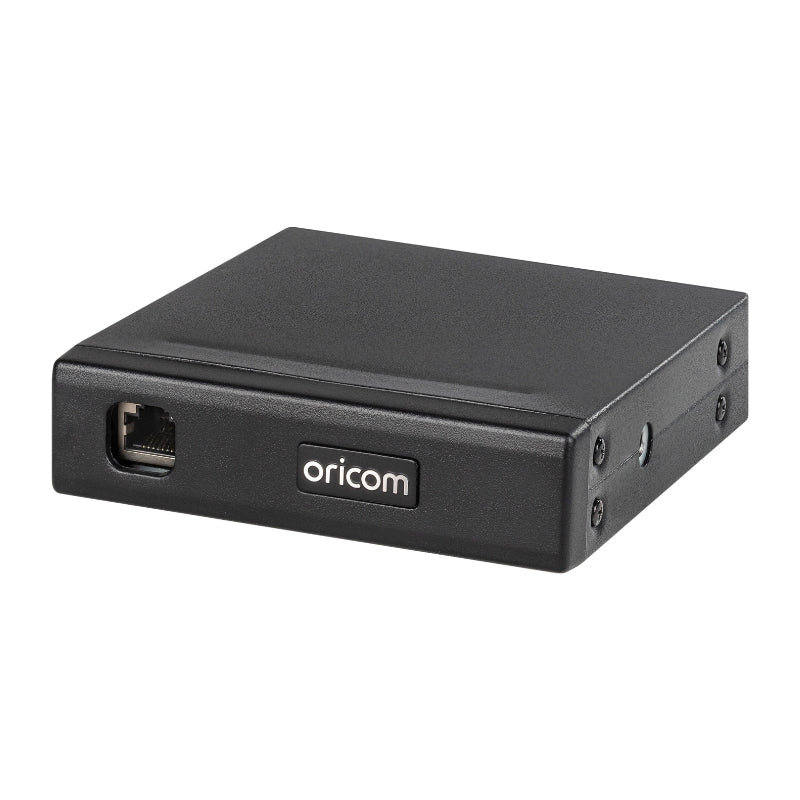

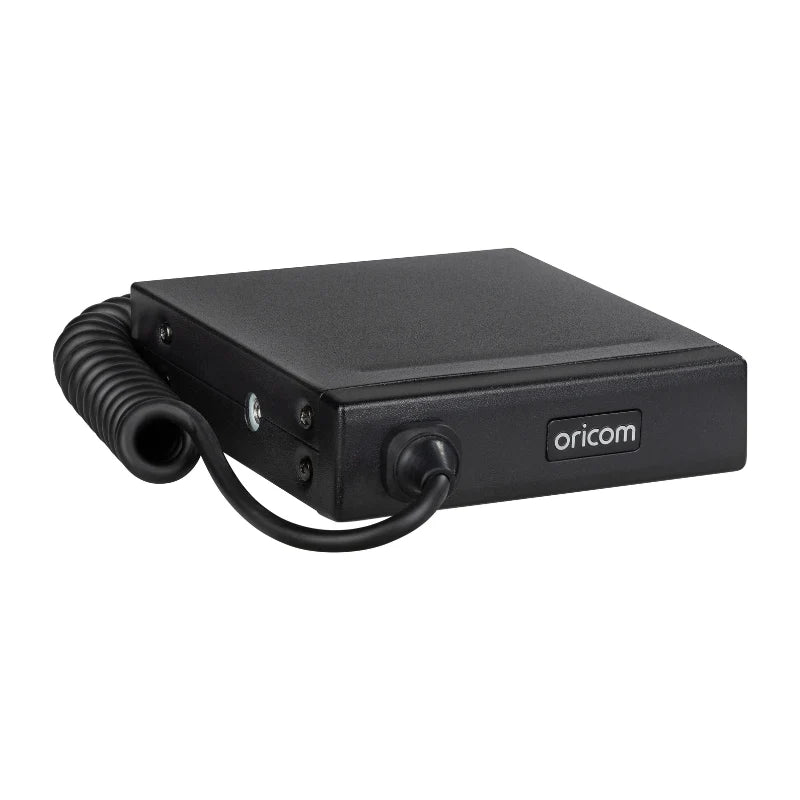

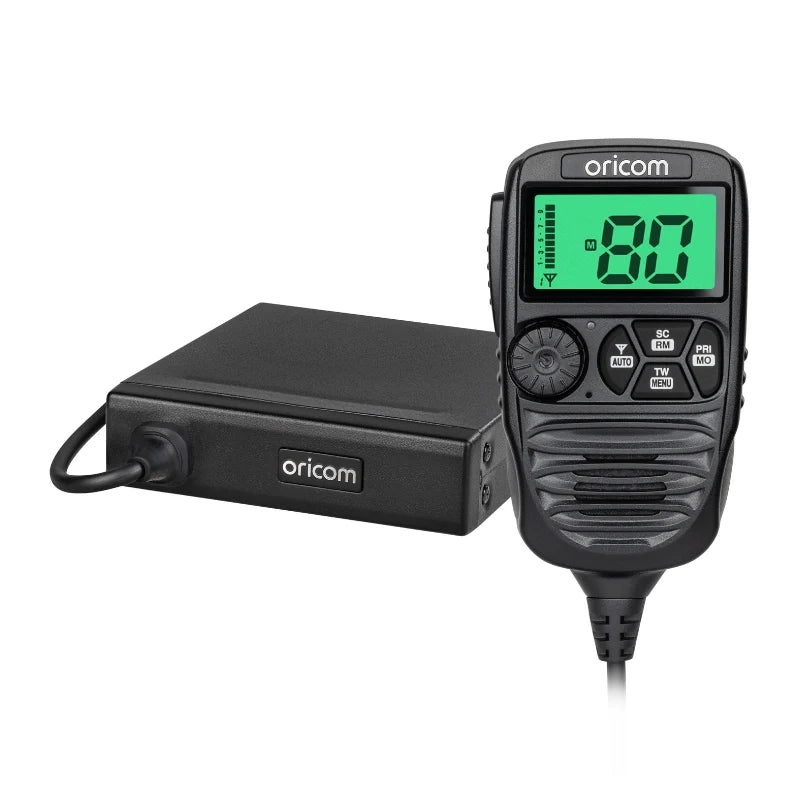

• 📻 Oricom UHF182XP Dual Antenna UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 🔌 2m Microphone Extension Cable
• 🛠️ Mounting Hardware
• 📡 ANU050 3dBi UHF CB Antenna
• 📡 ANU236 6.5dBi UHF CB Antenna
• 🔌 ANU050 – 4.6m Coaxial Cable
• 🔌 ANU236 – 4.5m Low-Loss Coaxial Cable
• 🔌 ANU236 Pre-Terminated FME Connector
• 🔧 ANU236 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Pack Model: UHF182XPTA

Radio Model: UHF182XP

Dual Antenna System: Integrated DAS

Antenna Inputs: 2

Antenna Impedance: 50 Ohms – ANT1 & ANT2

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority / Memory

Scanning Speed: 130ms Per Channel

Memory Channels: 5

CTCSS / DCS: 38 / 104

Tri-Watch: Yes

Audio Scrambler: Yes

Automatic Power-Off: Yes

External Speaker Connection: 3.5mm Jack

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±5ppm

Transmit Current: Approximately 1.6A with 50-Ohm Antenna Termination

Receiver Type: Direct Conversion via Single DSP Chip

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD Unweighted

Audio Output: >2 Watts at 8 Ohms

Transceiver Dimensions (H × W × D): 29 × 110 × 115mm

Compliance: AS/NZS 4365:2011

Designed, Engineered & Made In: Korea

Radio Warranty: 5 Years

ANU050 Gain: 3dBi

ANU050 Length: 350mm

ANU050 Coaxial Cable: 4.6m

ANU236 Gain: 6.5dBi

ANU236 Length: 960mm

ANU236 Coaxial Cable: 4.5m

ANU236 Whip Thread: 5/16 UNC

ANU236 Warranty: 3 Years

⚠️ CTCSS, DCS and the audio-scrambler function do not provide secure encrypted communications.

🔧 BEFORE YOU BUY

• At least one compatible antenna must be connected for operation
• Both antenna inputs are specified at 50 Ohms
• Designed for compatible nominal 12V systems within the stated 10–15V DC range
• Do not connect directly to a nominal 24V electrical system
• Confirm the 29 × 110 × 115mm transceiver fits your intended mounting location
• Allow suitable clearance for both antennas if installing the full dual-antenna setup

❓ QUICK FAQ

Why are two different antennas included?

The 3dBi ANU050 is better suited to changing and undulating terrain, while the 6.5dBi ANU236 is generally better suited to flatter open country. The UHF182XP lets both antennas be connected to its dual inputs.

Does the radio automatically choose between the antennas?

Yes, for reception. The supplied information states that the Dual Antenna System automatically selects the strongest received signal.

Do I need to install both antennas?

No. The radio requires at least one antenna connected. Installing both allows the Dual Antenna System to take advantage of the two different antenna configurations for reception.

Can it run directly from a 24V vehicle?

No. The specified operating range is 10–15V DC, so a suitable 24V-to-12V conversion solution is required.

📡 ONE RADIO. TWO ANTENNAS. BUILT FOR CHANGING TERRAIN.

The Oricom UHF182XPTA gives you a 5 Watt UHF CB radio, Smart Dual Antenna technology and both 3dBi and 6.5dBi antennas in one versatile package – ideal for 4WDers who travel from steep tracks to open highways and want one communication setup capable of adapting to both.
