UHF182XP UHF CB Radio with Dual Antenna System

📻 ORICOM UHF182XP 5 WATT UHF CB RADIO WITH INTEGRATED DUAL ANTENNA SYSTEM

Smart Dual Antenna Technology with Controller Speaker Microphone, 80 UHF CB Channels & Automatic Strongest-Signal Reception

📡 The Oricom UHF182XP is a unique 5 Watt UHF CB radio designed for drivers who regularly travel through changing terrain and want the flexibility of running two different UHF antennas without adding a separate manual antenna switch.

Its standout feature is Oricom's integrated DAS Dual Antenna System. Two 50-ohm antenna connections are provided on the rear of the transceiver, allowing two compatible UHF CB antennas to be connected. The radio can then automatically receive from the antenna providing the strongest received signal.

This makes the UHF182XP particularly attractive for serious 4WD touring where one antenna may be better suited to flatter open country while another may provide a more useful radiation pattern through hills and rough terrain.

The UHF182XP also features a heavy-duty controller speaker microphone, 80 Australian UHF CB channels, open, priority and memory scanning, five memory channels, tri-watch, duplex repeater capability, 38 CTCSS and 104 DCS codes, audio scrambler functionality and a three-colour backlit display.

With the main controls located on the controller microphone, the compact 29 × 110 × 115mm transceiver can be installed in a suitable out-of-the-way location while still giving the driver convenient access to volume, channel and squelch adjustment.

---

⚡ KEY FEATURES

📡 Integrated DAS Dual Antenna System
Connect up to two compatible 50-ohm UHF CB antennas directly to the radio without requiring a separate external antenna switch.

📶 Automatic Strongest-Signal Reception
The Dual Antenna System is designed to automatically receive from the antenna providing the strongest incoming signal.

🏜️ Ideal for Changing Terrain
Run two different antenna configurations to better suit environments such as open country, highways, hills and rough terrain.

📻 Full 5 Watt UHF CB Output
Delivers up to 5 Watts maximum RF transmit power for Australian UHF CB communications.

🎙️ Heavy-Duty Controller Speaker Microphone
Provides convenient radio control and audio access directly from the microphone.

📡 80 UHF CB Channels
Supports the Australian 80-channel UHF CB system, including 75 voice channels.

🔍 Open, Priority & Memory Scanning
Multiple scanning options provide flexible monitoring of UHF channel activity.

💾 5 Memory Channels
Store frequently used channels for convenient access and memory scanning.

👀 Tri-Watch
Allows additional monitoring flexibility where several important channels need to be kept under observation.

🔐 38 CTCSS & 104 DCS Codes
Provides extensive signalling options for compatible group communications.

🔊 Audio Scrambler Function
Includes Oricom's listed audio scrambler functionality for compatible operation.

🌈 3 Colour Backlit Display
Choose from three display backlight colours with two brightness levels.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation using the standard +750kHz transmit offset.

⚠️ Over & Under Voltage Alert
Helps notify the operator when the supply voltage moves outside the radio's intended operating conditions.

⏱️ Automatic Power-Off
Automatic shutdown functionality helps prevent the radio remaining powered unnecessarily.

🎛️ Volume, Channel & Squelch Control
Primary radio functions remain conveniently accessible through the controller microphone.

🔊 3.5mm External Speaker Jack
Allows a compatible optional external speaker to be connected where additional cabin audio is required.

🔌 Microphone Extension Cables Included
Extension cables are supplied for installations with and without a compatible pass-through arrangement.

🇰🇷 Designed, Engineered & Made in Korea
Designed, engineered and manufactured in Korea.

---

📡 INTEGRATED DAS DUAL ANTENNA SYSTEM

The feature that makes the UHF182XP different from a conventional UHF CB radio is its integrated Dual Antenna System.

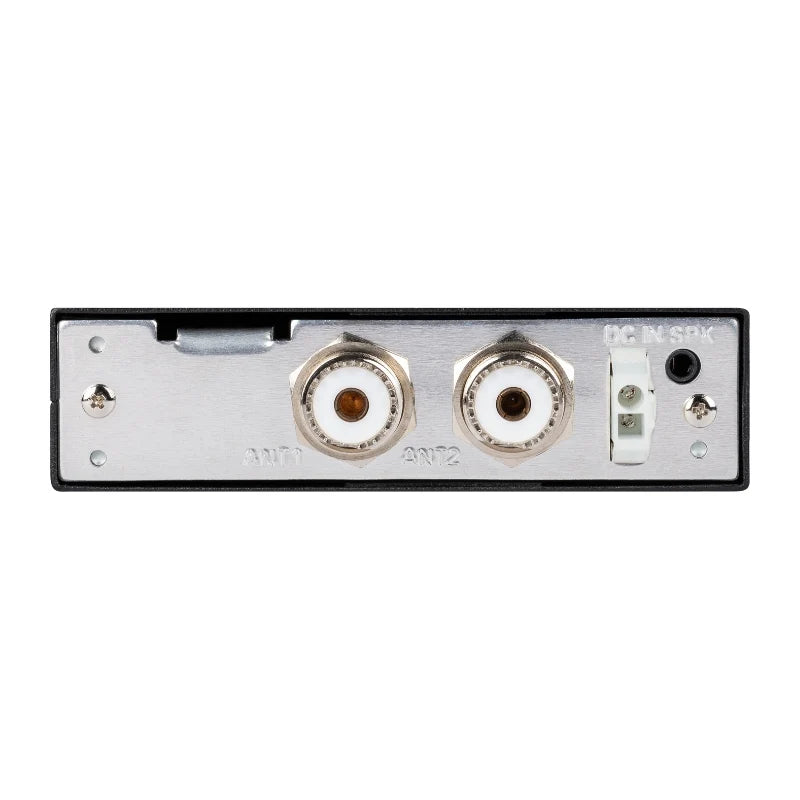

The rear of the transceiver includes two separate antenna connections:

• 📡 ANT1 – 50 Ohms
• 📡 ANT2 – 50 Ohms

This allows two compatible UHF CB antennas to be connected directly to the one transceiver.

The system is designed to automatically receive the strongest available signal from the connected antennas, removing the need to manually switch between antennas when conditions change.

---

🏜️ WHY USE TWO DIFFERENT UHF ANTENNAS?

No single antenna gain is ideal for every terrain type.

A touring vehicle may benefit from carrying:

• 📡 A lower-gain antenna for hills, valleys and heavily undulating terrain
• 📡 A higher-gain antenna for flatter open country and highway travel

The UHF182XP allows both antennas to remain connected to the radio at the same time.

Instead of stopping and physically changing antenna connections or adding an external manual switch, the integrated system can make use of the available antenna inputs when receiving signals.

This makes the UHF182XP especially appealing to customers who regularly travel between:

• ⛰️ High country
• 🏜️ Open outback terrain
• 🛣️ Highways
• 🌲 Forest tracks
• 🚙 Rough and undulating off-road terrain

---

📶 AUTOMATIC STRONGEST-SIGNAL RECEPTION

The DAS system is designed to automatically receive from the antenna providing the stronger incoming signal.

This means the driver does not need to manually decide which antenna is currently receiving better.

In changing terrain, where antenna performance can vary considerably depending on vehicle position and surrounding landscape, this can provide a significant convenience advantage over a conventional single-antenna setup.

---

📻 FULL 5 WATT UHF CB PERFORMANCE

Maximum RF Output Power: 5 Watts

The UHF182XP provides full-power Australian UHF CB transmission capability.

It supports 80 UHF CB channels, including 75 voice channels, and operates across:

476.425–477.4125MHz

⚠️ Actual communication range depends on antenna selection, antenna installation, terrain, surrounding obstacles, vehicle position and repeater availability. A 5 Watt output rating does not provide a guaranteed communication distance.

---

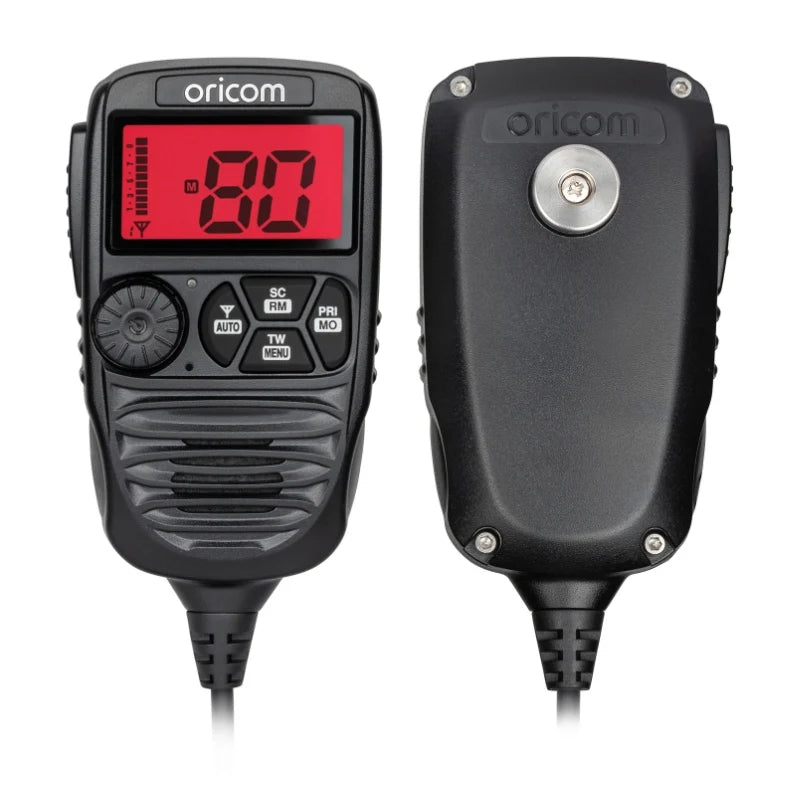

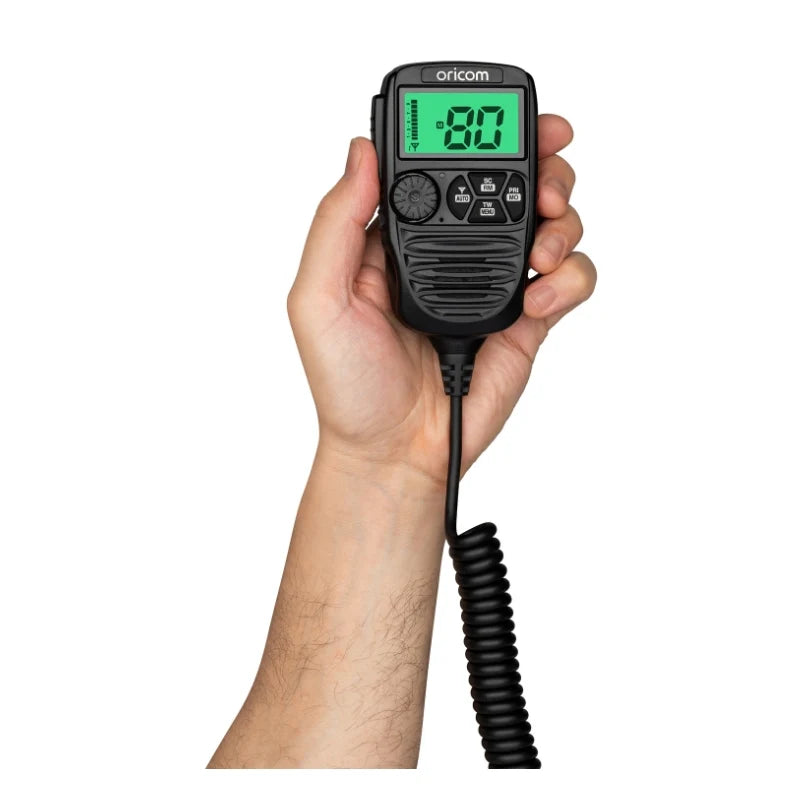

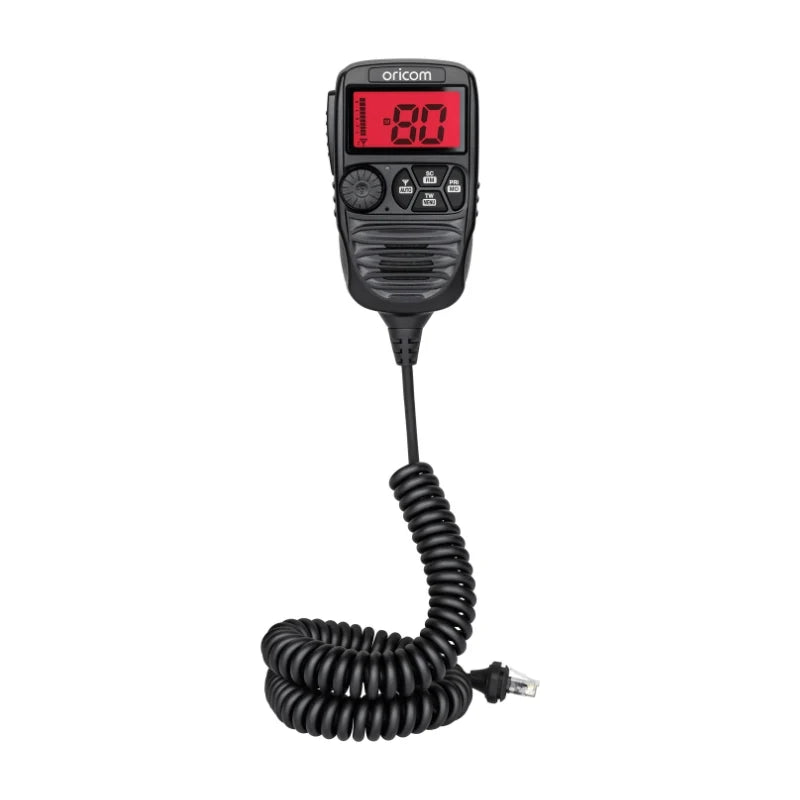

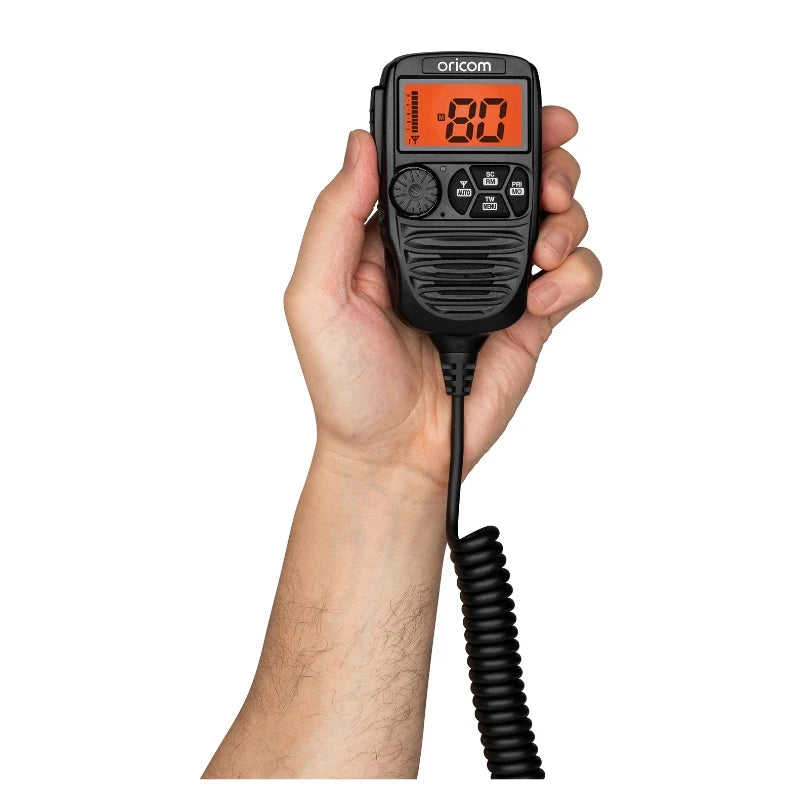

🎙️ HEAVY-DUTY CONTROLLER SPEAKER MICROPHONE

The UHF182XP uses a heavy-duty controller speaker microphone, allowing key functions to remain accessible while the main transceiver is mounted elsewhere in the vehicle.

Primary controls include:

• 🔊 Volume
• 📡 Channel
• 🔇 Squelch

The controller-microphone format can be particularly useful in modern 4WD interiors where dashboard mounting space is limited.

---

🔌 MICROPHONE EXTENSION CABLES INCLUDED

The UHF182XP includes extension cables to provide additional flexibility when installing the controller microphone remotely from the transceiver.

The supplied information identifies extension-cable options for use:

• 🔌 With a compatible pass-through arrangement
• 🔌 Without a pass-through arrangement

This allows the transceiver to be positioned in a suitable concealed location while the microphone remains accessible to the driver.

---

🌈 3 COLOUR BACKLIT DISPLAY

The UHF182XP incorporates a three-colour backlit display.

Two brightness levels are available, allowing the display illumination to be adjusted for different driving conditions.

This provides useful visibility during both:

• ☀️ Daytime driving
• 🌙 Night-time operation

---

🔍 OPEN, PRIORITY & MEMORY SCANNING

The UHF182XP provides multiple scanning functions to help monitor channel activity.

Scanning options include:

• 🔍 Open Scan
• ⭐ Priority Scan
• 💾 Memory Scan

Scanning Speed: Approximately 130ms Per Channel

This provides flexibility for general monitoring as well as concentrating on selected important channels.

---

💾 5 MEMORY CHANNELS

The UHF182XP provides five memory channels.

These can be useful for storing commonly used channels for:

• 🚙 Convoy communication
• 🚛 Highway travel
• 🏕️ Touring groups
• 🏗️ Worksite communications
• 🚜 Agricultural operations

---

👀 TRI-WATCH

Tri-watch functionality provides additional channel-monitoring flexibility when more than one channel is important.

This can be useful when travelling or working in environments where you need to remain aware of activity across several selected channels.

---

🔐 38 CTCSS & 104 DCS CODES

The UHF182XP provides:

38 CTCSS Codes

104 DCS Codes

These signalling options can help compatible radios filter unwanted received audio from other users on the same UHF CB channel.

⚠️ CTCSS and DCS do not make UHF communications private or encrypted. Other radios can still receive or transmit on the underlying channel.

---

🔊 AUDIO SCRAMBLER FUNCTION

The UHF182XP includes an audio scrambler feature.

This function is listed as part of the radio's communication features and may be used where compatible operation is required.

---

📶 DUPLEX REPEATER OPERATION

The UHF182XP supports both simplex and repeater operating modes.

Repeater TX Offset: +750kHz

Where an appropriate UHF CB repeater is available, duplex operation can substantially extend practical communication coverage compared with direct vehicle-to-vehicle operation.

⚠️ Duplex functionality does not automatically increase range. A compatible repeater must be available and within coverage.

---

⚠️ OVER & UNDER VOLTAGE ALERT

The UHF182XP includes an over-voltage and under-voltage alert function to help identify unsuitable supply conditions.

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

This makes the radio suitable for compatible nominal 12V vehicle electrical systems.

---

🛡️ BUILT-IN ELECTRICAL PROTECTION

The radio incorporates:

• ⚡ Over-voltage protection via diode and voltage-regulator system
• 🛡️ Over-current protection via 2A fuse
• 🔄 Reverse-polarity protection via shunt diode

Correct wiring and circuit protection are still required as part of the installation.

---

🔊 OPTIONAL EXTERNAL SPEAKER

A 3.5mm external speaker jack is provided for connection of a compatible optional speaker.

An external speaker can be particularly useful where:

• 🚙 The transceiver is hidden away
• 🚚 Cabin noise is high
• 🏗️ The vehicle operates in a noisy working environment

---

📡 ANTENNA REQUIREMENTS

The UHF182XP provides two antenna inputs:

ANT1 Impedance: 50 Ohms

ANT2 Impedance: 50 Ohms

⚠️ At least one compatible UHF CB antenna is required for operation. Antennas are NOT included.

The major advantage of this radio is the ability to connect two suitable antennas if you want to take advantage of its Dual Antenna System.

---

📦 PACKAGE INFORMATION

The supplied product information confirms:

• 📻 Oricom UHF182XP UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 🔌 Extension Cables for Controller Microphone Installation

⚠️ UHF CB antennas are not included. At least one suitable antenna must be supplied separately.

⚠️ Additional mounting hardware or pass-through connector contents have not been assumed because they are not specifically itemised in the supplied information.

---

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Model: UHF182XP

Product Type: 5 Watt UHF CB Radio with Integrated Dual Antenna System

Dual Antenna System: Integrated DAS

Antenna Inputs: 2

Antenna Impedance ANT1: 50 Ohms

Antenna Impedance ANT2: 50 Ohms

Antennas Included: No

Minimum Antenna Requirement: At Least 1 Compatible UHF CB Antenna

Maximum RF Output Power: 5 Watts

Frequency Range TX/RX: 476.425–477.4125MHz

Number of UHF CB Channels: 80

Voice Channels: 75

Channel Spacing: 12.5kHz

Operating Modes: Simplex & Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority / Memory

Scanning Speed: 130ms Per Channel

Memory Channels: 5

Tri-Watch: Yes

CTCSS Codes: 38

DCS Codes: 104

Audio Scrambler: Yes

Display: 3 Colour Backlit Display

Display Brightness: 2 Levels

Controller Type: Heavy-Duty Controller Speaker Microphone

Volume Control: Yes

Channel Control: Yes

Squelch Control: Yes

External Speaker Connection: 3.5mm Jack

Automatic Power-Off: Yes

Over / Under Voltage Alert: Yes

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Diode & Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±5ppm

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-30dBm

TX Audio Pre-Emphasis: +6dB/Octave from 300Hz to 3kHz

Transmit Current Consumption: Approximately 1.6A with 50-Ohm Antenna Termination

Receiver Circuit Type: Direct Conversion via Single DSP Chip

Intermediate Frequency: 137kHz

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD Unweighted

Audio Output Power: Greater Than 2 Watts at 8-Ohm Load

RX Audio De-Emphasis: +6dB/Octave from 300Hz to 3kHz – As Listed

Signal-to-Noise Ratio: Greater Than 40dB

Conducted Spurious Emission: Greater Than -57dBm – As Listed

Transceiver Dimensions (H × W × D): 29 × 110 × 115mm

Compliance: AS/NZS 4365:2011

Designed, Engineered & Made In: Korea

---

🔧 INSTALLATION CONSIDERATIONS

• Use with a compatible nominal 12V vehicle electrical system
• Ensure supply voltage remains within the stated 10–15V DC range
• Do not connect directly to a nominal 24V system
• Retain the specified 2A over-current protection
• At least one compatible 50-ohm UHF CB antenna is required
• Two antennas can be connected to take advantage of the Dual Antenna System
• Consider pairing antennas with different gain characteristics if regularly travelling through changing terrain
• Select secure antenna mounting positions with suitable clearances
• Plan both antenna cable routes carefully if using two antennas
• Choose a secure and protected location for the transceiver
• Plan the controller microphone extension-cable route before permanent installation
• Confirm pass-through hardware requirements if using a pass-through microphone installation
• Route power and antenna cables away from sharp edges, excessive heat and moving components

---

❓ FREQUENTLY ASKED QUESTIONS

What makes the UHF182XP different from a normal UHF radio?

Its biggest difference is the Integrated DAS Dual Antenna System. The radio has two antenna inputs and can automatically receive from the antenna providing the strongest incoming signal.

Can I connect two UHF antennas at the same time?

Yes. The UHF182XP has two separate 50-ohm antenna connections on the rear of the transceiver.

Do I need an external antenna switch?

No separate manual antenna switch is required for the integrated Dual Antenna System described for the UHF182XP.

Does the radio automatically choose the better antenna?

For received signals, yes. The system is described as automatically receiving the strongest available signal from the connected antennas.

Does it automatically transmit through whichever antenna is best?

The supplied technical information specifically describes automatic strongest-signal selection for reception but does not explain transmit-antenna selection behaviour. That should be confirmed from Oricom's operating instructions rather than assumed.

Why would I want two antennas?

Different antenna gains can suit different terrain. A lower-gain antenna can be useful in hilly or heavily undulating country, while a higher-gain antenna is generally attractive for flatter, open terrain and highway travel.

Could I run a low-gain antenna and a high-gain antenna together?

The radio is specifically designed to accept two compatible 50-ohm antenna inputs. Using different suitable antenna configurations is a logical way to take advantage of the system when travelling through varied terrain.

Is a higher-gain antenna always better?

No. Higher gain concentrates more of the antenna's radiation pattern toward the horizon, which can suit flat terrain. Lower-gain antennas can provide a more useful vertical radiation pattern through hills and steep elevation changes.

Does the UHF182XP come with two antennas?

No. Antennas are not included.

Do I need to buy two antennas?

No. The product information states that at least one antenna is required. A second compatible antenna can be added if you want to use the radio's Dual Antenna System more fully.

What antenna impedance does it require?

Both ANT1 and ANT2 are specified for 50-ohm antennas.

Is this Dual Receive like the DTX4200XP?

No. They are different technologies. The UHF182XP uses a Dual Antenna System to work with two antenna inputs and automatically select the strongest received antenna signal. A Dual Receive radio such as the DTX4200XP is designed to monitor two different UHF channels simultaneously.

Can the UHF182XP listen to two different channels at the same time?

Dual-channel simultaneous receive is not stated for this model. Its special feature is dual antenna reception rather than the two-channel Dual Receive function found on selected DTX models.

Is the UHF182XP a full 5 Watt radio?

Yes. Maximum RF transmit output is specified at 5 Watts.

Does it have all 80 Australian UHF CB channels?

Yes. It supports 80 UHF CB channels, including 75 voice channels.

Can I use UHF repeaters?

Yes. The UHF182XP supports duplex repeater operation using a +750kHz transmit offset.

Will duplex automatically give me more range?

No. Duplex can increase coverage only where a compatible UHF CB repeater is available and within range.

What is Tri-Watch?

Tri-watch is a channel-monitoring feature that provides additional flexibility where several selected channels are important to the user.

Does it have channel scanning?

Yes. Open, priority and memory scanning are included.

How many memory channels does it have?

Five memory channels are provided.

What are CTCSS and DCS used for?

They allow compatible radios to filter unwanted received audio unless the selected signalling code is detected.

Are CTCSS and DCS private?

No. They do not encrypt UHF CB communications. Other users can still monitor or transmit on the underlying channel.

What does the audio scrambler do?

The radio includes an audio scrambler function for compatible operation. The supplied information does not detail the scrambling method, so it should not be treated as guaranteed secure encryption.

How many display colours does it have?

The UHF182XP provides three backlight colours with two brightness levels.

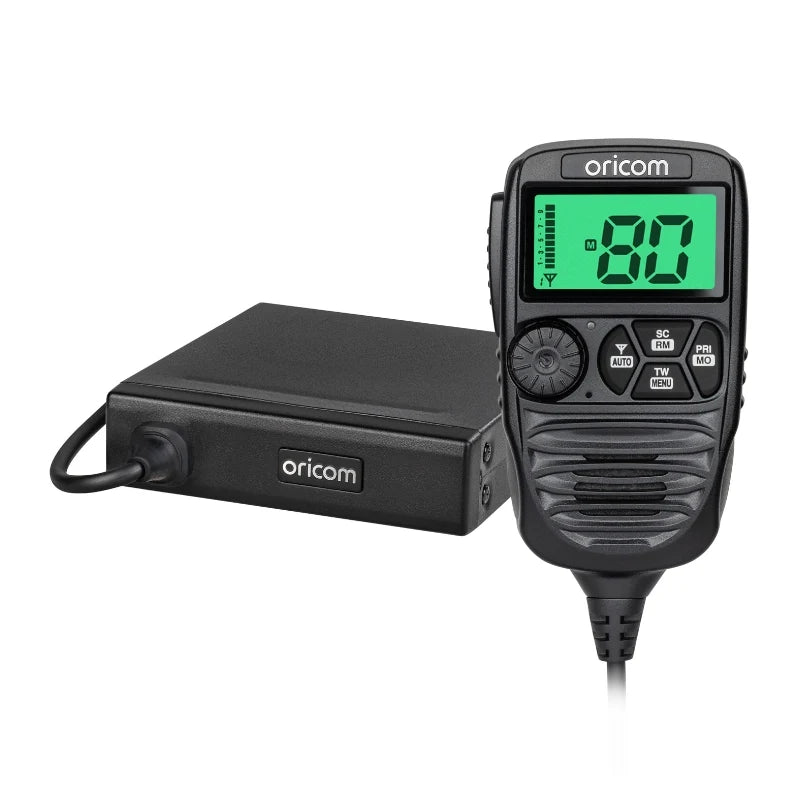

Does the microphone control the radio?

Yes. The heavy-duty controller speaker microphone provides access to volume, channel and squelch functions.

Can I hide the main transceiver?

Yes, provided it is securely mounted in a suitable protected location and the required antenna, power and microphone cabling can be routed correctly.

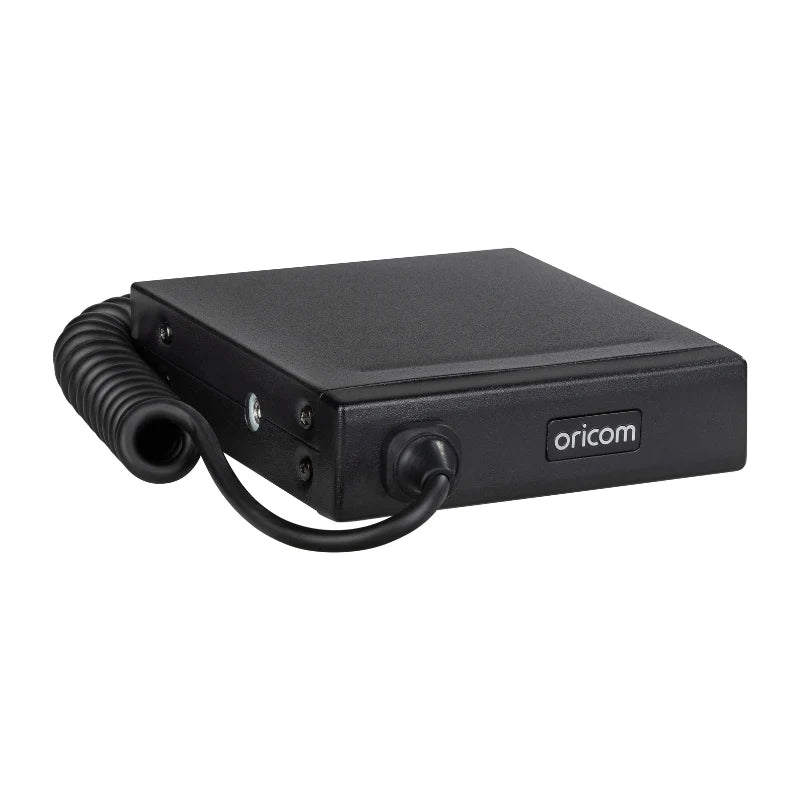

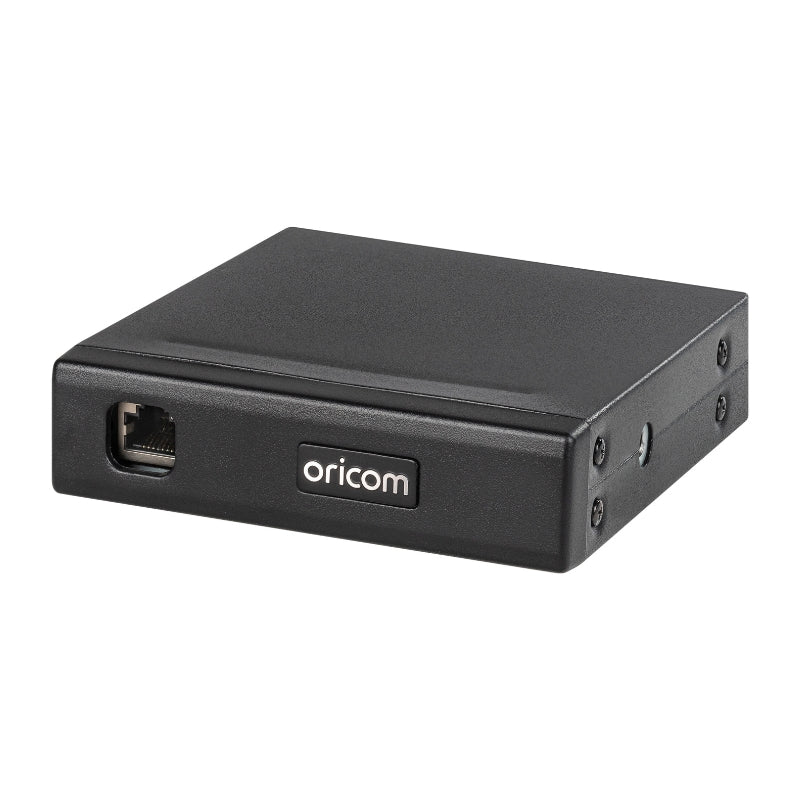

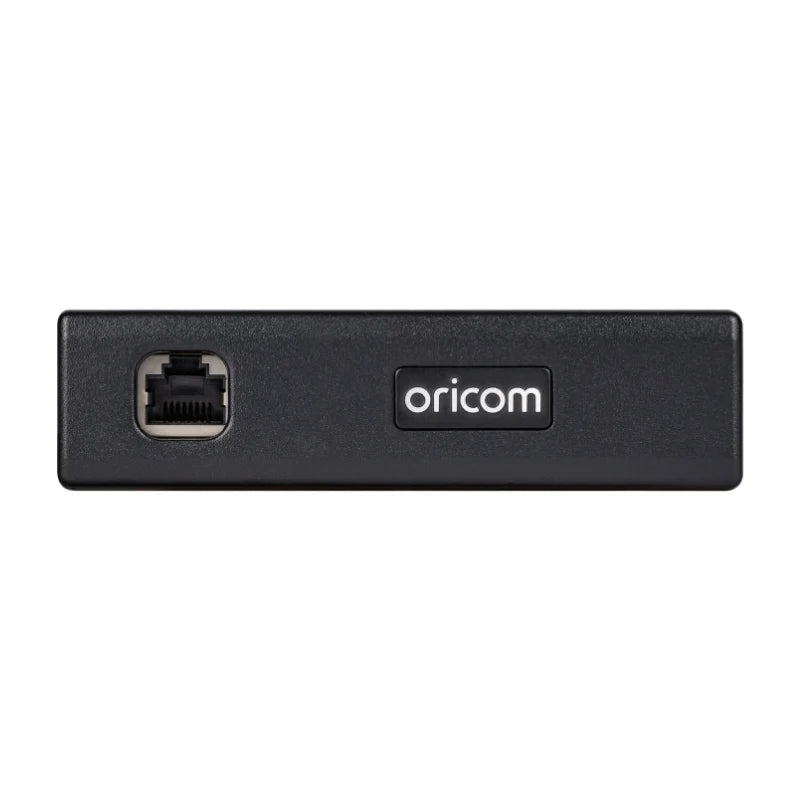

How large is the transceiver?

The transceiver measures approximately 29mm high × 110mm wide × 115mm deep.

Does it include microphone extension cables?

Yes. Extension cables are listed for installations with and without a compatible pass-through arrangement.

Is a pass-through connector included?

The information provided does not specifically identify the pass-through connector itself as included, so confirm the pack contents if your intended installation requires one.

Can I connect an external speaker?

Yes. A 3.5mm external speaker jack is provided for a compatible optional speaker.

Can I install it directly into a 24V truck?

No. The UHF182XP is specified for 10–15V DC operation. A suitable 24V-to-12V conversion solution would be required for installation into a nominal 24V vehicle.

How much current does it draw when transmitting?

The specified transmit current consumption is approximately 1.6A with a 50-ohm antenna termination.

What size fuse does it use?

The specification lists a 2A fuse for over-current protection.

Does it have low-voltage and high-voltage warnings?

Yes. An over-voltage and under-voltage alert function is included.

Where is the UHF182XP made?

It is listed as designed, engineered and made in Korea.

Who is this radio best suited to?

The UHF182XP is particularly well suited to serious 4WD and touring customers who regularly travel through varied terrain and want the flexibility of keeping two different UHF antennas connected to the one radio.

How does it compare with a conventional single-antenna UHF?

A conventional radio generally connects to one antenna. The UHF182XP provides two antenna inputs and its Integrated DAS system is designed to automatically receive from the antenna delivering the stronger incoming signal.

What should I check before buying?

Confirm that your vehicle provides a compatible 10–15V DC electrical supply, choose at least one suitable 50-ohm UHF CB antenna, decide whether you want to run a second antenna with different gain characteristics, confirm there is space for the 29 × 110 × 115mm transceiver and plan the routing required for the antenna and controller-microphone cables.

---

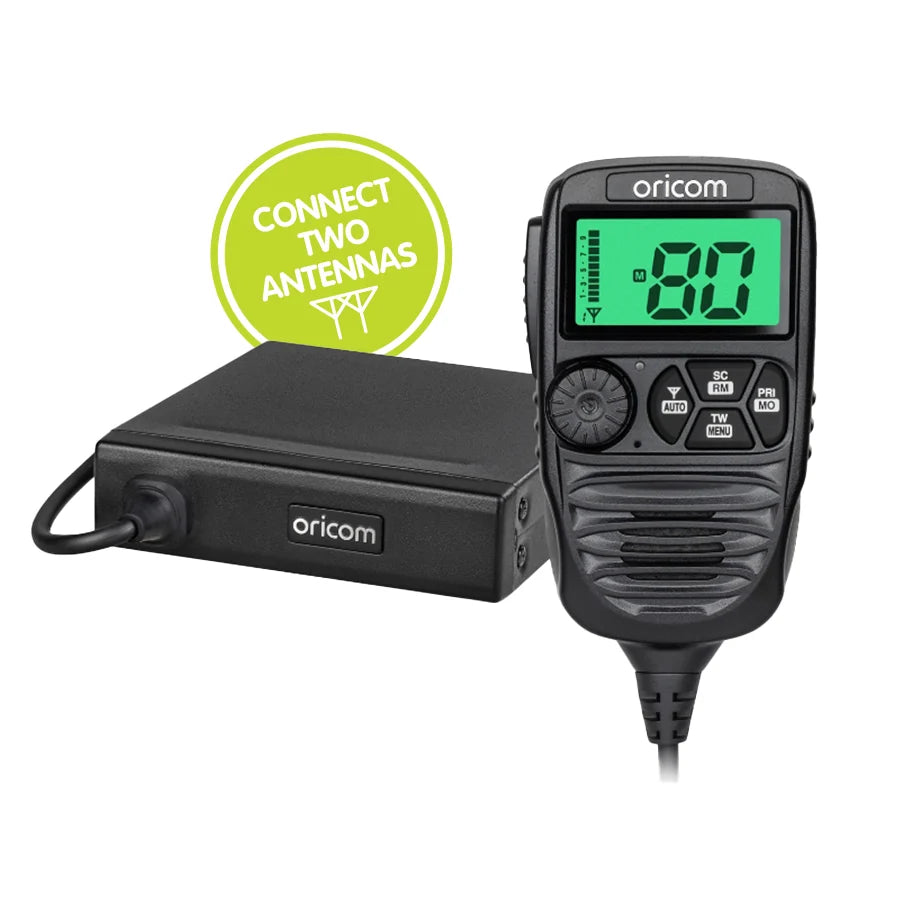

📡 TWO ANTENNA INPUTS. ONE UHF. BUILT FOR CHANGING TERRAIN.

The Oricom UHF182XP provides a genuinely different approach to UHF communications for serious touring vehicles.

Its Integrated DAS Dual Antenna System allows two compatible antennas to remain connected and automatically uses the strongest received antenna signal, giving you greater flexibility when travelling from flat open country into hills, high country and rough terrain.

Combine that with full 5 Watt output, 80 UHF CB channels, a heavy-duty controller speaker microphone, tri-watch, open, priority and memory scanning, five memory channels, duplex repeater capability and 38 CTCSS / 104 DCS codes, and the UHF182XP becomes an excellent solution for travellers who want their antenna setup to be as adaptable as their route.
