📻 ORICOM UHF098 DIN SIZE 5 WATT UHF CB RADIO

Heavy-Duty DIN Mount UHF with 80 Channels, 7-Colour Display, Triple Watch & Programmable Microphone

📡 The Oricom UHF098 is a rugged DIN-size 5 Watt UHF CB radio designed for 4WDs, work vehicles, touring setups and commercial applications where a solid dash-mounted radio is preferred.

With a standard DIN-size chassis, front-mounted speaker and large LCD display, the UHF098 integrates neatly into compatible dashboard and console locations while keeping the controls easy to access.

It delivers full 5 Watt UHF CB performance across 80 channels and includes open, priority and memory scanning, Triple Watch, Busy Channel Lock, 38 CTCSS and 104 DCS codes, duplex repeater capability, a digital signal-strength indicator and seven selectable backlight colours.

⚡ KEY FEATURES

📻 Full 5 Watt UHF CB Output
Maximum 5 Watt transmit power across the Australian 80-channel UHF CB system.

📏 Standard DIN Size
51 × 178 × 110mm chassis designed for compatible DIN-style dashboard or console installations.

🎙️ Heavy-Duty Microphone
Includes programmable buttons and channel control for convenient operation.

🔊 Front-Mounted Speaker
Keeps received audio directed toward the vehicle cabin.

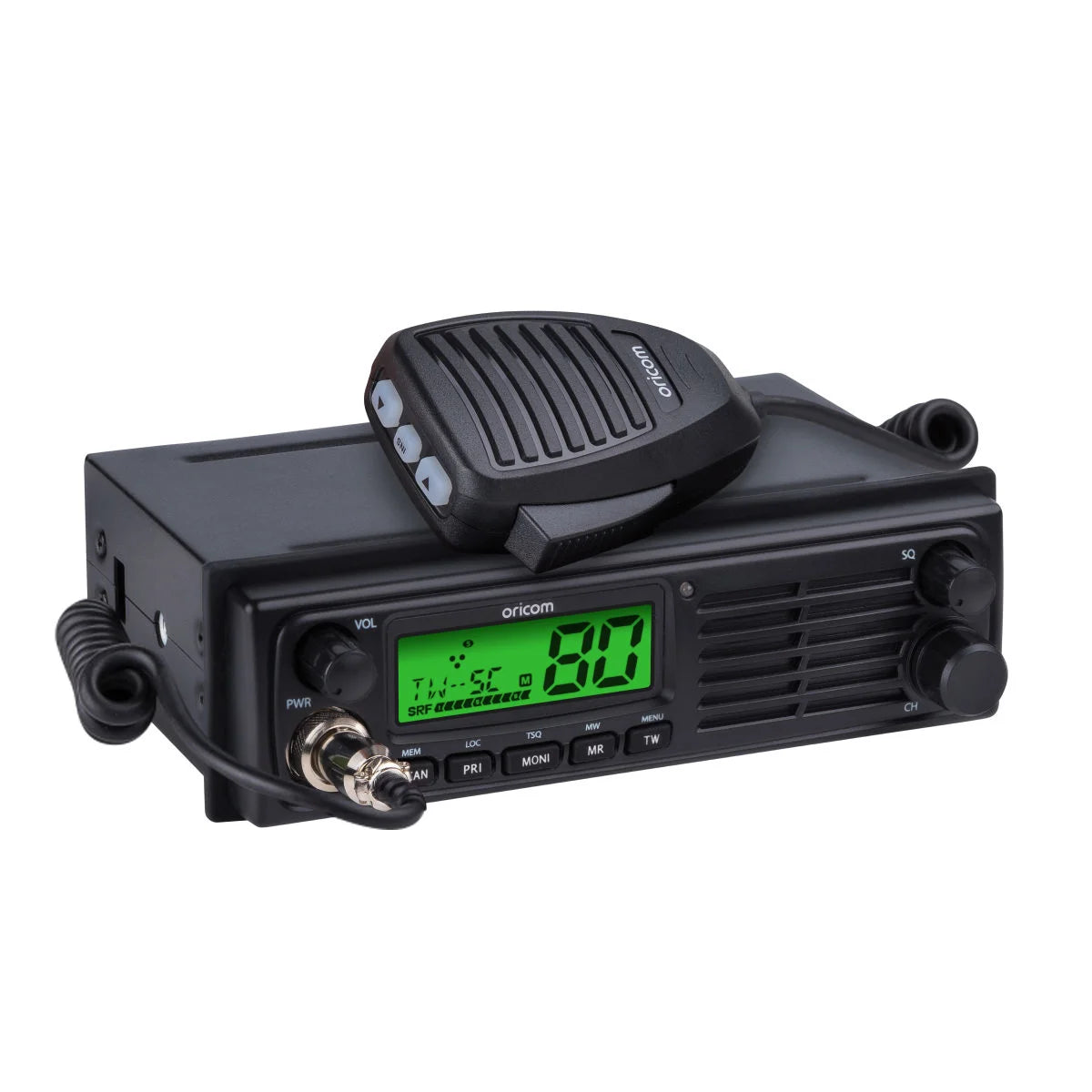

🌈 7 Colour Backlit Display
Allows the display illumination to be customised to suit your vehicle interior or preference.

🔍 Open, Priority & Memory Scan
Multiple scanning modes for monitoring active and important UHF channels.

👀 Triple Watch
Provides additional monitoring flexibility across selected channels.

🔒 Busy Channel Lock
Helps prevent transmitting over an already active channel.

📊 Digital Signal Strength Indicator
Provides a visual indication of received signal strength.

🔐 38 CTCSS & 104 DCS Codes
Provides flexible selective-squelch options for compatible group communications.

🔊 Audio Scrambler
Includes audio scrambler functionality for compatible operation.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeaters using the standard +750kHz transmit offset.

🎛️ Rotary Volume & Squelch Controls
Straightforward physical controls for quick adjustment while driving.

🎙️ Automatic Level Control
ALC helps maintain consistent transmitted audio levels.

🔊 External Speaker Connection
3.5mm jack allows connection of a compatible optional external speaker.

📏 STANDARD DIN-SIZE INSTALLATION

The UHF098 uses a standard DIN-size format measuring:

51mm High × 178mm Wide × 110mm Deep

This makes it particularly suitable for vehicles with an available DIN mounting location or compatible aftermarket console.

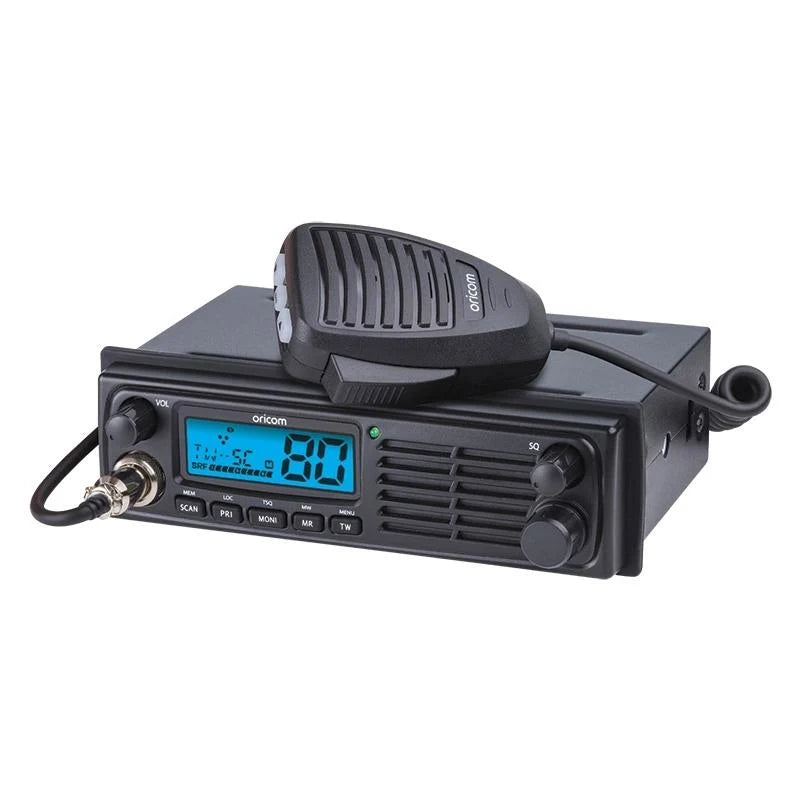

The large display, front speaker and rotary controls provide a traditional fixed-radio layout with everything easily accessible from the driver's position.

🔍 ADVANCED CHANNEL MONITORING

The UHF098 provides Open, Priority and Memory scanning together with a dedicated Priority Channel and Triple Watch functionality.

These features provide flexible monitoring for applications such as:

• 🚙 4WD convoy communications
• 🚛 Highway travel
• 🏕️ Touring and camping
• 🏗️ Worksite communications
• 🚜 Agricultural operations

🔐 CTCSS, DCS & AUDIO SCRAMBLER

The UHF098 provides 38 CTCSS and 104 DCS codes for compatible selective-squelch operation.

An audio scrambler function is also included for compatible communications.

⚠️ CTCSS and DCS do not make a channel private or encrypted. The supplied information also does not define the security level of the audio scrambler, so it should not be treated as secure encryption.

📶 DUPLEX REPEATER OPERATION

The UHF098 supports simplex communication and duplex operation through compatible UHF CB repeaters.

⚠️ Duplex does not automatically increase direct radio-to-radio range. A suitable repeater must be available and within coverage.

⚡ 12V VEHICLE OPERATION

The UHF098 has a specified operating range of 10–15V DC and is intended for compatible nominal 12V vehicle electrical systems.

Electrical protection includes over-voltage regulation, a 2A fuse and series-diode reverse-polarity protection.

📡 ANTENNA REQUIRED

The UHF098 requires a compatible 50-ohm UHF CB antenna to complete the installation.

Antenna gain and mounting position should be selected according to your vehicle and typical terrain rather than simply choosing the highest gain available.

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Model: UHF098

Product Type: DIN Size UHF CB Radio

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority / Memory

Scanning Speed: 250ms Per Channel

Priority Channel: Yes

Triple Watch: Yes

Busy Channel Lock: Yes

CTCSS Codes: 38

DCS Codes: 104

Audio Scrambler: Yes

Automatic Level Control: Yes

Digital Signal Strength Indicator: Yes

Display: Large LCD with 7 Colour Backlighting

Microphone: Heavy-Duty with Programmable Buttons & Channel Control

Speaker: Front Mounted

External Speaker Connection: 3.5mm Jack

Antenna Impedance: 50 Ohms

Antenna Included: No

Operating Voltage Range: 10–15V DC

Transmit Current Consumption: Approximately 1.5A with 50-Ohm Antenna Termination

Over-Voltage Protection: Diode & Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Series Diode

Frequency Stability: ±5ppm

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-30dBc

Receiver Circuit: Dual Conversion Superheterodyne

Intermediate Frequencies: 1st IF 30.85MHz / 2nd IF 450kHz

Maximum Usable Sensitivity: <-123dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

Spurious Immunity: >70dB

Dimensions (H × W × D): 51 × 178 × 110mm

Compliance: AS/NZS 4365:2011

Designed & Engineered In: Korea

🔧 INSTALLATION CONSIDERATIONS

• Confirm your vehicle has a suitable DIN-size mounting location
• Use with a compatible nominal 12V electrical system within the stated 10–15V range
• Retain the specified 2A fuse protection
• Do not connect directly to a nominal 24V supply
• Use a compatible 50-ohm UHF CB antenna
• Ensure the 51 × 178 × 110mm chassis has adequate clearance behind the mounting position
• Route antenna and power wiring away from excessive heat, sharp edges and moving components

❓ FREQUENTLY ASKED QUESTIONS

Is the UHF098 a full 5 Watt UHF CB radio?

Yes. Maximum RF transmit output is specified at 5 Watts.

Will it fit a standard DIN opening?

The UHF098 is described as a standard DIN-size radio and measures approximately 51 × 178 × 110mm. Confirm the available mounting depth and surrounding clearances in your vehicle before installation.

Does it have all 80 Australian UHF CB channels?

Yes. It supports 80 UHF CB channels, including 75 voice channels.

What does Triple Watch do?

Triple Watch provides additional monitoring flexibility across selected channels where several communications channels are important.

What is Busy Channel Lock?

Busy Channel Lock helps prevent the radio transmitting over a channel that is already in use.

Can I use UHF CB repeaters?

Yes. Duplex operation is supported using the standard +750kHz repeater transmit offset.

Are CTCSS and DCS private?

No. They provide selective-squelch functionality but do not encrypt the underlying UHF CB transmission.

Can I connect an external speaker?

Yes. A 3.5mm external speaker jack is provided for a compatible optional speaker.

Does the UHF098 come with an antenna?

No. A compatible 50-ohm UHF CB antenna is required and is specifically stated as not supplied.

Can I use it directly in a 24V truck?

No. The specified operating range is 10–15V DC, so a suitable 24V-to-12V conversion solution would be required.

What should I check before buying?

Confirm you have a suitable DIN-size mounting position with enough depth for the 51 × 178 × 110mm transceiver, verify your vehicle provides a compatible 10–15V supply and select an appropriate 50-ohm UHF CB antenna.

📻 FULL-SIZE CONTROLS. FULL 5 WATT PERFORMANCE. BUILT TO WORK.

The Oricom UHF098 combines a rugged DIN-mount design with 5 Watt UHF CB performance, advanced scanning, Triple Watch, Busy Channel Lock and a clear seven-colour display.

For customers wanting a traditional dash-mounted UHF with straightforward controls, strong functionality and a front-facing speaker, the UHF098 is a practical choice for 4WD, touring and work-vehicle communications.
