📻 ORICOM UHF040 COMPACT 5 WATT UHF CB RADIO WITH INSTANT REPLAY

Rugged Compact UHF with 10-Minute Instant Replay, 3 Instant Recall Channels & Full 5 Watt Output

📡 The Oricom UHF040 is a tough, compact 5 Watt UHF CB radio designed for 4WDs, work vehicles, tradies and industrial applications where space is limited but dependable communication is essential.

Its standout feature is Instant Replay with up to 10 minutes of recording, allowing you to replay incoming transmissions if you miss an important direction, road warning or work instruction.

The UHF040 also features three Instant Recall channels, duplex repeater capability, open, instant repeater and priority scanning, 38 CTCSS codes, rotary squelch and volume controls and a 3.5mm external speaker connection.

Measuring just 40mm high × 139mm wide × 123mm deep, it delivers full 5 Watt UHF CB performance in a rugged package suited to demanding vehicle environments.

---

⚡ KEY FEATURES

⏪ Up to 10 Minutes Instant Replay
Replay recently received transmissions so important information isn't lost if you miss it the first time.

📻 Full 5 Watt UHF CB Output
Delivers a nominal 5 Watts RF transmit power across the Australian 80-channel UHF CB system.

📏 Compact Design
Measures only 40 × 139 × 123mm for flexible installation where dashboard or console space is limited.

🛡️ Rugged Construction
Designed for demanding off-road, tradie and industrial vehicle applications.

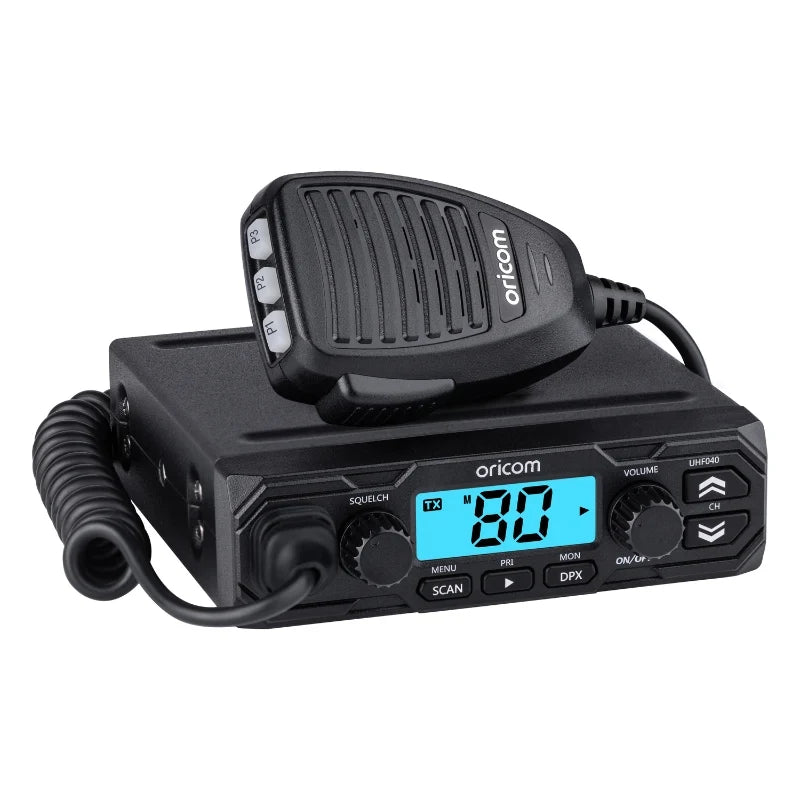

🎙️ Heavy-Duty Microphone Plug
Provides a solid microphone connection suited to high-vibration vehicle environments.

⭐ 3 Instant Recall Channels
Provides quick access to three frequently used channels.

🔍 Open, Instant Repeater & Priority Scan
Multiple scanning functions make it easier to monitor active or important UHF channels.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation using the standard +750kHz transmit offset.

🔐 38 CTCSS Codes
Allows compatible radios to filter unwanted received audio when sharing a busy UHF channel.

🎛️ Rotary Volume & Squelch Controls
Simple physical controls make it easy to adjust audio level and background-noise threshold.

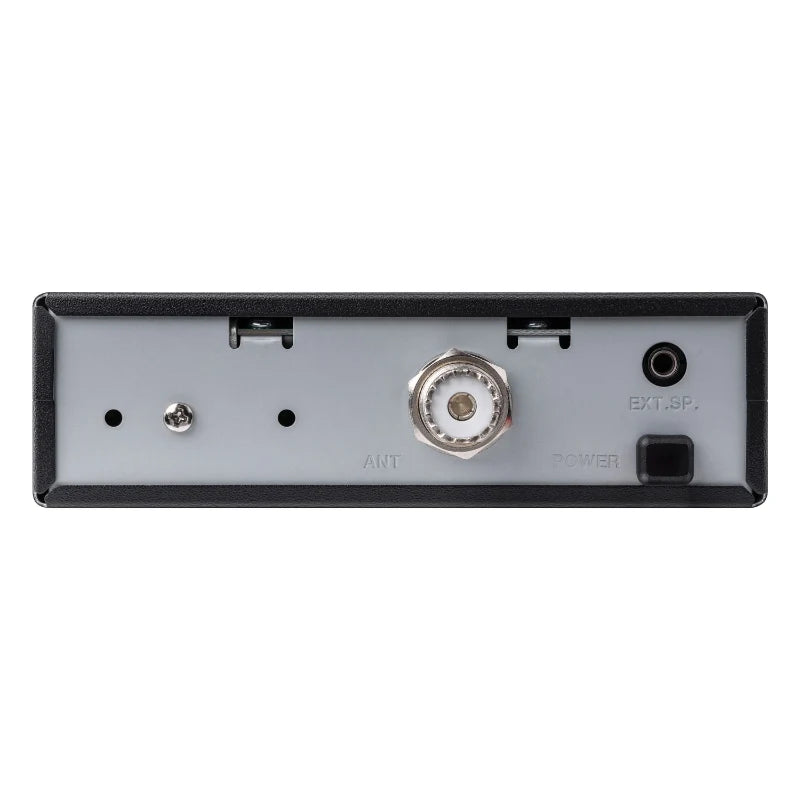

🔊 External Speaker Connection
3.5mm jack allows connection of a compatible optional external speaker.

---

⏪ INSTANT REPLAY – GO BACK & HEAR IT AGAIN

The UHF040 can store up to 10 minutes of incoming audio, allowing received transmissions to be replayed when required.

This can be particularly useful for:

• 🚙 Convoy directions
• 🧭 Track instructions
• 🚛 Highway and road information
• 🏗️ Worksite instructions
• 🔊 Messages missed because of cabin or machinery noise

Instead of immediately asking another vehicle or operator to repeat themselves, you can replay the received transmission.

---

⭐ 3 INSTANT RECALL CHANNELS

Three Instant Recall channels provide quick access to your most frequently used UHF channels.

This can be useful for regularly switching between channels used for:

• 🚙 Convoy communications
• 🚛 Highway travel
• 🏗️ Worksite operations

---

🔍 SCANNING, DUPLEX & CTCSS

The UHF040 provides Open Scan, Instant Repeater Scan and Priority Scan, allowing the radio to monitor channel activity according to how you use it.

Duplex functionality supports compatible UHF CB repeaters, while 38 CTCSS codes can help compatible users filter unwanted received audio.

⚠️ CTCSS does not make a UHF CB channel private or encrypted. Other users can still monitor or transmit on the underlying channel.

⚠️ Duplex does not automatically increase direct radio-to-radio range. A compatible repeater must be available and within coverage.

---

⚡ 12V VEHICLE OPERATION

The UHF040 operates from a nominal 13.8V DC supply with a specified operating range of 10–15V DC, making it suitable for compatible nominal 12V vehicle electrical systems.

Built-in electrical protection includes a voltage regulator, 2A fuse and reverse-polarity protection.

⚠️ Do not connect the UHF040 directly to a nominal 24V electrical system. A suitable voltage-conversion solution would be required.

---

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Model: UHF040

Product Type: Compact UHF CB Radio

RF Output Power: Nominal 5 Watts

Instant Replay: Up to 10 Minutes Recording

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Instant Repeater / Priority

Scanning Speed: 130ms Per Channel

Instant Recall Channels: 3

CTCSS Codes: 38

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Transmit Current Consumption: Approximately 1.5A with 50-Ohm Antenna Termination

Over-Voltage Protection: Voltage Regulator

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-70dBc

Receiver Circuit: Direct Conversion via Single DSP Chip

Intermediate Frequency: 137kHz

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

External Speaker Connection: 3.5mm Jack

Dimensions (H × W × D): 40 × 139 × 123mm

Compliance: AS/NZS 4365:2011

---

🔧 INSTALLATION CONSIDERATIONS

• Designed for compatible nominal 12V vehicle electrical systems
• Keep supply voltage within the specified 10–15V DC range
• Retain the specified 2A fuse protection
• Do not connect directly to a nominal 24V supply
• Use a compatible 50-ohm UHF CB antenna
• Confirm the 40 × 139 × 123mm transceiver fits your preferred mounting position
• Route power and antenna cabling away from sharp edges, excessive heat and moving components

---

❓ FREQUENTLY ASKED QUESTIONS

What does Instant Replay do?

It allows recently received transmissions to be played back if you miss or don't clearly hear them the first time.

How much audio can the UHF040 record?

Up to approximately 10 minutes of received audio can be stored for Instant Replay.

Is it a full 5 Watt UHF?

Yes. Nominal RF output power is specified at 5 Watts.

Does it have all 80 Australian UHF CB channels?

Yes. The UHF040 supports 80 UHF CB channels, including 75 voice channels.

What are the three Instant Recall channels for?

They provide quick access to three frequently used channels without manually navigating through the full channel range.

Can I use UHF CB repeaters?

Yes. Duplex operation is supported using the standard +750kHz repeater transmit offset.

Do the 38 CTCSS codes make conversations private?

No. CTCSS can filter unwanted received audio but does not encrypt the transmission or prevent other UHF users from hearing the channel.

Can I connect an external speaker?

Yes. The radio provides a 3.5mm jack for a compatible optional external speaker.

Is the UHF040 suitable for a 24V truck?

Not directly. Its specified operating range is 10–15V DC, so a suitable 24V-to-12V conversion solution would be required.

How large is the radio?

The transceiver measures approximately 40mm high × 139mm wide × 123mm deep.

Does an antenna come with the radio?

An antenna is not identified as included in the supplied information. A compatible 50-ohm UHF CB antenna system is required for operation.

What should I check before buying?

Confirm your vehicle provides a compatible 10–15V DC supply, ensure the 40 × 139 × 123mm radio fits your preferred mounting position and select a suitable 50-ohm UHF CB antenna for your vehicle and typical terrain.

---

📻 TOUGH, COMPACT & READY TO REPLAY WHAT YOU MISSED

The Oricom UHF040 combines full 5 Watt UHF CB performance with the practical advantage of up to 10 minutes of Instant Replay.

With three Instant Recall channels, multiple scanning modes, duplex repeater capability and rugged compact construction, it's a practical communication solution for 4WDs, work vehicles and demanding everyday applications.
