DTX4300VP050 5W UHF CB Pack | ANU050 3dBi Antenna

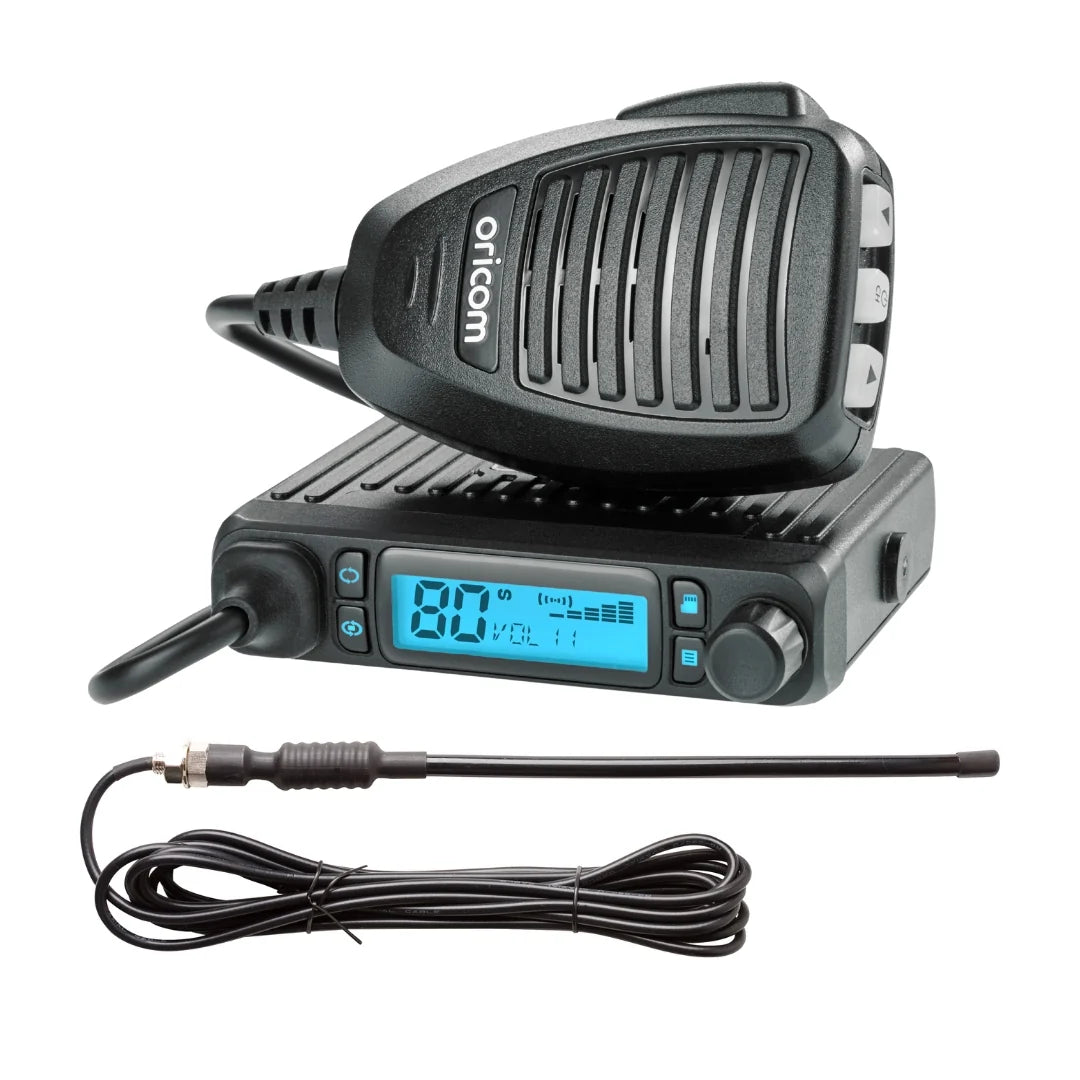

📻 ORICOM DTX4300VP050 VALUE PACK – DTX4300 5W UHF CB RADIO + ANU050 3dBi ANTENNA

Ultra-Compact 5 Watt UHF Package with 96-Colour Display & Flexible 3dBi Ground-Independent Antenna

📡 The Oricom DTX4300VP050 combines the ultra-compact DTX4300 5 Watt UHF CB Radio with the ANU050 3dBi coaxial dipole antenna for a compact communication package suited to 4WDs, touring vehicles, tradie setups and everyday road use.

At just 22.5 × 100 × 76mm, the DTX4300 packs 80 UHF CB channels, full 5 Watt output, smart fast scanning, a 96-colour display, duplex operation and IP54 dust and splash resistance into a seriously compact transceiver.

The included ANU050 is a 350mm highly flexible, ground-independent 3dBi antenna with 4.6m of coaxial cable, making it a practical option where compact size, mounting flexibility and performance through hilly or mixed terrain matter.

⚡ KEY FEATURES

📻 5 Watt UHF CB Output
Full-power fixed-mount UHF with 80 channels.

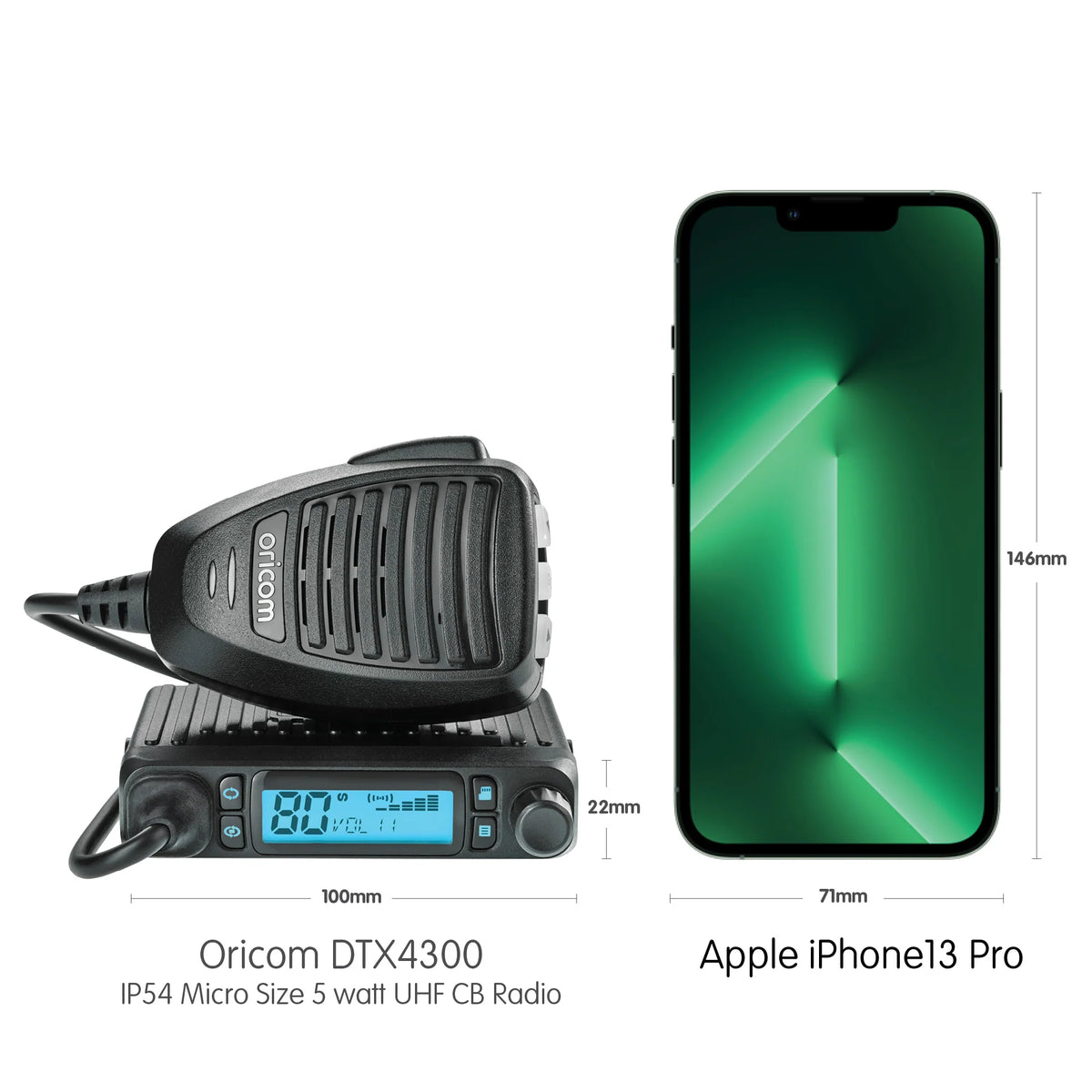

📏 Ultra-Compact Transceiver
Only 22.5 × 100 × 76mm for installations where space is limited.

📡 ANU050 3dBi Antenna Included
350mm flexible ground-independent whip with 4.6m coaxial cable.

🌈 96-Colour LCD Display
Four preset brightness levels plus automatic adjustment and Flip LCD functionality.

🔍 Smart Fast Scanning
Priority, group memory and group tone scanning with three memory groups.

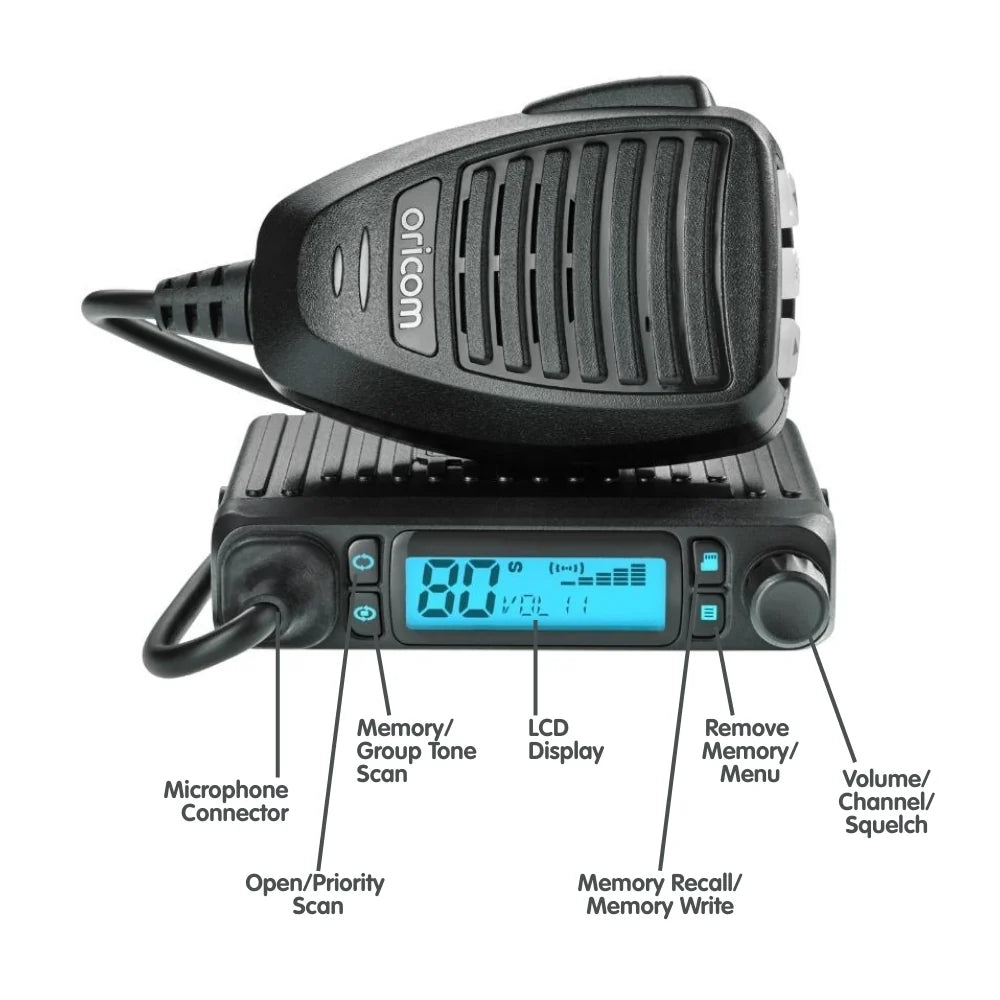

🎛️ Easy Rotary Controls
Quick volume, channel and squelch adjustment.

💦 IP54 Rated
Dust and splash resistant for demanding vehicle environments.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

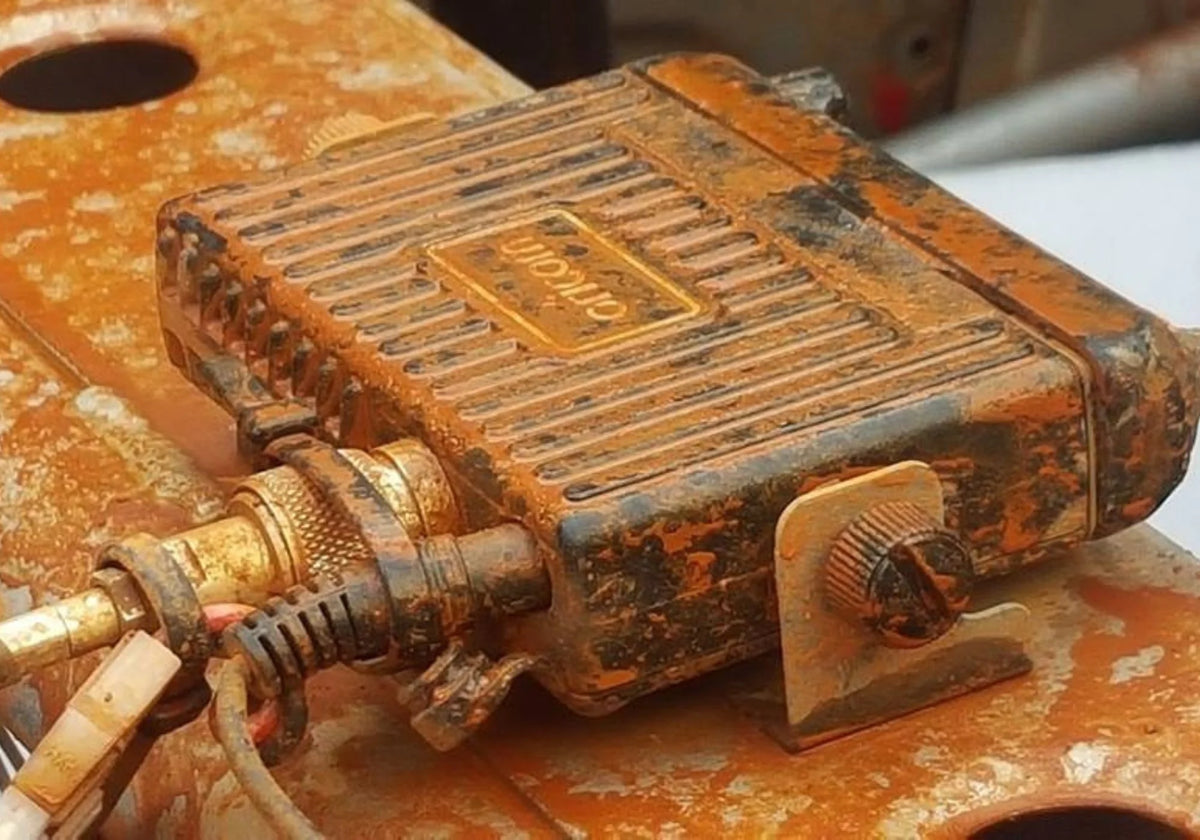

🛡️ Die-Cast Metal Chassis
Compact, rugged construction designed for Australian conditions.

🛡️ 5 Year Radio Warranty
Five-year warranty on the DTX4300 radio.

📡 ANU050 3dBi ANTENNA

The included ANU050 is a ground-independent coaxial dipole antenna with a highly flexible whip and compact 350mm length.

• 📡 Gain: 3dBi
• 📏 Length: 350mm
• 🔌 Coaxial Cable: 4.6m
• 🌀 Highly Flexible Whip
• 🚙 Ground Independent

Its 3dBi gain provides a broader radiation pattern than higher-gain antennas, making it particularly useful for hilly, undulating and mixed terrain.

⚠️ Antenna gain does not guarantee communication distance. Actual range depends on terrain, mounting position, installation quality, obstacles and repeater availability.

📦 PACKAGE CONTENTS

• 📻 Oricom DTX4300 5 Watt UHF CB Radio

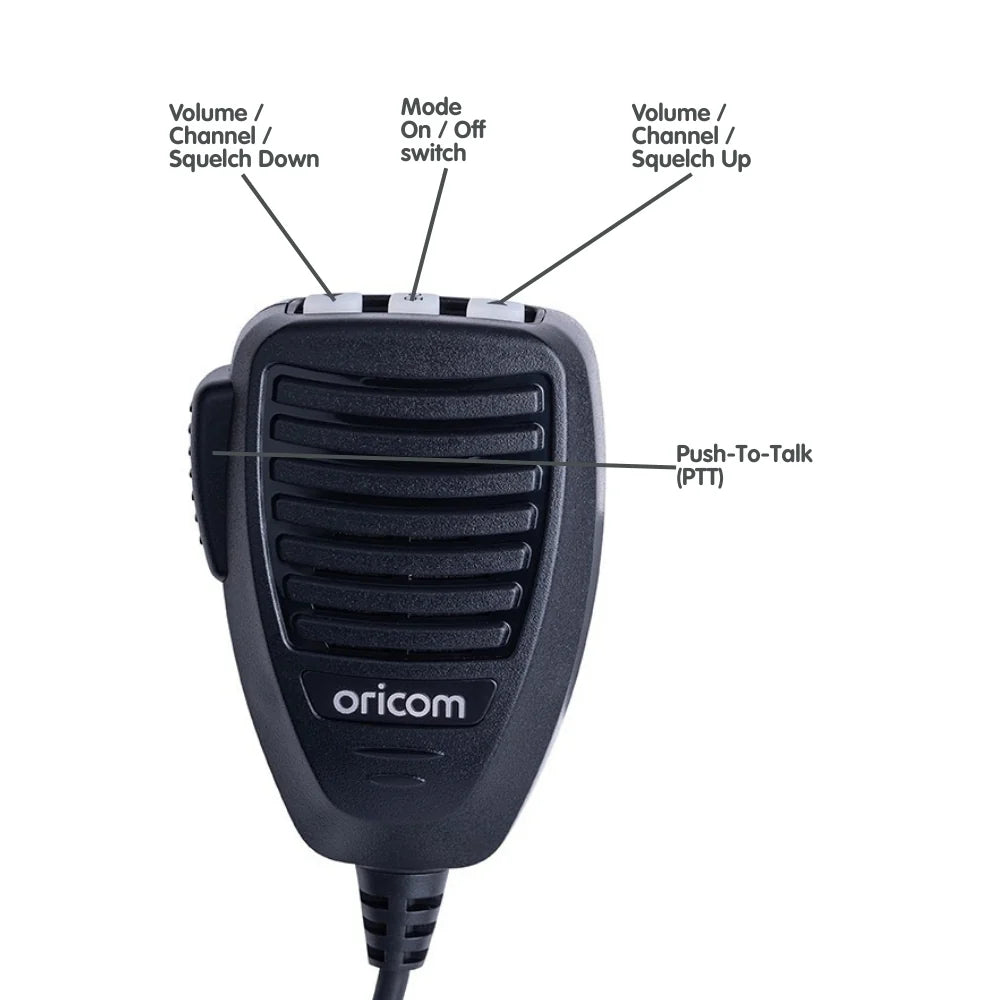

• 🎙️ Heavy-Duty Microphone
• 📡 Oricom ANU050 3dBi UHF CB Antenna
• 🔌 4.6m Coaxial Cable

📋 TECHNICAL SPECIFICATIONS

Radio Model: DTX4300

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning Speed: 50ms Per Channel

Scanning: Priority / Group Memory / Group Tone

Memory Groups: 3

Display: 96-Colour LCD with Flip Function

Backlight Brightness: 4 Preset Levels + Auto

CTCSS: 38 Codes

DCS: Supported – Exact Number Not Stated

External Speaker Connection: 3.5mm Jack

Auto Power-Off: Off / 1 Hour / 2 Hours / 4 Hours

Chassis: Die-Cast Metal

Ingress Protection: IP54

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–16V DC

Over-Current Protection: 2A Fuse

Transmit Current: Approximately 1.7A with 50-Ohm Antenna Termination

Receiver Type: Dual Conversion Superheterodyne

Receiver Sensitivity: -123dBm for 12dB SINAD Unweighted – As Listed

Audio Output: >2 Watts at 8 Ohms

Dimensions (H × W × D): 22.5 × 100 × 76mm

Weight: 210g – Transceiver Only

Compliance: AS/NZS 4365:2011

Designed & Engineered In: Korea

Radio Warranty: 5 Years

🔧 BEFORE YOU BUY

• Designed for a compatible nominal 12V system within the stated 10–16V DC range
• Do not connect directly to a nominal 24V electrical system
• Confirm the 22.5 × 100 × 76mm transceiver fits your mounting location
• Allow sufficient clearance for the 350mm antenna
• Plan the 4.6m coaxial cable route before installation

❓ QUICK FAQ

Does the ANU050 require a ground plane?

No. It is described as a ground-independent coaxial dipole antenna, providing greater flexibility in suitable mounting locations.

Is the DTX4300 waterproof?

No. It is IP54 dust and splash resistant, but it is not designed for submersion.

Can it run directly from 24V?

No. The specified operating range is 10–16V DC, so a suitable voltage-conversion solution is required for a nominal 24V vehicle.

What should I check before ordering?

Check your available radio mounting space, vehicle supply voltage, antenna clearance and whether a compact 3dBi antenna suits your usual terrain.

📻 BIG UHF PERFORMANCE IN A SERIOUSLY COMPACT PACKAGE

The Oricom DTX4300VP050 combines a tiny 5 Watt fixed-mount UHF with a compact, flexible 3dBi ground-independent antenna – a practical package for 4WDs, touring vehicles and work setups where space is limited.
