DTX4300VP IP54 5W UHF CB Value Pack | 6.5dBi Antenna

📻 ORICOM DTX4300VP IP54 UHF CB RADIO VALUE PACK – DTX4300 + ANU220 6.5dBi ANTENNA

Premium Ultra-Compact 5 Watt UHF CB Package with 96 Colour Display & Heavy-Duty 6.5dBi Touring Antenna

📡 The Oricom DTX4300VP Value Pack combines the premium DTX4300 Micro Size 5 Watt UHF CB Radio with the ANU220 6.5dBi UHF CB Antenna, giving you a complete radio and antenna package ready for installation into your 4WD, ute, touring vehicle or work vehicle.

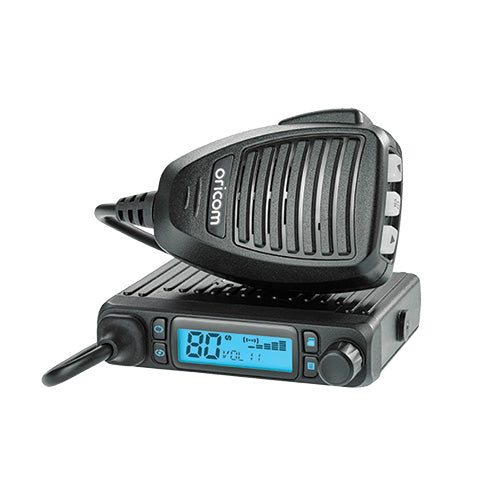

The DTX4300 packs full 5 Watt UHF CB performance into an exceptionally compact transceiver measuring just 22.5 × 100 × 76mm. Its small footprint makes it ideal for modern vehicles where dashboard and console space is increasingly difficult to find.

Despite its size, the DTX4300 includes 80 Australian UHF CB channels, a 96-colour LCD backlit display, flip-screen functionality, three memory groups, smart fast scanning, duplex repeater capability, rotary controls and a rugged die-cast metal chassis with IP54 dust and splash resistance.

Matched with the included ANU220 6.5dBi antenna featuring an elevated feed, fibreglass whip and heavy-duty barrel spring, this value pack is an excellent choice for customers wanting a compact, premium UHF installation with a higher-gain antenna suited to touring and open-road communications.

---

⚡ KEY FEATURES

📻 Complete UHF Radio & Antenna Value Pack
Combines the DTX4300 5 Watt UHF CB radio with the ANU220 6.5dBi antenna in one convenient package.

📡 Full 5 Watt UHF CB Power
Delivers up to 5 Watts maximum RF transmit power for full-power Australian UHF CB communications.

📏 Ultra-Compact Micro Transceiver
The compact DTX4300 is ideal for modern vehicle interiors where mounting space is limited.

🌈 96 Colour LCD Backlit Display
Highly customisable display illumination lets you better match the radio to your vehicle interior.

🔄 Flip LCD Function
Allows the display orientation to be reversed for greater flexibility when mounting the radio.

📡 80 UHF CB Channels
Supports the Australian 80-channel UHF CB system, including 75 voice channels.

⚡ Smart Fast Scanning
Includes priority, group memory and group tone scanning with a specified scan speed of approximately 50ms per channel.

📁 3 Memory Groups
Organise commonly used channels into separate groups for touring, convoy or work applications.

🎛️ Rotary Controls
Provides quick adjustment of volume/channel and squelch through practical rotary controls.

🎙️ Heavy-Duty Microphone
Designed for regular vehicle, touring and off-road use.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeaters for potentially extended communication coverage.

💦 IP54 Dust & Splash Resistance
Provides additional protection against dust ingress and splashing water in demanding vehicle environments.

🛡️ Die-Cast Metal Chassis
Robust transceiver construction designed for touring and off-road installations.

⚠️ Over-Voltage Alert Function
Helps alert the operator if supply voltage rises outside the radio's intended operating conditions.

🔆 Adjustable Backlight Brightness
Four preset brightness levels plus automatic control help maintain display visibility during day and night driving.

⏱️ Auto Power-Off
Selectable Off, 1-hour, 2-hour and 4-hour automatic shutdown settings.

🔊 External Speaker Connection
3.5mm output allows connection of an optional compatible external speaker.

📡 ANU220 6.5dBi Antenna Included
Higher-gain UHF CB antenna with elevated feed, fibreglass whip and heavy-duty barrel spring.

🛡️ 5 Year Radio Warranty
The DTX4300 radio is backed by a five-year warranty.

---

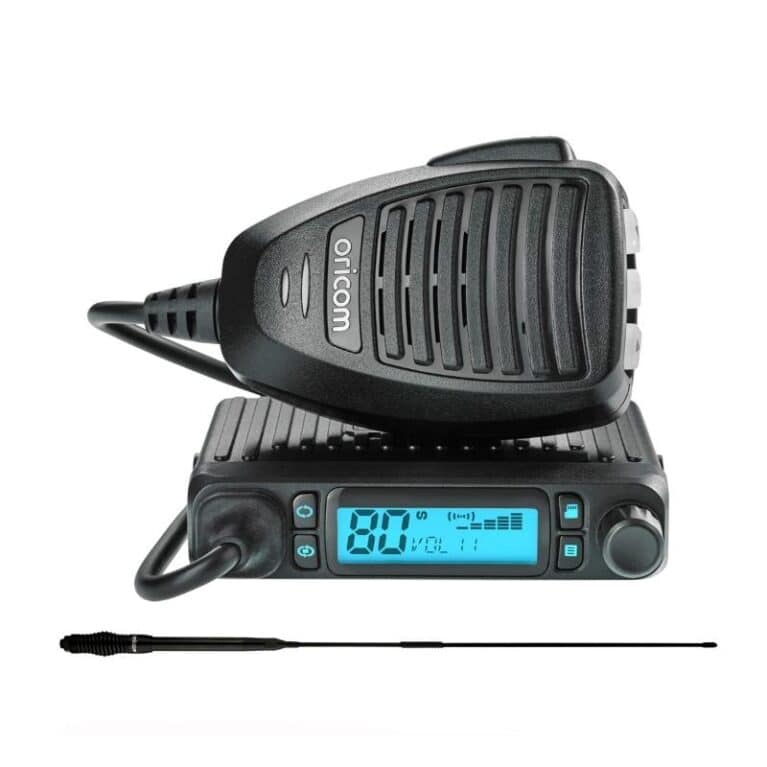

📦 COMPLETE RADIO & ANTENNA PACKAGE

The DTX4300VP removes the need to separately select a basic antenna by combining the DTX4300 with Oricom's ANU220 6.5dBi antenna.

This makes it a practical package for:

• 🚙 4WD touring
• 🛻 Utes
• 🚐 Caravan tow vehicles
• 🏕️ Camping and touring vehicles
• 🚚 Commercial vehicles
• 🚜 Agricultural vehicles
• 🏗️ Plant and machinery

---

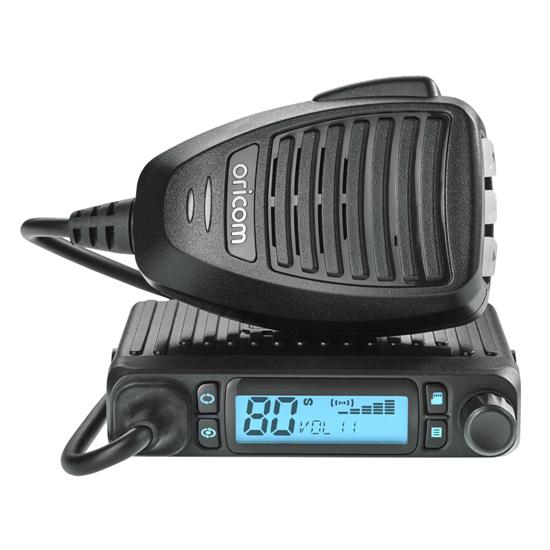

📏 MICRO-SIZE RADIO FOR MODERN VEHICLES

One of the biggest advantages of the DTX4300 is its exceptionally compact transceiver.

Listed Transceiver Dimensions:

22.5mm × 100mm × 76mm

Transceiver Weight: Approximately 210g

This makes it an excellent option where dashboard or console space is limited and a traditional full-size radio would be difficult to mount cleanly.

---

📻 FULL 5 WATT TRANSMIT POWER

Maximum RF Output Power: 5 Watts

Despite its small physical size, the DTX4300 provides full-power UHF CB transmission capability.

Paired with the included ANU220 antenna, the package provides a capable setup for vehicle-to-vehicle communication, convoy travel, touring and compatible repeater operation.

⚠️ Actual communication range depends on terrain, antenna mounting location, surrounding obstacles, installation quality and repeater availability. A 5 Watt output rating alone does not determine a fixed communication distance.

---

📡 ANU220 6.5dBi UHF CB ANTENNA

The included ANU220 is a 6.5dBi UHF CB antenna designed as an all-round touring solution.

Key antenna features include:

• 📡 6.5dBi antenna gain
• 🔩 Heavy-duty barrel spring
• 📶 Elevated feed design
• 🛡️ Fibreglass whip

The higher-gain 6.5dBi configuration makes the antenna particularly attractive for highway driving, open country and touring applications where longer-distance communication toward the horizon is a priority.

---

🏜️ WHAT DOES 6.5dBi MEAN FOR TOURING?

A 6.5dBi antenna concentrates more of its radiation pattern toward the horizon than a lower-gain antenna.

This can make it particularly effective in:

• 🛣️ Highway driving
• 🏜️ Open-country touring
• 🚙 Convoy travel across relatively flat terrain
• 🚚 Long-distance road communications

⚠️ Higher gain does not automatically mean better performance in every environment. Lower-gain antennas can be preferable in steep, mountainous or highly undulating terrain because they generally provide a broader vertical radiation pattern.

---

🔩 HEAVY-DUTY BARREL SPRING

The ANU220 includes a heavy-duty barrel spring designed to absorb movement and vibration encountered during touring and off-road driving.

This is particularly useful when the antenna is mounted to a bull bar or other vehicle location exposed to vibration and movement.

---

📶 ELEVATED FEED ANTENNA DESIGN

The ANU220 uses an elevated-feed design, providing greater flexibility for common 4WD and touring vehicle antenna mounting positions.

Correct installation and antenna positioning remain important to achieving good real-world UHF performance.

---

🌈 96 COLOUR LCD DISPLAY

The DTX4300 features a 96-colour LCD backlit display, allowing extensive visual customisation.

This lets you select a display colour that better complements your vehicle's existing interior lighting.

Brightness can also be adjusted using:

• 🔆 Four preset brightness levels
• 🌗 Automatic brightness adjustment

---

🔄 FLIP LCD FOR FLEXIBLE INSTALLATION

The flip-LCD function allows the display orientation to be reversed.

This can be particularly useful when limited vehicle space requires the radio to be mounted above, below or in an alternative position where the standard display orientation would otherwise be inconvenient.

---

⚡ SMART FAST SCANNING

The DTX4300 includes intelligent scan modes for quickly monitoring UHF activity.

Available scan functions include:

• ⭐ Priority Scan
• 📁 Group Memory Scan
• 🔐 Group Tone Scan

Scanning Speed: Approximately 50ms Per Channel

This rapid scan performance helps the radio move through channels quickly when monitoring for activity.

---

📁 3 MEMORY GROUPS

The DTX4300 provides three memory groups, allowing frequently used channels to be organised more efficiently.

For example, separate groups could be used for:

• 🚙 Convoy channels
• 🚛 Highway communications
• 🏕️ Touring or campsite channels

---

🎛️ SIMPLE ROTARY CONTROLS

The DTX4300 incorporates practical rotary controls for commonly adjusted functions.

These include:

• 🔊 Volume / Channel
• 🔇 Squelch

Physical rotary controls can be particularly useful when driving on rough roads where repeatedly pressing small buttons may be inconvenient.

---

📶 DUPLEX REPEATER OPERATION

The DTX4300 supports both simplex and repeater operation.

Repeater TX Offset: +750kHz

Where a compatible UHF CB repeater is accessible, duplex operation can extend practical communication coverage beyond normal direct vehicle-to-vehicle range.

⚠️ Duplex does not automatically increase range. An appropriate repeater must be available and within communication range.

---

🔐 CTCSS & DCS SIGNALLING

The DTX4300 supports CTCSS and DCS signalling for compatible group communications.

These functions can reduce unwanted received audio by allowing the radio to remain muted unless the selected signalling code is detected.

⚠️ The supplied information states “38 CTCSS & DCS codes” without separately identifying the exact DCS quantity. The DCS count should therefore be confirmed before publishing a more specific number.

⚠️ CTCSS and DCS do not make communications private or encrypted. Other UHF CB users can still receive or transmit on the underlying channel.

---

💦 IP54 DUST & SPLASH RESISTANCE

The DTX4300 carries an IP54 protection rating.

This provides resistance against:

• 🌫️ Dust ingress
• 💦 Splashing water

This is a useful feature for 4WD and touring environments where dust and occasional moisture are common.

⚠️ IP54 does not mean waterproof or submersible. The radio should still be installed in a suitable protected location.

---

🛡️ DIE-CAST METAL CHASSIS

The DTX4300 uses a rugged die-cast metal transceiver chassis, giving the compact radio a robust foundation for demanding vehicle installations.

This makes it well suited to:

• 🚙 Off-road vehicles
• 🛻 Work utes
• 🚜 Farm vehicles
• 🏗️ Plant equipment
• 🚚 Commercial vehicles

---

⚡ 12V DC VEHICLE OPERATION

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–16V DC

This makes the DTX4300 suitable for compatible nominal 12V vehicle electrical systems.

⚠️ IMPORTANT: Do not connect the DTX4300 directly to a nominal 24V vehicle electrical system. Its stated operating range is 10–16V DC.

A suitable voltage-conversion solution would be required where installation into a 24V vehicle is necessary.

---

⚠️ OVER-VOLTAGE ALERT & ELECTRICAL PROTECTION

The DTX4300 includes an over-voltage alert function along with several electrical protection features.

• ⚡ Over-voltage protection via diode and voltage-regulator system
• 🛡️ Over-current protection via 2A fuse
• 🔄 Reverse-polarity protection via shunt diode

Correct installation, wiring and circuit protection are still required.

---

⏱️ SELECTABLE AUTO POWER-OFF

The DTX4300 can be configured to automatically switch off after a selected period.

Available settings are:

• Off
• 1 Hour
• 2 Hours
• 4 Hours

---

🔊 OPTIONAL EXTERNAL SPEAKER

A 3.5mm external speaker jack is provided for connection of a compatible optional speaker.

An external speaker may be useful where:

• 🚚 Cabin noise is high
• 🚙 The radio is mounted away from the driver
• 🔊 Greater audio presence is required

---

📦 PACKAGE CONTENTS

• 📻 Oricom DTX4300 Micro Size 5 Watt UHF CB Radio
• 🎙️ Heavy-Duty Microphone
• 📡 Oricom ANU220 6.5dBi UHF CB Antenna
• 🔩 Heavy-Duty Barrel Spring
• 📶 Elevated Feed Antenna Assembly
• 🛡️ Fibreglass Antenna Whip

⚠️ Only components specifically identified in the supplied product information are listed above. Do not assume additional mounting brackets, coax lengths or other accessories are included unless confirmed with the actual pack contents.

---

📋 DTX4300 RADIO SPECIFICATIONS

Brand: Oricom

Series: Premium DTX Series

Model: DTX4300

Product Type: Micro 5 Watt UHF CB Radio

RF Output Power: 5 Watts Maximum

TX/RX Frequency Range: 476.425–477.4125MHz

Number of UHF CB Channels: 80

Voice Channels: 75

Channel Spacing: 12.5kHz

Operating Modes: Simplex & Repeater

Repeater TX Offset: +750kHz

Scanning Speed: 50ms Per Channel

Scanning Functions: Priority / Group Memory / Group Tone Scan

Memory Groups: 3

CTCSS: 38 Listed

DCS: Supported – Exact Quantity Not Separately Specified

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–16V DC

Transmit Current Consumption: Approximately 1.7A with 50-Ohm Antenna Termination

Over-Voltage Alert: Yes

Over-Voltage Protection: Diode & Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±5ppm

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-30dBm

TX Audio Pre-Emphasis: +6dB/Octave from 300Hz to 3kHz

Receiver Circuit Type: Dual Conversion Superheterodyne

Maximum Usable Sensitivity: -123dBm for 12dB SINAD

Audio Output Power: 2 Watts at 8 Ohm Load

RX Audio De-Emphasis: -6dB/Octave from 300Hz to 3kHz

Display: 96 Colour LCD Backlit Display

Flip LCD: Yes

Backlight Brightness: 4 Preset Levels + Auto

Volume / Channel Control: Rotary

Squelch Control: Rotary

Microphone: Heavy Duty

Chassis: Die-Cast Metal

Ingress Protection: IP54

Auto Power-Off: Off / 1 Hour / 2 Hours / 4 Hours

External Speaker Connection: 3.5mm Jack

Transceiver Weight: Approximately 210g

Compliance: AS/NZS 4365:2011

Designed & Engineered: Korea

Warranty: 5 Years – Radio

⚠️ DIMENSION NOTE: One section of the supplied information lists the transceiver as 22.5mm × 100mm × 76mm, while the mechanical specification labels these values as 22.5mm depth × 100mm width × 76mm height. The earlier standalone DTX4300 information identified the dimensions as 22.5mm high × 100mm wide × 76mm deep. Confirm the manufacturer's dimensional orientation if exact installation clearances are critical.

---

📋 ANU220 ANTENNA SPECIFICATIONS

Brand: Oricom

Model: ANU220

Product Type: UHF CB Antenna

Antenna Gain: 6.5dBi

Feed Type: Elevated Feed

Whip Construction: Fibreglass

Spring: Heavy-Duty Barrel Spring

Typical Application: 4WD, Touring & Vehicle UHF CB Systems

---

🔧 INSTALLATION CONSIDERATIONS

• Use the DTX4300 with a compatible nominal 12V vehicle electrical system
• Ensure supply voltage remains within the stated 10–16V DC range
• Do not connect the radio directly to a 24V electrical system
• Retain the specified 2A over-current protection
• Choose a secure and suitably protected mounting location for the transceiver
• Use the flip LCD where the installation orientation requires it
• Install the ANU220 in a suitable antenna mounting position
• Ensure the antenna and spring have adequate clearance from surrounding bodywork
• Route antenna and power cabling away from sharp edges, excessive heat and moving components
• Remember that IP54 protection does not make the radio waterproof or submersible

---

❓ FREQUENTLY ASKED QUESTIONS

What comes in the DTX4300VP Value Pack?

The pack combines the Oricom DTX4300 Micro Size 5 Watt UHF CB radio with the ANU220 6.5dBi UHF CB antenna featuring a heavy-duty barrel spring, elevated feed and fibreglass whip.

Is this better value than buying the DTX4300 radio by itself?

If you also require an antenna, the value pack gives you both the DTX4300 and a matching 6.5dBi Oricom antenna in one package rather than purchasing the major components separately.

Is the DTX4300 a full 5 Watt UHF?

Yes. Maximum RF transmit output is specified at 5 Watts despite the radio's very compact dimensions.

How small is the DTX4300?

The transceiver is listed at approximately 22.5 × 100 × 76mm and weighs around 210g. This makes it particularly well suited to modern vehicles where radio mounting space is limited.

Is it suitable for a 4WD?

Yes. The micro-size radio, full 5 Watt output, IP54 rating, die-cast chassis and included touring antenna make this package particularly suited to 4WD installations.

Is the ANU220 antenna suitable for highway touring?

Yes. Its 6.5dBi gain makes it particularly attractive for flatter terrain, open country and highway communications.

Is 6.5dBi always better than a lower-gain antenna?

No. Higher gain tends to suit flatter terrain because the radiation pattern is concentrated more toward the horizon. A lower-gain antenna can be more effective in steep or highly undulating country.

Does the ANU220 have a spring base?

Yes. It features a heavy-duty barrel spring.

What is the advantage of the barrel spring?

It helps absorb vibration and movement at the antenna mounting point, which is useful on touring and off-road vehicles.

What is an elevated-feed antenna?

An elevated-feed design positions the active antenna system higher above the mounting point, making it suitable for common vehicle-mounted UHF applications.

Does the DTX4300 have all 80 Australian UHF CB channels?

Yes. It supports 80 UHF CB channels, including 75 voice channels.

Can I change the display colour?

Yes. The DTX4300 features a 96-colour LCD backlit display.

Can I adjust the screen brightness?

Yes. Four preset brightness levels plus automatic brightness control are provided.

What does the flip LCD do?

The display orientation can be reversed, giving you greater flexibility when the radio must be installed in an alternative orientation.

What scan functions does it have?

The DTX4300 includes priority scan, group memory scan and group tone scan.

How quickly does it scan?

The specified scanning speed is approximately 50 milliseconds per channel.

What are the three memory groups for?

They allow frequently used channels to be organised into separate groups, which can be useful for convoy, highway, camping or work-related communications.

Can I use UHF repeaters?

Yes. The DTX4300 supports duplex operation with the standard +750kHz repeater transmit offset.

Will a repeater increase my range?

It can substantially extend communication coverage where a compatible repeater is accessible. Duplex functionality itself does not increase normal direct radio-to-radio range.

How far will this radio communicate?

There is no reliable fixed distance. Range depends on antenna positioning, terrain, buildings, vehicle location, installation quality and whether a repeater is being used.

Does the DTX4300 have CTCSS and DCS?

Yes. Both signalling functions are supported. The supplied information identifies 38 CTCSS but does not clearly specify the separate DCS quantity.

Do CTCSS and DCS give me a private channel?

No. They filter received audio but do not encrypt UHF CB communications. Other users can still monitor the underlying channel.

Is the radio waterproof?

No. It has an IP54 rating, providing dust and splash resistance rather than waterproof or submersible protection.

Can I fit this directly to a 24V truck?

No. The radio's specified operating range is 10–16V DC, so a suitable 24V-to-12V conversion solution would be required.

How much current does the radio use when transmitting?

The specified transmit current consumption is approximately 1.7A with a 50-ohm antenna termination.

What fuse does it use?

The specification lists a 2A fuse for over-current protection.

Does it have an over-voltage warning?

Yes. The DTX4300 includes an over-voltage alert function along with diode and voltage-regulator protection.

Can I connect an external speaker?

Yes. A 3.5mm external speaker jack is provided for a compatible optional speaker.

Does it have automatic power-off?

Yes. Auto power-off can be set to Off, 1 hour, 2 hours or 4 hours.

How does this compare with the DTX4300 radio-only version?

The core radio is the same DTX4300. The key advantage of the DTX4300VP is that the package also includes the ANU220 6.5dBi UHF CB antenna, making it better suited to customers who need both the radio and antenna for a new installation.

How does this compare with the DTX4200XPK Ultimate Touring Pack?

The DTX4300VP focuses on a very compact fixed-mount radio paired with a 6.5dBi antenna. The DTX4200XPK is the more advanced touring package where features such as Dual Receive, controller speaker microphone operation and a configurable multi-gain antenna are priorities.

What should I check before buying?

Confirm your vehicle has a compatible 12V electrical system within the radio's 10–16V operating range, make sure you have a suitable mounting location for the compact transceiver and ensure the 6.5dBi ANU220 antenna characteristics suit the terrain and type of driving you normally do.

---

📻 PREMIUM MICRO UHF PERFORMANCE WITH A 6.5dBi TOURING ANTENNA INCLUDED

The Oricom DTX4300VP gives you the compact dimensions of the premium DTX4300 together with a serious 6.5dBi touring antenna in one convenient package.

With full 5 Watt UHF CB power, 80 channels, a 96-colour flip LCD, smart fast scanning, three memory groups, duplex repeater capability, IP54 protection and rugged die-cast construction, the DTX4300 delivers impressive functionality from an exceptionally compact radio.

Pair it with the included ANU220's 6.5dBi gain, elevated feed, fibreglass whip and heavy-duty barrel spring and you have an excellent all-round UHF package for 4WDs, utes and touring vehicles.
