DTX4200XPVP316P Premium UHF CB Radio Value Pack

📻 ORICOM DTX4200XPVP316P PREMIUM UHF CB RADIO VALUE PACK – DTX4200XP + ANU316 4.5dBi ANTENNA

Premium Dual Receive UHF Pack with 4.5dBi Touring Antenna

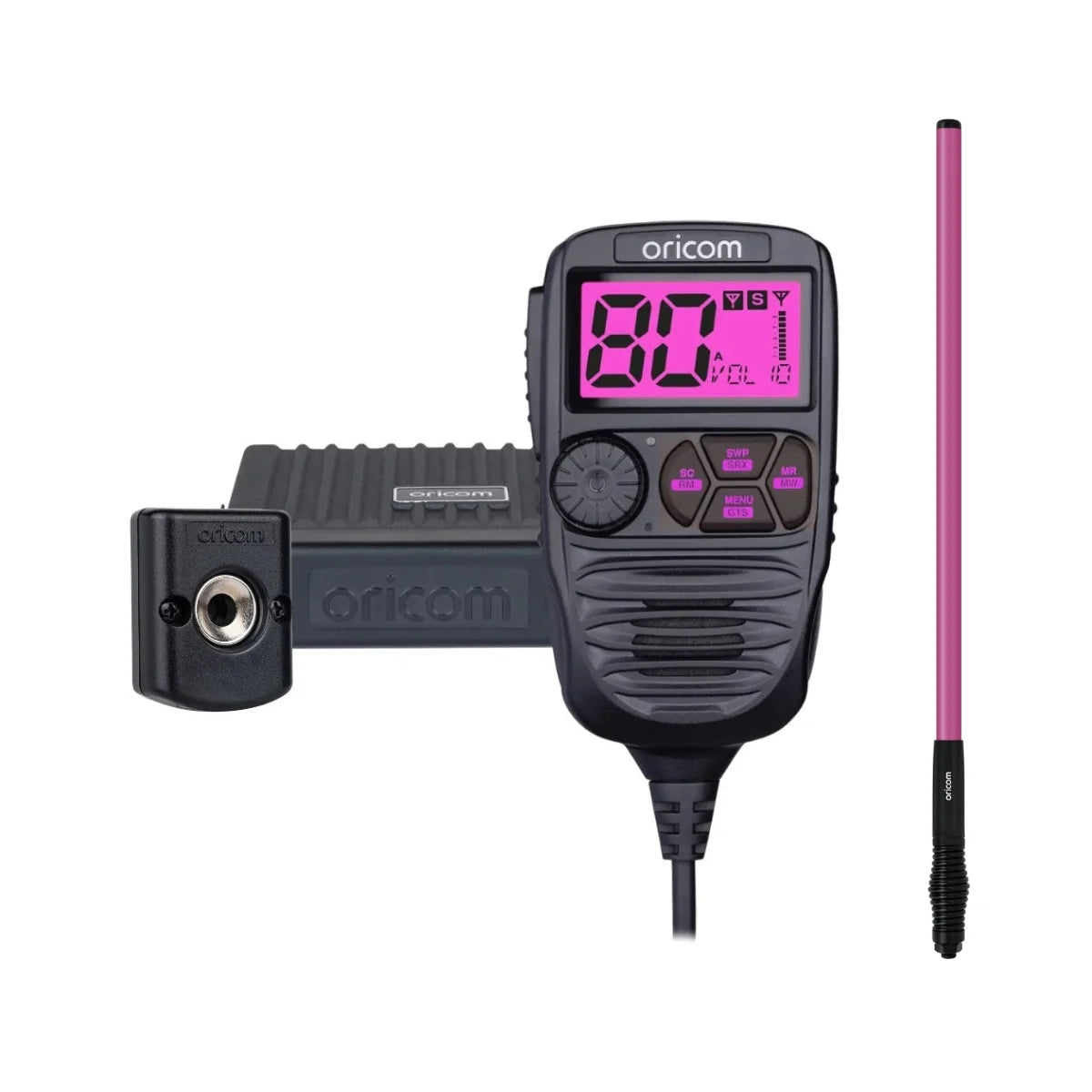

📡 The Oricom DTX4200XPVP316P Value Pack combines the premium DTX4200XP Dual Receive UHF CB Radio with the ANU316 4.5dBi UHF CB antenna, creating a capable communication package for 4WD touring, highway travel and everyday vehicle use.

Oricom's Dual Receive technology allows the DTX4200XP to receive two different UHF channels at the same time. Stay connected with your convoy on one channel while simultaneously monitoring another important channel such as highway Channel 40.

The professional-grade controller speaker microphone features an extra-large 96-colour display, intuitive jog wheel and built-in speaker, while an additional speaker in the transceiver delivers loud and clear received audio.

The included ANU316 provides 4.5dBi gain, a 620mm overall antenna length and 4.5 metres of low-loss coaxial cable, making this pack well suited to touring and open-road applications.

⚡ KEY FEATURES

👂 Dual Receive – Hear 2 Channels at Once
Receive two separate UHF channels simultaneously.

📡 ANU316 4.5dBi Antenna Included
Balanced touring antenna suited to a mix of highway, open-road and general 4WD use.

📻 Full 5 Watt UHF CB Output
Maximum 5 Watt transmit power across the Australian 80-channel UHF CB system.

🔊 Dual-Speaker Audio
Speakers in both the controller microphone and transceiver provide strong received-audio volume.

🎙️ Professional-Grade Controller Microphone
Large ergonomic microphone with display, speaker and primary controls.

🎛️ Intuitive Jog Wheel
Quick access to volume, channel, squelch and menu functions.

🌈 Large 96-Colour Backlit Display
Extra-large display with adjustable brightness.

⚡ Fast 80-Channel Scanning
Scans all 80 UHF CB channels in under three seconds.

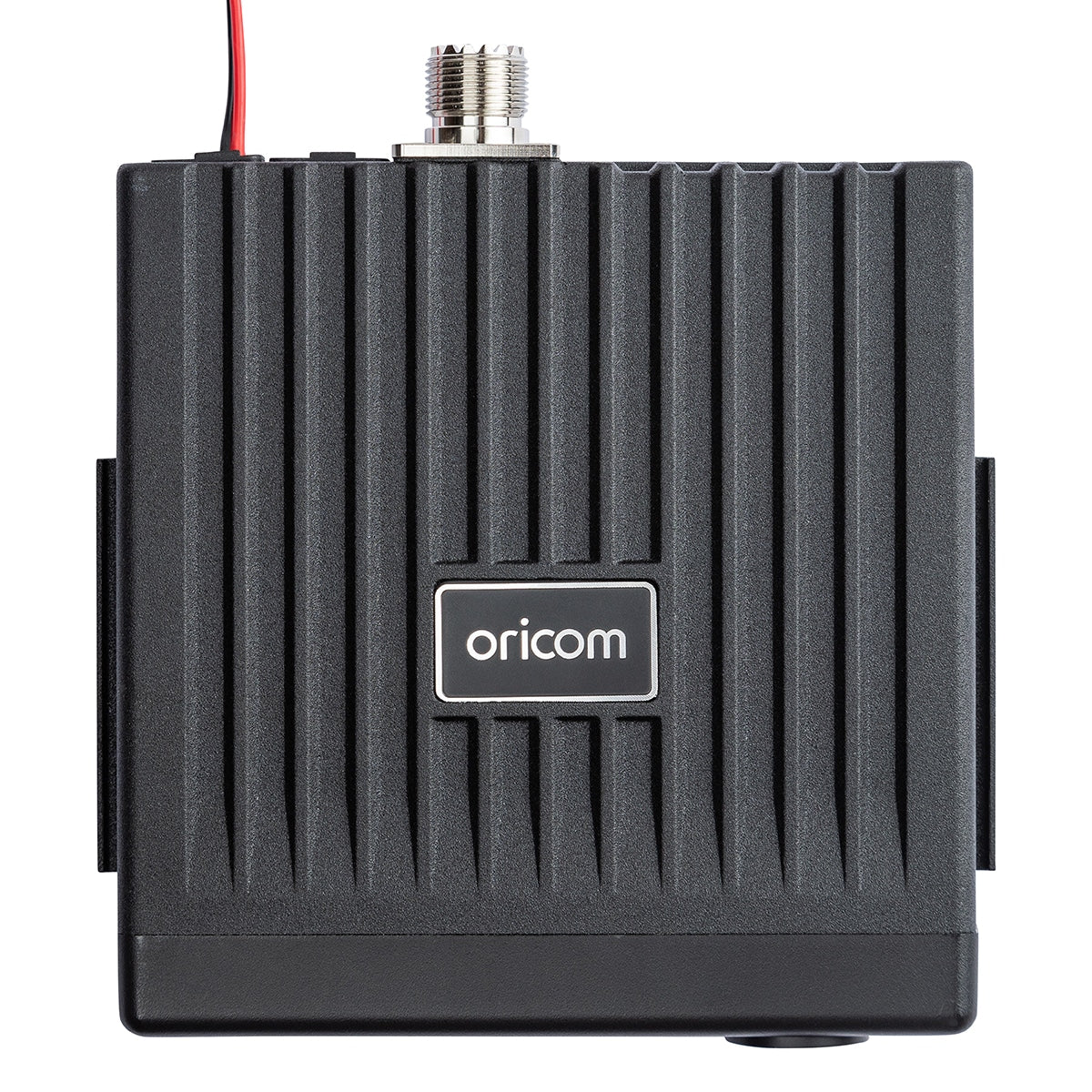

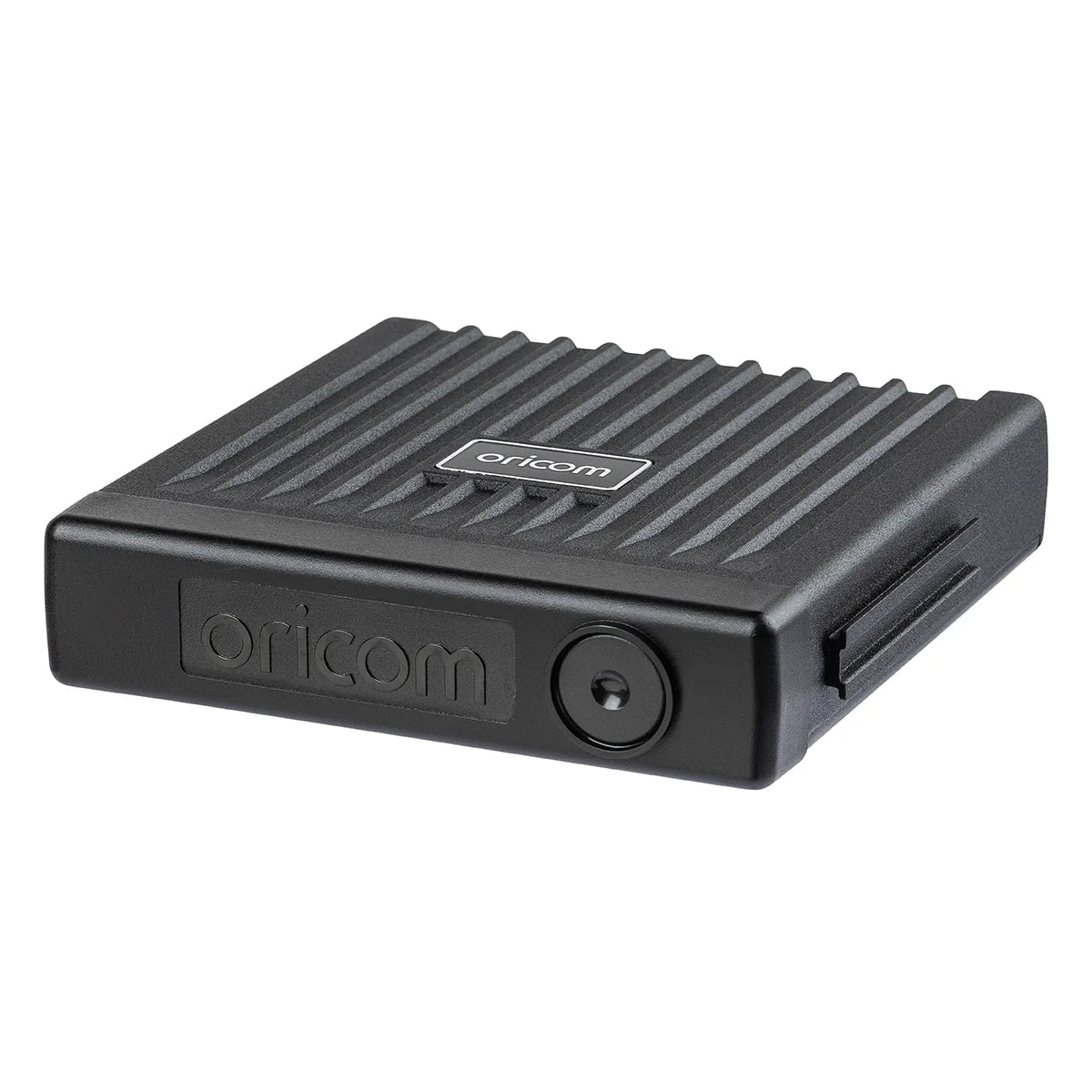

🛡️ Heavy-Duty Die-Cast Chassis
Robust construction designed for demanding vehicle environments.

💦 IP54 Dust & Splash Resistance
The supplied product information identifies the chassis as IP54 rated.

🔐 38 CTCSS & 104 DCS Codes
Provides extensive selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔌 2m Microphone Extension Cable Included
Provides flexibility when mounting the transceiver away from the controller microphone.

🛡️ 5 Year Radio Warranty
The DTX4200XP is backed by a five-year warranty.

📡 3 Year Antenna Warranty
The ANU316 antenna is backed by a three-year warranty.

👂 DUAL RECEIVE – TWO CHANNELS AT ONCE

The DTX4200XP can receive two separate UHF channels simultaneously.

For example, you can communicate with your convoy on Channel 64 while continuing to monitor highway Channel 40 for traffic and road information.

This provides a major advantage over a conventional single-receive radio when travelling in groups or monitoring more than one important communication channel.

📡 ANU316 4.5dBi UHF CB ANTENNA

The included ANU316 provides a 4.5dBi antenna configuration that sits between lower-gain terrain-focused antennas and higher-gain open-country touring antennas.

This makes it a versatile option for drivers who regularly travel across a mix of:

• 🛣️ Highways
• 🏜️ Open country
• 🚙 General 4WD tracks
• 🏕️ Touring routes

Antenna specifications include:

• 📡 Gain: 4.5dBi
• 📏 Length: 620mm
• 🔌 4.5m low-loss coaxial cable
• 🔌 Pre-terminated FME connector
• 🔧 PL259 adaptor
• 🛡️ 3 year warranty

⚠️ Higher antenna gain does not guarantee greater communication range. Performance depends on terrain, antenna position, installation quality, surrounding obstacles and repeater availability.

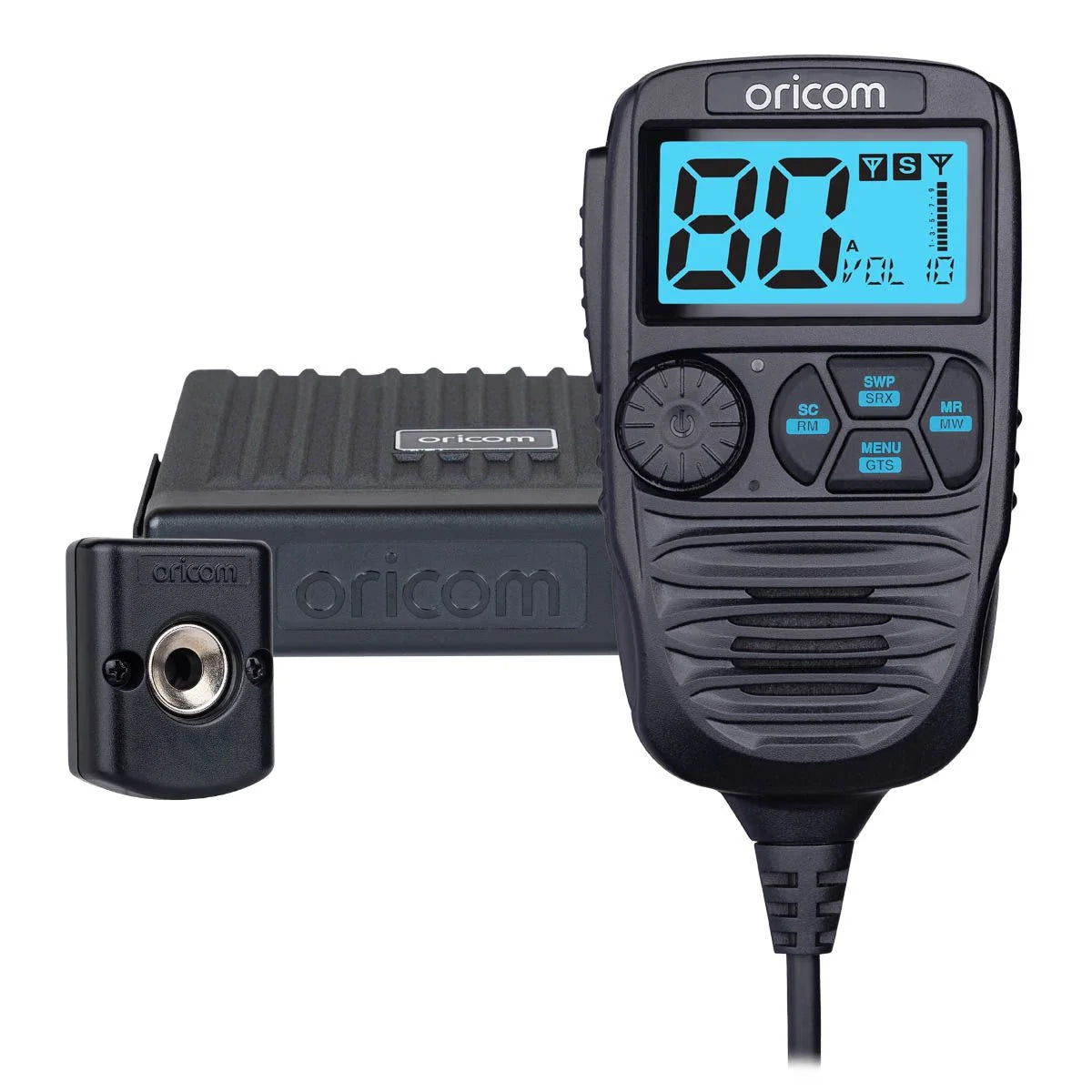

🎙️ PREMIUM CONTROLLER MICROPHONE

The DTX4200XP uses a professional-grade controller speaker microphone with an extra-large display and intuitive jog wheel.

Audio is delivered through speakers in both the controller microphone and transceiver, while the compact radio body can be installed in a suitable protected location away from the main dashboard area.

📦 PACKAGE CONTENTS

• 📻 Oricom DTX4200XP Dual Receive UHF CB Radio
• 🎙️ Professional-Grade Controller Speaker Microphone
• 🔌 2m Microphone Extension Cable
• 🛠️ Slide-In Mounting Bracket
• 📡 Oricom ANU316 4.5dBi UHF CB Antenna
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Pack Model: DTX4200XPVP316P

Radio Model: DTX4200XP

Antenna Model: ANU316

Dual Receive: Yes

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning Speed: 50ms Per Channel

Antenna Impedance: 50 Ohms

CTCSS Codes: 38

DCS Codes: 104

Display: Large 96-Colour Backlit Display

External Speaker Connection: 3.5mm Jack

Transmit Power Indicator: Yes

Auto Power-Off: Yes

Transceiver Chassis: Heavy-Duty Die-Cast

Ingress Protection: IP54 – As Listed

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Diode & Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±5ppm

Transmit Current Consumption: Approximately 1.7A with 50-Ohm Antenna Termination

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-30dBm

Receiver Type: Dual Conversion Superheterodyne

Main RX Intermediate Frequencies: 21.4MHz / 450kHz

Sub RX Intermediate Frequencies: 38.85MHz / 455kHz

Receiver Sensitivity: <-123dBm at 12dB SINAD

Audio Output Power: >2 Watts at 8 Ohms

Signal-to-Noise Ratio: >40dB

Transceiver Dimensions (H × W × D): 31 × 128 × 147mm

Transceiver Weight: 548g

Microphone Weight: 700g

Radio Warranty: 5 Years

Antenna Gain: 4.5dBi

Antenna Length: 620mm

Coaxial Cable Length: 4.5m

Antenna Connector: Pre-Terminated FME

PL259 Adaptor: Included

Antenna Warranty: 3 Years

Compliance: AS/NZS 4365:2011

🔧 INSTALLATION CONSIDERATIONS

• Confirm the correct nominal supply-voltage specification before installation
• The supplied operating-voltage range is stated as 10–15V DC
• Retain the specified 2A fuse protection
• Select a suitable protected location for the 31 × 128 × 147mm transceiver
• Plan the supplied 2m microphone extension-cable route
• Allow adequate clearance for the 620mm antenna
• Route the 4.5m coax away from heat, sharp edges and moving components

❓ FREQUENTLY ASKED QUESTIONS

What does Dual Receive do?

It allows the DTX4200XP to receive two UHF channels simultaneously, such as a convoy channel and highway Channel 40.

Is Dual Receive the same as scanning?

No. Scanning searches through channels for activity, while Dual Receive allows two selected channels to be received at the same time.

What terrain suits the 4.5dBi ANU316?

Its 4.5dBi gain makes it a versatile touring option for a combination of highways, open country and general 4WD use.

How does 4.5dBi compare with 3dBi and 6.5dBi?

A 4.5dBi antenna offers a middle-ground radiation pattern. A 3dBi antenna is generally more attractive for steep and heavily undulating terrain, while a 6.5dBi antenna is generally better suited to flatter open country.

How long is the ANU316 antenna?

The supplied specification lists the antenna at approximately 620mm long.

How much coaxial cable is included?

The antenna includes approximately 4.5 metres of low-loss coaxial cable.

What antenna connectors are supplied?

The cable is supplied with a pre-terminated FME connector and PL259 adaptor.

Can I hide the radio transceiver?

Yes. The controller-microphone design allows the 31 × 128 × 147mm transceiver to be installed in a suitable protected location away from the main dashboard area.

Are CTCSS and DCS private or encrypted?

No. They provide selective-squelch functionality but do not encrypt UHF CB communications.

Can I connect an external speaker?

Yes. A 3.5mm jack is provided for a compatible optional external speaker.

How long are the warranties?

The DTX4200XP radio is backed by a five-year warranty and the ANU316 antenna is listed with a three-year warranty.

What should I check before buying?

Confirm the correct radio supply-voltage specification, ensure the transceiver fits your intended mounting position and check that the 620mm 4.5dBi antenna suits your preferred mounting location and typical terrain.

📡 PREMIUM DUAL RECEIVE PERFORMANCE WITH A VERSATILE 4.5dBi TOURING ANTENNA

The Oricom DTX4200XPVP316P combines premium Dual Receive UHF performance with the ANU316 4.5dBi antenna for a balanced touring communication package.

With full 5 Watt output, loud dual-speaker audio, fast scanning, an extra-large controller-microphone display and 4.5m antenna cable kit, it is a strong option for 4WDs and touring vehicles that regularly travel across a mix of highway and off-road conditions.
