DTX4200XPNK Dual Receive UHF Bundle | Pink DTX600 Handheld

📻 ORICOM DTX4200XPNK DUAL RECEIVE UHF CB RADIO BUNDLE PACK

DTX4200XP Dual Receive UHF + ANU316 4.5dBi Antenna + Pink DTX600 5 Watt Handheld

📡 The Oricom DTX4200XPNK Bundle Pack combines a premium in-vehicle UHF system with a powerful portable handheld, giving serious 4WD and touring users communication both inside and outside the vehicle.

The package combines the DTX4200XP Dual Receive UHF CB Radio, ANU316 4.5dBi UHF CB antenna and compact Pink DTX600 5 Watt Handheld UHF CB Radio.

Oricom's Dual Receive technology allows the DTX4200XP to receive two separate UHF channels simultaneously, making it possible to stay connected with your convoy while continuing to monitor another important channel such as highway Channel 40.

When you step away from the vehicle, the DTX600 provides portable 5 Watt UHF communication for spotting, campsite use, recoveries and other off-vehicle applications.

---

⚡ KEY FEATURES

👂 DTX4200XP Dual Receive
Receive two different UHF channels at the same time.

📡 ANU316 4.5dBi Antenna Included
620mm touring antenna with 4.5m low-loss coax, FME connector and PL259 adaptor.

💗 Pink DTX600 5 Watt Handheld Included
Portable UHF communication for use away from the vehicle.

🔊 Dual-Speaker DTX4200XP Audio
Speakers in both the controller microphone and transceiver provide strong received-audio volume.

🌈 Large 96-Colour Display
Extra-large backlit DTX4200XP display with adjustable brightness.

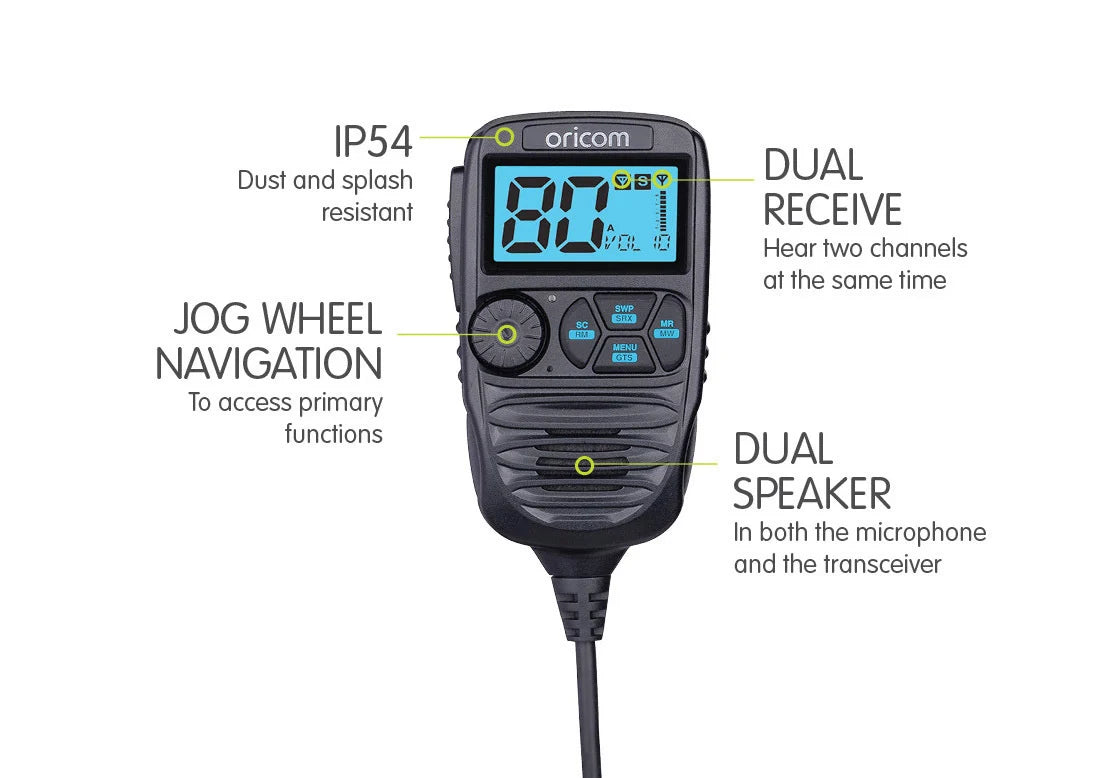

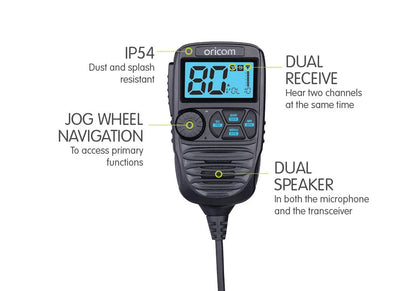

🎛️ Professional Controller Microphone
Heavy-duty microphone with intuitive controls and a supplied 2m extension cable.

⚡ Fast 80-Channel Scanning
The DTX4200XP scans all 80 UHF CB channels in under three seconds.

🛡️ Heavy-Duty Die-Cast Construction
Both radios use robust construction suited to demanding touring environments.

💦 DTX600 IP67 Protection
The handheld is IP67 rated for water and dust protection.

🔋 2600mAh Lithium-Ion Handheld Battery
Provides up to 30 hours operating time as listed.

⚡ Switchable 5W / 1W Handheld Output
Select high or low transmit power on the DTX600 depending on the application.

🔌 12V & 240V DTX600 Charging
Fast-charge technology with both 240V and 12V adaptors supplied.

🛡️ 5 Year DTX4200XP Warranty
The in-vehicle radio is backed by a five-year warranty.

📡 3 Year Antenna Warranty
The ANU316 antenna is backed by a three-year warranty.

---

👂 DUAL RECEIVE – MONITOR TWO CHANNELS AT ONCE

The DTX4200XP can receive two separate UHF channels simultaneously.

For example, you can communicate with your convoy on one channel while monitoring highway Channel 40 at the same time.

This is different from conventional scanning because the radio is designed to receive both selected channels rather than continually moving between them looking for activity.

---

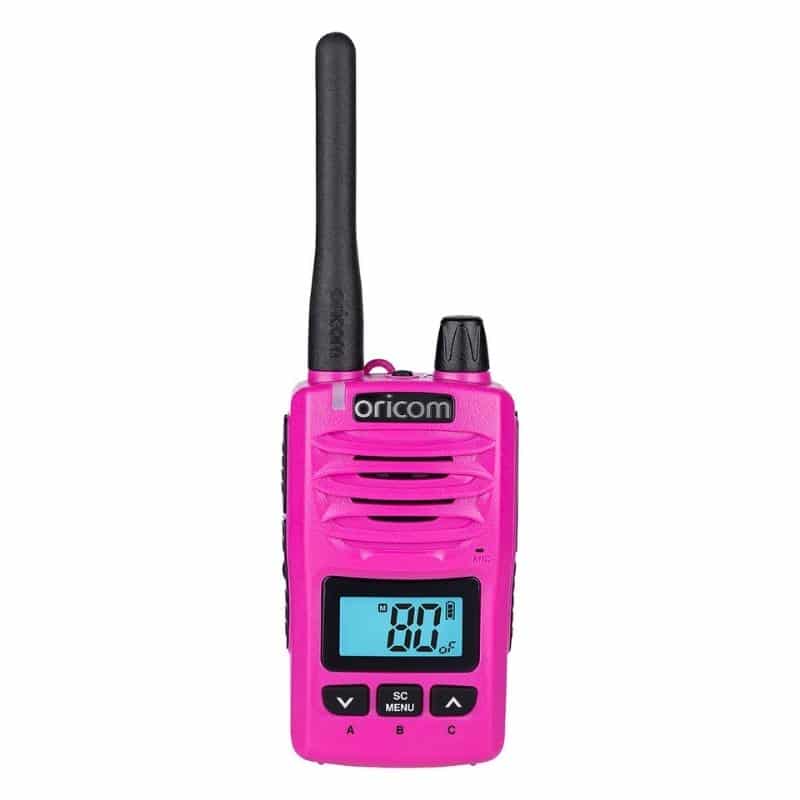

💗 DTX600 HANDHELD – COMMUNICATION AWAY FROM THE VEHICLE

The included Pink DTX600 adds a portable 5 Watt UHF CB radio to the package, making the bundle particularly useful when communication needs to continue after leaving the driver's seat.

Typical applications include:

• 🚙 Vehicle spotting
• 🪢 Recovery operations
• 🏕️ Campsite communications
• 🚶 Walking away from the vehicle
• 🏗️ Worksite coordination

The DTX600 provides switchable 5 Watt / 1 Watt output, 80 channels, three programmable Instant Channel buttons, Triple Watch, scanning, duplex operation, signal monitoring and a large backlit LCD display.

Its 2600mAh lithium-ion battery is listed for up to 30 hours operating time, with both 240V and 12V charging adaptors supplied.

---

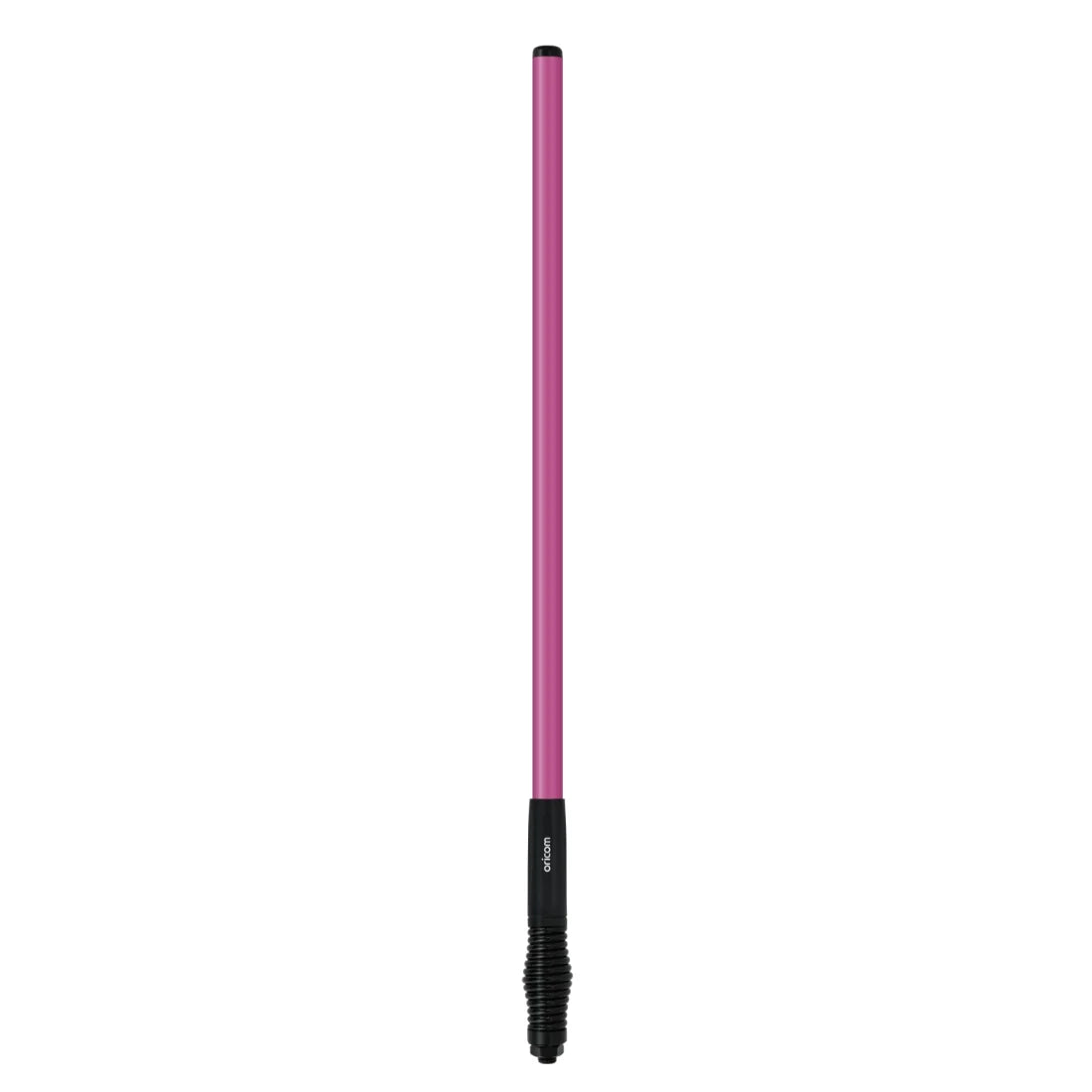

📡 ANU316 4.5dBi TOURING ANTENNA

The included ANU316 provides 4.5dBi gain and a 620mm antenna length, giving the package a versatile antenna configuration for open-road, highway and general touring applications.

The antenna package includes:

• 📡 4.5dBi UHF CB antenna
• 📏 620mm antenna length
• 🔌 4.5m low-loss coaxial cable
• 🔌 Pre-terminated FME connector
• 🔧 PL259 adaptor
• 🛡️ 3 year warranty

⚠️ Antenna gain does not guarantee communication distance. Actual performance depends on terrain, mounting position, installation quality, surrounding obstacles and repeater availability.

---

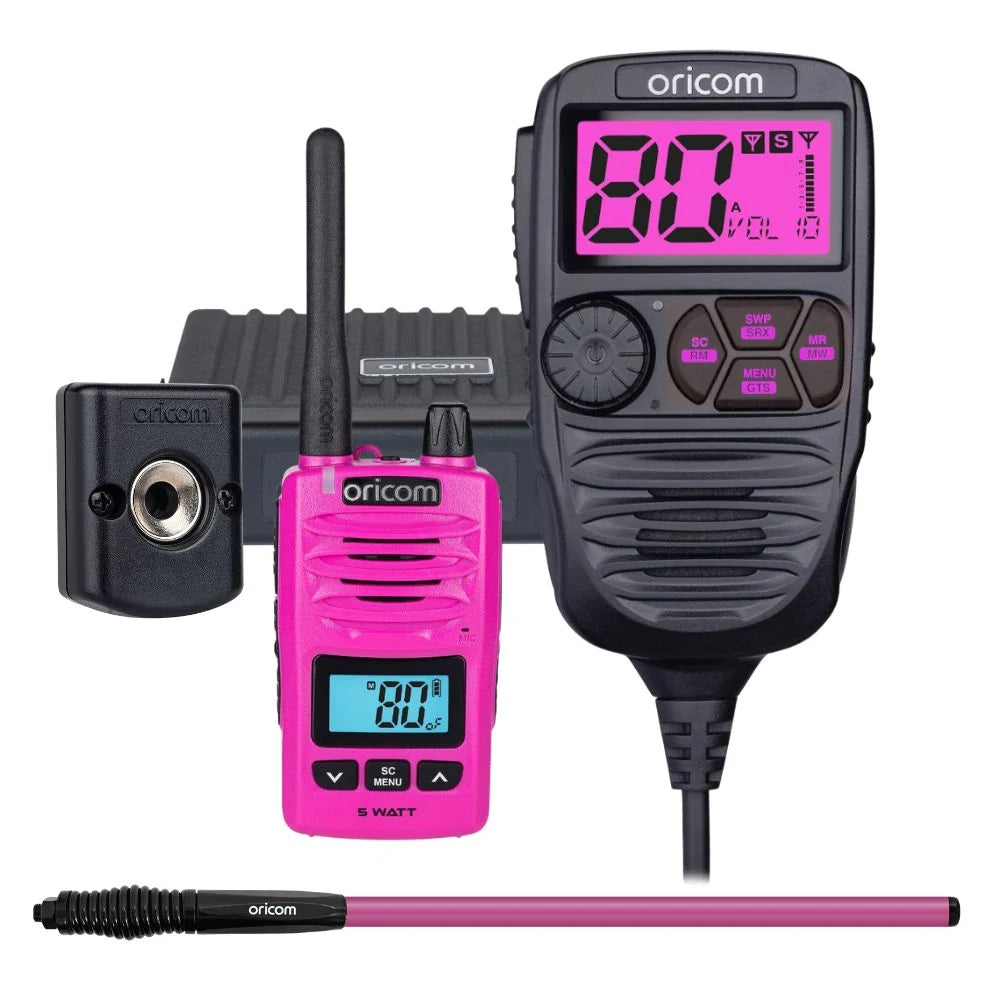

📦 BUNDLE CONTENTS

• 📻 Oricom DTX4200XP Dual Receive UHF CB Radio
• 🎙️ Professional-Grade Controller Speaker Microphone
• 🔌 2m Microphone Extension Cable
• 🛠️ Slide-In Mounting Bracket
• 📡 Oricom ANU316 4.5dBi UHF CB Antenna
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor
• 💗 Oricom DTX600 Pink 5 Watt Handheld UHF CB Radio
• 🔋 2600mAh Lithium-Ion Battery Pack
• 🔌 240V Charging Adaptor
• 🚗 12V Charging Adaptor

---

📋 DTX4200XP SPECIFICATIONS

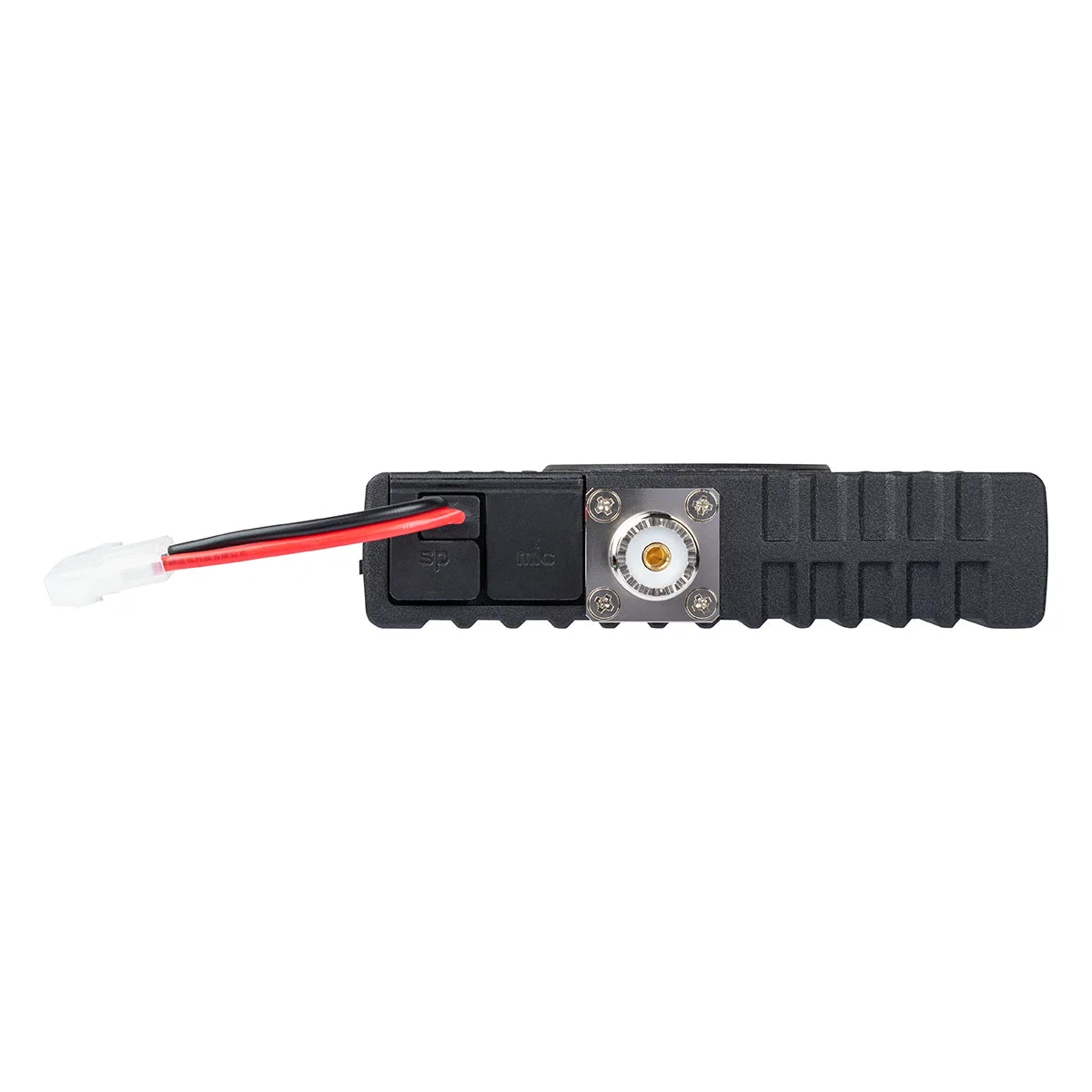

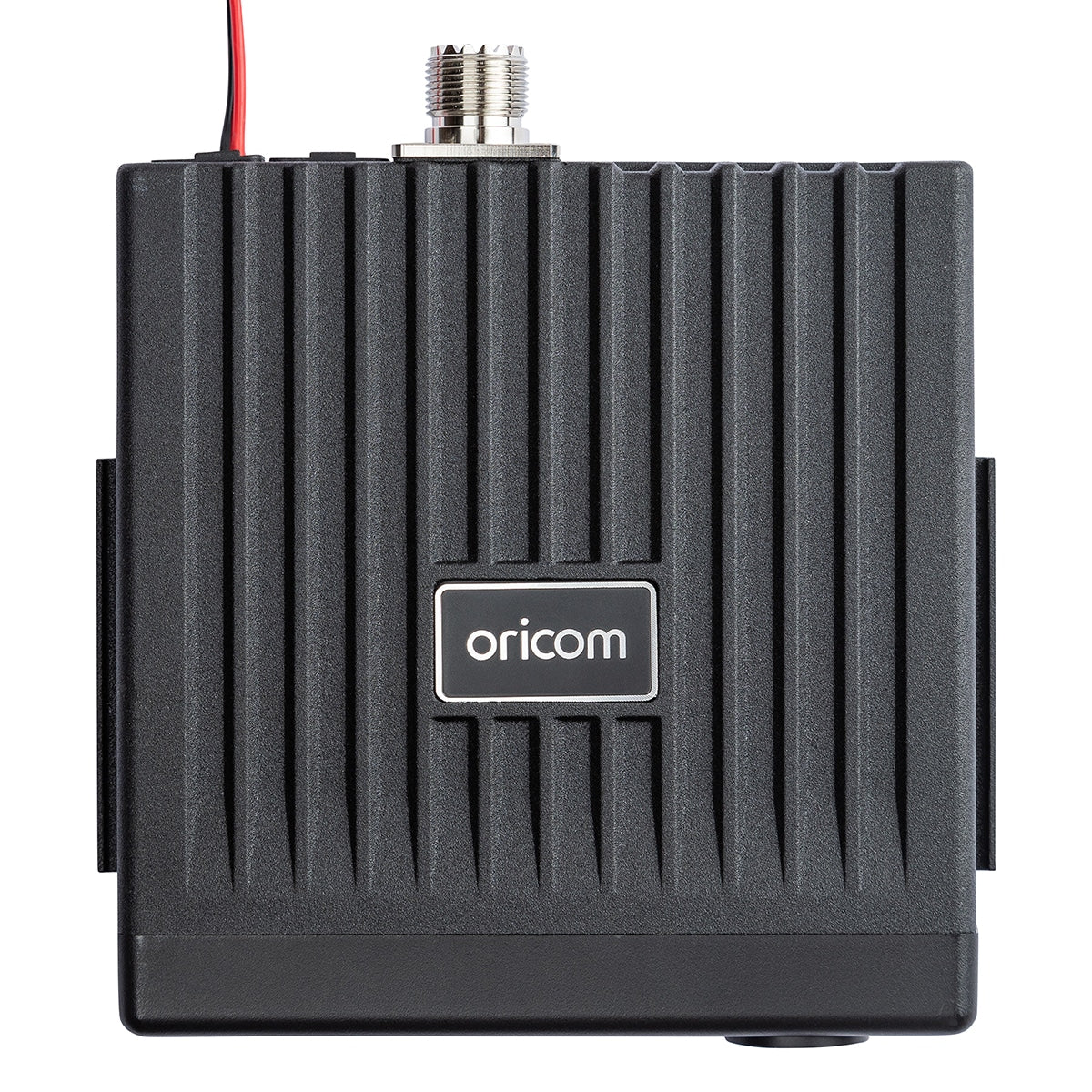

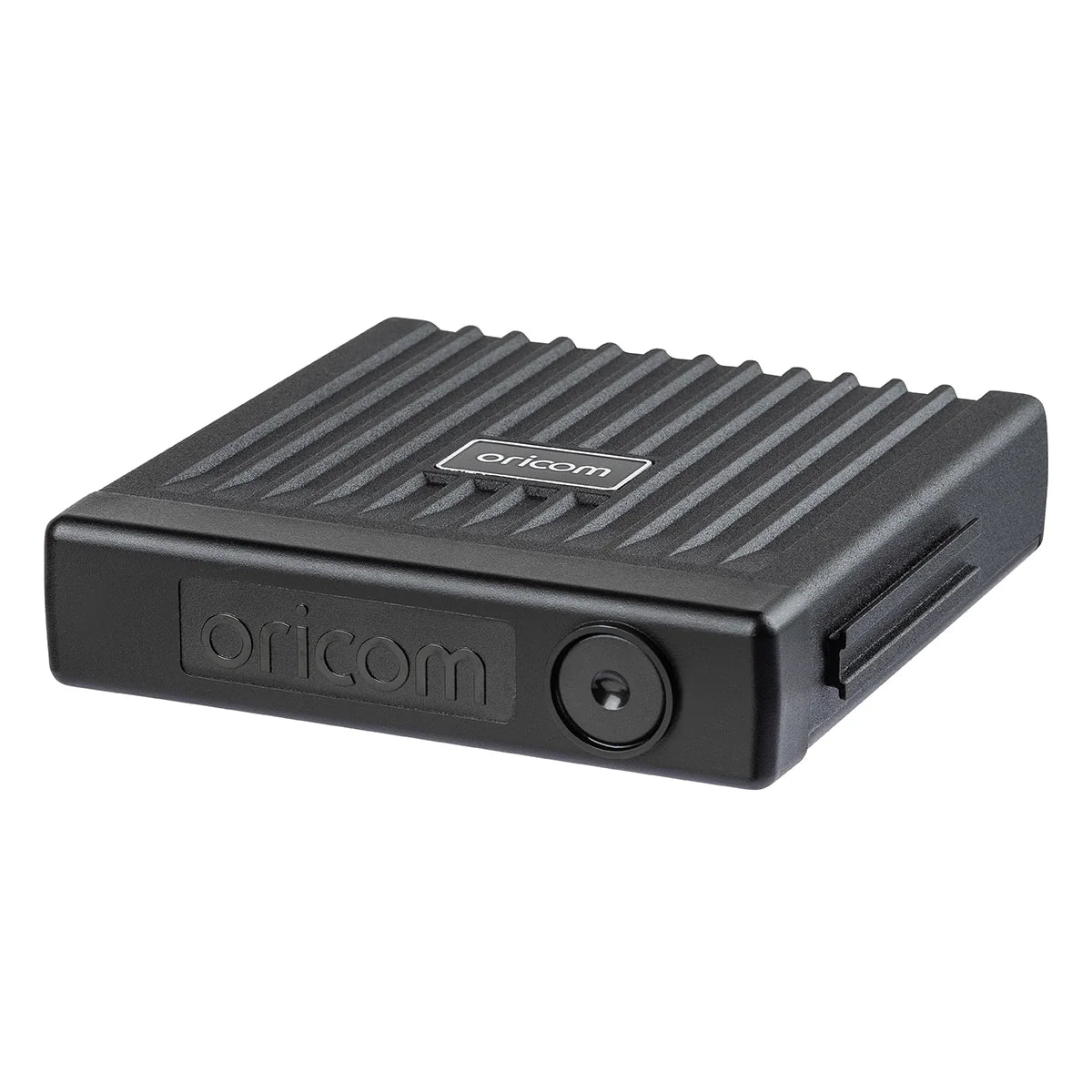

Radio Model: DTX4200XP

Dual Receive: Yes

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Scanning: 80 Channels in Under 3 Seconds

CTCSS Codes: 38

DCS Codes: 104

Display: Large 96-Colour Backlit Display

Controller: Professional-Grade Controller Speaker Microphone

Speakers: Microphone + Transceiver

Transceiver Construction: Heavy-Duty Die-Cast Chassis

Slide-In Mounting Bracket: Included

Microphone Extension Cable: 2m Included

Auto Power-Off: Yes

Transmit Power Indicator: Yes

External Speaker Connection: 3.5mm Jack

Transmit Current Consumption: Approximately 1.7A with 50-Ohm Antenna Termination

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-30dBm

Receiver Type: Dual Conversion Superheterodyne

Main RX Intermediate Frequencies: 21.4MHz / 450kHz

Sub RX Intermediate Frequencies: 38.85MHz / 455kHz

Receiver Sensitivity: <-123dBm at 12dB SINAD

Audio Output Power: >2 Watts at 8 Ohms

Signal-to-Noise Ratio: >40dB

Transceiver Dimensions (H × W × D): 31 × 128 × 147mm

Transceiver Weight: 548g

Microphone Weight: 700g

Radio Warranty: 5 Years

---

📋 DTX600 HANDHELD FEATURES

Model: DTX600

Colour: Pink

RF Output: Switchable 5 Watts High / 1 Watt Low

UHF CB Channels: 80

Ingress Protection: IP67

Instant Channel Buttons: 3 Programmable

Scanning: Open / Instant / Priority

Duplex: Yes

Triple Watch: Yes

Signal Monitoring: Yes

Audio Scrambler: Yes

CTCSS Codes: 38

DCS Codes: 104

Battery: 2600mAh Lithium-Ion

Operating Time: Up to 30 Hours – As Listed

Accessory Connection: 2.5mm Jack with Locking Screw

Charging: Fast Charge with 240V & 12V Adaptors

Chassis: Die-Cast Metal

Designed, Engineered & Produced In: Korea

⚠️ CTCSS, DCS and the listed audio-scrambler function should not be represented as secure or encrypted communications.

---

📋 ANU316 ANTENNA SPECIFICATIONS

Antenna Model: ANU316

Gain: 4.5dBi

Length: 620mm

Coaxial Cable: 4.5m Low-Loss Cable

Connector: Pre-Terminated FME

PL259 Adaptor: Included

Warranty: 3 Years

---

🔧 INSTALLATION & BUYING CONSIDERATIONS

• Confirm the DTX4200XP electrical supply requirements before installation
• Ensure there is suitable space for the 31 × 128 × 147mm transceiver
• Plan the supplied 2m controller-microphone cable route
• Allow adequate clearance for the 620mm ANU316 antenna
• Route the 4.5m coax away from heat, sharp edges and moving components
• Charge the DTX600 using the supplied compatible 12V or 240V charging equipment

---

❓ FREQUENTLY ASKED QUESTIONS

What is included in the DTX4200XPNK bundle?

The pack combines the DTX4200XP Dual Receive in-vehicle UHF, ANU316 4.5dBi antenna and Pink DTX600 5 Watt handheld UHF.

Why have both a fixed UHF and handheld?

The DTX4200XP provides your primary in-vehicle communications, while the DTX600 allows communication to continue when spotting, recovering vehicles, walking around camp or working away from the vehicle.

What does Dual Receive do?

It allows the DTX4200XP to receive two separate UHF channels simultaneously, such as a convoy channel and highway Channel 40.

Is the DTX600 a full 5 Watt handheld?

Yes. It provides switchable transmit power with 5 Watt High and 1 Watt Low settings.

Is the DTX600 waterproof?

The handheld is IP67 rated for water and dust protection. It should still be used according to Oricom's IP67 operating and sealing requirements.

How long does the DTX600 battery last?

It is listed for up to 30 hours operating time from its 2600mAh lithium-ion battery. Actual runtime will vary with usage.

Can I charge the handheld in the vehicle?

Yes. A 12V charging adaptor is listed as supplied, along with a 240V adaptor.

What terrain suits the ANU316 4.5dBi antenna?

Its 4.5dBi gain makes it a versatile choice for a combination of highway, open-road and general touring use.

How long is the ANU316 antenna?

The supplied specification lists it at approximately 620mm long.

Are all components in the bundle pink?

The DTX600 handheld is specifically described as Pink. The supplied information does not clearly confirm the individual colour of the DTX4200XP radio or ANU316 antenna, so those component colours should be checked before ordering if the finish is important.

What should I check before buying?

Confirm the DTX4200XP electrical requirements, check that the fixed radio and 620mm antenna suit your intended installation, and verify the individual component colours if you are purchasing specifically for the limited-edition Pink appearance.

---

📻 IN THE VEHICLE OR OUT OF IT – STAY CONNECTED

The Oricom DTX4200XPNK combines premium Dual Receive in-vehicle communications with a versatile 4.5dBi touring antenna and a portable Pink 5 Watt DTX600 handheld.

For 4WD touring, convoy travel, campsites and vehicle recoveries, it's a practical bundle for customers who want reliable UHF communications both behind the wheel and away from the vehicle.
