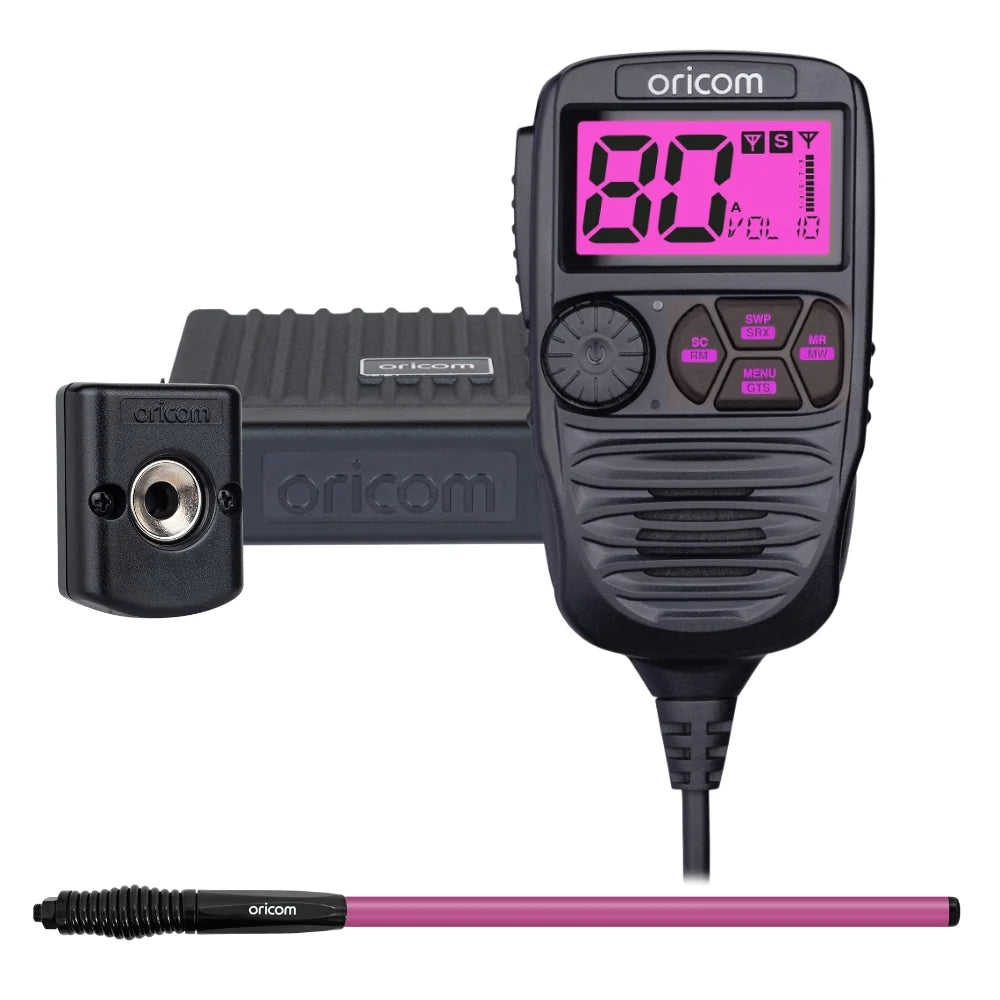

📻 ORICOM DTX4200XPAPNK DUAL RECEIVE UHF CB RADIO + PINK 3dBi ANTENNA VALUE PACK

Limited-Edition Dual Receive Pack with DTX4200XP & ANU856PNK Pink 3dBi Antenna

📡 The Oricom DTX4200XPAPNK Value Pack combines the premium DTX4200XP Dual Receive UHF CB Radio with the distinctive ANU856PNK Pink 3dBi UHF Antenna, delivering serious touring performance with a unique look.

Oricom's Dual Receive technology allows the DTX4200XP to receive two different UHF channels at the same time. Stay connected with your convoy on one channel while simultaneously monitoring another important channel such as highway Channel 40.

The professional-grade controller speaker microphone features an extra-large display, intuitive jog wheel and built-in speaker, while a second speaker in the transceiver provides loud and clear received audio. The included 3dBi pink antenna is designed for touring applications where a broader radiation pattern can be beneficial through hilly and changing terrain.

⚡ KEY FEATURES

👂 Dual Receive – Hear 2 Channels at Once
Receive two separate UHF channels simultaneously without needing two radios.

💗 ANU856PNK Pink 3dBi Antenna Included
Distinctive detachable antenna designed to combine touring performance with a bold pink finish.

📻 Full 5 Watt UHF CB Output
Maximum 5 Watt transmit power across the Australian 80-channel UHF CB system.

🔊 Dual-Speaker Audio
Speakers in both the controller microphone and transceiver provide strong, clear received audio.

🎙️ Professional-Grade Controller Microphone
Large ergonomic microphone with speaker, display and primary controls directly in hand.

🎛️ Intuitive Jog Wheel
Provides easy access to primary radio functions and menu navigation.

🌈 Large 96-Colour Backlit Display
Extra-large display with adjustable brightness for easy viewing in changing light conditions.

⚡ Fast 80-Channel Scanning
Scans all 80 UHF CB channels in under three seconds.

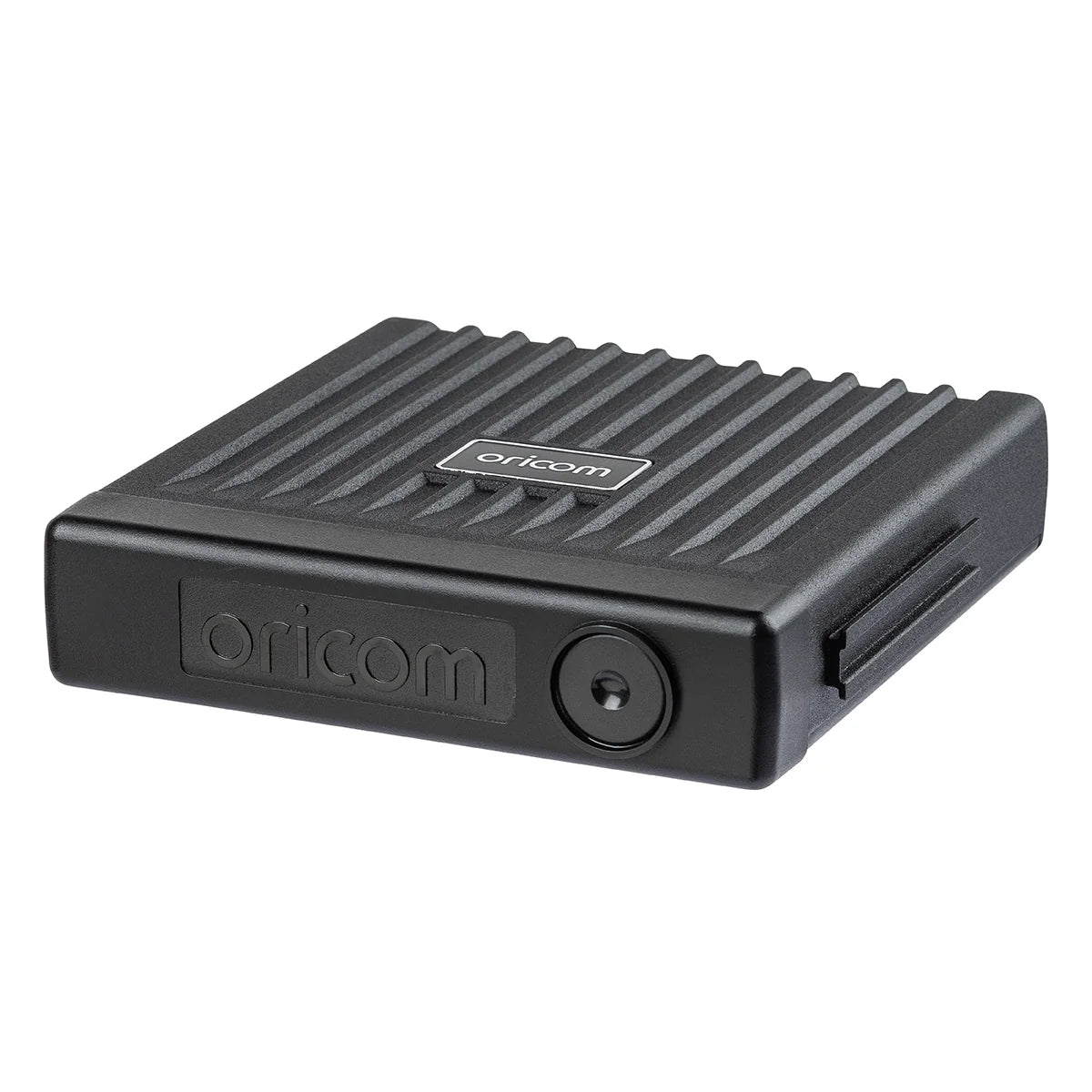

🛡️ Heavy-Duty Die-Cast Chassis
Built for demanding Australian touring and vehicle environments.

💦 IP54 Dust & Splash Resistance
The supplied product description identifies the chassis as IP54 rated for resistance to dust and splashes.

🔐 38 CTCSS & 104 DCS Codes
Provides extensive selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔌 2m Microphone Extension Cable Included
Provides additional flexibility when locating the transceiver away from the controller microphone.

🛡️ 5 Year Radio Warranty
The DTX4200XP is backed by a five-year warranty.

📡 3 Year Antenna Warranty
The ANU856PNK antenna is backed by a three-year warranty.

👂 DUAL RECEIVE – MONITOR TWO CHANNELS AT ONCE

Dual Receive is one of the major advantages of the DTX4200XP.

For example, you can:

• 🚙 Talk with your convoy on Channel 64
• 🚛 Monitor highway Channel 40 at the same time

This provides a major convenience advantage when touring because you can remain connected with your group without giving up monitoring of another important UHF channel.

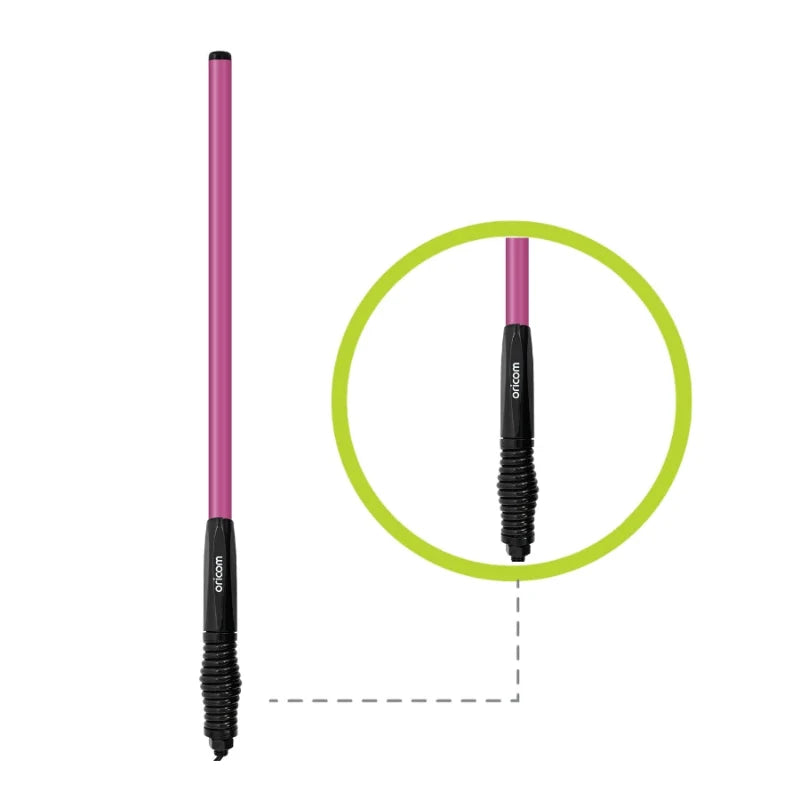

💗 ANU856PNK 3dBi PINK UHF ANTENNA

The included ANU856PNK combines a distinctive pink finish with a 3dBi antenna configuration suited to general touring and varied terrain.

A 3dBi antenna generally produces a broader vertical radiation pattern than higher-gain antennas, which can make it particularly useful through hills and undulating country.

Antenna features include:

• 💗 Pink finish
• 📡 3dBi gain
• 📏 665mm overall antenna length including spring base
• 🔌 4.5m low-loss coaxial cable
• 🔌 Pre-terminated FME connector
• 🔧 PL259 adaptor
• 🛡️ 3 year warranty

⚠️ Actual communication range depends on terrain, antenna mounting position, surrounding obstacles, installation quality and repeater availability.

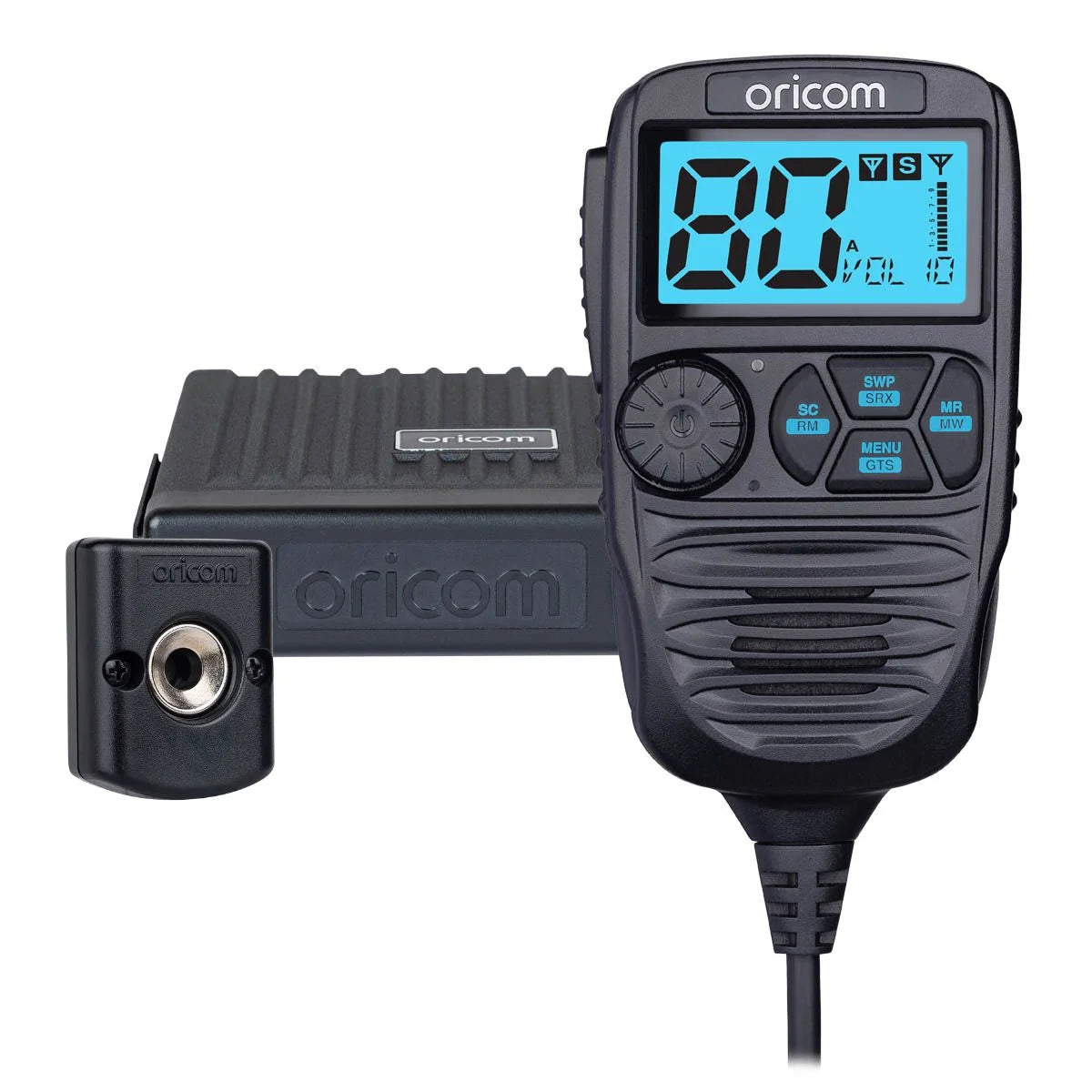

🎙️ LOUD, CLEAR CONTROLLER-MICROPHONE DESIGN

The DTX4200XP uses speakers in both the professional-grade controller microphone and main transceiver to improve received-audio volume and clarity.

The larger controller microphone incorporates an extra-large display and intuitive jog wheel, allowing the transceiver to be installed in a suitable protected location while keeping the primary radio controls conveniently accessible.

📦 PACKAGE CONTENTS

• 📻 Oricom DTX4200XP Dual Receive UHF CB Radio
• 🎙️ Professional-Grade Controller Speaker Microphone
• 🔌 2m Microphone Extension Cable
• 🛠️ Slide-In Mounting Bracket
• 🔧 Radio Mounting Hardware
• 💗 Oricom ANU856PNK 3dBi Pink UHF Antenna
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Pack Model: DTX4200XPAPNK

Radio Model: DTX4200XP

Antenna Model: ANU856PNK

Dual Receive: Yes

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning Speed: 50ms Per Channel

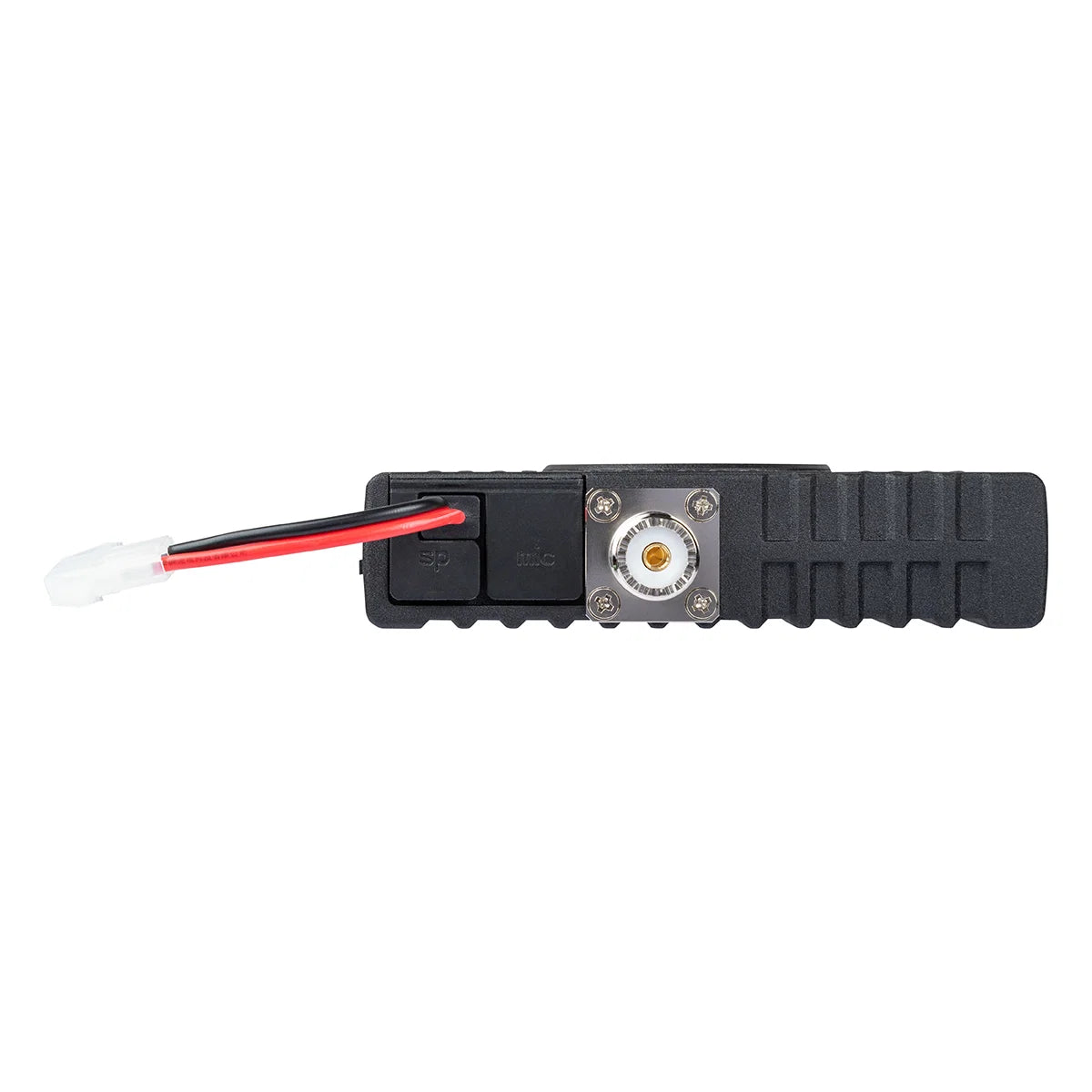

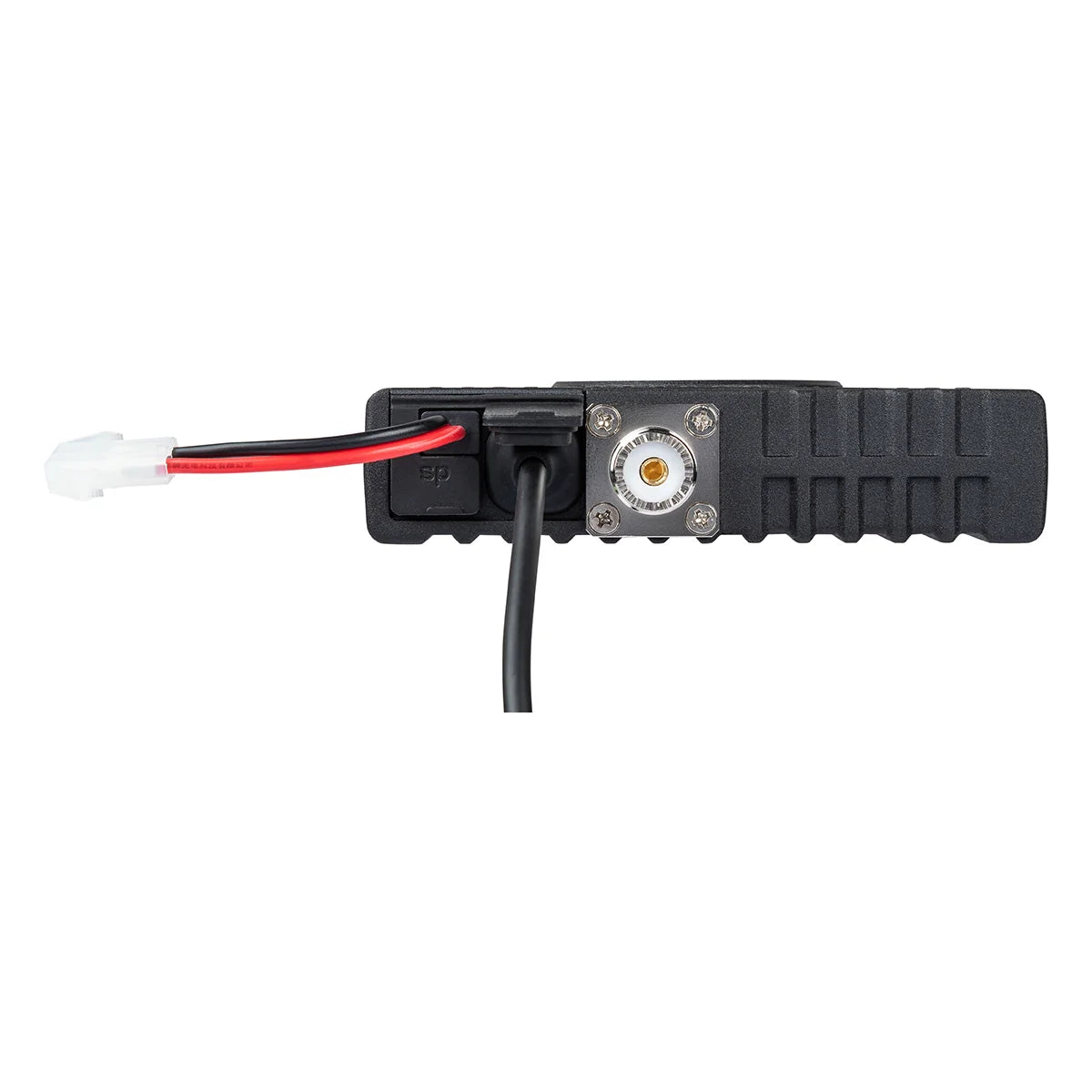

Antenna Impedance: 50 Ohms

CTCSS Codes: 38

DCS Codes: 104

Display: Large 96-Colour Backlit Display

Backlight Brightness: Adjustable

External Speaker Connection: 3.5mm Jack

Transmit Power Indicator: Yes

Auto Power-Off: Yes

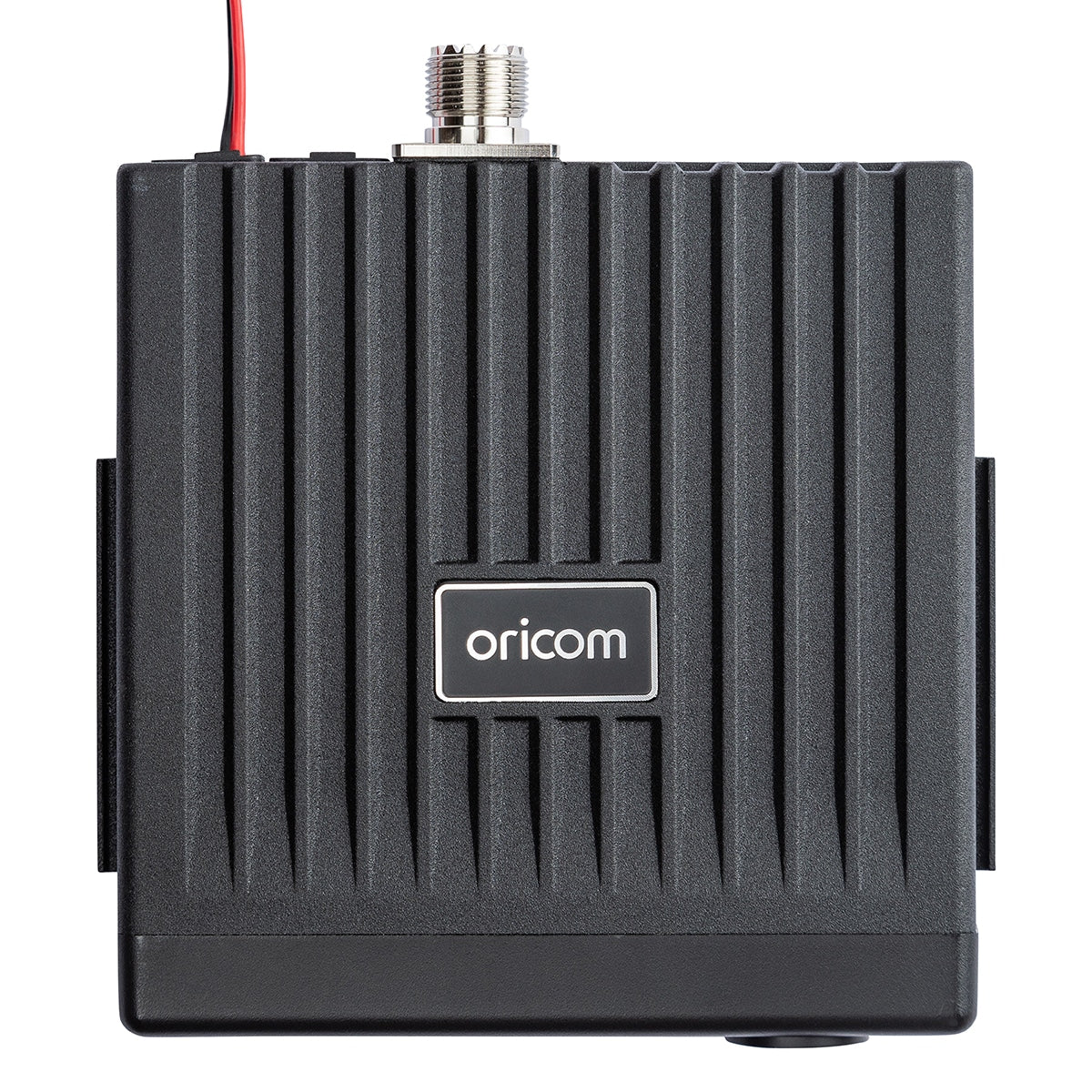

Transceiver Chassis: Heavy-Duty Die-Cast

Ingress Protection: IP54 – As Described in Supplied Product Information

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Diode & Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±5ppm

Transmit Current Consumption: Approximately 1.7A with 50-Ohm Antenna Termination

Modulation: F3E / FM

Maximum Deviation: 2.5kHz

Spurious Emissions: <-30dBm

Receiver Type: Dual Conversion Superheterodyne

Main RX Intermediate Frequencies: 21.4MHz / 450kHz

Sub RX Intermediate Frequencies: 38.85MHz / 455kHz

Receiver Sensitivity: <-123dBm at 12dB SINAD

Audio Output Power: >2 Watts at 8 Ohms

Signal-to-Noise Ratio: >40dB

Transceiver Dimensions (H × W × D): 31 × 128 × 147mm

Transceiver Weight: 548g

Microphone Weight: 700g

Radio Warranty: 5 Years

Antenna Gain: 3dBi

Antenna Length: 665mm Including Spring Base

Coaxial Cable Length: 4.5m

Antenna Connector: Pre-Terminated FME

PL259 Adaptor: Included

Antenna Warranty: 3 Years

Compliance: AS/NZS 4365:2011

🔧 INSTALLATION CONSIDERATIONS

• Confirm the correct nominal supply-voltage specification with Oricom due to the conflicting 3.8V listing
• The supplied operating range is stated as 10–15V DC
• Retain the specified 2A fuse protection
• Use a secure protected location for the 31 × 128 × 147mm transceiver
• Plan the supplied 2m microphone extension-cable route before installation
• Allow sufficient clearance for the 665mm antenna including spring base
• Route the 4.5m antenna coax away from excessive heat, sharp edges and moving components

❓ FREQUENTLY ASKED QUESTIONS

What does Dual Receive do?

It allows the DTX4200XP to receive two separate UHF channels at the same time, such as your convoy channel and highway Channel 40.

Is Dual Receive the same as scanning?

No. Scanning moves through channels searching for activity. Dual Receive allows two selected channels to be received simultaneously.

What terrain is the 3dBi antenna best suited to?

A 3dBi antenna is particularly attractive for mixed, hilly and undulating terrain because of its broader radiation pattern compared with higher-gain touring antennas.

Is 3dBi better than 6.5dBi?

It depends on the terrain. A 3dBi antenna can perform well through hills and changing elevations, while a 6.5dBi antenna is generally more suited to flatter open country.

How long is the pink antenna?

The ANU856PNK is listed at approximately 665mm overall including the spring base.

How much antenna cable is included?

Approximately 4.5 metres of low-loss coaxial cable is included.

Can I hide the radio transceiver?

Yes. The controller-microphone design allows the 31 × 128 × 147mm transceiver to be mounted in a suitable protected location away from the main dashboard area.

Are CTCSS and DCS secure or private?

No. They provide selective-squelch functionality but do not encrypt UHF CB communications.

Can I connect an external speaker?

Yes. A 3.5mm jack is provided for a compatible optional external speaker.

How long are the warranties?

The DTX4200XP radio is backed by a five-year warranty, while the ANU856PNK antenna is listed with a three-year warranty.

What should I check before buying?

Confirm the radio's correct supply-voltage specification, ensure the transceiver fits your intended mounting position and check that the 665mm 3dBi antenna suits your preferred mounting location and typical terrain.

💗 SERIOUS DUAL RECEIVE PERFORMANCE WITH A DIFFERENT LOOK

The Oricom DTX4200XPAPNK combines premium Dual Receive UHF performance with a distinctive 3dBi pink touring antenna.

With full 5 Watt output, loud dual-speaker audio, an extra-large controller-microphone display, fast scanning and a complete 4.5m antenna cable package, it delivers the performance required for serious touring while adding some personality to your 4WD setup.
