📻 ORICOM DTX4200X6PK OUTBACK VALUE PACK – DTX4200XP DUAL RECEIVE UHF + ANU916 3dBi ANTENNA

Premium Dual Receive UHF Package with 3dBi Detachable Fibreglass Antenna

📡 The Oricom DTX4200X6PK Outback Value Pack combines the premium DTX4200XP Dual Receive UHF CB Radio with the ANU916 3dBi UHF antenna, creating a ready-to-build communication package ideally suited to 4WD touring, rough terrain and outback travel.

The DTX4200XP's Dual Receive function allows you to receive two different UHF channels at the same time. Stay connected with your convoy on one channel while simultaneously monitoring another important channel such as highway Channel 40.

The radio uses a professional-grade controller speaker microphone with an extra-large display, intuitive jog wheel and loud audio from speakers in both the microphone and transceiver. The included ANU916 adds a 3dBi antenna with heavy-duty barrel spring base, detachable fibreglass section and 4.5m low-loss coaxial cable.

⚡ KEY FEATURES

👂 Dual Receive – Hear 2 Channels at Once
Monitor two separate UHF channels simultaneously without installing two radios.

📡 ANU916 3dBi Antenna Included
3dBi antenna configuration suited to touring applications where a broader radiation pattern can be useful through varied terrain.

🎙️ Professional-Grade Controller Speaker Microphone
Large ergonomic microphone puts the display, speaker and primary controls within easy reach.

🔊 Loud Dual-Speaker Audio
Speakers in both the microphone and transceiver provide improved volume and clarity.

🎛️ Intuitive Jog Wheel
Quick control of volume, channel and squelch functions.

💦 IP54 Dust & Splash Resistance
Designed for demanding touring and vehicle environments.

📁 3 Memory Groups
Three memory groups with up to 16 channels per group.

⚡ Fast Channel Scanning
Scans all 80 UHF CB channels in approximately three seconds.

🌈 Large Multi-Colour Backlit Display
Five preset brightness levels plus automatic brightness adjustment.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔐 38 CTCSS & 104 DCS Codes
Provides extensive selective-squelch options for compatible group communications.

📊 Transmit Power Indicator
Provides visual feedback when transmitting.

🛡️ Heavy-Duty Die-Cast Metal Chassis
Robust construction designed for Australian vehicle conditions.

🔌 2m Microphone Extension Cable Included
Allows greater flexibility when mounting the transceiver away from the controller microphone.

🛡️ 5 Year Radio Warranty
The DTX4200XP radio is backed by a five-year warranty.

👂 DUAL RECEIVE – TWO CHANNELS AT THE SAME TIME

The DTX4200XP can receive two separate UHF channels simultaneously.

For example:

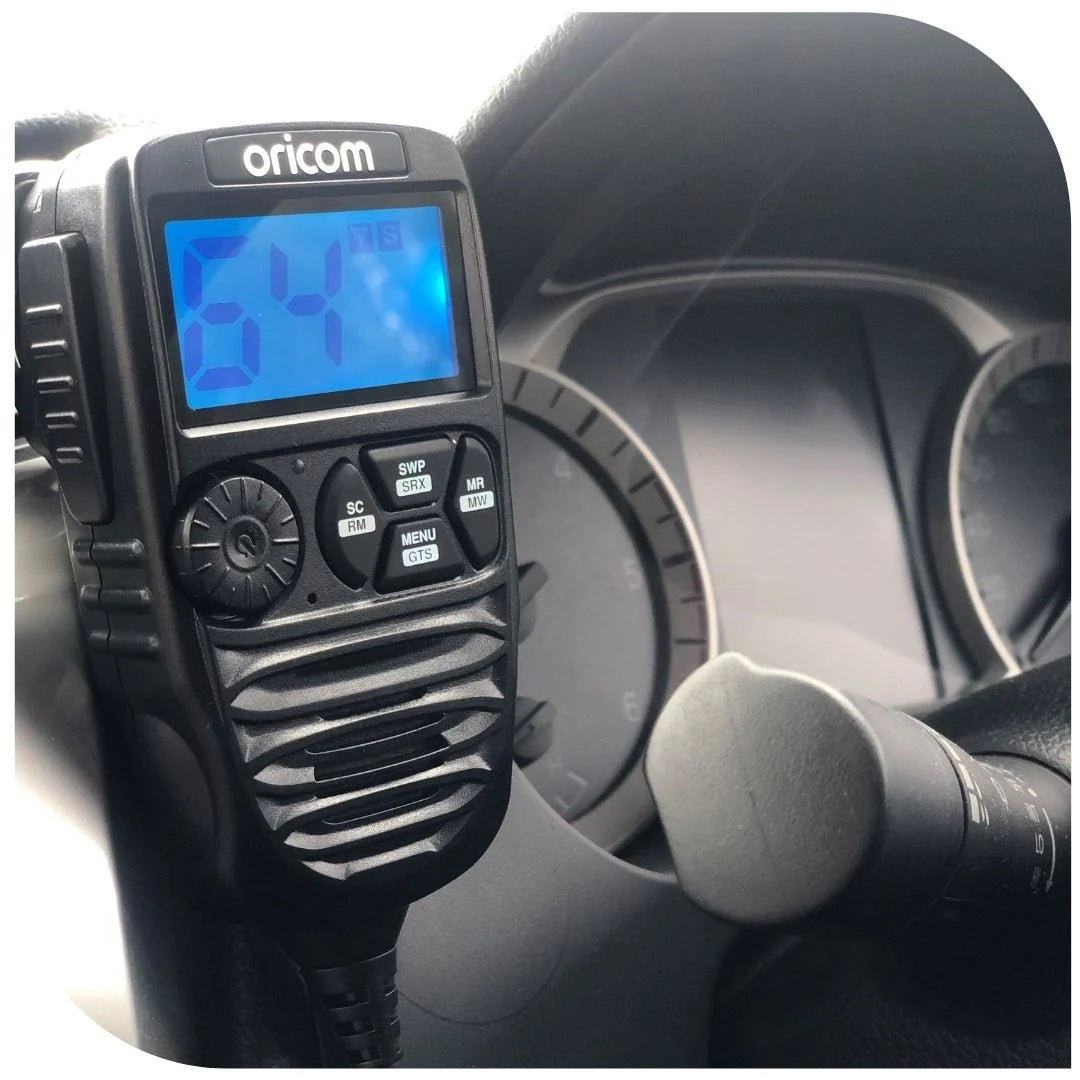

• 🚙 Communicate with your convoy on Channel 64
• 🚛 Monitor highway Channel 40 at the same time

This is particularly useful for touring where you may need to stay connected with your group without missing important road or traffic communications.

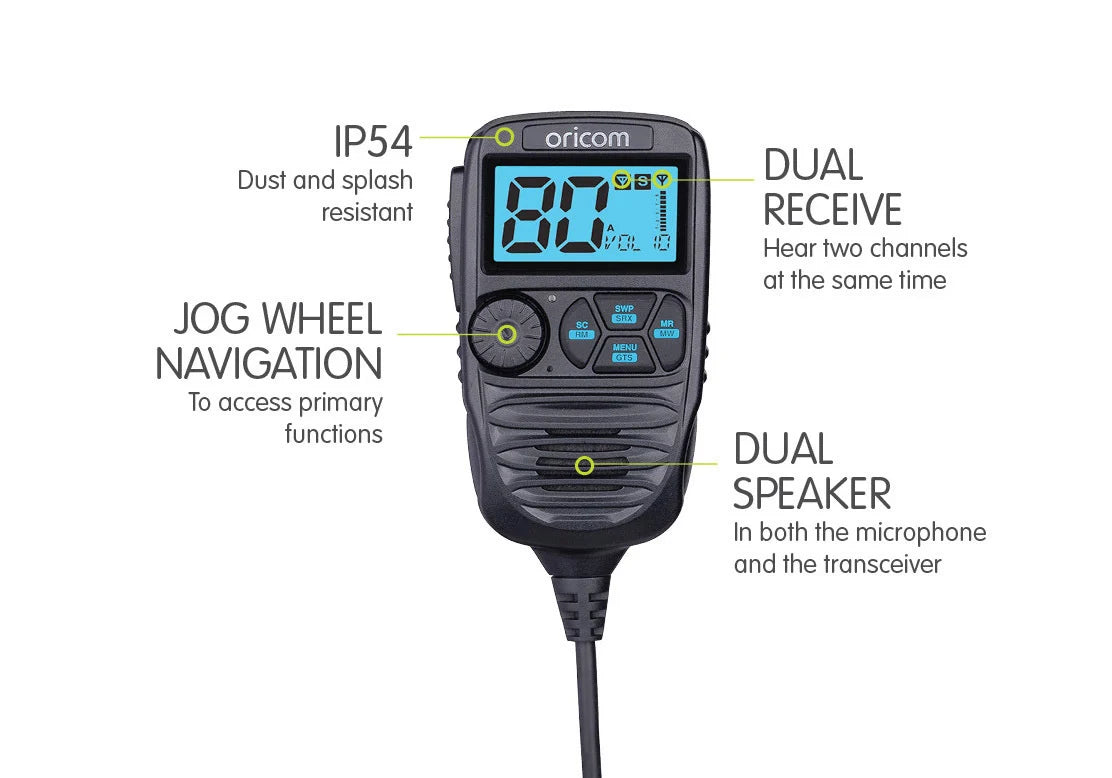

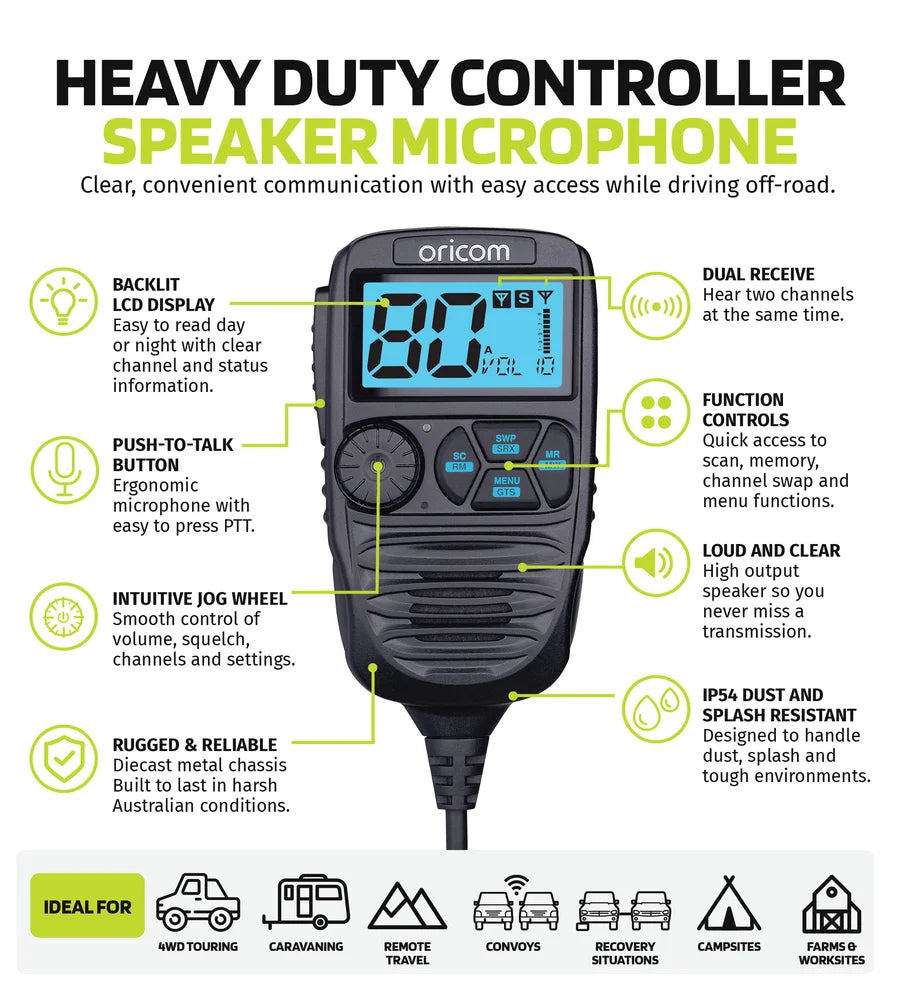

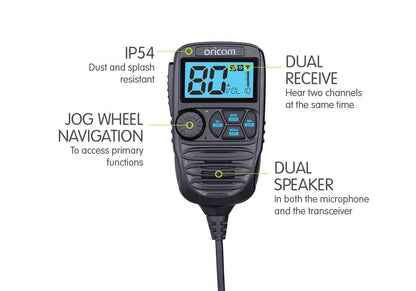

🎙️ PREMIUM CONTROLLER MICROPHONE

The professional-grade controller speaker microphone is designed to feel substantial in the hand and incorporates the extra-large display, speaker and main controls.

The intuitive jog wheel provides quick adjustment of:

• 🔊 Volume
• 📡 Channel
• 🔇 Squelch

The main transceiver can therefore be mounted in a suitable protected location while keeping the radio controls accessible to the driver.

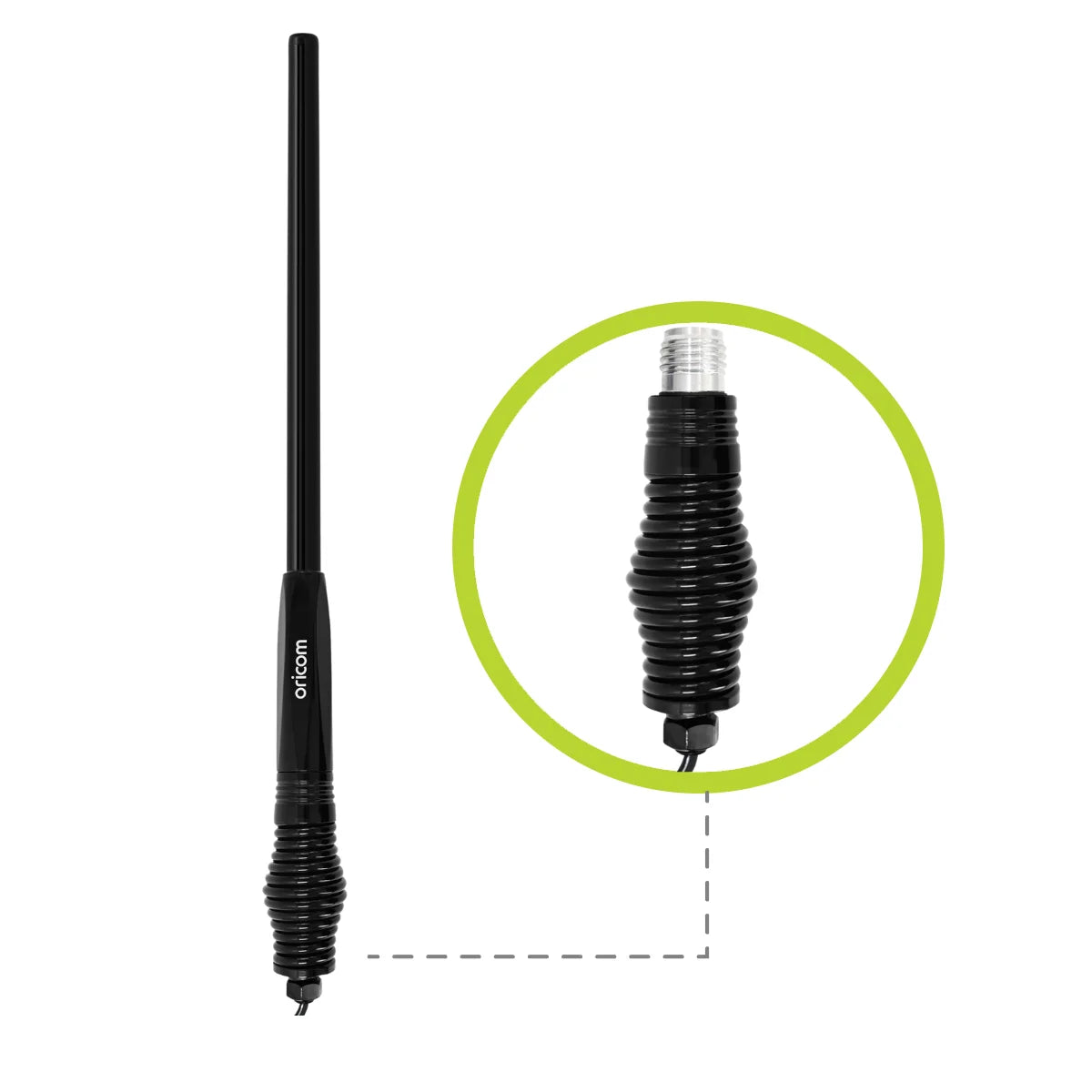

📡 ANU916 3dBi UHF ANTENNA

The included ANU916 antenna provides a 3dBi configuration with a detachable fibreglass section and heavy-duty barrel spring base.

A 3dBi antenna generally provides a broader vertical radiation pattern than higher-gain touring antennas, which can make it particularly useful through:

• ⛰️ Hilly terrain
• 🌲 Undulating tracks
• 🚙 Mixed off-road conditions
• 🏕️ General 4WD touring

⚠️ Antenna gain does not guarantee communication distance. Actual range depends on terrain, antenna position, installation, surrounding obstacles and repeater availability.

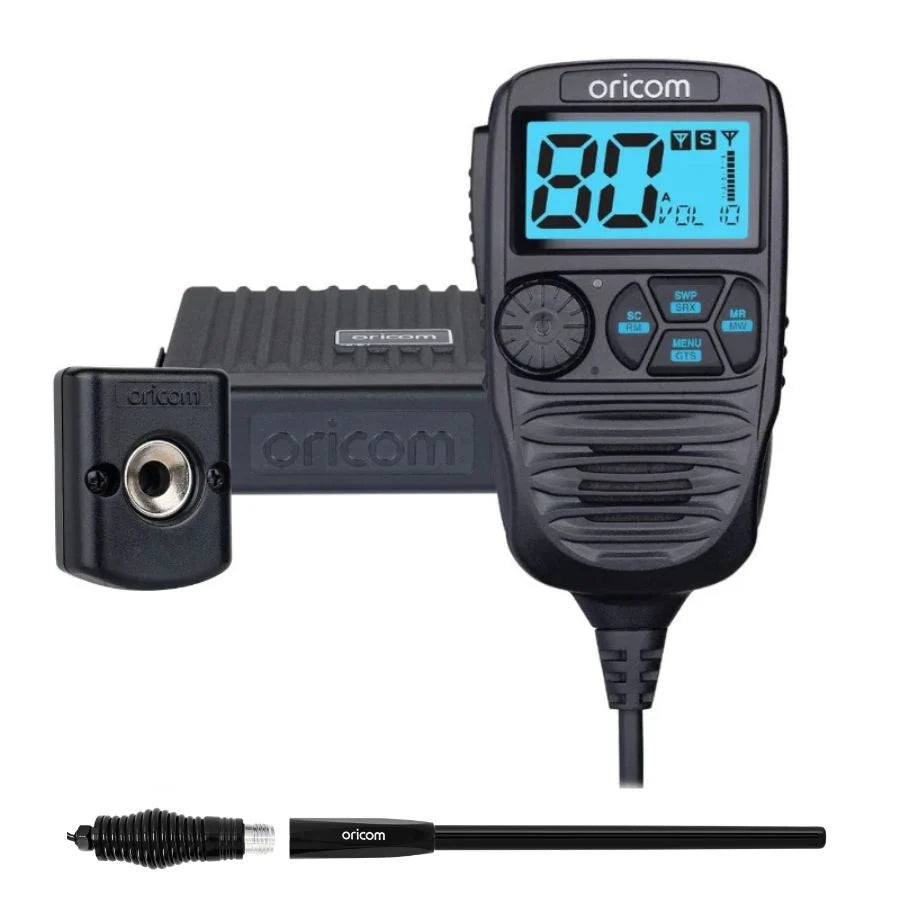

📦 PACKAGE CONTENTS

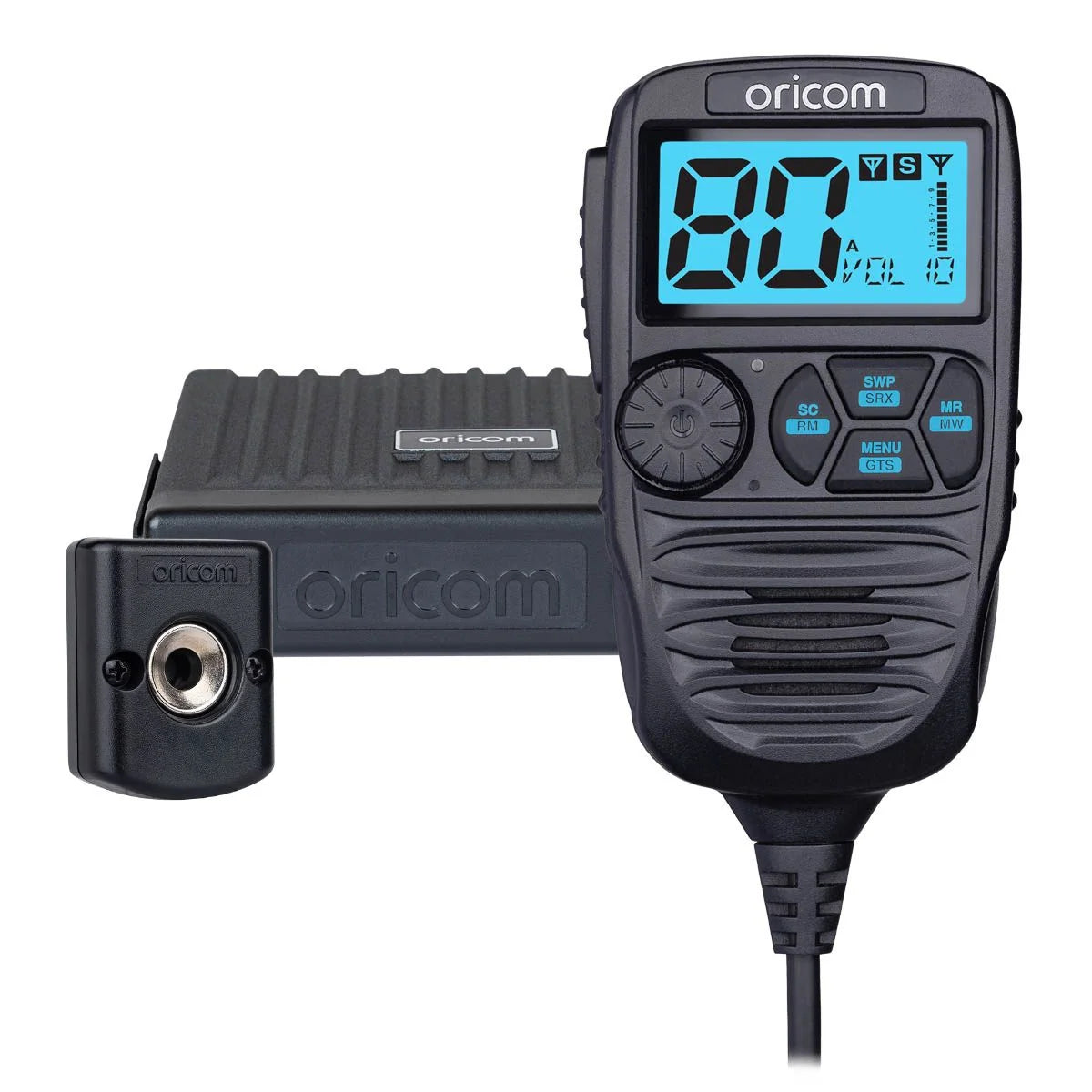

• 📻 Oricom DTX4200XP Dual Receive UHF CB Radio
• 🎙️ Professional-Grade Controller Speaker Microphone
• 🔌 2m Microphone Extension Cable
• 🔧 Radio Mounting Hardware
• 🛠️ Slide-In Mounting Bracket
• 📡 Oricom ANU916 3dBi UHF Antenna
• 🔩 Heavy-Duty Barrel Spring Base
• 🛡️ Fibreglass Radome
• 🔩 Grub Screw & Hex Key
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Brand: Oricom

Pack Model: DTX4200X6PK

Radio Model: DTX4200XP

Antenna Model: ANU916

Dual Receive: Yes

Controller Type: Professional-Grade Controller Speaker Microphone

Speaker in Microphone: Yes

Speaker in Transceiver: Yes

Ingress Protection: IP54

Memory Groups: 3

Channels Per Memory Group: 16

Scanning: 80 Channels in Approximately 3 Seconds

Display: Large Multi-Colour Backlit Display

Backlight Brightness: 5 Preset Levels + Auto

Jog-Wheel Control: Volume / Channel / Squelch

Duplex: Yes

CTCSS Codes: 38

DCS Codes: 104

Transmit Power Indicator: Yes

Auto Power-Off: Off / 1 Hour / 2 Hours / 4 Hours

External Speaker Connection: 3.5mm Jack

Microphone Extension Cable: 2m Included

Transceiver Dimensions: 31 × 128 × 147mm

Radio Warranty: 5 Years

Antenna Gain: 3dBi

Antenna Length: 640mm

Antenna Construction: Detachable Fibreglass Pole / Radome

Antenna Spring: Heavy-Duty Barrel Spring Base

Coaxial Cable: 4.5m Low-Loss Cable

Connector: Pre-Terminated FME

Adaptor: PL259 Included

🔧 INSTALLATION CONSIDERATIONS

• Confirm the DTX4200XP electrical requirements before final wiring
• Select a protected location for the 31 × 128 × 147mm transceiver
• Plan the supplied 2m microphone extension-cable route
• Choose a secure mounting position for the ANU916
• Allow clearance for the 640mm antenna and spring movement
• Route the 4.5m coax away from heat, sharp edges and moving components

❓ FREQUENTLY ASKED QUESTIONS

What does Dual Receive do?

It allows the DTX4200XP to receive two different UHF channels simultaneously, such as a convoy channel and highway Channel 40.

Is Dual Receive the same as scanning?

No. Scanning searches through channels for activity, while Dual Receive allows two selected channels to be monitored at the same time.

What type of terrain suits the 3dBi ANU916?

A 3dBi antenna can be particularly useful through mixed, hilly and undulating terrain because of its broader radiation pattern compared with higher-gain configurations.

Is 3dBi better than 6.5dBi?

Neither is universally better. A 3dBi antenna can suit hilly and variable terrain, while a higher-gain 6.5dBi antenna is generally more attractive for flatter open-country and highway conditions.

Can the antenna be removed?

The ANU916 is described as having a detachable fibreglass pole, which provides additional flexibility for storage or clearance requirements.

How long is the antenna?

The supplied ANU916 specification lists the antenna length as approximately 640mm.

How much coaxial cable is included?

The ANU916 includes approximately 4.5 metres of low-loss coaxial cable.

What connectors are included?

The coax is supplied with a pre-terminated FME connector and a PL259 adaptor.

Can I hide the radio transceiver?

Yes. The controller-microphone design allows the 31 × 128 × 147mm transceiver to be mounted in a suitable protected location away from the main dashboard area.

Does it include an external speaker?

No external speaker is identified as included. A 3.5mm jack is provided for a compatible optional external speaker.

How long is the radio warranty?

The DTX4200XP radio is backed by a five-year warranty.

How does this compare with the DTX4200XVP Offroad Adventure Pack?

The main difference is the antenna. The DTX4200X6PK includes the 3dBi ANU916, making it particularly attractive for mixed and undulating terrain. The DTX4200XVP includes the higher-gain 6.5dBi ANU230, which is generally better suited to flatter and more open touring conditions.

What should I check before buying?

Confirm the DTX4200XP electrical requirements suit your vehicle, make sure the transceiver fits your intended mounting position and consider whether the ANU916's 3dBi antenna pattern matches the terrain you normally travel through.

🏕️ BUILT FOR THE OUTBACK. READY FOR CHANGING TERRAIN.

The Oricom DTX4200X6PK combines premium Dual Receive communication with a practical 3dBi antenna package suited to serious 4WD touring.

With loud dual-speaker audio, controller-microphone operation, fast scanning, IP54 protection and the ANU916 heavy-duty antenna system, it's a strong package for travellers heading beyond the bitumen and into changing Australian terrain.
