📻 ORICOM DTX4200X4PK OUTBACK VALUE PACK – DUAL RECEIVE UHF + ANU913 3dBi ANTENNA

Premium DTX4200XP Dual Receive UHF Package with 3dBi Detachable Fibreglass Antenna

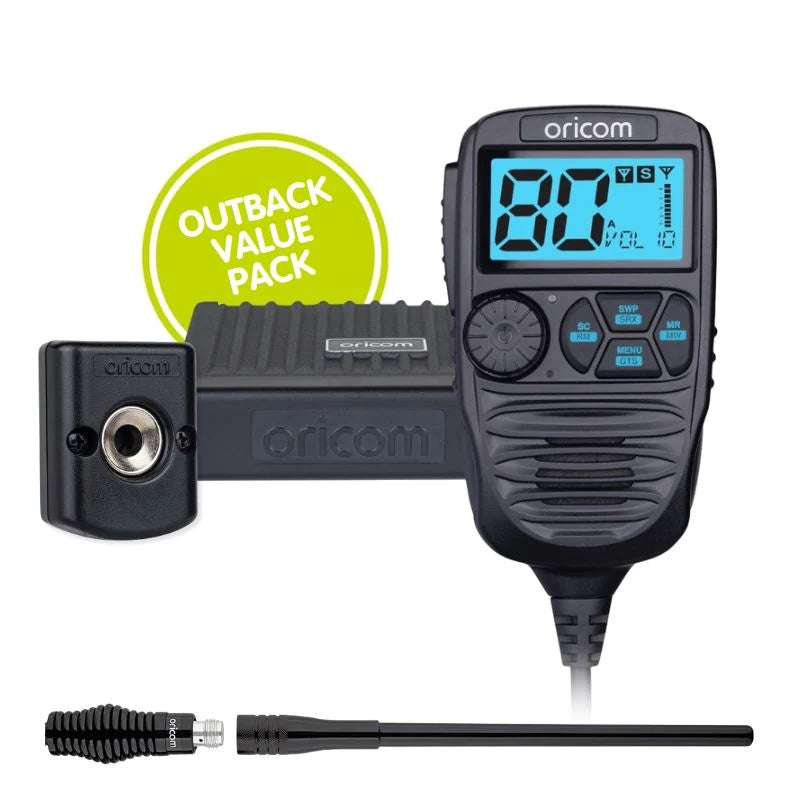

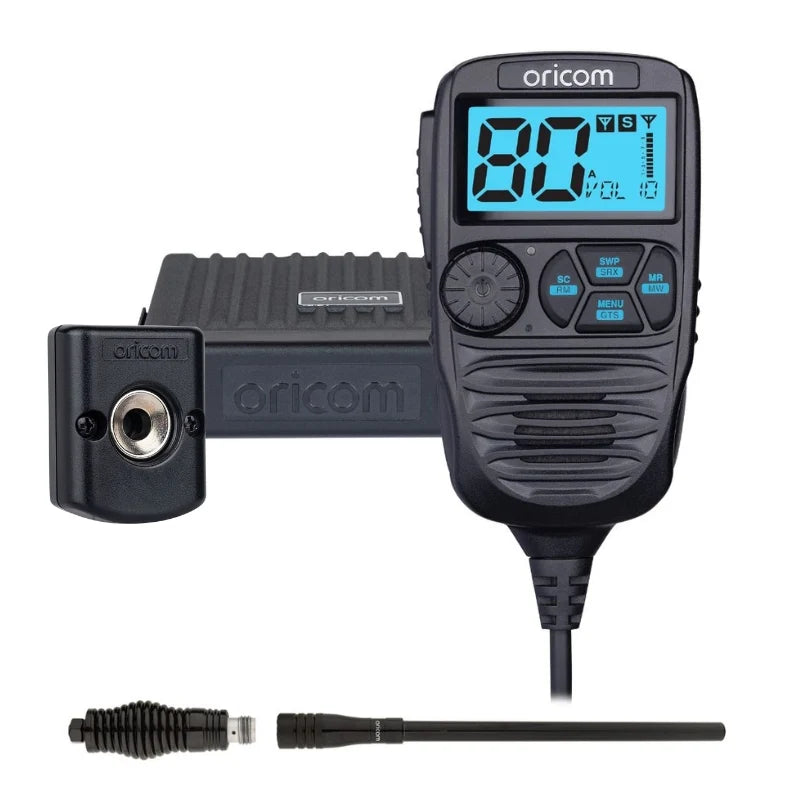

📡 The Oricom DTX4200X4PK Outback Value Pack combines the premium DTX4200XP Dual Receive UHF CB Radio with the ANU913 3dBi UHF antenna for a complete touring communication package.

Dual Receive allows the DTX4200XP to receive two different UHF channels simultaneously. Stay connected with your convoy on one channel while monitoring another important channel such as highway Channel 40.

The included ANU913 features a 3dBi detachable fibreglass antenna, heavy-duty barrel spring base and 4.5m low-loss coaxial cable, making this package particularly well suited to mixed, hilly and undulating terrain.

---

⚡ KEY FEATURES

👂 Dual Receive
Receive and listen to two different UHF channels at the same time.

📡 ANU913 3dBi Antenna Included
640mm detachable fibreglass antenna with heavy-duty barrel spring base.

📻 Full 5 Watt Output
Maximum 5 Watt UHF CB transmit power.

🔊 Dual-Speaker Audio
Speakers in both the controller microphone and transceiver provide loud, clear received audio.

🎙️ Professional-Grade Controller Microphone
Larger ergonomic microphone with extra-large display and primary radio controls.

🎛️ Intuitive Jog Wheel
Quick control of volume, channel and squelch.

💦 IP54 Dust & Splash Resistance
Designed for demanding vehicle and touring environments.

🌈 Large 96 Multi-Colour Display
Five preset brightness levels plus automatic adjustment.

⚡ Fast 80-Channel Scanning
Scans all 80 UHF CB channels in approximately three seconds.

📁 3 Memory Groups
Three groups with up to 16 channels per group.

🔐 38 CTCSS & 104 DCS Codes
Selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🛡️ Heavy-Duty Die-Cast Chassis
Robust construction designed for Australian conditions.

🛡️ 5 Year Radio Warranty
The DTX4200XP is backed by a five-year warranty.

---

👂 DUAL RECEIVE – TWO CHANNELS AT ONCE

The DTX4200XP can receive two selected UHF channels simultaneously.

For example, you can talk with your convoy on Channel 64 while continuing to monitor highway Channel 40.

Unlike conventional scanning, which moves through channels looking for activity, Dual Receive allows both selected channels to remain available for incoming transmissions.

---

📡 ANU913 3dBi TOURING ANTENNA

The included ANU913 provides a 3dBi antenna configuration with a detachable fibreglass pole and heavy-duty barrel spring base.

Its broader radiation pattern makes a 3dBi antenna particularly attractive for:

• ⛰️ Hilly terrain
• 🌲 Undulating tracks
• 🚙 Mixed off-road conditions
• 🏕️ General 4WD touring

⚠️ Antenna gain does not guarantee communication distance. Actual range depends on terrain, mounting position, installation quality, obstacles and repeater availability.

---

📦 PACKAGE CONTENTS

• 📻 DTX4200XP Dual Receive UHF CB Radio
• 🎙️ Professional-Grade Controller Speaker Microphone
• 🔌 2m Microphone Extension Cable
• 🛠️ Slide-In Mounting Bracket & Mounting Hardware
• 📡 ANU913 3dBi UHF Antenna
• 🔩 Heavy-Duty Barrel Spring Base
• 📡 Detachable Fibreglass Radome
• 🔩 Grub Screw & Hex Key
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

---

📋 RADIO SPECIFICATIONS

Radio Model: DTX4200XP

Dual Receive: Yes

RF Output Power: 5 Watts Maximum

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning Speed: 50ms Per Channel

Memory Groups: 3 × 16 Channels

CTCSS / DCS: 38 / 104

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Diode & Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Transmit Current: Approximately 1.7A with 50-Ohm Antenna Termination

Frequency Stability: ±5ppm

Modulation: F3E / FM

Receiver Type: Dual Conversion Superheterodyne

Receiver Sensitivity: -123dBm for 12dB SINAD – As Listed

Audio Output: >2 Watts at 8 Ohms

External Speaker Connection: 3.5mm Jack

Auto Power-Off: Off / 1 Hour / 2 Hours / 4 Hours

Transmit Power Indicator: Yes

Transceiver Dimensions (H × W × D): 31 × 128 × 147mm

Transceiver Weight: 548g

Controller Microphone Weight: 700g

Compliance: AS/NZS 4365:2011

Radio Warranty: 5 Years

---

📋 ANU913 ANTENNA SPECIFICATIONS

Antenna Model: ANU913

Antenna Gain: 3dBi

Antenna Length: 640mm

Antenna Construction: Detachable Fibreglass Radome

Spring: Heavy-Duty Barrel Spring Base

Coaxial Cable: 4.5m Low-Loss Cable

Connector: Pre-Terminated FME

PL259 Adaptor: Included

Grub Screw & Hex Key: Included

---

🔧 BEFORE YOU BUY

• Suitable for a compatible nominal 12V system within the stated 10–15V DC range
• Retain the specified 2A fuse protection
• Do not connect directly to a nominal 24V vehicle electrical system
• Allow space for the 31 × 128 × 147mm transceiver
• Allow suitable clearance for the 640mm antenna and spring movement
• Plan the 2m microphone extension and 4.5m antenna cable routes before installation

---

❓ QUICK FAQ

What does Dual Receive do?

It allows the DTX4200XP to receive two different UHF channels simultaneously, such as your convoy channel and highway Channel 40.

Is Dual Receive the same as scanning?

No. Scanning searches through channels for activity. Dual Receive allows two selected channels to be received at the same time.

What terrain suits the 3dBi ANU913?

A 3dBi antenna is particularly attractive for hilly, undulating and mixed terrain because of its broader radiation pattern.

Is 3dBi better than a 6.5dBi antenna?

It depends on terrain. A 3dBi antenna generally suits hilly and changing terrain, while a 6.5dBi antenna is generally more suited to flatter open country and highway use.

Can the fibreglass antenna be removed?

Yes. The ANU913 is specified with a detachable fibreglass pole.

How long is the antenna?

The supplied specification lists the ANU913 at approximately 640mm long.

How much antenna cable is supplied?

The package includes approximately 4.5 metres of low-loss coaxial cable with an FME connector and PL259 adaptor.

Can I connect an external speaker?

Yes. The DTX4200XP provides a 3.5mm jack for a compatible optional external speaker.

Can I use this directly in a 24V truck?

No. The radio is specified for 10–15V DC operation, so a suitable 24V-to-12V conversion solution would be required.

What should I check before ordering?

Confirm the transceiver mounting space, antenna clearance, cable routing and that the ANU913's 3dBi antenna pattern suits the terrain you normally travel through.

---

🏕️ PREMIUM DUAL RECEIVE PERFORMANCE FOR CHANGING TERRAIN

The Oricom DTX4200X4PK combines the DTX4200XP's premium Dual Receive functionality with a practical 3dBi detachable antenna package designed for serious 4WD touring.

With loud dual-speaker audio, fast scanning, controller-microphone operation and the ANU913 heavy-duty antenna system, it's a strong package for travellers heading into mixed and undulating Australian terrain.
