ANU906AT All-Terrain UHF CB Antenna | 3dBi / 6.5dBi

📡 ORICOM ANU906AT ALL-TERRAIN UHF CB ANTENNA PACK – 3dBi / 6.5dBi

Switch Between 3dBi & 6.5dBi to Suit Different Terrain

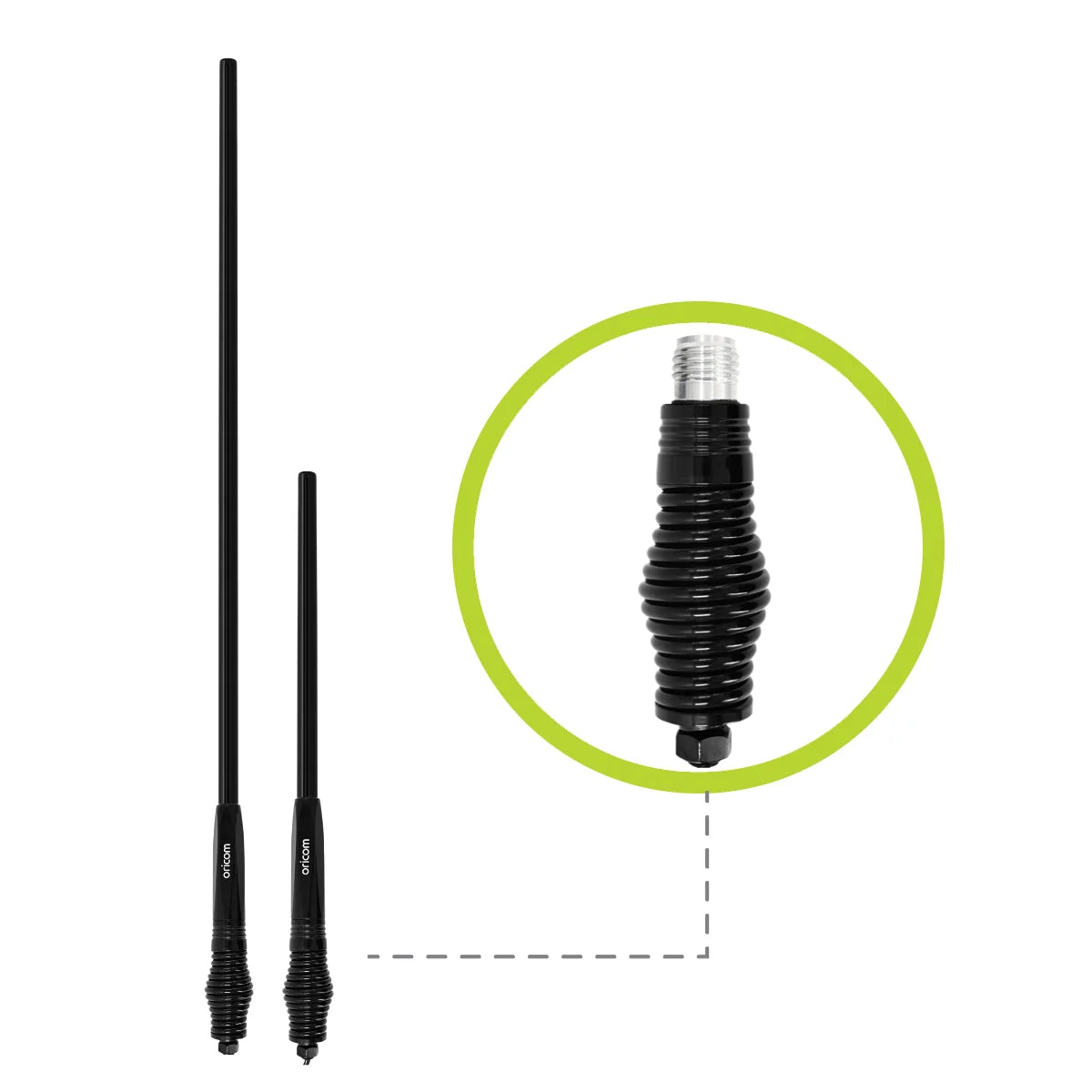

The Oricom ANU906AT is a versatile all-terrain UHF CB antenna pack designed for 4WDs, touring vehicles and users travelling through changing terrain.

Run the supplied 3dBi antenna for built-up, hilly or mountainous areas, then install the 600mm fibreglass pole to convert the system to 6.5dBi for flatter, more open country.

⚡ KEY FEATURES

🔄 3dBi / 6.5dBi All-Terrain Design
One antenna system provides two gain configurations to suit different driving environments.

⛰️ 3dBi Short Configuration
The 640mm configuration is well suited to built-up, hilly and mountainous terrain.

🏜️ 6.5dBi High-Gain Configuration
Fit the supplied 600mm fibreglass pole to convert the antenna to the 1200mm 6.5dBi configuration for flatter terrain.

🛡️ Spring Base
Designed for vehicle-mounted UHF CB applications and changing road conditions.

🔌 4.5m Low-Loss Coaxial Cable
Supplied with 4.5 metres of low-loss coaxial cable for vehicle installation.

🔧 FME Connector & PL259 Adaptor
Pre-terminated FME connector assists with cable routing, with a PL259 adaptor included for connection.

🛡️ 3 Year Warranty
Backed by Oricom's three-year warranty.

📋 TECHNICAL SPECIFICATIONS

Model: ANU906AT

Type: All-Terrain UHF CB Antenna Pack

Low-Gain Configuration: 3dBi

3dBi Antenna Length: 640mm

High-Gain Configuration: 6.5dBi

6.5dBi Antenna Length: 1200mm

Extension Pole Length: 600mm

Extension Pole Construction: Fibreglass

Base: Spring Base

Coaxial Cable: 4.5m Low-Loss

Connector: Pre-Terminated FME

Adaptor: PL259 Included

Warranty: 3 Years

⚠️ Antenna gain does not guarantee a specific communication range. Actual performance depends on terrain, antenna position, installation quality, surrounding obstacles and radio conditions.

🏕️ WHICH CONFIGURATION SHOULD I USE?

⛰️ 3dBi – Built-Up, Hilly & Mountainous Areas
The lower-gain configuration generally provides a broader vertical radiation pattern, making it well suited to changing or elevated terrain.

🏜️ 6.5dBi – Flat & Open Terrain
Fit the extension pole when travelling through flatter country where the higher-gain configuration may provide an advantage.

❓ QUICK FAQ

Do I need two separate antennas?

No. The ANU906AT converts between 3dBi and 6.5dBi by fitting or removing the supplied 600mm fibreglass pole.

Is the coax cable included?

Yes. The pack includes 4.5m of low-loss coaxial cable with a pre-terminated FME connector and PL259 adaptor.

Which gain should I use?

Use the 3dBi configuration for built-up, hilly or mountainous terrain, and the 6.5dBi configuration for flatter, more open country.

📡 ONE ANTENNA PACK FOR CHANGING TERRAIN

The Oricom ANU906AT gives 4WD and touring users the flexibility to switch between 3dBi and 6.5dBi configurations, making it a practical antenna system for everything from mountain tracks to open-country touring.
