ANU806AT All-Terrain UHF CB Antenna | 3dBi / 6.5dBi

📡 ORICOM ANU806AT 2-IN-1 ALL-TERRAIN UHF CB ANTENNA – 3dBi / 6.5dBi

Switch Between 3dBi & 6.5dBi to Suit Changing Terrain

The Oricom ANU806AT is a versatile 2-in-1 all-terrain UHF CB antenna system designed for 4WDs, touring vehicles and users travelling through a mix of built-up, hilly and open terrain.

Use the 3dBi configuration for built-up, mountainous and undulating areas, then fit the supplied fibreglass pole to convert the antenna to 6.5dBi for flatter, more open country.

⚡ KEY FEATURES

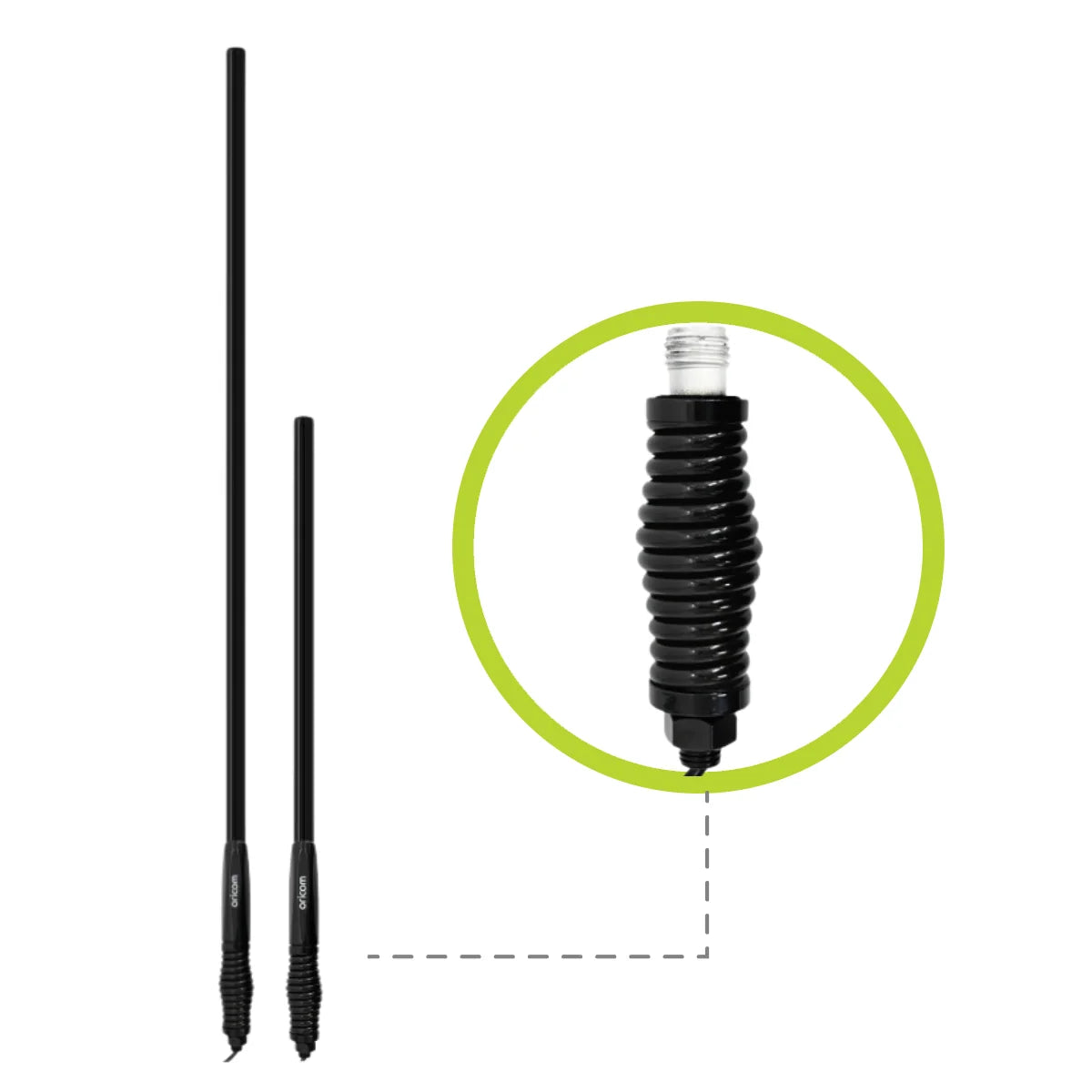

🔄 2-in-1 3dBi / 6.5dBi Design
One antenna system provides two gain configurations to better suit changing terrain.

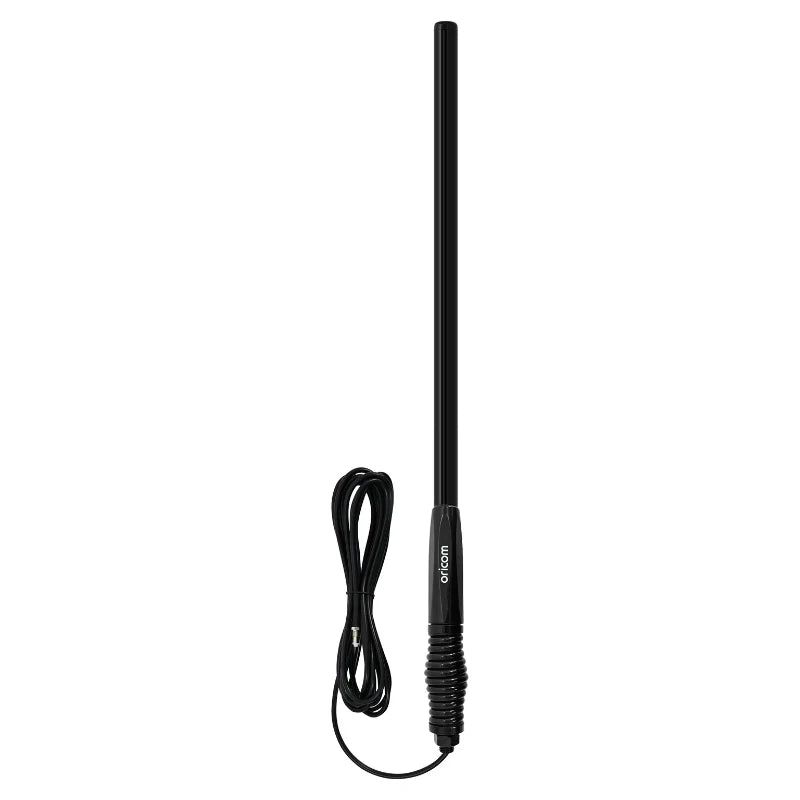

⛰️ 3dBi Configuration
The 665mm setup is well suited to built-up, hilly and mountainous areas where a broader vertical radiation pattern can be beneficial.

🏜️ 6.5dBi High-Gain Configuration
Fit the supplied 600mm fibreglass pole to convert the system to the 1040mm 6.5dBi configuration for flatter terrain.

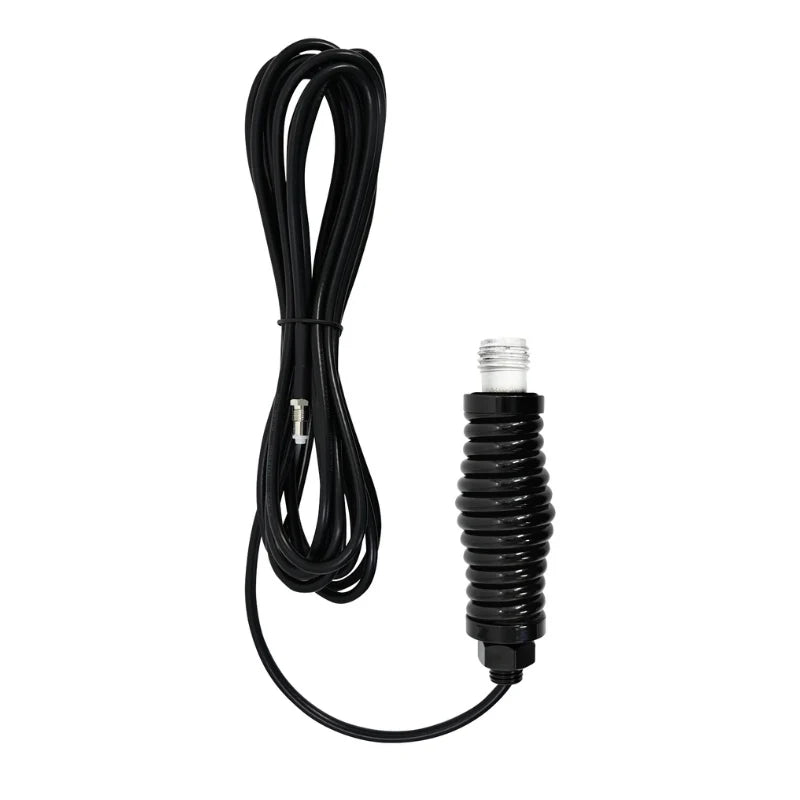

🛡️ Spring Base
Designed for vehicle-mounted UHF CB use and changing road conditions.

🔌 4.5m Low-Loss Coaxial Cable
Supplied with 4.5 metres of low-loss coaxial cable for vehicle installation.

🔧 FME Connector & PL259 Adaptor
Pre-terminated FME connector assists with cable routing, with a PL259 adaptor included for final radio connection.

🛡️ 3 Year Warranty
Backed by Oricom's three-year warranty.

📋 TECHNICAL SPECIFICATIONS

Model: ANU806AT

Type: 2-in-1 All-Terrain UHF CB Antenna

Low-Gain Configuration: 3dBi

3dBi Antenna Length: 665mm

High-Gain Configuration: 6.5dBi

6.5dBi Antenna Length: 1040mm

Extension Pole Length: 600mm

Extension Pole Construction: Fibreglass

Base: Spring Base

Coaxial Cable: 4.5m Low-Loss

Connector: Pre-Terminated FME

Adaptor: PL259 Included

Warranty: 3 Years

⚠️ Antenna gain does not guarantee a specific communication range. Actual performance depends on terrain, antenna position, installation quality, surrounding obstacles and radio conditions.

🏕️ WHICH CONFIGURATION SHOULD I USE?

⛰️ 3dBi – Built-Up, Hilly & Mountainous Terrain
Use the lower-gain configuration where terrain changes frequently and a broader vertical radiation pattern can be advantageous.

🏜️ 6.5dBi – Flat & Open Terrain
Fit the extension pole when travelling through flatter country where the higher-gain configuration may provide an advantage.

❓ QUICK FAQ

Do I need two separate antennas?

No. The ANU806AT converts between 3dBi and 6.5dBi by fitting or removing the supplied fibreglass pole.

Is the coax cable included?

Yes. The pack includes 4.5m of low-loss coaxial cable with a pre-terminated FME connector and PL259 adaptor.

Which gain should I use?

Use the 3dBi configuration for built-up, hilly or mountainous terrain, and the 6.5dBi configuration for flatter, more open country.

📡 ONE ANTENNA SYSTEM FOR CHANGING TERRAIN

The Oricom ANU806AT gives 4WD and touring users the flexibility to switch between 3dBi and 6.5dBi configurations, making it a practical antenna choice for varied Australian touring conditions.
