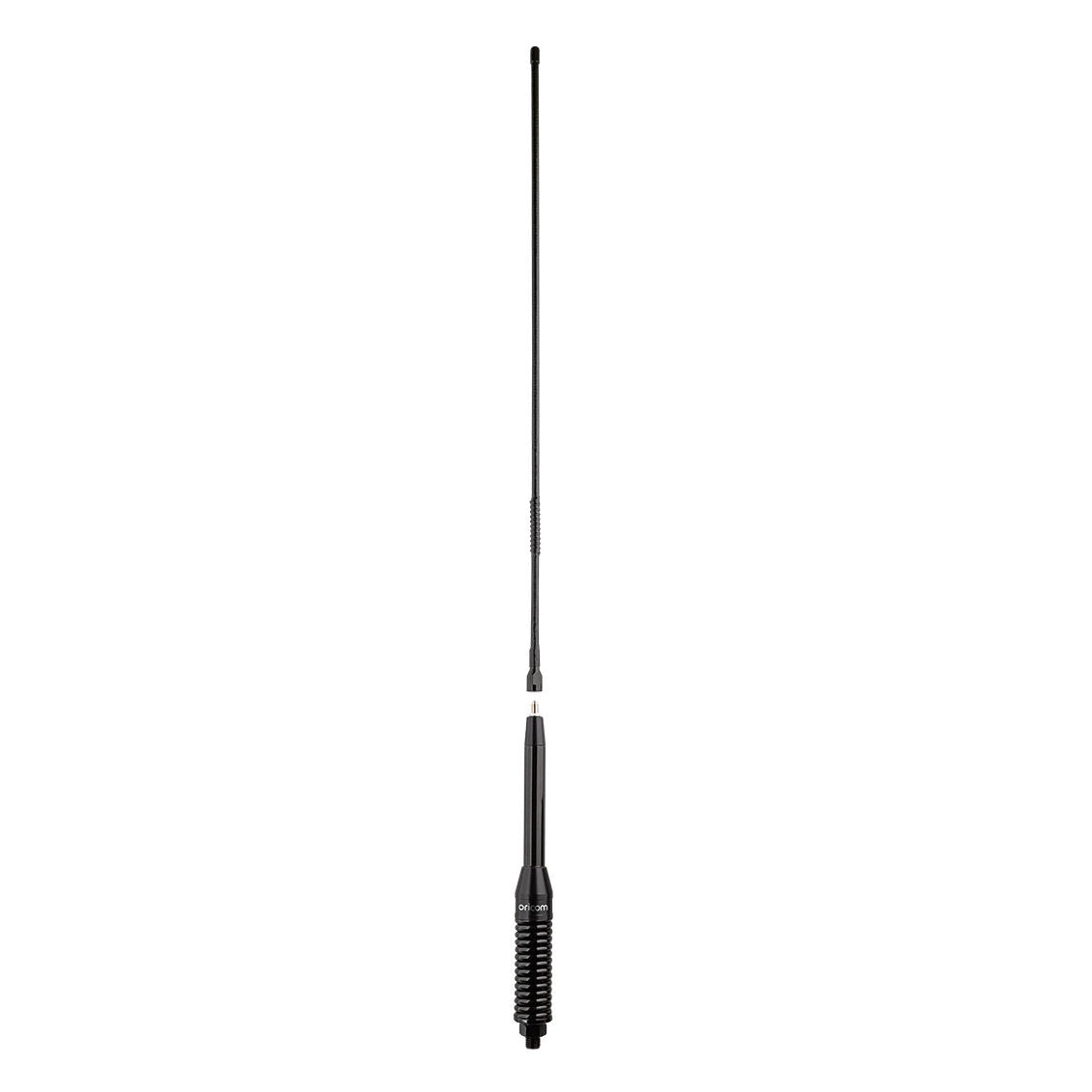

ANU240 6.5dBi Ground-Independent UHF CB Antenna

📡 ORICOM ANU240 6.5dBi UHF CB ANTENNA WITH PARALLEL SPRING BASE

Ground-Independent 6.5dBi Antenna with Elevated Feed & Heavy-Duty Parallel Spring

The Oricom ANU240 is a rugged 6.5dBi ground-independent UHF CB antenna designed for 4WD, touring and vehicle communication applications.

Featuring an elevated feed, fibreglass whip and heavy-duty parallel spring base, the ANU240 provides a durable antenna setup with flexible bullbar mounting options.

⚡ KEY FEATURES

📡 6.5dBi Gain
High-gain UHF CB antenna configuration generally well suited to flatter and more open terrain.

🚙 Ground-Independent Design
Provides greater flexibility when selecting a suitable vehicle mounting location.

📶 Elevated Feed
Incorporates an elevated feed as part of the complete antenna system.

🛡️ Heavy-Duty Parallel Spring Base
Designed to provide flexibility at the base for demanding 4WD and touring applications.

📏 977mm Overall Length
Overall antenna height includes the spring base.

🔌 4.5m Low-Loss Coaxial Cable
Supplied with 4.5 metres of cable for routing through the vehicle.

🔧 FME Connector & PL259 Adaptor
Pre-terminated FME connector assists with cable routing, with a PL259 adaptor included for connection to compatible UHF CB radios.

📋 TECHNICAL SPECIFICATIONS

Model: ANU240

Type: Ground-Independent UHF CB Antenna

Gain: 6.5dBi

Antenna Length: 977mm Including Spring Base

Whip Construction: Fibreglass

Feed Type: Elevated Feed

Base: Heavy-Duty Parallel Spring

Finish: Black Powder Coating

Coaxial Cable: 4.5m Low-Loss

Connector: Pre-Terminated FME

Adaptor: PL259 Included

Mounting: Multiple Bullbar Mounting Options

Mounting Bracket: Not Included

⚠️ A suitable mounting bracket is required and is not supplied. Select the bracket to suit your chosen bullbar mounting position.

⚠️ Antenna gain does not guarantee a specific communication range. Actual performance depends on terrain, antenna position, installation quality, surrounding obstacles and radio conditions.

🚙 IDEAL FOR

• 🚙 4WD & touring vehicles
• 🏜️ Flat & open terrain
• 🔨 Work utes & commercial vehicles
• 🛡️ Bullbar-mounted UHF installations
• 🏕️ Camping & off-road touring

❓ QUICK FAQ

Does the ANU240 require a mounting bracket?

Yes. A suitable bracket is required separately and should be selected to suit your chosen mounting position.

Does it include the coax cable?

Yes. The ANU240 includes 4.5m of low-loss coaxial cable with a pre-terminated FME connector and PL259 adaptor.

What terrain is 6.5dBi generally suited to?

A 6.5dBi antenna is generally well suited to flatter and more open terrain, although actual performance will depend on the installation and surrounding conditions.

📡 HEAVY-DUTY 6.5dBi UHF PERFORMANCE FOR 4WD & TOURING

With its ground-independent design, elevated feed, fibreglass whip and heavy-duty parallel spring base, the Oricom ANU240 is a durable UHF CB antenna for demanding vehicle installations.
