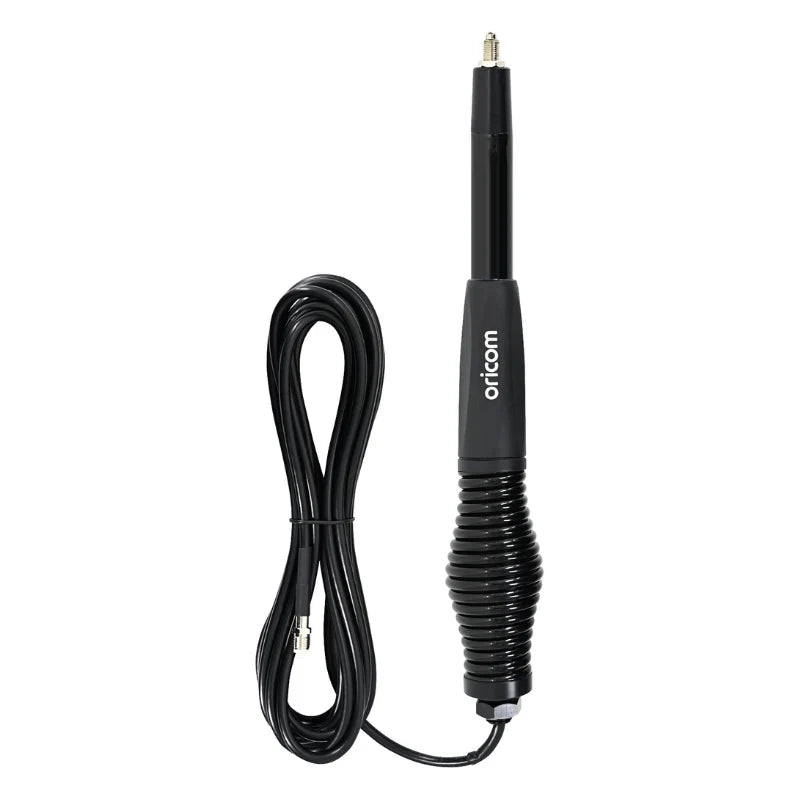

ANU236 6.5dBi Ground-Independent UHF CB Antenna

📡 ORICOM ANU236 6.5dBi GROUND-INDEPENDENT UHF CB ANTENNA

960mm 6.5dBi Antenna with Elevated Feed & Heavy-Duty Barrel Spring

The Oricom ANU236 is a rugged 6.5dBi ground-independent UHF CB antenna designed for 4WD, touring and vehicle communication applications.

Featuring an elevated feed, heavy-duty barrel spring base and durable black powder-coated finish, the ANU236 offers flexible mounting options and comes complete with 4.5m of low-loss coaxial cable, a pre-terminated FME connector and PL259 adaptor.

⚡ KEY FEATURES

📡 6.5dBi Gain
High-gain UHF CB antenna configuration designed for reliable vehicle communications.

🚙 Ground-Independent Design
Provides greater flexibility when selecting a suitable mounting position on the vehicle.

📶 Elevated Feed
Incorporates an elevated feed as part of the complete antenna system.

🛡️ Heavy-Duty Barrel Spring
Provides flexibility at the base for demanding touring and off-road vehicle applications.

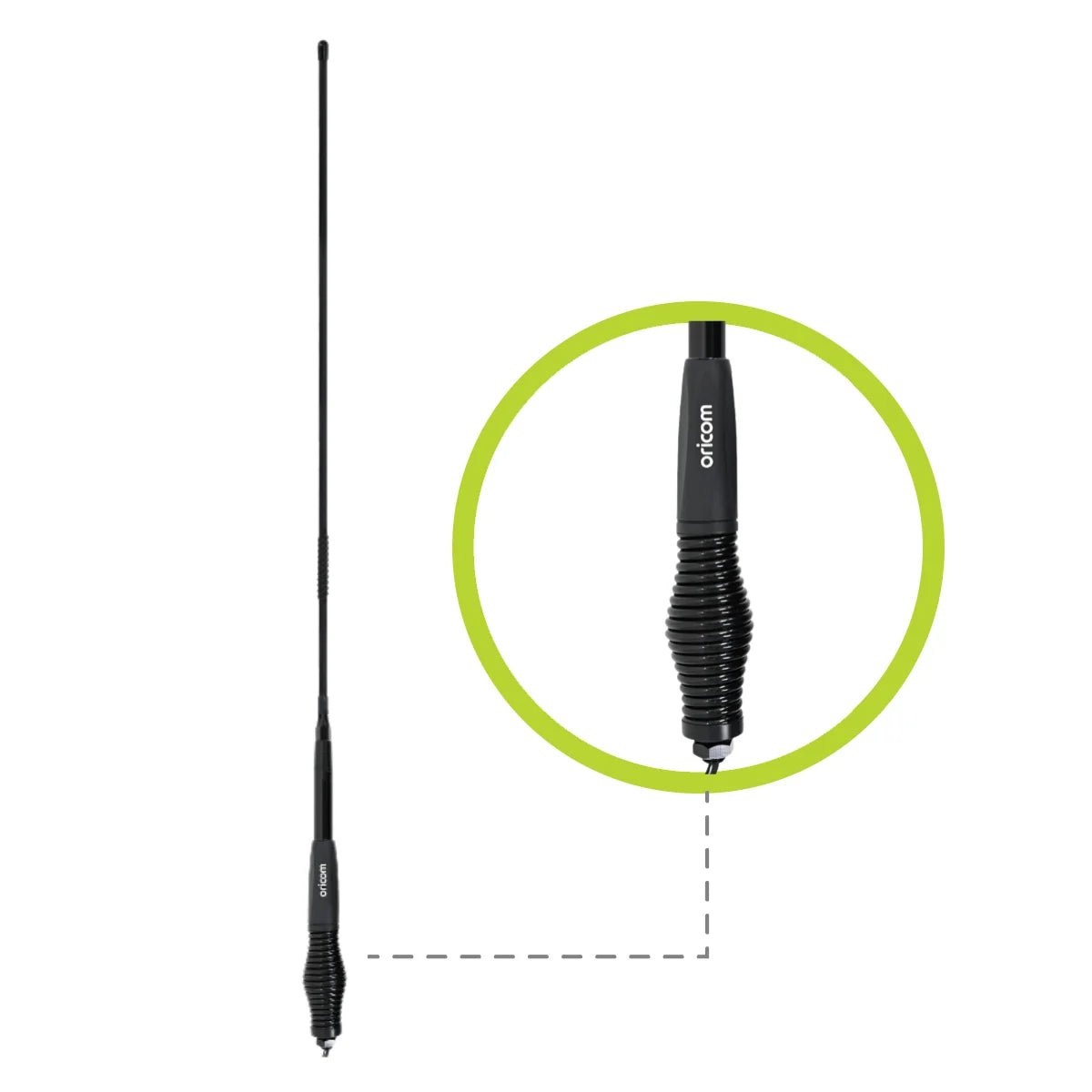

📏 960mm Overall Length
Provides a substantial antenna profile while remaining suitable for a range of bullbar mounting arrangements.

🔩 5/16 UNC Whip Thread
The antenna whip uses a 5/16 UNC threaded connection.

🔌 4.5m Low-Loss Coaxial Cable
Supplied with cable ready for routing through the vehicle.

🔧 FME Connector & PL259 Adaptor
Pre-terminated FME connector assists with cable routing, with a PL259 adaptor supplied for connection to compatible UHF CB radios.

🛡️ 3 Year Warranty
Backed by Oricom's three-year warranty.

📋 TECHNICAL SPECIFICATIONS

Model: ANU236

Type: Ground-Independent UHF CB Antenna

Gain: 6.5dBi

Antenna Length: 960mm

Feed Type: Elevated Feed

Base: Heavy-Duty Barrel Spring

Finish: Black Powder Coating

Whip Thread: 5/16 UNC

Coaxial Cable: 4.5m Low-Loss

Connector: Pre-Terminated FME

Adaptor: PL259 Included

Mounting: Multiple Bullbar Mounting Options

Mounting Bracket: Not Included

Warranty: 3 Years

⚠️ A suitable mounting bracket is required and is not supplied. The correct bracket will depend on your chosen mounting position.

⚠️ The 5/16 UNC measurement refers to the antenna whip thread, not the spring-base mounting thread.

⚠️ Antenna gain does not guarantee a specific communication range. Actual performance depends on terrain, installation quality, antenna position, surrounding obstacles and radio conditions.

🚙 IDEAL FOR

• 🚙 4WD & touring vehicles
• 🔨 Work utes & commercial vehicles
• 🏕️ Camping & off-road travel
• 🛡️ Bullbar-mounted UHF installations

❓ QUICK FAQ

Does the ANU236 include a mounting bracket?

No. A mounting bracket is required separately and should be selected to suit your chosen mounting position.

What thread does the antenna whip use?

The whip uses a 5/16 UNC thread. This specification applies to the whip connection, not the spring-base mounting thread.

Does it include the antenna cable?

Yes. The ANU236 includes 4.5m of low-loss coaxial cable with a pre-terminated FME connector and PL259 adaptor.

📡 HEAVY-DUTY 6.5dBi UHF PERFORMANCE FOR 4WD & TOURING

With its ground-independent design, elevated feed, heavy-duty barrel spring and 960mm profile, the Oricom ANU236 is a robust UHF CB antenna solution for demanding vehicle installations.
