ANU1206 2-in-1 UHF CB Antenna | 3dBi / 6.5dBi

📡 ORICOM ANU1206 2-IN-1 ALL-TERRAIN UHF CB ANTENNA – 3dBi / 6.5dBi

Switch Between Low & High Gain to Suit Changing Terrain

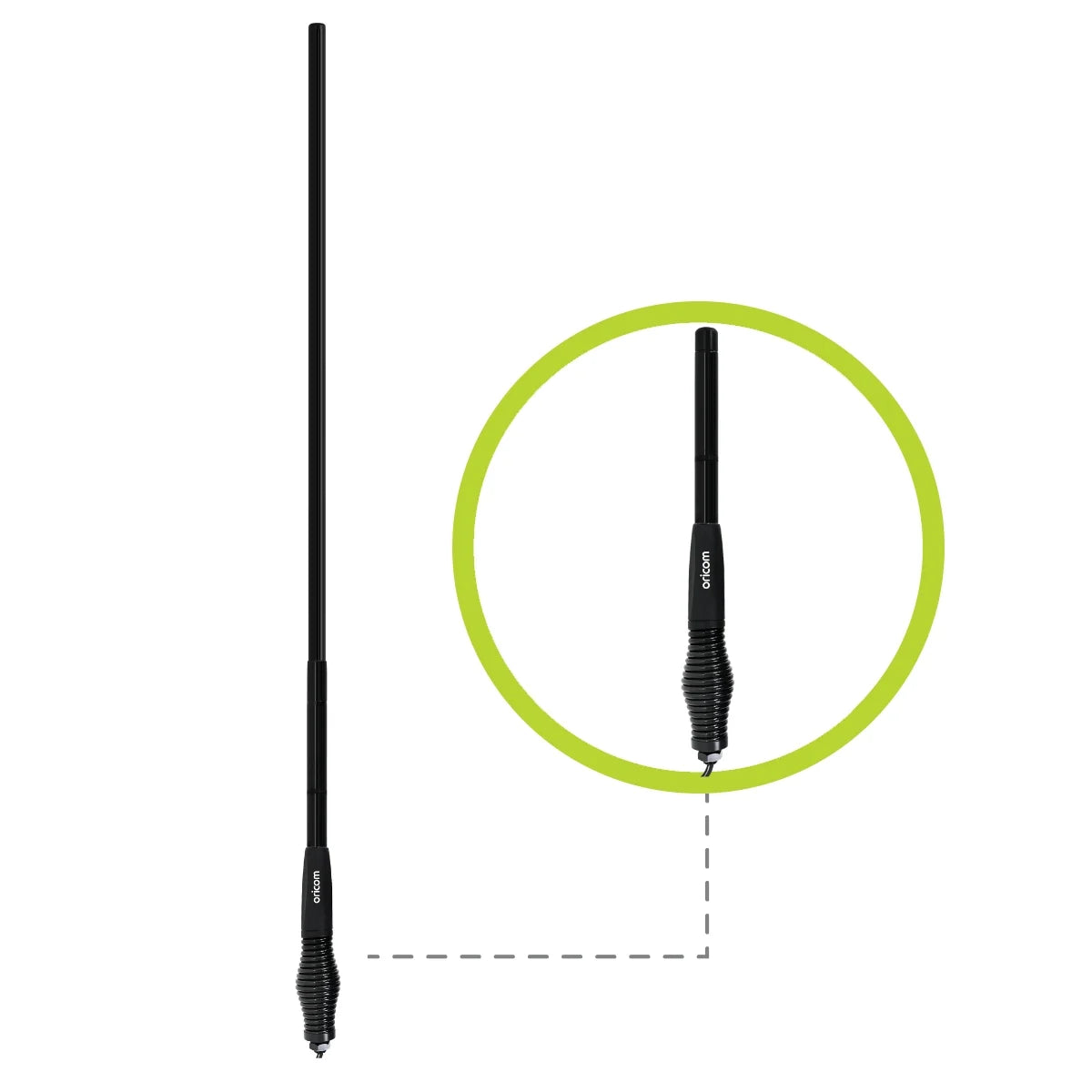

The Oricom ANU1206 is a versatile 2-in-1 UHF CB antenna system designed to give touring and 4WD users two antenna gain options from a single installation.

Run the compact 3dBi antenna for hilly and undulating terrain, then fit the supplied fibreglass extension pole to convert the system to 6.5dBi for flatter, more open country.

⚡ KEY FEATURES

🔄 2-in-1 3dBi / 6.5dBi Design
Switch between two antenna configurations to better suit changing terrain and touring conditions.

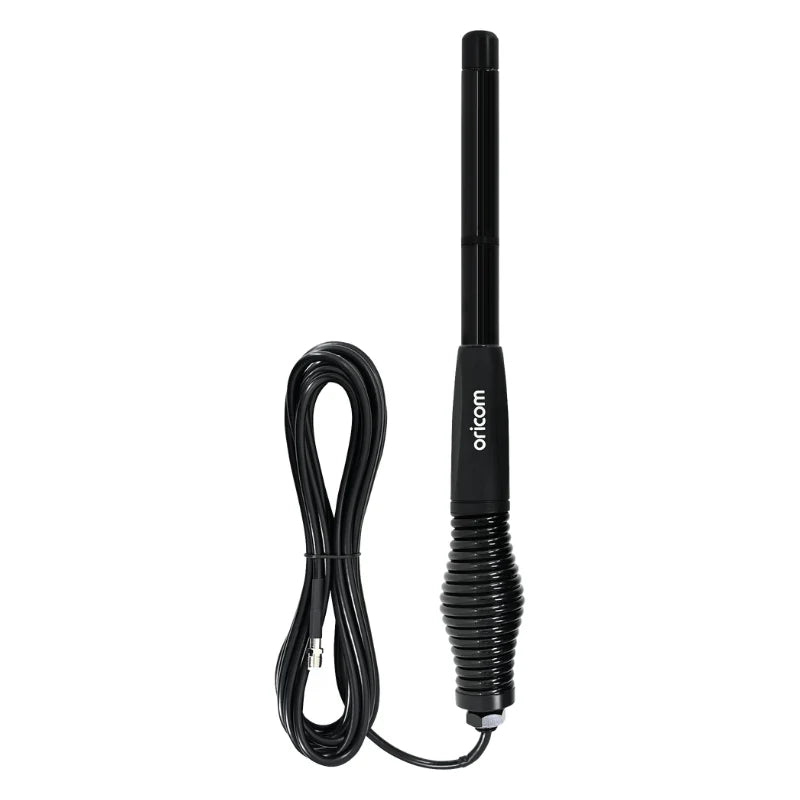

⛰️ 3dBi Short Antenna
The compact 3dBi configuration is well suited to hilly, mountainous and undulating terrain where a broader vertical radiation pattern can be beneficial.

🏜️ 6.5dBi High-Gain Configuration
Add the supplied fibreglass extension pole to create the higher-gain configuration, suited to flatter and more open terrain.

🛡️ Heavy-Duty Spring Base
Includes a large barrel spring base designed for demanding vehicle and off-road installations.

📡 Elevated Feed Design
The 3dBi antenna incorporates an elevated feed as part of the complete antenna assembly.

🔌 4.5m Coaxial Cable
Supplied with 4.5 metres of coaxial cable for vehicle installation.

🔧 Installation Hardware Included
Includes a grub screw, PL259 adaptor and hex key for securing the fibreglass pole.

📦 PACK INCLUDES

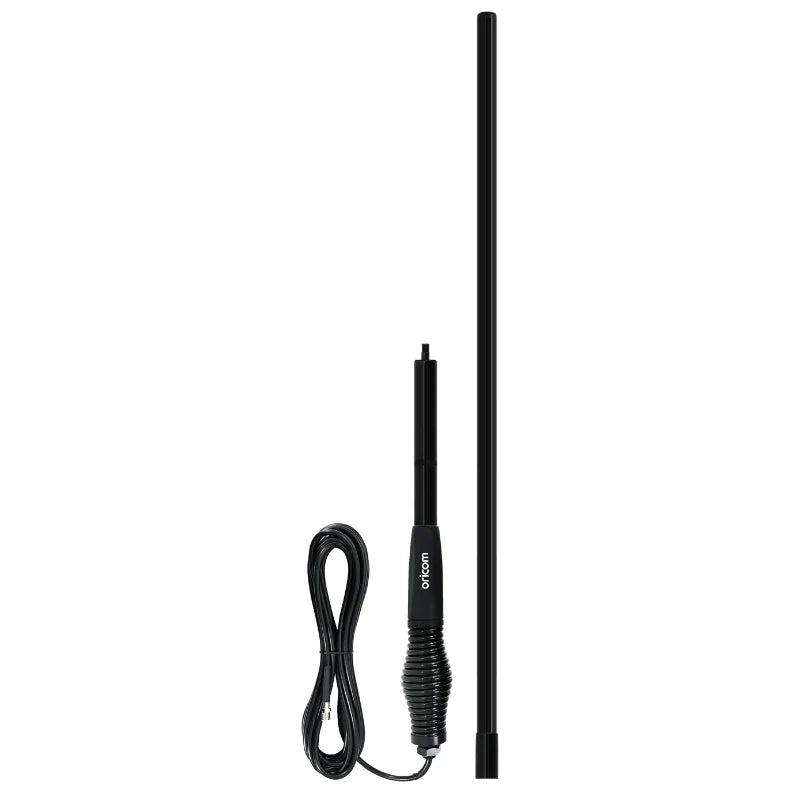

• 📡 3dBi UHF CB Antenna with Fibreglass Pole
• 🛡️ Heavy-Duty Large Barrel Spring Base with Elevated Feed
• 📏 1m Fibreglass Extension Pole
• 🔌 4.5m Coaxial Cable
• 🔩 Grub Screw
• 🔌 PL259 Adaptor
• 🔧 Hex Key

📋 TECHNICAL SPECIFICATIONS

Model: ANU1206

Type: 2-in-1 All-Terrain UHF CB Antenna

Low-Gain Configuration: 3dBi

High-Gain Configuration: 6.5dBi

3dBi Antenna Length: 0.46m including spring base

Extension Pole Length: 1m

Complete High-Gain Antenna Height: Approximately 1.4m as specified

Construction: Fibreglass Antenna Poles

Base: Heavy-Duty Large Barrel Spring Base

Feed Type: Elevated Feed

Coaxial Cable Length: 4.5m

Connector Adaptor: PL259 Included

⚠️ Antenna gain does not guarantee a specific communication range. Actual UHF performance depends on terrain, installation, antenna position, surrounding obstacles and radio conditions.

🏕️ WHICH CONFIGURATION SHOULD I USE?

⛰️ 3dBi – Hills & Undulating Terrain
Use the shorter 3dBi configuration when travelling through hilly, mountainous or changing terrain.

🏜️ 6.5dBi – Flat & Open Terrain
Install the extension pole when travelling through flatter, open areas where the higher-gain configuration may provide an advantage.

❓ QUICK FAQ

Do I need two separate antennas?

No. The ANU1206 provides both 3dBi and 6.5dBi configurations from one antenna system. Simply fit or remove the extension pole to change configurations.

Is the spring base included?

Yes. The antenna includes the heavy-duty large barrel spring base with elevated feed.

Does it include the coax cable and PL259 adaptor?

Yes. A 4.5m coaxial cable and PL259 adaptor are included.

📡 ONE ANTENNA. TWO GAIN OPTIONS. BUILT FOR CHANGING TERRAIN.

From hilly tracks to wide-open touring country, the Oricom ANU1206 lets you switch between 3dBi and 6.5dBi configurations without replacing your complete antenna system – making it a versatile choice for serious 4WD and touring setups.
