ANC970 4G LTE Cellular Antenna | 6.5dBi Multi-Band

📶 ORICOM ANC970 4G LTE CELLULAR ANTENNA

Multi-Band 4G LTE Antenna with Fibreglass Pole & Heavy-Duty Barrel Spring Base

The Oricom ANC970 is a rugged multi-band 4G LTE cellular antenna designed for vehicle-based cellular installations where a durable external antenna is required.

Featuring a 970mm fibreglass pole, heavy-duty barrel spring base and multi-band frequency coverage, the ANC970 is suited to bull bar, roof rack, rear vehicle and heavy-duty mirror arm mounting applications when installed with a suitable bracket.

⚡ KEY FEATURES

📶 Multi-Band 4G LTE Coverage
Designed to operate across multiple cellular frequency bands from 698MHz through to 2700MHz.

📡 Up to 6.5dBi Gain
Provides different gain levels across the supported frequency bands to suit multi-band cellular communications.

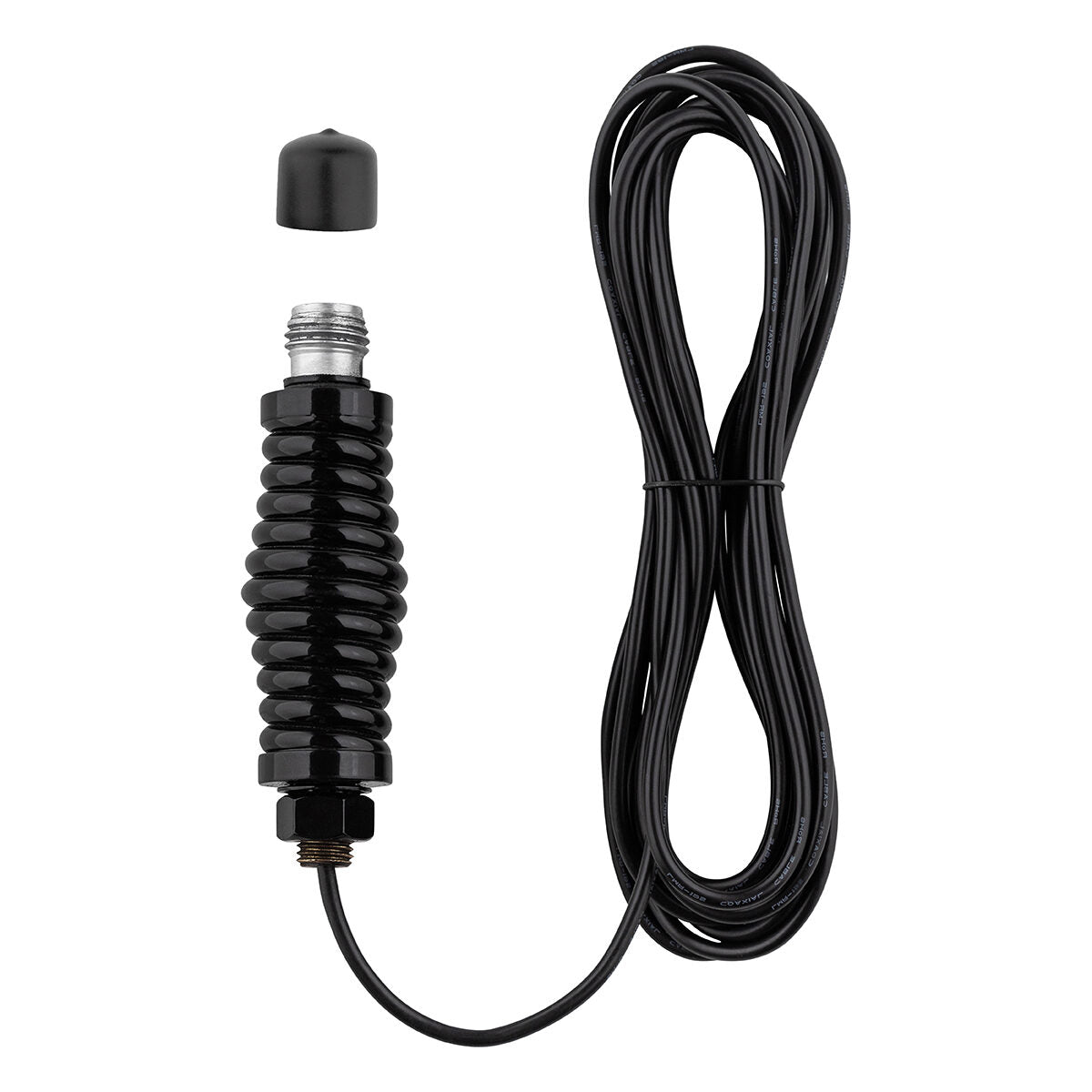

🛡️ Heavy-Duty Barrel Spring Base
Provides flexibility at the base for demanding vehicle and touring applications.

📏 970mm Overall Length
Overall antenna height includes the spring base.

🛠️ Fibreglass Pole
Durable fibreglass construction with a black powder-coated finish.

🔩 Secure Whip Connection
Includes a grub screw and hex key for securing the fibreglass whip.

🔌 4.5m Low-Loss Coaxial Cable
Supplied with 4.5 metres of low-loss coaxial cable for routing through the vehicle.

🔧 SMA Male Connector
The pre-terminated cable is fitted with an SMA/M connector for compatible cellular equipment.

📶 FREQUENCY RANGE & GAIN

698–960MHz: 6.5dBi Gain

1710–2170MHz: 4dBi Gain

2300–2700MHz: 5.5dBi Gain

📦 PACK INCLUDES

• 📡 ANC970 4G LTE Cellular Antenna
• 🛡️ Heavy-Duty Barrel Spring Base
• 📏 970mm Fibreglass Pole Assembly
• 🔩 Grub Screw
• 🔧 Hex Key
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated SMA Male Connector

📋 TECHNICAL SPECIFICATIONS

Model: ANC970

Type: Multi-Band 4G LTE Cellular Antenna

Frequency Range: 698–2700MHz Across Supported Bands

Gain @ 698–960MHz: 6.5dBi

Gain @ 1710–2170MHz: 4dBi

Gain @ 2300–2700MHz: 5.5dBi

Antenna Length: 970mm Including Spring Base

Pole Construction: Fibreglass

Base: Heavy-Duty Barrel Spring

Finish: Black Powder Coating

Coaxial Cable: 4.5m Low-Loss

Connector: SMA Male

Mounting Locations: Bull Bar / Roof Rack / Rear Vehicle / Heavy-Duty Mirror Arm

Mounting Bracket: Required Separately

⚠️ A suitable mounting bracket is required and is not listed as included. Select the bracket to suit your chosen mounting location.

⚠️ Confirm that your modem, cellular booster or other equipment uses a compatible SMA connection and supports the required frequency bands before installation.

⚠️ Antenna gain does not guarantee a specific cellular signal improvement or coverage distance. Actual performance depends on network availability, supported bands, terrain, antenna location, installation quality and surrounding obstructions.

🚙 IDEAL FOR

• 🚙 4WD & touring vehicles
• 🚛 Trucks & heavy vehicles
• 🛻 Work utes & service vehicles
• 🏕️ Remote touring & camping setups
• 📶 Compatible 4G LTE cellular equipment

❓ QUICK FAQ

What cellular frequencies does the ANC970 support?

The antenna covers 698–960MHz, 1710–2170MHz and 2300–2700MHz frequency bands.

What connector does it use?

The supplied 4.5m coaxial cable is pre-terminated with an SMA male connector.

Does it include a mounting bracket?

No mounting bracket is listed as supplied. A suitable bracket should be selected according to your chosen bull bar, roof rack, rear or mirror-arm mounting location.

📶 RUGGED MULTI-BAND 4G LTE CONNECTIVITY FOR VEHICLE INSTALLATIONS

With multi-band coverage, up to 6.5dBi gain, a heavy-duty spring base, 970mm fibreglass pole and 4.5m low-loss coax, the Oricom ANC970 is a robust external cellular antenna for compatible touring, commercial and remote-travel communication systems.
