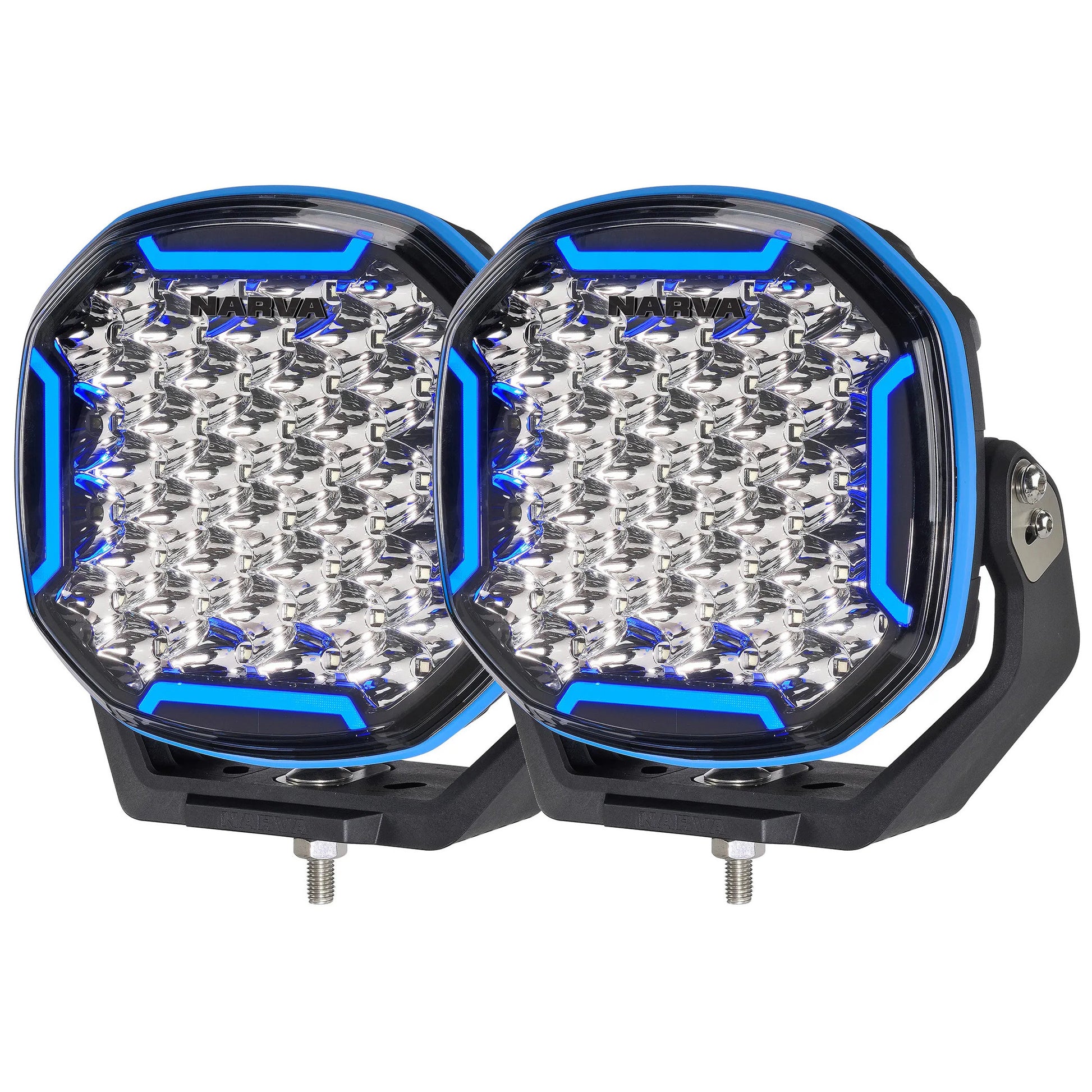

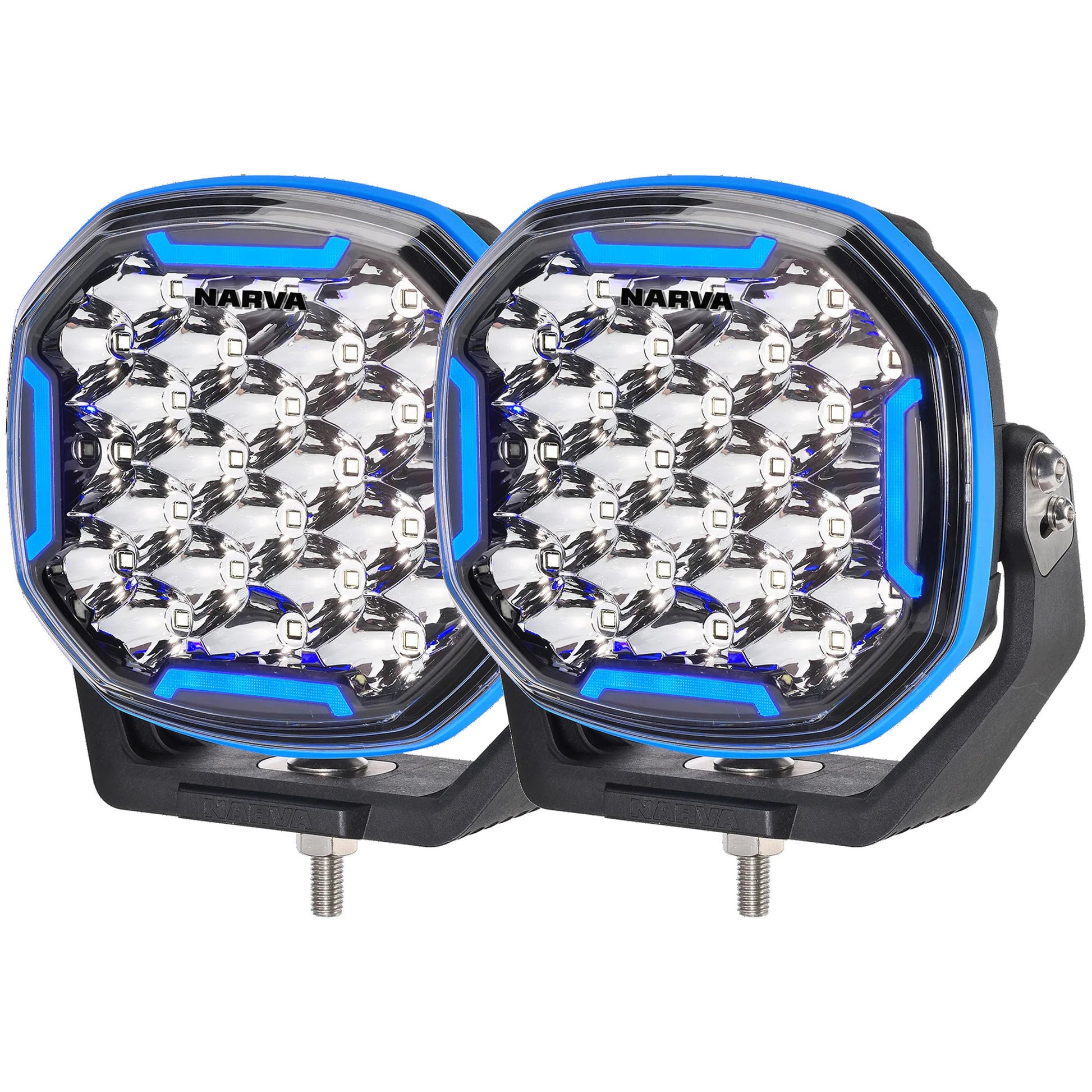

NARVA 12/24V EX2-R DRIVING LIGHTS (PAIR)
NARVA 12/24V EX2-R DRIVING LIGHTS (PAIR)
SKU:72174
Couldn't load pickup availability
The EX2R range retains the output and build quality of the EX2 series with the addition of ADR/ECE approved front position lights offering visibility, and a distinctive appearance. These position lights are RGB enabled, allowing them to be changed to various colours when paired with the 12V RGB Bluetooth® Controller - a never before seen feature on the market (For off-road use only).
EX2R’s feature ADR Approved white front position lights with RGB technology, which when paired with the EX2R Bluetooth Controller, offer a choice of 48 colours. With a hybrid beam that provides exceptional width and distance, without dark spots or hot spots, ensuring extraordinary clarity in the dark. Revolutionary internal switching (patent-pending)
means there is no need for a harness. Sealed to IP68 & IP69K standards, equipped with hard-coated polycarbonate lenses, composite mounting brackets, stainless steel hardware, and backed by a robust 7-year warranty, the EX2R’s are built for long-lasting performance.

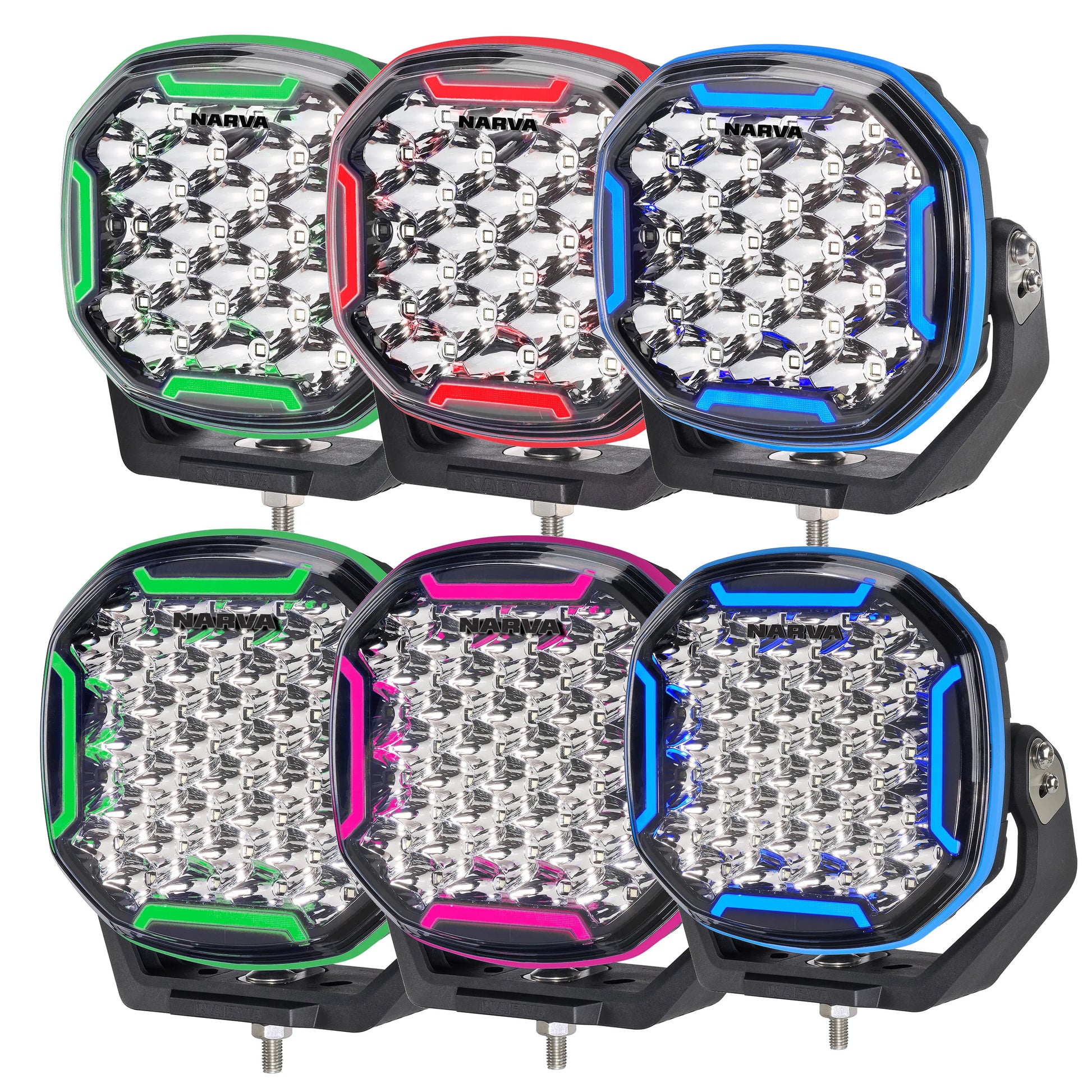

RGB ENABLED POSITION LIGHTS
App controlled RGB technology allows you to customise the light pipes on your enabled EX2R driving lights to one of 48 different colours. Simply add the RGB module and scan the QR code on the box for more details. Position lights are ADR approved when in white mode only. RGB mode is for offroad use only.

CLEVER HARNESS-FREE INSTALLATION
EX2 eliminates the need for a harness, making it the easiest to wire on the market, with no components needing to be routed through the firewall.

WORLD-CLASS BUILD QUALITY
Featuring a virtually unbreakable UV Resistant Hard Coated polycarbonate lens which won't chip or yellow with age, diecast aluminium housing, and the highest possible ingress protection (IP68 & IP69K), EX2-R lights provide exceptional durability and reliabilty. Just as strong as diecast or pressed metal brackets, EX2-R's composite glass-filled nylon brackets are much lighter, offering increased vibration resistance while eliminating the risk of corrosion or rust.

EXCEPTIONAL PERFORMANCE
EX2's hybrid beam provides outstanding width and distance, without dark spots or hot spots, ensuring exceptional clarity in the dark. 1 lux is available at 460m (length) and 45m (width) with this pair of 7" Driving Lights.

| THIS KIT INCLUDES |
| 2 x 7” EX2-R Driving Lights |

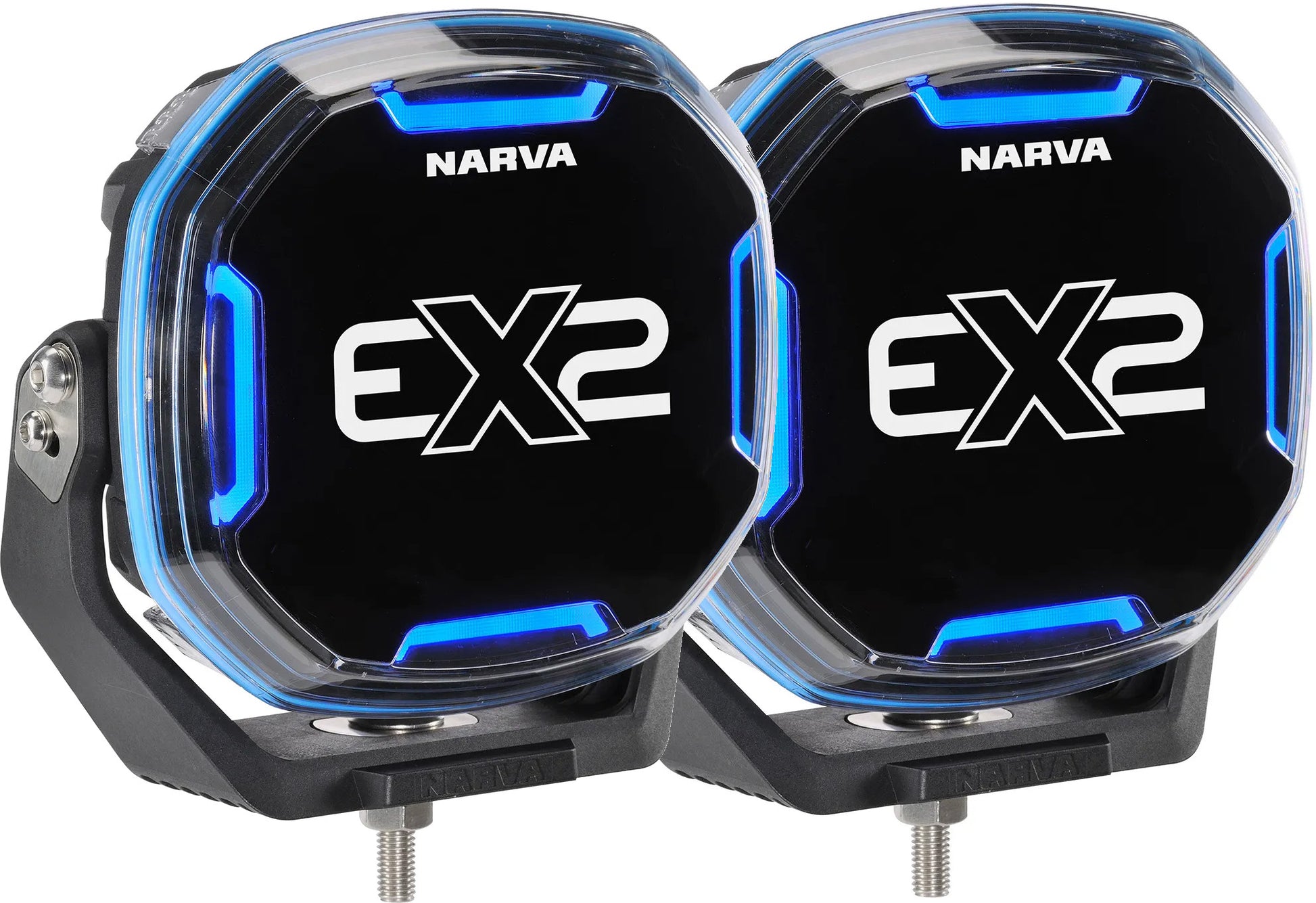

| 2 x Clear Lens Protector |
| 4 x Colour Trims (Electric Blue - fitted on lamp/Slate Grey - in box) |
| 1 x Fused Wiring Harness |
| 2 x EX2 White Position Light Adaptor lead (150mm Brown) |
| Product Instructions |
| S/S Hardware |
| 1x EX2 12V RGB Controller with 2m lead |
| 2x X Decal sticker set |
| SPECIFICATIONS |
| Raw Lumens | 8160lm |
| Effective Lumens | 6000lm |
| Beam Distance | 460m @ 1lux |
| Beam Width | 45m @ 1lux |
| Colour Temperature | 5700K ±5% |
| Colour Rendering Index (CRI) | 70 |
| Height | 186 |
| Depth | 85 |
| Width | 186 |
| Weight | 2000g ±10% |
| Cable Length | 2.1m |
| Housing | Pressure die-cast aluminium |
| Lens Material | Hard coated polycarbonate |
| Lens Protector | Black ABS |
| Bracket | Nylon + 30% Glass-Filled |
| Mounting | 1 bolt mount |
| Input Voltage | 9-33V DC |
| Current Raw (@13.5V/@28V) Per Lamp | 5.78/2.79 |
| LED's | 24 |
| LED Spec | 5W CREE LED |
| LED Power | 78 |
| Protection | Reverse Polarity Protection, Over and Under Voltage Protection |
| IP Rating | IP68 & IP69K |
| Operating Temperature | -40 - +60° |
| ECE R10 | ✓ |
| RCM | ✓ |
| Wiring | Red - Positive Yellow - High Beam Trigger Black - Negative |
