NARVA
NARVA 12/24V 7" EX2-R Driving Lights (Pair)
NARVA 12/24V 7" EX2-R Driving Lights (Pair)
SKU:72174
Couldn't load pickup availability
💡 Narva 7" EX2-R LED Driving Light Kit — Pair
Premium 7-inch LED driving light pair with ADR-approved white front position lights, RGB colour control, hybrid beam performance, harness-free installation, and 7-year warranty.
The Narva 7" EX2-R Driving Light Kit is a premium LED driving light package designed for serious night driving, 4WD touring, off-road use, work vehicles, and long-distance travel.
Part of Narva’s advanced EX2-R range, these lights retain the output and build quality of the EX2 series while adding ADR/ECE-approved white front position lights and RGB-enabled colour control. When paired with the included EX2 12V RGB Controller, the front position light pipes can be customised with up to 48 colours for off-road use.
With a powerful hybrid beam, rugged construction, IP68/IP69K sealing, hard-coated polycarbonate lenses, corrosion-resistant composite brackets, stainless steel hardware, and Narva’s 7-year no-fault warranty, the EX2-R kit is built for long-lasting performance in harsh Australian conditions.
✅ Key Benefits
💡 Premium EX2-R Performance
Delivers the proven output, durability, and build quality of Narva’s EX2 series.
🚙 ADR/ECE-Approved White Position Lights
White front position light mode is road-legal and approved for on-road use.
🌈 RGB Colour Control Included
Includes the EX2 12V RGB Controller with 2m lead, allowing up to 48 colour options.
⚠️ RGB Colours for Off-Road Use Only
Coloured position light modes are intended for off-road use only.
🔦 Hybrid Beam Pattern
Provides strong width and distance without dark spots or hot spots.
🔭 460m Beam Distance
Delivers 1 lux at 460m for confident long-range visibility.
↔️ 45m Beam Width
Provides practical spread lighting for road edges, tracks, and hazards.
🔌 Harness-Free Internal Switching
Patent-pending internal switching reduces installation complexity.
🧰 Fused Wiring Harness Included
Supplied with a fused wiring harness and adaptor leads for installation.
🛡️ Hard-Coated Polycarbonate Lenses
UV-resistant lenses resist chipping, yellowing, and harsh environmental exposure.

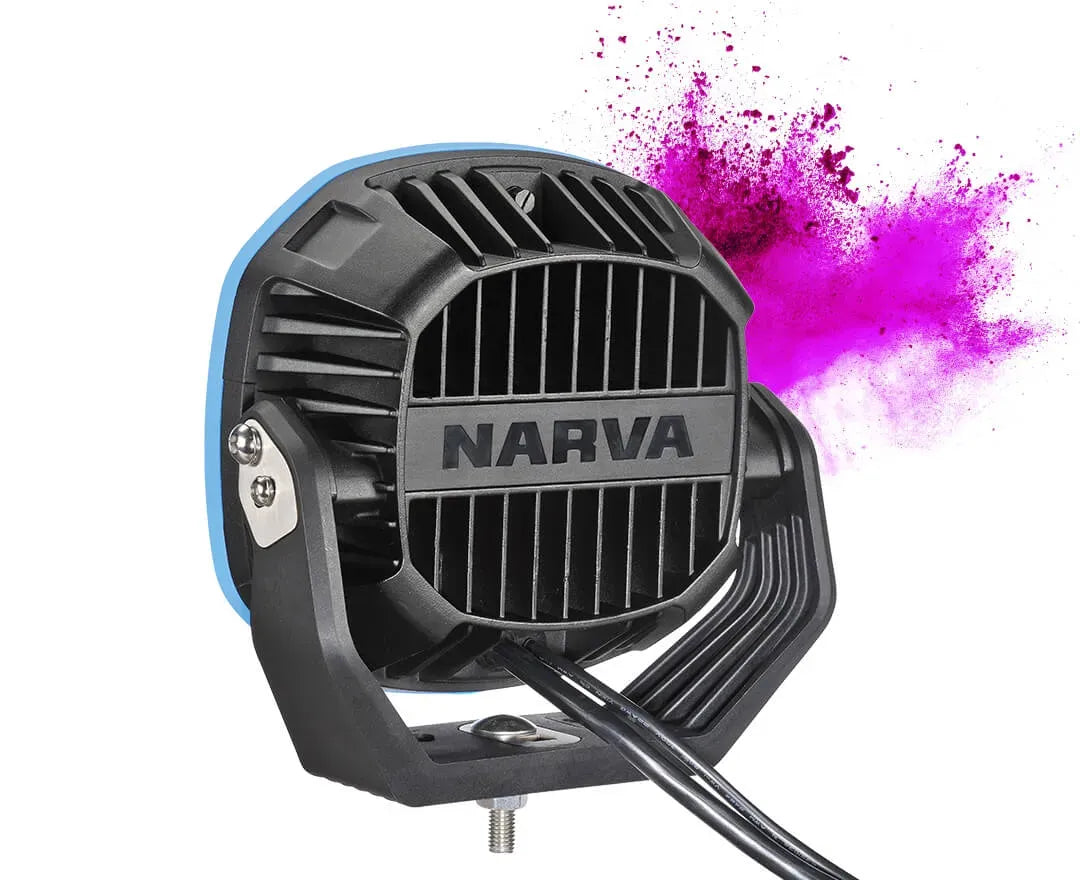

💪 Pressure Die-Cast Aluminium Housing
Provides strength, durability, and long-term reliability.
🌧️ IP68 & IP69K Rated
Protected against dust, water, pressure washing, and harsh outdoor conditions.

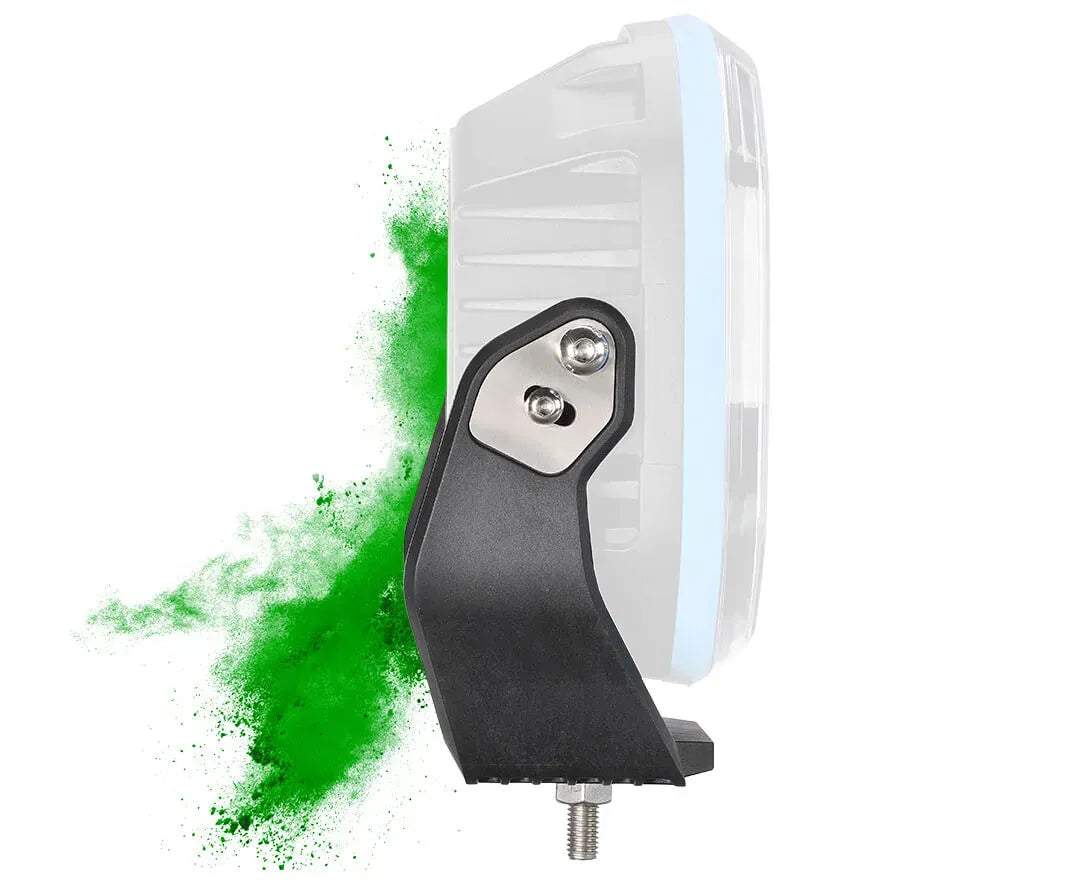

🔩 Glass-Filled Nylon Brackets
Lightweight, corrosion-proof, and designed for high vibration resistance.
🛠️ 7-Year No-Fault Warranty
Narva’s robust warranty supports long-term confidence, including replacement even if damaged in incidents such as animal strikes.
🚗 Suitable Applications
🚙 4WD touring
🛻 Utes and dual cabs
🌌 Night driving
🛣️ Highway driving
🏕️ Remote touring and camping
🏜️ Off-road tracks
🧰 Work vehicles
🚐 Caravanning and long-distance travel
🎨 Custom RGB off-road lighting setups
🌈 RGB-Enabled Position Light Technology
The EX2-R driving lights feature RGB-enabled position lights for advanced styling and customisation.
| Feature | Details |
|---|---|
| White Position Light | ADR/ECE approved for on-road use |
| RGB Position Lights | Off-road use only |
| Colour Options | 48 colours |
| Controller Included | EX2 12V RGB Controller with 2m lead |
| Customisation | App-controlled RGB colour selection |
White mode is approved for road use. Coloured RGB modes are for off-road use only.
🔦 Hybrid Beam Performance
The EX2-R hybrid beam is engineered to deliver practical visibility across both distance and width.
| Beam Feature | Details |
|---|---|
| Beam Type | Hybrid beam |
| Beam Distance | 460m @ 1 lux |
| Beam Width | 45m @ 1 lux |
| Beam Quality | No dark spots or hot spots |
| Colour Temperature | 5700K ±5% |
| Colour Rendering Index | 70 |
This helps improve visibility of road edges, wildlife, track features, hazards, and long-distance road conditions.
🔌 Harness-Free Installation
The EX2-R range uses patent-pending internal switching to reduce wiring complexity.
| Installation Feature | Benefit |
|---|---|
| Internal Switching | Reduces need for traditional harness routing |
| Harness-Free Design | Cleaner, simpler installation |
| No Firewall Routing Required | Helps reduce installation time |
| Fused Wiring Harness Included | Supplied with the pair kit |
| Adaptor Leads Included | Includes EX2 white position light adaptor leads |
🛡️ Build Quality
The EX2-R driving lights are built for demanding Australian conditions.
| Build Feature | Details |
|---|---|
| Housing | Pressure die-cast aluminium |
| Lens Material | Hard-coated polycarbonate |
| Lens Protector | Black ABS |
| Bracket | Nylon + 30% glass-filled |
| Mounting | 1 bolt mount |
| Hardware | Stainless steel hardware included |
| IP Rating | IP68 & IP69K |
| Operating Temperature | -40°C to +60°C |
📦 Kit Includes
| Included Item | Quantity |
|---|---|
| 7" EX2-R Driving Lights | 2 |
| Clear Lens Protectors | 2 |
| Colour Trims | 4 |
| Electric Blue Trims | Fitted on lamps |
| Slate Grey Trims | Included in box |
| Fused Wiring Harness | 1 |
| EX2 White Position Light Adaptor Leads | 2 x 150mm brown leads |
| EX2 12V RGB Controller | 1 with 2m lead |
| Product Instructions | 1 set |
| Stainless Steel Hardware | Included |
| X Decal Sticker Sets | 2 |
📏 Technical Specifications
| Specification | Details |
|---|---|
| Product | Narva 7" EX2-R Driving Light Kit |
| Part Number | 72174 |
| Light Type | LED Driving Light |
| Beam Type | Hybrid Beam |
| Raw Lumens | 8,160lm |
| Effective Lumens | 6,000lm |
| Beam Distance | 460m @ 1 lux |
| Beam Width | 45m @ 1 lux |
| Colour Temperature | 5700K ±5% |
| Colour Rendering Index | 70 |
| Input Voltage | 9–33V DC |
| Current Draw Per Lamp | 5.78A @ 13.5V / 2.79A @ 28V |
| LED Quantity | 24 |
| LED Specification | 5W CREE LED |
| LED Power | 78W |
| Height | 186mm |
| Width | 186mm |
| Depth | 85mm |
| Weight | 2000g ±10% |
| Cable Length | 2.1m |
| Housing | Pressure die-cast aluminium |
| Lens Material | Hard-coated polycarbonate |
| Lens Protector | Black ABS |
| Bracket | Nylon + 30% glass-filled |
| Mounting | 1 bolt mount |
| IP Rating | IP68 & IP69K |
| Operating Temperature | -40°C to +60°C |
| ECE R10 | Yes |
| RCM | Yes |
| Warranty | 7 Years |
| Country of Origin | China |
🔌 Wiring Details
| Wire Colour | Function |
|---|---|
| Red | Positive |
| Yellow | High Beam Trigger |
| Black | Negative |
🛡️ Electrical Protection
| Protection Feature | Included |
|---|---|
| Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
🔎 Why Choose the Narva EX2-R 7" Driving Light Pair?
The Narva EX2-R 7" Driving Light Kit is built for drivers who want strong lighting performance, distinctive styling, simplified installation, and premium durability.
With ADR-approved white position lights, RGB colour control, 460m beam distance, 45m beam width, IP68/IP69K protection, and a 7-year no-fault warranty, this kit is a serious lighting upgrade for touring vehicles, 4WDs, utes, work vehicles, and off-road builds.
⚠️ Fitment Note
Please confirm your required light size, mounting position, voltage compatibility, wiring requirements, switch setup, road-use requirements, RGB controller setup, and vehicle fitment before purchase or installation.
Important:
✅ White front position light mode is ADR/ECE approved for on-road use
⛔ RGB coloured modes are for off-road use only
✅ Professional installation is recommended where high-beam integration or vehicle wiring is required
✅ Confirm local road-use regulations before using auxiliary lighting on public roads
🛒 Order with Confidence
Choose the Narva 7" EX2-R LED Driving Light Pair Kit for premium hybrid beam performance, ADR-approved white position lighting, RGB colour control, rugged IP68/IP69K durability, simplified wiring, and reliable night-driving visibility.
