UNIVERSAL BEHIND-SEAT BATTERY MOUNT – HILUX (GEN 8 / N80)

Please allow 3 week for manufacture.

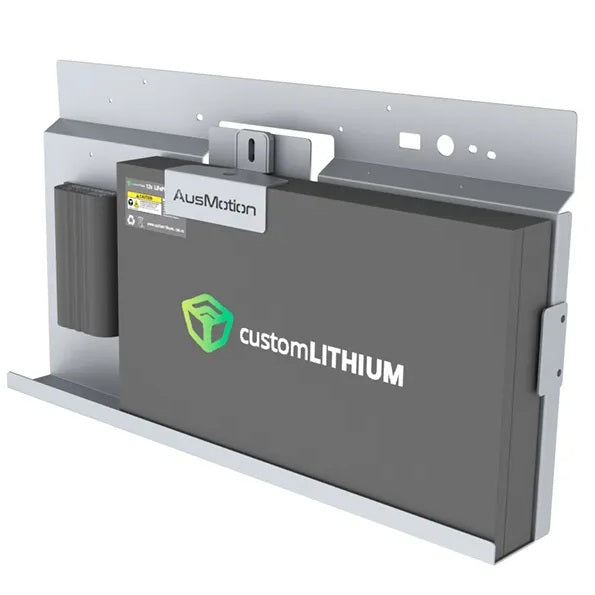

Driver-Side Battery Mount – Toyota Hilux (2015+ Gen8 AN120/AN130)

Designed for a range of slimline lithium batteries, this robust stainless-steel mount provides a secure and tidy installation for your Hilux cab back wall. It accommodates multiple battery brands while allowing easy integration of a universal battery charger.

Battery Compatibility

• Maximum dimensions: Length 695 mm × Height 300 mm × Thickness 65 mm

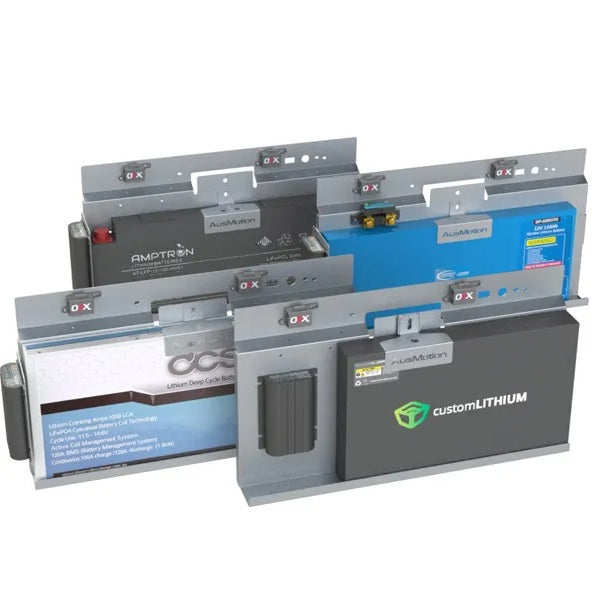

• Tested and confirmed to fit the following batteries:

  • Baintech: BTBLUESLIM110-DC40, BTLP12V110-100SL, BTLITH-1275-SL, BTLITH-1275-SL-DCS, BTLITH-12110-SL, BTLITH-12110-SL-DCS

  • Custom Lithium: 100Ah Super-Slim Lithium (plastic and metal case versions, all terminal types)

Note: For alternative batteries, please contact us to confirm fit.

Charger Integration

• Includes universal charger bracket on the left-hand side of the back plate
• Pre-cut holes compatible with Redarc, iTech, Victron, and Intervolt chargers
• Redarc BCDC CORE chargers can be purchased with your mount from our store

Vehicle Fitment

• Toyota Hilux 2015+ (Gen8 AN120/AN130)

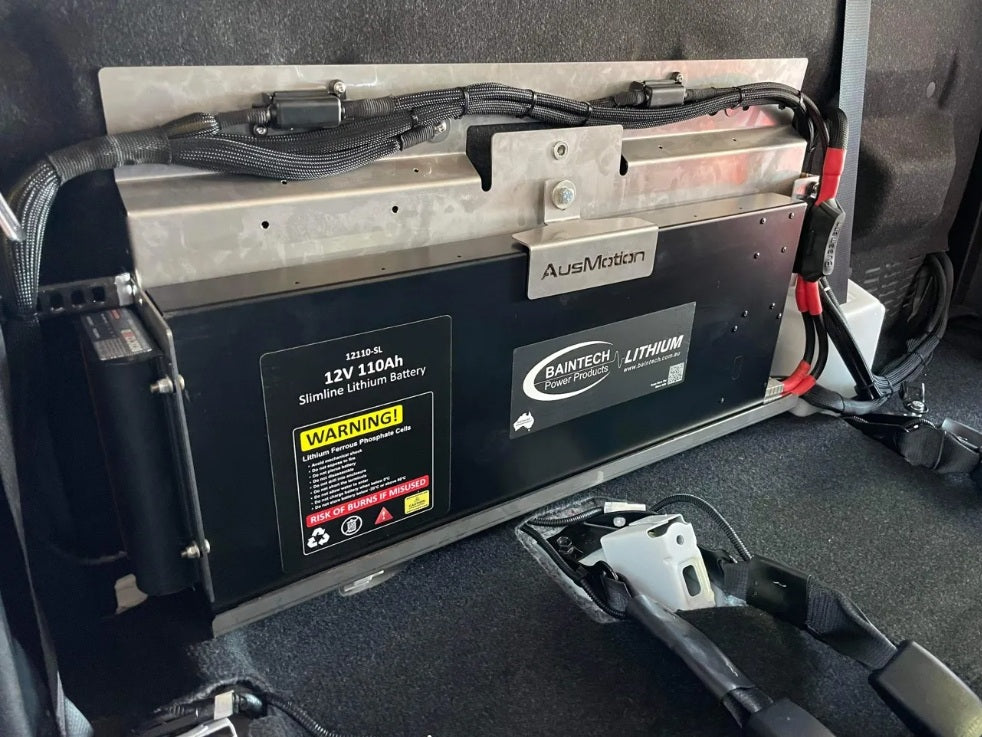

• Mounts on the driver-side of the cab back wall

Installation

• No drilling required – uses original threaded inserts and vehicle holes
• One hole on the cab wall cross-member requires tapping from 5 mm to M6
• The carpet panel can remain in position, with four small holes cut for mounting
• Back plate includes pre-cut positions for two twin-midi fuse holders or two single-midi fuse holders (fuse holders not included)
• Approximate installation time: 40 minutes
• All necessary bolts included

Material & Certification

• Constructed from stainless steel
• Australian Certified Design – intellectual property protected

Specifications

• Weight: 5 kg
• Dimensions: 70 × 39 × 6 cm
• Product Type: Battery Mount
• Compatible Battery Brands: DCS, Baintech, Amptron, Custom Lithium
