FORD RANGER (PXI, PXII, PXIII)/MAZDA (BT50) UNIVERSAL BEHIND SEAT BATTERY MOUNT

FORD RANGER (PXI, PXII, PXIII)/MAZDA (BT50) UNIVERSAL BEHIND SEAT BATTERY MOUNT

SKU:P1196-ASSY

Regular price $229.00
Regular price Sale price $229.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Universal lithium dual battery mounting solution designed to securely hold a range of batteries from leading suppliers and manufacturers behind-seat of a Ford Ranger (PX models up to July 2022)

Locally designed and manufactured in Australia.

Includes all mounting hardware and rated battery restraining straps.

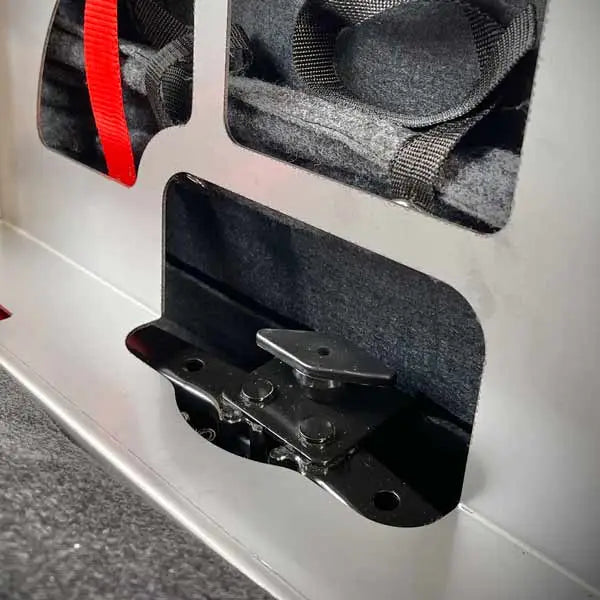

Allows the jack and tools to remain in-place, easily accessed by slackening the straps and tilting the battery forward when required.

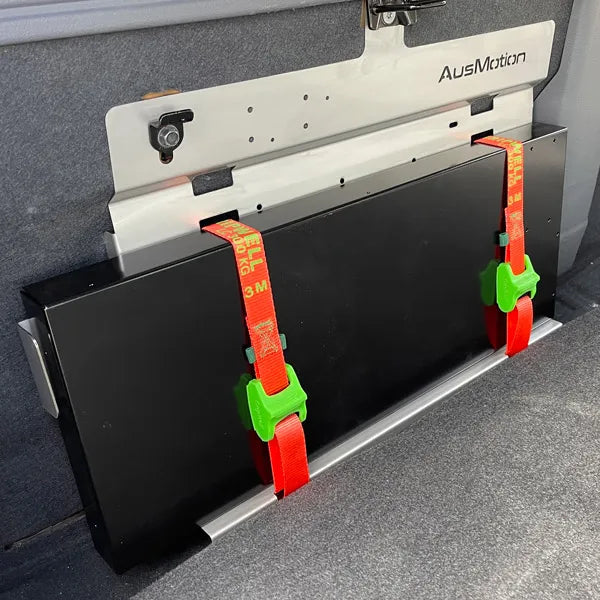

A bolt-on extension is included for use when mounting batteries that extend beyond the back plate. The extension ensures the battery is restrained laterally in both directions.

Battery Compatibility:

General Battery Sizing

This product has been designed to accommodate a number of manufacturer’s batteries as listed below.

Any battery with these maximum dimensions will fit:

  • Length 635mm
  • Height 300mm
  • Thickness 62mm

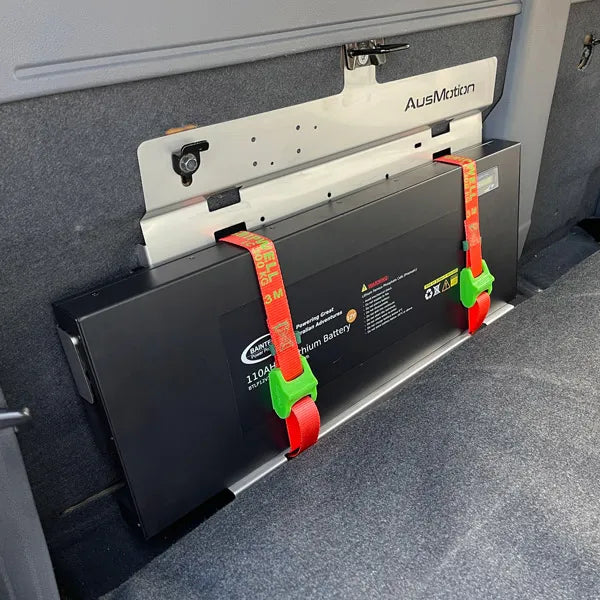

Baintech

  • BTLP12V110-100SL (Most recent variant with screw terminals on the end)
  • BTLITH-1275-SL
  • BTLITH -1275-SL-DCS
  • BTLITH -12110-SL
  • BTLITH -12110-SL-DCS

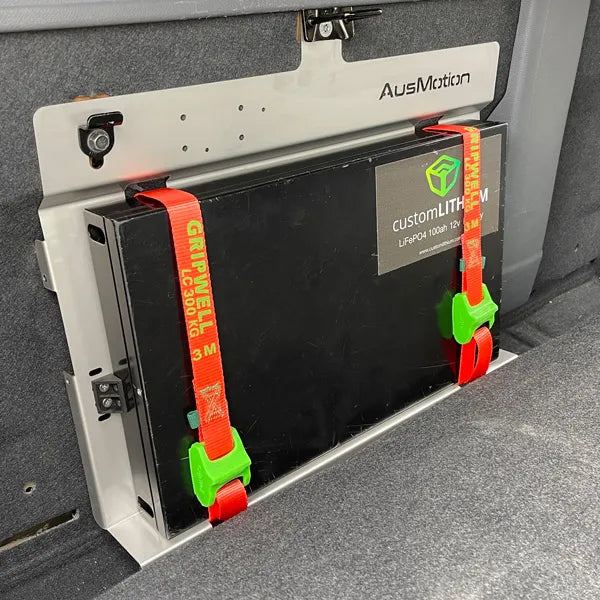

Custom Lithium

  • 100Ah Super-slim lithium – Plastic and metal case versions, all terminal types.

Installation Notes:

Suitable for PXI, PXII, PXIII and PX Ranger Raptor vehicles (up to July 2022)

Allows the jack and tools to remain fitted in the standard location in non-Raptor vehicles. For Raptor installations the jack extension that is fitted to the back wall will need to be relocated (we suggest placing it in the under-seat storage bin)

Also fits 2nd generation Mazda BT50.

BT50, PXI Ranger and PXII Ranger require no modification to the vehicle to install this product.

Installation on PXIII and Ranger Raptor will require a small section of the carpet on the rear cab wall to be cut out using a sharp knife. This can be done easily in the vehicle.

No-drill installation, using original Ford thread inserts in the back wall.

Using a battery larger than the dimensions given above will cause the seat back to not latch in the up position.

The straps provided with your mount may be different in colour to those shown here. We always try and source the red/green straps as shown but they are occasionally unavailable and must be substituted with an alternative colour.

Material:

  • Stainless Steel
  • Injection moulded plastic
