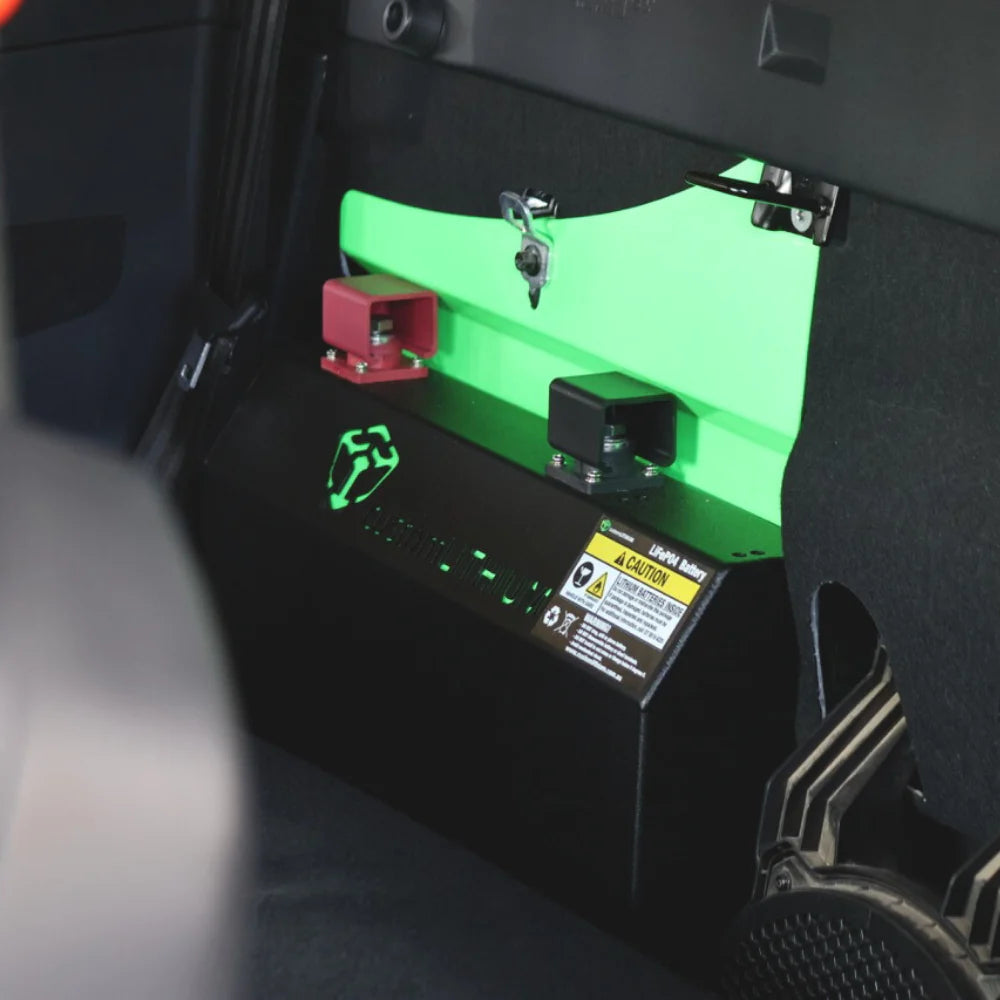

FORD RANGER NEXT GEN BEHIND SEAT DUAL BATTERY PACKAGE

SKU:DBBS-RANGERNGVK100AH-ALPHA25

$2,844.50

Sale Sold out

Taxes included. Shipping calculated at checkout.

This Package Includes:

1x CUSTOM LITHIUM 100AH FORD RANGER BATTERY

1x REDARC ALPHA 25A DC-DC BATTERY CHARGER (BCDC12025B)

1 x AUSMOTION BEHIND SEAT DC-DC MOUNT

1x VICTRON ENERGY SMARTSHUNT 300A

1 x THUMPER CONTROL BOX (CBV-CUA)

5M x 8MM TWIN CORE CABLE

4M x 6MM TWIN CORE CABLE

5M x 3MM SINGLE CORE BLUE

1 x 10M 13MM SPLIT TUBING

3 x MIDI FUSE HOLDERS

1 x 50A MIDI FUSE

2x 40A MIDI FUSE

1x MICRO 2 ADD A CIRCUIT

ALL LUGS, ZIPTIES AND HEATSHRINK SUPPLIED

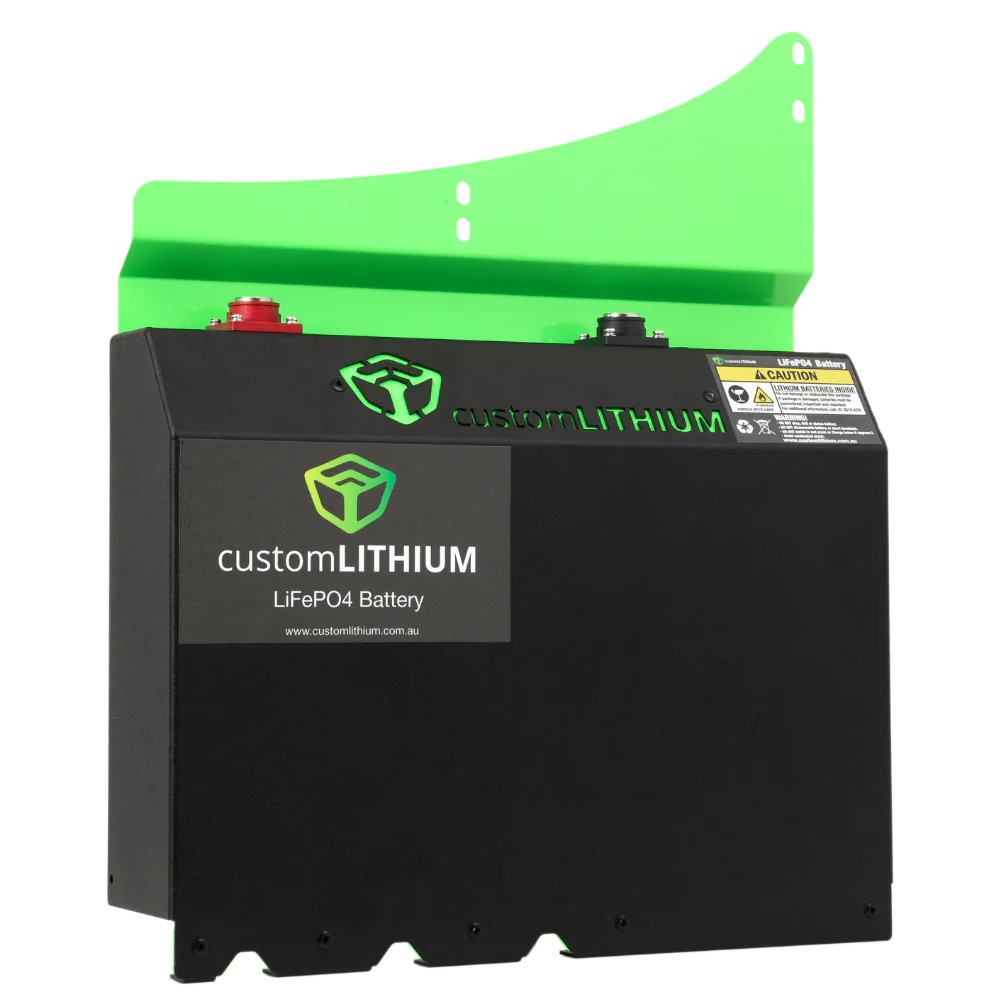

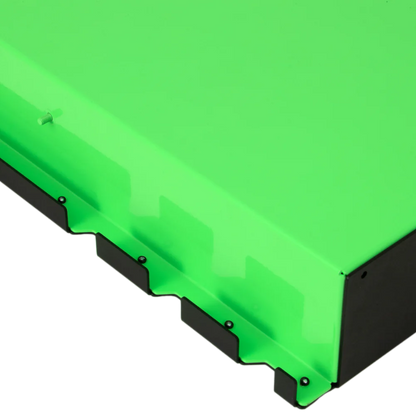

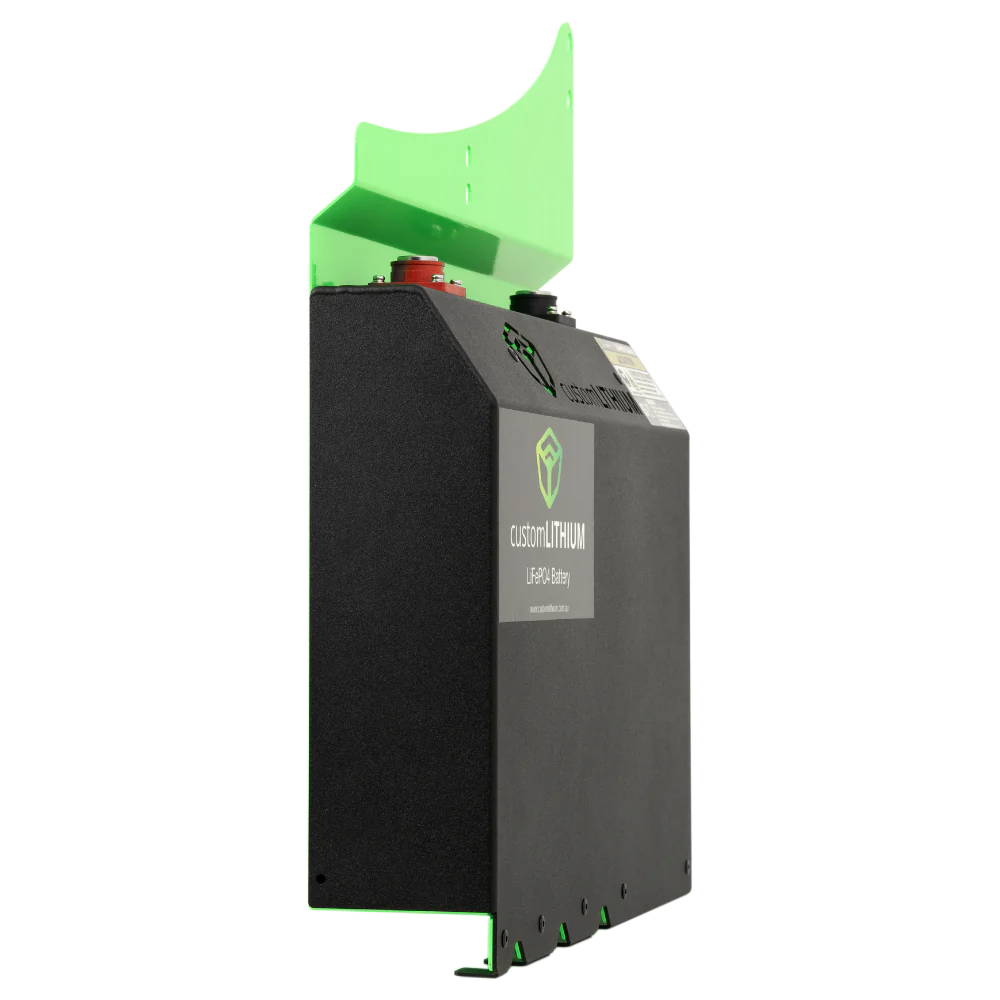

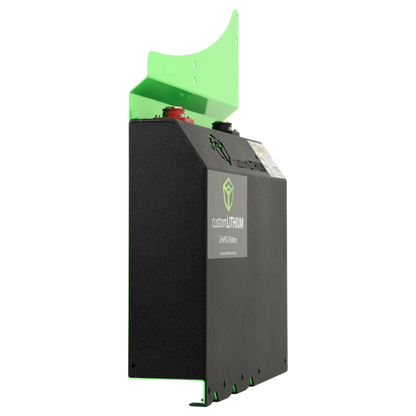

CUSTOM LITHIUM FORD RANGER 100AH BATTERY

Custom Lithium's auxiliary battery systems are Australian-Made certified meaning you're supporting Australian jobs and help drive innovation & manufacturing in Australia.

Custom Lithium vehicle specific battery to suit Ford Rangers 2015-2025 including PX 2, PX 3 and Next Gen RA Models. All Models including models with Premium Audio (E.g Next Gen Raptor).

Available in 100ah, 150AH or 200AH Capacity

No Drill solution for your Next Gen Ranger or Raptor.
This system does not require an additional battery tray as our battery is an all in one solution designed to perfectly complement your new Ford Ranger.

STAY OFF-GRID FOR LONGER

Made in Brisbane	Premium A-grade automotive LiFePO4 cells
7 year warranty	High current BMS
Individually bench tested	High discharge rate
Lightweight aluminium enclosure	Active balancer

TECH SPECS & SIZE

CAPACITY:	100AH
CONSTANT DISCHARGE:	180 AMPs
PEAK DISCHARGE:	700AMP Protection
CONSTANT CHARGE:	50 AMPs
PEAK CHARGE:	100 AMPs
DIMENSIONS:	55mm H x 300mm W x 490mm L
WEIGHT:	20kg
OPERATING TEMP:	-20°C – 60°C

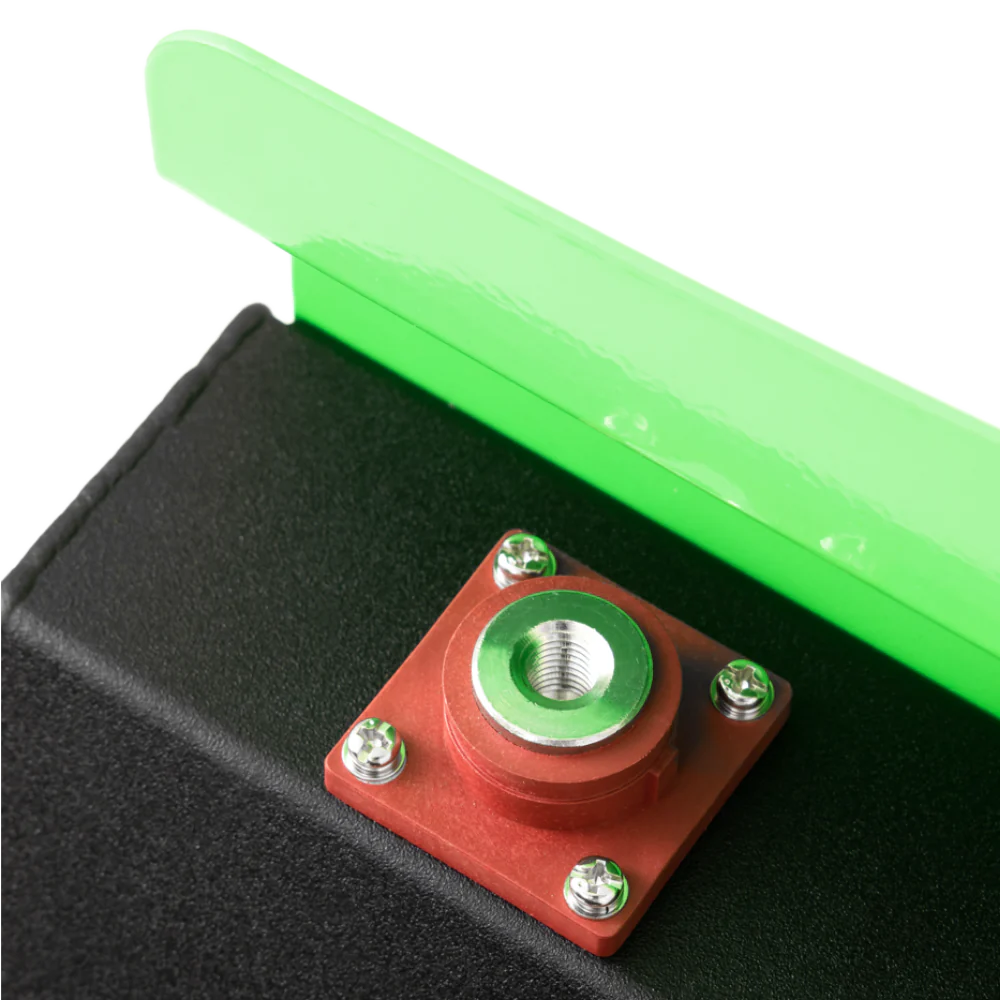

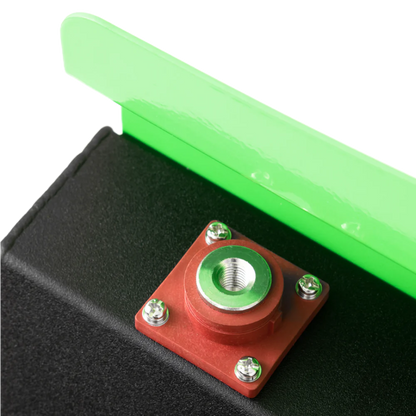

TERMINALS:	M8 terminals
CHARGE VOLTAGE:	14.2v – 14.6v
ABSORPTION/FLOAT:	13.4v – 13.6v
CUT OFF VOLTAGE:	10.5v
NOMINAL VOLTAGE:	12.8V

REDARC ALPHA25 DC-DC CHARGER

Stay powered up wherever your adventure takes you with REDARC’s BCDC Alpha25. Featuring 25A of advanced charging technology, this DC to DC charger keeps your start and secondary batteries charged using power from your vehicle’s alternator or solar. The BCDC Alpha's built in Green Power Priority™ will prioritise solar input, minimising the load on your alternator and saving fuel.

INSTANT INSIGHT

Stay informed and monitor the BCDC Alpha’s charge status in real-time through Bluetooth and the RedVision smartphone app. Gain full control of your power with configurable input current limits, allowing you to customise it to your system requirements and protect your electrical system.

START BATTERY CHARGING

Recover a flat start battery with the push of a button in as little as 15 minutes, giving you the power to safely start your vehicle and get you back on the road in no time. Don’t let excess solar power go to waste, utilise solar to automatically top up the start battery when the secondary battery is full. 

25A Charging from DC and solar power	Compatible with all common automotive battery types including lithium (LiFePO4)
Outlast other chargers with IP67/69K dust and moisture protection	Easy installation with pushbutton interface and screw connections
Charge back to your start battery with excess solar	Recover a flat start battery with the push of a button
Remote monitoring and control from the RedVision app with Bluetooth	Protect your vehicle’s alternator with adjustable input current limit
Future proof charging with over-the-air updates	2 Year Warranty

Start Battery Input Voltage Range	9 - 32VDC
Solar Input Voltage Range	9 - 48VDC
Nominal Output Voltage	12V
Nominal Current Rating	25A
Operating Temperature	–40°C to 85°C
Weight	0.925kg
Height	44mm
Width	164mm
Depth \| Length	146mm
Warranty	2 Years

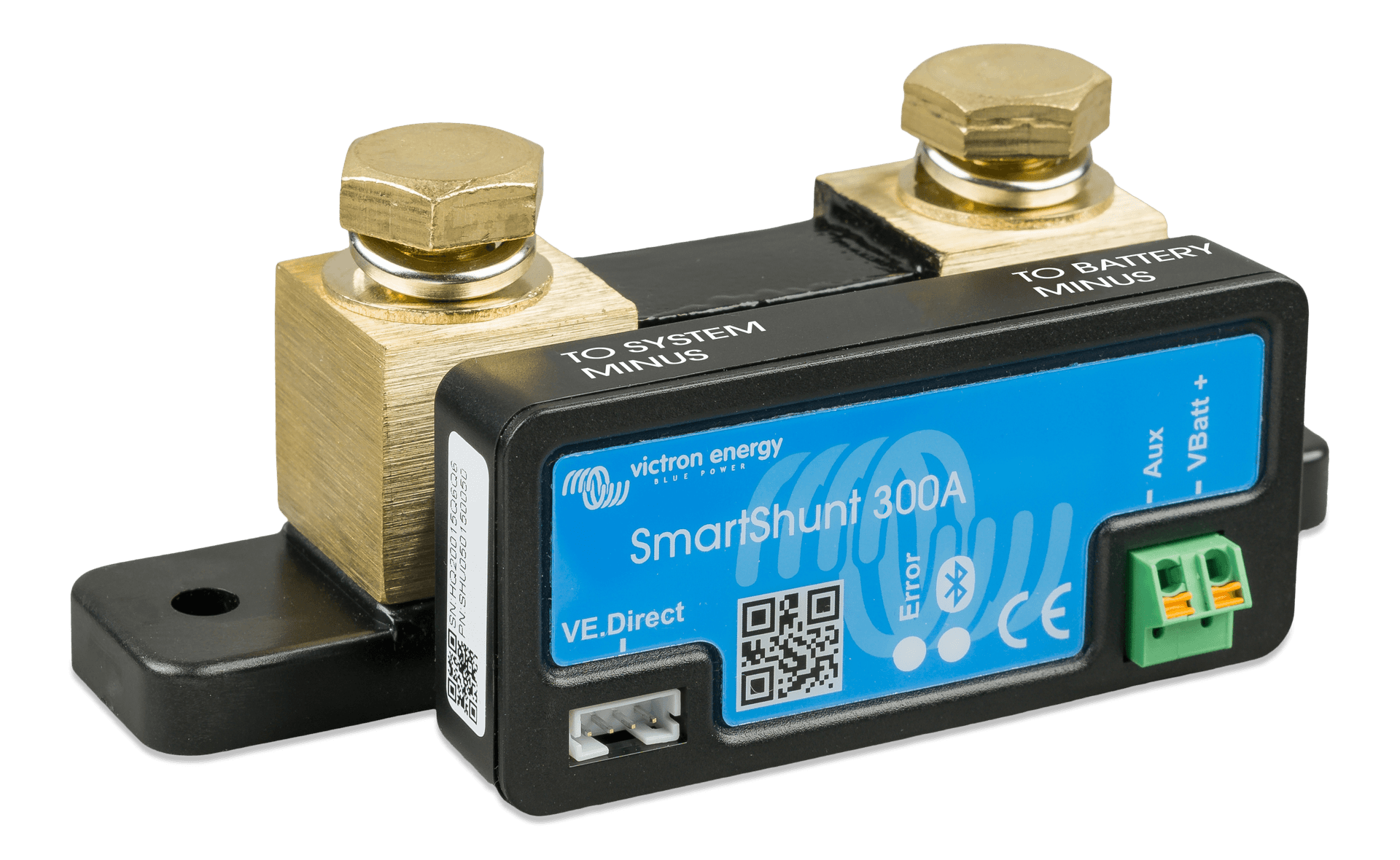

VICTRON SMARTSHUNT

The Victron SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

The SmartShunt is designed for systems where battery monitoring is needed but less wiring and clutter is wanted.

Supply voltage range	6.5 - 70V
Current draw	< 1mA
Input voltage range (auxiliary battery)	6.5 - 70V
Battery capacity	1 - 9999 Ah
Measures voltage of second battery	Yes
Dimensions	44 x 120 x 44 mm
Warranty	5 years

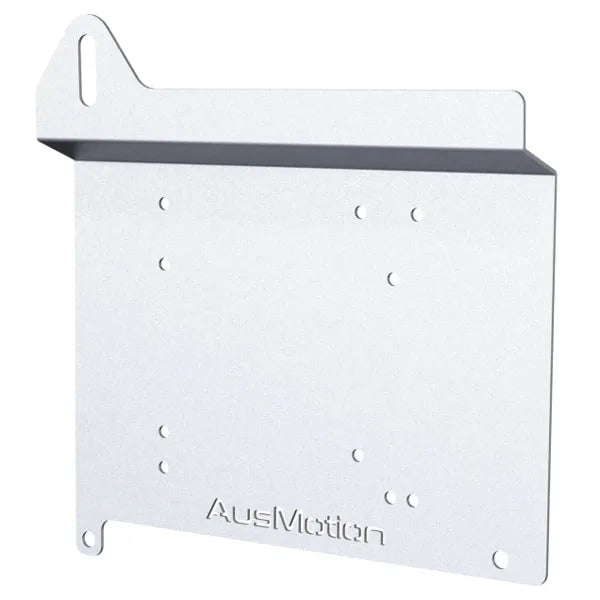

AUSMOTION NEXT GEN FORD RANGER DC-DC MOUNT

The perfect DC-DC mounting solution for the Next Gen Ranger (RA), this bracket allows installation of a DCDC dual battery charger on the back wall of the cab, keeping the length of cable between the charger and battery to a minimum.

In vehicles with the premium audio system the carpet panel includes a cutout for the amplifier which can be easily extended upward as seen below. In vehicles without the premium audio system, the charger is installed in the same position and the carpet can be trimmed as desired.
