☀️ EXOTRONIC 150W FUSION SERIES N-TYPE TOPCON SOLAR PANEL

150W • N-Type TOPCon • 25.2% Module Efficiency • Compact 1303 × 525mm • IP68 Junction Box

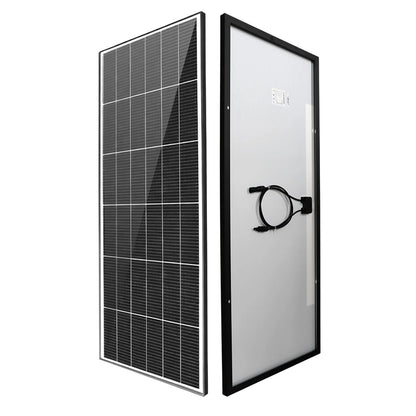

The Exotronic 150W Fusion Series is a compact high-efficiency solar panel designed for caravans, RVs, boats and off-grid installations where available mounting space matters.

Using N-Type TOPCon solar cell technology, the Exo-SP-TCN-150 delivers a rated 150W output from a compact 1303 × 525mm footprint, making it particularly suited to mobile applications where roof space is limited.

⚡ KEY FEATURES

☀️ 150W Rated Output
Compact solar generation for 12V battery systems, caravans, campers, RVs, boats and off-grid applications.

⚙️ N-Type TOPCon Technology
Uses Tunnel Oxide Passivated Contact cell technology designed to provide high efficiency, reduced degradation and improved low-light performance compared with older cell technologies.

📈 25.2% Module Efficiency
High energy density helps maximise solar generation where available mounting space is limited.

🌥️ Strong Low-Light Performance
N-Type TOPCon technology is designed to maintain useful output under variable light conditions.

🔗 18-Wire Busbar Design
Designed to reduce resistive losses and improve current flow across the cell surface.

🪶 Compact & Lightweight

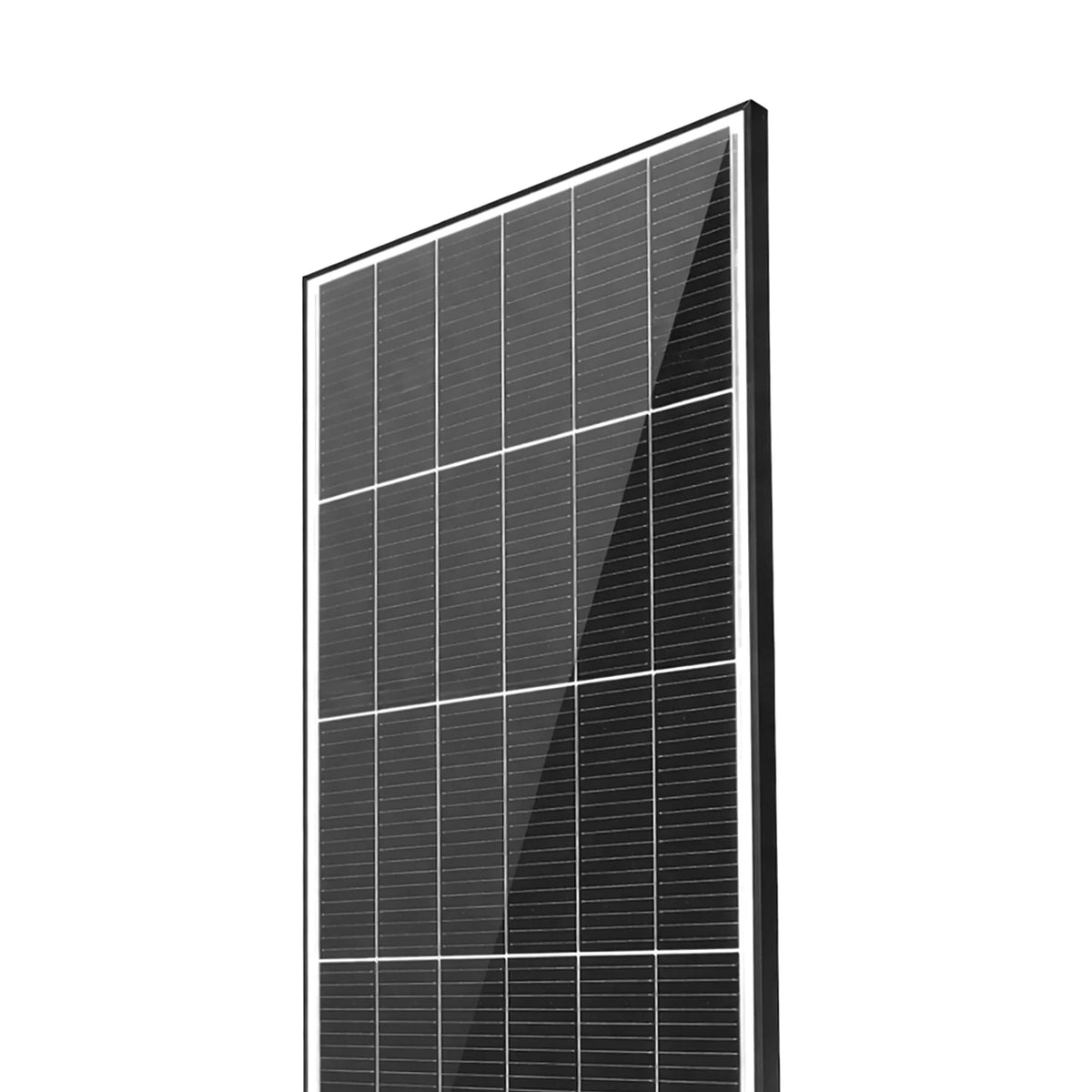

At approximately 8kg and only 25mm thick, the panel is well suited to vehicle roofs and installations where size and weight are important.

🌊 Salt Mist & Ammonia Resistant
Suitable for demanding coastal, marine and off-grid environments.

🛡️ IP68 Junction Box

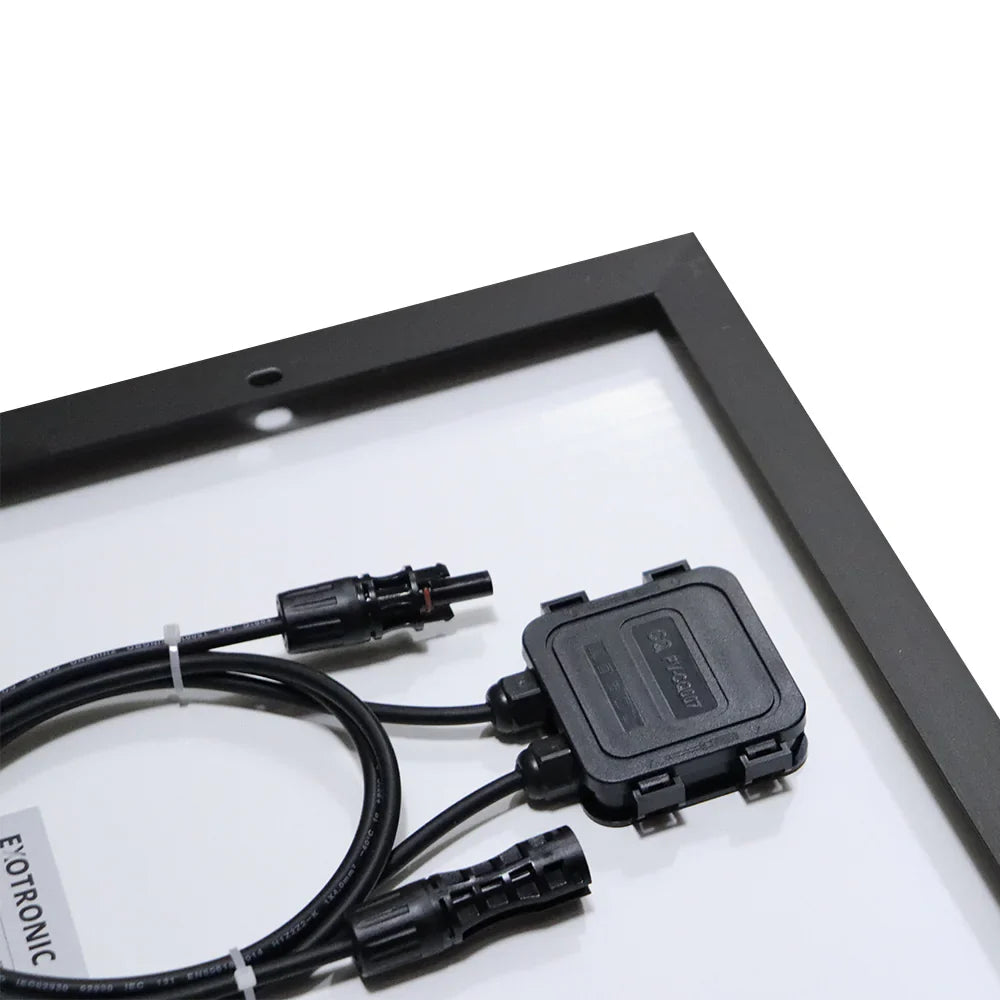

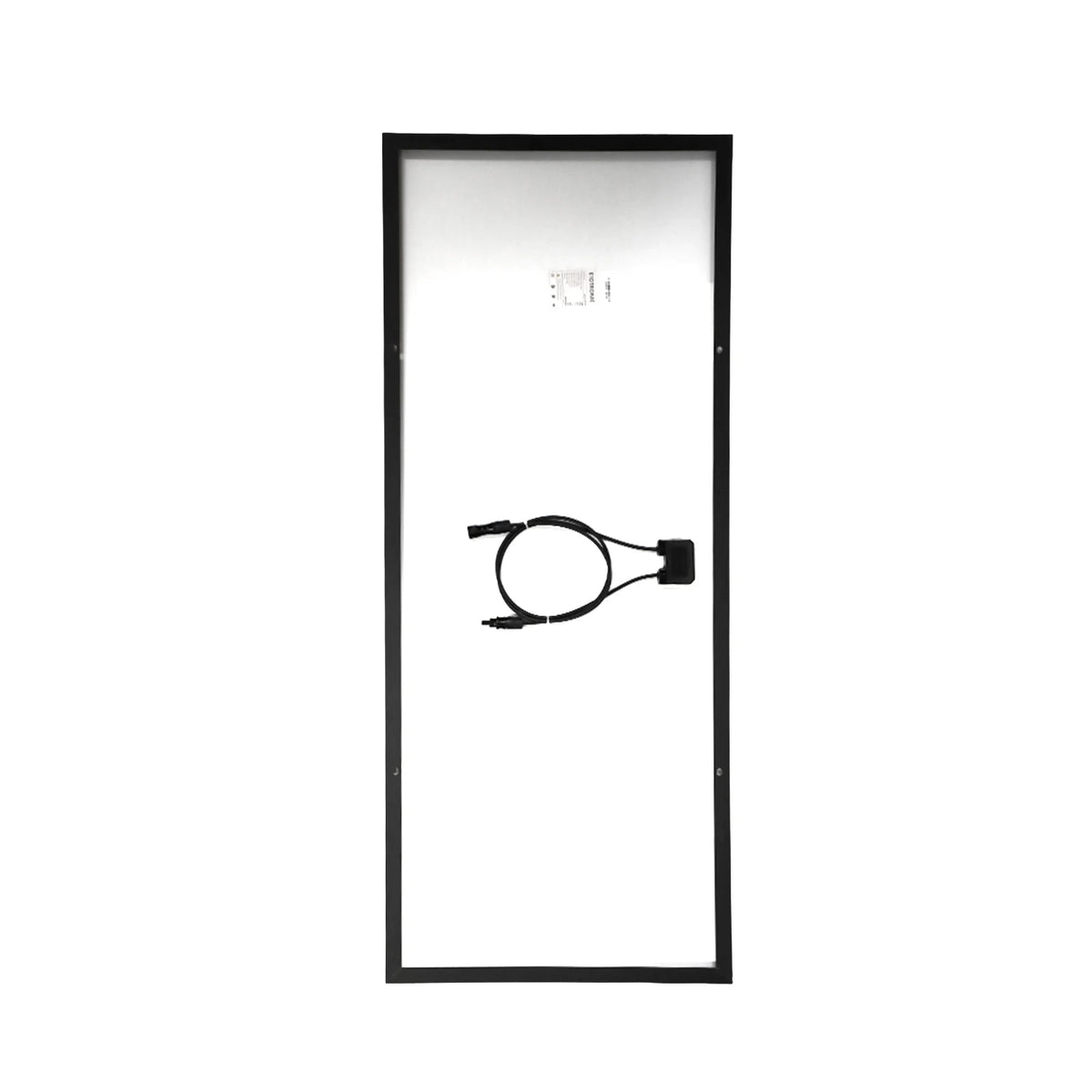

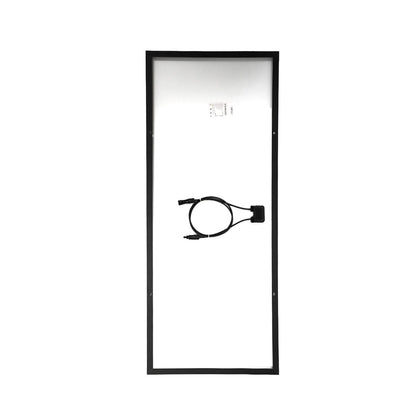

Fully potted junction box provides a high level of protection against moisture ingress.

🔌 MC4-Compatible Connections
Supplied with compatible solar connections and an approximately 800mm fly lead for installation flexibility.

🚐 BUILT FOR MOBILE & OFF-GRID SOLAR

• 🚐 Caravans & RVs
• ⛺ Camper trailers
• 🚤 Boats & marine installations
• 🏠 Tiny homes & remote sheds
• 🔋 12V battery charging systems
• ⚡ Series-connected 24V or 48V off-grid systems
• 📡 Remote lighting, cameras & monitoring systems

📋 ELECTRICAL SPECIFICATIONS

Model: Exo-SP-TCN-150

Rated Power: 150W

Cells: 36 (6 × 6)

Maximum Power Voltage (Vmp): 21.4V

Maximum Power Current (Imp): 7.01A

Open Circuit Voltage (Voc): 25.0V

Short Circuit Current (Isc): 7.6A

Module Efficiency: 25.2%

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Temperature Coefficient of Isc: +0.05%/°C

Operating Temperature: -40°C to +85°C

📐 DIMENSIONS & CONSTRUCTION

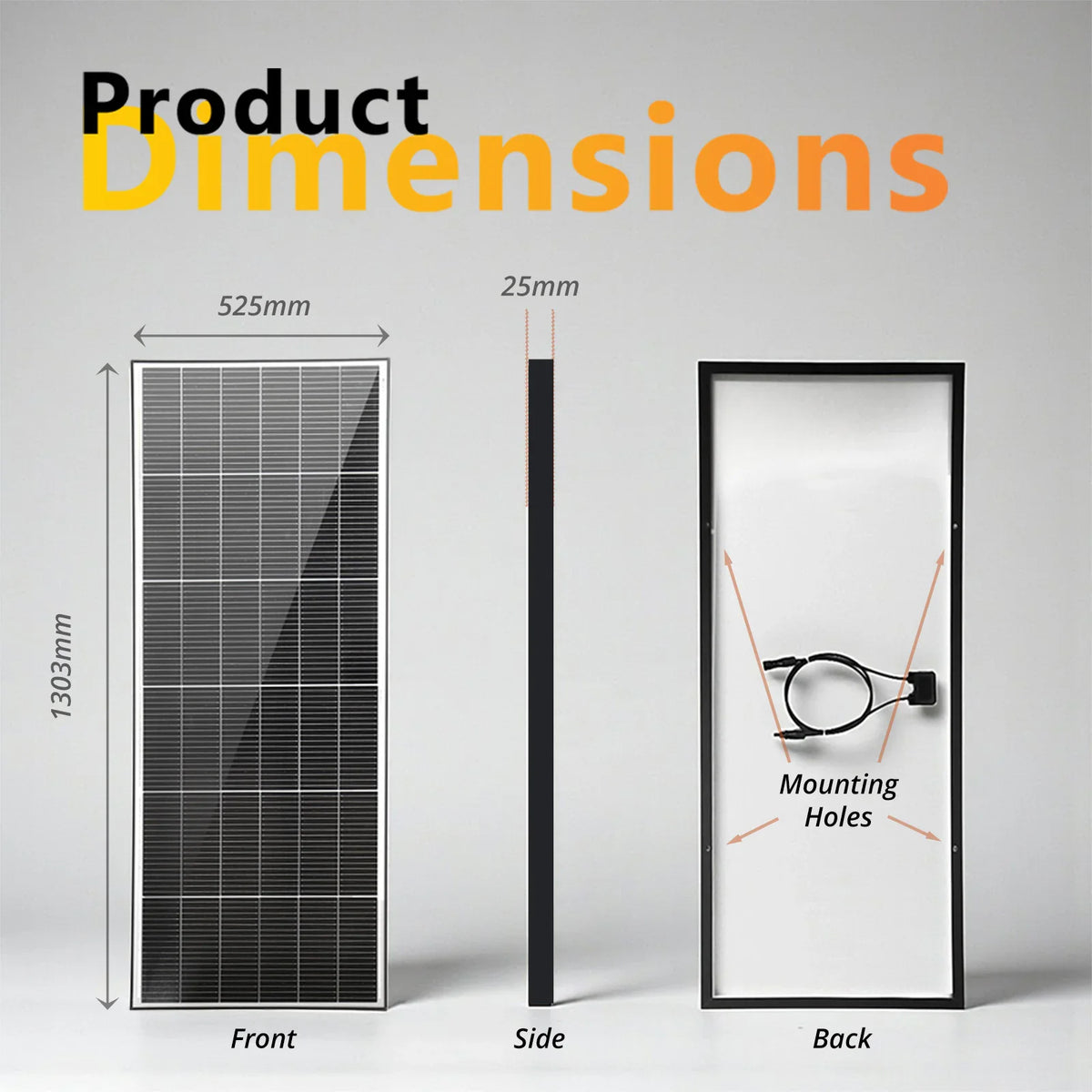

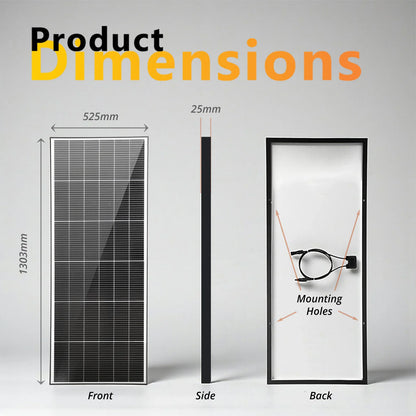

Dimensions: 1303 × 525 × 25mm

Weight: Approximately 8kg

Front Glass: 3.2mm Tempered Glass

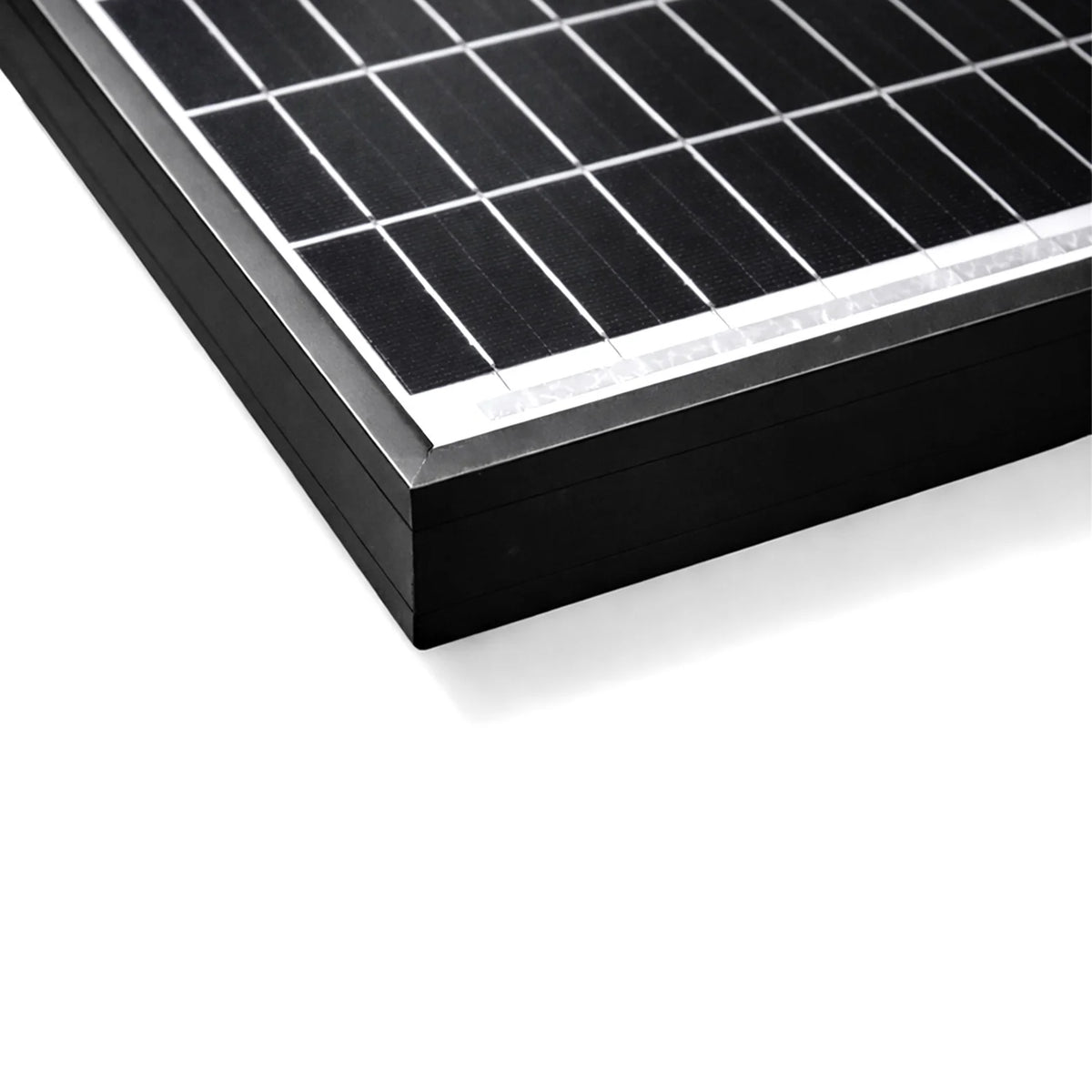

Frame: Black Anodised Aluminium Alloy

Junction Box: IP68

Connectors: MC4 Compatible

Fly Lead: Approximately 800mm

Wind Load Rating: Up to 2400Pa

Snow Load Rating: Up to 5400Pa

🔋 12V SYSTEM FRIENDLY

With a Vmp of approximately 21.4V and Voc of approximately 25.0V, the panel is designed for use in compatible 12V solar charging systems when paired with a suitable solar regulator.

📦 PRODUCT DETAILS

SKU: Exo-SP-TCN-150

Model Number: Exo-SP-TCN-150

Barcode: 9361784004495

❓ QUICK FAQ

Is this panel suitable for a caravan?

Yes. Its compact footprint, 8kg weight and 150W output make it particularly suited to caravan, RV and other mobile solar installations.

What type of solar cells does it use?

The panel uses N-Type TOPCon cells designed for high efficiency, low degradation and strong low-light performance.

Can it be used in marine environments?

The supplied information states the panel is salt-mist and ammonia resistant and uses an IP68 junction box, making it suitable for compatible marine and coastal installations.

Can multiple panels be connected together?

Yes. The supplied information identifies the panel as suitable for series-connected 24V and 48V off-grid systems, subject to the voltage and current limits of the connected solar controller.

☀️ MORE SOLAR POWER FROM A COMPACT FOOTPRINT

With 150W output, N-Type TOPCon technology, 25.2% module efficiency and a compact 1303 × 525mm footprint, the Exotronic Fusion Series is built for mobile and off-grid installations where every millimetre of roof space counts.
