115W Narrow N-Type TOPCon Solar Panel | 1530 x 355mm

☀️ EXOTRONIC 115W NARROW FUSION FIXED SOLAR PANEL

115W • N-Type TOPCon • 25.2% Cell Efficiency • Narrow 1530 × 355mm Design • IP68 Junction Box

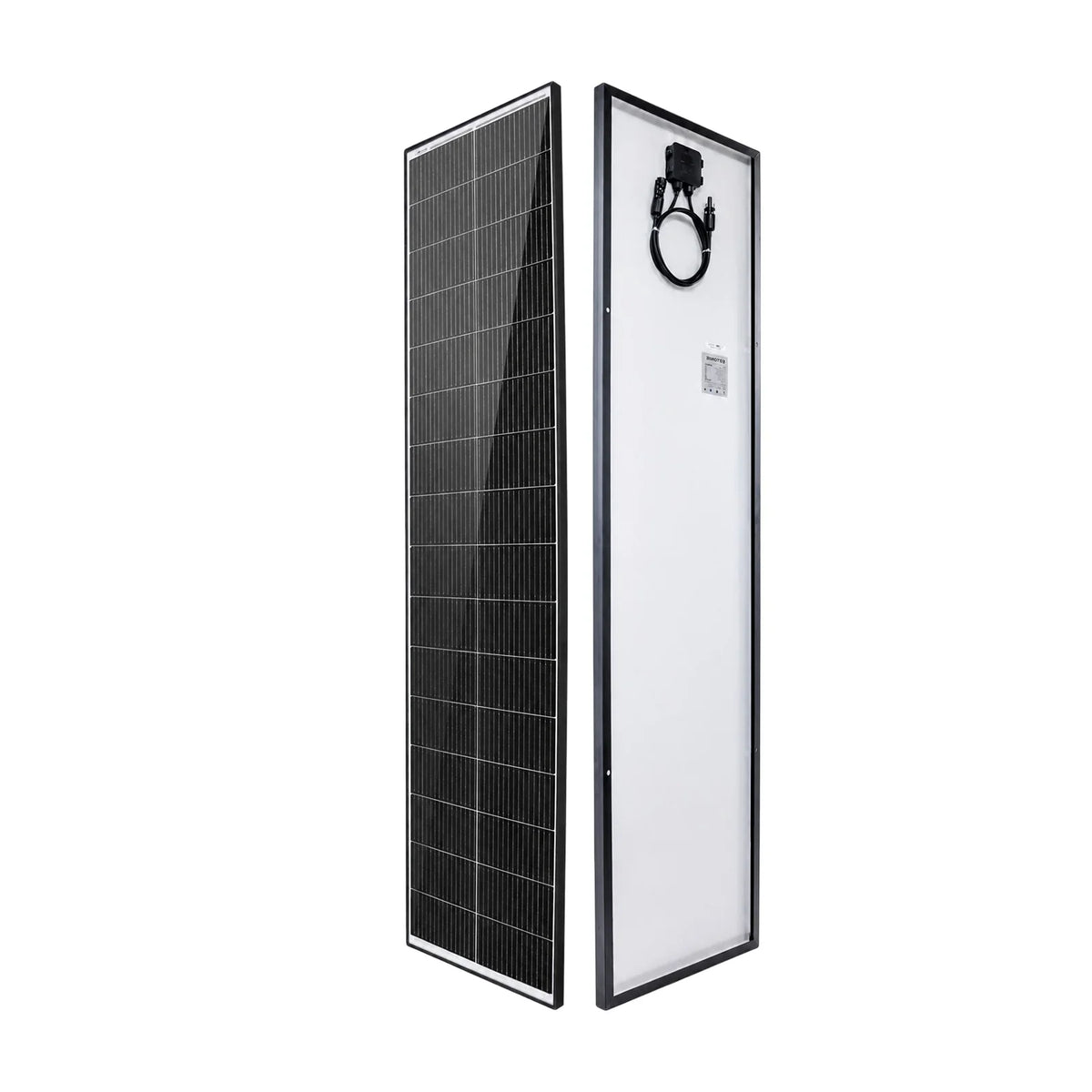

The Exotronic 115W Narrow Fusion Fixed Solar Panel combines high-efficiency N-Type TOPCon solar technology with a long, narrow footprint designed for caravans, RVs, boats and off-grid installations where conventional-width panels may not fit.

At just 355mm wide, this 115W panel makes excellent use of narrow roof spaces while delivering high-efficiency solar generation for mobile and off-grid power systems.

⚡ KEY FEATURES

☀️ 115W Rated Output
A useful step up in solar capacity for caravan, vehicle, marine and off-grid battery charging applications.

📐 Narrow 355mm-Wide Design
The long 1530 × 355mm footprint is ideal for restricted roof spaces where wider solar panels may not fit between vents, air conditioners or other equipment.

⚙️ N-Type TOPCon Technology
Uses Tunnel Oxide Passivated Contact solar cells designed for high efficiency, lower degradation and improved low-light performance.

📈 25.2% Cell Efficiency
High-efficiency cells help maximise solar generation from the available mounting area.

🌥️ Improved Low-Light Performance
Designed to provide useful output in cloudy, shaded and variable-light conditions.

🔗 18-Wire Busbar Design
Designed to reduce resistive losses and improve current collection across the solar cell surface.

🪶 Lightweight Construction
Despite its 115W output, the panel weighs approximately 6kg, making it practical for mobile and roof-mounted applications.

🌊 Salt Mist & Ammonia Resistant
Designed for demanding environments including compatible coastal and marine installations.

🛡️ 3.2mm Tempered Glass
High-transmissivity low-iron tempered glass provides effective light capture and impact resistance.

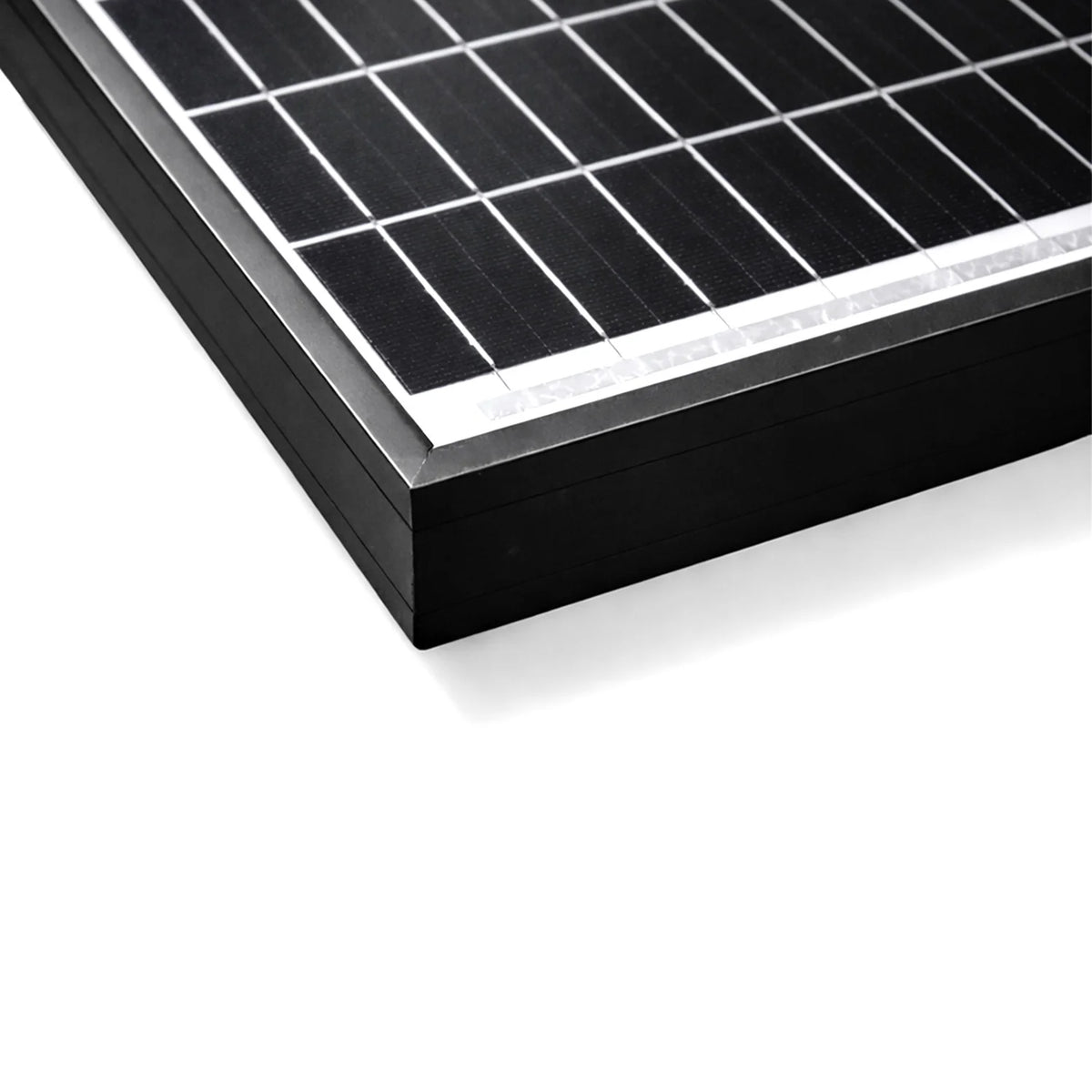

⬛ Black Anodised Aluminium Frame
The 25mm aluminium-alloy frame provides structural rigidity while maintaining a slim profile.

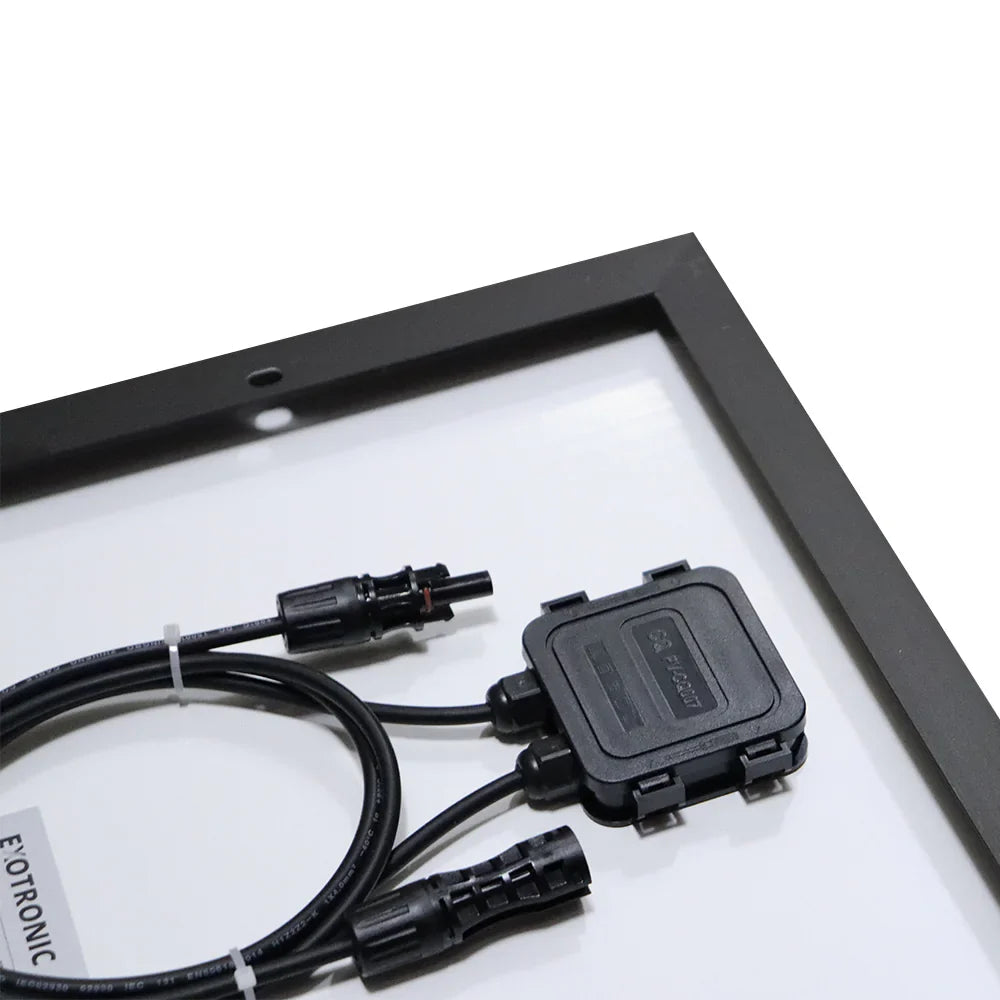

💧 Fully Potted IP68 Junction Box
Designed to protect electrical connections against moisture ingress in demanding environments.

🔌 MC4-Compatible Connections
Supplied with an approximately 800mm fly lead for flexible installation.

🚐 IDEAL FOR

• 🚐 Caravans & camper trailers
• 🚙 4WD & vehicle roof installations
• 🚤 Boats & marine applications
• 📐 Long, narrow or restricted roof spaces
• 🔋 12V battery charging systems
• 🏠 Remote sheds, cabins & tiny homes
• 📡 Lighting, security cameras & monitoring systems
• ⚡ Series-connected 24V or 48V off-grid arrays

📋 ELECTRICAL SPECIFICATIONS

Model: Exo-SP-TCN-115

Rated Power: 115W

Maximum Power Voltage (Vmp): 18.9V

Maximum Power Current (Imp): 6.09A

Open Circuit Voltage (Voc): 22.1V

Short Circuit Current (Isc): 6.6A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Temperature Coefficient of Isc: +0.05%/°C

Operating Temperature: -40°C to +85°C

📐 DIMENSIONS & CONSTRUCTION

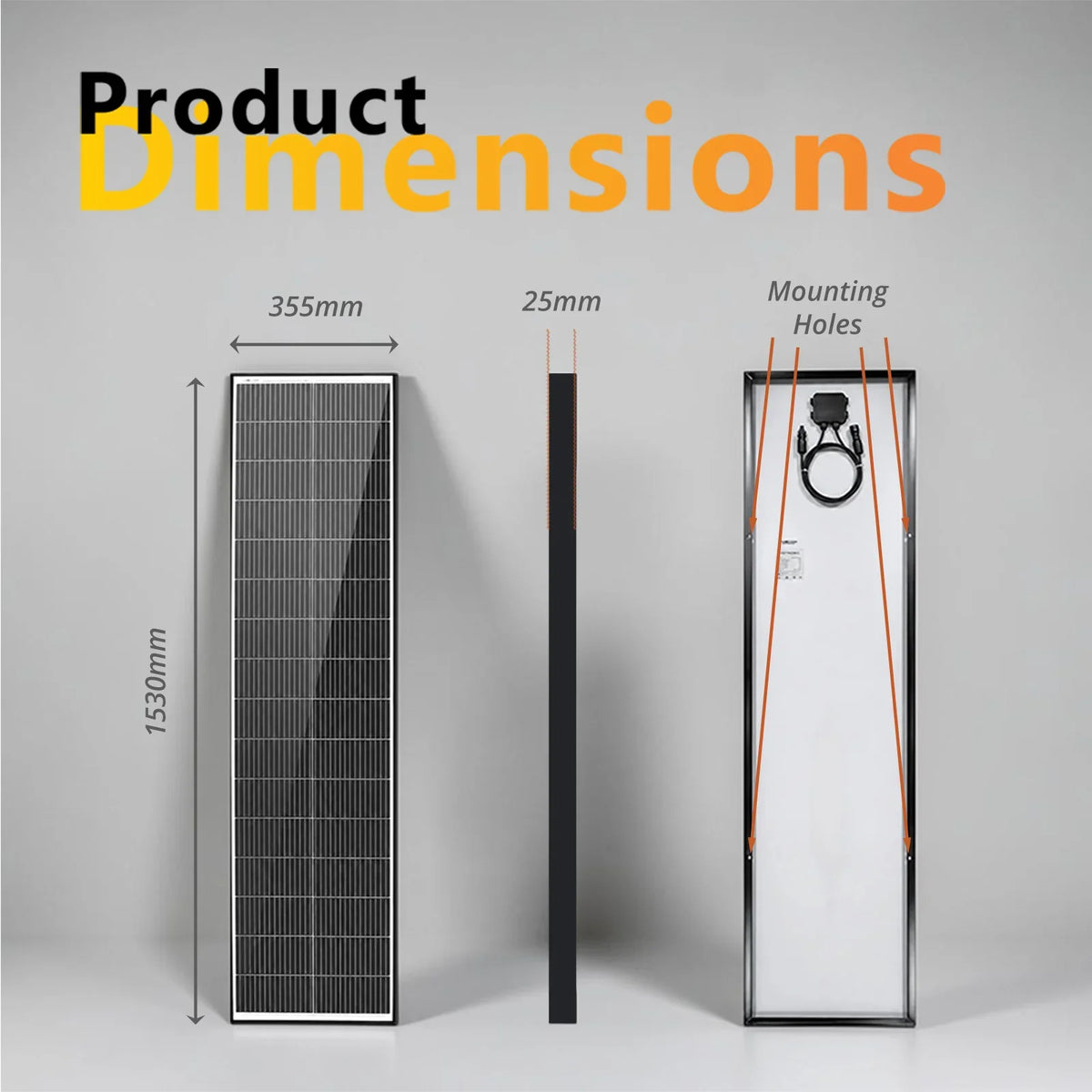

Dimensions: 1530 × 355 × 25mm

Weight: Approximately 6.0kg

Front Glass: 3.2mm Tempered Glass

Frame: Black Anodised Aluminium Alloy

Junction Box: IP68

Connectors: MC4 Compatible

Fly Lead: Approximately 800mm

Wind Load Rating: Up to 2400Pa

Snow Load Rating: Up to 5400Pa

🔋 DESIGNED FOR 12V & OFF-GRID SOLAR SYSTEMS

With a Vmp of 18.9V and Voc of 22.1V, the Exotronic 115W Narrow Fusion panel is suited to compatible 12V battery charging systems when connected through an appropriate solar regulator.

Multiple panels may also be configured in series for compatible 24V or 48V off-grid systems, subject to the voltage and current limits of the solar controller and connected equipment.

📦 PRODUCT DETAILS

SKU: Exo-SP-TCN-115

Model Number: Exo-SP-TCN-115

Barcode: 9361784004310

❓ QUICK FAQ

How narrow is the Exotronic 115W Fusion panel?

The panel is approximately 355mm wide, 1530mm long and 25mm thick, making it particularly useful for long, narrow mounting spaces.

What solar cell technology does it use?

It uses N-Type TOPCon solar cells with a stated cell efficiency of 25.2%.

Can it charge a 12V battery?

Yes. It is suited to compatible 12V solar charging systems when used with an appropriate solar regulator or MPPT controller.

Is it suitable for coastal or marine use?

The supplied information states the panel is salt-mist and ammonia resistant and uses a fully potted IP68 junction box.

☀️ 115W OF SOLAR FOR LONG, NARROW ROOF SPACES

With N-Type TOPCon technology, 25.2% cell efficiency and a slim 355mm-wide footprint, the Exotronic 115W Narrow Fusion panel is a practical solution for caravans, boats and vehicles where conventional-width solar panels simply will not fit.
