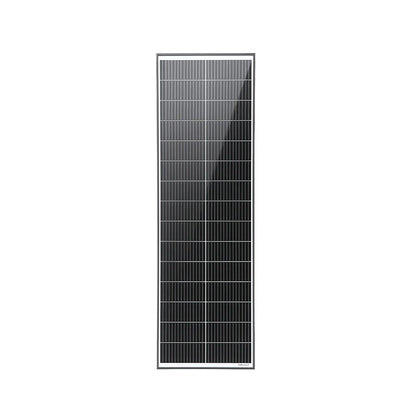

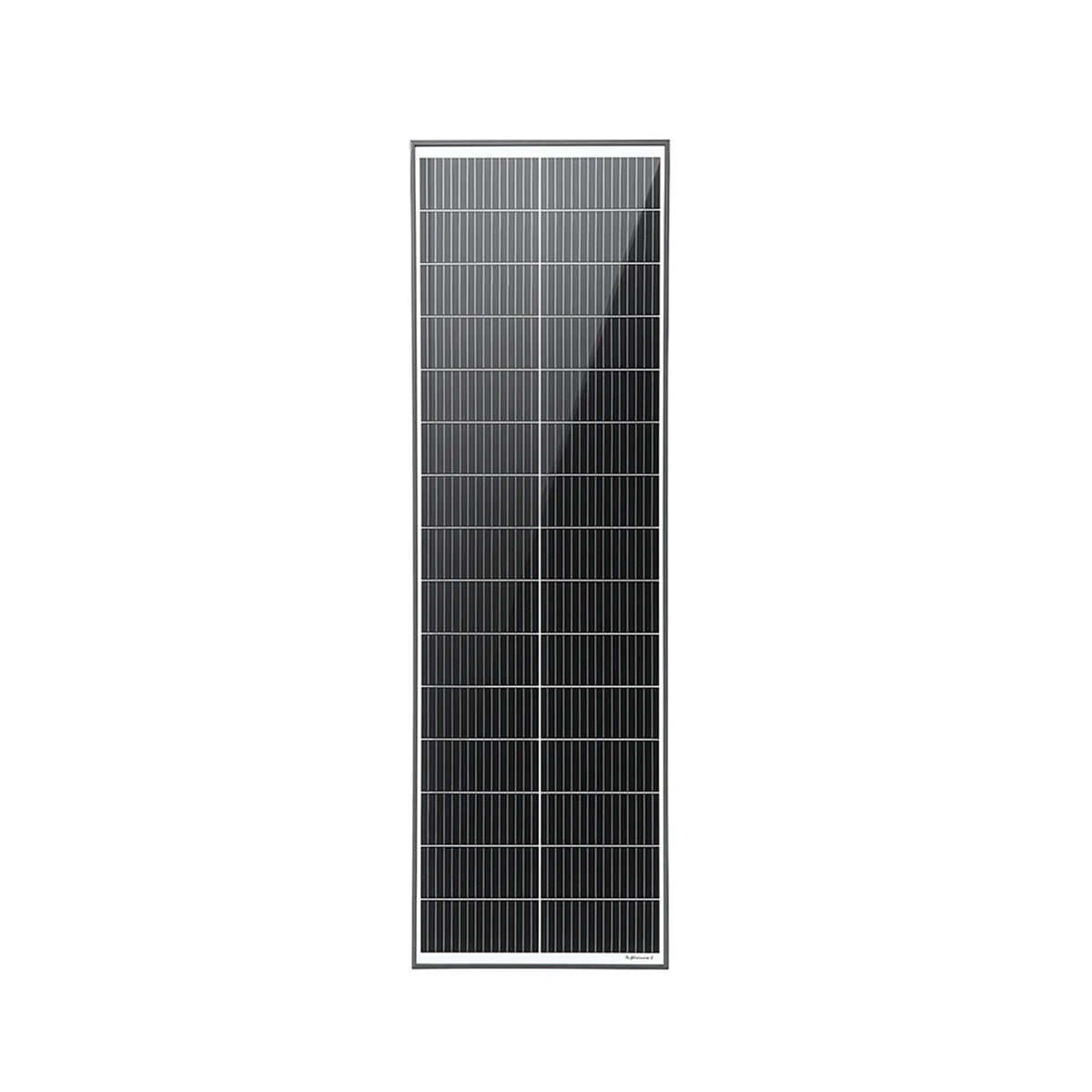

80W Narrow N-Type TOPCon Solar Panel | 1060 x 355mm

☀️ EXOTRONIC 80W NARROW FUSION FIXED SOLAR PANEL

80W • N-Type TOPCon • 25.2% Cell Efficiency • Narrow 1060 × 355mm Design • IP68 Junction Box

The Exotronic 80W Narrow Fusion Fixed Solar Panel combines high-efficiency N-Type TOPCon technology with a long, narrow footprint designed for caravans, RVs, boats and off-grid installations where conventional-width panels may not fit.

Measuring only 355mm wide, the panel delivers a rated 80W output while making better use of narrow or awkward roof spaces.

⚡ KEY FEATURES

☀️ 80W Rated Output
Compact solar generation suited to caravan, vehicle, marine and auxiliary off-grid charging systems.

📐 Narrow 355mm Profile
The 1060 × 355mm footprint makes this panel particularly useful where available mounting space is long and narrow.

⚙️ N-Type TOPCon Technology
Uses Tunnel Oxide Passivated Contact solar cells designed for high efficiency, reduced degradation and improved low-light performance.

📈 25.2% Cell Efficiency
High-efficiency cells help maximise solar generation from the available panel area.

🌥️ Improved Low-Light Response
Designed to provide useful output under cloudy and variable-light conditions.

🔗 18-Wire Busbar Design
Designed to reduce resistive losses and improve current flow across the solar cell surface.

🪶 Lightweight Construction
Weighing approximately 4.6kg, the panel remains practical for mobile and roof-mounted applications.

🌊 Salt Mist & Ammonia Resistant
Designed for demanding coastal, marine and off-grid environments.

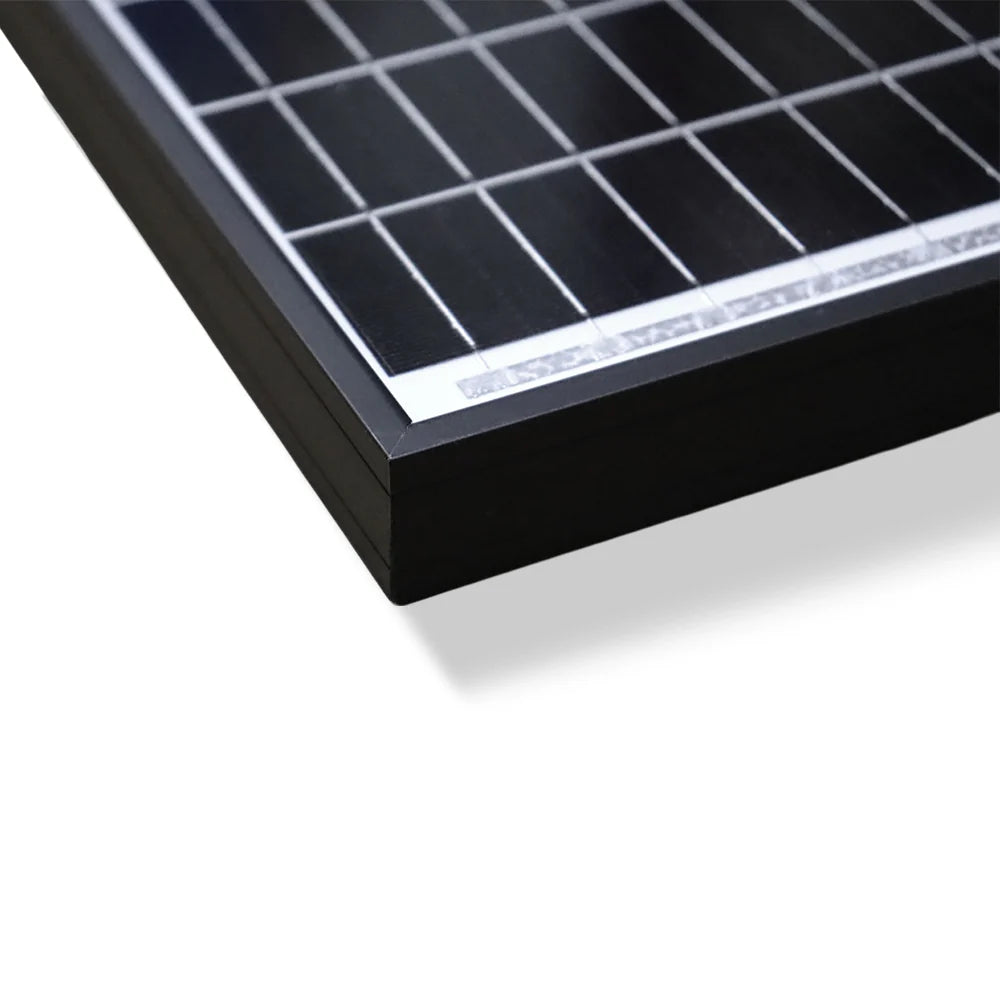

⬛ Black Anodised Aluminium Frame
25mm aluminium-alloy frame provides structural rigidity while maintaining a low-profile appearance.

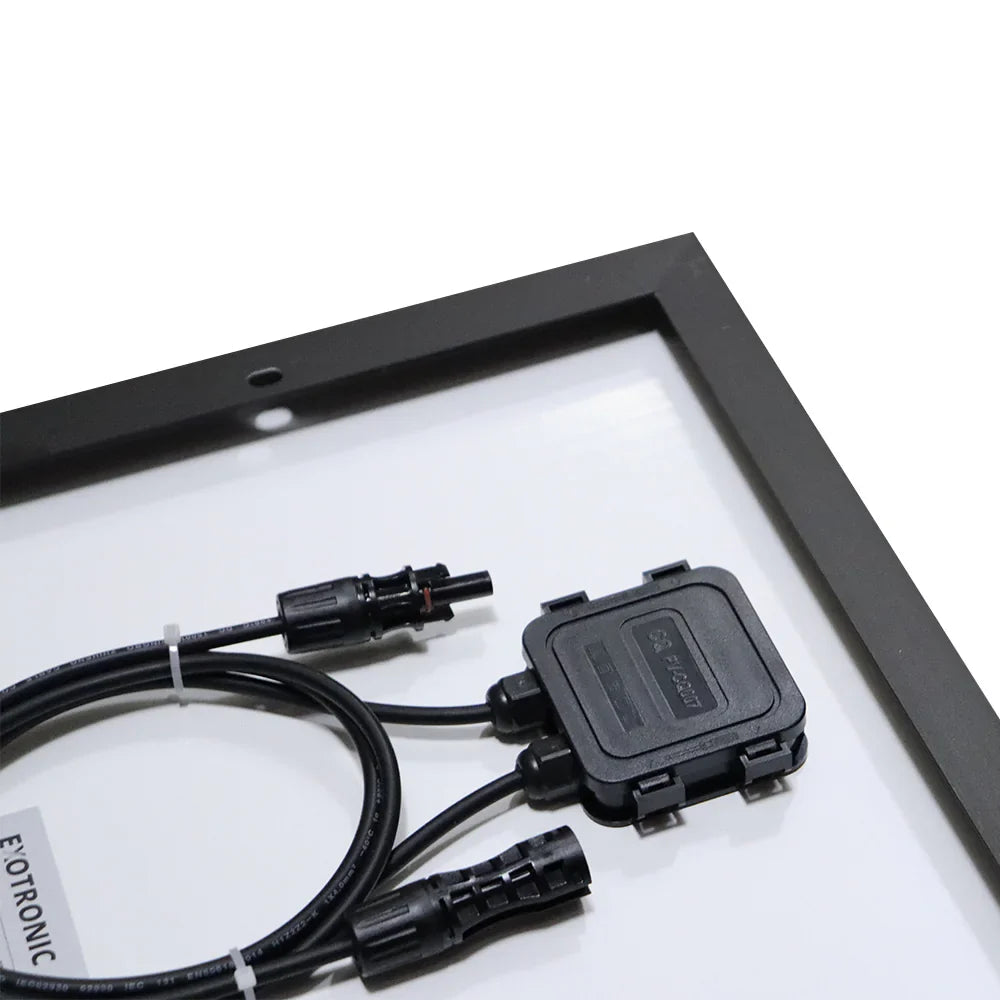

💧 Fully Potted IP68 Junction Box
Provides a high level of protection against moisture ingress around critical electrical connections.

🔌 MC4-Compatible Connections
Supplied with an approximately 800mm fly lead for flexible installation.

🚐 IDEAL FOR

• 🚐 Caravans & camper trailers
• 🚙 4WD & vehicle roof installations
• 🚤 Boats & marine applications
• 📐 Narrow or restricted roof spaces
• 🔋 12V battery charging systems
• 🏠 Remote sheds, cabins & tiny homes
• 📡 Lighting, cameras & monitoring systems
• ⚡ Series-connected 24V or 48V off-grid arrays

📋 ELECTRICAL SPECIFICATIONS

Model: Exo-SP-TCN-080-01

Rated Power: 80W

Maximum Power Voltage (Vmp): 17.7V

Maximum Power Current (Imp): 4.52A

Open Circuit Voltage (Voc): 20.7V

Short Circuit Current (Isc): 4.9A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Temperature Coefficient of Isc: +0.05%/°C

Operating Temperature: -40°C to +85°C

📐 DIMENSIONS & CONSTRUCTION

Dimensions: 1060 × 355 × 25mm

Weight: Approximately 4.60kg

Front Glass: 3.2mm Tempered Glass

Frame: Black Anodised Aluminium Alloy

Junction Box: IP68

Connectors: MC4 Compatible

Fly Lead: Approximately 800mm

Wind Load Rating: Up to 2400Pa

Snow Load Rating: Up to 5400Pa

🔋 DESIGNED FOR 12V & OFF-GRID SOLAR SYSTEMS

With a Vmp of 17.7V and Voc of 20.7V, the Exotronic 80W Narrow Fusion panel is suited to compatible 12V battery charging systems when connected through an appropriate solar regulator.

Multiple panels may also be configured in series for compatible 24V or 48V off-grid systems, subject to the voltage and current limits of the solar controller and connected equipment.

📦 PRODUCT DETAILS

SKU: Exo-SP-TCN-080-01

Model Number: Exo-SP-TCN-080-01

Barcode: 9361784002873

❓ QUICK FAQ

How narrow is the Exotronic 80W Fusion panel?

The panel is approximately 355mm wide, 1060mm long and 25mm thick, making it useful for long, narrow mounting spaces.

What solar cell technology does it use?

It uses N-Type TOPCon cells with a stated cell efficiency of 25.2%.

Can it charge a 12V battery?

Yes. It is suited to compatible 12V solar charging systems when used with an appropriate solar regulator or MPPT controller.

Is it suitable for coastal or marine use?

The supplied information states that the panel is salt-mist and ammonia resistant and uses a fully potted IP68 junction box.

☀️ MORE SOLAR OPTIONS FOR NARROW ROOF SPACES

With 80W output, N-Type TOPCon technology and a slim 355mm-wide footprint, the Exotronic 80W Narrow Fusion panel is a practical choice for caravans, boats and vehicles where conventional-width solar panels simply won't fit.
