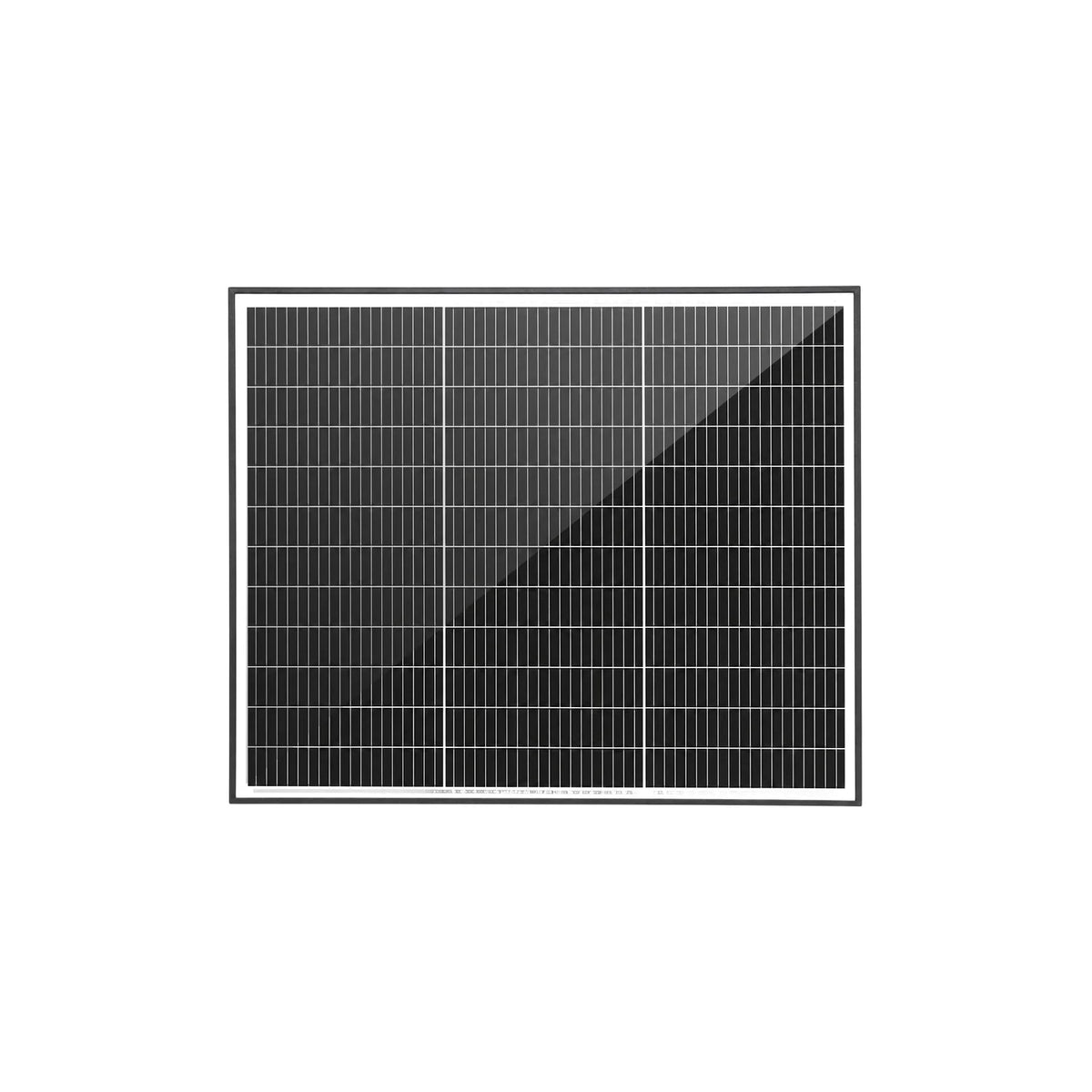

75W N-Type TOPCon Solar Panel | 670 × 555mm

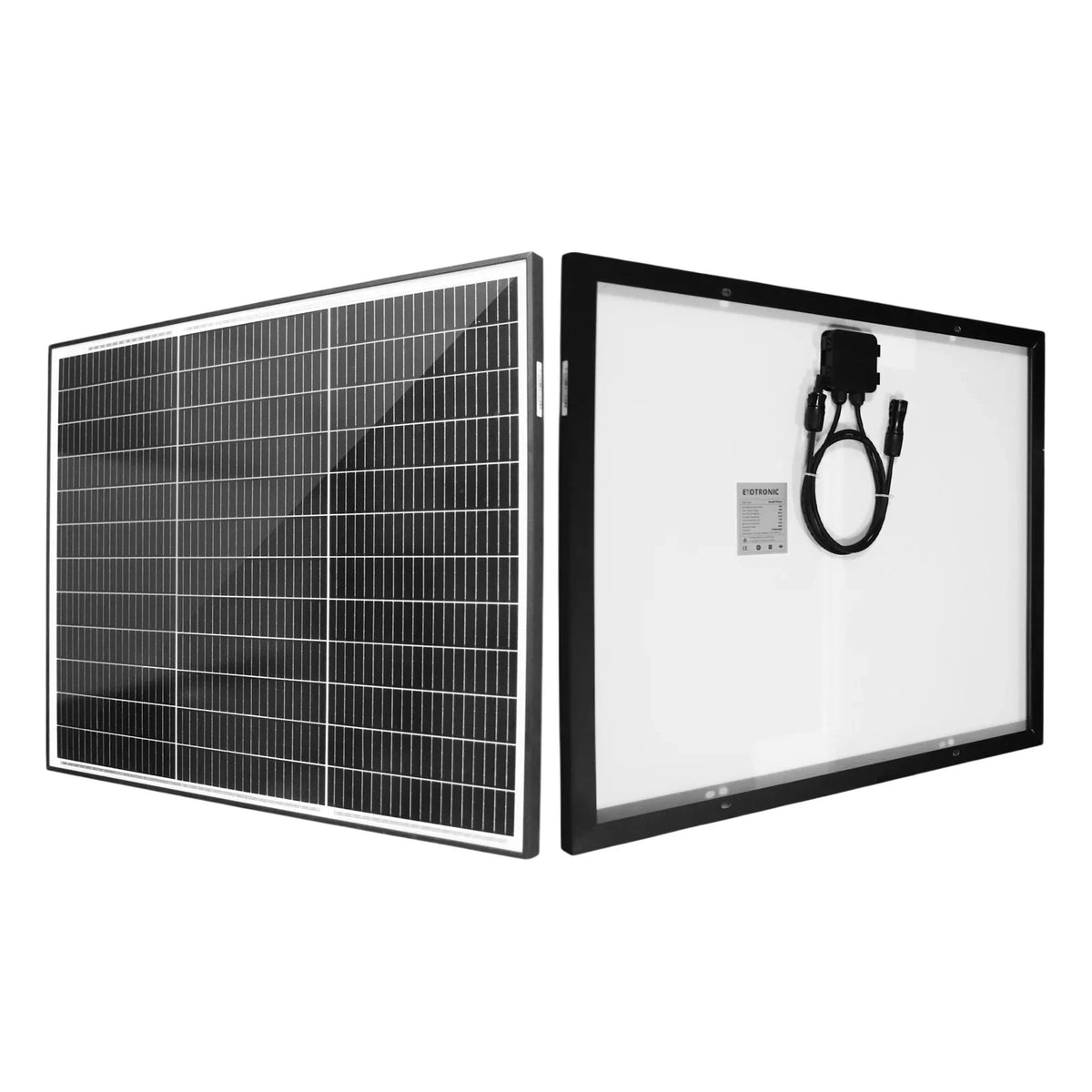

☀️ EXOTRONIC 75W FUSION FIXED SOLAR PANEL

75W • N-Type TOPCon • 25.2% Cell Efficiency • 670 × 555 × 25mm • IP68 Junction Box

The Exotronic 75W Fusion Fixed Solar Panel is a compact, high-efficiency solar panel designed for caravans, RVs, boats and off-grid installations where available roof space and weight matter.

Using advanced N-Type TOPCon solar cell technology with a stated 25.2% cell efficiency, it delivers 75W of rated output from a compact 670 × 555 × 25mm footprint.

⚡ KEY FEATURES

☀️ 75W Rated Output
A practical size for caravan, RV, marine and auxiliary off-grid charging systems.

⚙️ N-Type TOPCon Technology
Uses Tunnel Oxide Passivated Contact cells designed for high efficiency, lower degradation and improved low-light performance.

📈 25.2% Cell Efficiency
High-efficiency cells maximise energy generation from a relatively compact panel footprint.

🌥️ Improved Low-Light Performance
Designed to maintain useful output under cloudy and variable-light conditions.

🪶 Compact & Lightweight
Measures only 670 × 555mm and weighs approximately 4.1kg, making it well suited to mobile installations.

🌊 Salt Mist & Ammonia Resistant
Designed for demanding environments including compatible coastal and marine installations.

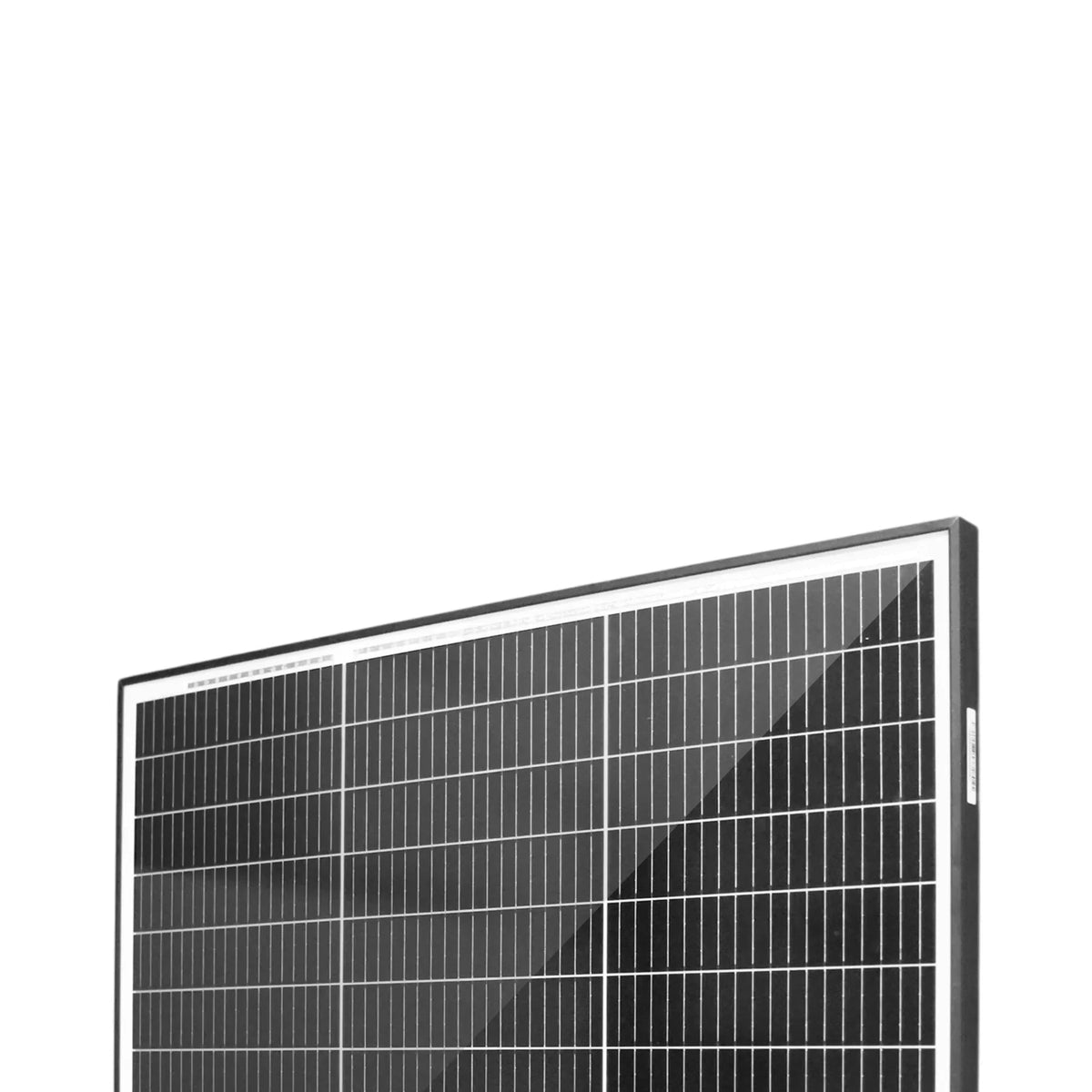

🛡️ 3.2mm Tempered Glass
High-transmissivity low-iron tempered glass provides good light capture and impact resistance.

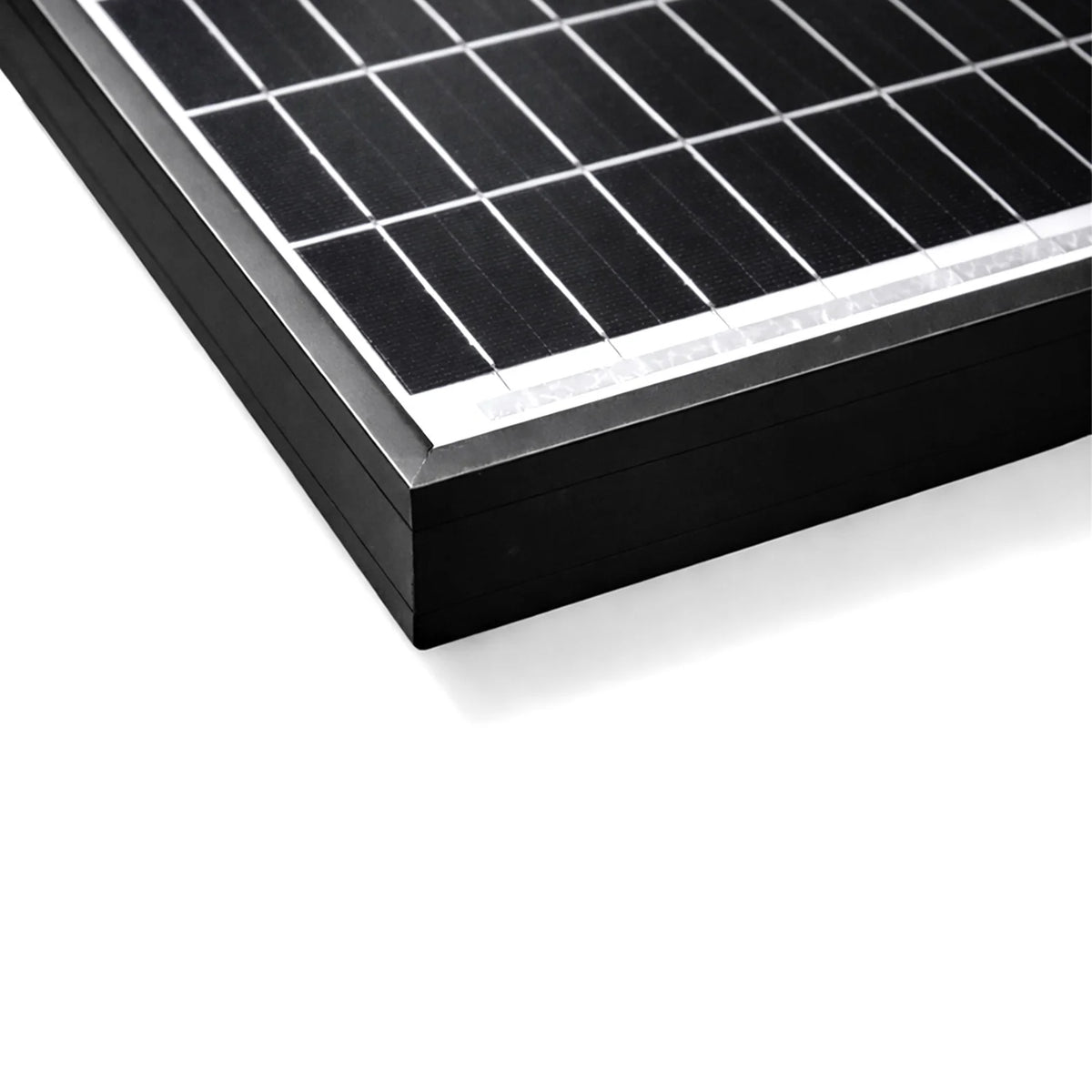

⬛ Black Anodised Aluminium Frame
25mm aluminium-alloy frame provides structural strength without excessive weight.

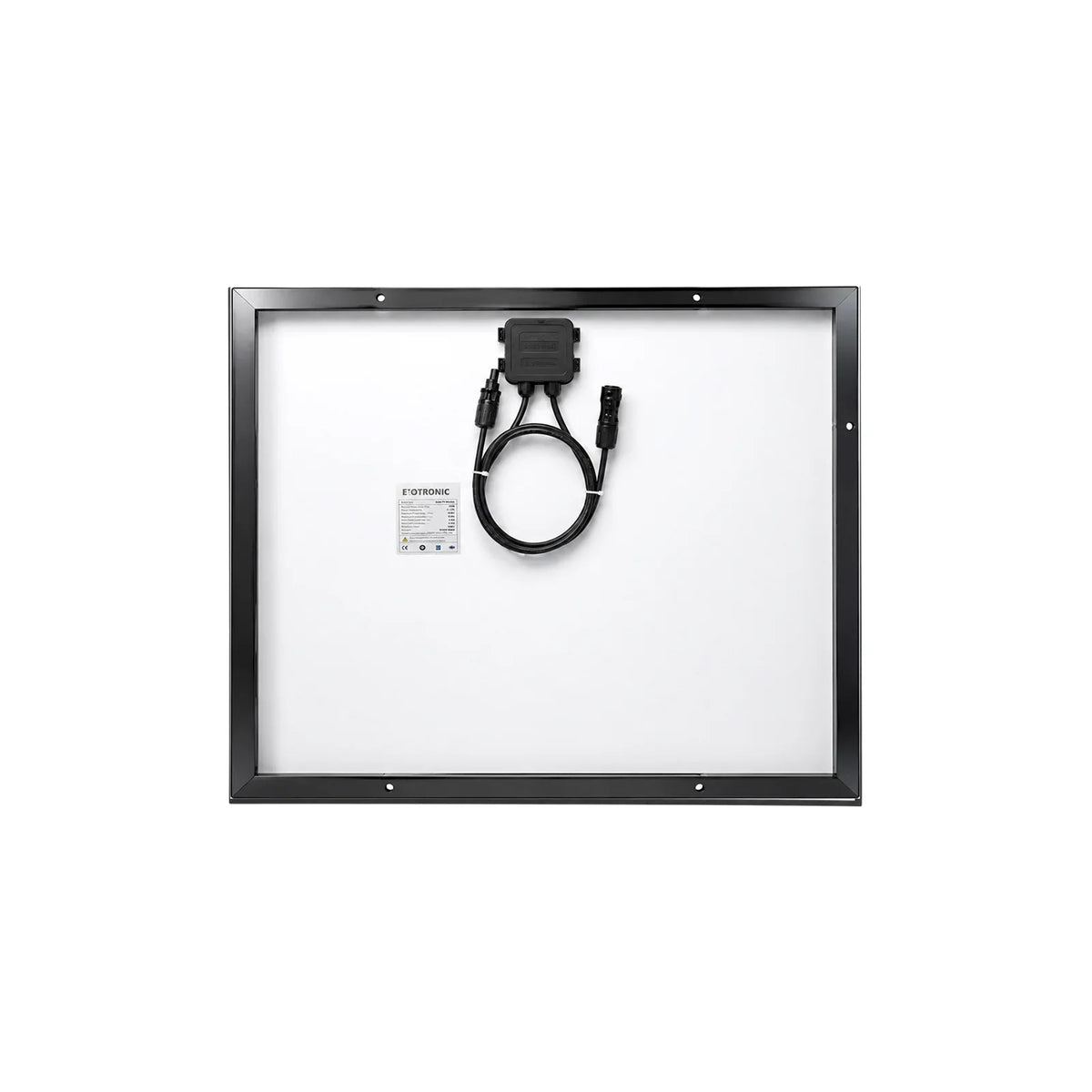

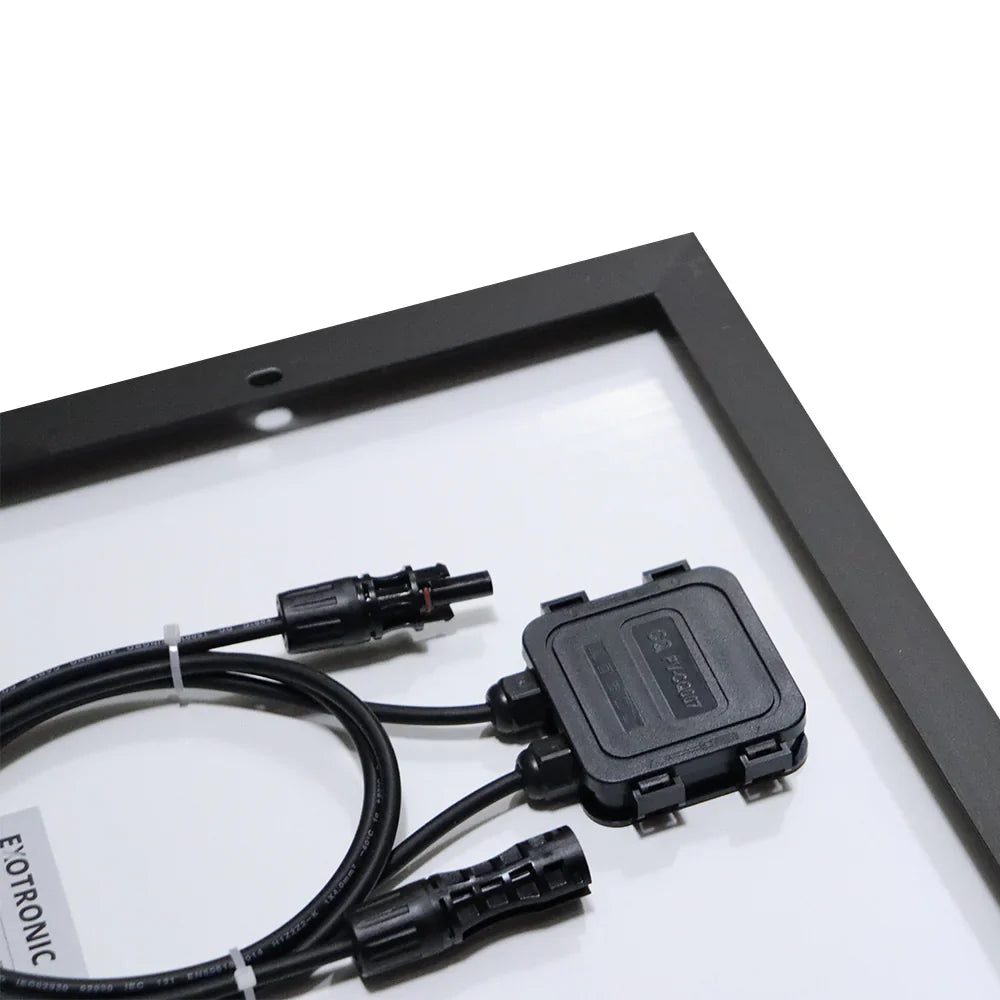

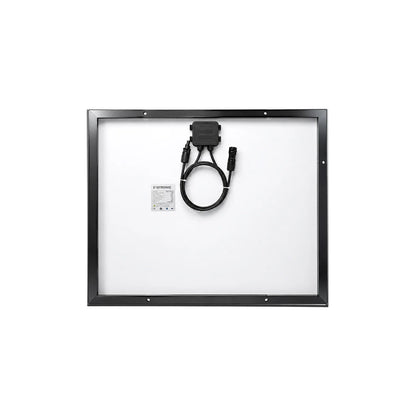

💧 Fully Potted IP68 Junction Box
Designed to protect electrical connections against moisture ingress in demanding installations.

🔌 MC4-Compatible Connections
Supplied with an approximately 800mm fly lead for flexible installation.

🚐 IDEAL FOR

• 🚐 Caravans & camper trailers
• 🚙 4WD & vehicle installations
• 🚤 Boats & marine applications
• 🔋 12V battery charging systems
• 🏠 Remote sheds, cabins & tiny homes
• 📡 Security cameras, lighting & monitoring systems
• ⚡ Series-connected 24V or 48V off-grid arrays

📋 ELECTRICAL SPECIFICATIONS

Model: Exo-SP-TCN-075

Rated Power: 75W

Maximum Power Voltage (Vmp): 21.6V

Maximum Power Current (Imp): 3.47A

Open Circuit Voltage (Voc): 25.2V

Short Circuit Current (Isc): 3.8A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Temperature Coefficient of Isc: +0.05%/°C

Operating Temperature: -40°C to +85°C

📐 DIMENSIONS & CONSTRUCTION

Dimensions: 670 × 555 × 25mm

Weight: Approximately 4.1kg

Front Glass: 3.2mm Tempered Glass

Frame: Black Anodised Aluminium Alloy

Junction Box: IP68

Connectors: MC4 Compatible

Fly Lead: Approximately 800mm

Wind Load Rating: Up to 2400Pa

Snow Load Rating: Up to 5400Pa

🔋 DESIGNED FOR 12V & OFF-GRID SOLAR SYSTEMS

With a Vmp of 21.6V and Voc of 25.2V, the Exotronic 75W Fusion panel is suited to compatible 12V battery charging systems when connected through an appropriate solar regulator.

Multiple panels can also be configured in series for compatible 24V or 48V off-grid systems, subject to the voltage and current limits of the connected solar controller.

📦 PRODUCT DETAILS

SKU: Exo-SP-TCN-075

Model Number: Exo-SP-TCN-075

Barcode: 9361784004327

❓ QUICK FAQ

How big is the Exotronic 75W Fusion panel?

It measures approximately 670 × 555 × 25mm and weighs around 4.1kg.

What type of solar cells does it use?

It uses N-Type TOPCon cells with a stated cell efficiency of 25.2%.

Can it charge a 12V battery?

Yes. It is suitable for compatible 12V solar charging systems when used with an appropriate solar regulator or MPPT controller.

Is it suitable for marine or coastal use?

The supplied information states the panel is salt-mist and ammonia resistant and uses a fully potted IP68 junction box.

☀️ HIGH-EFFICIENCY SOLAR WITHOUT WASTING ROOF SPACE

With 75W output, N-Type TOPCon technology, 25.2% cell efficiency and a compact 670 × 555mm footprint, the Exotronic Fusion Series is a practical choice for caravans, boats and off-grid systems where space, weight and solar efficiency matter.
