50W N-Type TOPCon Solar Panel | 650 × 395mm

☀️ EXOTRONIC 50W FUSION FIXED SOLAR PANEL

50W • N-Type TOPCon • 25.2% Cell Efficiency • Compact 650 × 395mm • IP68 Junction Box

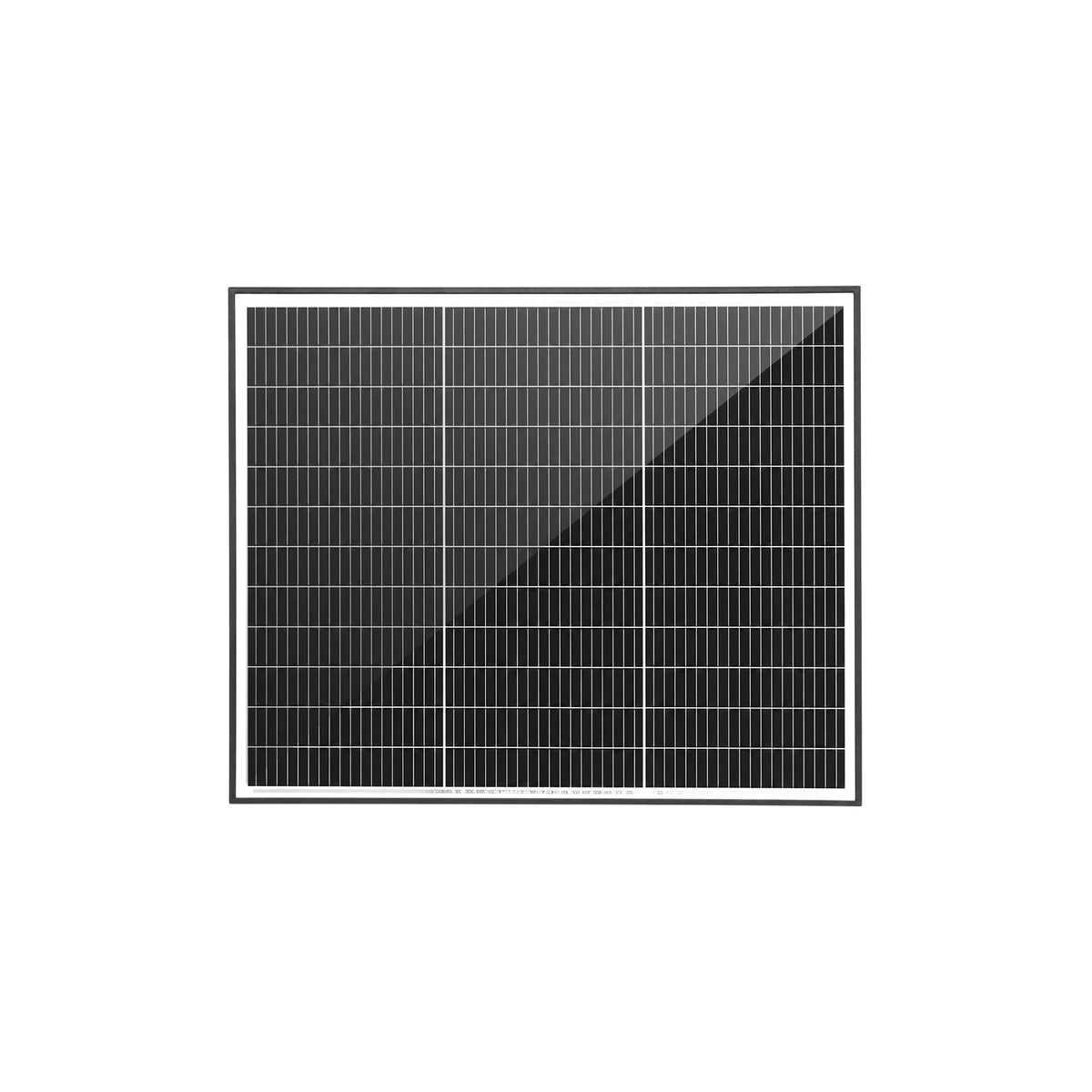

The Exotronic 50W Fusion Fixed Solar Panel is a compact, high-efficiency panel designed for caravans, RVs, boats, vehicles and off-grid applications where available mounting space is important.

Using advanced N-Type TOPCon solar cell technology with a stated 25.2% cell efficiency, the Fusion Series provides useful solar generation from a compact 650 × 395 × 25mm footprint.

⚡ KEY FEATURES

☀️ 50W Solar Output
Well suited to smaller 12V battery systems, auxiliary charging and space-restricted mobile installations.

⚙️ N-Type TOPCon Technology
Uses Tunnel Oxide Passivated Contact cell technology designed for improved efficiency, reduced degradation and strong low-light performance.

📈 25.2% Cell Efficiency
High-efficiency cells help maximise energy generation from a compact panel footprint.

🌥️ Improved Low-Light Response
Designed to maintain useful output in cloudy, shaded and variable-light conditions.

🔗 9-Busbar Cell Design
Designed to reduce resistive losses and improve current flow across the solar cell surface.

🪶 Compact & Lightweight
At approximately 2.55kg, the panel is easy to handle and particularly useful on vehicles and installations with limited available space.

🌊 Salt Mist & Ammonia Resistant
Designed for demanding environments including compatible marine and coastal installations.

🛡️ 3.2mm Tempered Glass
High-transmissivity low-iron tempered glass provides light capture and impact resistance.

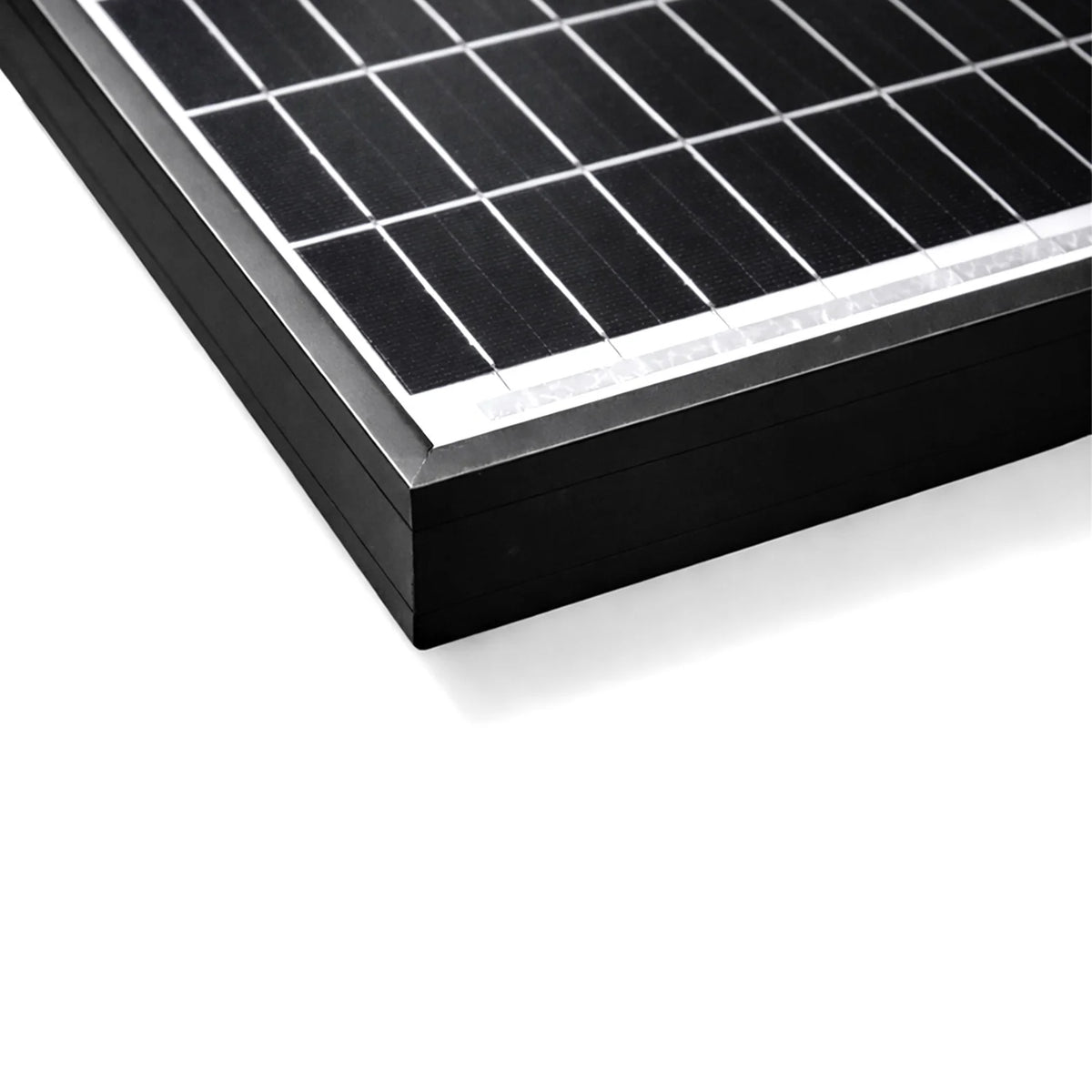

⬛ Black Anodised Aluminium Frame
25mm aluminium-alloy frame provides structural rigidity while keeping weight low.

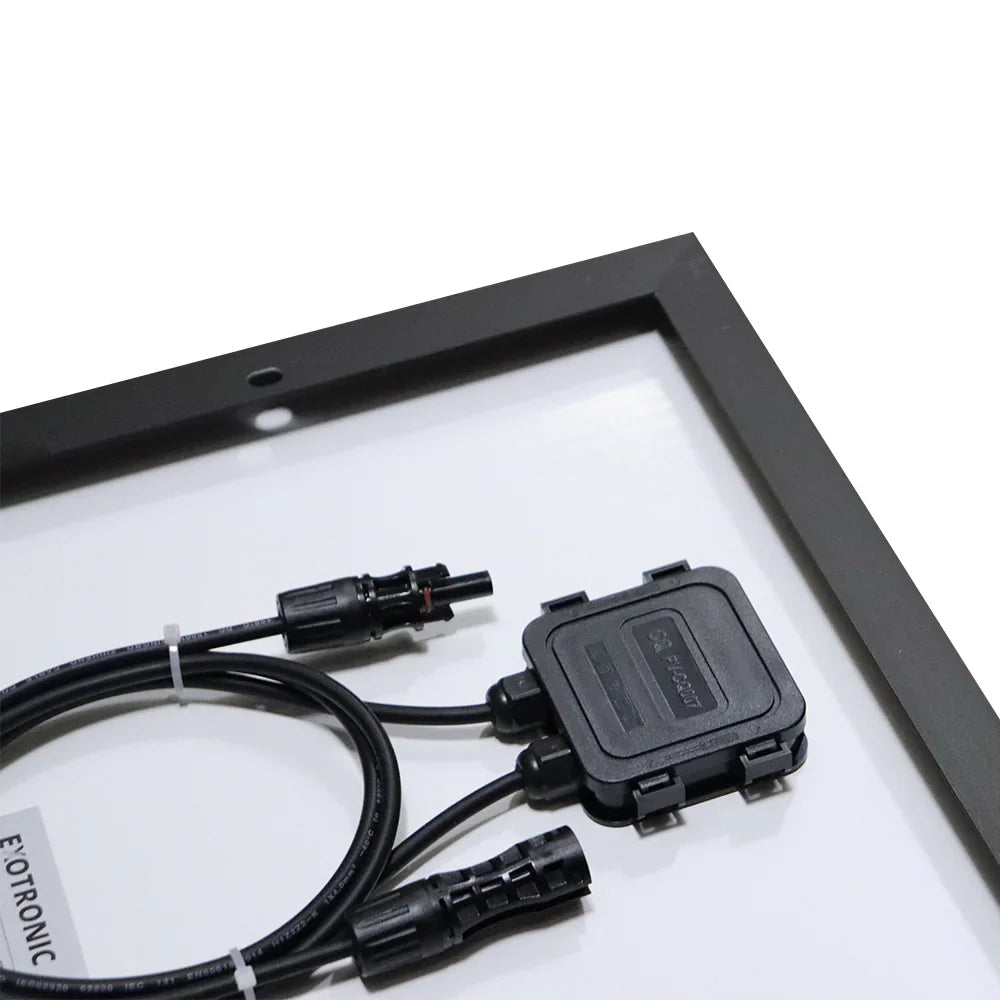

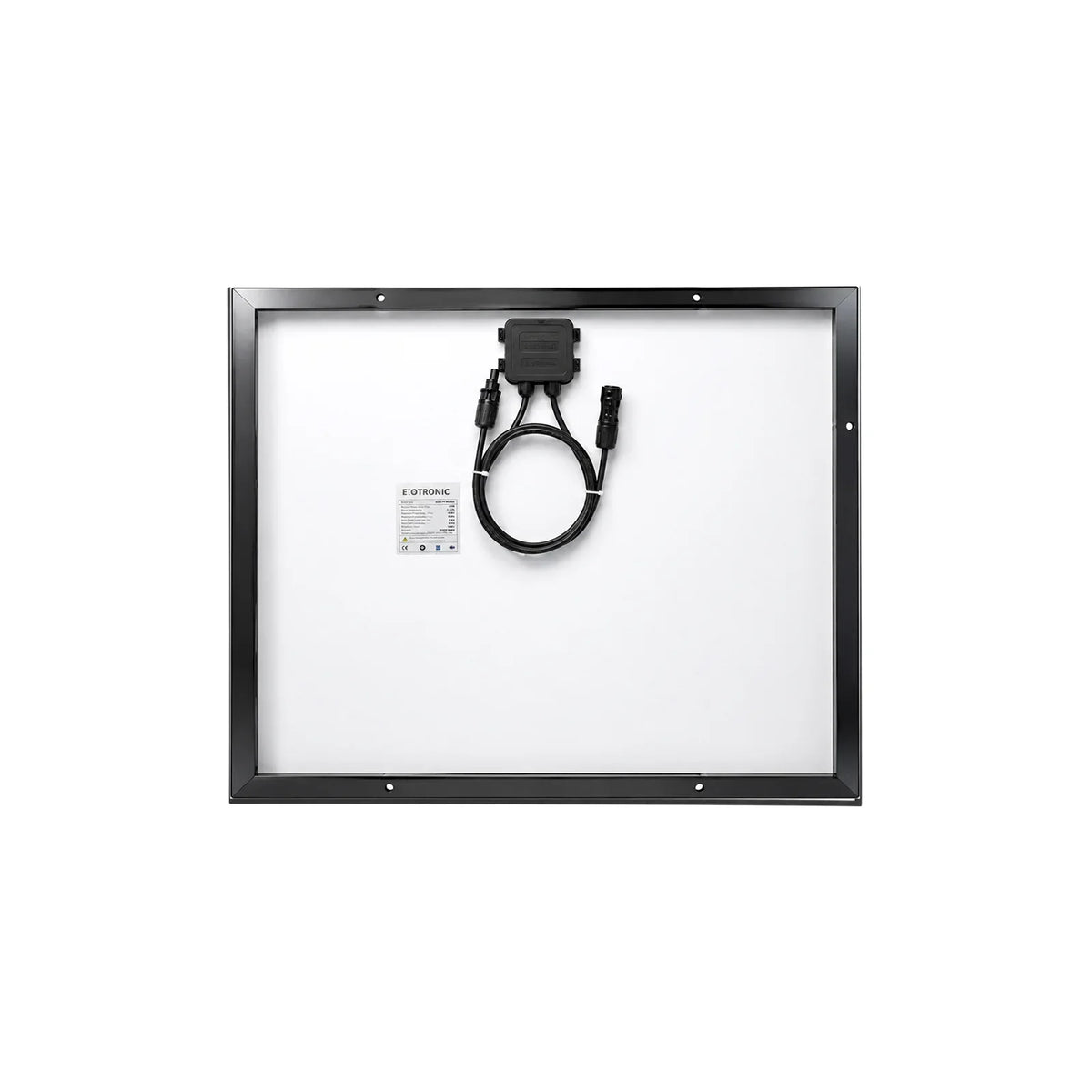

💧 Fully Potted IP68 Junction Box
Designed to protect critical electrical connections against moisture ingress.

🔌 MC4-Compatible Connections
Supplied with an approximately 800mm fly lead for flexible installation.

🚐 IDEAL FOR MOBILE & OFF-GRID SYSTEMS

• 🚐 Caravans & camper trailers
• 🚙 4WD & vehicle installations
• 🚤 Boats & marine applications
• 🔋 12V battery charging systems
• 🏠 Remote sheds, cabins & tiny homes
• 📡 Lighting, security cameras & sensors
• 🛠️ DIY & portable solar projects
• ⚡ Series-connected 24V or 48V off-grid arrays

📋 ELECTRICAL SPECIFICATIONS

Model: Exo-SP-TCN-050

Rated Power: 50W

Maximum Power Voltage (Vmp): 17.7V

Maximum Power Current (Imp): 2.94A

Open Circuit Voltage (Voc): 20.7V

Short Circuit Current (Isc): 3.2A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Temperature Coefficient of Isc: +0.05%/°C

Operating Temperature: -40°C to +85°C

📐 DIMENSIONS & CONSTRUCTION

Dimensions: 650 × 395 × 25mm

Weight: Approximately 2.55kg

Front Glass: 3.2mm Tempered Glass

Frame: Black Anodised Aluminium Alloy

Junction Box: IP68

Connectors: MC4 Compatible

Fly Lead: Approximately 800mm

Wind Load Rating: Up to 2400Pa

Snow Load Rating: Up to 5400Pa

🔋 SUITED TO 12V SOLAR SYSTEMS

With a Vmp of 17.7V and Voc of 20.7V, the Exotronic 50W Fusion panel is well suited to compatible 12V battery charging systems when connected through an appropriate solar regulator.

Multiple panels can also be configured for compatible higher-voltage off-grid systems, subject to the electrical limits of the solar controller and connected equipment.

📦 PRODUCT DETAILS

SKU: Exo-SP-TCN-050

Model Number: Exo-SP-TCN-050

❓ QUICK FAQ

How big is the Exotronic 50W Fusion panel?

It measures approximately 650 × 395 × 25mm and weighs around 2.55kg.

What solar cell technology does it use?

It uses N-Type TOPCon cells with a stated cell efficiency of 25.2%.

Can it charge a 12V battery?

Yes. It is suited to compatible 12V solar charging systems when used with an appropriate regulator or MPPT controller.

Is it suitable for coastal or marine environments?

The supplied information states that the panel is salt-mist and ammonia resistant and uses a fully potted IP68 junction box.

☀️ HIGH-EFFICIENCY SOLAR WITHOUT TAKING UP THE WHOLE ROOF

With 50W output, N-Type TOPCon technology, 25.2% cell efficiency and a compact 650 × 395mm footprint, the Exotronic Fusion Series is a practical solution for caravans, boats and off-grid systems where space and weight matter.
