300W Ultra-Light Folding N-Type TOPCon Solar Panel

☀️ EXOTRONIC 300W FUSION ULTRA-LIGHT FOLDING SOLAR PANEL

300W • 25.6% N-Type TOPCon Cells • ETFE Construction • Only 8.7kg • 5m Extension Cable • No Controller

The Exotronic 300W Fusion Ultra-Light Folding Solar Panel delivers serious portable solar capacity without the weight and bulk of a traditional glass folding panel.

Built from four 75W folding solar modules and weighing only 8.7kg, it is designed for caravans, camper trailers, 4WD touring, camping and off-grid setups where portability and charging performance matter.

⚡ KEY FEATURES

☀️ 300W Portable Solar Output
Provides substantial portable solar capacity for larger battery systems and extended off-grid trips.

⚙️ 25.6% Efficient N-Type TOPCon Cells
Advanced Tunnel Oxide Passivated Contact cell technology is designed for high energy density, lower long-term degradation and improved low-light performance.

🪶 Ultra-Light – Only 8.7kg
ETFE construction significantly reduces weight compared with conventional glass briefcase-style folding panels, making the panel easier to carry, position and store.

🧳 Four-Panel Folding Design
Four 75W modules fold down into a compact briefcase-style format measuring approximately 560 × 670 × 80mm.

🛡️ Durable ETFE Surface
ETFE provides strong light transmission, UV resistance and durability while helping keep the overall weight down.

💪 Reinforced Backplate
An ultra-light reinforced backing provides additional structural support behind the cells to help reduce flex during transport, setup and regular use.

🌥️ Improved Low-Light Performance
N-Type TOPCon cells are designed to maintain useful charging performance in cloudy conditions and during lower-light periods of the day.

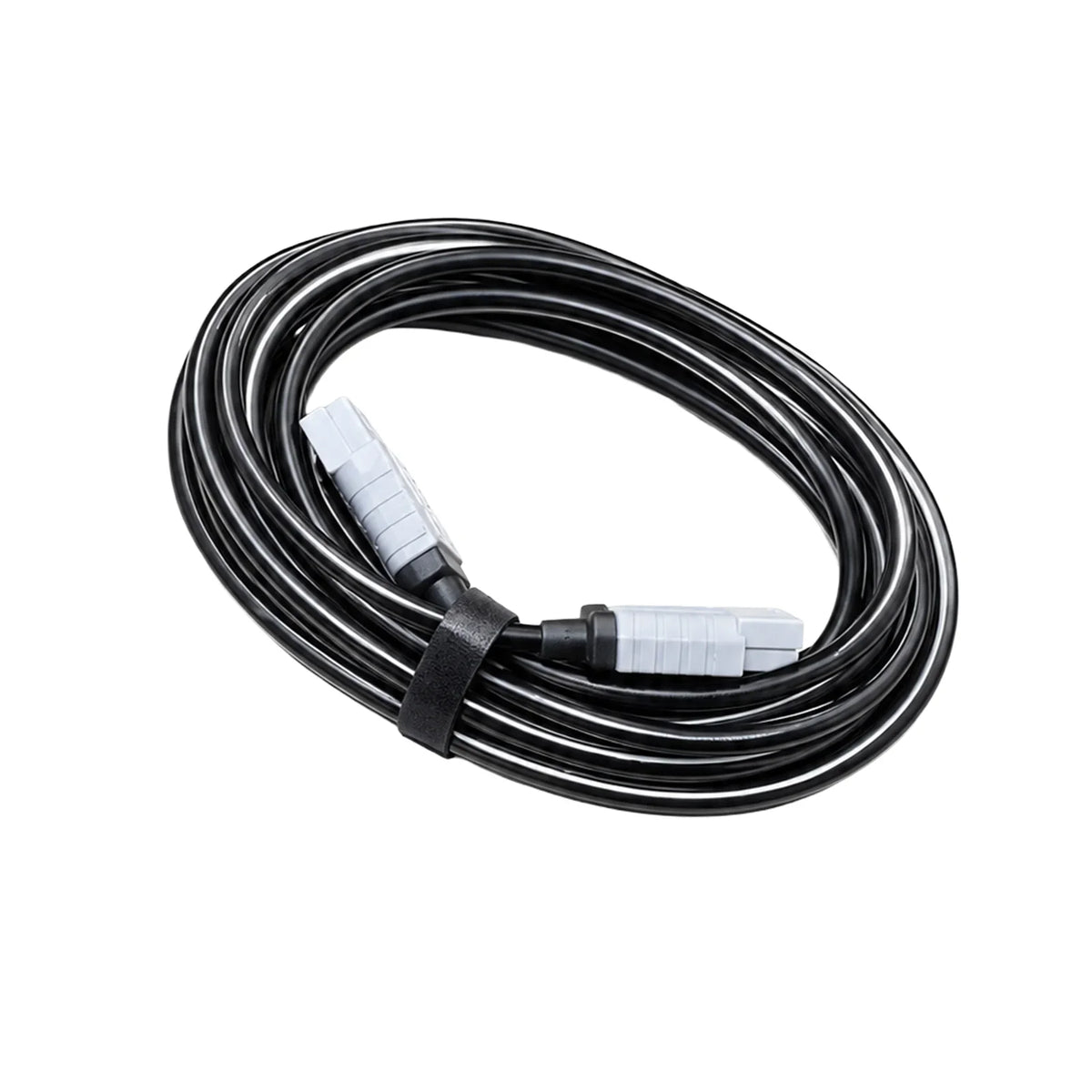

🔌 5m Heavy-Duty Extension Cable Included
Allows the panel to be positioned in better sunlight while your vehicle, caravan or battery system remains in the shade.

🔋 50A Grey Anderson-Style Connections
The supplied extension cable uses 50A grey Anderson-style plugs with integrated weather-resistant dust caps.

🪶 HIGH POWER WITHOUT THE HEAVY GLASS PANEL

The Fusion Portable Series replaces traditional tempered-glass construction with a lightweight ETFE laminated surface. At just 8.7kg, the 300W folding panel is designed to be considerably easier to carry and handle than conventional briefcase-style panels of similar output.

The reinforced backplate also helps support the solar cells during transport and repeated setup, reducing cell flex and helping minimise the risk of micro-cracking over time.

🚐 IDEAL FOR

• 🚐 Caravans & RVs
• ⛺ Camper trailers
• 🚙 4WD touring & overlanding
• 🏕️ Camping & extended off-grid trips
• 🔋 Lithium & AGM battery systems
• ⚡ Compatible portable power stations
• 🚤 Marine & boating applications
• 🛠️ Remote worksites & off-grid camps
• 🚨 Emergency backup power systems

📋 ELECTRICAL SPECIFICATIONS

Rated Power: 300W

Maximum Power Voltage (Vmp): 22.1V

Maximum Power Current (Imp): 13.57A

Open Circuit Voltage (Voc): 25.7V

Short Circuit Current (Isc): 15.26A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

📐 DIMENSIONS & WEIGHT

Folded Dimensions: 560 × 670 × 80mm

Unfolded Dimensions: 2240 × 670 × 17mm

Weight: Approximately 8.7kg

Construction: Four × 75W Folding Modules

Surface: ETFE Laminate

Included Extension Cable: 5m Heavy-Duty Cable

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Operating Temperature: -40°C to +85°C

⚠️ NO SOLAR CONTROLLER INCLUDED

⚠️ This version does not include a solar charge controller.

A compatible solar regulator or MPPT controller is required when connecting the panel directly to a battery system. Always confirm the controller's maximum solar voltage, current and input capacity before installation.

With an Imp of 13.57A and Isc of 15.26A, make sure the selected solar controller and associated wiring are appropriately rated for the panel.

📦 PRODUCT DETAILS

SKU: Exo-FPL-TCN-300

Model Number: Exo-FPL-TCN-300

Barcode: 9361784003825

❓ QUICK FAQ

Does the Exotronic 300W folding panel include a solar controller?

No. This version is supplied without a solar charge controller.

How heavy is the panel?

It weighs approximately 8.7kg, making it a lightweight option for a 300W folding solar setup.

How small does it fold down?

Folded dimensions are approximately 560 × 670 × 80mm. When fully opened, it measures approximately 2240 × 670 × 17mm.

Does it include an extension cable?

Yes. A 5m heavy-duty extension cable with 50A grey Anderson-style connectors and dust caps is included.

Can it charge lithium and AGM batteries?

Yes, when used with a compatible solar regulator or MPPT controller configured appropriately for the connected battery type.

☀️ 300W PORTABLE SOLAR WITHOUT THE TRADITIONAL WEIGHT

With 300W output, 25.6% efficient N-Type TOPCon cells, lightweight ETFE construction and an 8.7kg folding design, the Exotronic Fusion Ultra-Light is built for travellers who want serious portable solar capacity without carrying a heavy glass folding panel.
