Exotronic 200W Fusion Ultra-Light Folding Solar Panel

☀️ EXOTRONIC 200W FUSION ULTRA-LIGHT FOLDING SOLAR PANEL – NO CONTROLLER

200W • 25.6% N-Type TOPCon Cells • ETFE Construction • Only 5.9kg • 5m Extension Cable

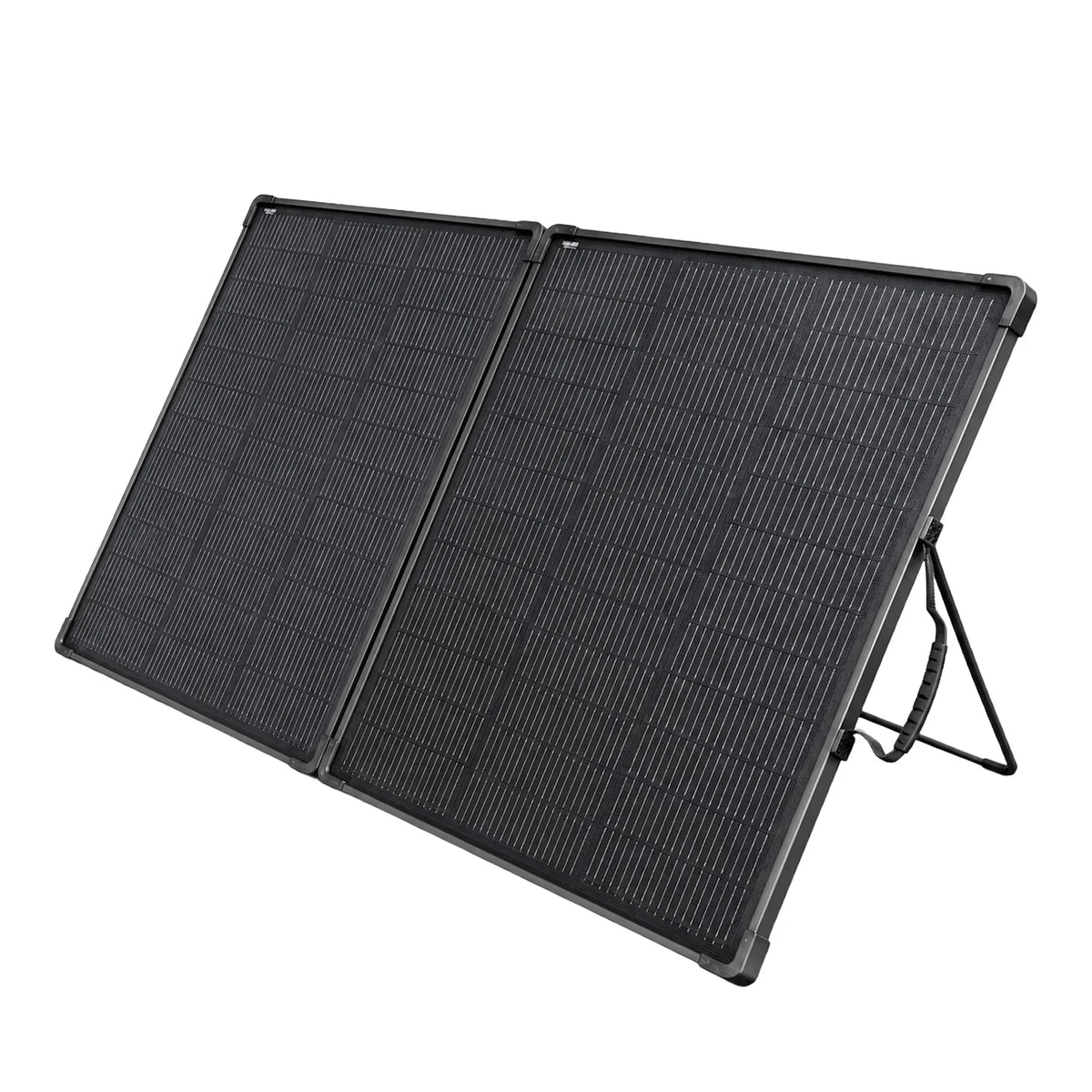

The Exotronic 200W Fusion Ultra-Light Folding Solar Panel combines high-efficiency N-Type TOPCon solar technology with an exceptionally lightweight folding design for caravans, camper trailers, 4WD touring, camping and off-grid applications.

Weighing only 5.9kg and folding down to approximately 690 × 670 × 40mm, it provides 200W of portable solar capacity without the weight of a conventional tempered-glass folding panel.

⚡ KEY FEATURES

☀️ 200W Portable Solar Output
Provides useful charging capacity for caravan, RV, 4WD, camping and off-grid battery systems.

⚙️ 25.6% N-Type TOPCon Cells
Advanced Tunnel Oxide Passivated Contact solar cells are designed for high energy density, improved low-light performance and lower long-term degradation.

🪶 Ultra-Light – Only 5.9kg
The ETFE construction dramatically reduces weight, making the panel easier to carry, reposition and pack away during travel.

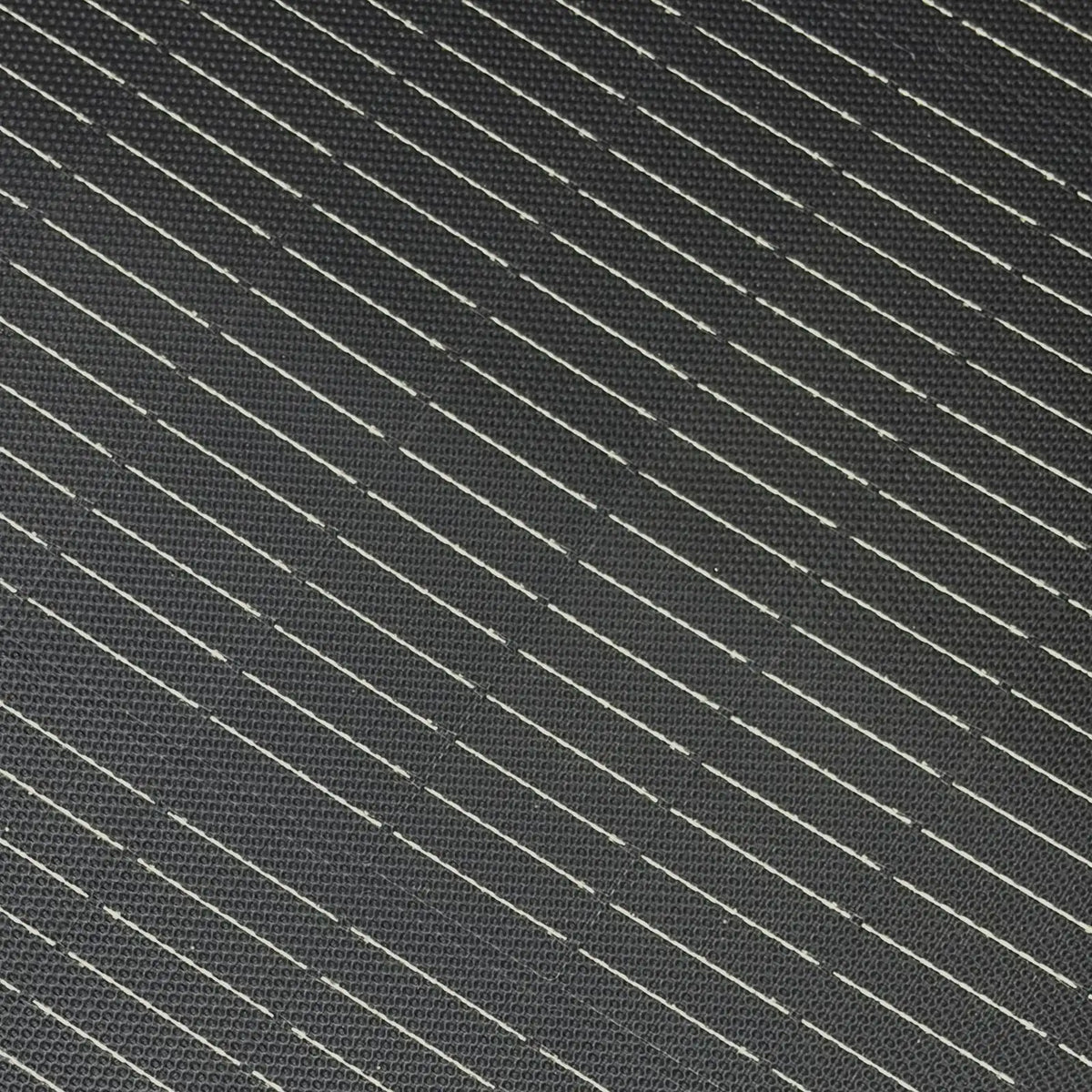

🛡️ Durable ETFE Surface
ETFE laminate provides strong light transmission, UV resistance and durability without the weight of traditional tempered glass.

💪 Ultra-Light Reinforced Backplate
Additional structural support behind the solar cells helps reduce flex during transport, setup and repeated use.

🌥️ Improved Low-Light Performance
N-Type TOPCon technology is designed to maintain useful charging performance during cloudy conditions and lower-light periods of the day.

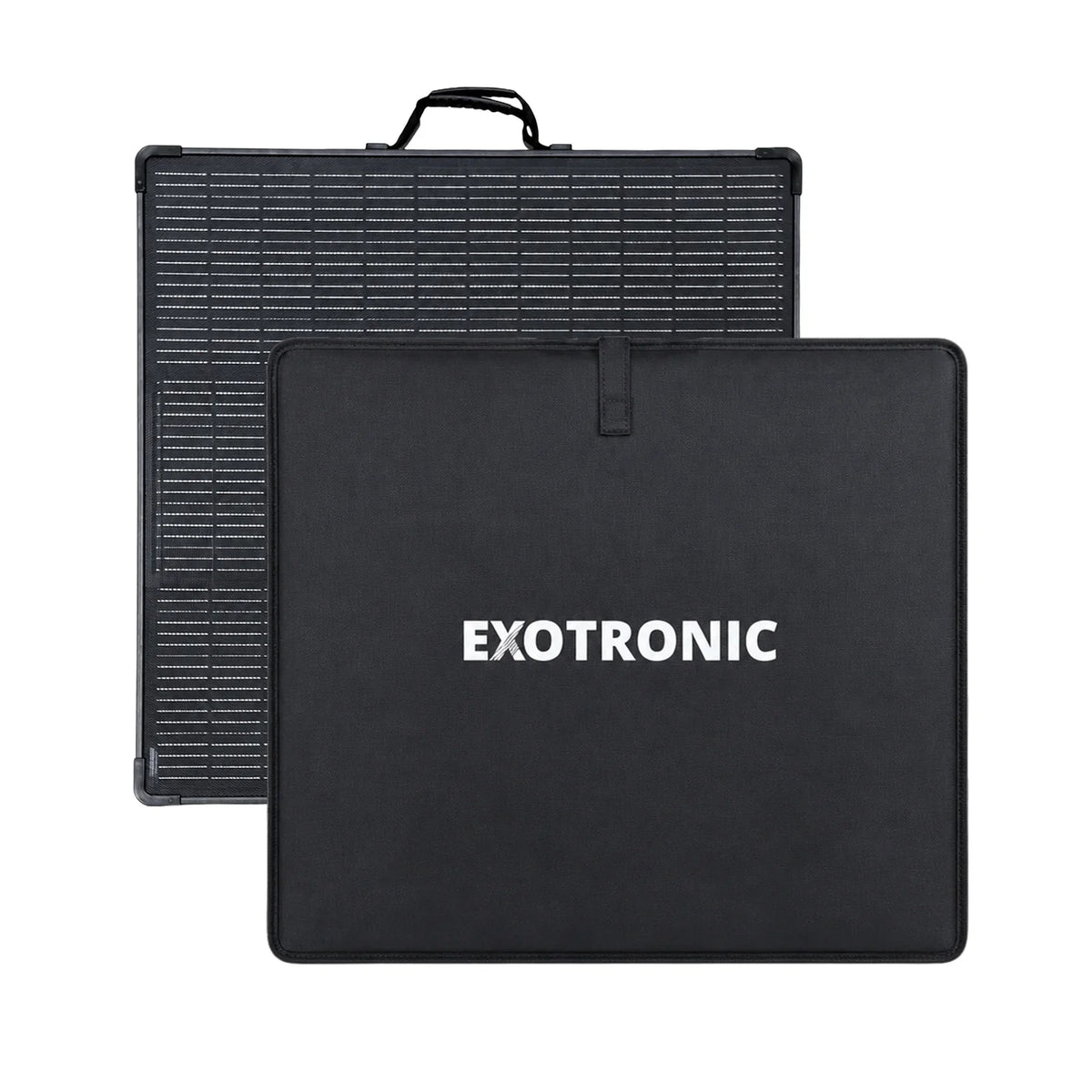

🧳 Compact Folding Design
Folds down to approximately 690 × 670 × 40mm for easier transport and storage.

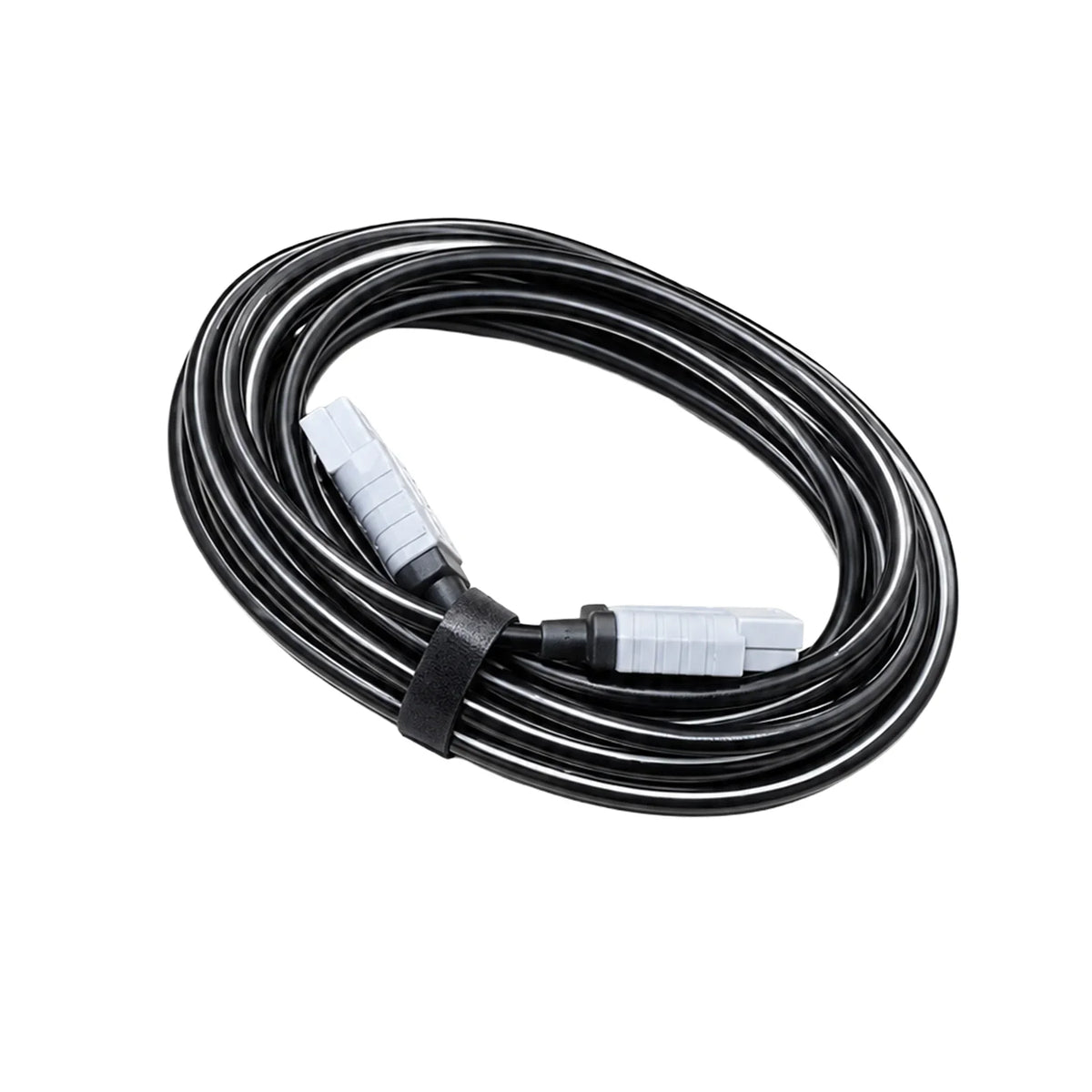

🔌 5m Heavy-Duty Extension Cable Included
Allows the solar panel to be positioned in better sunlight while your caravan, 4WD or battery system remains in the shade.

🔋 50A Grey Anderson-Style Connections
The supplied extension cable uses 50A grey Anderson-style plugs with integrated weather-resistant dust caps.

🪶 SERIOUS SOLAR WITHOUT THE HEAVY GLASS PANEL

The Fusion Ultra-Light Series replaces conventional tempered-glass construction with a lightweight ETFE laminated surface.

At just 5.9kg, the 200W model is stated to be approximately 50% lighter than conventional briefcase-style folding solar panels, making it particularly attractive for travellers who regularly set up and pack away their portable solar.

The reinforced backplate also provides additional support behind the cells, helping reduce flex and minimise the risk of micro-cracking during transport and repeated use.

🚐 IDEAL FOR

• 🚐 Caravans & RVs
• ⛺ Camper trailers
• 🚙 4WD touring & overlanding
• 🏕️ Camping & extended off-grid trips
• 🔋 Compatible lithium & AGM battery systems
• ⚡ Compatible portable power stations
• 🚤 Marine & boating applications
• 🛠️ Remote worksites & camps
• 🚨 Emergency backup power systems

📋 ELECTRICAL SPECIFICATIONS

Rated Power: 200W

Maximum Power Voltage (Vmp): 21.24V

Maximum Power Current (Imp): 9.42A

Open Circuit Voltage (Voc): 25.2V

Short Circuit Current (Isc): 9.96A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

📐 DIMENSIONS & WEIGHT

Folded Dimensions: 690 × 670 × 40mm

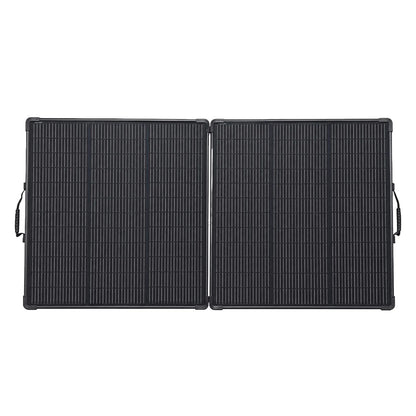

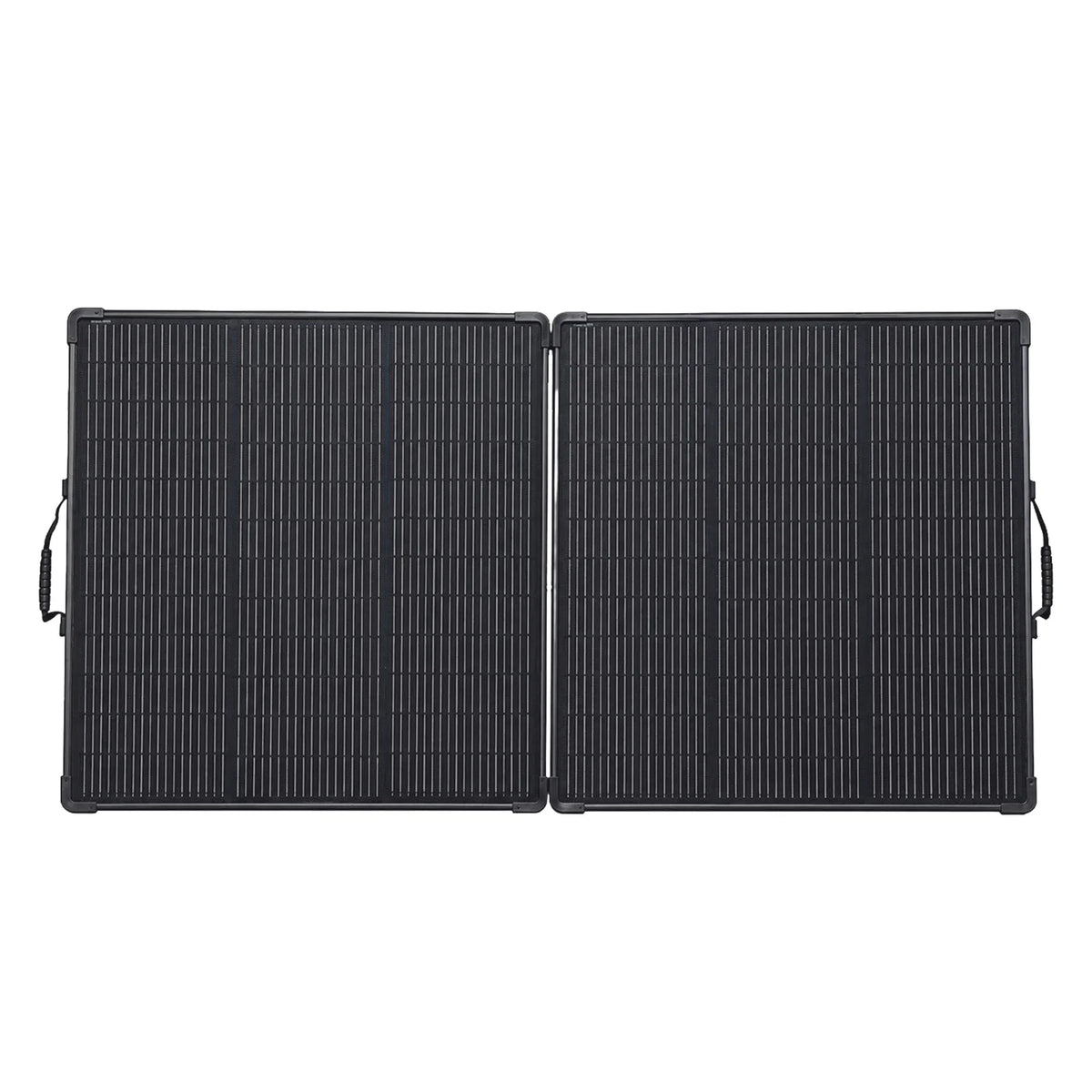

Unfolded Dimensions: 690 × 1340 × 17mm

Weight: Approximately 5.9kg

Surface: ETFE Laminate

Included Extension Cable: 5m Heavy-Duty Cable

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Operating Temperature: -40°C to +85°C

⚠️ SOLAR CONTROLLER NOT INCLUDED

⚠️ This version does not include a solar charge controller.

A compatible solar regulator, MPPT controller or DC-DC charger with an appropriate solar input is required when using the panel to charge a battery system.

Always confirm the charger's maximum solar input voltage, current and panel capacity before connection.

📦 PRODUCT DETAILS

SKU: Exo-FPL-TCN-200

Model Number: Exo-FPL-TCN-200

Barcode: 9361784004426

❓ QUICK FAQ

Does this panel include a solar controller?

No. This version is supplied without a solar charge controller.

How heavy is the Exotronic 200W Ultra-Light panel?

It weighs approximately 5.9kg, making it substantially lighter than many traditional glass folding solar panels.

How small does it fold down?

Folded dimensions are approximately 690 × 670 × 40mm. When fully opened, it measures approximately 690 × 1340 × 17mm.

Does it include an extension cable?

Yes. A 5m heavy-duty extension cable with 50A grey Anderson-style connectors and weather-resistant dust caps is included.

Can it charge lithium and AGM batteries?

Yes, when used with a compatible solar regulator, MPPT controller or DC-DC charger configured correctly for the connected battery chemistry.

☀️ 200W PORTABLE SOLAR AT JUST 5.9KG

With 200W rated output, 25.6% efficient N-Type TOPCon cells, lightweight ETFE construction and a reinforced folding design, the Exotronic Fusion Ultra-Light is built for travellers who want dependable portable solar without carrying a heavy glass panel.
