300W Folding Solar Panel + Inline 30A Solar Controller

☀️ EXOTRONIC 300W FUSION ULTRA-LIGHT FOLDING SOLAR PANEL + BATERIA POWER 30A PWM CONTROLLER

300W Portable Solar • 25.6% N-Type TOPCon Cells • Only 8.7kg • 30A PWM Controller • LiFePO4 Compatible

A practical portable solar package for caravans, camper trailers, 4WDs and camping setups, combining the Exotronic 300W Fusion Ultra-Light Folding Solar Panel with a Bateria Power 30A PWM Solar Charge Controller.

The Exotronic panel delivers serious portable solar capacity while weighing only 8.7kg, while the Bateria controller provides a simple plug-and-play charging solution for compatible 12V battery systems including LiFePO4, AGM, GEL, SLA and flooded batteries.

⚡ PACKAGE HIGHLIGHTS

☀️ 300W Portable Solar Output
High solar capacity for larger battery systems, extended camping trips and off-grid touring.

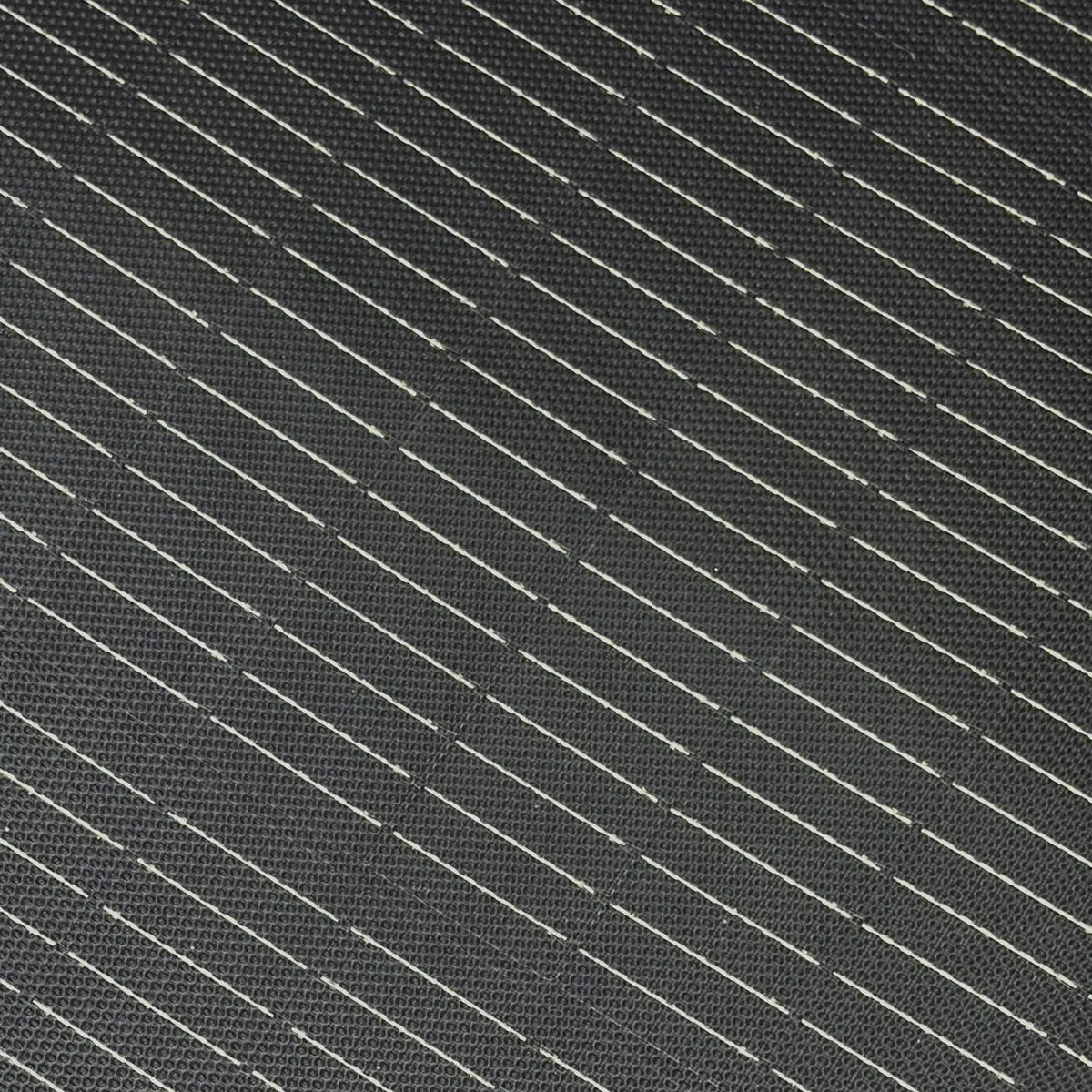

⚙️ 25.6% N-Type TOPCon Solar Cells
High-efficiency cell technology designed for improved low-light performance, reduced degradation and strong energy density.

🪶 Ultra-Light – Only 8.7kg
ETFE construction eliminates the heavy glass used by conventional folding panels, making the 300W panel easier to carry, position and store.

🔋 30A Bateria Power PWM Controller
Portable solar controller designed for straightforward connection between compatible portable solar panels and battery systems.

🔋 LiFePO4 Compatible
The supplied controller information lists compatibility with LiFePO4 as well as AGM, GEL, SLA, flooded, sealed lead-acid, ternary lithium and LTO battery types.

📟 LCD Display & LED Indicator
Allows you to monitor the operating condition of the solar panel and connected battery.

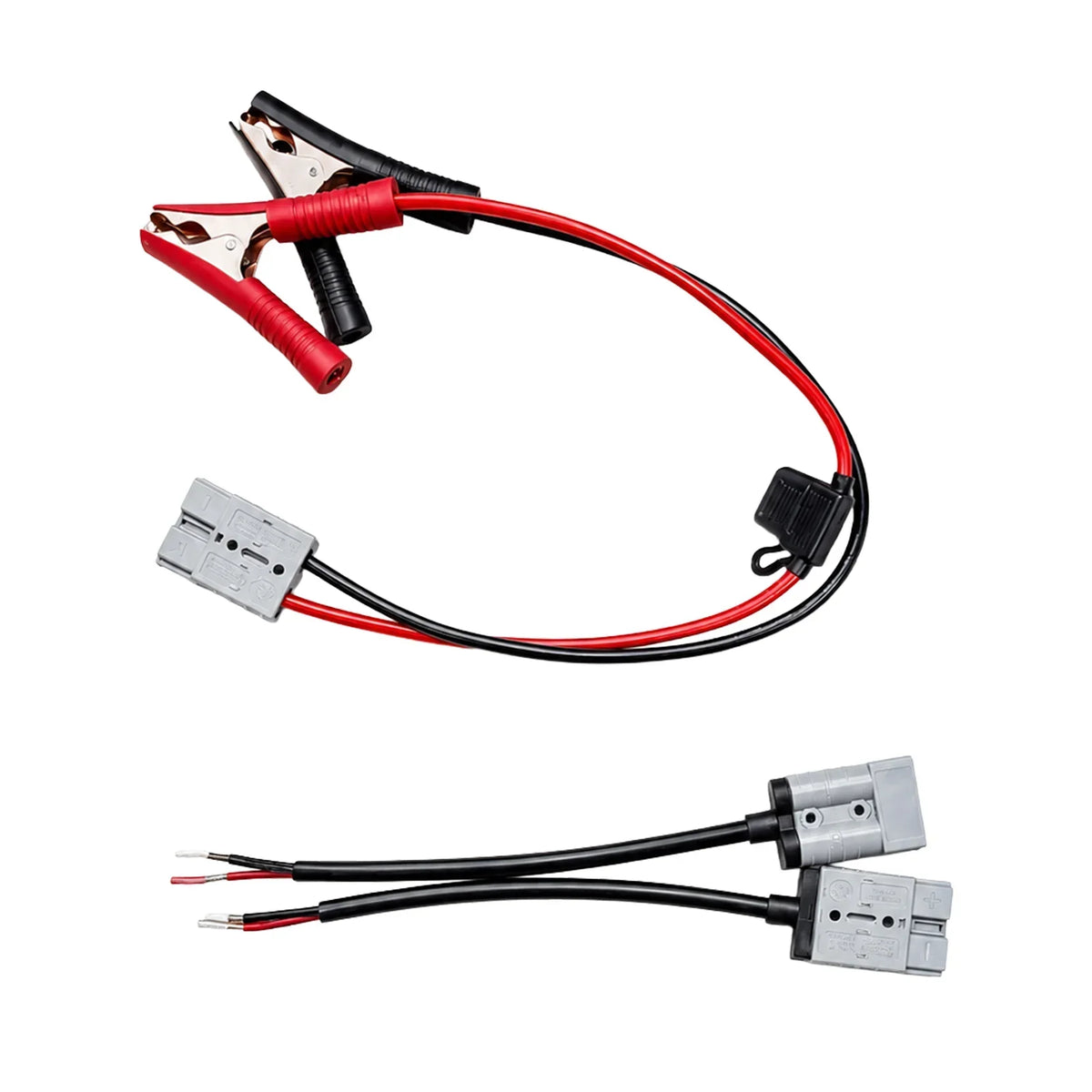

🔌 Plug & Play Anderson Connection
Designed for quick connection and disconnection without requiring a permanently mounted solar controller.

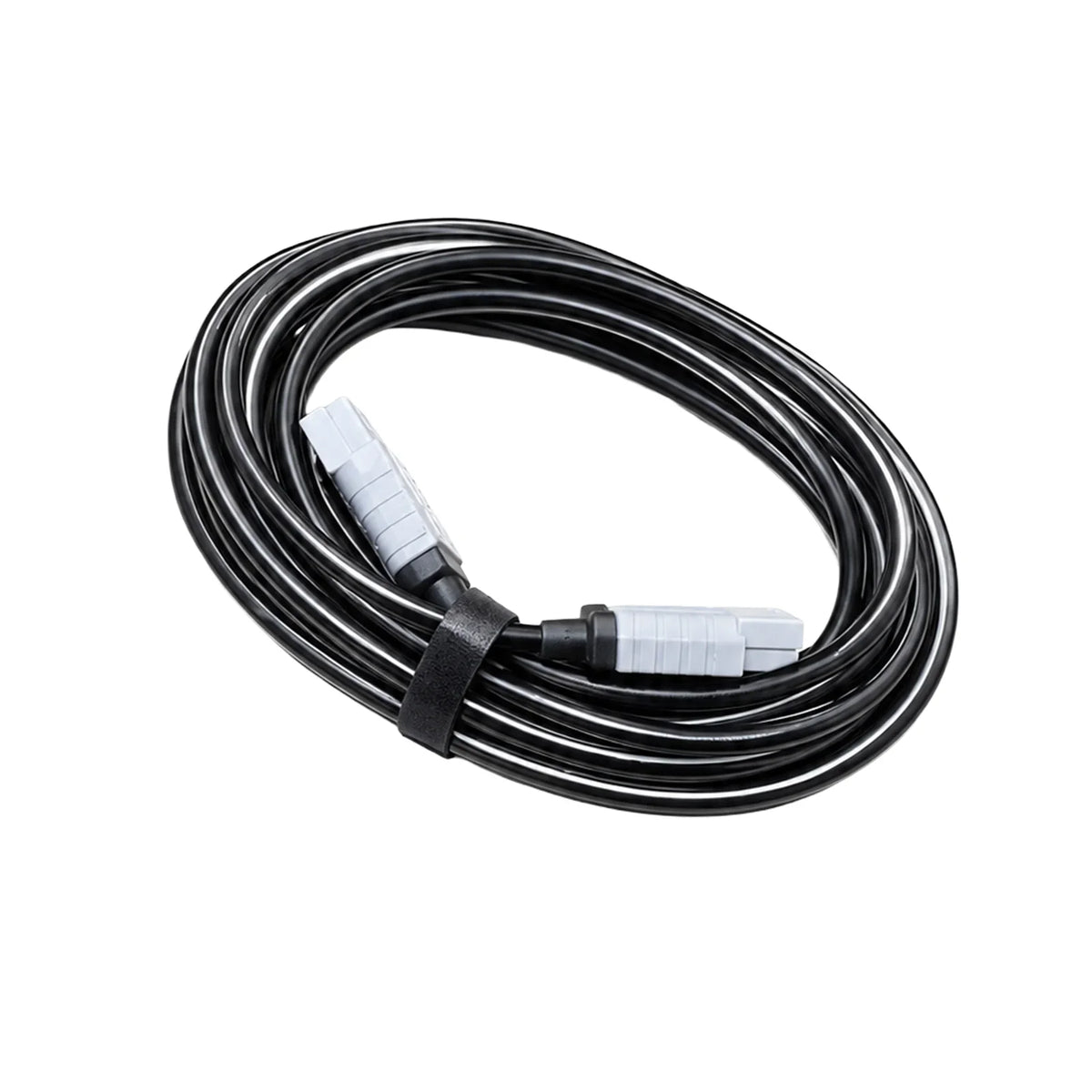

🔌 5m Heavy-Duty Solar Extension Cable
Allows the panel to be placed out in the sun while your caravan, camper or 4WD remains in the shade.

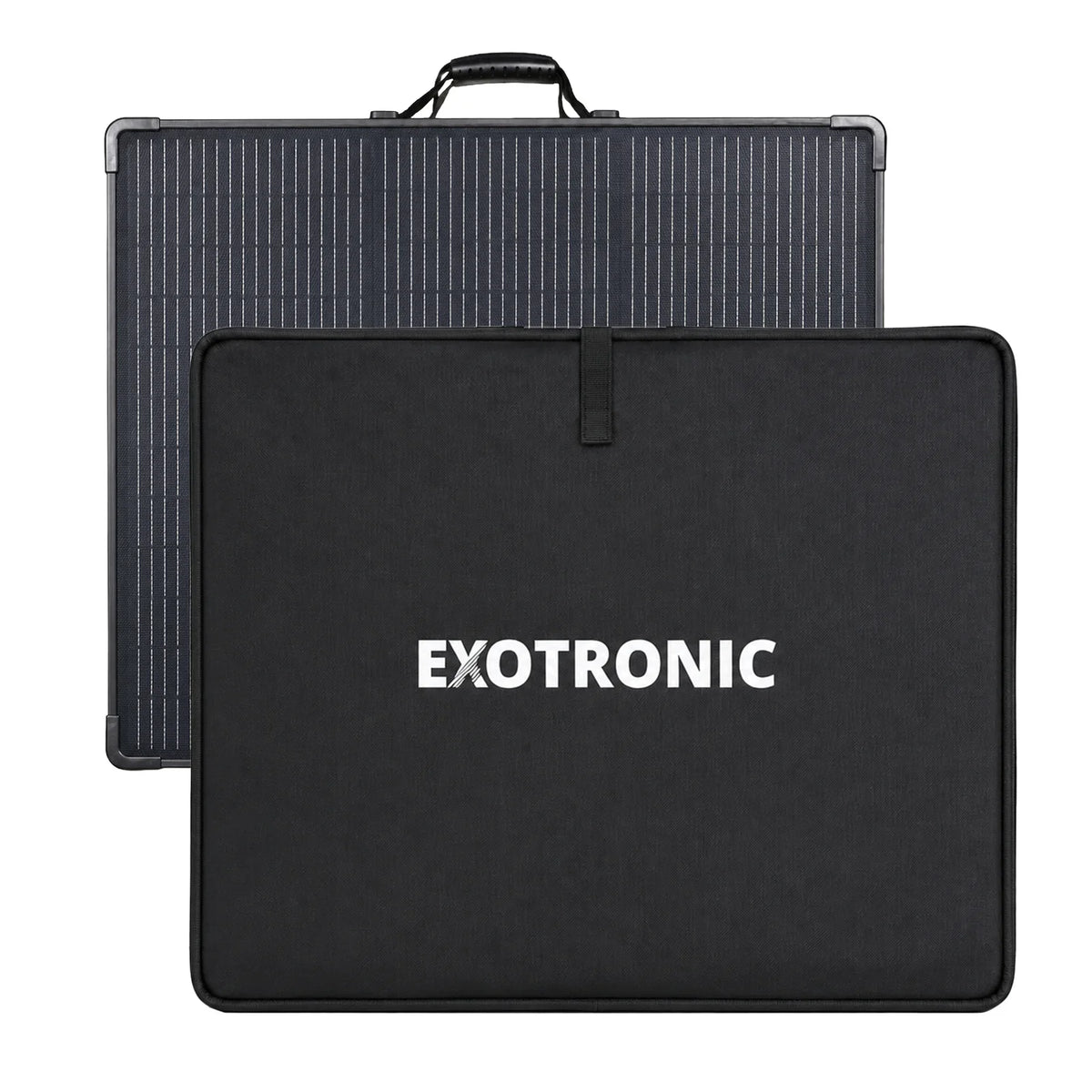

☀️ EXOTRONIC 300W FUSION ULTRA-LIGHT PANEL

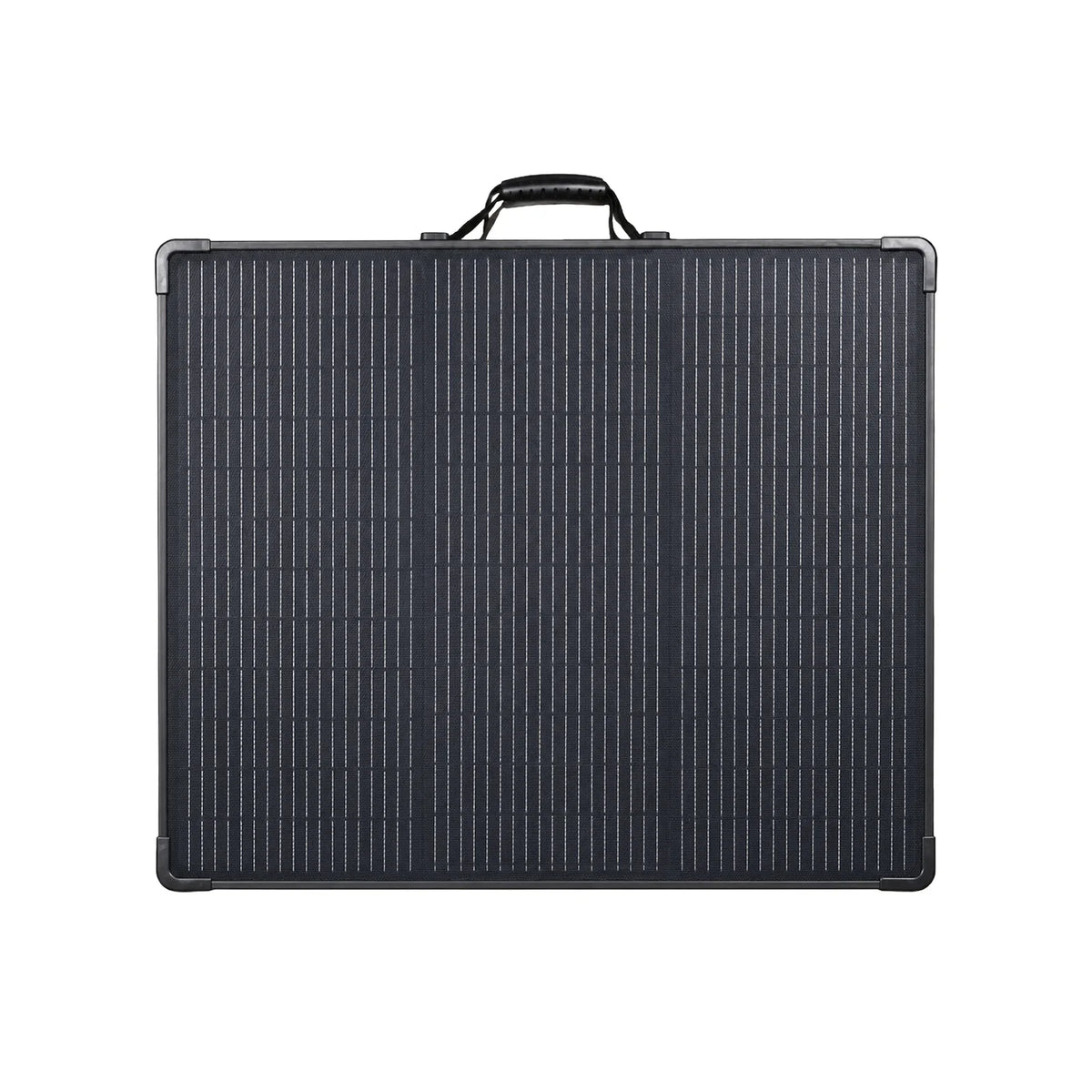

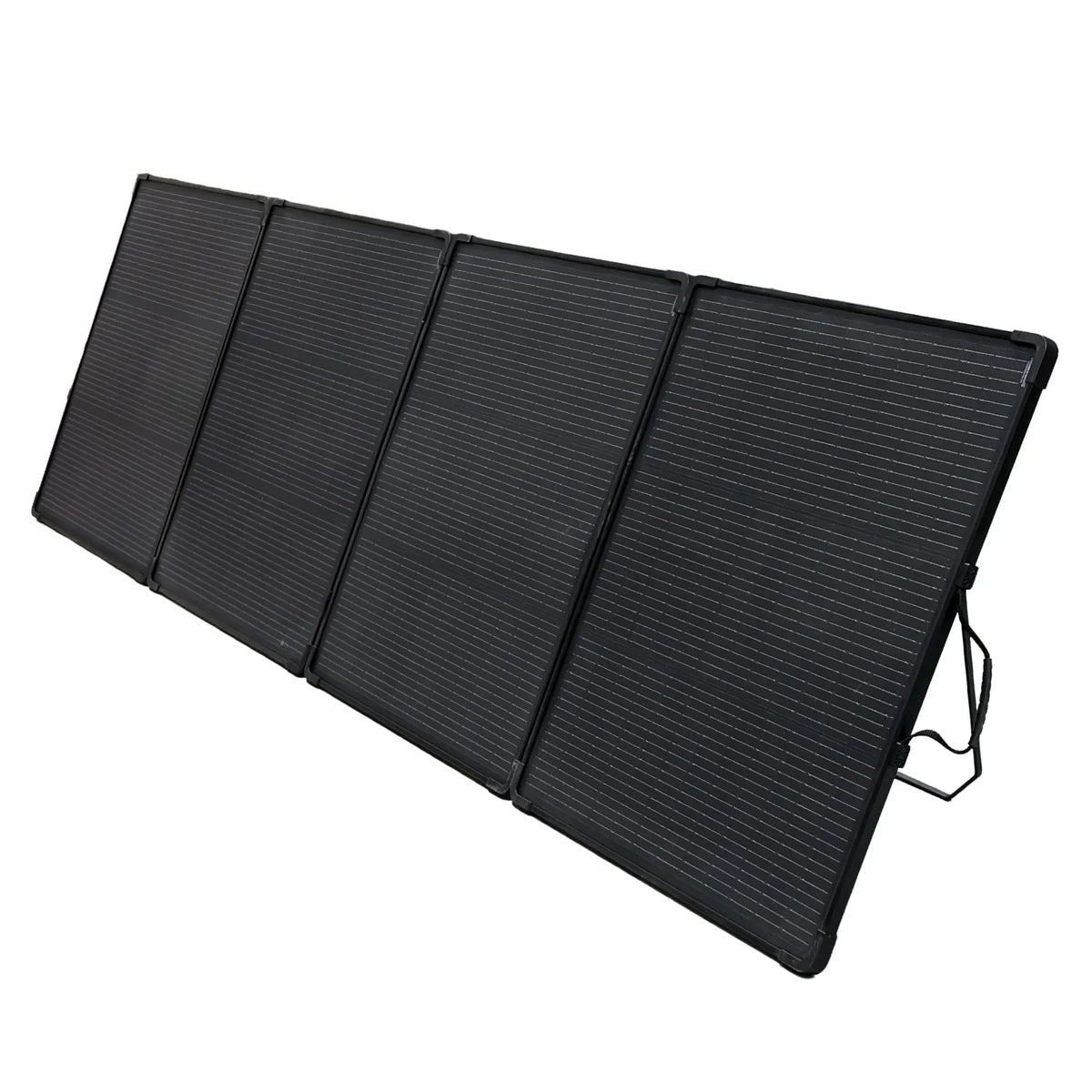

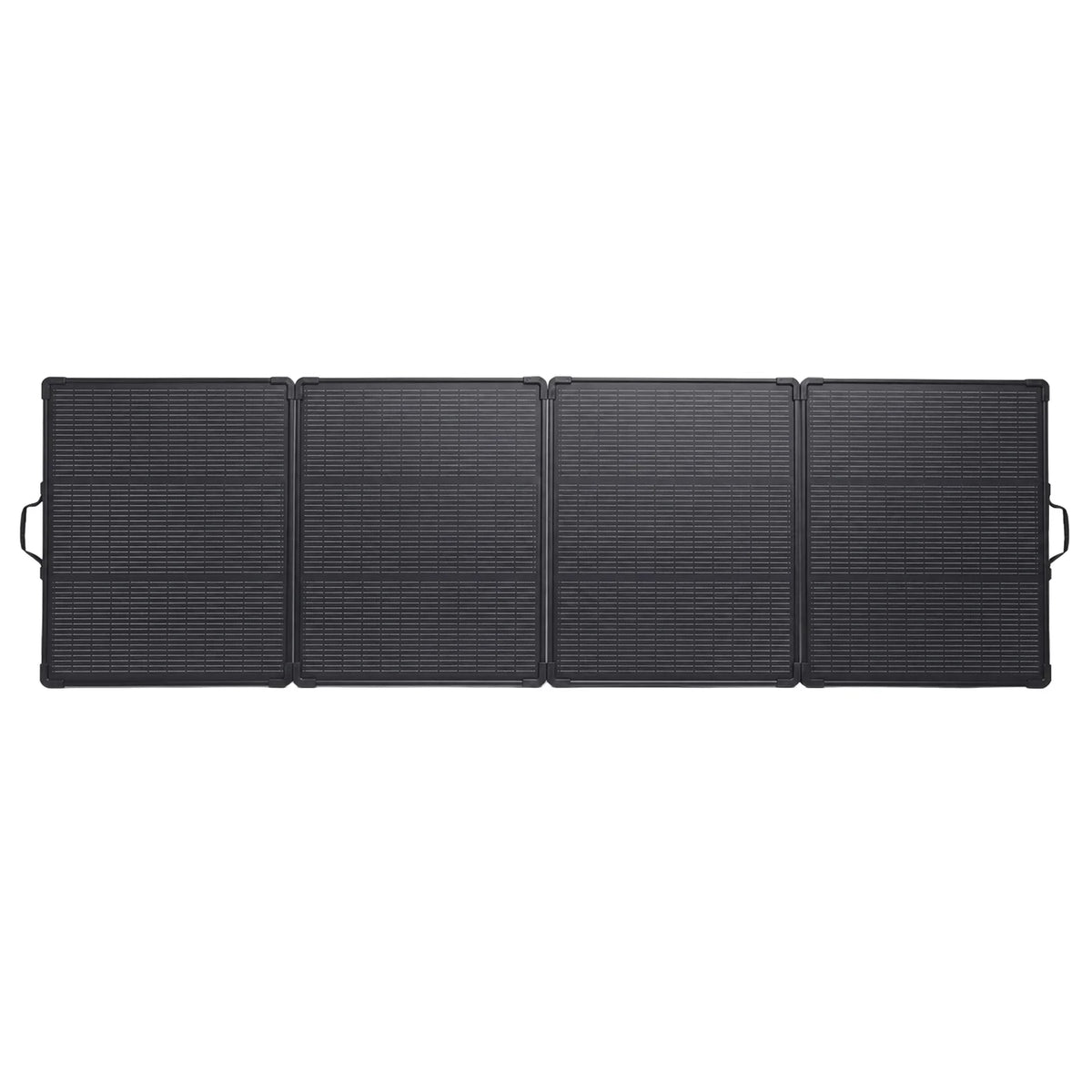

The Exotronic Fusion Portable Series uses four 75W folding modules to provide 300W of rated solar output in a compact briefcase-style package.

🛡️ ETFE Construction
Durable ETFE laminate provides strong UV resistance and light transmission while dramatically reducing panel weight.

💪 Reinforced Backplate
Provides additional structural support behind the cells to help reduce flex and minimise the risk of micro-cracking during transport and repeated setup.

🌥️ Strong Low-Light Performance
N-Type TOPCon technology is designed to provide useful charging performance in cloudy conditions and during lower-light periods of the day.

🔋 BATERIA POWER 30A PWM SOLAR CONTROLLER

📟 LCD Monitoring
Built-in LCD screen and LED indication provide convenient solar and battery status information.

⚡ Intelligent 3-Stage Charging
The supplied controller information specifies Equalize, Boost and Float charging stages, with battery-type support including lithium and lead-acid chemistries.

🛡️ Built-In Protection
Specified protection functions include over-charge, over-temperature, over-voltage, over-current, short-circuit, discharge and reverse-polarity protection.

💧 Weather-Resistant Design
The controller is described as having good waterproof performance and an internally potted construction for outdoor use.

🚐 IDEAL FOR

• 🚐 Caravans & RVs
• ⛺ Camper trailers
• 🚙 4WD touring
• 🏕️ Camping & extended off-grid trips
• 🔋 Compatible LiFePO4 battery systems
• 🔋 AGM, GEL & lead-acid battery systems
• 🛠️ Remote worksites & camps
• 🚨 Portable backup power systems

📋 SOLAR PANEL SPECIFICATIONS

Rated Power: 300W

Maximum Power Voltage (Vmp): 22.1V

Maximum Power Current (Imp): 13.57A

Open Circuit Voltage (Voc): 25.7V

Short Circuit Current (Isc): 15.26A

Folded Dimensions: 560 × 670 × 80mm

Unfolded Dimensions: 2240 × 670 × 17mm

Weight: Approximately 8.7kg

Construction: Four × 75W Folding Modules

Surface: ETFE Laminate

Included Extension Cable: 5m Heavy-Duty Cable

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

📋 BATERIA CONTROLLER DETAILS

Controller Type: PWM

Maximum Charge Rating: 30A

Nominal Battery Voltage: 12V / 24V Controller Capability

Display: LCD + LED Indicator

Connection: Anderson-Style Connectors

Charging: Intelligent 3-Stage Charging

Compatible Battery Types: SLD, FLD, GEL, AGM, SLA, LiFePO4, Ternary Lithium & LTO

⚠️ IMPORTANT SYSTEM COMPATIBILITY

Although the Bateria controller itself is specified for 12V and 24V batteries, the Exotronic panel has a Vmp of 22.1V and Voc of 25.7V. A single panel does not provide suitable voltage headroom for normal charging of a nominal 24V battery system.

For installations where maximum solar harvest is the priority, a suitably rated MPPT controller may be a better choice.

📦 PANEL PRODUCT DETAILS

SKU: Exo-FPL-TCN-300

Model Number: Exo-FPL-TCN-300

Barcode: 9361784003825

❓ QUICK FAQ

Is the Bateria controller suitable for LiFePO4 batteries?

Yes. The supplied controller specifications specifically list LiFePO4 as a supported battery chemistry.

Does this package include a solar controller?

Yes. This package pairs the Exotronic 300W folding panel with a Bateria Power 30A PWM solar controller.

How heavy is the solar panel?

The Exotronic panel weighs approximately 8.7kg, making it exceptionally portable for a 300W folding solar panel.

Does it include an extension cable?

Yes. The Exotronic panel is supplied with a 5m heavy-duty extension cable using 50A grey Anderson-style connections.

Can I use this package with a 24V battery?

The Bateria controller itself supports 24V batteries, but the voltage of a single Exotronic 300W panel is not sufficient for normal 24V battery charging. This particular panel/controller combination is best treated as a 12V charging package.

☀️ 300W PORTABLE SOLAR – COMPLETE WITH A SIMPLE PLUG & PLAY CONTROLLER

Combining an ultra-light 300W N-Type TOPCon folding panel with a portable 30A Bateria PWM controller, this package provides a straightforward solar charging solution for caravans, camper trailers and 4WDs running compatible 12V battery systems.
