Exotronic 220W Fusion Series Solar Panel
SKU: Exo-SP-TCN-220
High-Efficiency N-Type Solar | Shade Resilient | Built for Australian Conditions

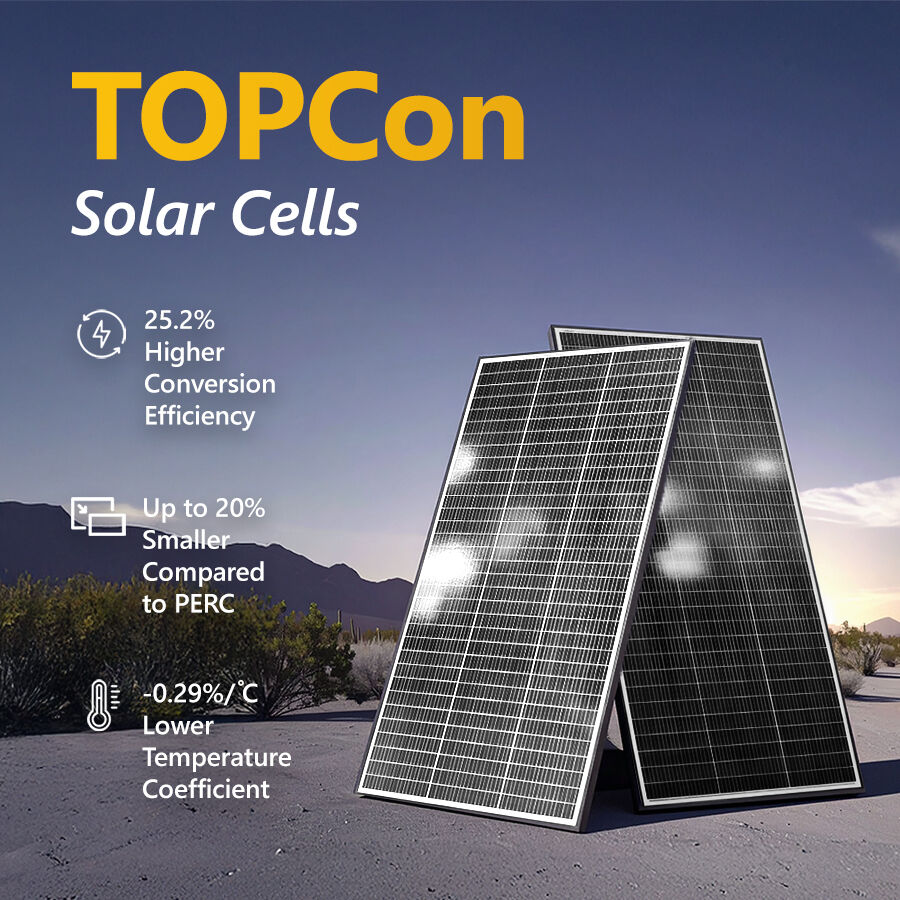

At Home of 12 Volt Northern, we only stock solar panels that deliver premium off-grid performance β and the Exotronic 220W Fusion Series is at the top of its class. Designed with cutting-edge N-Type TOPCon cell technology, this panel produces more power, even in partial shade, and maintains efficiency for years to come.
Whether you're outfitting a caravan, camper trailer, 4WD canopy, boat, or a remote power system, this rugged panel gives you dependable energy with industry-leading build quality.
Key Features
- High Output Efficiency β Up to 25.2% cell efficiency for maximum charge in a compact footprint
- Shade-Tolerant Design β Triple parallel string layout keeps power flowing, even when partially covered
- Built Tough β Low-iron tempered glass and 25mm anodised aluminium frame for strength and durability
- Marine & Coastal Safe β Salt mist and ammonia resistant β ideal for Australian beach and outback conditions
- Compact Size, Big Output β Perfect for vehicles or applications where roof space is limited
Specifications
- Nominal Power Output: 220W
- Operating Voltage (Vmp): 18.0V
- Operating Current (Imp): 12.22A
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Current (Isc): 12.9A
- Panel Dimensions: 1470 x 670 x 25 mm
- Weight: ~9.5kg
- Connector Type: MC4 compatible
- Junction Box Rating: IP65
- Max System Voltage: 1000V DC
- Max Series Fuse: 15A
- Operating Temp Range: -40Β°C to +85Β°C
- Temperature Coefficients:
- Pmax: -0.37%/Β°C
- Voc: -0.29%/Β°C
- Isc: +0.05%/Β°C
