200W Ultra-Light Folding Solar Panel + Inline 30A Solar Controller

☀️ EXOTRONIC 200W FUSION ULTRA-LIGHT FOLDING SOLAR PANEL + INLINE 30A SOLAR CONTROLLER

200W Portable Solar • 25.6% N-Type TOPCon Cells • Only 5.9kg • 30A PWM Controller • LiFePO4 Compatible

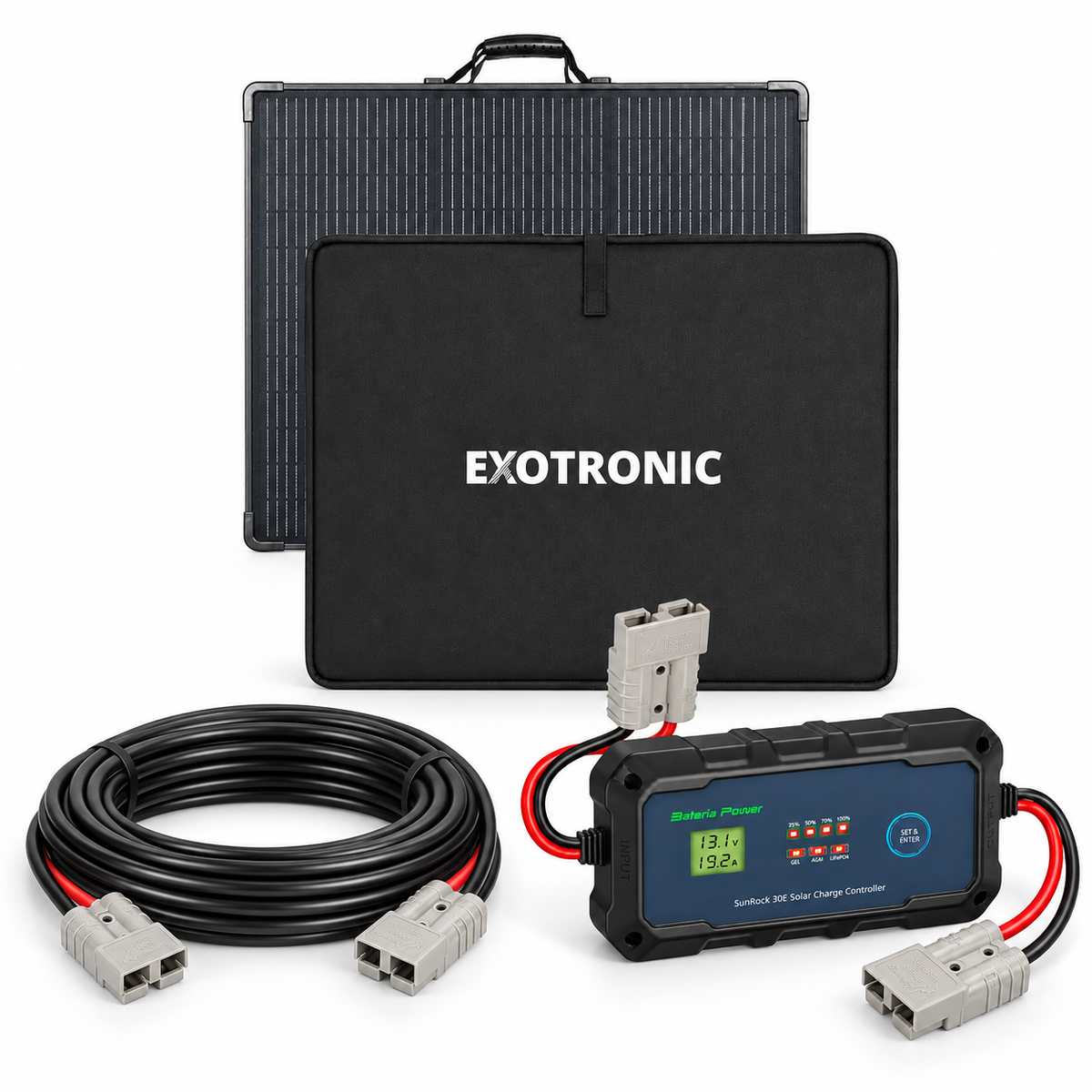

A lightweight portable solar charging package for caravans, camper trailers, 4WDs and camping setups, combining the Exotronic 200W Fusion Ultra-Light Folding Solar Panel with a Bateria Power 30A PWM Solar Charge Controller.

The Exotronic panel weighs only 5.9kg and uses high-efficiency N-Type TOPCon cells, while the portable Bateria controller provides a simple Anderson-style connection for compatible 12V battery systems including LiFePO4, AGM, GEL and lead-acid batteries.

⚡ PACKAGE HIGHLIGHTS

☀️ 200W Portable Solar Output
Provides useful portable solar capacity for caravan, RV, 4WD, camping and off-grid battery systems.

⚙️ 25.6% N-Type TOPCon Cells
Advanced Tunnel Oxide Passivated Contact solar cells are designed for high efficiency, improved low-light performance and reduced long-term degradation.

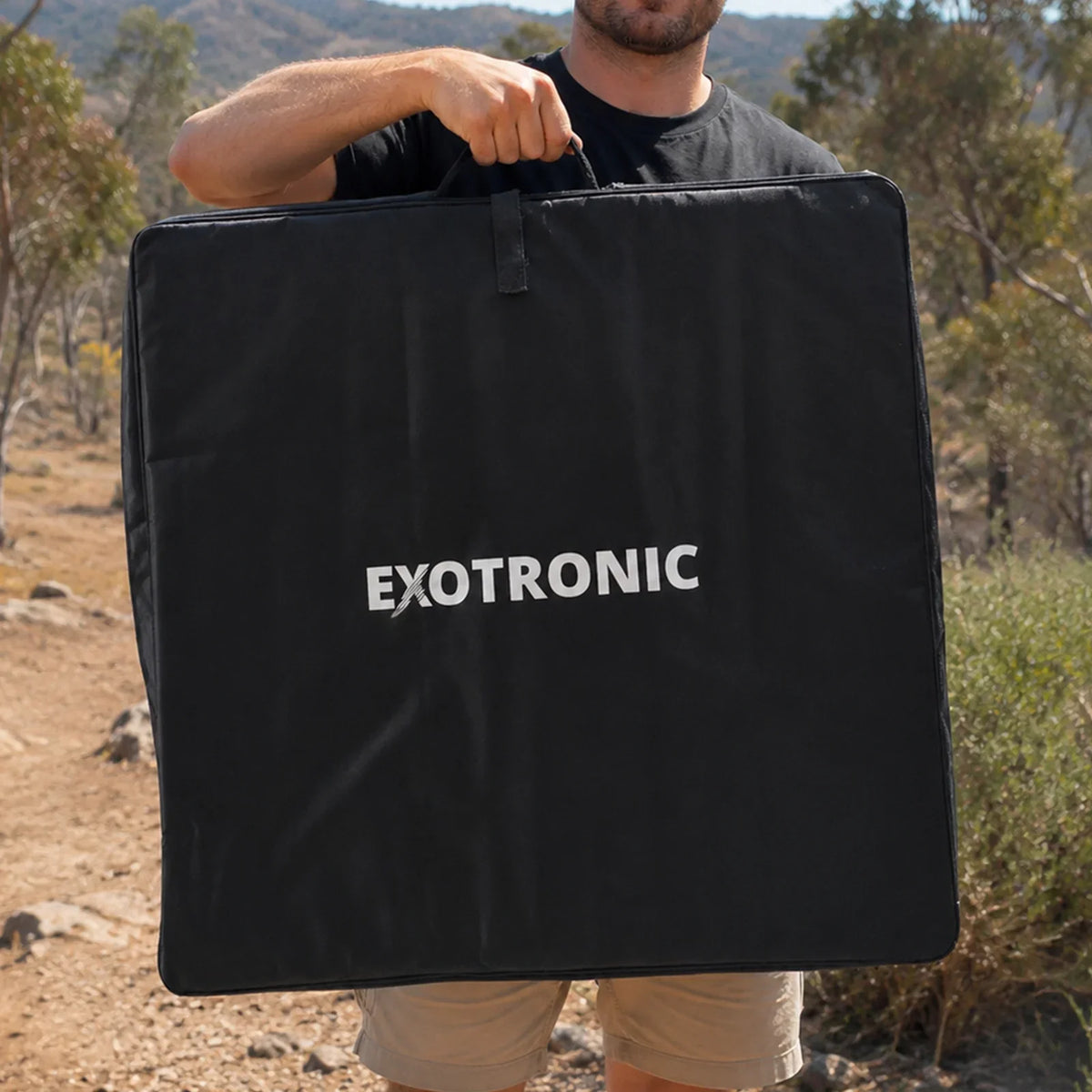

🪶 Ultra-Light – Only 5.9kg
ETFE construction significantly reduces weight compared with conventional glass folding panels, making the panel easier to carry, position and store.

🔋 Bateria Power 30A PWM Controller
Portable charge controller designed for quick connection between compatible solar panels and battery systems.

🔋 LiFePO4 Compatible
The supplied controller information lists compatibility with LiFePO4 as well as AGM, GEL, SLA, flooded, sealed lead-acid, ternary lithium and LTO batteries.

📟 LCD Display & LED Indicator
Provides convenient monitoring of the operating condition of the solar panel and connected battery.

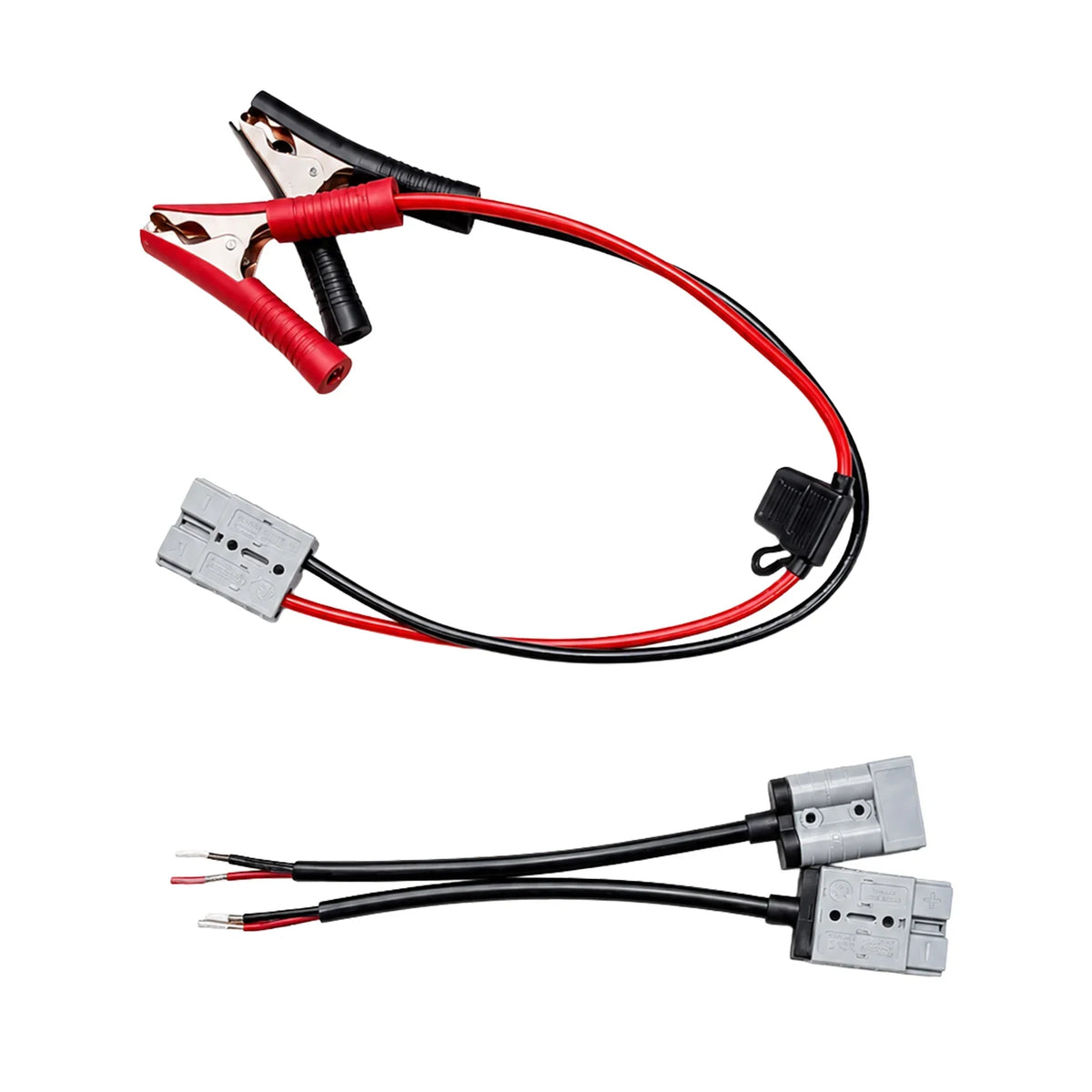

🔌 Plug & Play Anderson Connection
Designed for quick connection and disconnection without requiring a permanently mounted portable regulator.

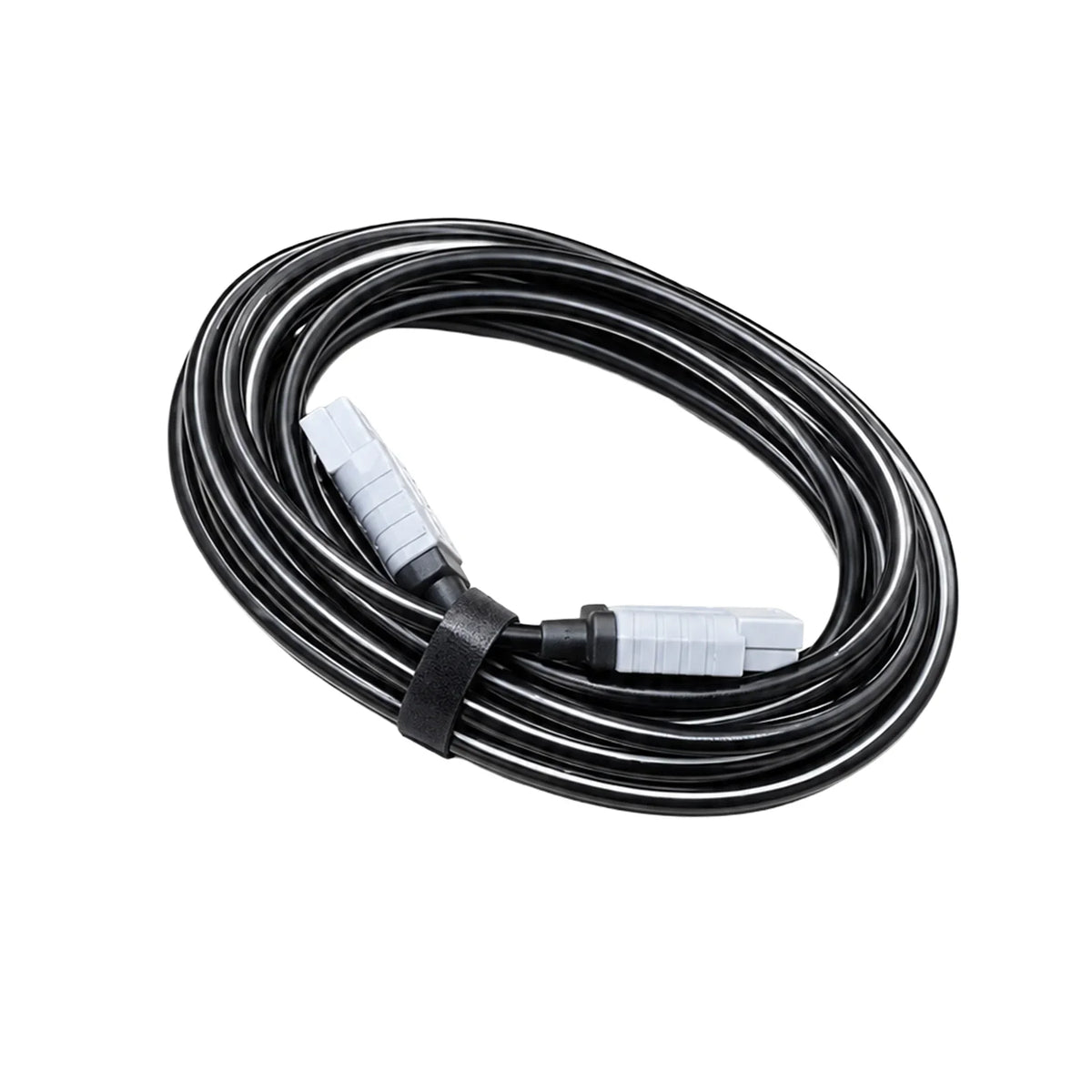

🔌 5m Heavy-Duty Extension Cable
Allows the panel to be positioned in better sunlight while the caravan, camper or 4WD remains in the shade.

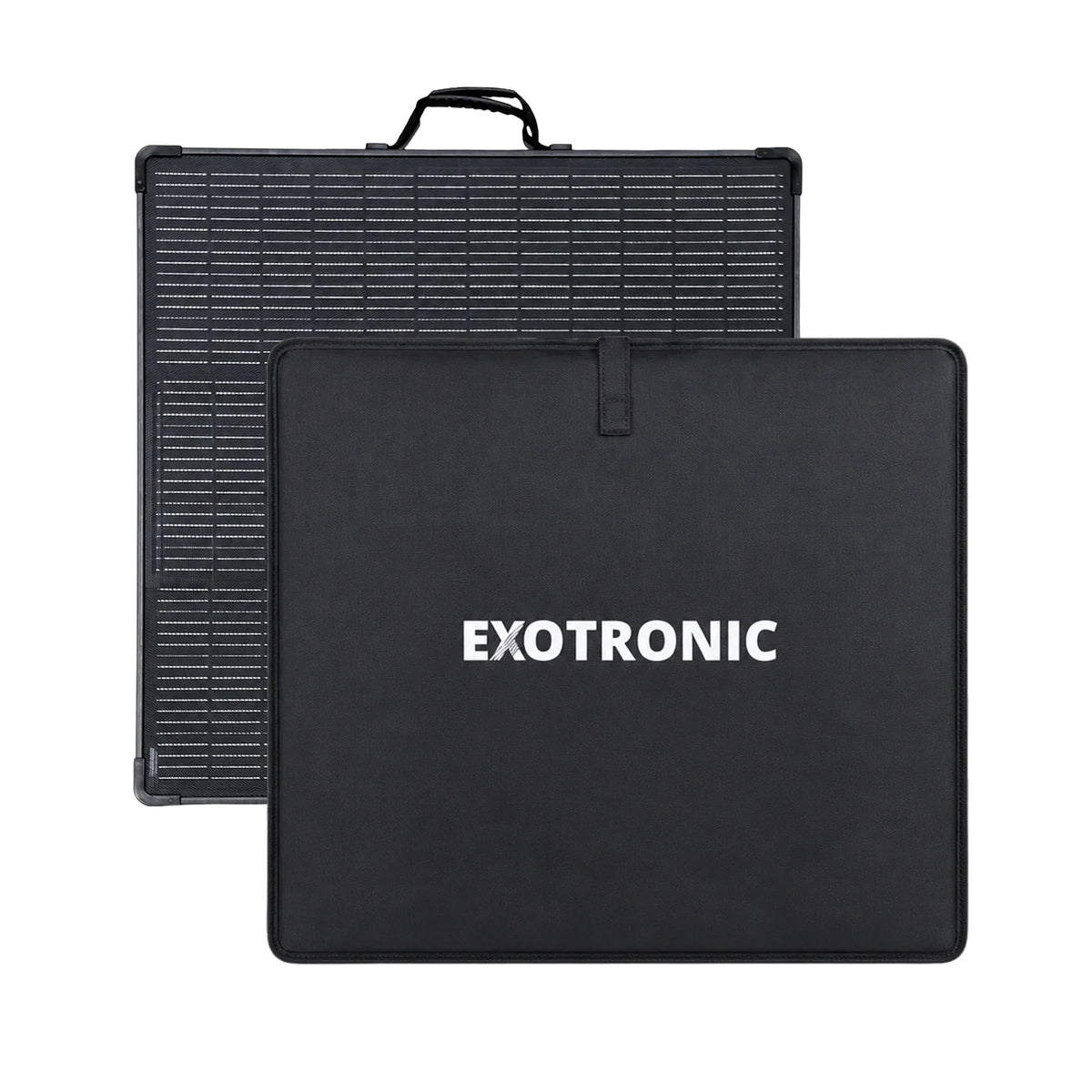

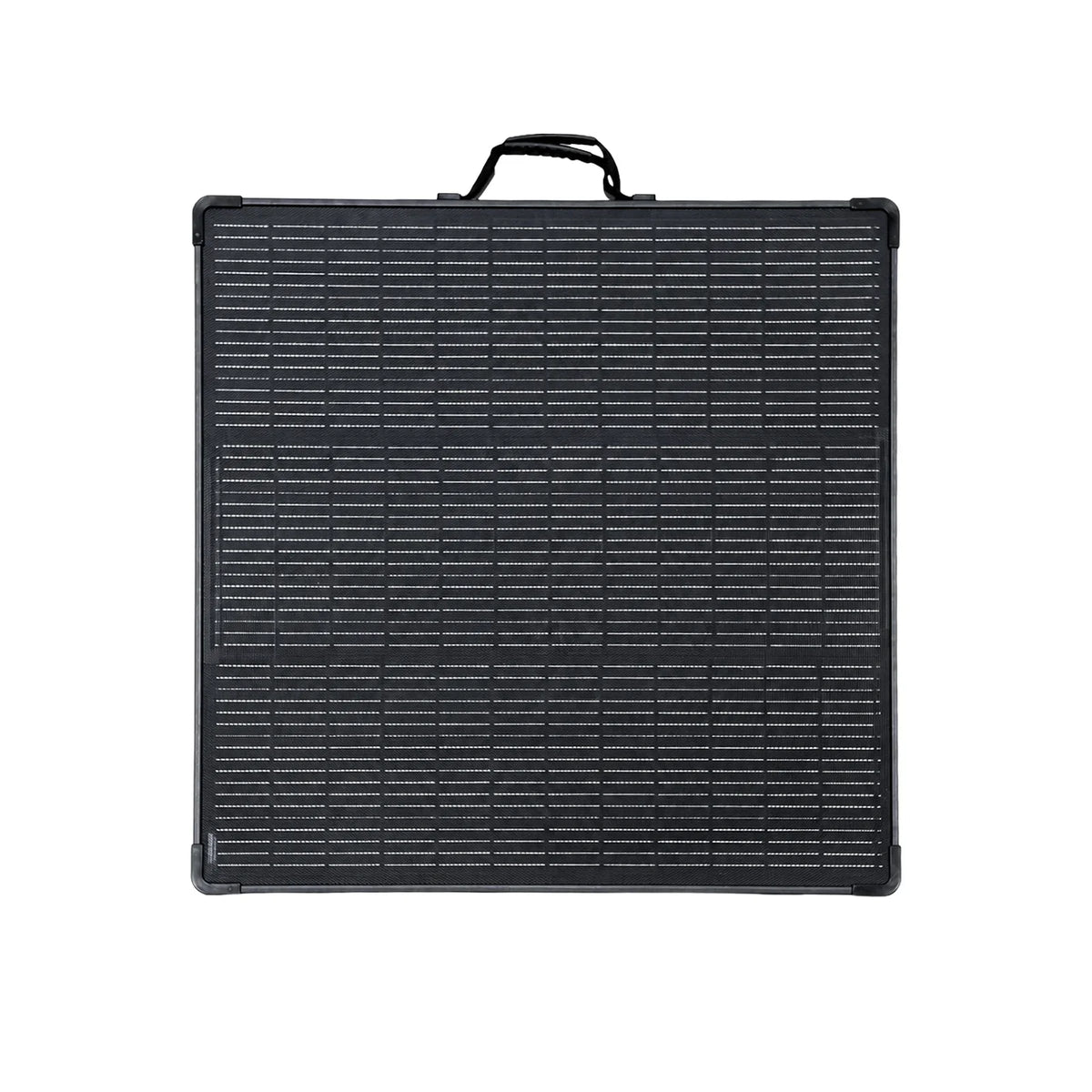

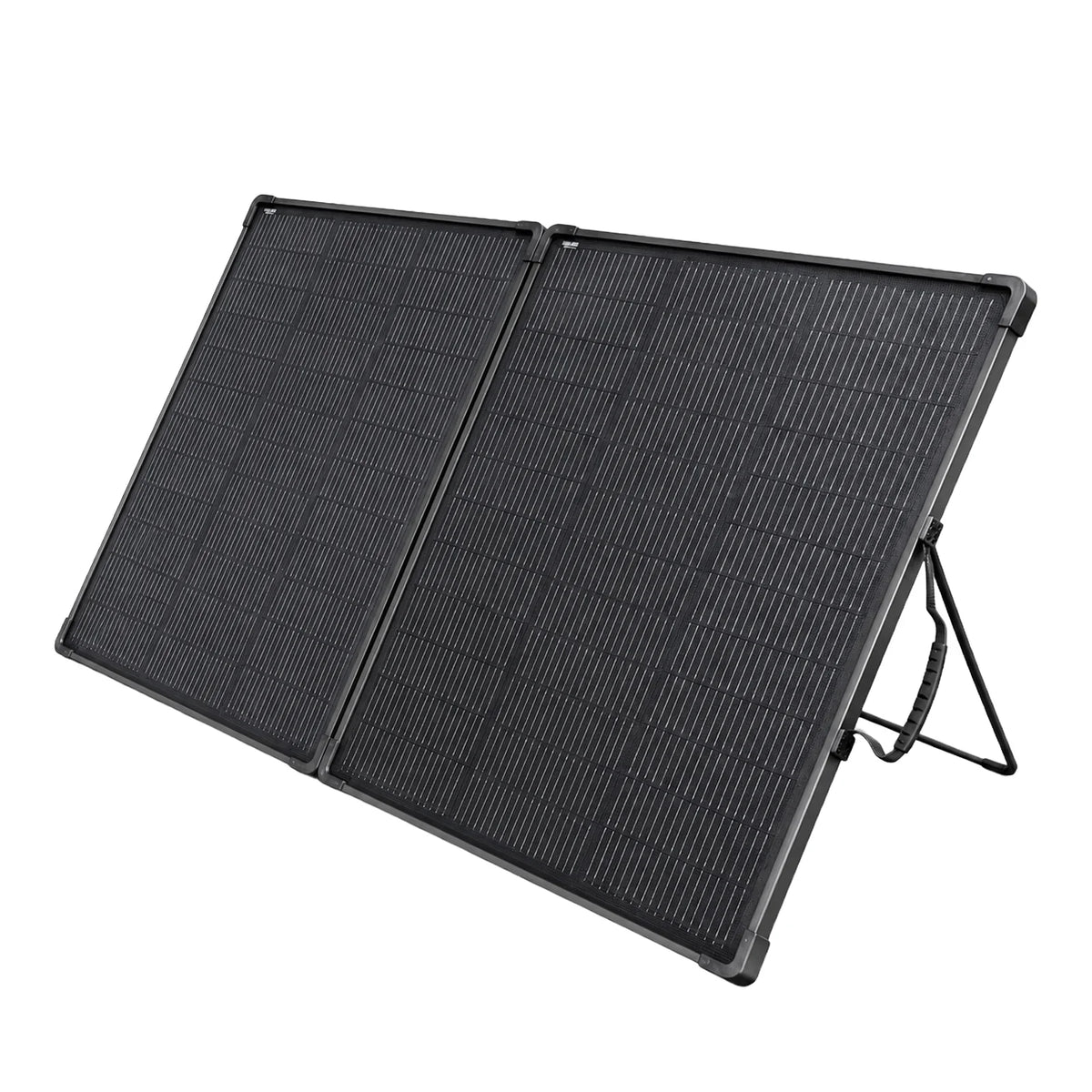

☀️ EXOTRONIC 200W FUSION ULTRA-LIGHT PANEL

🛡️ Lightweight ETFE Construction
Replaces traditional tempered glass with a durable ETFE laminated surface offering strong light transmission, UV resistance and dramatically reduced weight.

💪 Reinforced Backplate
Provides additional structural support behind the solar cells to help reduce flex during transport, setup and regular use.

🌥️ Improved Low-Light Performance
N-Type TOPCon technology is designed to maintain useful charging performance in cloudy conditions and during lower-light periods of the day.

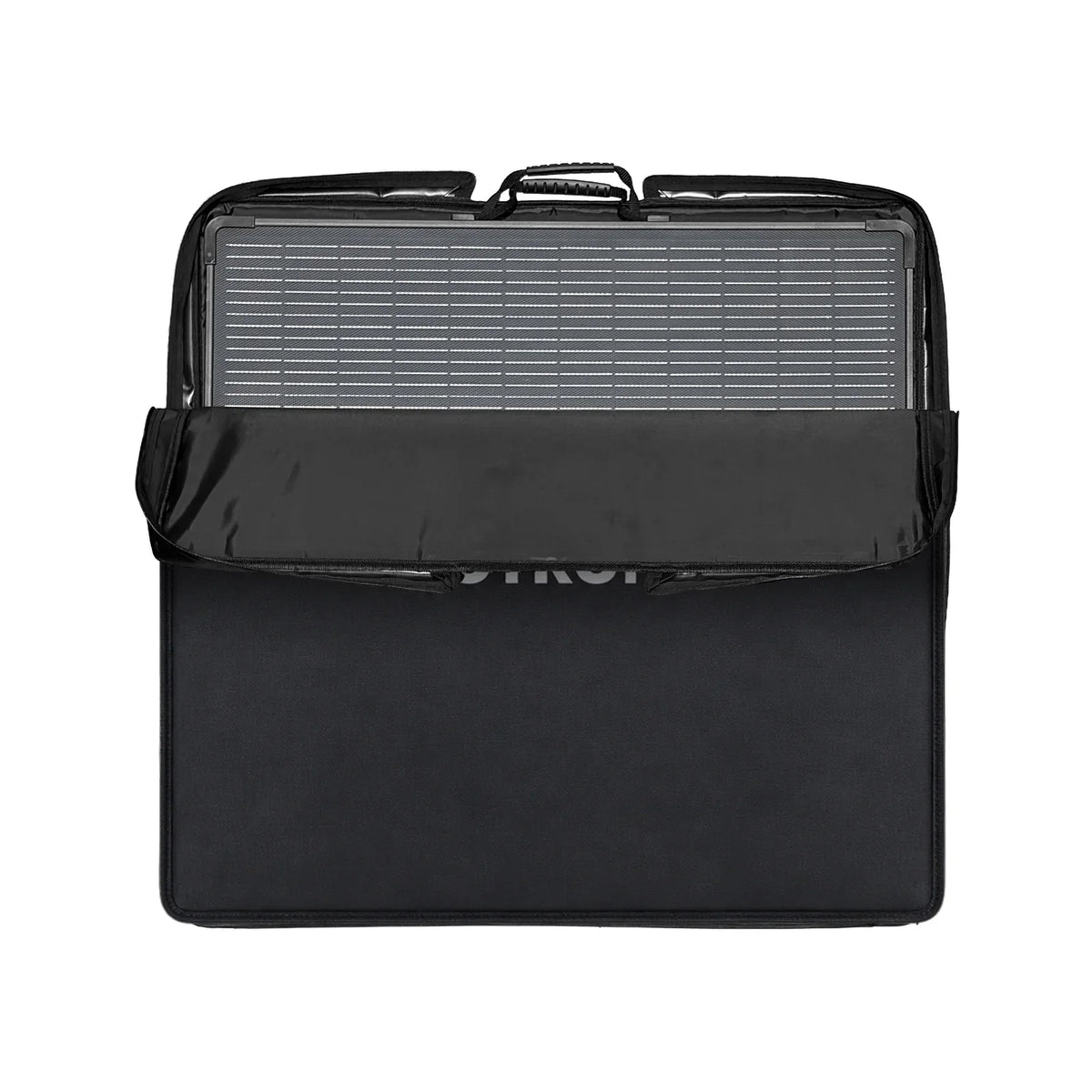

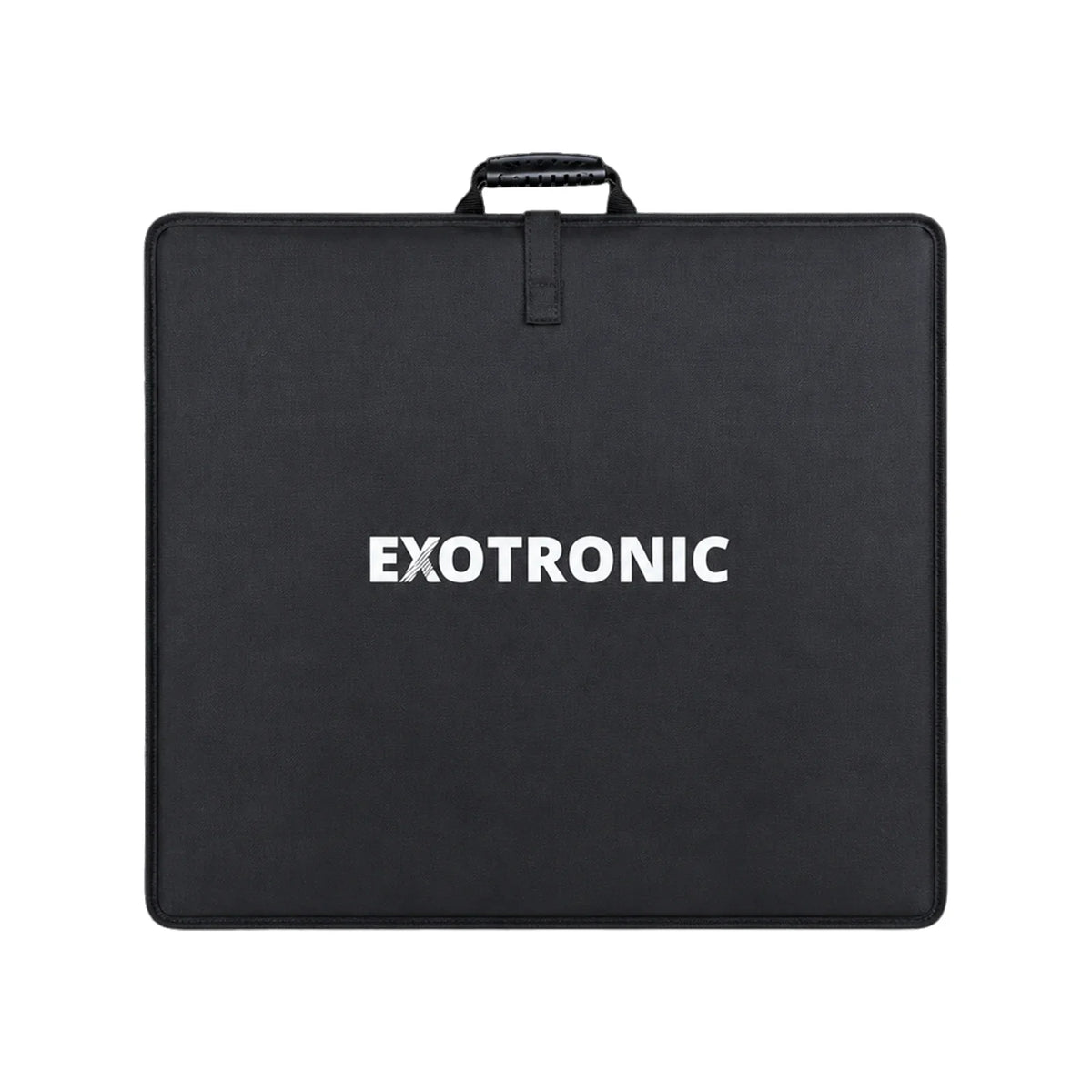

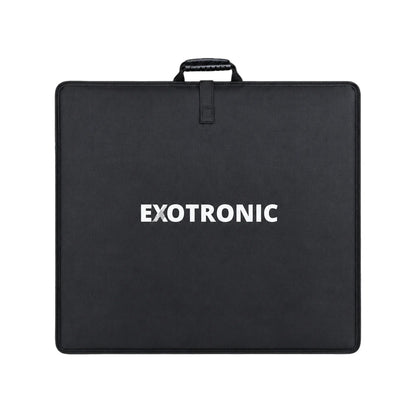

🧳 Compact Folding Design
Folds to approximately 690 × 670 × 40mm for easier transport and storage.

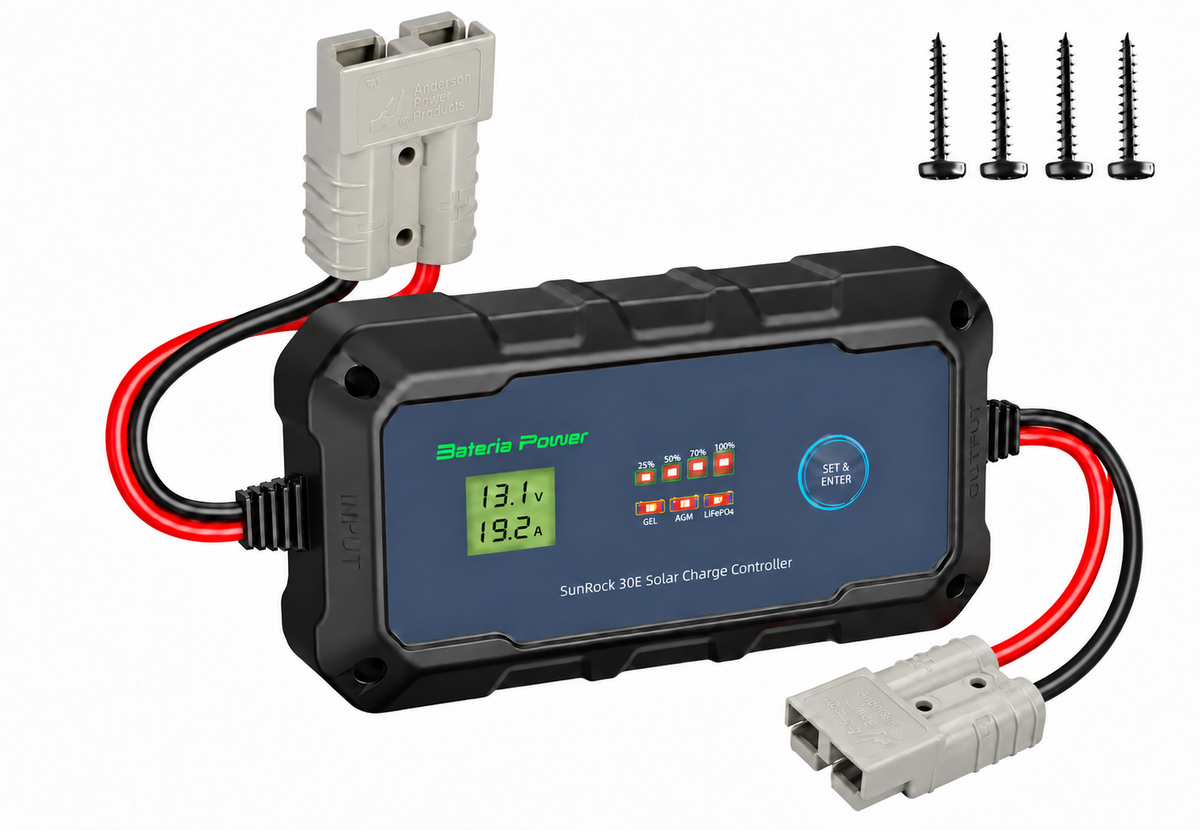

🔋 BATERIA POWER 30A PWM CONTROLLER

📟 LCD Monitoring
Built-in LCD screen and LED indicator make it easier to monitor solar and battery operating status.

⚡ Intelligent 3-Stage Charging
The supplied controller information specifies Equalize, Boost and Float charging stages.

🛡️ Built-In Protection
The controller is described as incorporating protection functions to improve charging safety.

💧 Weather-Resistant Construction
The controller is described as waterproof with an internally filled construction intended to improve durability in outdoor use.

🚐 IDEAL FOR

• 🚐 Caravans & RVs
• ⛺ Camper trailers
• 🚙 4WD touring & overlanding
• 🏕️ Camping & extended off-grid trips
• 🔋 Compatible LiFePO4 battery systems
• 🔋 AGM, GEL & lead-acid battery systems
• 🛠️ Remote worksites & camps
• 🚨 Portable backup power systems

📋 SOLAR PANEL SPECIFICATIONS

Rated Power: 200W

Maximum Power Voltage (Vmp): 21.24V

Maximum Power Current (Imp): 9.42A

Open Circuit Voltage (Voc): 25.2V

Short Circuit Current (Isc): 9.96A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

Folded Dimensions: 690 × 670 × 40mm

Unfolded Dimensions: 690 × 1340 × 17mm

Weight: Approximately 5.9kg

Surface: ETFE Laminate

Included Extension Cable: 5m Heavy-Duty Cable

📋 BATERIA CONTROLLER DETAILS

Controller Type: PWM

Maximum Charge Rating: 30A

Controller Battery Voltage Capability: 12V / 24V

Display: LCD + LED Indicator

Connection: Anderson-Style Connectors

Charging: Intelligent 3-Stage Charging

Compatible Battery Types: SLD, FLD, GEL, AGM, SLA, LiFePO4, Ternary Lithium & LTO

🌡️ SOLAR PANEL TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Operating Temperature: -40°C to +85°C

📦 PANEL PRODUCT DETAILS

SKU: Exo-FPL-TCN-200

Model Number: Exo-FPL-TCN-200

Barcode: 9361784004426

❓ QUICK FAQ

Does this package include a solar controller?

Yes. This package combines the Exotronic 200W Ultra-Light folding panel with a Bateria Power 30A PWM solar charge controller.

Is the Bateria controller suitable for LiFePO4 batteries?

Yes. LiFePO4 is specifically listed among the supported battery types in the supplied controller information.

How heavy is the solar panel?

The Exotronic panel weighs approximately 5.9kg, making it exceptionally lightweight for a 200W folding solar panel.

Does the package include an extension cable?

Yes. The Exotronic panel includes a 5m heavy-duty extension cable with 50A grey Anderson-style connections.

Can I use this package with a 24V battery?

The Bateria controller itself supports 24V batteries, but the voltage of the single Exotronic 200W panel is not sufficient for normal charging of a 24V battery bank. This panel/controller combination is best treated as a 12V charging package.

☀️ 200W PORTABLE SOLAR AT JUST 5.9KG – COMPLETE WITH CONTROLLER

Combining an ultra-light 200W N-Type TOPCon folding solar panel with a portable 30A Bateria PWM controller, this package provides a straightforward charging solution for caravans, camper trailers and 4WDs running compatible 12V battery systems.
