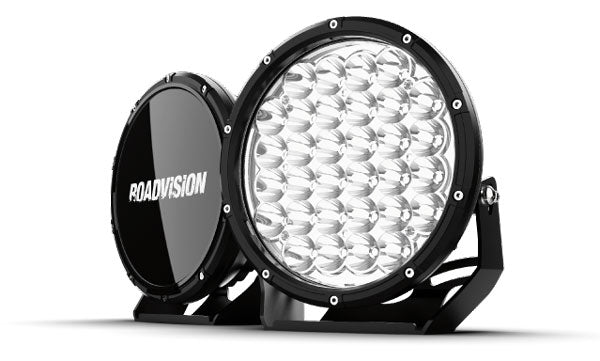

ESSENTIALS DLE2 DRIVING LIGHTS (PAIR)

The Roadvision Essentials Series driving lights sets are the ideal choice for those chasing value for money without compromising on quality. Utilising high performing 5W Osram LED’s, Thermal Management Technology, packaged in an IP68 rated housing and shielded behind a polycarbonate lens, these driving lights are built to endure the toughest conditions.

• DLE2 7 Inch driving light sets produce 16000lm per set of instant light output
• Includes black protective covers
• 5W Osram LED’s produce super white light close to daylight
• Multi-volt 11-32V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP68 rated
• Simple 2 wire installation with Deutsch plug
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

	THERMAL MANAGEMENT TECHNOLOGY
	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATERPROOF
	REVERSE POLARITY PROTECTION
	OVER/UNDER VOLTAGE PROTECTION
	DEUTSCH CONNECTOR
	OSRAM LEDS
	RADIO INTERFERENCE APPROVED
	3 YEAR WARRANTY

7" BEAM PATTERN (RDL1701C)

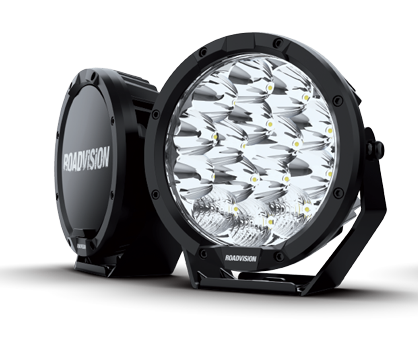

Part Number	RDL1701C
Description	DLE Series 7" Round 21 LED
Beam Pattern	Combination
Maximum Lumens	16000lm per set
Maximum Lux @ 10m	8,790lx per set
Maximum Beam Distance @ 1LX	941m per set
Input Voltage	10-30VDC
Maximum Watts	170W Per Set
Number of LEDS	15 x 5W Osram Each
Current Draw @ 13.8V	12.32 Amps per set
Lens Construction	Polycarbonate
Housing Construction	Die-Cast Aluminium
Wiring	2 Pin Deutsch Plug

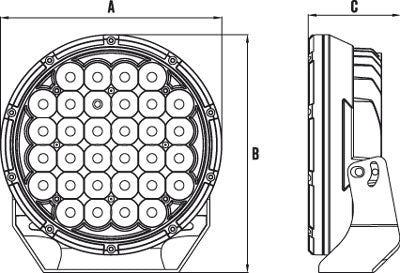

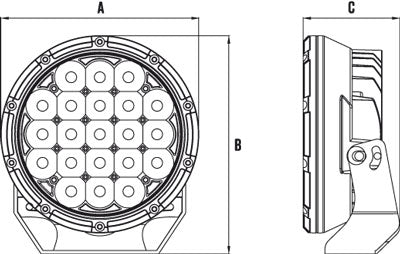

Dimensions AxBxC	178 x 193 x 82mm
