24" HD LED 12V TV with Built-in DVD player

📺 ENGLAON 24” HD LED 12V TV WITH BUILT-IN DVD PLAYER – LED24M40

24” HD Caravan TV with Region-Free DVD Player, HD Tuner & Low-Power 12V Operation

📺 Keep entertainment simple on the road with the ENGLAON LED24M40 – a purpose-built 24” 12V television combining an HD LED screen, built-in digital TV tuner and integrated DVD player in one compact package.

Designed for caravans, motorhomes, campervans, trucks and other mobile applications, the LED24M40 is ideal for travellers who want dependable television and DVD entertainment without paying for Smart TV features they may never use.

With its 1366 × 768 HD display, twin 5W speakers, HDMI and USB connectivity, vibration-resistant design and low power consumption, it is a practical entertainment solution for touring and off-grid use.

---

⚡ KEY FEATURES

📺 24” HD LED Display
Enjoy clear widescreen viewing on a 24-inch / 60cm LED screen with 1366 × 768 HD resolution.

💿 Built-In DVD Player
Watch your favourite movies and TV series without carrying a separate DVD player or additional entertainment equipment.

🌏 Region-Free DVD Playback
The integrated DVD player is region free, making it convenient for travellers with compatible DVDs purchased from different regions.

📡 Built-In HD Digital Tuner
Connect a suitable antenna and tune into available free-to-air digital television without needing a separate external tuner.

🔊 Twin 5W Speakers
Two built-in 5W speakers provide a combined 10W of audio output, with Dolby Audio for improved onboard sound.

🔋 Low Power Consumption
Uses approximately 21W / 1.8A during operation, making it well suited to caravan and auxiliary-battery systems.

🛣️ Vibration Resistant
Designed specifically for mobile use where the television may be exposed to vibration while travelling on roads and tracks.

🔌 12V & 240V Operation
Designed for low-voltage DC operation with a 10–18V range, while 240V operation is available through the appropriate adaptor.

🛡️ 10–18V Protection
Integrated 10–18V protection is designed for the variable electrical conditions encountered in mobile 12V applications.

🎮 HDMI Input
Connect a compatible streaming device, gaming console, media player or other HDMI source.

💾 USB Input
Provides USB connectivity for compatible media and external devices.

🪶 Lightweight Design
At just 2.5kg, the LED24M40 is easy to accommodate in weight-conscious caravan and RV installations.

---

📺 SIMPLE ENTERTAINMENT WITHOUT SMART TV COMPLEXITY

The LED24M40 is designed for travellers who simply want reliable television and DVD entertainment.

There is no built-in Smart TV operating system, Wi-Fi, Bluetooth, Chromecast or integrated streaming platform. Instead, the focus is on straightforward entertainment with free-to-air television, DVD playback and external media connectivity.

If you already use your own streaming device, the HDMI input allows you to add compatible streaming capability without paying for duplicated Smart TV features.

⚠️ IMPORTANT: The LED24M40 is not a Smart TV. Wi-Fi, Bluetooth, Chromecast and built-in streaming apps are not included.

---

💿 BUILT-IN REGION-FREE DVD PLAYER

The integrated DVD player is one of the standout features of the LED24M40.

Take your favourite films, television series or kids' DVDs with you and enjoy them without relying on mobile reception, Wi-Fi or streaming subscriptions.

Because the DVD player is built directly into the television, there is no need for an additional DVD player, extra power supply or separate mounting location.

For travellers heading into areas with limited internet coverage, physical DVD playback can be an extremely useful entertainment option.

---

📡 BUILT-IN HD DIGITAL TV TUNER

The LED24M40 has an integrated HD digital television tuner, allowing access to available free-to-air television channels when connected to a suitable antenna.

Watch local news, sport, television shows and other broadcasts without having to carry a separate external tuner.

⚠️ IMPORTANT: Television reception depends on your location, antenna system, signal strength and local broadcast coverage.

---

🖼️ 24” HD LED DISPLAY

The 24-inch / 60cm LED screen provides a compact viewing size that works particularly well in caravans, motorhomes and campervans where wall space and viewing distance can be limited.

Its 1366 × 768 HD resolution provides crisp, clear picture quality for television, DVDs and compatible external media.

Display specifications include:

• 24-inch / 60cm screen
• 1366 × 768 HD resolution
• 180cd/m² brightness
• 3000:1 contrast ratio
• 178° / 178° viewing angle
• 60Hz refresh rate
• 9.5ms response time

---

🔊 TWIN 5W SPEAKERS WITH DOLBY AUDIO

The LED24M40 includes two built-in 5W speakers, providing a combined 10W of onboard audio output.

Dolby Audio helps deliver clear, enjoyable sound for everyday television and movie viewing without requiring an external audio system.

If you want more volume or fuller sound, a compatible external soundbar can also be connected using an appropriate audio connection.

---

🛣️ BUILT FOR LIFE ON THE ROAD

Caravan televisions are regularly subjected to conditions that household televisions are not designed around, including constant vibration during travel.

ENGLAON designs its 12V television range with mobile use in mind, making the LED24M40 suitable for applications including:

• 🚐 Caravans
• 🚙 Campervans
• 🚍 Motorhomes
• 🚚 Trucks
• 🏕️ Touring setups
• 🚤 Compatible boat installations
• 🏠 Off-grid 12V systems

⚠️ IMPORTANT: The television must still be securely mounted and restrained before travelling. Vibration resistance does not replace correct installation.

---

🔋 LOW POWER CONSUMPTION – IDEAL FOR OFF-GRID USE

Power consumption is particularly important in caravans and RVs where every appliance draws from a limited battery supply.

The LED24M40 consumes approximately 21W / 1.8A, making it a relatively low-demand entertainment appliance for a compatible 12V auxiliary-battery system.

Based on the 1.8A figure, approximately five hours of television use would consume around 9Ah from the battery before allowing for variations in operating conditions.

This helps leave more available battery capacity for essential equipment such as:

• ❄️ 12V fridge or freezer
• 💡 Lighting
• 📱 Phone and device charging
• 💧 Water pumps
• 🔌 Other 12V accessories

---

🔌 12V DC & 240V MAINS OPERATION

The LED24M40 is designed primarily for low-voltage mobile use, with an operating voltage range of 10–18V DC.

This makes it suitable for compatible caravan, motorhome and auxiliary-battery systems.

It can also be operated from 240V mains power using the appropriate compatible adaptor.

⚠️ IMPORTANT: Never connect 240V mains power directly to the television's low-voltage DC input. 240V operation requires the correct power adaptor.

---

🔌 CONNECT EXTERNAL MEDIA DEVICES

Although this isn't a Smart TV, the LED24M40 gives you several ways to connect external entertainment equipment.

Available connections include:

• 🎮 1 × HDMI
• 💾 1 × USB
• 🎧 1 × Earphone Jack
• 🖥️ 1 × VGA
• 📺 1 × Component Input
• 🔊 1 × Coaxial Audio Output

A compatible external streaming device can therefore be added through HDMI if you want access to streaming services while retaining the simplicity of a non-smart television.

---

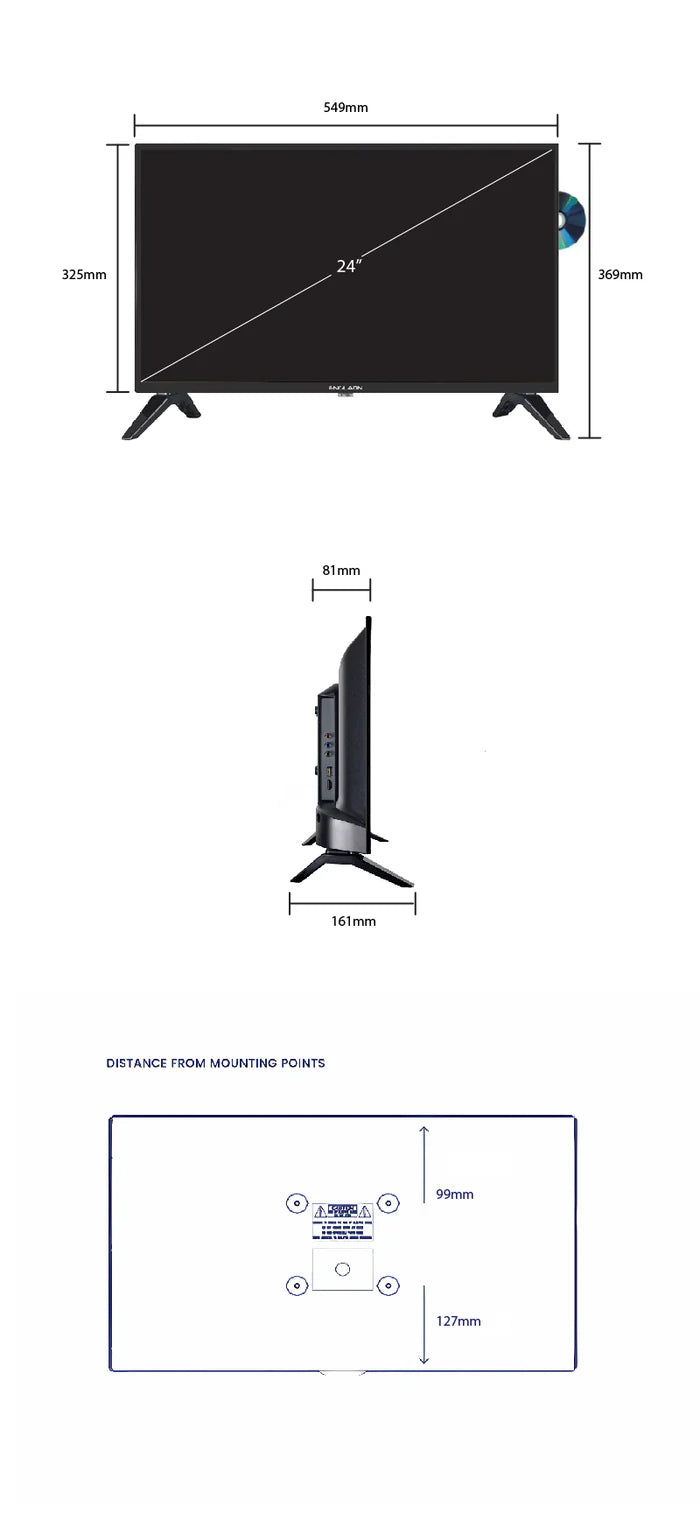

📐 LIGHTWEIGHT & EASY TO MOUNT

At only 2.5kg, the LED24M40 keeps additional weight to a minimum – an important consideration in caravans and other mobile installations.

The television uses a standard 100 × 100mm VESA mounting pattern for installation with a compatible wall or swing-arm mounting bracket.

VESA Pattern: 100 × 100mm

Mount Type: Wall Mount

TV Weight: 2.5kg

Gross Weight: 3.5kg

⚠️ IMPORTANT: Use a bracket compatible with the 100 × 100mm VESA pattern and adequately rated for mobile use and the weight of the television.

---

📋 DISPLAY SPECIFICATIONS

Brand: ENGLAON

Model: LED24M40

Display Size: 24 inch / 60cm

Resolution: HD – 1366 × 768

Brightness: 180cd/m²

Contrast Ratio: 3000:1

Viewing Angle: 178° / 178°

Refresh Rate: 60Hz

Response Time: 9.5ms

---

📡 ENTERTAINMENT FEATURES

Smart TV: No

Streaming Apps: No

Built-In DVD Player: Yes

DVD Playback: Region Free

Built-In HD Digital Tuner: Yes

Built-In Chromecast: No

Built-In Bluetooth: No

Wi-Fi: No

Built-In Speakers: 2 × 5W

Dolby Audio: Yes

---

🔌 CONNECTIONS

HDMI: 1

USB: 1

Earphone Jack: 1

VGA: 1

Component Input: 1

Coaxial Audio Output: 1

Type-C: 0

DisplayPort: 0

PC Audio Input: 0

---

⚡ ELECTRICAL SPECIFICATIONS

Application: 12V Caravan / RV Television

Operating Voltage Range: 10–18V DC

Protection: 10–18V

Power Consumption: 21W

Current Consumption: Approximately 1.8A

Alternate Headline Current Specification: 2.0A

240V Operation: Via appropriate adaptor

---

❌ WHAT THIS TV DOES NOT HAVE

The LED24M40 is intentionally designed as a straightforward TV and DVD combination rather than a full Smart TV platform.

• ❌ No built-in Wi-Fi
• ❌ No Bluetooth
• ❌ No Chromecast
• ❌ No built-in streaming apps
• ❌ No Smart TV operating system

If your priority is free-to-air television, DVD playback and the ability to connect your own HDMI equipment, this simpler configuration can be exactly what you need.

---

🚐 WHY THE LED24M40 IS IDEAL FOR CARAVANS

A good caravan television needs to offer more than just a clear picture.

The LED24M40 brings together the key features that matter when travelling:

• 🔋 Low 12V power consumption
• 🛣️ Vibration-resistant construction
• 🪶 Lightweight 2.5kg design
• 💿 Built-in region-free DVD player
• 📡 Built-in HD digital tuner
• 🔊 Twin 5W speakers
• 🎮 HDMI connectivity
• 💾 USB connectivity
• 📐 100 × 100mm VESA mounting

It provides a practical all-in-one entertainment solution without unnecessary features or excessive battery demand.

---

⚠️ INSTALLATION CONSIDERATIONS

• Use a compatible 10–18V DC power supply
• Observe correct electrical polarity
• Use suitably sized cable for the installation length
• Provide appropriate fuse protection
• Use the correct adaptor for 240V mains operation
• Use a compatible 100 × 100mm VESA mounting bracket
• Secure the television before travelling
• Allow adequate ventilation around the television
• Protect power and signal cables from abrasion and damage

---

❓ FREQUENTLY ASKED QUESTIONS

Why would I choose this model instead of a Smart TV?

The LED24M40 is a good choice if you want a simple, dependable caravan television without relying on internet access. You get free-to-air TV, a built-in region-free DVD player and HDMI connectivity for adding your own streaming device later if required. It is particularly useful for travellers who spend time in areas where mobile reception or Wi-Fi can be unreliable.

Can I connect this TV directly to my caravan's 12V battery system?

Yes, provided the electrical supply remains within the TV's 10–18V DC operating range and the circuit is correctly fused and wired. This operating range is suitable for most correctly operating 12V AGM and lithium caravan battery systems.

Will it work with a lithium battery system?

Yes. A typical 12V lithium battery system operates within the television's stated 10–18V input range. The TV should still be connected through a correctly protected circuit with suitable cable sizing and polarity.

Can I connect it directly to a 24V truck or 24V battery system?

No. The television is rated for 10–18V DC and should not be connected directly to a 24V electrical system. A correctly rated 24V-to-12V DC converter would be required for a 24V installation.

How much battery power will it actually use while camping?

Using the detailed 1.8A current figure, five hours of viewing would use approximately 9Ah from your battery. Eight hours would use approximately 14.4Ah. This makes it a relatively light load compared with many other caravan appliances, although actual consumption can vary slightly with operating conditions.

Is the built-in DVD player useful if we mostly camp off-grid?

Yes. The built-in DVD player is one of the main advantages of this model for remote travel. You can watch movies or TV series without requiring internet reception, mobile data or a streaming subscription.

Will Australian DVDs work in the built-in DVD player?

Yes. The DVD player is listed as region free, making it suitable for compatible Australian DVDs as well as compatible discs from other regions.

Can I still use Netflix, YouTube or other streaming services with this TV?

Yes, but you will need a separate compatible streaming device connected through the HDMI input because the LED24M40 does not have built-in Smart TV apps or Wi-Fi. This can be a good option if you already have a preferred streaming device and do not want to pay extra for Smart TV features built into the television.

Will the USB port power a streaming stick?

The TV includes a USB port, but the available USB power output has not been specified. Some streaming devices may therefore require their own separate power supply rather than relying on the television's USB connection.

Can I play movies directly from a USB drive?

The television includes a USB connection, but supported video, audio and file formats have not been specified. If USB media playback is important, check compatibility with the file formats you intend to use before purchase.

Do I need a separate TV tuner for free-to-air television?

No. The HD digital tuner is built into the TV. You will still need a suitable caravan or RV television antenna and adequate reception at your location.

Will I still get free-to-air TV when travelling remotely?

That depends on local broadcast coverage and your antenna system. The built-in tuner can receive compatible free-to-air broadcasts, but the television cannot create a signal where no terrestrial TV coverage exists. In remote areas, the built-in DVD player or an external media device can provide entertainment when television reception is unavailable.

Is the built-in sound good enough for a caravan?

For normal caravan viewing, the twin 5W speakers provide a combined 10W of built-in audio and will suit many installations. If you want stronger bass, higher volume or fuller movie sound, you can add a compatible external soundbar or audio system.

Can I connect a soundbar to this TV?

Yes. The TV provides audio-output options including an earphone connection and coaxial audio output. The correct connection method will depend on the inputs available on your soundbar.

Is 24 inches a good size for a caravan?

For many caravans and campervans, 24 inches is a practical balance between screen size, viewing distance and available wall space. It is large enough for comfortable viewing while remaining compact and lightweight at only 2.5kg.

Can I mount it on a caravan swing-arm TV bracket?

Yes, provided the bracket uses or supports the TV's 100 × 100mm VESA mounting pattern and is rated for at least the television's 2.5kg weight. For mobile installations, the bracket should also have a secure travelling position or locking mechanism to prevent movement while driving.

Do I need to remove the TV from its bracket when travelling?

Not necessarily. A properly installed caravan-rated mounting bracket can allow the TV to remain mounted, but it should be securely locked or restrained in its travel position. Always check the rating and instructions for the specific bracket being used.

What makes this TV better suited to a caravan than a normal household TV?

The LED24M40 combines low-voltage 12V operation, low power consumption, lightweight construction, VESA mounting and vibration resistance in a television designed for mobile use. A standard household television is generally designed around stationary 240V operation rather than regular vehicle travel.

Can I use it at a powered caravan site on 240V?

Yes. The television can be operated from 240V using the correct compatible power adaptor, allowing you to use mains power when available and 12V power when camping off-grid.

Does the 240V adaptor bypass the caravan battery?

When the TV is powered directly from a suitable 240V adaptor connected to mains power, it does not need to draw its operating power from the caravan's 12V battery supply. The exact wiring arrangement will depend on how your television is installed.

Will the TV tolerate normal charging voltage from my caravan battery charger or solar system?

The television is rated for 10–18V DC, which covers the normal operating and charging voltage range of most 12V caravan electrical systems. The system should still be correctly regulated and kept within the TV's specified voltage range.

Can voltage spikes from my vehicle damage the TV?

The LED24M40 is designed for mobile 12V use and has a stated 10–18V protection specification. Correct wiring and circuit protection are still important, and the TV should never be exposed to voltage outside its rated operating range.

Is this a good TV for kids while travelling?

It can be particularly practical for family touring because the built-in DVD player allows entertainment without relying on mobile data or Wi-Fi. Once parked safely, children can watch compatible DVDs or content from an external HDMI device.

Who is this TV best suited to?

The LED24M40 is best suited to travellers who value reliability, low power consumption and simple operation. If your priorities are free-to-air television, DVDs and the option to connect your own media device, it provides the core features you need without the additional cost and complexity of a full Smart TV.

---

📺 TV, DVD & FREE-TO-AIR ENTERTAINMENT IN ONE COMPACT 12V PACKAGE

The ENGLAON LED24M40 gives you the entertainment features that matter most on the road – a clear 24” HD display, built-in region-free DVD player, HD digital tuner, twin 5W speakers and connectivity for your own external devices.

Its low power consumption, lightweight 2.5kg construction, vibration-resistant design and 100 × 100mm VESA mounting make it a particularly practical choice for caravans, campervans and motorhomes.

If you want a dependable 12V television that lets you watch free-to-air TV, take your DVD collection anywhere and connect your own HDMI devices without the added complexity of a Smart TV, the ENGLAON LED24M40 is an excellent touring entertainment solution.
