📺 ENGLAON 24” HD LED 12V TV FOR CARAVANS – LED24M30

Simple, Lightweight & Low-Power 12V Television for Caravans, Motorhomes, Campervans, Trucks & RVs

📺 Looking for a dependable 12V caravan TV without the extra complexity of a Smart TV? The ENGLAON LED24M30 is designed specifically for travellers who want straightforward television, low power consumption and reliable performance on the road.

Featuring a 24-inch HD LED display, 1366 × 768 resolution, built-in HD digital tuner, twin 5W speakers, HDMI and USB connectivity, the LED24M30 gives you everything you need for everyday caravan entertainment without paying for smart features you may never use.

Its lightweight 2.1kg design, 100 × 100mm VESA mounting pattern and low-voltage operation make it particularly well suited to caravans, campervans, motorhomes, trucks and other compatible mobile installations.

---

⚡ KEY FEATURES

📺 24” HD LED Display
Enjoy clear, vibrant viewing from a compact 24-inch / 60cm widescreen display with 1366 × 768 HD resolution.

🚐 Purpose-Built for Caravan & RV Use
Designed as a low-voltage television for mobile applications including caravans, campervans, motorhomes, trucks and compatible RV installations.

📡 Built-In HD Digital TV Tuner
Tune into available free-to-air television channels without needing to purchase a separate external TV tuner.

🔊 Twin 5W Speakers
Built-in 2 × 5W speakers provide a combined 10W of onboard audio, with Dolby Audio listed in the supplied product information.

🔋 Low Power Consumption
The supplied specification lists power consumption of approximately 24W and 2.0A, helping reduce demand on your caravan or auxiliary battery system.

🛣️ Vibration Resistant
Designed for mobile use where the television may be exposed to vibration during travel over roads, tracks and touring conditions.

🔌 12V & 240V Power Options
Designed for low-voltage operation with a supplied specification of 10–18V DC, while the product information also lists a 240V adaptor arrangement for mains operation.

🎮 HDMI Input
Connect a compatible media player, gaming console, streaming device or other HDMI source.

💾 USB Input
Provides USB connectivity for compatible external media and devices.

🖥️ VGA Input
Includes VGA connectivity for compatible legacy computers or external video sources.

🪶 Lightweight Design
At just 2.1kg, the television is well suited to weight-conscious caravan and RV installations.

---

📺 SIMPLE ENTERTAINMENT WITHOUT THE SMART-TV COMPLEXITY

The ENGLAON LED24M30 is designed for customers who simply want a reliable television for free-to-air viewing and connected entertainment.

There is no built-in Smart TV operating system, Wi-Fi, Bluetooth, Chromecast or streaming-app platform.

That makes it a straightforward choice for travellers who prefer to use conventional television or connect their own compatible external media or streaming device through HDMI.

⚠️ IMPORTANT: This model is NOT a Smart TV. Streaming apps, Wi-Fi, Bluetooth and Chromecast are not built in.

---

🖼️ 24” HD LED DISPLAY

The LED24M30 features a 24-inch / 60cm LED screen with a native resolution of 1366 × 768.

Its compact screen size makes it particularly suitable for caravans and RVs where viewing distance and available wall space may be limited.

The supplied display specifications include:

• 24-inch / 60cm screen
• 1366 × 768 HD resolution
• 150cd/m² brightness
• 3000:1 contrast ratio
• 178° / 178° viewing angle
• 60Hz refresh rate
• 9.5ms response time

---

📡 BUILT-IN HD DIGITAL TV TUNER

No separate portable television tuner is required for normal compatible free-to-air reception.

The built-in HD tuner allows you to tune into locally available television broadcasts when connected to a suitable television antenna and when reception is available.

Whether you're watching sport, catching the news or relaxing with your favourite program after a day on the road, the tuner keeps the setup simple.

⚠️ IMPORTANT: Free-to-air reception depends on location, signal strength, antenna system and local broadcast availability.

---

🔊 BUILT-IN 2 × 5W AUDIO

The LED24M30 includes two built-in 5W speakers, providing a total stated speaker output of 10W.

The supplied product information also refers to Dolby Audio, providing an enhanced onboard sound option for everyday television viewing.

If additional audio performance is required, the supplied description states that a compatible soundbar can be connected using a line-in audio connection.

---

🛣️ VIBRATION RESISTANT FOR LIFE ON THE ROAD

ENGLAON describes its 12V television range as specifically designed to withstand the vibration associated with mobile use.

This makes the LED24M30 particularly suited to caravans, campervans, motorhomes and other vehicles that regularly travel on varying road surfaces.

The television should still be securely mounted and restrained in accordance with the manufacturer's instructions before travelling.

---

🔋 LOW POWER CONSUMPTION

The supplied product information lists television power consumption at approximately 24W and 2.0A.

At a nominal 12V supply, 24W corresponds to approximately 2A, making the LED24M30 a relatively low-demand entertainment appliance for compatible auxiliary-battery systems.

This is particularly useful when camping away from mains power where battery capacity needs to be shared between appliances such as:

• ❄️ 12V fridge
• 💡 Lighting
• 📱 Phone and device charging
• 💧 Water pumps
• 📺 Television

---

🔌 12V DC & 240V OPERATION

The LED24M30 is designed around low-voltage operation for mobile installations.

The detailed specification lists an operating voltage range of 10–18V DC, while the headline product information also states “12V & 240V Adaptor”.

This allows the television to be used in compatible 12V systems and, where the appropriate adaptor is supplied and used, from 240V mains power.

---

🔌 CONNECT YOUR OWN ENTERTAINMENT DEVICES

Although the LED24M30 is not a Smart TV, it includes several useful connections for compatible external devices.

Connect a compatible streaming device, media player, computer or other entertainment source using the available ports.

Connections listed in the supplied specifications include:

• 1 × HDMI
• 1 × USB
• 1 × Earphone Jack
• 1 × VGA
• 1 × Component Input
• 1 × Coaxial Audio Output

---

🚐 IDEAL FOR CARAVANS, MOTORHOMES & TOURING

The combination of low-voltage operation, light weight and compact dimensions makes the LED24M30 particularly suitable for mobile entertainment applications.

Typical installations can include:

• 🚐 Caravans
• 🏕️ Camper trailers
• 🚙 Campervans
• 🚍 Motorhomes
• 🚚 Trucks
• 🚤 Compatible boat installations
• 🏠 Off-grid 12V entertainment systems

---

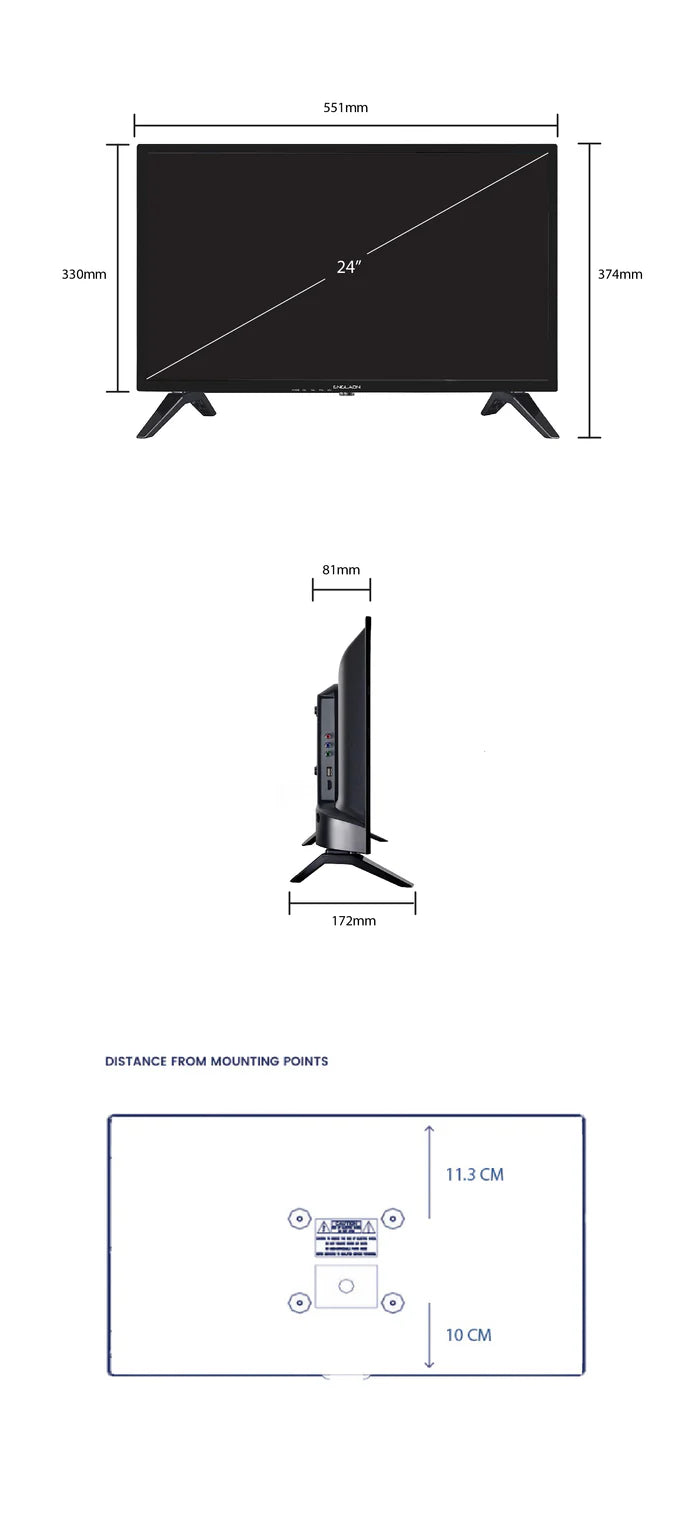

📐 LIGHTWEIGHT & EASY TO MOUNT

The television itself weighs just 2.1kg, helping keep additional weight to a minimum in caravan and RV installations.

A standard 100 × 100mm VESA mounting pattern is provided for attachment to a compatible wall or swing-arm TV bracket.

Supplied mounting type: Wall Mount

Net Weight: 2.1kg

Gross Weight: 3.1kg

VESA Pattern: 100 × 100mm

⚠️ IMPORTANT: Ensure any bracket used is compatible with the 100 × 100mm VESA pattern, suitably rated for the TV weight and appropriate for vibration encountered in a mobile installation.

---

📋 DISPLAY SPECIFICATIONS

Model: ENGLAON LED24M30

Display Size: 24 inch / 60cm

Display Type: LED

Resolution: HD – 1366 × 768

Brightness: 150cd/m²

Contrast Ratio: 3000:1

Viewing Angle: 178° / 178°

Refresh Rate: 60Hz

Response Time: 9.5ms

---

📡 ENTERTAINMENT FEATURES

Smart TV: No

Operating System: None

Streaming Apps: No

Built-In DVD: No

Built-In Chromecast: No

Built-In Bluetooth: No

Wi-Fi: No

HD Digital Tuner: Yes

Built-In Speakers: 2 × 5W

Dolby Audio: Listed in supplied product information

---

🔌 CONNECTIONS

HDMI: 1

USB: 1

Earphone Jack: 1

VGA: 1

Component Input: 1

Coaxial Audio Out: 1

DisplayPort: 0

PC Audio: 0

---

⚡ ELECTRICAL SPECIFICATIONS

Nominal Application: 12V

Specified DC Voltage Range: 10–18V

Protection Specification: 10–18V

Supplied Power Consumption: 24W

Supplied Current Figure: 2.0A

240V Operation: Product information states 12V & 240V adaptor capability

---

❌ WHAT THIS TV DOES NOT INCLUDE

The LED24M30 is intentionally designed as a straightforward non-smart television.

According to the supplied specifications, it does not include:

• ❌ Smart TV operating system
• ❌ Built-in streaming apps
• ❌ Wi-Fi
• ❌ Bluetooth
• ❌ Chromecast
• ❌ Built-in DVD player

For customers who already use an external media or streaming device, this simpler configuration can be an advantage rather than paying for duplicated smart features.

---

⚠️ INSTALLATION CONSIDERATIONS

• Use the correct 10–18V DC supply
• Observe correct DC polarity
• Use appropriately sized power cable for the installation length
• Provide suitable fuse protection to the DC supply
• Use a compatible 100 × 100mm VESA bracket
• Ensure the television is securely restrained before travelling
• Allow adequate ventilation around the television
• Protect power and signal cables from abrasion and damage
• Use the appropriate approved adaptor for 240V operation

---

❓ FREQUENTLY ASKED QUESTIONS

Is this a 12V television?

Yes. The LED24M30 is designed for low-voltage mobile applications, with a supplied operating range of 10–18V DC.

Can I use it in my caravan?

Yes. Caravan use is one of the primary applications described for this model.

Can I use it in a motorhome or campervan?

Yes. Its compact size, 12V operation and lightweight construction make it suitable for compatible motorhome and campervan installations.

Can it run from 240V?

The supplied product information lists 12V and 240V adaptor capability. The television's specified DC input range is 10–18V, so mains operation requires the appropriate approved 240V-to-DC power adaptor.

Is this a Smart TV?

No. This model is specifically designed as a straightforward non-smart television.

Does it have Netflix?

No built-in streaming apps are listed. A compatible external streaming device could potentially be connected through HDMI.

Does it have Wi-Fi?

No. Wi-Fi is not built in.

Does it have Bluetooth?

No. Built-in Bluetooth is not included.

Does it have Chromecast?

No. Chromecast is not built in.

Does it have a DVD player?

No. The supplied specifications state that there is no built-in DVD player.

Can I connect a streaming device?

Potentially, yes. The television includes one HDMI input for a compatible external streaming or media device.

What resolution is the screen?

The native resolution is 1366 × 768 HD.

Is it Full HD?

No. The supplied resolution is 1366 × 768 HD rather than 1920 × 1080 Full HD.

What size is the screen?

The display is 24 inches, approximately 60cm.

Does it have a built-in TV tuner?

Yes. A built-in HD digital television tuner is included.

Can I watch free-to-air television?

Yes, when connected to a suitable antenna and where compatible free-to-air television signals are available.

How many speakers does it have?

The television has two built-in 5W speakers.

What is the total built-in speaker output?

The supplied speaker configuration is 2 × 5W, giving a combined stated speaker output of 10W.

Can I connect a soundbar?

The supplied product description states that a compatible soundbar can be connected via a line-in audio cable.

How much power does the TV use?

The supplied power-consumption figure is 24W, with a stated current figure of approximately 2.0A.

Will it use much of my caravan battery?

At the supplied figure of approximately 2A, five hours of viewing would represent roughly 10Ah of battery use before allowing for variations in operating current and system conditions.

How heavy is the TV?

The supplied television weight is 2.1kg.

What is the gross packaged weight?

The supplied gross weight is 3.1kg.

Can it be wall mounted?

Yes. The supplied mounting type is wall mount.

What VESA mounting pattern does it use?

The supplied VESA pattern is 100 × 100mm.

How many HDMI ports are there?

One HDMI input is listed.

How many USB ports are there?

One USB port is listed.

Does it have a headphone socket?

Yes. One earphone jack is listed.

Does it have VGA?

Yes. One VGA connection is listed.

Does it have coaxial audio output?

Yes. One coaxial audio output is listed.

What is the viewing angle?

The supplied viewing angle is 178° horizontal and 178° vertical.

What is the refresh rate?

The supplied refresh rate is 60Hz.

What is the response time?

The supplied response time is 9.5ms.

Is the TV vibration resistant?

Yes. ENGLAON describes this model and its 12V television range as vibration resistant for mobile applications.

Is this a good choice if I don't want a Smart TV?

Yes. This model is specifically suited to customers who want a simple 12V HD television with a built-in tuner and external-device connectivity without integrated Smart TV features.

---

📺 SIMPLE, DEPENDABLE 12V ENTERTAINMENT FOR THE ROAD

The ENGLAON LED24M30 24” HD LED TV is a practical choice for travellers who want dependable television without unnecessary Smart TV features.

With its 1366 × 768 HD display, built-in digital tuner, twin 5W speakers, low 24W power consumption, vibration-resistant design, HDMI and USB connectivity and lightweight 2.1kg construction, it provides the essential features needed for caravan and RV entertainment.

For caravanners, campers and travellers who simply want to turn on the TV, tune into local channels or connect their own media device and enjoy the evening, the ENGLAON LED24M30 delivers a straightforward 12V entertainment solution built for life on the road.
