ENERDRIVE
Enerdrive 3000 Watt Inverter / Chargre
Enerdrive 3000 Watt Inverter / Chargre
SKU:EN230100-12
Couldn't load pickup availability

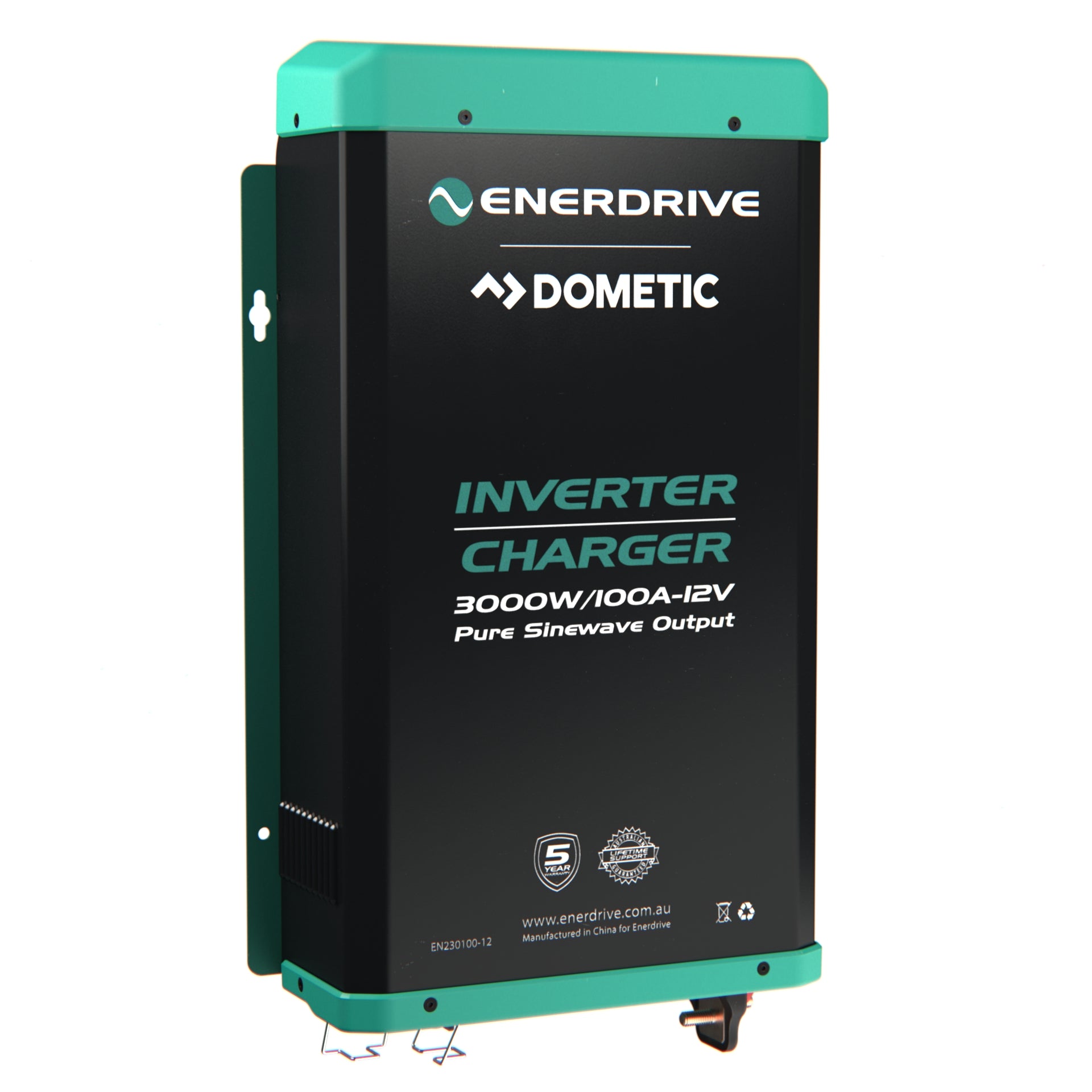

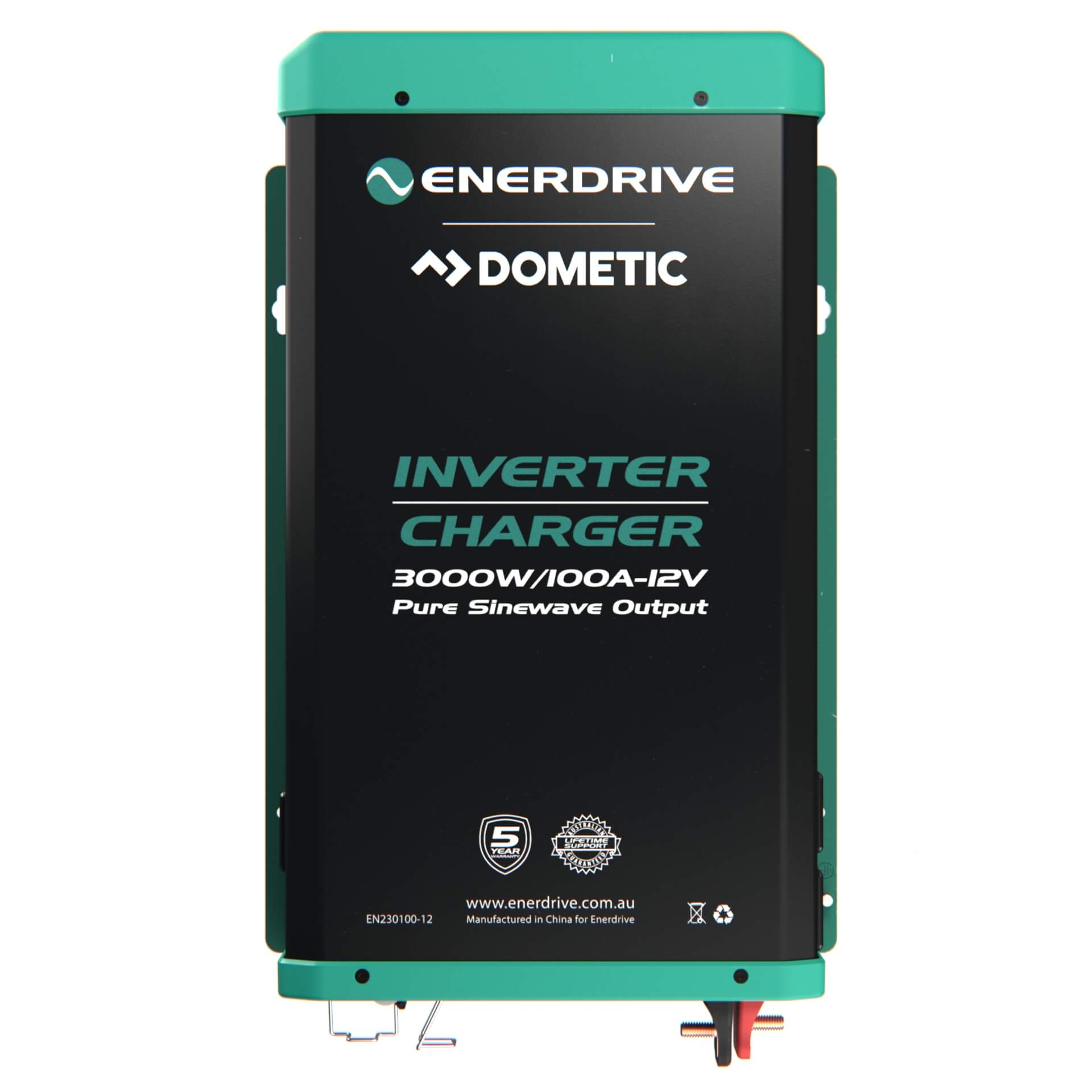

Enerdrive Inverter/Charger (Combi) 3000W/100A - 12V
The Enerdrive 3000W/100A 12V Inverter-Charger is a powerful, all-in-one off-grid solution, designed to deliver true sinewave 240V AC power and automatically charge your battery system when 240V input is available. Ideal for high-powered caravan, 4WD, marine, and remote setups, this unit can handle multiple large appliances such as induction cooktops, coffee machines, and microwaves with ease.
Equipped with a built-in RCD safety switch, seamless 16A internal transfer switch, and smart multi-stage battery charger, it offers peace of mind, performance, and flexibility. Compatible with Gel, AGM, Flooded, and Lithium batteries.
Key Features
- 3000W True Sinewave Inverter (13A @ 230VAC Output)
- 100A Multi-Stage Battery Charger
- 16A Seamless AC Internal Transfer Switch
-
Built-in RCD Safety Switch with Test Button

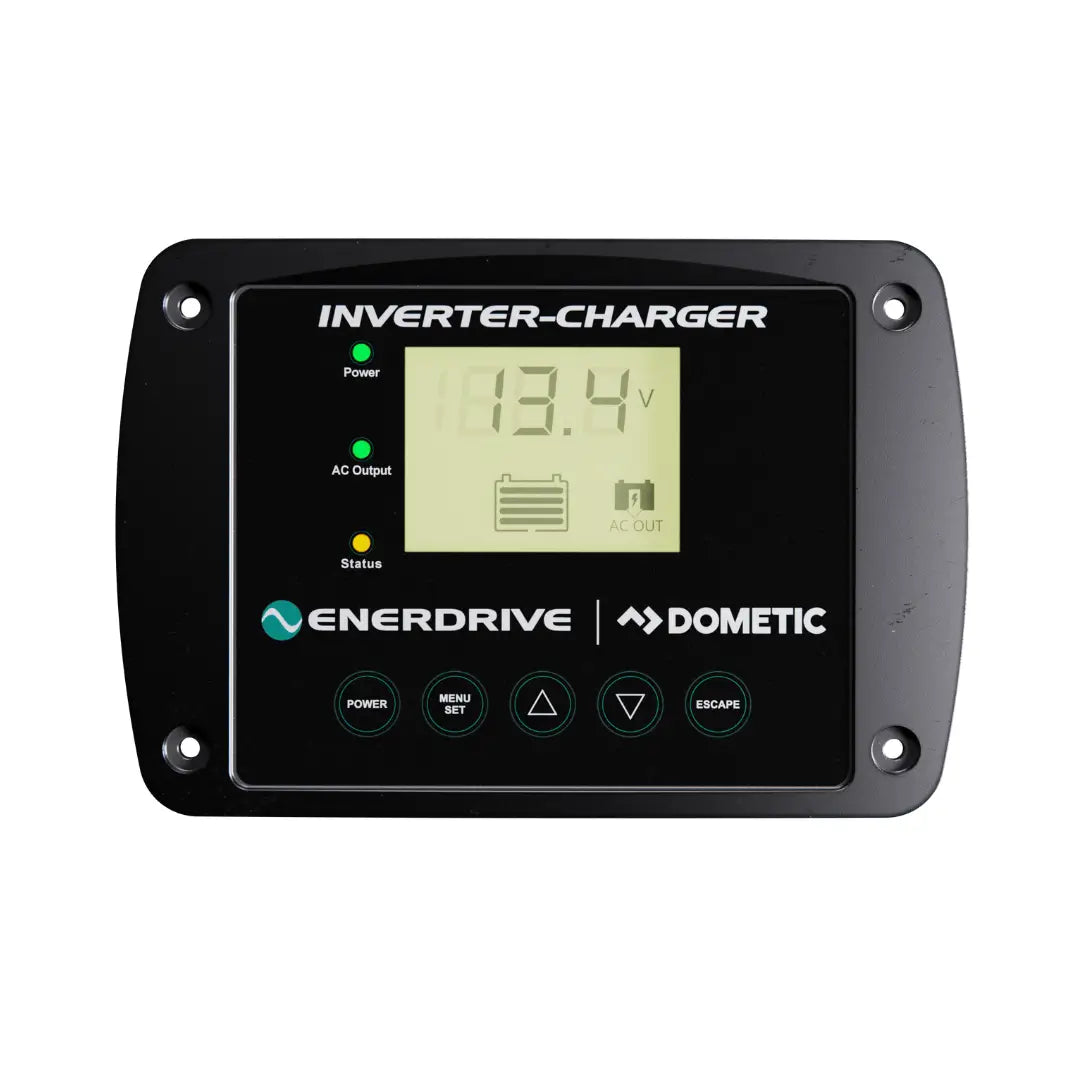

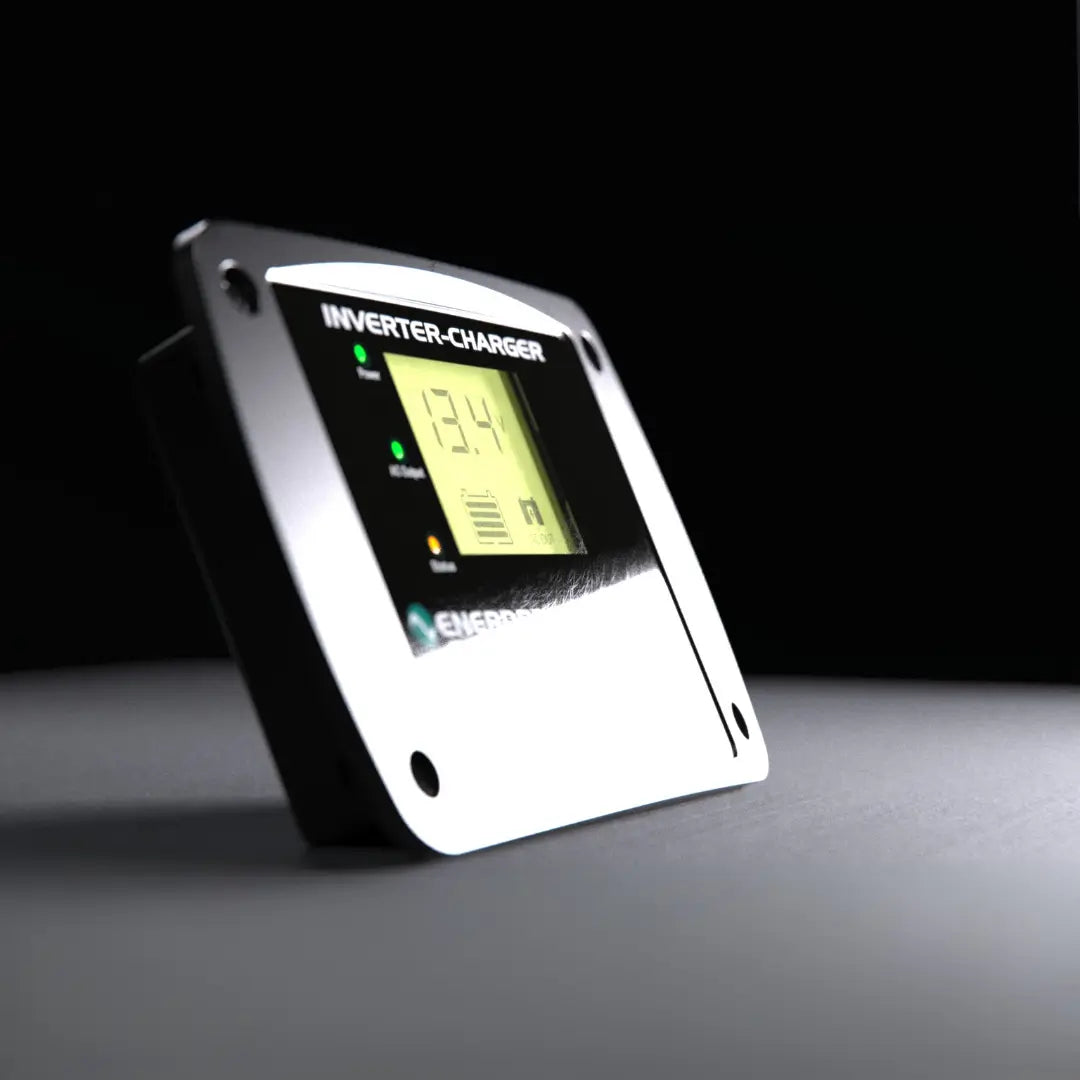

(shuts off power within 0.03 seconds in unsafe conditions) - Remote Control Display Panel Included
- Compatible with AGM, Gel, Flooded & Lithium Batteries
- Load Sense Technology – Reduces power draw when idle
- Quiet Operation – Optimised for silent environments
- Compact & Lightweight Design for easy installation
⚠️ Maintenance Tip: Always ensure IEC plugs are fully inserted after off-road use and check them every 6 months.
Applications
Ideal for:
- Off-grid caravans & motorhomes
- 4WD and overland setups
- Marine vessels & houseboats
- Remote power installations
- High-powered appliance support
Technical Specifications
Specification | Details |
---|---|
DC Input Voltage (Nominal) | 12.5V DC |
DC Operating Range | 10.5 – 16.5V DC |
Charger Output (Max) | 100A |
AC Output Power | 3000W (13A @ 230VAC) |
Waveform | True Sinewave (<3% THD) |
Transfer Switch | Built-in, <30ms transfer time |
Transfer Relay Rating | 16A |
Efficiency (Peak) | 90% |

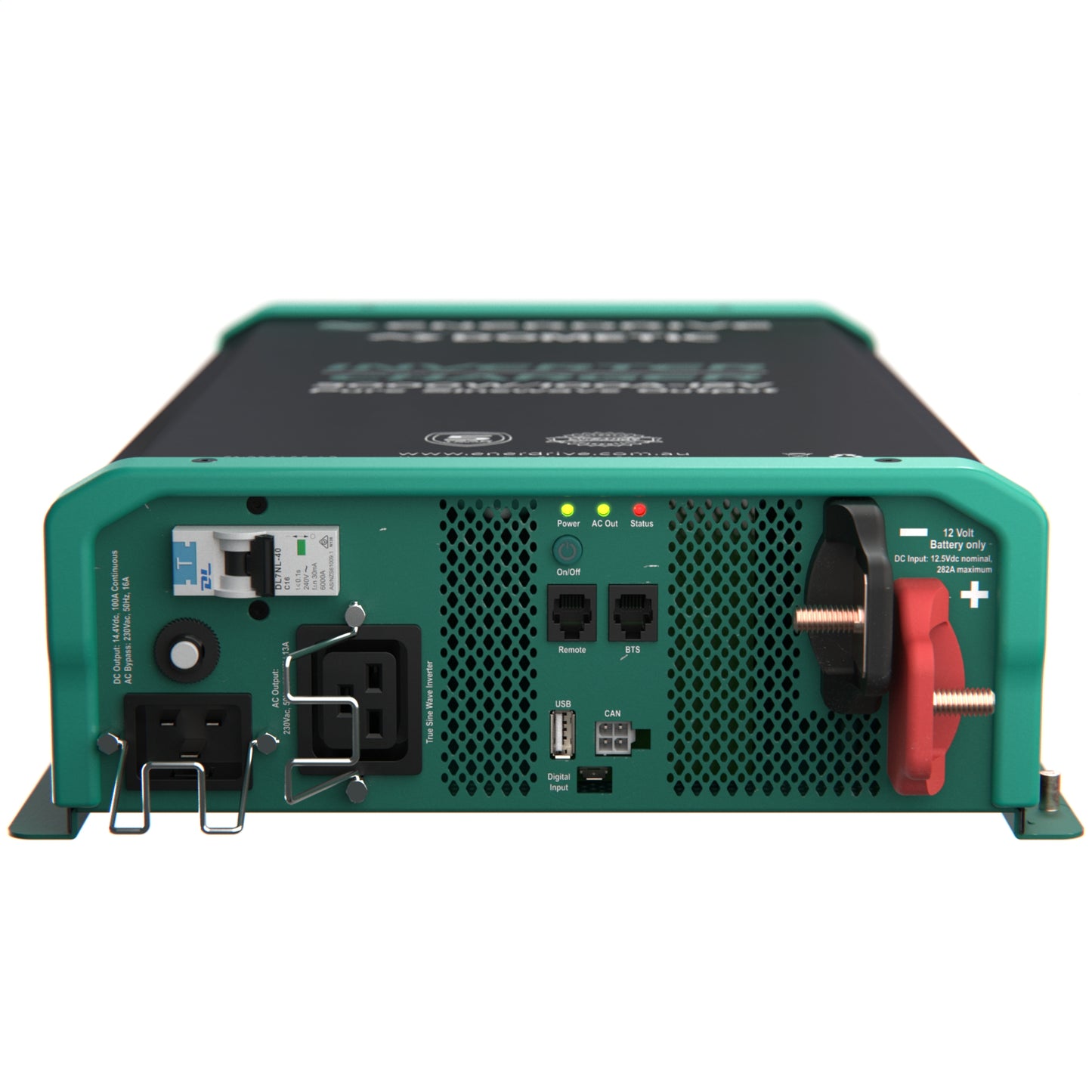

Input/Output Connectors | IEC-C20 Input / IEC-C19 Output |
Safety Compliance | LVD: EN/IEC 62040-1, IEC 61558-2-16 |
Environmental Ratings | CE Marked, 0°C to 40°C operation |
Altitude Rating | Up to 3000m |
Relative Humidity | 5 – 90% (non-condensing) |
Weight | 10.4 kg |
Dimensions (W x H x D) | 307 x 533 x 108 mm |
Storage Temp Range | -20°C to 60°C |
